USER MANUAL PIXMA G4410 CANON

Read Safety and Important Information (addendum) first.

Red background with white icons of a laptop and smartphone, no text or symbols present

Connecting with Computer and Smartphone/Tablet ...... page 4

Hand holding a play button icon with a white triangle, on a dark background (no text or symbols visible)

Line drawing of a printer with paper and paperclip (no text or symbols)

http://ij.start.canon

Prohibition sign showing a printer with a red diagonal line and no text or symbols

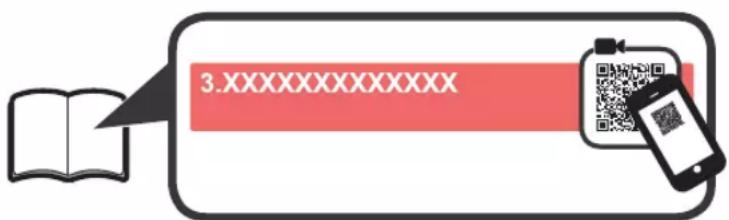

3.XXXXXXXXXXX

1. Checking Included Items

□ Cartridge □ Ink bottle
□ Power cord
□ Modular cable
□ Setup CD-ROM for Windows PC
□ Safety and Important Information
□ Getting Started (this manual)

2. Removing Packing Materials

1 Remove the packing materials (such as orange tape) from outside the printer.

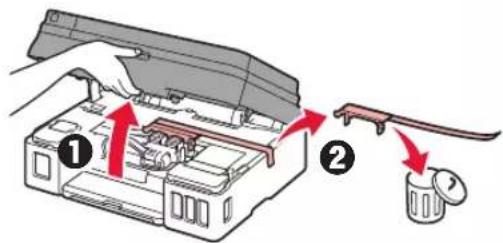

2 ① Open the scanning unit / cover. ② Remove the orange tape and the protective material and discard them.

Diagram showing a device with labeled parts and directional arrows indicating movement or assembly steps

3. Installing the Cartridge

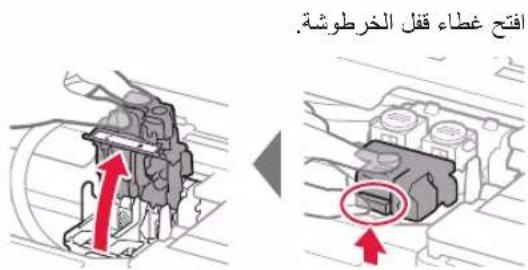

1 Open the cartridge locking cover.

Mechanical component diagram showing a connector with a red arrow pointing to it (no text or symbols present)

Diagram of a mechanical device with a red upward arrow indicating motion or force (no text or symbols present)

2 Take out each cartridge from the package and remove the label.

3 Remove the protective tape.

Illustration showing a hand holding a device with a circular label and a red arrow indicating rotation or change.

Prohibition sign with hand holding a device and red circle containing eye symbols

Do not touch.

B

4 Insert the C (color) cartridge on the left and the B (black) cartridge on the right.

Diagram showing a mechanical or electrical component with a labeled 'C' and directional arrow, likely indicating a section or process.

Prohibition sign with a crossed-out device and lightning bolt symbol, indicating no protection or hazard.

Do not bump it against the surrounding parts.

B

5 Close the cartridge locking cover and push it down.

Mechanical component diagram showing a red downward arrow indicating force or motion (no text or symbols present)

Diagram of a car interior showing a vehicle with a red downward arrow indicating a change or motion (no text or symbols present)

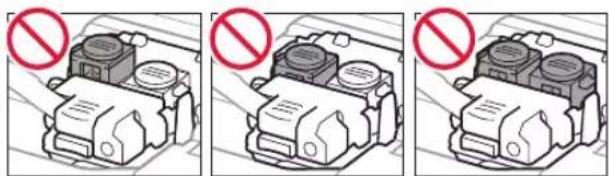

6 Press down both joint buttons completely.

Technical diagram of a mechanical component with two red arrows indicating downward motion (no text or symbols present)

Diagram of a mechanical component with heat dissipation arrows (no text or symbols)

Diagram of a mechanical device with a red prohibition symbol (no text or labels)

Diagram of a vehicle engine compartment with no visible text or symbols

4. Pouring Ink

This product requires careful handling of ink. Ink may splatter when the ink tanks are filled with ink. If ink gets on your clothes or belongings, it may not come off.

1 Open the ink tank cover.

BK

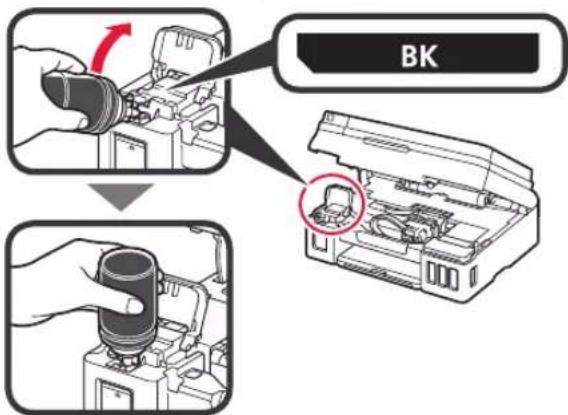

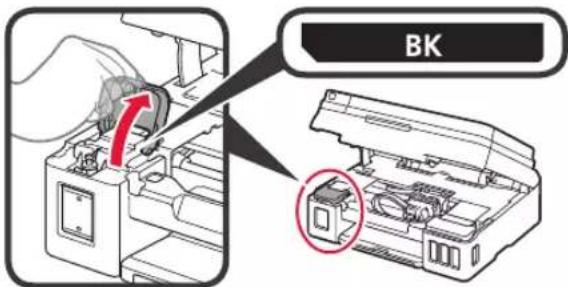

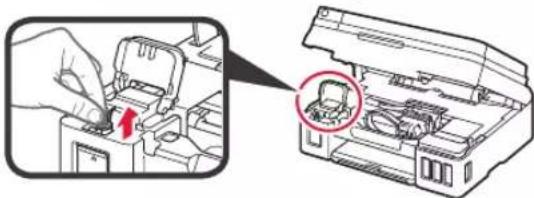

2 Grab and remove the tank cap of the ink tank.

Illustration of a printer's internal structure with a magnified view showing a person inside the case (no text or symbols present)

3 Hold the ink bottle upright and remove the bottle cap.

Illustration of hands performing a mechanical manipulation or tooling task with a red arrow indicating rotation (no text or symbols present)

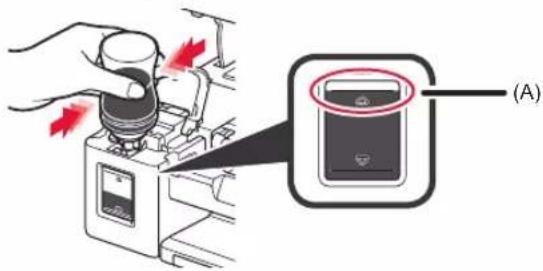

4 Insert the nozzle of the ink bottle into the inlet and stand the ink bottle upside down.

BK

5 Pour all ink into the ink tank.

Confirm that the ink has been filled to the upper limit line (A).

Diagram showing a hand using a device to press or install a device, with red arrows indicating action and a magnified view labeled (A)

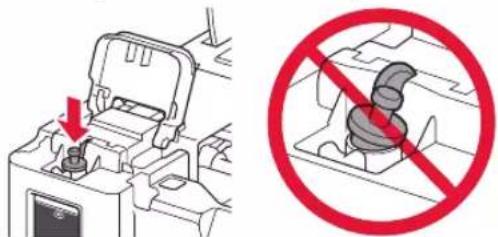

6 Replace the tank cap securely.

Technical diagram showing a mechanical device with a red arrow pointing to a component and a prohibition symbol (no text or labels present)

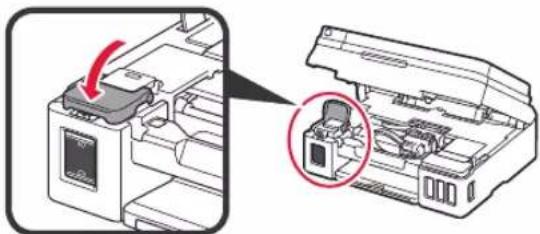

7 Close the ink tank cover.

Diagram showing a printer's internal structure with a red arrow indicating the component (no text or symbols present)

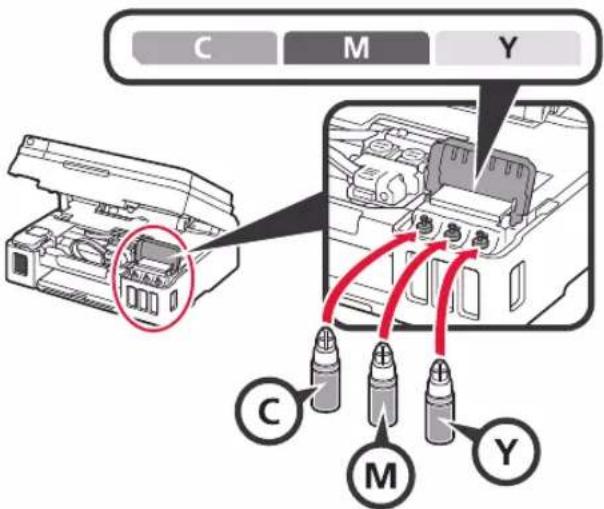

8 Repeat steps 1 to 7 to pour all ink into the corresponding ink tanks on the right according to the label.

C M Y C M Y

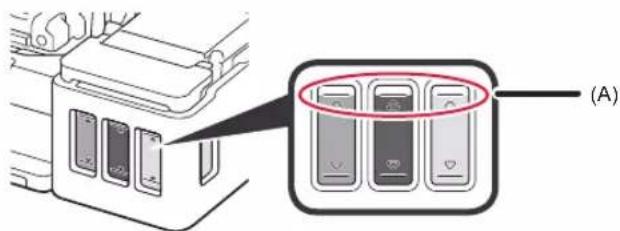

Confirm that the ink has been filled to the upper limit line (A).

Diagram showing a device panel with labeled components and a zoomed-in view highlighting a highlighted section (A)

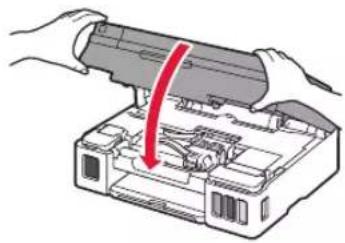

9 Close the scanning unit / cover.

Illustration of hands installing or adjusting a mechanical component with a red arrow indicating the motion (no text or symbols present)

5. Turning on Printer

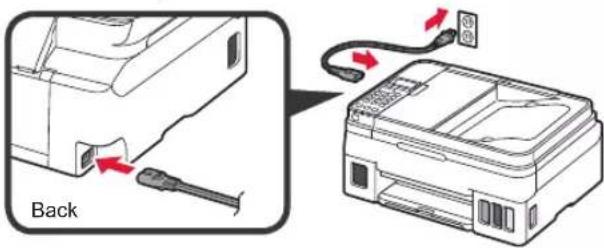

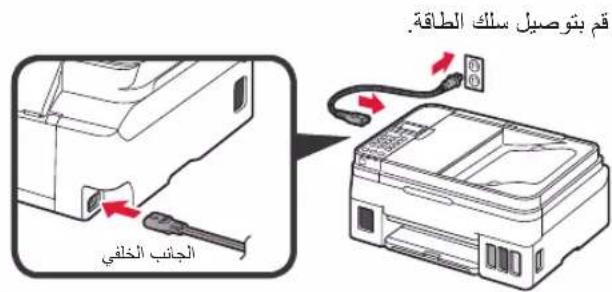

1 Connect the power cord.

Back

Do not connect any cables except the power cord yet.

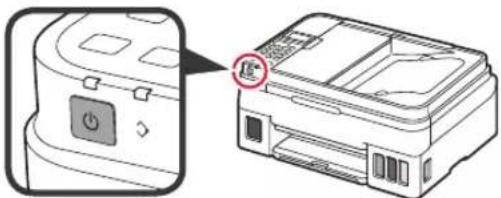

2 Press the ON button.

Diagram showing a printer with a close-up view of its front panel and a close-up of its back panel (no text or symbols present)

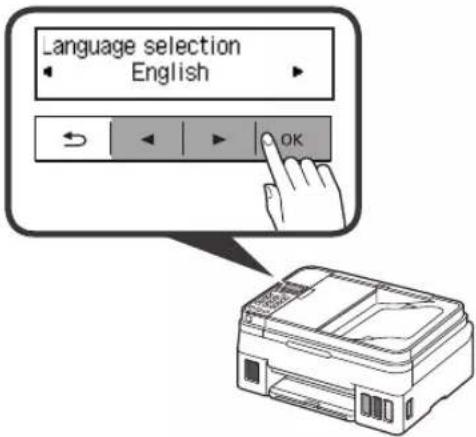

3 When the following screen appears, use the ◀ and ▶ buttons to select a language, and then press the OK button.

Language selection English OK

4 If the following screen appears, select your country or region, and then press the OK button.

Country or region *Others

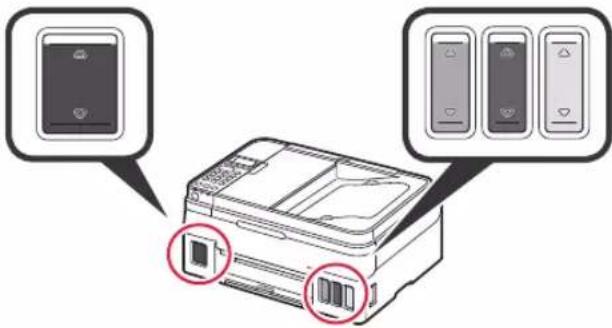

5 Confirm that all the ink tanks have ink in them.

Diagram showing a printer with two labeled buttons and a magnified view of the device's screen interface.

6 Select Yes with the ◀ and ▶ buttons, and then press the OK button.

Are the ink tanks filled w Yes < No >

6. Preparing for Connection

1 Press the OK button.

Prepare for connection [OK]Next

Preparing the ink starts.

This takes about 5 to 6 minutes. Proceed to the next step.

2 Check that the following screen appears.

From here on, proceed to a step according to how you use the printer.

• To use the printer by connecting only to a computer or both to a computer and smartphone

"7-A. Connecting to Computer"

• To use the printer by connecting only to a smartphone

"7-B. Connecting to Smartphone" on page 6

To use the printer without connecting to a computer or smartphone

① Press the Stop button on the printer.

② In the connection method selection screen, use the ◀ and ▶ buttons to select Do not connect, and then press the OK button.

③ Use the ◀ and ▶ buttons to select Yes, and then press the OK button.

④ Wait until the following screen appears.

The setup is now complete.

7-A. Connecting to Computer

macOSWindows

You need a connection setup for each computer. Proceed with the setup from step 1 for each computer.

1 Start the setup file for either method A or method . B

Downloading from the Internet

① Open a web browser (etc.) on your computer.
② Input the following URL and access the Canon website.

http://ij.start.canon

③ Select Set Up.

④ Input the model name of your printer and click OK.

You can select a model name from the list.

⑤ Click Setup.

The procedures for Windows and macOS are shown below. If you are using a computer with an OS other than Windows or macOS, such as a Chrome OS, do the setup according to the on-screen instructions.

⑥ Click Download and download the setup file.

Setup - All welcome - ■ Click Download on the computer to which you want to connect the printer Download

⑦ Execute the downloaded file.

Proceed to step 2 on the next page to continue.

Using Setup CD-ROM (Windows Only)

① Load the Setup CD-ROM in your computer.

■ When using Windows 10 or Windows 8.1:

② When the following message appears on the right side of your computer screen, click it.

DVD RW Drive CANON_U Tap to choose what happens with this disc.

③ If the following screen appears, click Run Msetup4.exe.

4 If the User Account Control dialog box appears, click Yes.

When This Message Does Not Appear (or Has Disappeared)

1. Click File Explorer on the taskbar.

1. Click This PC on the left side of the opened window.

2. Double-click the CD-ROM icon on the right side of the window.

If the contents of the CD-ROM appear, double-click Msetup4.exe.

1. Proceed to step ④.

■ When using Windows 7:

② When the AutoPlay screen appears, click Run Msetup4.exe.

③ If the User Account Control dialog box appears, click Continue.

When AutoPlay Screen Does Not Appear

1. Click Computer from the start menu.

2. Double-click the CD-ROM icon on the right side of the opened window.

If the contents of the CD-ROM appear, double-click Msetup4.exe.

Proceed to step 2 to continue.

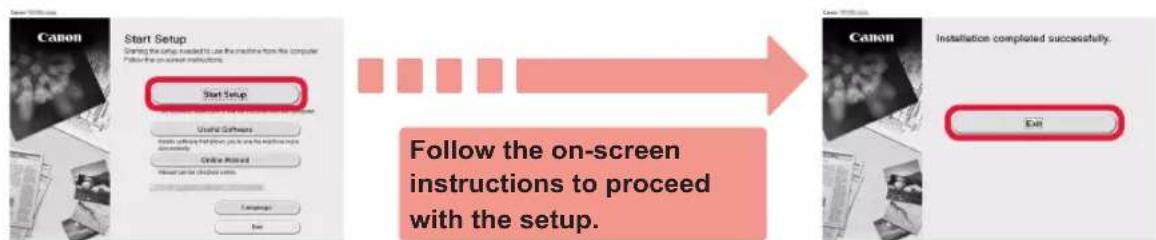

2 Click Start Setup.

If the following screen appears, click Exit.

The setup is complete when the following screen appears on the printer's screen. You can print from your computer.

7-B. Connecting to Smartphone

iOS Android

You need a connection setup for each smartphone. Proceed with the setup from step 1 for each smartphone.

Preparation

• Turn on Wi-Fi on your smartphone.
• If you have a wireless router, connect your smartphone to the wireless router you want to connect to the printer.
* For operations, refer to manuals of your smartphone and the wireless router or contact those manufacturers.

1 Install the application software Canon PRINT Inkjet/SELPHY in your smartphone.

iOS : Search "Canon PRINT" in App Store. Android : Search "Canon PRINT" in Google Play. Or access the Canon website by scanning the QR code.

* You may not connect your smartphone to the Internet wirelessly during connecting the printer to the smartphone directly. In that case, you may be charged depending on the contract with your service provider.
* Up to 5 devices can be connected to the printer via wireless LAN connection directly.

2 Check the display on the printer.

The screen turns off when no operation is made for about 10 minutes. Press one of the buttons on the operation panel (except for the ON button) to display the screen.

① Does the following screen appear?

Ready to connect For details on how to cor No Yes (Proceed)

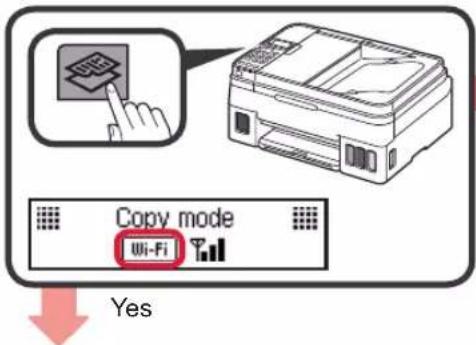

② Does Wi-Fi (the printer is connected to the network) appear on the screen displayed by pressing the Copy button?

Copy mode Wi-Fi Yes

No (Proceed to B.)

If X appears, the printer cannot communicate by wireless LAN connection. For details, access "http://ij.start.canon" to see Frequently Asked Questions.

ios

Android

① Tap the installed application software.

② Follow the on-screen instructions to register the printer.

③ Make sure that the right screen appears.

The connection with your smartphone is now complete. You can print from your smartphone.

To print photos, load photo paper. Proceed to "Loading Paper" on page 8.

Procedures below vary depending on iOS or Android. Select your operating system and proceed to its procedure.

iOS

① Tap Settings on your smartphone's home screen, and tap Canon_ij_XXXX in the Wi-Fi settings.

Settings Settings Wi-Fi Wi-Fi Canon_ij

If Canon_ij_XXXX does not appear on the list, see "Troubleshooting" below to operate the printer, and then repeat step 1.

② Tap the installed application software.

③ Follow the on-screen instructions to register the printer.

Follow the on-screen instructions to proceed with the setup.

If you select Auto Select Conn. Method (recommended) on the connection method selecting screen, the appropriate connection method is selected automatically depending on your environment.

④ Make sure that the following screen appears.

Android

① Tap the installed application software.

② Follow the on-screen instructions to register the printer.

If a message saying "Printer is not registered. Perform printer setup?" does not appear, see "Troubleshooting" below to operate the printer, and then wait for a while until the message appears.

Follow the on-screen instructions to proceed with the setup.

• The appropriate connection method is selected depending on your environment.
• If two printer names appear on the Register Printer screen as shown below, select A. A) G4010 series (xxx.xxx.xxx.xxx) B) Direct-xxxx-G4010series

③ Make sure that the following screen appears.

You're all ask how to choose your favorite photo and try a mask! SELECT NAME:

The connection with your smartphone is now complete. You can print from your smartphone.

To print photos, load photo paper. Proceed to "Loading Paper" on page 8.

Troubleshooting

Printer is not found from your smartphone.

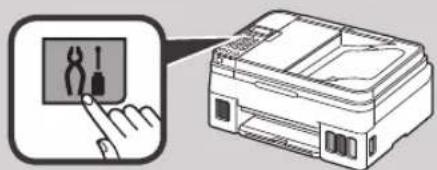

① Press the Setup button on the printer.

Diagram showing a hand pressing a power button next to a printer, with an icon of a tool and magnifying glass highlighting the action.

② Use the ◀ and ▶ buttons to select Wireless LAN setup > Easy WL connect, and then press the OK button.
③ Return to the operation of your smartphone.

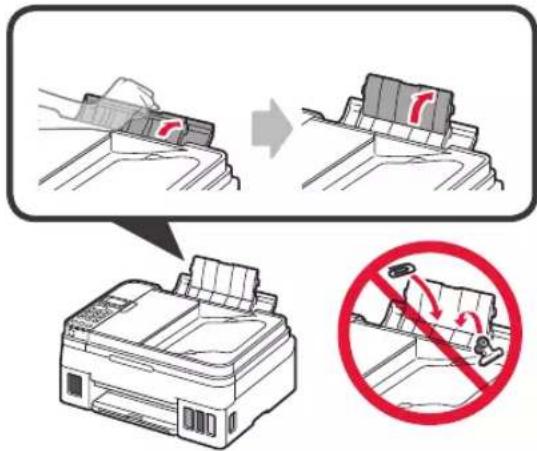

1 Open the paper support and the paper support extension.

Diagram illustrating a printer press operation with a red prohibition symbol indicating no change or disassembly.

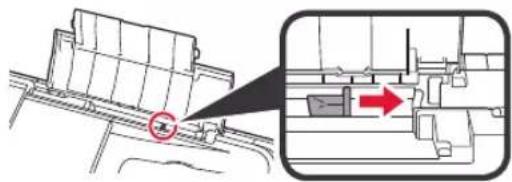

2 Slide the right paper guide to the end.

Technical diagram showing a mechanical assembly with a highlighted component and an inset view highlighting a directional arrow.

3 Load paper with the print side facing up.

Simple line drawing of a printer or printer with a red downward arrow indicating compression (no text or symbols)

Two geometric shapes: a rectangle and a prohibition symbol with a red circle.

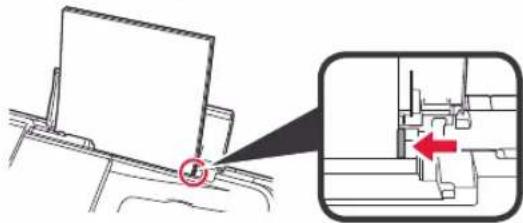

4 Slide the right paper guide to align it with the side of the paper stack.

Diagram showing a device with a magnified inset highlighting a mechanical component (no text or symbols present)

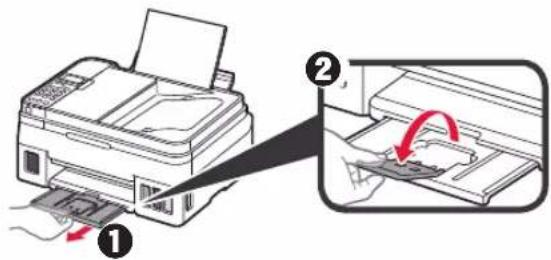

5 ① Pull out the paper output tray.

② Open the output tray extension.

Diagram showing printer operation with labeled steps and directional arrow indicating rotation or movement

Transporting Your Printer

When relocating the printer, make sure of the following. Refer to the Online Manual for details.

Check that both joint buttons are pressed down completely to avoid ink leaks.

Diagram of a vehicle engine with red warning symbols indicating ventilation or shock (no text or labels)

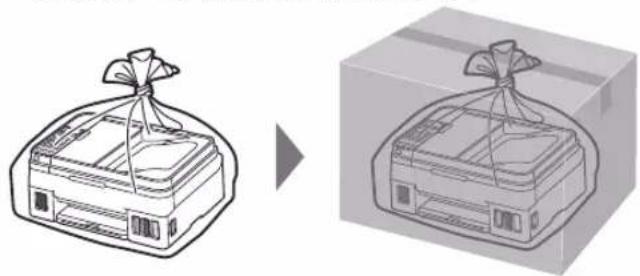

Pack the printer in a plastic bag in case ink leaks.

• Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sufficient protective material to ensure safe transport.

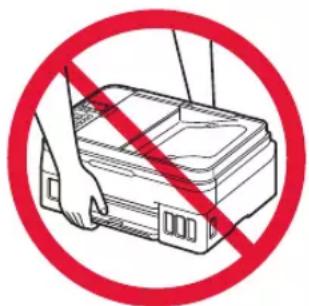

• Do not tilt the printer. Ink may leak.
• Please handle with care and ensure the box remains flat and NOT turned upside down or on its side, as the printer may be damaged and ink in the printer may leak.
• When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE".

Illustration of a gift box being placed on a cardboard box, showing the same shape and packaging (no text or symbols)

Illustration of four identical cylindrical objects with cross-shaped caps, arranged in a row (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating process steps

Diagram of a mechanical component with a highlighted internal component and an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a piston and crankshaft mechanism with a red upward arrow indicating motion (no text or labels)

Illustration of a battery cell with a red arrow indicating direction, next to a pink plastic sheet (no text or symbols)

Illustration of a battery with a red arrow indicating direction (no text or symbols)

3 Retire la cinta protectora.

Illustration showing a hand holding a device with a copyright symbol and a red arrow indicating rotation or change.

Prohibition sign with hand holding a device and red circle containing no text or symbols

No tocar.

B

Diagram showing a mechanical component with a labeled section 'C' and directional arrow indicating movement or force.

Prohibition sign showing a device crossed out with a lightning bolt, indicating no protection or hazard.

Illustration of a hand using a mechanical device to press or install components, with a red downward arrow indicating compression (no text or symbols present)

Diagram of a vehicle intake manifold with red arrows indicating force or pressure points (no text or symbols)

Diagram of a vehicle engine compartment with two red arrows indicating downward motion (no text or symbols present)

Diagram of a mechanical component with red directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical device with a red prohibition symbol (no text or labels)

Diagram of a vehicle battery pack with no visible text or symbols, including a red prohibition symbol (no readable text or labels)

4. Verter la tinta

Illustration of a hand inserting into a device into a container, with a magnified inset showing a small component (no text or symbols present)

Illustration of hands using a tool to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols present)

Diagram showing a hand using a device to switch a device, with red arrows indicating action and a magnified view labeled (A)

Technical diagram showing a mechanical device with a red arrow pointing to a disassembled component, alongside a red prohibition sign (no text or symbols on the diagram itself)

Diagram showing a printer's internal structure with a red arrow indicating the component (no text or symbols present)

C M Y C M Y

Diagram showing a device panel with labeled components and a zoomed-in view highlighting a specific component.

Illustration of hands installing or adjusting a mechanical component with a red arrow indicating the process (no text or symbols present)

5. Encender la impresora

Diagram showing a printer with a power button and a close-up of its internal structure (no text or symbols present)

Language selection English OK

Diagram showing a printer with three labeled devices, highlighting one device as highlighted in red.

Are the ink tanks filled w Yes < No >

Prepare for connection [OK]Next

Ready to connect For details on how to co

Setup - Windows - ■ Click Downloaded on the computer to which you want to connect the printer Download

Canon Start Setup Starting the initial needed to use the instructions from the computer Follow the previous instructions. Start Setup Useful Software Useful Software and other tools and the appropriate more software. Create Packard Remove the package name. Language File Canon Installation completed successfully. Exit Siga las instrucciones en pantalla para continuar con la configuración.

Ready to connect For details on how to cor No Sí (continúe a

B.)

You're all add fine choose your favorite photo and try a mask SELECT NAMES

Diagram showing a hand pressing a wrench icon next to a printer, indicating a process or operation.

Diagram illustrating a printer press operation with a no-smoking symbol indicating disassembly or reassembly.

Technical diagram showing a mechanical assembly with a highlighted section and directional arrow (no text or symbols)

Simple line drawing of a printer or printer with a red downward arrow indicating compression (no text or symbols)

Two geometric shapes: a rectangle and a prohibition symbol with a red circle.

Diagram showing a device with a circular mark and an inset view of a mechanical assembly (no text or symbols)

Diagram showing printer operation with labeled steps and directional arrows indicating process flow

Diagram of a car engine with red warning symbols indicating airflow or heat release (no text or labels)

Illustration showing a money bag being placed on a box, no text or symbols present

Four identical line drawings of a cylindrical object with a pointed tip, shown in side-by-side packaging (no text or symbols)

Diagram showing a hand using a tool to adjust or install a device, with numbered instructions and directional arrows indicating process flow.

3. Instalando o cartucho

Diagram of a mechanical component with a red arrow pointing to a specific part (no text or symbols present)

Mechanical component diagram with red upward arrow indicating motion or force (no text or symbols)

2 Retire cada cartucho do pacote e remova a etiqueta.

Illustration showing a hand holding a device with a red arrow indicating rotation or change, labeled with a copyright symbol.

Prohibition sign with hand holding a dog and red circle containing silhouettes of eyes and nose

Não toque.

B

4 Insira o cartucho C (colorido) à esquerda e o cartucho B (preto) à direita.

Diagram showing a mechanical or electrical component with a labeled section marked 'C' and an arrow indicating direction.

Prohibition sign with a crossed-out device and lightning bolt symbol, indicating no protection or resistance.

Illustration of a hand using a mechanical tool to press or install a component, with a red downward arrow indicating compression (no text or symbols present)

Diagram of a vehicle intake manifold with red arrows indicating flow or movement (no text or symbols)

Technical diagram of a mechanical component with two red arrows indicating downward motion (no text or symbols present)

Diagram of a car air conditioning unit with heat exchangers and airflow arrows (no text or labels)

Diagram of a mechanical device with a red prohibition symbol (no text or labels)

Diagram of a vehicle battery pack with no visible text or symbols, featuring a red prohibition symbol (no readable text or labels)

4. Colocando tinta

Illustration of a hand inserting into a device into a container, with a magnified inset showing a close-up of the component (no text or symbols present)

Illustration of hands using a tool to adjust a mechanical component with a red arrow indicating rotation (no text or symbols)

Diagram showing a hand using a device to press or install a device, with red arrows indicating action and a magnified view labeled (A)

6 Recoloque firmemente a tampa do cartucho.

Technical diagram showing a mechanical device with a red arrow pointing to a disassembled component, alongside a red prohibition sign (no text or symbols on the diagram itself)

Diagram showing a printer's internal structure with a red arrow indicating the component (no text or symbols present)

8 Repita as etapas de 1 a 7 para colocar toda a tinta nos cartuchos de tinta correspondentes à direita, de acordo com a etiqueta.

C M Y C M Y

Diagram showing a device panel with labeled components and a zoomed-in view highlighting a specific component.

Illustration of hands installing or adjusting a mechanical component with a red arrow indicating the process (no text or symbols present)

5. Ligando a impressora

Diagram showing a printer with a close-up view of its front panel and a close-up of its back panel (no text or symbols present)

Language selection English OK

Diagram showing a printer with two labeled devices and a close-up of the device's screen, highlighting a specific component.

Are the ink tanks filled w Yes < No >

Prepare for connection [OK]Next

Ready to connect For details on how to co

Setup - Windows - ■ Click Download on the computer to which you want to connect the printer Download

③ Se a tela a seguir for exibida, clique em Executar Msetup4.exe (Run Msetup4.exe).

You're all and now choose your favorite photo and try it out! SELECT IMAGES

Diagram showing a hand pressing a power button next to a printer, with an icon of a pliers and a magnified view of the device.

Diagram illustrating printer press operation with a 7-step process and no/no restrictions indicated

Technical diagram showing a mechanical assembly with a highlighted section and directional arrow (no text or symbols)

Simple line drawing of a printer or printer with a red downward arrow pointing to the cover (no text or symbols present)

Two geometric shapes: a rectangle and a prohibition symbol with a circle

Diagram showing a device with a magnified inset highlighting a mechanical component (no text or symbols present)

Diagram showing printer printing process with labeled steps 1 and 2, indicating a step of paper folding or printing.

Diagram of a vehicle's air vent system with red warning symbols (no text or labels)

Illustration of a gift box being placed on a cardboard box, showing the same shape and packaging (no text or symbols)

Four identical line drawings of a cylindrical object with a central protrusion, enclosed in a rectangular frame (no text or symbols)

Diagram showing a hand using a tool to adjust internal components, labeled with numbered steps ① and ②.

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

Diagram showing two steps (C and B) of a battery pack being placed, with arrows indicating movement or change.

Illustration showing a hand holding a device with a circular label and a red arrow indicating rotation or change.

Prohibition sign with hand holding a device and red circle containing eye symbols

Ne pas toucher.

B

Diagram showing a mechanical or electrical component with a labeled 'C' and directional arrow, likely indicating a process or assembly.

Prohibition sign with Chinese text and a red circle, indicating no prohibition or prohibition of a device.

Diagram showing a hand inserting a mechanical component into a housing, with red arrows indicating direction (no text or symbols present)

Diagram showing two views of a mechanical component with red arrows indicating downward motion (no text or symbols present)

Diagram of a mechanical device with no visible text or symbols, featuring a red prohibition symbol (no readable text or labels)

Diagram of a vehicle engine compartment with no visible text or symbols, including a red prohibition symbol (no readable text or labels)

Diagram showing a hand inserting a component into a device, with a magnified inset highlighting a small component (no text or symbols present)

Illustration of hands performing a mechanical manipulation or tooling task with a red arrow indicating rotation (no text or symbols present)

Diagram showing a hand using a device to press or install a device, with red arrows indicating action and a magnified view labeled (A)

Technical diagram showing a mechanical device with a red arrow pointing to a component and a prohibition symbol (no text or labels present)

Diagram showing a printer's internal structure with a red arrow indicating the component (no text or symbols present)

C M Y C M Y

Diagram showing a device panel with labeled components and a magnified view highlighting a highlighted section (A)

Illustration of hands installing or adjusting a mechanical component with a red arrow indicating the motion (no text or symbols present)

Diagram showing a printer with a close-up view of its front panel and a close-up of its back panel (no text or symbols present)

Language selection English OK

Diagram showing a printer with three labeled devices, highlighting one device as highlighted in red.

Diagram showing a hand pressing a wrench on a computer screen and then to press a printer, with an icon of a tool and magnifying glass highlighting the process.

Diagram illustrating a printer press operation with a red prohibition symbol indicating no change in print output.

Technical diagram showing a mechanical assembly with an inset close-up highlighting a specific section (no text or symbols present)

Simple line drawing of a printer or printer with a red downward arrow indicating compression (no text or symbols)

Sign indicating no prohibition of a rectangle, with a red prohibition symbol inside the rectangle.

Diagram showing a device with a circular mark and an inset close-up of a mechanical assembly (no text or symbols)

Diagram showing printer operation with labeled steps and directional arrows indicating process flow

Diagram of a vehicle engine compartment with red warning symbols indicating ventilation or shock (no text or labels)

Illustration of a gift box being carried out into a cardboard box (no text or symbols)

Four identical illustrations of a bottle with a pointed tip, shown in side-by-side packaging (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating process steps

Diagram of a mechanical component with a highlighted section and an arrow pointing to it (no text or symbols present)

Mechanical component diagram showing a piston-like structure with a red upward arrow indicating motion or force (no text or symbols present)

Illustration of a battery with a red arrow pointing to its internal structure (no text or symbols)

Illustration of a battery with a red arrow indicating direction (no text or symbols)

Diagram showing a hand holding a device with a red arrow indicating rotation or change, labeled with a copyright symbol.

Prohibition sign with crossed-out hand holding a device, indicating no use or absence of use

Не прикасайтесь.

B

Diagram showing a mechanical or electrical component with a labeled 'C' and a red arrow indicating direction or force.

Prohibition sign with Chinese text and a red circle, indicating no prohibition or resistance to a device.

Illustration of a hand pressing down on a mechanical component with a red downward arrow (no text or symbols)

Diagram of a vehicle engine compartment with red arrows indicating flow or movement (no text or symbols)

Technical diagram of a mechanical component with two red arrows indicating downward motion (no text or symbols present)

Diagram of a vehicle air conditioning unit with red directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with no visible text or symbols, featuring a red prohibition symbol (no readable text or labels)

Diagram of a vehicle engine compartment with no visible text or symbols, including a red prohibition symbol (no readable text or labels)

4. Заливка чернил

Diagram showing a hand inserting a component into a device, with a magnified inset highlighting a small object (no text or symbols present)

Illustration of hands performing a mechanical press or stamping operation with a red arrow indicating motion (no text or symbols present)

Diagram showing a hand using a device to press or<|rotate_right|>, with red arrows indicating action and a magnified view labeled (A) showing a device with a circular icon.

Diagram showing a device with a handle and a prohibition symbol (no text or labels present)

Diagram showing a printer's internal structure with a red arrow indicating the component (no text or symbols present)

C M Y C M Y

Diagram showing a device panel with labeled components and a zoomed-in view highlighting a specific component.

Illustration of hands installing or adjusting a mechanical component with a red arrow indicating the motion (no text or symbols present)

Diagram showing a device with a power button and a printer outline, no text or symbols present

Language selection English OK

Diagram showing a printer with two labeled devices and a close-up of its screen, highlighting the device's internal structure.

Are the ink tanks filled w Yes < No >

Prepare for connection [OK]Next

Ready to connect For details on how to co

Setup - Windows - ■ Click Download on the computer to which you want to connect the printer Download

Canon Start Setup Starting the other needed to use the machine from the computer. Follow the course instructions. Start Setup Special Software Please call your instructions on the computer's main system. Online Resource Show how to access within Language Exit Canon Installation completed successfully. Exit Следуйте инструкциям на экране, чтобы продолжить настройку.

You're all and here choose your favorite photo and by 4 net. SELECT IMAGES

Diagram showing a hand pressing a power button next to a printer, with an icon indicating the process.

Diagram illustrating a printer press operation with a 'no copy' symbol indicating no copy, showing step-by-step assembly and disposal.

Diagram showing a mechanical assembly with an inset close-up highlighting a specific section (no text or symbols present)

Simple line drawing of a printer or printer with a red downward arrow indicating compression (no text or symbols)

Sign indicating no prohibition of a rectangle, with a blank rectangle and red prohibition symbol

Diagram showing a device with a circular mark and an inset close-up of a mechanical assembly (no text or symbols)

Diagram showing printer operation with labeled steps and directional arrows indicating process flow

Diagram of a vehicle engine compartment with red warning arrows indicating airflow or hazard (no text or symbols present)

Illustration of a gift box being placed on a cardboard box, showing the same shape and packaging (no text or symbols)

Illustration of four identical plastic bottles with different internal shapes and color variations (no text or symbols)

Diagram showing a device's internal components with numbered parts and red arrows indicating motion or assembly.

Mechanical component diagram showing a connector with a red arrow pointing to it (no text or symbols present)

Mechanical component with red upward arrow indicating motion or force (no text or symbols)

Illustration showing a hand holding a device with a circular label and a red arrow indicating rotation or change.

Prohibition sign with crossed-out hand holding a device, indicating no use or absence of use

Не торкайтеся.

B

Diagram showing a mechanical or electrical component with a labeled 'C' and directional arrow, likely indicating a section or process.

Prohibition sign showing a device with a lightning bolt symbol, indicating no protection or hazard.

Illustration of a hand pressing down on a mechanical component with a red downward arrow (no text or symbols)

Diagram of a vehicle interior showing a valve with red arrows indicating flow or movement (no text or symbols present)

Technical diagram of a mechanical component with two red arrows indicating downward motion (no text or symbols present)

Diagram of a vehicle air conditioning unit with red warning signs indicating safety (no text or symbols present)

Diagram of a mechanical device with no visible text or symbols, featuring a red prohibition symbol (no readable text or labels)

Diagram of a vehicle engine compartment with no visible text or symbols, including a red prohibition symbol (no readable text or labels)

Illustration of a printer's internal structure with a magnified view showing the printer's internal components (no text or symbols present)

Illustration of hands using a tool to adjust a mechanical component, with a red arrow indicating rotation (no text or symbols present)

Diagram showing a hand using a device to press or<|rotate_right|>, with red arrows indicating action and a magnified view labeled (A) showing a device with a circular icon.

Technical diagram showing a mechanical device with a red arrow pointing to a disassembled component, alongside a red prohibition sign (no text or symbols on the diagram itself)

Diagram showing a printer's internal structure with a red arrow indicating the component (no text or symbols present)

C M Y C M Y

Diagram showing a device panel with labeled components and a magnified view highlighting a highlighted section (A)

Illustration of hands installing or adjusting a mechanical component with a red arrow indicating the motion (no text or symbols present)

Diagram of a printer with a close-up view showing the front panel and side view of the printer (no text or symbols present)

Language selection English OK

Diagram showing a printer with three labeled buttons and a magnified view of the device's screen interface.

Are the ink tanks filled w Yes < No >

Prepare for connection [OK]Next

Ready to connect For details on how to co

Setup - All volume - ■ Click Downloaded on the computer to which you want to connect the printer Download

You're all art how choose your favorite photos and by it about! SELECT NAMES

Diagram showing a hand pressing a wrench on a screen and then to press a printer, illustrating the process of tool application.

Diagram illustrating a printer press operation with a 'no copy' symbol indicating no copy or no reuse.

Technical diagram showing a mechanical assembly with an inset view of a component (no text or symbols present)

Simple line drawing of a printer or printer with a red downward arrow indicating compression (no text or symbols)

Sign indicating no prohibition of a rectangle, with a blank rectangle and red prohibition symbol

Diagram showing a device with an icon and a magnified inset highlighting a mechanical component (no text or symbols present)

Diagram showing printer operation with labeled steps and directional arrows indicating process flow

Diagram of a car engine with red warning symbols indicating airflow or heat release (no text or labels)

Three identical diagrams showing a mechanical component with no visible text or symbols, marked by red prohibition signs (no text or symbols present)

Two 3D wireframe diagrams showing a package and a box, both with ribbon ties (no text or symbols)

قم Bit himil Ourq me Tujih jainb ltpbaea la oge.

Simple line drawing of a printer or printer with a red downward arrow indicating compression (no text or symbols)

Sign indicating no prohibition of a rectangle, with a blank rectangle and red prohibition symbol

3

Diagram showing a device with a circular indicator and an inset close-up of a mechanical component (no text or symbols)

Diagram showing printer operation with labeled steps and directional arrows indicating process flow

Diagram illustrating a printer press operation with a red prohibition symbol indicating no movement or disassembly.

2

Technical diagram showing a mechanical assembly with a highlighted component and an inset view highlighting a directional arrow.

Illustration of a box with a bag attached to top, no text or symbols present

Line drawing of a rectangular box with a ribbon tied to top (no text or symbols)

Settings Wi-Fi Wi-Fi ① Bevini Shadat Woorade on the Shadahne to Canon

You're all soft. Now choose your favorite photos and try it out! SELECT IMAGES

Ready to connect For details on how to cor

Y

.(Run Msetup4.exe) Msetup4.exe

.(Yes) , (User Account Control)

4

■

■ :Window

AutoPlay DVD RW Drive CANON_U Always drive for software and games. RunMapBox RunMapBox

3

Prepare for connection [OK]Next

1

Ready to connect For details on how to co

2

Diagram showing a printer with three labeled buttons and two highlighted buttons, likely illustrating a device or system setup.

Illustration of hands installing or removing a device into a box, with a red arrow indicating the process (no text or symbols present)

.5. تشغيل الطبعة

Language selection English OK

Diagram showing a hand using a device to interact with a device labeled (A), with red arrows indicating action and a magnified view highlighting the device's internal structure.

Prohibition sign showing a mechanical component with a red prohibition symbol

Mechanical assembly diagram showing a component with a red arrow indicating a specific part (no text or symbols present)

Diagram showing a printer's internal structure with a red arrow indicating the component, and a magnified inset highlighting a device (no text or symbols present)

C M Y C M Y

Diagram showing a device panel with labeled components and a magnified view highlighting a highlighted section (A)

5

6

7

8

1. صب الحير

Diagram showing a hand inserting a component into an open device, with a magnified inset highlighting a small object (no text or symbols present)

3

Illustration of a hand holding a small object with a red arrow indicating rotation (no text or symbols)

4

Prohibition sign with hand holding a device and crossed-out eye symbols, commonly used for safety or preventive measures.

لا تلمسه.

Illustration showing a hand holding a remote control with a red arrow indicating rotation, labeled with a copyright symbol.

B

Prohibition sign with crossed-out device and lightning bolt symbol, indicating no protection or hazard

Diagram showing a mechanical component with a labeled section marked 'C' and an arrow indicating direction or force.

B

Diagram of a mechanical component with red arrows indicating force or movement (no text or symbols)

Illustration of a hand holding a mechanical component with a red arrow indicating downward motion (no text or symbols)

Diagram of a car air conditioner unit with red directional arrows indicating airflow or heat transfer (no text or labels)

Diagram of a mechanical component with two downward arrows indicating direction (no text or symbols)

Diagram of a vehicle battery pack with no visible text or symbols

Diagram of a mechanical device with no visible text or symbols, featuring a red prohibition symbol (no readable text or labels)

3

Four identical illustrations of a bottle with a central cap, shown in side-by-side packaging (no text or symbols)

زجاجة الحبر

C B

Diagram showing a device being opened into a box with a tool, labeled with step 1 and step 2 indicating process flow.

5

3. تركيب الخرطوشة

1

Diagram showing four steps of battery charging process with labeled instructions C and B

Red icon showing a globe with a question mark on a laptop, symbolizing global inquiry or learning (no text present)

Access Online Manual Acesse o Manual On-line Доступ к документу Онлайн-руководство

From desktop shortcut

