Setting Up the Printer

1. Box Contents

• FINE cartridges

Color Black

Power Cord
- Setup CD-ROM
• Safety and Important Information
• Getting Started (this manual)

2. Removing Packing Materials

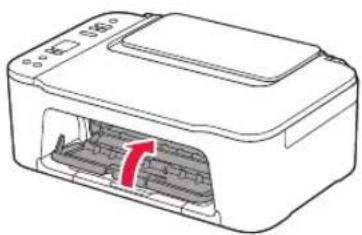

1 Remove the orange tape on the right and open the cover.

Diagram of a printer with labeled parts and directional arrows indicating process flow

2 Remove the orange tape on the left.

Diagram of a printer with internal structure and red arrow indicating process (no text or symbols)

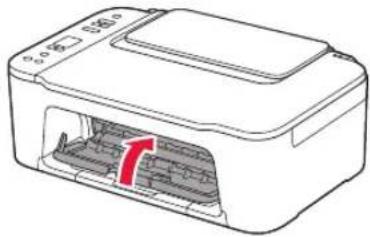

3 Close the cover.

Line drawing of a printer with internal structure and a red arrow indicating rotation (no text or symbols)

3. Turning on the Printer

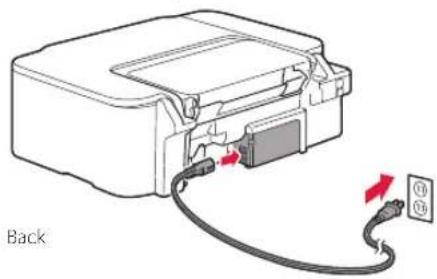

1 Connect the power cord.

Diagram of a device with cable and connector, showing connection to a wall-mounted power outlet (no text or symbols)

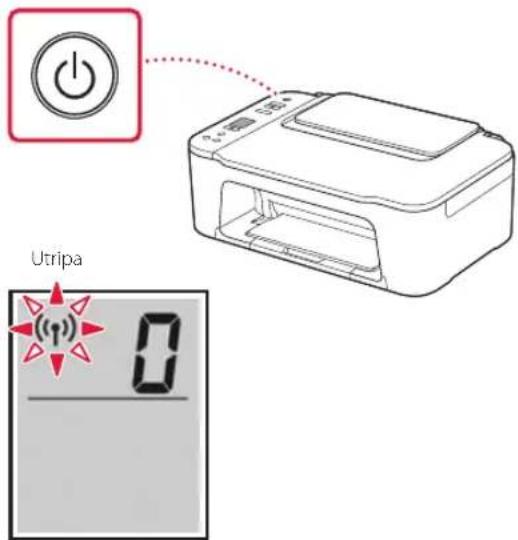

2 Press the ON button.

Power Flashing 0

Important
If another screen appears, see "If any of the following screens appear" on page 4 and follow the instructions.

Setting Up the Printer

Easy Setup Using Computer/Smartphone Setup Using this Manual

Computer Smartphone

Getting Started

4 Easy Setup Using Computer/Smartphone

Simple, easy-to-follow instructions are displayed on your computer or smartphone.

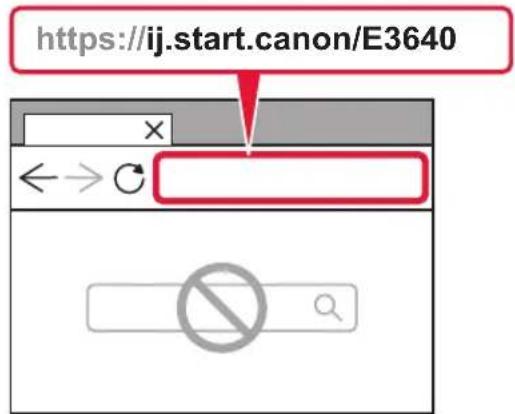

1 Visit the URL below to start setup.

https://ij.start.canon/E3640

2 Follow the instructions to complete setup and print.

1

Illustration of a printer with three speech bubbles containing icons: power button, money bag, and document (no text or symbols)

2

5. Installing the FINE Cartridges

1 Open the cover.

Caution

Do not touch the FINE cartridge holder until it stops moving.

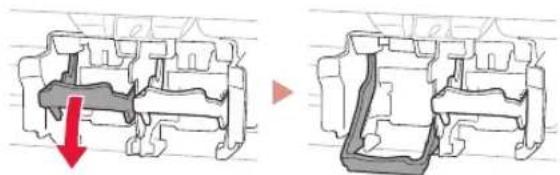

2 Lower the ink cartridge lock lever on the left-hand side.

Diagram showing two views of a mechanical component with a red arrow indicating a downward motion (no text or symbols present)

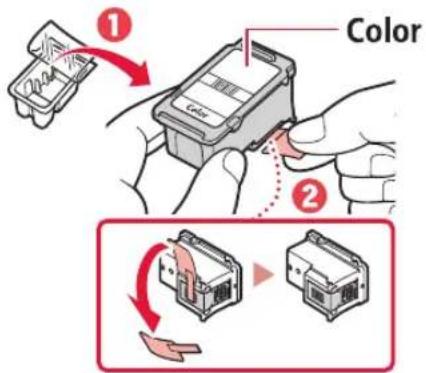

3 Remove the Color FINE cartridge from the package and remove the protective tape.

① Color ②

Important

• Do not touch the ink on the protective tape. It could stain your hands or surrounding objects.
• Do not touch the areas shown in the figure. Otherwise, the printer may not print correctly.

4 Insert the Color FINE cartridge in the FINE cartridge holder.

Diagram of a mechanical device with a red arrow pointing to a component (no text or symbols present)

Important

Do not bump the FINE cartridge. Doing so may cause a malfunction.

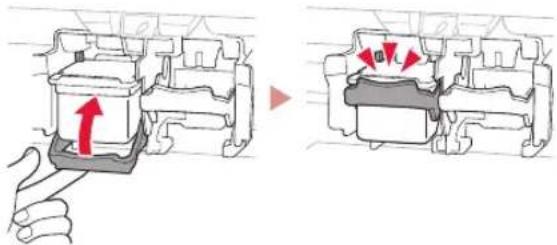

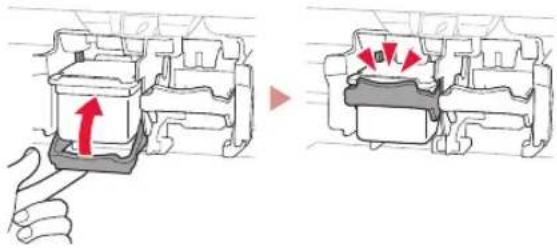

5 Raise the ink cartridge lock lever.

Diagram showing a hand pressing a component with red arrows indicating direction, alongside a close-up of the component being rotated.

6 Repeat steps 2 to 5 and install the Black FINE cartridge on the right-hand side.

Cross-sectional diagram of a mechanical component with two internal chambers (no text or symbols)

7 Close the cover.

Diagram of a printer with internal structure and paper feed, showing no text or symbols

Setting Up the Printer

8 Check that the following screen appears.

Flashing

(f) 0

Important

If E > 0 > 4 appears on the screen, see "If any of the following screens appear" on page 4 and follow the instructions.

Select the connection method that best matches how you will use the printer.

• To use the printer without connecting to any other devices

→ Setup is now complete.

• To use the printer connecting to a computer or smartphone

→ Proceed to the next page.

If any of the following screens appear

Numbers or letters

Check the screen, and then follow the corresponding instructions below.

Install the FINE cartridges.

→ "5. Installing the FINE Cartridges" on page 3

Protective material remaining.

→ "2. Removing Packing Materials" on page 1

FINE cartridges are not installed correctly.

→ "5. Installing the FINE Cartridges" on page 3

For all other cases, refer to the Online Manual.

6. Connecting to a Computer or Smartphone

If you are using multiple computers/smartphones, perform these steps on each device. Also perform these steps to add a new computer/smartphone or replace your current one.

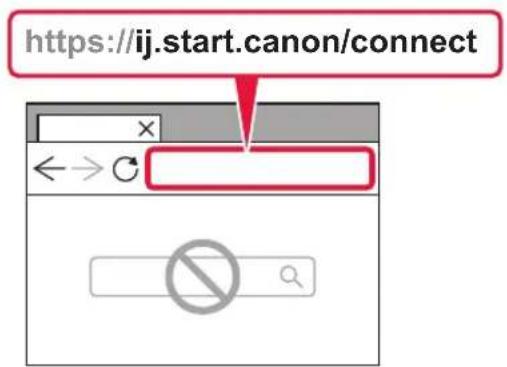

1 Access the Canon website directly. No need to search.

https://ij.start.canon/connect

2 Enter your printer's model name and click Go.
3 Follow the on-screen instructions.

Note

Refer to the Online Manual if you cannot connect the printer to your computer or smartphone (network trouble).

Using the Setup CD-ROM

1. Double click EasySetup.exe on the screen that appears.
2. If the printer selection screen appears, select E3640. If the installation screen appears, click Next.
3. Follow the on-screen instructions.

If nothing appears, start Explorer and then run EasySetup.exe in the CD-ROM.

Loading Paper

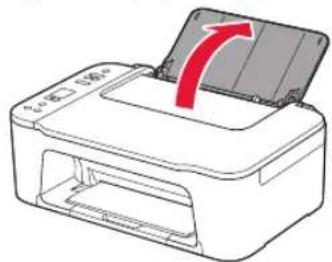

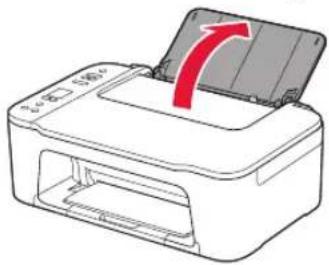

1 Open the paper support.

Illustration of a printer with a red arrow indicating the open lid area (no text or symbols present)

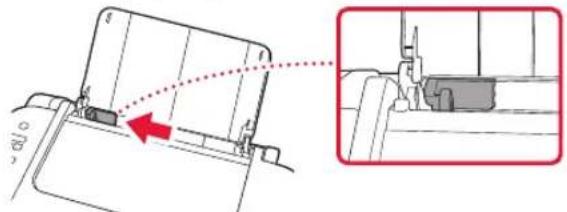

2 Slide the paper guide to the left.

Technical diagram showing a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

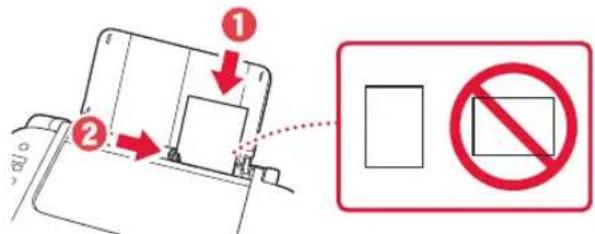

3 Load several sheets of paper against the right edge with the print side facing up and align the paper guide to the width of the paper.

Diagram showing two labeled components (① and ②) with arrows indicating movement, alongside a prohibition symbol.

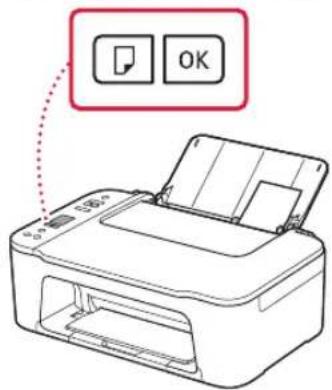

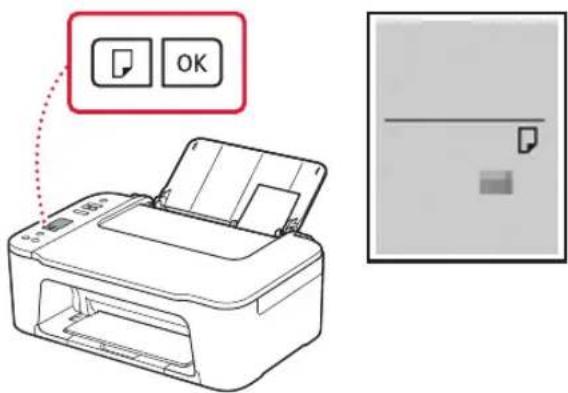

4 Press the Paper Select button, select a paper size, and then press the OK button.

Diagram showing printer operation with 'OK' button and blank sheet, alongside a separate image of the printer's screen.

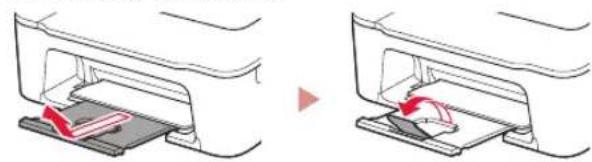

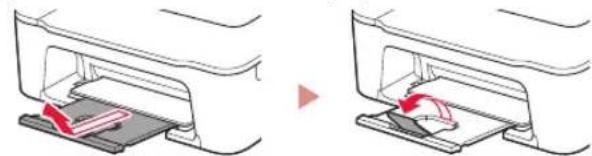

5 Extend the paper output tray, and open the output tray extension.

Two-step diagram showing a printer's internal structure before and after assembly, with no text or symbols present.

- Look at it from the side to confirm it looks like the diagram.

Line drawing of a rectangular container with a side handle and lid (no text or symbols)

If Print Results Are Unsatisfactory

Perform Print Head Alignment if straight lines are crooked or colors are inconsistent, or print results are otherwise not what you expected.

For details, click Maintenance on the Online Manual and refer to If Printing Is Faint or Uneven > Aligning the Print Head

Refer to the back cover for how to access the Online Manual.

■ Lines Are Misaligned

■ Uneven or Streaked Colors

Configuration de l'imprimante

Diagram of a printer with labeled parts and directional arrows indicating process flow

Diagram of a printer with internal structure and red arrow indicating process (no text or symbols)

3 Fermez le capot.

Line drawing of a printer with internal structure and a red arrow indicating rotation (no text or symbols)

https://ij.start.canon/E3640

Illustration of a printer with three speech bubbles containing icons: power button, documents, and a printer (no text or symbols)

2

Attention

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Important

Diagram showing a hand pressing a component with red arrows indicating direction, before and after assembly or repair.

Cross-sectional diagram of a mechanical component with layered sections (no text or symbols)

7 Fermez le capot.

Diagram of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Configuration de l'imprimante

https://ij.start.canon/connect ←→ C

Illustration of a printer with a red arrow indicating the open lid (no text or symbols present)

Mechanical assembly diagram showing a component being inserted into a housing, with an inset close-up highlighting the connection (no text or symbols present)

Diagram showing two steps of installing a device with a prohibition symbol, labeled ① and ②.

Diagram showing printer operation with OK button and blank sheet, alongside a close-up of the paper's print area.

Two-step diagram showing a printer's internal structure before and after assembly, with no text or symbols present.

Simple line drawing of a rectangular container with a handle and side slots (no text or symbols)

Diagram of a printer with labeled parts and directional arrows indicating process flow

2 Odstranite oranžni trak na levi strani.

Diagram of a printer with internal structure and red arrow indicating process (no text or symbols)

3 Zaprite pokrov.

Line drawing of a printer with internal structure and a red arrow indicating rotation (no text or symbols)

3. Vklop tiskalnika

1 Priključite napajalni kabel.

Diagram of a device with cable and connector, showing connection to a wall-mounted power outlet (no text or symbols)

2 Pritisnite gumb VKLOP (ON).

Ustripa 0

Pomembno

https://ij.start.canon/E3640

Illustration of a printer with three speech bubbles containing icons: power button, documents, and a printer (no text or symbols)

2

Diagram showing two views of a mechanical component with a red arrow indicating a downward motion (no text or symbols present)

① Color ②

Pomembno

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Pomembno

Pazite, da s kartušo FINE ne udarite ob kaj. V nasprotnem primeru lahko pride do okvare.

Diagram showing a hand pressing a component with red arrows indicating direction, before and after assembly or repair.

6 Ponovite korake od 2 do 5 in namestite črno kartušo FINE na desno stran.

Cross-sectional diagram of a mechanical component with layered sections (no text or symbols)

7 Zaprite pokrov.

Diagram of a printer with internal structure and red arrow indicating rotation (no text or symbols)

https://ij.start.canon/connect ←→ C

2 Vnesite ime modela tiskalnika in kliknite Pojdi.
3 Sledite navodilom na zaslonu.

Opomba

Illustration of a printer with a red arrow indicating the open lid (no text or symbols present)

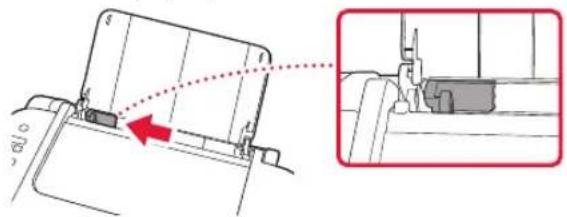

2 Vodilo za papir pomaknite v levo.

Mechanical assembly diagram showing a component being inserted into a housing, with an inset close-up highlighting the detail (no text or symbols present)

Diagram showing two labeled steps (① and ②) of a device with directional arrows and a prohibition symbol.

4 Pritisnite gumb Izbira papirja (Paper Select), izberite velikost papirja, nato pa pritisnite gumb OK.

Diagram showing printer operation with 'OK' button and file icon, alongside a blank image panel

Two-step diagram showing printer insertion process with red arrows indicating motion (no text or symbols)

Line drawing of a rectangular container with a side handle and top frame (no text or symbols)

Če rezultati tiskanja niso zadovoljivi

Če so ravne črte natisnjene ukrivljeno, barve neskladne ali so rezultati tiskanja kako drugače nepričakovani, opravite postopek Poravnava tiskalne glave (Print Head Alignment).

Diagram of a printer with labeled parts and directional arrows indicating process flow

Diagram of a printer's internal structure with a red arrow indicating compression or disassembly (no text or symbols present)

Line drawing of a printer with internal structure and a red arrow indicating rotation (no text or symbols)

3. Pornirea imprimantei

https://ij.start.canon/E3640

Illustration of a printer with three speech bubbles containing icons: power button, money bag, and phone (no text or symbols)

2

5. Instalarea cartuşelor FINE

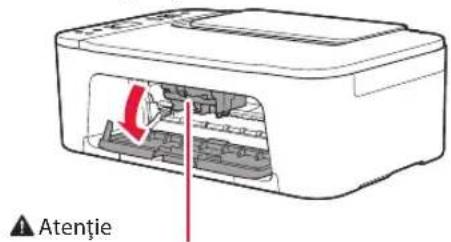

1 Deschideti capacul.

Atenție

Diagram showing two views of a mechanical component with a red arrow indicating a downward motion (no text or symbols present)

① Color ②

Important

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Important

Diagram showing a hand pressing a component with red arrows indicating direction, alongside a close-up of the component being rotated.

Cross-sectional diagram of a mechanical component with no visible text or symbols

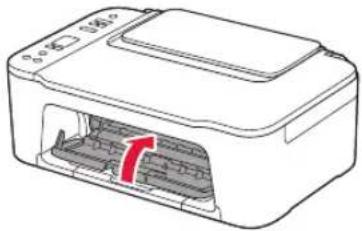

Diagram of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Configurarea imprimantei

https://ij.start.canon/connect ←→ C

Illustration of a printer with a red arrow indicating the open lid area (no text or symbols present)

Mechanical assembly diagram showing a component being inserted into a housing, with an inset close-up highlighting the detail (no text or symbols present)

Diagram showing two labeled steps (① and ②) of a device with directional arrows and a prohibition symbol.

Diagram showing printer operation with 'OK' button and blank sheet, alongside a separate image of a printer.

Two-step diagram showing a printer's internal structure before and after assembly, with red arrows indicating motion (no text or symbols)

Simple line drawing of a rectangular container with a handle and side slot (no text or symbols)

Diagram of a printer with labeled parts and directional arrows indicating process flow

Diagram of a printer with internal structure and red arrow indicating motion (no text or symbols)

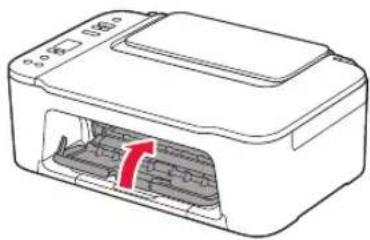

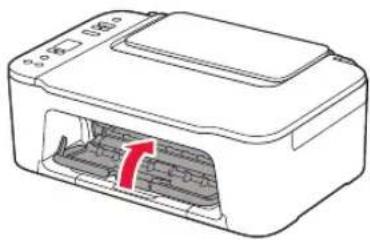

3 Затворете капака.

Diagram of a printer with internal structure and paperclip, showing no text or symbols

https://ij.start.canon/E3640

Illustration of a printer with three speech bubbles containing icons: power button, documents, and a printer (no text or symbols)

2

Diagram showing two views of a mechanical component with a red arrow indicating a downward motion (no text or symbols present)

① Color ②

Важно

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Важно

Diagram showing a hand pressing a component with red arrows indicating direction, alongside a close-up of the component being rotated.

Cross-sectional diagram of a mechanical component with layered sections (no text or symbols)

7 Затворете капака.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

https://ij.start.canon/connect

Diagram of a printer with an open lid and red arrow indicating compression or shift (no text or symbols)

Mechanical assembly diagram showing a component being inserted into a housing, with an inset close-up highlighting the detail (no text or symbols present)

Diagram showing two steps of installing a device with a prohibition symbol, labeled with arrows and numbered annotations.

Diagram showing printer operation with OK button and blank sheet, alongside a separate image of a printer's paper.

Two-step diagram showing a printer's internal structure before and after assembly, with no visible text or symbols.

Line drawing of a rectangular container with a side handle (no text or symbols)

Diagram of a printer with labeled parts and directional arrows indicating process flow

Diagram of a printer's internal structure with a red arrow indicating compression or disassembly (no text or symbols present)

3 Kapağı kapatın.

Diagram of a printer with internal structure and red arrow indicating a component (no text or symbols)

3. Yazıcıyı Açma

https://ij.start.canon/E3640

Illustration of a printer with three speech bubbles containing icons: power button, money bag, and phone (no text or symbols)

2

Diagram showing two views of a mechanical component with a red arrow indicating a downward motion (no text or symbols present)

① Color ②

Önemli

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Önemli

Diagram showing a hand pressing a component with red arrows indicating direction, alongside a close-up of the component being rotated.

Cross-sectional diagram of a mechanical component or housing (no text or symbols visible)

7 Kapağı kapatın.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Yazıcı Kurulumu

Digital display showing a star icon with signal symbol and '0' number, likely indicating zero or zero level.

Önemli

https://ij.start.canon/connect

Illustration of a printer with a red arrow indicating the paper's edge (no text or symbols present)

Mechanical assembly diagram showing a component being inserted into a housing, with an inset close-up highlighting the detail (no text or symbols present)

Diagram showing two steps of installing a device with a prohibition symbol, labeled with arrows and a red circle.

Diagram showing printer operation with 'OK' button and blank sheet, alongside a separate image of a printer.

Two-step diagram showing a printer's internal structure before and after assembly, with red arrows indicating motion (no text or symbols)

Simple line drawing of a rectangular container with a side handle and top frame (no text or symbols)

Diagram of a printer with labeled parts and directional arrows indicating process flow

Diagram of a printer with internal structure and red arrow indicating process (no text or symbols)

3 Закройте крышку.

Line drawing of a printer with internal structure and a red arrow indicating a component (no text or symbols)

https://ij.start.canon/E3640

Illustration of a printer with three speech bubbles containing icons: power button, money bag, and document (no text or symbols)

2

Diagram showing two views of a mechanical component with a red arrow indicating a downward motion (no text or symbols present)

① Color ②

Внимание!

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols)

Внимание!

Diagram showing a hand pressing a component into a device, with red arrows indicating direction of movement or force.

Cross-sectional diagram of a mechanical component with layered sections (no text or symbols)

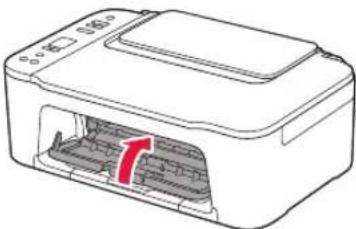

7 Закройте крышку.

Diagram of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Настройка принтера

Digital display showing a 0 square with signal icon and red starburst symbol above it

Внимание!

https://ij.start.canon/connect

Image showing a smartphone icon with a QR code and a right-pointing arrow, likely indicating mobile payment or scanning process.

Illustration of a printer with a red arrow indicating the open lid area (no text or symbols present)

Mechanical assembly diagram showing a component being inserted into a housing, with an inset close-up highlighting the connection (no text or symbols present)

Diagram showing two steps of installing a device with a prohibition symbol, labeled ① and ②.

Diagram showing printer operation with 'OK' button and blank sheet, alongside a separate image of a printer.

Two-step diagram showing a printer's internal structure before and after assembly, with red arrows indicating motion (no text or symbols)

Line drawing of a rectangular container with a handle and side slot (no text or symbols)

Diagram of a printer with labeled parts and directional arrows indicating process flow

Diagram of a printer with internal structure and red arrow indicating motion (no text or symbols)

3 Закрийте кришку.

Line drawing of a printer with internal structure and a red arrow indicating a component (no text or symbols)

https://ij.start.canon/E3640

Illustration of a printer with three speech bubbles containing icons: power button, money bag, and document (no text or symbols)

2

Diagram showing two mechanical component cross-sections with a red arrow indicating a specific feature (no text or symbols present)

① Color ②

Важливо

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Важливо

Diagram showing a hand pressing a component with red arrows indicating direction, before and after assembly or repair.

Diagram of a mechanical component with two stacked parts, no visible text or symbols

7 Закрийте кришку.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Digital display showing a 0-10 digital display with signal icon and red starburst symbol above it

Важливо

https://ij.start.canon/connect ←→ C

Illustration of a printer with a red arrow indicating the open lid (no text or symbols present)

Mechanical assembly diagram showing a component being inserted into a housing, with a red arrow indicating the direction of movement (no text or symbols present)

Diagram showing two steps of installing a device with a prohibition symbol, labeled ① and ②.

Diagram showing printer operation with 'OK' button and blank sheet, alongside a separate image of a printer.

Two-step diagram showing printer insertion process: one with red arrows indicating rotation, the other with red arrows indicating contraction (no text or symbols)

Simple line drawing of a rectangular container with a handle and side slots (no text or symbols)

Diagram of a printer with labeled parts and directional arrows indicating process flow

Diagram of a printer with internal structure and red arrow indicating motion (no text or symbols)

3 Zatvorite poklopac.

Line drawing of a printer with internal structure and a red arrow indicating rotation (no text or symbols)

https://ij.start.canon/E3640

2 Slijedite upute za dovršetak postavljanja i ispis.

1

Illustration of a printer with three speech bubbles containing icons: power button, money bag, and document (no text or symbols)

2

Diagram showing a mechanical component before and after assembly, with a red arrow indicating a downward motion (no text or symbols present)

① Color ②

Važno

• Ne dirajte boju na zaštitnoj traci. Može vam zaprljati ruke ili druge predmete koji se nalaze u blizini.
• Ne dirajte područja prikazana na slici. Inače pisač možda neće ispravo ispisivati.

4 Umetnite uložak FINE u boji u držač uloška FINE.

Diagram of a box inside a container with a red arrow pointing to it (no text or symbols)

Važno

Nemojte udarati uložak FINE. To može uzrokovati kvar.

5 Podignite ručicu za zaključavanje uloška tinte.

Diagram showing a hand pressing a component with red arrows indicating direction, before and after assembly or repair.

6 Ponovite korake od 2 do 5 i umetnite crni uložak FINE s desne strane.

Cross-sectional diagram of a mechanical component with layered sections (no text or symbols)

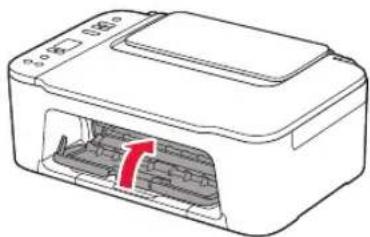

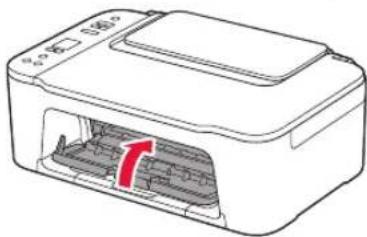

7 Zatvorite poklopac.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Postavljanje pisača

https://ij.start.canon/connect ←→ C

2 Unesite naziv modela svog pisača i kliknite Kreni.
3 Slijedite upute na zaslonu.

Napomena

Pogledajte Priručnik na mreži ako ne možete povezati pisač s računalom ili pametnim telefonom (zbog problema s mrežom).

Upotreba CD-ROM-a za postavu

Illustration of a printer with a red arrow indicating the open lid area (no text or symbols present)

2 Povucite vodilicu papira ulijevo.

Mechanical assembly diagram showing a component being inserted into a housing, with an inset close-up highlighting the detail (no text or symbols present)

3 Nekoliko listova papira postavite uz desni rub tako da im strana za ispis bude okrenuta prema gore, a vodilicu papira poravnajte sa širinom papira.

Diagram showing two steps of installing a device with a prohibition symbol, labeled ① and ②.

4 Pritisnite gumb Odabir papira (Paper Select), odaberite veličinu papira i zatim pritisnite gumb U redu (OK).

Diagram showing printer operation with 'OK' button and blank sheet, alongside a separate image of a printer.

5 Izvucite ladicu za izlaz papira i otvorite produžetak ladice za izlaz papira.

Two-step diagram showing printer insertion process: one with red arrow indicating rotation, the other with red arrow indicating rotation of a device (no text or symbols)

Line drawing of a rectangular container with handles, no text or symbols present

Ako rezultati ispisa nisu zadovoljavajući

Simple geometric diagram with a horizontal line and two small squares (no text or symbols)

Diagram of a printer with two buttons labeled 'OK' and a document icon, showing paper movement and print orientation.

Diagram of a printer with a red arrow indicating the process, showing no text or symbols.

Illustration of a printer with a paper feeding into a slot (no text or symbols visible)

Line drawing of a rectangular container with a side handle and lid (no text or symbols)

4

1 افتح دعامة الورق.

Illustration of a printer with a red arrow indicating the paper's edge, showing no text or symbols on the device itself.

Diagram of a mechanical component with a red arrow indicating direction, no visible text or symbols

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing two labeled steps (① and ②) of a mechanical or electronic component with directional arrows indicating movement.

Two prohibition symbols: a blank rectangle and a red circle with a diagonal line.

https://ij.start.canon/connect

User interface screenshot showing a dropdown menu with '←' and a red button labeled 'C', alongside a prohibition symbol and a magnifying glass icon.

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols)

Diagram of a vehicle engine compartment with red arrows indicating flow or movement (no text or labels)

Diagram of a hand pressing a button into a mechanical component with a red upward arrow (no text or symbols)

Cross-sectional diagram of a mechanical component or housing (no text or symbols visible)

7 أغلق الغطاء.

Line drawing of a printer with internal circuitry and a red arrow indicating a component (no text or symbols)

Diagram of a printer internal structure showing internal components and a red arrow indicating a component (no text or symbols present)

Technical line drawing of a mechanical component or housing (no text or symbols)

Cross-sectional diagram of a mechanical component with a red arrow indicating a downward force or direction (no text or symbols present)

① Color ②

https://ij.start.canon/E3640

Illustration of a smartphone, laptop, and printer with wireless signal icon (no text or symbols)

Illustration of a printer with three speech bubbles containing icons: power button, documents, and a document (no text or symbols)

1

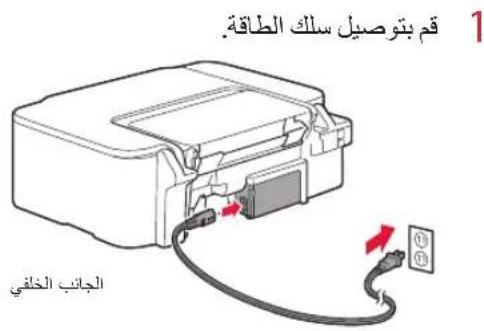

3. تشفيل الطبعة

Diagram of a printer with labeled parts and directional arrows indicating process flow

Diagram of a printer with internal structure and red arrow indicating motion (no text or symbols)

أغلق الغطاء.

1

Line drawing of a printer with internal structure and red arrow indicating a component (no text or symbols)

Red icon showing a globe with a question mark on a laptop, symbolizing global inquiry or search (no text present)

Access Online Manual Accès au Manuel en ligne Odprite Spletni priročnik Accesati Manual online Достъп до Онлайн ръководство

https://ij.start.canon

Frequently Asked Questions
