EHF205RC - Heating EAS Electric - Free user manual and instructions

Brand	EAS Electric
Model	EHF205RC
Product type	Fan heater
Power supply	220-240 V AC / 50 Hz
Nominal heat output	2.0 kW
Minimum heat output	1.2 kW
Maximum continuous heat output	2.0 kW
Heating levels	2 levels + ECO mode
Ambient temperature	0-40°C
Main functions	Oscillation, timer, ECO mode, remote control
Display	Digital display
Remote control	Yes, with 2 AAA 1.5 V batteries (not included)
Overheat protection	Yes, automatic shut-off
Tip-over protection	Yes, automatic shut-off
Dust filter	Yes, cleanable and replaceable
Use	Indoor use only, well-insulated rooms or occasional use
Safety distance	At least 90 cm from flammable objects
Maintenance	Clean with a dry cloth, washable filter
Warranty	2 years, repair included (excluding wear parts)
Delivery contents	Fan heater, remote control, instruction manual

Frequently Asked Questions - EHF205RC EAS Electric

How to use ECO mode on the EHF205RC?

ECO mode sets the default temperature to 24°C and automatically adjusts the heating level to reach this temperature economically. To activate, press the Mode button until ECO is selected.

Can I use this heater in a bathroom?

No, the manual advises against use in the immediate vicinity of a bathtub, shower, or swimming pool. This product is designed for indoor dry use only.

How to clean the dust filter?

Unplug the appliance, open the rear flap, remove the filter, clean it with a dry cloth or soapy water (dry thoroughly), then replace it. Do not touch the heating elements.

What to do if the appliance suddenly turns off?

This may be due to overheating or tipping over. Unplug the cord, wait 30 minutes, check that the openings are not obstructed and that the appliance is on a flat surface. If the problem persists, contact customer service.

How to set the temperature?

Press the Temperature button on the control panel or remote control to set the desired temperature. The display shows the set value. If it is higher than the ambient temperature, the heating activates.

The remote control does not work, what to do?

Check that the batteries (2x AAA 1.5V) are inserted correctly and are not depleted. Point the remote control towards the appliance. All functions are also available on the control panel.

What is the safety distance to be observed?

Place the appliance at least 30 cm from other objects and at least 90 cm from flammable objects such as furniture, curtains, bedding, clothing.

How to use the timer function?

Press the Timer button to set a duration (30 min, 1h, 2h, 4h). The display shows the remaining time. The appliance will turn off automatically at the end of the countdown.

Is the heater suitable for children or elderly people?

Yes, but with caution: some parts become very hot. Supervise children and elderly. Never leave the appliance unattended and keep it out of reach of children under 3 years.

What is the warranty of this product?

The commercial warranty is 2 years from the date of purchase, covering manufacturing defects (labor and parts). It is valid only in Spain. The invoice or receipt is required.

USER MANUAL EHF205RC EAS Electric

Line drawing of a cylindrical object with a textured surface and base, resembling a speaker or lamp (no text or symbols)

EHF205RC

MANUAL DE INSTRUÇÕES

Prohibition sign with no text, featuring a crossed-out document icon inside a circle

DO NOT COVER/ NO CUBRIR

Simple gray icon of a funnel with three circular elements above it (no text or symbols)

- Modo ECO

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

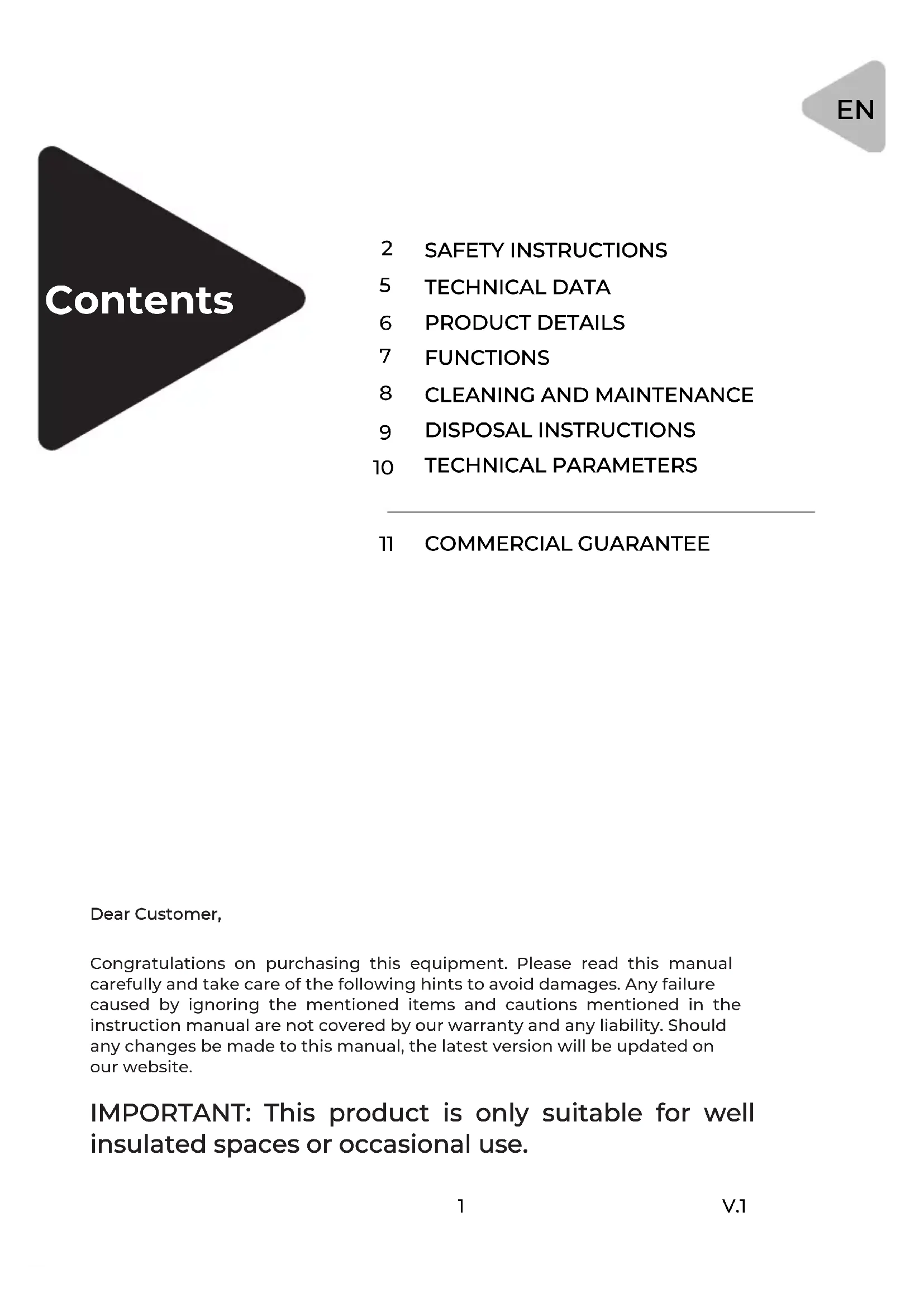

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Should any changes be made to this manual, the latest version will be updated on our website.

IMPORTANT: This product is only suitable for well insulated spaces or occasional use.

Read the manual completely before using the product.

■ Before using the fan heater, check whether the voltage indicated on the rating plate matches that of your mains supply.
- Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself.
- Never block the fan of the appliance. This could damage the appliance or result in a fire or electric shock.
■ Never block the air inlet of the fan heater.
- Disconnect the plug from the power source if the appliance is not being used. Do not leave the fan heater unattended.
This appliance emits a lot of heat during operation. Therefore, touch only the operating controls. In case of doubt, use heat-resistant gloves.
- Keep flammable materials such as pillows, paper, clothing, curtains or other highly flammable objects away from the fan heater.
- Caution: The fan heater is not suitable to be used in confined areas if they are occupied by persons who are not able to leave the room or the vehicle by themselves.

• This appliance is intended for personal use only.
• Cleaning and user maintenance should not be carried out by children without supervision.
• This appliance can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers. Children should not play with the appliance.
  ■ CAUTION: Some parts of the product may become very hot and cause burns. Be very careful if children or frail persons are present.
• Never immerse it in water for cleaning. Wipe the body with a dry cloth.
• Place the appliance at least 30 cm from other objects.
  ■ Use this product only on a flat surface.
• Disconnect the appliance from the mains when it is not being used or when cleaning it.
• Keep the product at least 90 cm away from flammable materials, such as furniture, curtains, bedding, clothing or paper.

■ Never allow the cable to come in contact with hot or damp surfaces.
- Do not turn on the appliance if you find a defect in the power cord. Contact the manufacturer of the product in such cases.
- The appliance should always be placed on a flat, level surface using the tilt protection at the bottom.
- Do not use the heater in the immediate vicinity of a bathtub, a shower or a swimming pool.
- If the mains power cable of this appliance is damaged, it should be replaced by the manufacturer, its after-sales service personnel or by an equally qualified person, so as to prevent any risk.
- Children younger than 3 years should be kept away from it, unless they are under constant supervision.
- Children between 3 and 8 years may switch the appliance on and off only when they are supervised or have been instructed concerning the safe use of the appliance and have understood the resulting risks, provided that the appliance is placed or installed in its normal usage position.

• Children between 3 and 8 years should not insert the plug into the socket, should not regulate the appliance, should not clean and/or carry out user maintenance.
  ■ The heater should not be placed immediately below a wall socket.
  ■ Never cover the openings of the appliance.

Prohibition sign with no text, featuring a crossed-out document icon inside a circle

DO NOT COVER

Scope of delivery

• Fan heater
• Remote control
• User manual

Technical data

Power supply	220-240 V AC / 50 Hz
Power consumption	2000 W
Features	2 heat settingsDisplayOscillation optionTimer function
Ambient temperature	0-40°C

1 2 3 4

N°	Description
1	Operating controls
2	Display
3	Heating elements
4	Stand

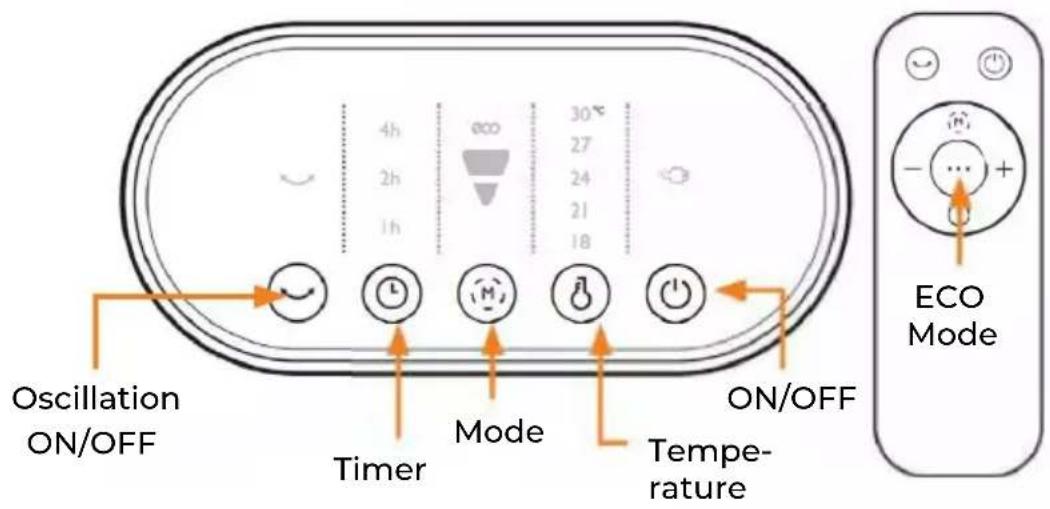

Oscillation ON/OFF Timer Mode Temperature ON/OFF ECO Mode

Initial use

Take the appliance out of the package and remove all the packaging material. Place the fan heater on a level and flat surface so that the tilt protection at the bottom is not actuated. Connect the appliance to a 220-240V AC socket.

To start the fan heater, press the "Power" button on the control panel or on the remote control. The fan heater now starts to heat. Press the "Temperature" button to adjust the desired temperature. The display shows the set temperature above the button on the fan heater. The heater will start heating if the set temperature is higher than the roam temperature. The fan heater has 3 heating medes.

- ECO Mode

- Heat setting 1

- Heat setting 2

You can navigate through the different heating modes by pressing the "Mode" button.

FUNCTIONS

ECO Mode

The default setting of the temperature in this mode is 24^ C when the ECO energy saving mode is selected. Based on the current temperature and the target temperature of 24^ C, the heater automatically selects the heating level to reach the target temperature.

Remote control

Use 2x 1,5V AAA batteries for the remote control. All the functions that can be performed using the remote control have the identical function as those on the control panel of the fan.

Oscillation

To turn the oscillation on or off, press the "Oscillation" button on the control panel at the top of the fan or on the remote control.

Timer function

You can enable the timer function by pressing the "Timer" button. The currently configured timer stage is displayed.

Tilt protection

Thanks to the tilt protection at the bottom of the heater, it switches off automatically if the appliance tilts over. Please place the appliance only on even and flat surfaces.

Overheating

WARNING: The heater should not be covered to avoid overheating.

Overheating generally occurs only if one of the openings of the fan heater is covered, blocked or clogged. This appliance has overheating protection. The heater switches off automatically once the overheating temperature is reached. If the appliance is therefore turned off for this reason, disconnect the plug and wait for 30 minutes. Then try to switch it on again. Please contact customer service if this does not happen. After switching off the appliance, the fan continues to run in cooling phase until it completely shuts down.

CLEANING AND MAINTENANCE

Disconnect the product from the power supply before cleaning or maintenance.

Do not use any aggressive or chemical cleaning agents. Use a dry, soft cloth.

Ensure that you do not touch the heater elements when cleaning.

You have to open the flap at the back to clean or replace the dust filter. Remove the dust filter, clean it and put the filter back.

Safety instructions and disclaimer

Never try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the appliance for damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the appliance, which is not carried out by the original supplier, will void any warranty and liability claims. The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

Disposal instructions

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

DISPOSAL: Do not dispose of this product as unsorted municipal waste. It is necessary to collect this waste separately for special treatment.

According to the European directive 2012/19/EU on waste electrical and electronic equipment (WEEE), household appliances cannot be disposed of in the normal municipal waste bins; they have to be collected separately to optimise the recovery and recycling of their constituent components and materials and to reduce the impact on human health and the environment.

The crossed-out wheeled bin symbol is marked on all products to remind the consumer of the obligation to separate them for separate collection. The consumer should contact the local authority or the retailer for information regarding the correct disposal of their appliance.

TECHNICAL PARAMETERS

Model identifier(s):	EHF205RC
Item Symbol Value Unit				Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only
Nominal heat output	Pnom	2,0	kW	manual heat charge control, with integrated thermostat	no
Minimum heat output (indicative)	Pmin	1,2	kW	manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax,c	2,0	kW	electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption				fan assisted heat output	no
At nominal heat output (fan motor)	elmax	2,008	kW	Type of heat output/room temperature control
At minimum heat output (fan motor)	elmin	1,251	kW	single stage heat output and no room temperature control	no
In standby mode	eISB	0,34	kW	Two or more manual stages, no room temperature control	no
				with mechanic thermostat room temperature control	no
				with electronic room temperature control	yes
				electronic room temperature control plus day timer	no
				electronic room temperature control plus week timer	no
				Other control options (multiple selections possible)
				room temperature control, with presence detection	no
				room temperature control, with open window detection	no
				with distance control option	no
				with adaptive start control	no
				with working time limitation	no
				with black bulb sensor	no
Contact details	P.I. Codonyers. C/Principal, 4 46220 Picassent (Valencia) SPAIN

COMMERCIAL GUARANTEE CONDITIONS

This appliance has a two-year repair guarantee, from the date of sale, against all malfunctions originating from manufacturing, including labor and spare parts. To justify the purchase date, it will be mandatory to present the invoice or purchase receipt. This guarantee will only be effective in Spain.

GUARANTEE EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.
5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.
6. Civil liabilities of any nature.
7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.
8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.
9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.
10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.
11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without prior notice for product improvement.

EAS ELECTRIC

SMART TECHNOLOGY

www.easelectric.es
