EHH201 - Heating EAS Electric - Free user manual and instructions

Product type	Convection heater
Brand	EAS Electric
Model	EHH201
Rated power	2000 W (max)
Adjustable power	1000 W / 2000 W (with or without fan)
Power supply	220-240 V ~ 50 Hz
Thermostat	Yes, adjustable
Fan	Built-in, 2 modes (with/without)
Overheat protection	Yes, automatic shut-off
Tip-over protection	Yes, automatic shut-off
Protection rating	IPX0 (not suitable for bathroom)
Safety distance	30 cm from other objects, 90 cm from flammable objects
Usage	Well-insulated rooms or occasional use
Number of heat levels	2 (without fan) + 2 (with fan) + off
Control type	Rotary knob
Carrying handles	Yes, side
Cleaning	Dry cloth, do not immerse
Repairability	Do not open yourself, contact customer service
Weight	Approximately 4 kg (estimate)
Dimensions (L × H × D)	Approximately 50 × 40 × 25 cm (estimate)

Frequently Asked Questions - EHH201 EAS Electric

What are the available power levels?

The appliance offers two heating levels: 1000 W and 2000 W, each can be used with or without the fan. The fan allows faster heat distribution.

How to install the appliance supports?

Turn the appliance over, remove the screws from the bottom, position the supports so that the holes align, then tighten the screws firmly. Make sure the appliance rests on a flat surface.

What to do if the appliance does not work or shuts off suddenly?

First check the circuit breaker or fuse, then make sure the plug is properly inserted. If the appliance shut down due to overheating, let it cool down, remove any obstruction and restart. If the problem persists, contact customer service.

How to clean the heater?

Turn off and unplug the appliance, wait for it to cool completely, then wipe the exterior surfaces with a dry cloth. Never use detergents or water, and never immerse the appliance in water.

Can the appliance be used in a bathroom?

No, the appliance should not be used in the immediate vicinity of a bathtub, shower, or swimming pool. It is not designed for use in damp rooms.

What safety distances must be observed?

Install the appliance at least 30 cm from other objects and at least 90 cm from flammable materials such as curtains, furniture, bedding, or clothing.

How to adjust the temperature?

Turn the temperature control knob clockwise to increase heat. A click indicates ignition. Then you can adjust to the desired temperature.

What to do if the appliance tips over?

The appliance is equipped with a tip-over protection that turns it off automatically if knocked over. Simply upright it, and it will resume normal operation.

Can I use the appliance continuously?

This appliance is designed for well-insulated rooms or occasional use. Prolonged use in a small uninsulated space may cause overheating. Never leave the appliance unattended.

Is the appliance suitable for children or the elderly?

Children under 3 years must be kept away. Children from 3 to 8 years cannot plug in or clean the appliance. The elderly should be supervised as some parts become very hot. Use heat-resistant gloves if necessary.

USER MANUAL EHH201 EAS Electric

Line drawing of a portable electric heater with a closed lid and mounting base (no text or symbols)

2 EHHO

INSTRUCTION MANUAL MANUEL D'INSTRUCCIONS MANUAL DE INSTRUÇÕES

QR code with embedded logo and text 'ERS ELECTR' in center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Simple line drawing of a rectangular object with circular elements and two upward arrows, no text or symbols present.

Figura 1

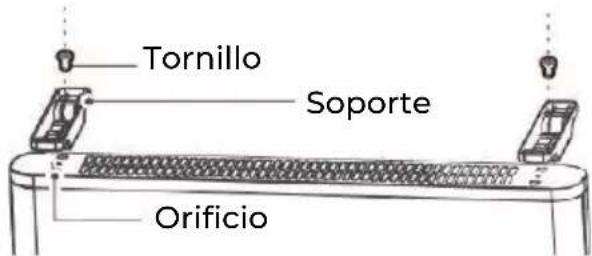

Tornillo Soporte Orificio

Figura 2

2 SAFETY INSTRUCTIONS
5 SPECIFICATIONS
6 PRODUCT DETAILS
6 ASSEMBLY AND USE OF THE APPLIANCE
7 SAFETY
8 CLEANING AND CARE
8 TROUBLESHOOTING
10 TECHNICAL PARAMETERS

11

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Should any changes be made to this manual, the latest version will be updated on our website.

IMPORTANT: This product is only suitable for well insulated spaces or occasional use.

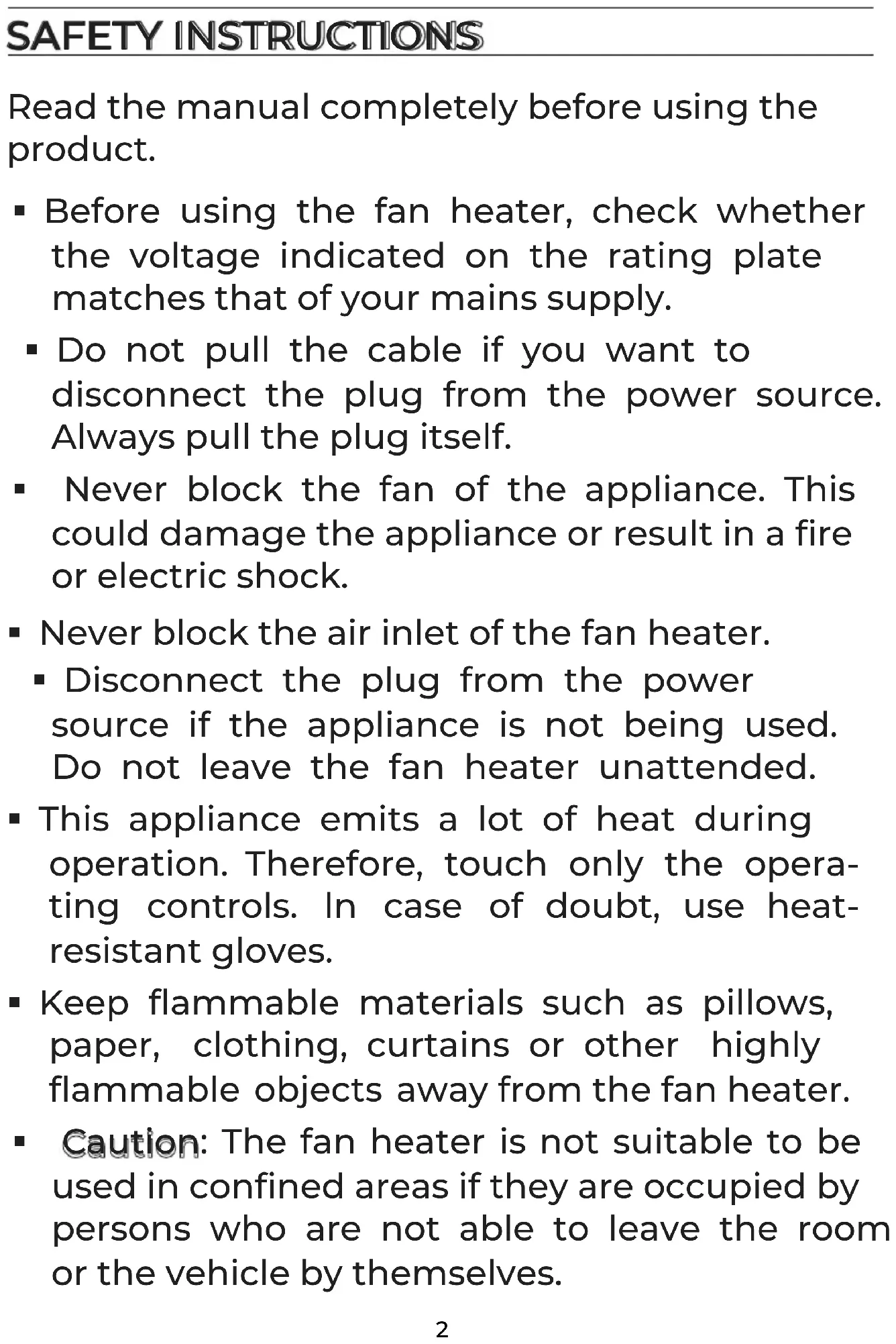

SAFETY INSTRUCTIONS

Read the manual completely before using the product.

■ Before using the fan heater, check whether the voltage indicated on the rating plate matches that of your mains supply.
- Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself.
- Never block the fan of the appliance. This could damage the appliance or result in a fire or electric shock.
■ Never block the air inlet of the fan heater.
- Disconnect the plug from the power source if the appliance is not being used. Do not leave the fan heater unattended.
- This appliance emits a lot of heat during operation. Therefore, touch only the operating controls. In case of doubt, use heat-resistant gloves.
- Keep flammable materials such as pillows, paper, clothing, curtains or other highly flammable objects away from the fan heater.
- Caution: The fan heater is not suitable to be used in confined areas if they are occupied by persons who are not able to leave the room or the vehicle by themselves.

• This appliance is intended for personal use only.
• Cleaning and user maintenance should not be carried out by children without supervision.
• This appliance can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers. Children should not play with the appliance.

- CCAUTION: Some parts of the product may become very hot and cause burns. Be very careful if children or frail persons are present.

- Never immerse it in water for cleaning. Wipe the body with a dry cloth.

- Place the appliance at least 30 cm from other objects.

■ Use this product only on a flat surface.

- Disconnect the appliance from the mains when it is not being used or when cleaning it.

- Keep the product at least 90 cm away from flammable materials, such as furniture, curtains, bedding, clothing or paper.

• Never allow the cable to come in contact with hot or damp surfaces.
• Do not turn on the appliance if you find a defect in the power cord. Contact the manufacturer of the product in such cases.
• The appliance should always be placed on a flat, level surface using the tilt protection at the bottom.
• Do not use the heater in the immediate vicinity of a bathtub, a shower or a swimming pool.
• If the mains power cable of this appliance is damaged, it should be replaced by the manufacturer, its after-sales service personnel or by an equally qualified person, so as to prevent any risk.
• Children younger than 3 years should be kept away from it, unless they are under constant supervision.
  Children between 3 and 8 years may switch the appliance on and off only when they are supervised or have been instructed concerning the safe use of the appliance and have understood the resulting risks, provided that the appliance is placed or installed in its normal usage position.

Prohibition sign with a diagonal line crossing over a document icon, indicating no text or symbols beyond the prohibition symbol.

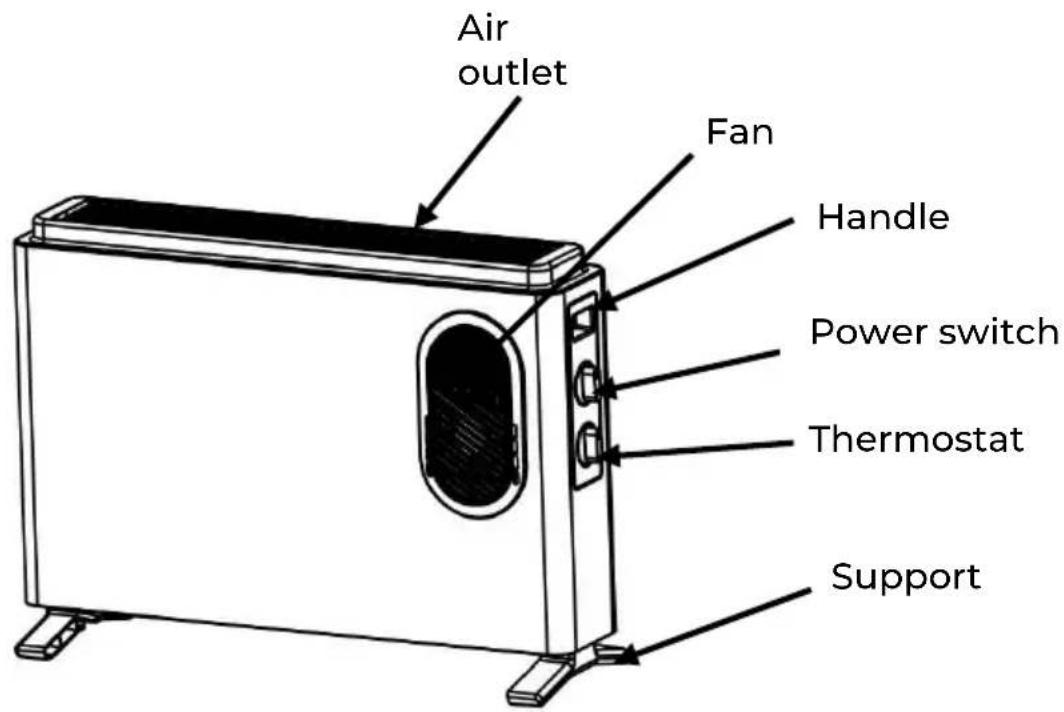

PRODUCT DETAILS

Air outlet Fan Handle Power switch Thermostat Support

ASSEMBLY AND USE OF THE DEVICE

1. According to fig.1, turn the body down with the bottom upward, and the screw out onboard screws.
   2.BAccording to fig.2, remove the supports. Aim the buckle on the support at the hole, push the supporting foot until the holes on support coincides with the screw hole on the machine.
   3.BPenetrate the removed screws through the support holes and tighten in the machine table.
   4.BAfter the installation is completed, turn the body upward for use.

Simple line drawing of a rectangular object with circular indentations and two upward arrows, no text or symbols present.

Figure 1

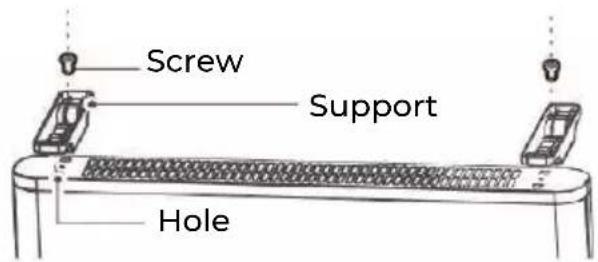

Screw Support Hole

Figure 2

Check before turning on the machine

Check if the power wire is under good condition.

The product adopts 2OV4OV 0Hz AC power supply, before use, please confirm if the rated current of the power socket meets the local requirements, otherwise, please replace it with the qualified socket.

Placement of the machine

Uneven place may possibly cause the turnover switch at abnormal position then the heater can't work after turning on, therefore, please put the h on the flat place.

Operating the machine

Temperature control knob

Insert the plug into the power socket, then turn the Temperature Control knob clockwise, when hearing the “pop” sound (it means the temperature controller is on), adjust the Temperature Control knob to the desired temperature level.

Power selection knob

Turn the Power selection knob to select between 5 functions: II 000W (High+Fan on), I 00W (Low+Fan on), O(Off), I 00W (Low+Fan off), I 000W (High+Fan off).

Shutdown

Turn the power selection knob to the OFF position, and turn the Temperature Control knob anticlockwise to the initial position. If the appliance is not to be used any more, unplug it and store it only after it has cooled down.

SAFETY

Overheat protection

The overheat safety device on the appliance shuts off the heater if it overheats due to abnormal conditions. If this occurs, turn the heater off using the selector wheel, unplug the heater and check that there are no objects on or no appliance that may have caused the overheating.

Allow the appliance to cool down, plug it back in and continue normal operation. If the overheating persists, contact your service representative for inspection.

Tilt protection

When the whole heater is inverted, the safety system will automatically cut off the power, and return to the work state before inversion after the body placed upright.

Additional features

Carrying handles: To make it easier to move from one room to another, you can use the handles on each side of the heater.

CLEANING AND STORAGE

It is recommended that the heater be cleaned at least one time during the operating Bseason Bin Border Bto Bprovide Bthe Boptimum Blevel Bof Bperformance. ALWAYS BTURN BTHE BPOWER BSWITCH BOFF BAND BUNPLUG BTHE BHEATER BEFORE CLEANING. Be sure to save the box for offseason storage.

• Turn the heater "OFF", unplug it and wait for the heater to cool down.
• Use a dry cloth to clean only external surfaces of the heater.
• Do not use any cleaning agents or detergents.
• Never immerse the heater in water.
• Pack the heater in the original carton and store it in a cool and dry place.
• Avoid bruising or scratching products to avoid surface coating damage and rust.

TROUBLESHOOTING

If your heater fails to operate, please follow these instructions:

• Ensure that your circuit breaker or fuse is working properly.
• Be sure the heater is plugged in and that the electrical outlet is working properly.
• Check for any obstruction. If you find Bany Bobstruction, Bturn Bthe Bheater "OFF:"BUnplug Bthe Bheater Band Bwait Ba Bfew Bminutes Bfor Bit Bto Bcool Bdc Carefully remove the obstruction. Plug the heater in and turn it on again by referring to the OPERATING INSTRUCTIONS.

Note: Blf Byou Bhave Ba Bproblem Bwith Bthe Bheater, Bplease Brefer Bto Bthe Bwarr conditions. Do not attempt to open or repair the appliance yourself, as doing so Bmay Binvalidate Bthe Bwarranty Band Bmay Bcause Bdamage Bor Binjury. Blf Bth problem persists, contact the after-sales service for assistance.

	..
				- -
..
				-
		-		- -
		.	1
				-

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.
5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.
6. Civil liabilities of any nature.
7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.
8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.
9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.
10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.
11. Appliances used in industrial applications or for commercial purposes.
12. Appliances with illegible or altered serial number.
13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.
14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.
15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.
16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Contenu

2 INSTRUCTIONS DE SÉCURITÉ
5 SPÉCIFICATIONS
6 DÉTAILS DU PRODUIT
6 MONTAGE ET UTILISATION DE L'APPAREIL
7 SÉCURITÉ
8 NETTOYAGE ET ENTRETIEN
8 DÉPANNAGE
10 PARAMÈTRES TECHNIQUES

11 GARANTIE

Chère kliente, cher client,

Prohibition sign with crossed-out document and prohibition symbol

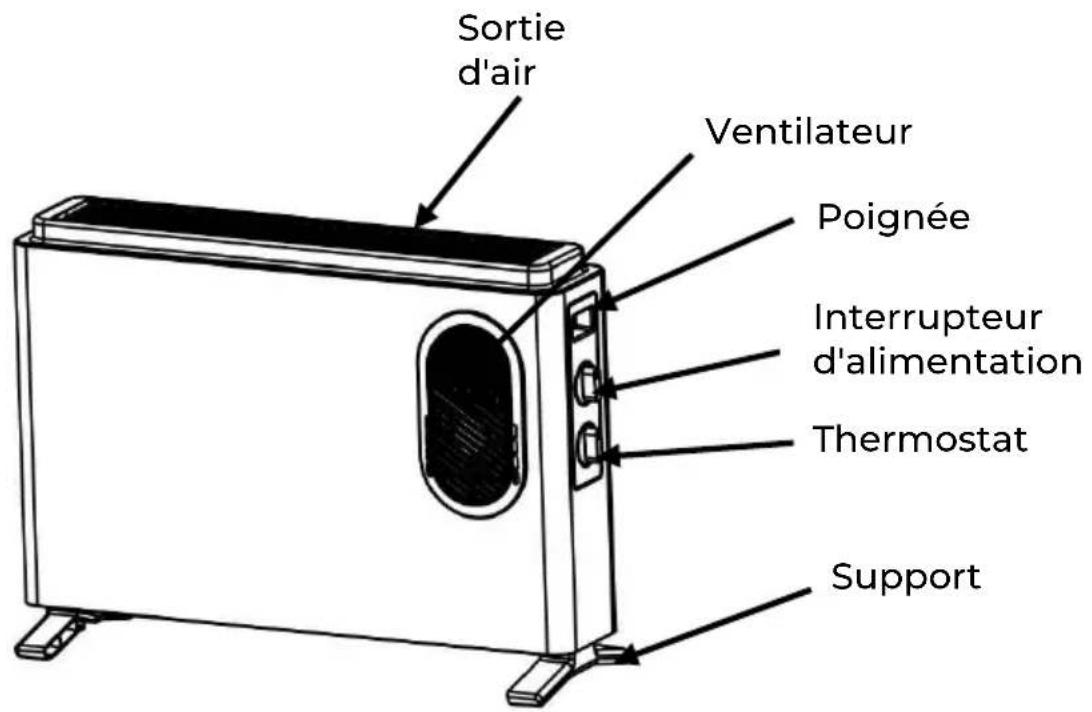

DÉTAILS DU PRODUIT

Simple line drawing of a rectangular object with circular indentations and two upward arrows, no text or symbols present.

Fig. 1

Vis Support Orifice

Fig. 2

Simple line drawing of a horizontal electronic device with two up arrows indicating upward motion (no text or symbols)

Figura 1
