EHF201 - Heating EAS Electric - Free user manual and instructions

Brand	EAS Electric
Model	EHF201
Product Type	Mini ceramic heater
Usage	Indoor, well-insulated spaces or occasional use
Dimensions (W x D x H)	123 x 164 x 231 mm
Net Weight	1.34 kg
Power Supply	220-240 V~, 50 Hz
Maximum Power	2000 W
Minimum Power	900 W (Low mode)
Heating Modes	Fan only, Low (900W), Medium (1300W), High (2000W)
Thermostat	Mechanical, adjustable
Overheat Protection	Yes, automatic shut-off
Tip-over Protection	Yes, safety switch
Indicator Light	Yes, power indicator
Safety Grille	Yes
Carrying Handle	Yes
Maintenance	Clean the exterior with a damp cloth; vacuum the air grilles regularly
Storage	In a safe, clean and dry place
Warranty	3 years (Spain and Portugal)
Country of Origin	Not specified, Spanish brand

Frequently Asked Questions - EHF201 EAS Electric

What is the maximum power of the EHF201 heater?

The maximum power is 2000 W in High mode. It also offers Low (900W) and Medium (1300W) modes.

Can I use this heater in a bathroom?

No, this heater is for dry indoor use only. It should not be placed near a bathtub, shower, or swimming pool to avoid any risk of electrocution.

How to adjust the temperature?

Turn the temperature control knob until you hear a click. Continue turning to the desired temperature. The thermostat automatically shuts off the unit once the temperature is reached.

How to clean the heater?

Unplug the appliance and let it cool down. Clean the exterior with a soft, damp cloth. Regularly vacuum the air inlet and outlet grilles with a brush to prevent dust buildup.

What to do if the heater turns off by itself?

This is normal: the overheat or tip-over protection has activated. Let the appliance cool down for 10 to 20 minutes, then turn it back on. Make sure it is not covered and there is enough space around.

Can I use an extension cord?

It is recommended to plug the heater directly into a wall outlet. Using an extension cord may cause overheating and a fire hazard.

Can the heater be used in a very small room?

Yes, but the floor area must not be less than 5 m² to avoid overheating.

What does the 3-year warranty cover?

The warranty covers manufacturing defects for 3 years from the date of purchase, parts and labor. It is valid in Spain and Portugal. The invoice or receipt is required.

Can I use the fan only mode?

Yes, set the control knob to the FAN position (Fan only mode). No heat is produced, only air.

How to turn off the appliance completely?

Turn the power knob to OFF, then the temperature knob to minimum. Finally, unplug the power cord from the outlet.

USER MANUAL EHF201 EAS Electric

Line drawing of a simple kitchen washing machine with two side outlets (no text or symbols)

EHFO ^2

INSTRUCTION MANUAL MANUEL D'INSTRUCCIONS MANUAL DE INSTRUÇÕES

QR code with embedded logo and text 'ERS ELECTRIC' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

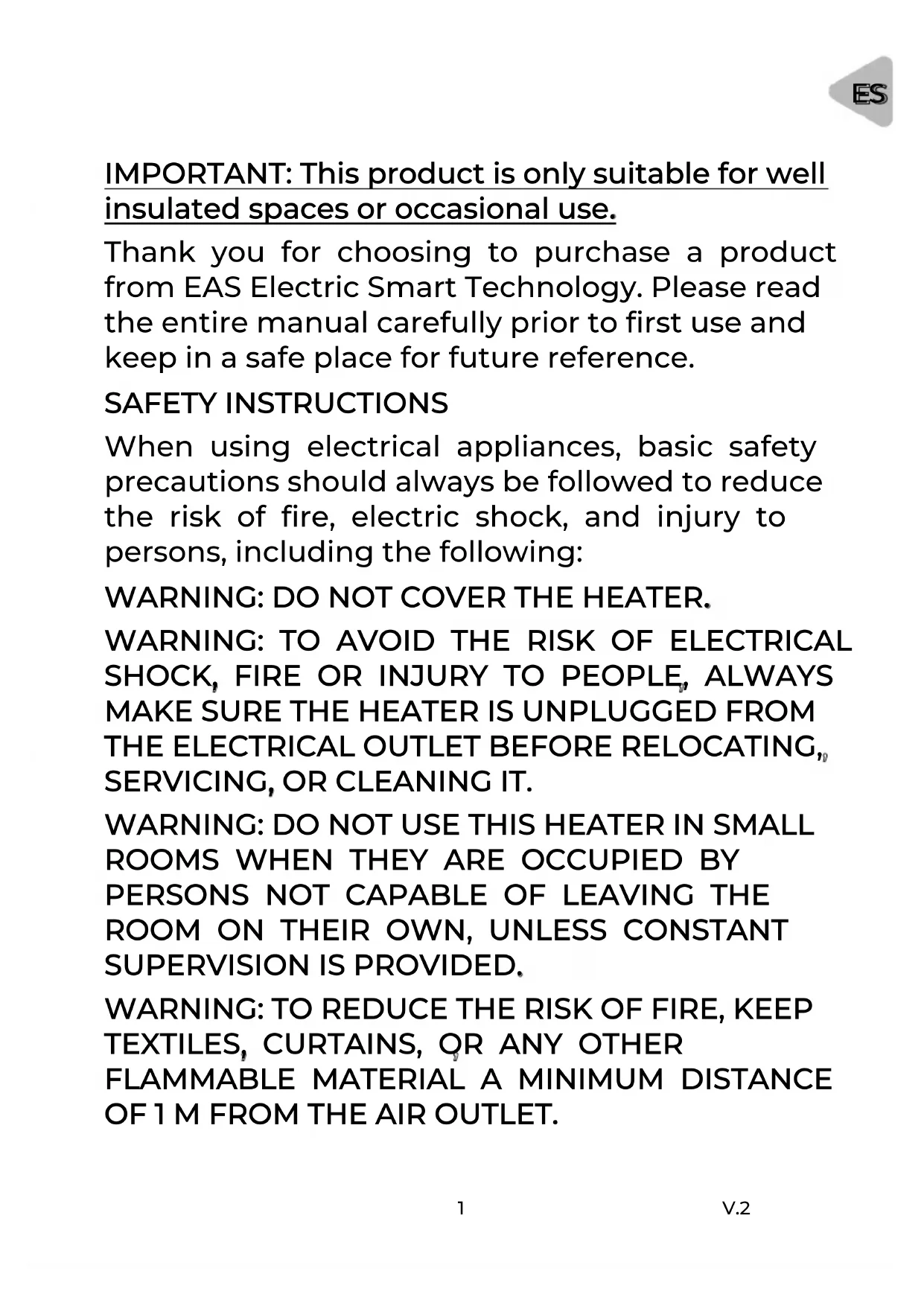

IMPORTANT: This product is only suitable for well insulated spaces or occasional use.

Thank you for choosing to purchase a product from EAS Electric Smart Technology. Please read the entire manual carefully prior to first use and keep in a safe place for future reference.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

WARNING: DO NOT COVER THE HEATER.

WARNING: TO AVOID THE RISK OF ELECTRICAL SHOCK, FIRE OR INJURY TO PEOPLE, ALWAYS MAKE SURE THE HEATER IS UNPLUGGED FROM THE ELECTRICAL OUTLET BEFORE RELOCATING, SERVICING, OR CLEANING IT.

WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED.

WARNING: TO REDUCE THE RISK OF FIRE, KEEP TEXTILES, CURTAINS, OR ANY OTHER FLAMMABLE MATERIAL A MINIMUM DISTANCE OF 1 M FROM THE AIR OUTLET.

CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE TAKEN WHERE CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.

• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• The appliance must have a minimum 50cm clearance around all sides of the appliance. We recommend a 1-meter clearance around the heat radiator side of the appliance.
• Children must be supervised not to play with the appliance.
  ■ Children of less than 3 years should be kept away unless continuously supervised.
• Do not leave children alone or unattended in the area where the appliance is in use.
• Cleaning and user maintenance shall not be made by children unless continuously supervised.

• Place the appliance on a flat, stable, heat-resistant surface. Operating the product in any other position could cause a hazard.

• In order to avoid overheating, do not cover the heater.

• Do not use this heater to dry or heat clothes.
• Ensure the heater is not located immediately below a socket-outlet.
• Do not use this heater near water or in the immediate surroundings of a bath, a shower or a swimming pool.
• Never locate the heater where it may fall into a bathtub or other water container. Do not use the heater in damp areas.
• Do not allow water or other liquids to run into the interior of the heater, as this could create a fire and/or electrical hazard.
• This heater is intended for indoor household use and similar applications. Do not use outdoors.
• Never leave the heater unattended while in use. Always turn the heater off and unplug when not in use.
• Do not use the heater while sleeping or place it near a person who is sleeping.

• Do not place this heater near flammable materials, surfaces or substances. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the heater.
  ■ Use the heater in a well-ventilated area.

• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use gloves or oven mitts to avoid serious injury.

• Prior to cleaning or other maintenance, the appliance must be disconnected from the power supply.
• Allow the heater to thoroughly cool down before handling or cleaning.
• Do not use any abrasive cleaners or solvents, as heater damage will occur.
• To disconnect the heater from the mains power, first turn the controls to the OFF position and then remove the plug from the socket.
• Ensure the heater is switched off and the power cord is unplugged from the electrical outlet before cleaning the heater.
  ■ Never insert fingers or metal objects into the vents and openings of the heater.
• Do not push any objects in the air inlet and outlet grills as this may cause an electric shock, fire or damage the heater.
• Avoid placing the power cord in areas where it can become a tripping hazard. Do not place the power cord under carpeting or cover it with rugs, runners or similar.
• To avoid a circuit overload when using this heater, do not operate another high-wattage heater on the same electrical circuit.

■ Always plug the heater directly into a wall socket. Avoid using extension leads where possible as they may overheat and cause a risk of fire.

- Do not use this appliance with an externa! programmer, timer switch or any other devise which would switch the device on automatically unless this has already been pre-built into the appliance by the manufacturer.

- Do not kink or wrap the power cord and plug around the appliance, as this may cause the insulation to weaken or split, particularly where it enters the appliance.

- Ensure the mains cable is fully extended before use and arrange it so that it is not in contact with any part of the appliance.

- Do not pull on the mains cable. Never move, carry or hang the appliance by the mains cable. The heater should not be used in a room, of which the floor area is less than 5m2.

- Do not operate the appliance with any safety guards removed.

- Do not operate the appliance if there are signs of damage to the appliance, power cord, or any of the accessories.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

• Do not attempt to repair or adjust any electrical or mechanical elements in the appliance.
• Doing so may be unsafe and will void your warranty.
• Ensure that the mains supply (including voltage, frequency and power) complies with the rating label of the appliance.
• Do not use the appliance near petrol, paints, flammable gases, ovens, or other heating sources.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.

SPECIFICATION

Model: EHF201

Voltage: 220-240V\~

Frequency: 50Hz

Power: 2000W (Max)

Product Dimensions: 123 x 164 x 231 mm

Net Weight: 1.34 kg

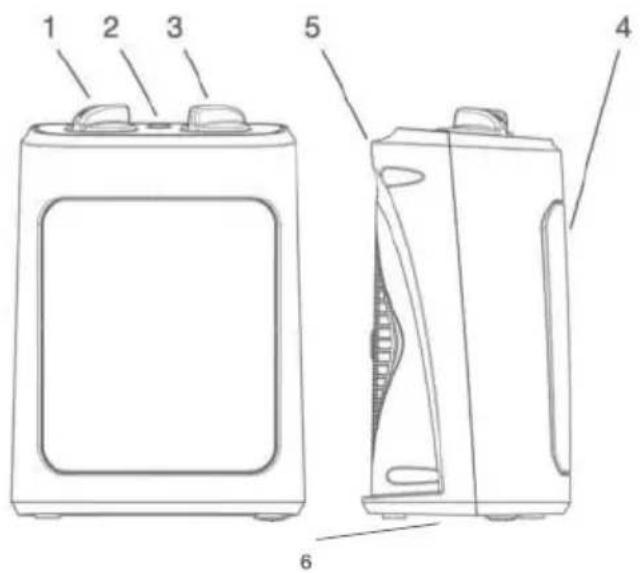

PARTS

1. Temperature control dial
2. Power light
3. Power and fan control dial
4. Safety grille
5. Handle
6. Tip-over switch

1 2 3 5 4 6

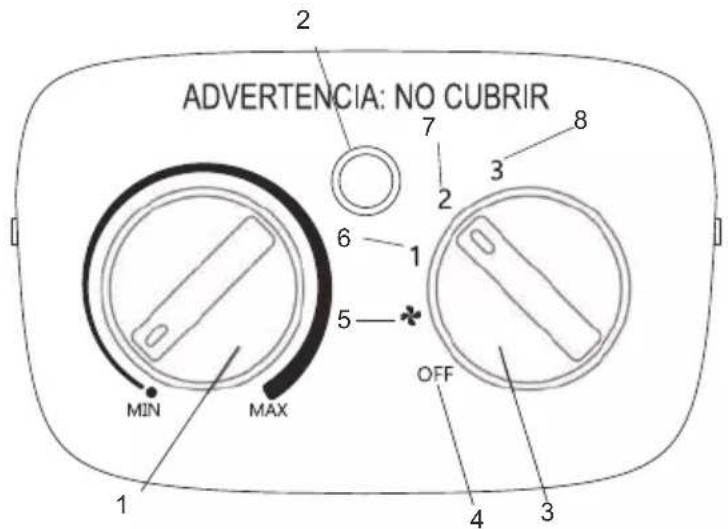

CONTROL PANEL

1. Temperature control dial
2. Power light
3. Power and fan control dial
4. OFF position
5. FAN MODE position
6. LOW position
7. MEDIUM position
8. HIGH position

ADVERTENCIA: NO CUBRIR MIN MAX 1 2 3 6 7 8 5 OFF 4 3

OPERATING INSTRUCTIONS

Switching On and Setting Temperature

1. BInser the plug into the power socket. The power light will turn on.

2.BTurn the power dial to the desired setting:

FAN- Fan only mode

LOW- Low heat mode (900W)

MEDIUM- (300W) _2

HIGH- High heat (000W)

3.BTurn the temperature control dial until you hear a click, which means the unit is on. Continue turning the dial to your desired temperature. The temperature control dial acts as a thermostat. Once the room has reached the desired temperature, the unit will switch off.

Fan Only Mode

For fan only mode, turn the power and fan control dial to FAN MODE.

Switching Off

1.BTurn the power and fan control dial to the OFF position.

2.BTum the temperature control anticlockwise to the lowest setting.

3.BRemove the power plug from the power socket.

Overheat Protection

If the heater overheats, the thermostat built into the appliance will automatically cut off the power supply to the heater and the heater will turn off. The heater will need Bto Bcool Bdown Bfor B00 Bminutes. BOne Bthe Bheater Bhas Bcooled Bdown Bit E again be used normally. Overheating of the appliance can occur during improper use or in certain environmental conditions.

Tipover Protection

When Bthe Bheater Bis Bknocked Bover Bor Btipped Bonto Bits Bside, Bthe Bsafety Bswit automatically cut off the power supply to the heater. Power will return to normal when the unit has been placed in an upright position and onto an even surface.

CLEANING, MAINTANANCE & STORAGE

WARNING: BALLYWAYS BOURNTBTHE BATEATERBOFENBLUNPLTKEBTBHEWPOWER CORD FROM THE ELECTRICAL OUTLET AND ALLOWTHE APPLIANCE TO COMPLETELY COOL DOWN BEFORE HANDLING OR CLEANING IT.

CAUTION: DO NOT ALLOW WATER OR OTHER LIQUIDS TO RUN INTO THE INTERIOR BOFTBTHEHEFATERSBASIBTCHSUBCOULDATERCREATERBABERBAND/ ELECTRICAL HAZARD.

CAUTION: BDO BNOTUBUSEBANYBABRASIVEABCLEANERSBORERSOLVENTS, BAHEATER DAMAGE WILL OCCUR.

• Clean the exterior surface of the heater by wiping it with a soft, damp cloth. Dry the heater with a soft clean cloth.
• Clean the air inlet and outlet grills regularly with a vacuum cleaner, using the brush attachment to avoid any dust buildup.
• To store your product out of Bseason, Bwe Brecommend using the original or similar size box. Store the heater in a safe, clean and dry place when not in use.
• To ensure adequate air circulation keep vents at the rear of the heater free of dust. Do not disassemble the heater to remove dust.

MINI CERAMIC SPACE HEATER EHFQ01 ^21

Heat output	Symbol	Value BUnit	Unit
Nominal heat output	P nom	2.0	kW
Minimum heat output (indicative)	Pmin	1.0	kW
Maximum continuous heat output	P max,c	2.0	kW
Auxiliary electricity consumption
At nominal heat output	el max	N/A	kW
At minimum heat output	el min	N/A	kW
In standby mode	eISB	0	kW

Type of heat input, for electric storage local space heaters only (single select) Unit

Single stage heat output and no room temperature control.	no
Manual heat charge control with room and/or outdoor temperature feedback	no
Electronic heat charge control with room and/or outdoor temperature feedback	no
Fan assisted heat output	no

Type of heat output/room temperature control (single select)	Unit
Single stage heat output and no room temperature control	no
Two or more manual stages, no room temperature control	no
With mechanic thermostat room temperature control	yes
With electronic room temperature control	no
Electronic room temperature control plus day timer	no
Electronic room temperature control plus week timer	no

Other control options (multiple selections possible)	Unit
Room temperature control, with presence detection	no
Room temperature control, with open window detection	no
With distance control option	no
With adaptive start control	no
With working time limitation	no
With black bulb sensor	no

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.
