Product type	GPL gas heater
Brand	EAS Electric
Model	EPLEX42
Fuel	LPG gas (butane/propane), 10 kg cylinder
Gas pressure	28 to 30 mbar
Gas category	13+
Maximum nominal power	4.2 kW (305 g/h)
Number of injectors	3 (diameter 0.58 mm)
Ignition	Piezoelectric
Heat levels	3 positions: Low, Medium, High
Safety devices	Automatic shut-off in case of tip-over or flame failure
Minimum ventilation required	100 cm² ventilation opening
Minimum distance to walls (sides and rear)	0.5 meter
Minimum distance to front	2 meters
Recommended room volume	Minimum 15 m³ (or 78 m² floor area)
Routine maintenance	Periodic exterior cleaning
Annual check	By a qualified technician
Spare parts	Original manufacturer parts are mandatory
Warranty	3 years (subject to conditions)
Prohibited use	Basement, bathroom, caravan, motorhome, high-rise building
Shut-off function	Only by closing the cylinder valve

Frequently Asked Questions - EPLEX42 EAS Electric

How to light the EPLEX42 heater?

Open the cylinder valve one and a half turns. Set the control knob to position 1-LOW and hold it pressed for 10 seconds. While holding, press the piezoelectric ignition button once or twice until the pilot light ignites. Hold for another 10-15 seconds then release. If the flame goes out, repeat the operation.

What to do in case of gas smell?

Immediately close the cylinder valve. Extinguish any open flame. Do not attempt to relight the appliance. Do not touch electrical switches. Do not use the telephone. Contact your gas supplier or technical service.

What are the safety distances to observe?

The appliance must be at least 0.5 meter from walls on the sides and rear, and at least 2 meters to the front from any flammable object (curtains, sofas, furniture). It must not be placed under a power outlet nor near bathtubs, showers or swimming pools.

Can I use the heater in a small room?

No, the room must have a volume of at least 15 m³ (or 78 m² floor area) and be properly ventilated (opening of at least 100 cm²). The appliance is prohibited in basements, bathrooms, caravans and motorhomes.

How to change the gas cylinder?

Close the cylinder valve completely (clockwise). Let the heater cool down. Disconnect the regulator from the empty cylinder. Replace with a full cylinder. Screw the regulator by hand without tools. Open the valve and check for leaks with soapy water.

Why does the heater turn off by itself?

This may be due to lack of ventilation (after about 30 minutes). Open a window or door. If the shutdown is due to a shock, the anti-tilt device has been activated. Wait 5-10 minutes before relighting. If the problem persists, check the cylinder and the regulator.

How to clean the heater?

Before any cleaning, turn off the gas supply and let it cool. Clean the exterior and the storage area with a soft cloth. Do not use abrasive products. Check that the pilot light burns steadily. Have the appliance checked annually by a qualified technician.

What ventilation is needed to use this heater?

The room must have a ventilation opening of at least 100 cm² to ensure air renewal. The heater consumes oxygen and produces combustion gases. Insufficient ventilation may lead to automatic shutdown after 30 minutes.

Can I leave the heater unattended?

No, it is forbidden to leave the appliance unattended during operation. Do not move it while it is running. Do not cover it. Keep it out of reach of children and persons with reduced abilities. Do not use it with a timer or programmer.

What to do if the heater does not light?

Check that the gas cylinder is full and that the valve is open. Make sure the regulator is properly positioned. On first lighting, hold the button pressed longer to purge the air. If the cylinder is cold, let it return to room temperature.

USER MANUAL EPLEX42 EAS Electric

Line drawing of a portable air conditioner unit with ventilation grilles and ventilation ducts (no text or symbols)

QR code with embedded logo and text 'EAS ELECTRICAL' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Prohibition sign with a diagonal line crossing over a document icon, indicating no text or document.

Advertencia: NO CUBRIR

Prohibition sign of a hand crossed out, no text or symbols present

Caution: Hot surface Do not touch

Line drawing of a portable air conditioner unit with ventilation grilles and ventilation slots (no text or symbols)

1. Vista frontal

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

1. Vista posterior

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

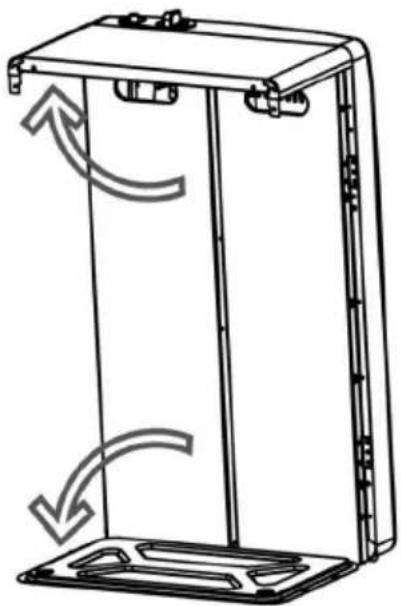

3 Despliegue los paneles s superior e inferior

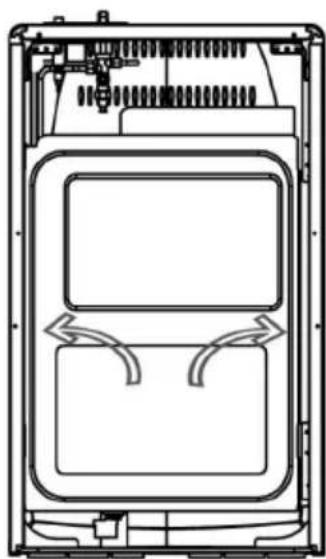

Technical line drawing of a device interior with two rectangular chambers and internal components (no text or symbols)

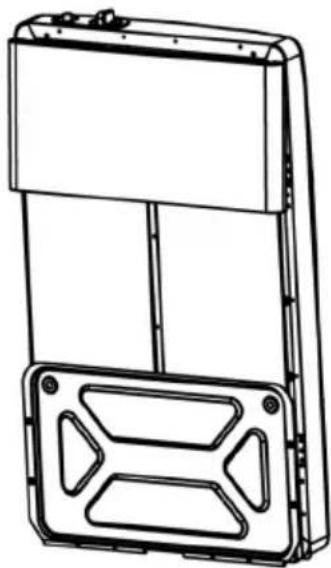

Technical line drawing of a device casing with internal compartments and mounting hardware (no text or symbols)

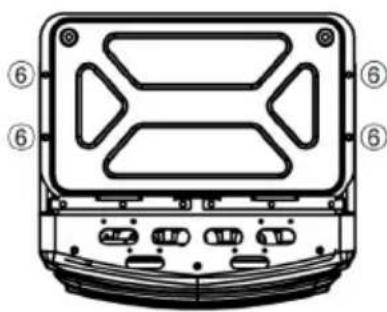

Diagram of a device rear panel with numbered labels pointing to internal components

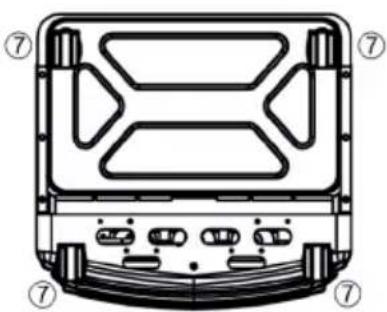

1. Fije la base a los laterales (M5*10 4pcs)

Technical line drawing of a vehicle chassis with labeled components (no text or symbols present)

Technical line drawing of a mechanical device with internal components and wheels (no text or symbols)

1. Fije el panel protector de la bombona M4*8 2pcs

CONDICIONES DE LA GARANTÍA COMERCIAL

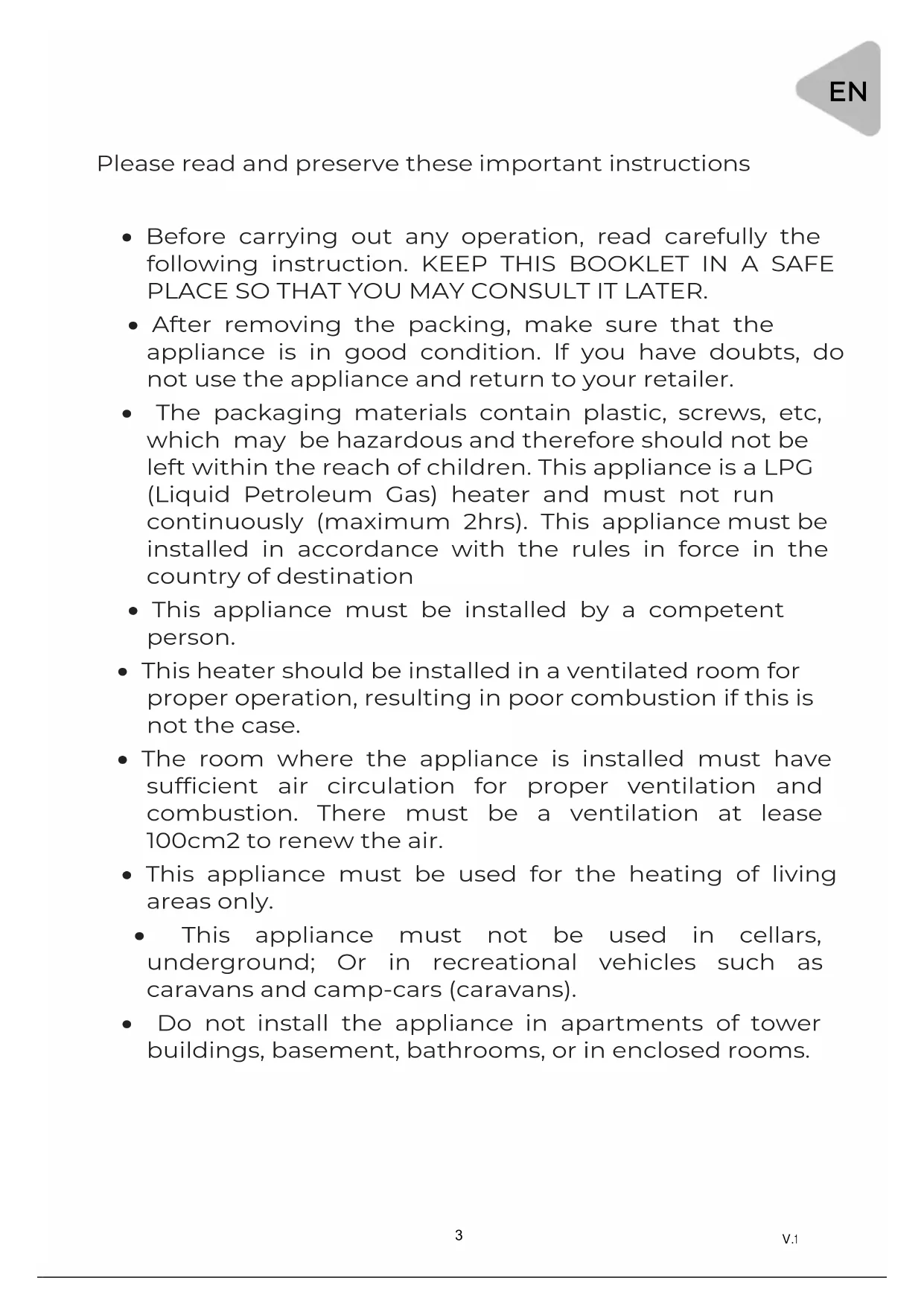

Please read and preserve these important instructions

- Before carrying out any operation, read carefully the following instruction. KEEP THIS BOOKLET IN A SAFE PLACE SO THAT YOU MAY CONSULT IT LATER.

- After removing the packing, make sure that the appliance is in good condition. If you have doubts, do not use the appliance and return to your retailer.

- The packaging materials contain plastic, screws, etc, which may be hazardous and therefore should not be left within the reach of children. This appliance is a LPG (Liquid Petroleum Gas) heater and must not run continuously (maximum 2hrs). This appliance must be installed in accordance with the rules in force in the country of destination

- This appliance must be installed by a competent person.

- This heater should be installed in a ventilated room for proper operation, resulting in poor combustion if this is not the case.

- The room where the appliance is installed must have sufficient air circulation for proper ventilation and combustion. There must be a ventilation at lease 100cm2 to renew the air.

- This appliance must be used for the heating of living areas only.

- This appliance must not be used in cellars, underground; Or in recreational vehicles such as caravans and camp-cars (caravans).

- Do not install the appliance in apartments of tower buildings, basement, bathrooms, or in enclosed rooms.

• Do not place flammable objects (fabrics, curtains) on or against the appliance.
• Do not store chemicals or flammable materials or aerosols near this unit.
• Do not operate this appliance in a flam mable area such as in areas where gasoline or other flammable liquids or vapors are stored.
• Heating must not be near heat sources, flammable or explosive products (at least meters away).
• The appliance must be within 1m of the walls.
• The appliance requires a valid LPG hose (label on the hose) and a butane regulator suitable for the type of gas. If accessories are not supplier with unit, consult your local gas supplier.
• Itsirecommended not to use the appliance in rooms with a volume of less than 15m3 or 7 8m2 of surface.
• Place the auxiliary heater so that the heat is directed towards the center of the room. The front(radiation) of the appliance must be at least 2 meters from curtains, sofa, furniture other objects that can ignite.
• Place the gas cylinder (LPG) in the compartment provided by attention to the hose: it must not be twisted, smothered or on contact with a hot part.
• Do not operate the appliance if the gas cylinder is not placed in its compartment.
  • No part of the heater should be removed.
• Do no cover the unit with anything.
• Do not move the device while it is in operation.
  • Never leave the appliance unattended.

• The protective grillon this appliance is designed to prevent the risk of fire or injury from burning and npart must be disassembled permanently. IT DOES NOT PROTECT TOTALLY YOUNG CH ILDREN AND DISABLED PEOPLE. Keep these people away from the device when it is operating.

• In the event of a gas leak, the auxiliary heater must be switched off and the gas cylinder valve closed by means of a wet mop/ cloth.

• Never use a flame to check for gas leakage.
  • Even if your gas cylinder appears to be empty, gas may remain. Transport and store the cylinder properly
• The appliance must not be located immediately below a socket outlet.
• Do not use the heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• This appliance should not be used by children younger than 8 years of age and by people with reduced physical, sensor and mental capabilities, as well as by people with insufficient experience and knowledge provided. They are supervised or instructed in safe operation of the appliance and understand the related risk.
  • Children should not be allowed to play with the appliance.
• Cleaning and user maintenance operations must not be carried out by children without supervision.

Prohibition sign with document icon and diagonal line, indicating no text or document prohibition

Caution: Hot surface Do not touch

Warning: DO NOT COVER

This symbol on the top part of the device warns the user that in order to avoid overheating and a fire hazard, DO NOT COVER the heater.

CAUTION: HOT SURFACE! DO NOT TOUCH!

This symbol on the device warns burning or scalding to the user this part of the heater must NOT be touched when it is in operation.

HEATER SET-UP:

1. After the heater has been removed from its package, remove the back panel from inside the back cavity.
2. Place the filled gas cylinder into the back of the heater with the valve facing outwards.
3. Screw the correct regulator onto the outlet of the gas cylinder valve clockwise. Turn by hand only. Do not use a spanner. Screw on until the nut is fully home.
4. IMPORTANT TEST for leaks:

This must be carried out in a well-ventilated area, free from any open flame or other sources of ignition. With the regulator connected to the cylinder valve 1 and 1/2 turns anti-clockwise.

Brush all hose connections, pipe connections to the gas valve, regulator connection to the cylinder and gas cylinder valve with a 50:50 solution of detergent and water. A stream of bubbles forming is an indication of a leak. If a leak is found, turn off the cylinder valve (clockwise), disconnect the regulator from the gas cylinder and remove the gas cylinder to a cool, outdoor well-ventilated area. Contact your dealer or gas supplier for assistance.

DO NOT USE THE HEATER IF A LEAK IS FOUND.

DO NOT USE A NAKED FLAME FOR LEAK TESTING.

DO NOT OPERATE ANY ELECTRICAL EQUIPMENT IN THE PRESENCE OF A GAS LEAK.

1. After leak-testing is satisfactorily carried out, fit the rear panel onto the heater. It may be necessary to twist the cylinder slightly to allow the regulator and hose to fit inside the back panel without kinking the hose.

Note: The heater incorporates several safety devices that will shut down the heater in unsafe conditions. In case of accidental flame failure, the gas heater will shut down automatically. These devices will turn off the heater if it is tipped over if this activated. Set the heater upright, check for obvious damage and again wait 5-10 minutes before attempting to re-light the heater. This device may also operate if the heater is knocked against or bumped hard.

• Immediately close the cylinder valve if gas odor is detected.
• Extinguish any naked flame.
• Do not try again to turn on the unit.
• Do not touch any electrical switch.
• Do not use a telephone in your apartment/house/
• Contact the gas supplier or our after-sales service or our dealer and follow instruction

TECHNICAL SPECIFICATIONS:

Model: Foldable model gas room heater

Gas: LPG (Liquid Petroleum Gas G30)

Gas pressure: 28 to 30 mbar

Category: 13+

Nominal flow (Max): 4.2kW-305g/h

Average flow:

Minimum flow rate:

3 injectors with a diameter of 0.58mm

Ignition: piezo-ignition

INSTRUCTION FOR INSTALLATION:

• Remove the appliance from its packaging.
• Mount the different parts of the appliance according to the illustrations in the appendix.
  • Assemble the individual panels with the supplied screws.
• Set the control knob to the (0) or OFF position.
• Fit the gas hose with the appliance connection and tighten with a clamp.
• Use a regulator with a fixed setting of 28 to 30mbar and a flow rate of 1000 to 1500g/h.
• Fit the other end of the special gas hose to the regulator outlet and tighten with a collar. The hose must have a length of 0.50 to 1.00 mtr.
• Fit the regulator on the gas cylinder (10kg) and tighten it properly.
• Open the cylinder valve and check the seal with soapy water.

Heater operation instruction:

The heater can be regulated to three different settings:1-LOW,2-MEDIUM and 3-HIGH. Ignition mode: piezo ignition.

• Open the valve on the heater cylinder 1 and 1/2 turns.
• Press down the turn the control knob to 1-LOW position and hold for 10 seconds.
• While still pressing down the pilot light, press once or twice on the ignition button until the pilot light (at the bottom of the burner) ignites. Continue to hold the control knob down for 10-15 seconds more. Release the button, and if the pilot flame goes out, repeat the above operation.

IGNITOR LOW MEDIUM HIGH

Note: when lighting a new heater for the first time, it might be necessary to hold the control knob down for longer time in order to allow gas to flow to the pilot.

Once the heater in on at the 1-LOW setting, turning the control knbo to 2-MEDIUM or 3-HIGH position will light the second and third panel respectively.

To turn off the heater, turn back the control knob to the OFF position and close the cylinder valve fully (clockwise). The heater can only be turned off by closing the cylinder valve. It cannot be turned off by the control knob.

CHANGING THE CYLINDER:

Turn off the cylinder valve fully (clockwise) and allow the heater to fully cool before removing and replacing the cylinder. Do not attempt to remove the regulator while the heater is still running.

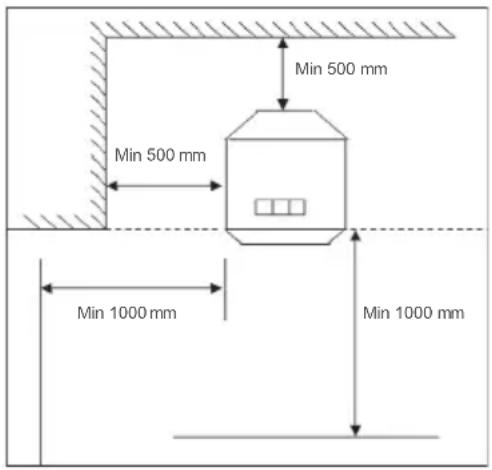

PLACE OF GAS HEATING:

• This heater is designed to be placed on the floor and away from the walls. When using the heater, always point it in the direction of the center of the room. Clear all combustible materials from the vicinity if the heater.
• The appliance must be 0.5 meters away from the walls
• The front of the unit must be clear of a minimum of 2 meters.

Min 500 mm Min 500 mm Min 1000 mm Min 1000 mm

REPLACING THE GAS CYLINDER:

• Replacing the gas cylinder must be done in a non-flammable, well-ventilated room. The appliance is stopped.
• Close the cylinder valve.
• Disconnect and remove the regulator from the cylinder.
• Replace the empty cylinder with a full gas cylinder valve and eliminate leaks; if not call a qualified technician.

VENTILATION:

Your gas heater consumes oxygen when in operation. For this reason, adequate ventilation must be provided in the room where it is used. This ensures the elimination of the products of combustion and allows a renewal of the air. Proper ventilation should greatly reduce the risk of condensation. The table below shows you the proper ventilation so that the air is renewed properly.

VOLUME OF THE PLACE	VENTILATION SURFACE
	Minimum Power	Maximum Power
84 m3	105 m3	105 m3

IN THE CASE OF PROBLEM:

The 2 most common problems associated with any gas heaters are gas leaks, gas pressure that is bad, as well as dirt.

- Check for leaks: The origin of the leakage may originate from transport or installation. A solution of soap and water buffered on the fittings will cause bubbles if gas leaks are present.

- Poor gas pressure: Too much gas pressure can seriously damage your appliance. Little pressure does not allow your device to function properly. If the installer cannot verify the gas pressure, consult your gas dealer.

- Dust and dirt: This heating requires a little maintenance. If the spark does not stay on or if one part is not as bright as the other, your heater probably needs a good cleaning.

Disassembly of the thermocouple or pilot is prohibited. If necessary, please contact our after-sales service.

TECHNICAL ASSISTANCE BEFORE CALLING FOR FURTHER HELP The heater doesn't light:

• Check the gas cylinder to make sure that it is full.
• Check the regulator to make sure that it is properly attached and the cylinder valve is turned on.
• Check that the instructions have been followed correctly.

If this happens after the cylinder has been changed it would be due to:

• Air in the cylinder. Hold the control knob down for a longer period of time until the pilot and main burner light. Switch to the 3-HIGH setting.
• The cylinder may have been excessively cold. Allow the cylinder to reach room temperature before attempting to start the heater.

The heater turns off by itself:

• If the heater goes out on continuous working, repeat the operation, following the instructions faithfully.
• If it goes out soon after 30 minutes or so, it means that it is operated in a badly ventilated area. Open a window or a door to ventilate the area and reignite.
• Avoid bumping the heater in operation. Don't move the heater while in operation. The tip-over switch may be activated and turn the heater off.

MAINTENANCE ANO CLEANING:

• Before maintenance and cleaning, gas heater supply must be turned off, the heater should be cold.

• The heater should be checked annually by a qualified technician for safe operation and in order to detect any faults.

• In case any faults are detected while in use, stop using the heater and contact your dealer for advice.

• Periodically clean the exterior and storage area of your heater to remove dust and fuzz build upon the surfaces of the ceramic components.
• Do not use abrasive products to clean the heater.
• Check the pilot light while it is operating. It should burn steadily. If it flickers or there is a yellow flame, the heater should be checked to make sure it is properly functioning.
• In case any parts need replacement, they must be replaced only with parts from the original manufacturer. The use of incorrect or substitute parts might be dangerous and will avoid any warranty.

When the heater is not in use, we recommend that it is covered, or kept in its carton to minimize the accumulation of dirt that may occur.

STORAGE:

If you decide not to use the heater for an extended period of time please follow the instructions below:

• Close the cylinder valve and disconnect the regulator from the cylinder.
• Store the cylinder in a well-ventilated room away from flammable or explosive materials and preferably outside your home never store cylinder in a cellar or attic.
• The heater must be stored in a dry place and protected from dust (even better, store it in its original packaging)

DISPOSAL: D o not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

ASSEMBLY DIAGRAMS:

Line drawing of a portable air conditioner unit with ventilation grilles and ventilation ducts (no text or symbols)

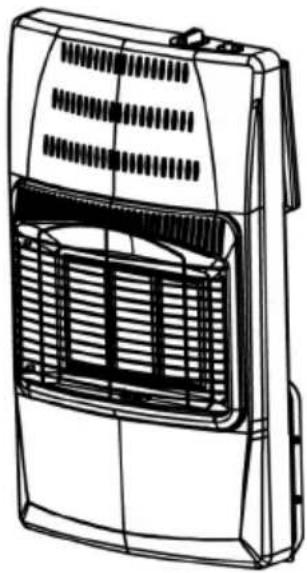

1. Front view

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

1. Back view

Diagram of a mechanical device with directional arrows indicating rotational motion (no text or symbols)

1. Extend top and base panel

Technical line drawing of a device interior with internal components and directional arrows (no text or symbols)

1. Extend side panels

ASSEMBLY DIAGRAMS:

Technical line drawing of a device casing with internal compartments and mounting hardware (no text or symbols)

1. Fix top and side panels M4*8 2pcs

Diagram of a device rear panel with labeled ports and numbered indicators (⑥)

1. Fix base and side panels M5*10 4pcs

Technical line drawing of a vehicle chassis frame with numbered components (no text or symbols)

1. Fix wheels Wheels 4pcs + M6 nut 2pcs


Technical line drawing of a mechanical device with internal components and wheels (no text or symbols)

1. Fix bottle protect panel M4*8 2pcs

Technical line drawing of a device casing with internal compartments and wiring (no text or symbols)

1. Fix top and side panels M4*8 2pcs

Diagram of a device rear panel with labeled ports and numbered indicators (⑥)

1. Fix base and side panels M5*10 4pcs

Technical line drawing of a vehicle chassis with labeled components (no text or symbols present)

1. Fix wheels

Technical line drawing of a mechanical device with internal components and wheels (no text or symbols)

1. Fix bottle protect panel

WARRANTY CONDITIONS

This product has a repair guarantee of 3 years from the date of sale, against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be obligatory to present the invoice or purchase ticket of the end user and the details of the installation company. The present guarantee will only be effective in Spain.

WARRANTY EXCLUSIONS

1. Equipment used improperly, in a manner not in accordance with the instructions for use.

2. Maintenance or upkeep of the appliance: changing the cylinder, periodic checks, adjustments, greasing.

3. Appliances disassembled or manipulated by the user or persons outside the authorised technical services.

4. Broken or deteriorated materials due to wear and tear or normal use of the appliance: control knobs, gaskets, plastics, etc; and other aesthetic damage that does not affect the correct operation of the appliance.

5. Appliances that do not have the factory serial number identified on them or on which this has been altered or erased.

6. Breakdowns caused by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the appliance.

7. Civil liabilities of any nature.

8. Installation defects.

9. Breakdowns that have their origin or are a direct or indirect consequence of: contact with liquids, chemical products and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the inside of the machine or its connection points.

10. Damage derived from terrorism, riot, uprising or popular tumult, demonstrations and legal or illegal strikes; acts of the Armed Forces or State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; defect or defect of the goods; events classified by the National Government as a "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement.

EAS ELECTRIC

SMART TECHNOLOGY

www.easelectric.es

Prohibition sign with document icon and diagonal line, indicating no text or document prohibition

Caution: Hot surface Do not touch

AVERTISSEMENT: SURFACE CHAUDE, NE PAS

Line drawing of a portable air conditioner unit with ventilation grilles and ventilation ducts (no text or symbols)

1. Vue frontale

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

1. Vue arrière

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a device interior with internal components and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a device casing with internal compartments and mounting hardware (no text or symbols)

Diagram of a device rear panel with numbered labels pointing to internal components

Technical line drawing of a vehicle chassis with labeled components (no text or symbols present)

Technical line drawing of a mechanical device with internal components and wheels (no text or symbols)

CONDITIONS DE GARANTIE

EXCLUSIONS DE LA GARANTIE

Prohibition sign with document icon and diagonal line, indicating no text or document prohibition

Aviso: NÃO COBERTAR

Prohibition sign of a hand crossed out, no text or symbols present

Caution: Hot surface Do not touch

Line drawing of a portable air conditioner unit with ventilation grilles and ventilation ducts (no text or symbols)

1. Vista frontal

Technical line drawing of a mechanical device with internal components (no text or symbols)

1. Vista traseira

Technical line drawing of a mechanical device with directional arrows indicating rotation or movement (no text or symbols)

1. Desdobrar os painéis superior e inferior

Technical line drawing of a mechanical or electronic component with internal compartments and mounting features (no text or symbols)

1. Desdobrar os painéis laterais

Technical line drawing of a device casing with internal compartments and wiring (no text or symbols)

1. Fixar o painel superior e os painéis laterais (M4*8 2pcs).

Diagram of a device rear panel with labeled components and numbered parts (⑥)

Technical line drawing of a vehicle chassis with labeled components (no text or symbols present)

1. Fixar as rodas 4 rodas + 2 porcas M6

Technical line drawing of a mechanical device with internal components and wheels (no text or symbols)
