USER MANUAL EMW70 EAS Electric

33Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty. its service agent or similarly qualified persons in order to avoid a hazard.

• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons. Risk of electric shock!

• If the supply cord is damaged, it must be replaced by the manufacturer,

ELECTRIC SHOCK HAZARD

SAFETY INSTRUCTIONS Safety Instructions a potentially dangerous situation which may result in death or serious injuries unless it’s avoided. This combination of symbol and signal word indicates Warning!

a potentially dangerous situation which may result in slight or minor injuries. This combination of symbol and signal word indicates Note! a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment. This combination of symbol and signal word indicates Caution! Warning!

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised that they do not play with the appliance.

• Children 3 years and under shall be kept away from the appliance or continuously supervised.

• Animals and children may climb into the machine. Check the machine before every operation.

• Do not climb or sit on the appliance.

INSTALLATION LOCATION AND SURROUNDING

• All washing and additional substances are to be kept in a safe place out of the reach of children.

• Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.

• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.

• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine.

• Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.

• Never use flammable sprays or substances in the immediate proximity of the appliance. INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.

• This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.

• Mains plug must be accessible after installation.

• Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.

• Before using the washing machine, the product shall be calibrated.

• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.

• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa. ELECTRICAL CONNECTION

• Make sure the supply cable is not trapped by the machine, it can get damaged.

• Connect the product to a grounded outlet protected by a fuse complying with the values in the “ Technical specifications“ table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local regulations.

• Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations.

• Don´t use multiple plugs or extension cords.

• The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.

• Do not pull the plug out of the mains outlet if there is flammable gas around.

• Never pull out power plug with wet hands.

• Always pull at the plug, not at the cable.

• Always unplug the appliance if it is not being used. Warning!

• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.

• Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.

• The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.

• Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

• Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.

• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.

• Remove all objects from pockets such as lighters and matches before use the appliance.

• Thoroughly rinse items that have been washed by hand.

• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.

• Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine

• Fabric softeners or similar products should be used as recommended in their instructions.

• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.

• Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.

• Always unplug the appliance and close the water tap before cleaning and maintenance and after each use.

• Never pour water over the appliance for cleaning purpose. Risk of electric shock!

• Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of not authorized persons. TRANSPORT

• Before Transport: -Bolts shall be reinstalled to the machine by a specialized person -Accumulated water shall be drained out of the machine

• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. INTENDED USE The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use. Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result of it.

Packaging/Old appliance DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

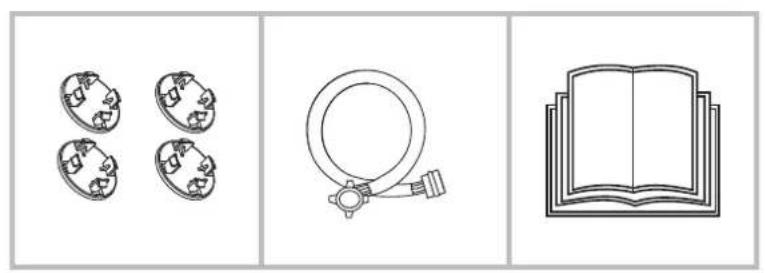

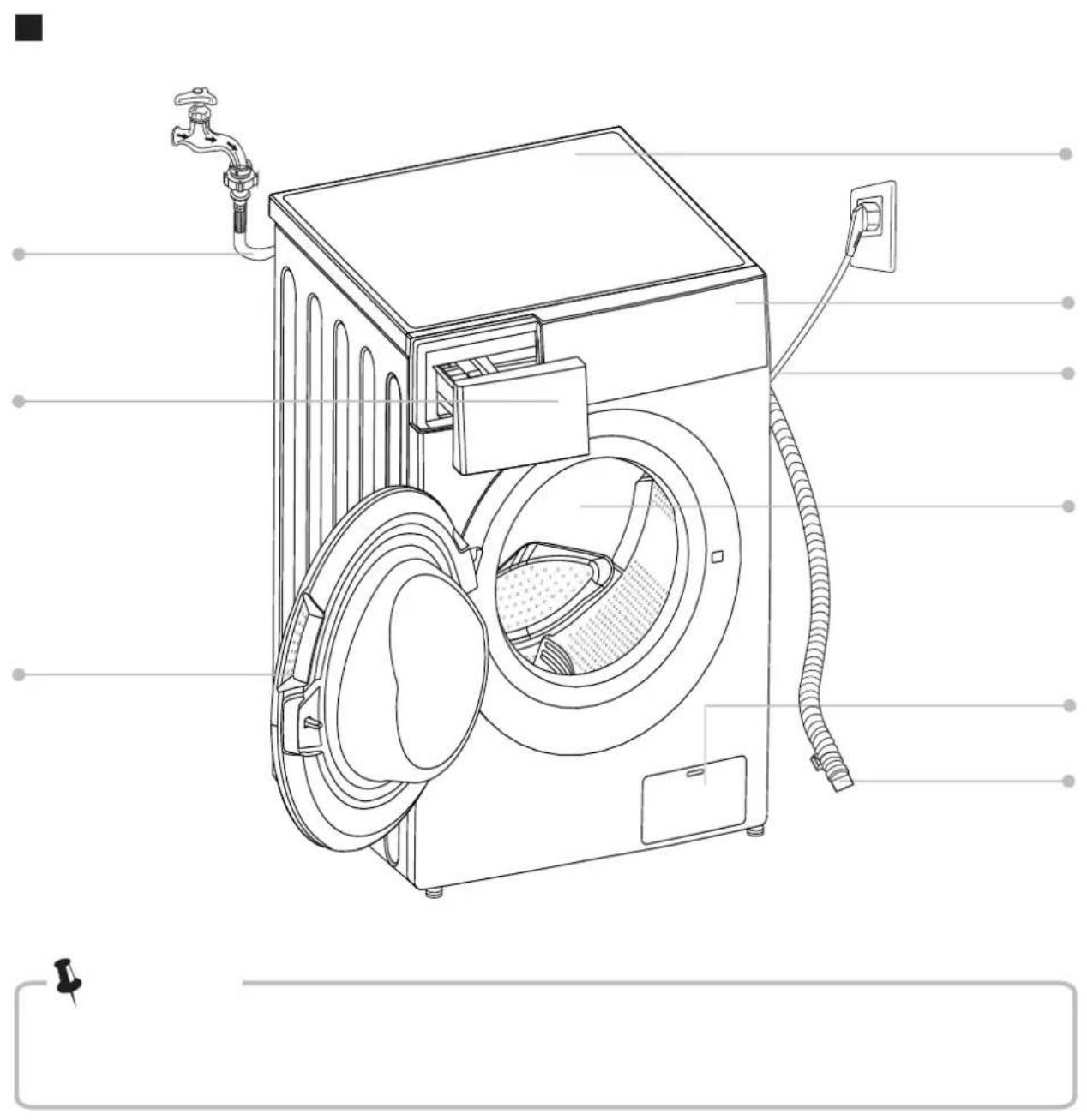

V.1INSTALLATION Accessories Product Description 4 x Cover caps 1 x Supply hose cold water

• The product picture is for illustration only, please refer to real product as reference. Note! Drum Power supply cord Control panel Detergent dispenser Service flap Door Water supply hose Top cover Drain hose 1 x Owner’s manual

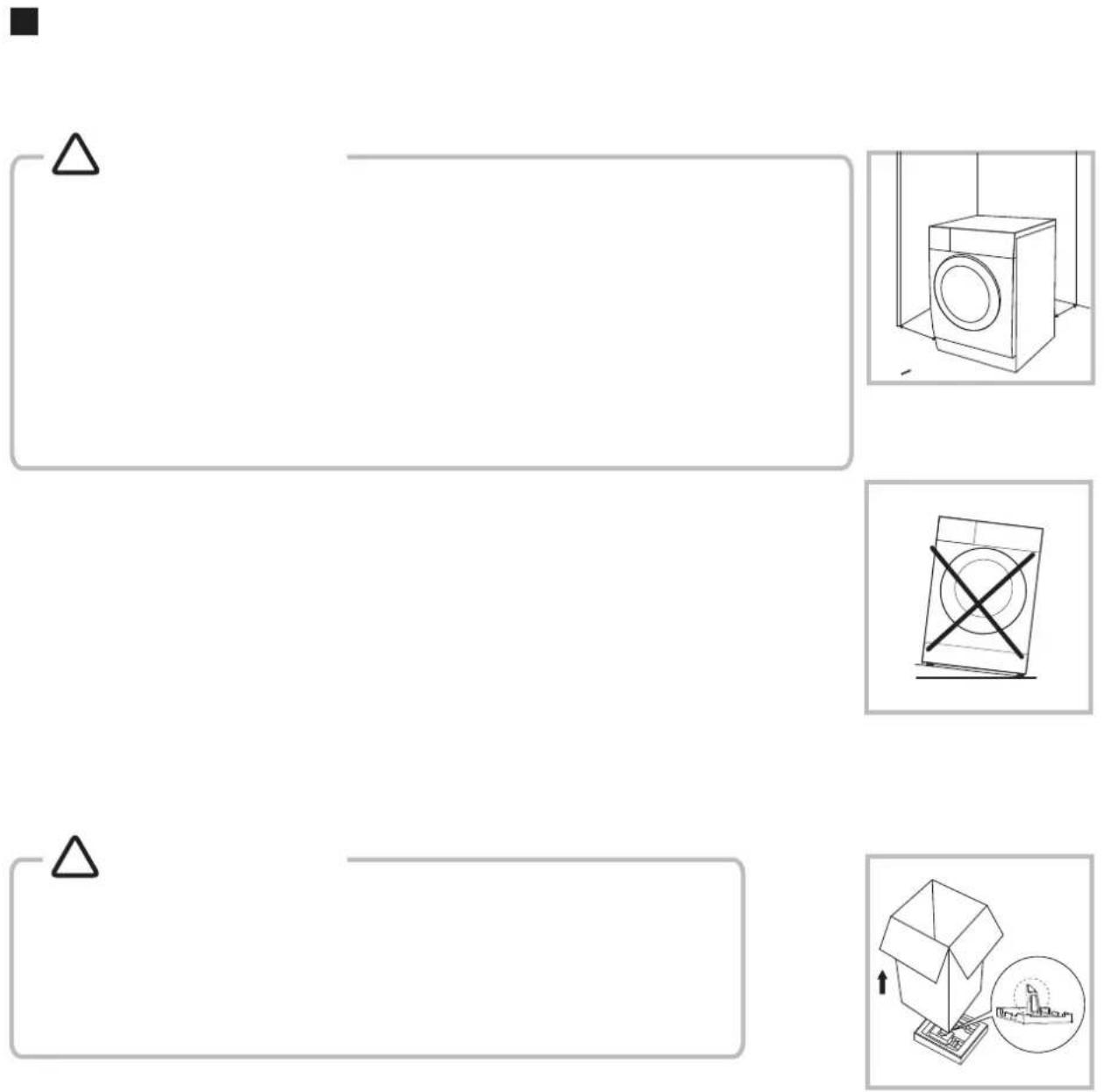

V.1INSTALLATION Installation Before installing the machine, the location characterized as follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation 4.Room temperature is above 0°C 5.Keep far away from the heat sources such as coal or gas burning appliances. Unpacking the washing machine 1.Remove the cardboard box and styrofoam packing. 2.Lift the washing machine and remove the base packaging.Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually. 4.Remove the inlet hose from the drum. 3.Remove the tape securing the power supply cord and drain hose.

• Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.

• Make sure that the product does not stand onto the power cord.

• Make sure to maintain the minimum distances from the walls as shown in the picture Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.

• There is a risk of suffocation ! Keep all packaging well away from children. Warning!

W>20mm Installation area

• You must remove the transport bolts from the backside before using the product. Warning!

Loosen the 4 transport bolts with a spanner. Remove the bolts including the rubber parts and keep them for future use. Close the holes using the cover caps. Levelling the washing machine

• The lock nuts on all four feet must be screwed tightly against the housing. Warning!

1.Loosen the lock nut. 2.Turn the foot until it reaches the floor. 3.Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady. Connect the water supply hose To prevent leakage or water damage, follow the instructions in this chapter

• Do not kink, crush or modify water inlet hose. Warning!

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

• Connect manually, do not use tools. Check if the connections are tight. Note!

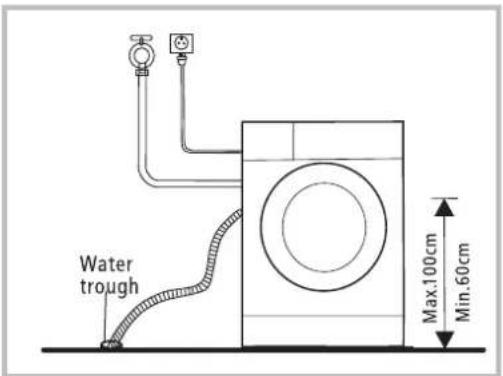

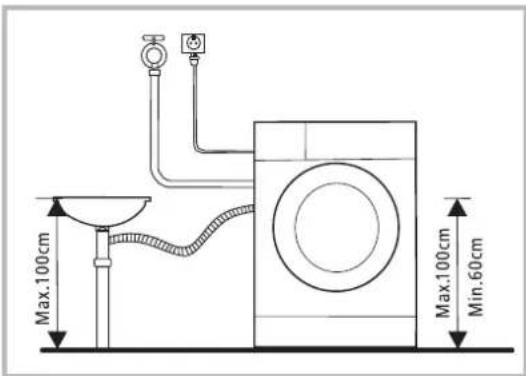

V.1INSTALLATION Drain Hose There are two ways to place the end of drain hose: 1.Put it into the water trough.2.Connect it to the branch drain pipe of the trough.

• Position drain hose properly ,otherwise damage might result of water leakage. Do not kink or protract the drain hose. Warning!

• Please make sure to assemble the acoustic sponges, which can effectively reduce the noise caused by the machine while working, inorder to provide you with a more peaceful and quiet living environment. Note! Acoustic Sponge

1. Lay the machine on the floor, using some soft material like foam orclothes between the machine and floor for a protection;

2. Stick the 2x longer sponges to the longer bottom edges of machine, and

the 2x shorter sponges to the shorter bottom edges.

V.1•Before washing, please make sure the washing machine is installed properly.

• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use. For this reason, start the Algodón program at 90°C without laundry and detergent. Quick Start Caution! OPERATION 2.Washing Select programme Select function or remain default settings Press Start/Pause to start the program 1.Before Washing Open tap Load Close door Plug in Add detergent

• Detergent need to be added in compartment I if the pre-wash function is selected.

3.After Washing The door lock and the [Inicio/Pausa ] lights flash with the buzzer beeping or two small points flash on the digital screen.

V.1• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.

• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.

• The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

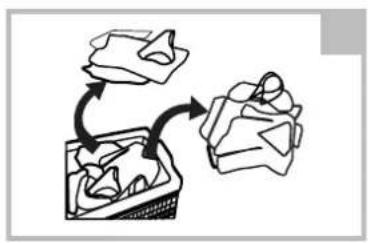

• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly. Tie together long textile strips and belts, close zipsand buttonTake all items out of the pocketsPut small items into a laundry bag Check the care label Before Each Washing Turn easy-pilling andlong-pile fabric inside outSort laundry according to color and textile type Warning!

• Detergent only need to be added in "compartment I “after selecting pre-wash function. OPERATION Pre wash Main wash Softener

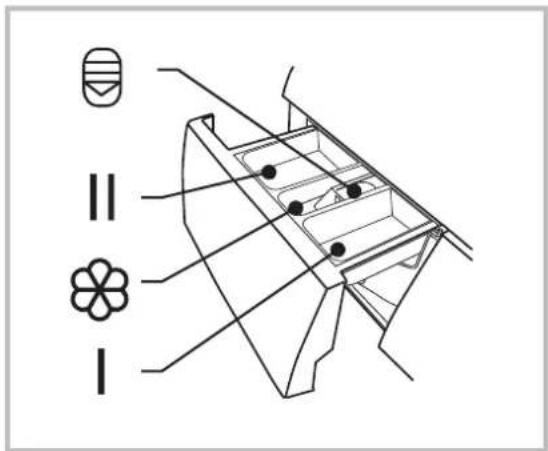

V.1Detergent Recommendation OPERATION Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.

• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption

• To achieve the best cleaning result a proper detergent dosing is important.

• Use a reduced detergent amount if the drum is not filled completely.

• Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.

• Dose according to how dirty your laundry is, less dirty clothes require less detergent.

• Highly concentrated (compact detergent) requires particularly accurate dosing. Following symptoms are a sign of detergent overdosing: - heavy foam formation - poor washing and rinsing result Following symptoms are a sign of detergent underdosing: - laundry turns grey - built-up of limescale deposits on the drum, the heating element and/or the laundry

Cold/40 Type of laundry and textile White laundry made from boil-proof cotton or linen Coloured laundry made from cotton or linen Coloured laundry made from easy care fibres or synthetic materials Delicate textiles, silk, viscose Cold/20/ 30/40 Cold/20/

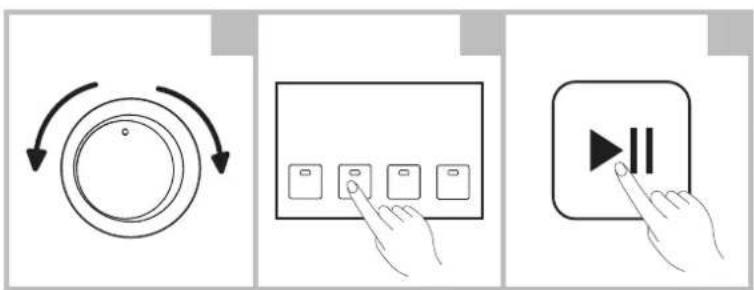

V.1OPERATION On/Off Turn the appliance on and off. Inicio/Pausa Start or pause your programme. Programmes Available according to the laundry type. Option This allows you to select additional functions and will light when selected.

Display The display shows settings, estimated remaining time, options and status messages.

• The above data is for reference only, and the data may change due to different actual use conditions.

• The valves given for programmes other than the ECO 40-60 programme and the Wash and Dry cycle are indicative only.

• The above data is for reference only, and the data may change due to different actual use conditions.

• The valves given for programmes other than the ECO 40-60 programme and the Wash and Dry cycle are indicative only.

The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.

2) Residual moisture after the wash cycle in water content percent and the spin speed at

which this was achieved. 3)The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration. Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings. Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content. Caution!

• If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

V.1OPERATION Programmes are available according to the laundry type. Programmes Programmes Express 15' Mixto Algodón Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Washing the baby’s clothes, it can make the baby's wear cleaner and make the rinse performance better to protect the baby skin. Washing few and not very dirty clothes quickly. Mixed load consisting of textiles made of cotton and synthetics. Specially for jeans. Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry. Extra spin with selectable spin speed. Extra rinse with spin. Solo centrifugado Aclarado y centrifugado Lavado 90℃ Rápido 45' Vaqueros Default 40℃,not selectable,suitabale for laundry washing at about 40℃-60℃. ECO 40-60 Delicado For delicate, washable textiles, e.g. made of silk, satin, synthetic fibres or blended fabrics.

Cold Default Temp.(℃) For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page.

• The table shows which cycle offers which options for adjustment. If an adjustment is not possible for a cycle.

elay function can be set with this button, the delaying time is 0-24H. Centrifug.:

t can be set the spin speed to press the button repeatedlyThe Prewash function can get an extra wash before main wash,it is suitable for washing the dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it. Pre Wash: Child Lock To avoid mis operation by children. Start Press [Inicio diferido] and [Función] 3 sec. till buzzer beep. Inicio diferido Choose the Programme

• Press the two button 3sec. also to be released the function.

• The “Child Lock” will lock all buttons except [OFF ].

• If you want to change the program on child lock condition, you should unlock the child lock first, then rotate the knob to OFF position, finally choose the program you want. Caution! Función

V.1• Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Cleaning the Drum

• Keep any laundry away from the machine while cleaning the drum. Cleaning the Door Seal and Glass Warning!

Note! Cleaning and Care Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum! Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance. MAINTENANCE Caution!

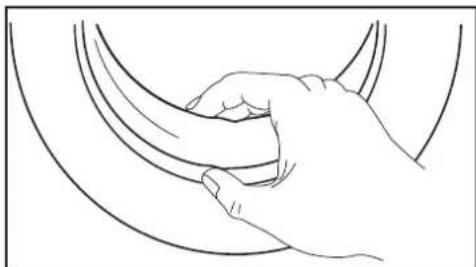

• Never use abrasive or caustic agents. formic acids or its diluted solvents or similar substances, like alcohol or chemical products. Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages. Remove any coins, buttons and other objects from the seal after each wash. Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

V.1MAINTENANCE 1.Close the tap and remove the water supply hose from it. 2.Clean the filter with a brush. 3.Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers. 4.Use a brush to clean the filter. 5.Reinstall the filter to the water inlet and reconnect the water supply hose. 6.Clean the Inlet filter every 3 months to ensure the normal operation of the appliance. Cleaning the Inlet Filter

• Diminishing water flow is a sign that the filter need to be cleaned. Note! Clean The Detergent Dispenser

• Do not use abrasive or caustic agents to clean plastic parts.

• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance. Press the release and remove the dispenser drawerClean the dispenser drawer and the softener cover under waterClean the recess with an soft brushInsert the dispenser drawer Note! 1.Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush. 2.Lift the softener cover off the dispenser drawer and wash both items with water. 3.Restore the softener cover and push the drawer back into the recess.

and unplug it before cleaning the drain pump filter.

• Be careful of hot water. Allow the water to cool down. Risk of scalding!

• Clean the filter periodically every 3 months to ensure the normal operation of the appliance. Make sure that the machine has finished the washing cycle and is empty. Switch it off Warning!

be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened. When the appliance is in use and depending on the programme selected there can Caution! Open the Service filterOpen the filter by turning to the counter clockwiseRemove extraneous matter Close the lower cover cap

V.1Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. MAINTENANCE

• or the display shows other alarm codes After the check, activate the appliance. If the problem occurs again, contact the service. Note! Description Reason Solution Restart after the door is closed Check if the clothes is stuck Door is not closed properly Door can’t be opened Washer's safety protection design is working Disconnect the power, restart the product Water leakage The connection between inlet pipe or outlet hose is not tight Check and fasten water pipes Clean up outlet hose Clean and wipe the detergent box Abnormal noise Check if the fixing (bolts) have been removed it’s installed on a solid and level floor Check Indicator or display does not light Disconnect the power PC board or harness has connection problem Check if the power is shut down and the power plug is connected correctly Washing machine cannot start up Detergent residues in the box Detergent is dampened or agglomerated Description Reason Solution Check if the water pressure is too low Straighten the water pipe Check if the inlet valve filter is blocked Check if the drain hose is blocked Water injecting problem while washing Overtime water draining Please try again first, call up service line if there are still troubles Others Water overflow Restart the washer Restart after the door is closed Check if the clothes is stuck Door is not closed properly

Customer service In case of questions please contact our customer service at: Risk of electric shock

• Never try repair an appliance which is defective of presumed to be defective. You may put your own and future users' lives in danger.Only authorised specialists are allowed to carry out this repair work.

• Improper repair will void the warranty and subsequent damages can't be recogniced!

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Check, if the door and the detergent dispenser are closed properly.

• Remove the water inlet pipe and the outlet hose from the house installations.

• Let the water drain completely from the appliance (see “Maintenance Cleaning the drain pump filter”)

• Important: Re-install the 4 transport bolts in the back of the appliance.

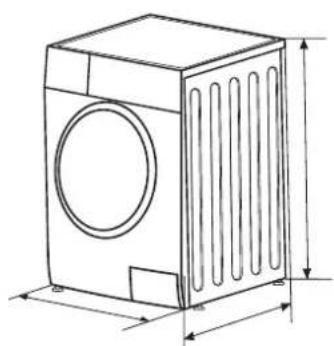

• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. Unplug the appliance and close the water inlet tap. Dimension (W*D*Hmm) Rated PowerNet WeightWashing Capacity Model EMW60 EMW70 595*400*850 6.0kg52kg 2050W 595*400*850 7.0kg55kg 2050W

V.11) The actual energy consumption will depend on how the appliance is used.

2) The actual water consumption will depend on how the appliance is used and on the

hardness of the water. Product Data Sheet concerning (EU) 2019/2014 The product data sheet for your appliance can be found online. Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet. The model identifier for your appliance can be found in the technical specifications section. MAINTENANCE

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions. WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.

2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of

aesthetic parts or components that do not affect the internal functioning of the appliance.

3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use

of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.

4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light

bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence

of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of

all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer. 10.Faults caused by incorrect or illegal installation, inadequate ventilation, lack of groun-ding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly

of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the

equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with

liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force , such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations

and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity". Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version. www.easelectric.es

3. Ajuste as pernas e trave as porcas
