Product type	Washer dryer
Brand	EAS Electric
Model	EMWY86BI
Washing capacity	8 kg
Drying capacity	6 kg
Dimensions (W x D x H)	595 x 540 x 825 mm
Net weight	64 kg
Power supply	220-240 V ~, 50 Hz, 10 A
Rated power (wash)	1900 W
Rated power (dry)	1300 W
Maximum spin speed	1400 rpm
Energy efficiency class	A
Water consumption (standard cycle)	64 L
Noise level (wash)	56 dB(A)
Noise level (spin)	78 dB(A)
Noise level (dry)	62 dB(A)
Wash programs	Cotton, ECO 40-60, Intensive, Express 15', Wool, Jeans, Mix, Sportswear, Baby clothes, Wash and dry, 1 Hour Wash+Dry, etc.
Special functions	Delay start, child lock, temperature/speed adjustment, drying level (Extra/Normal/Light)
Installation type	Built-in (integrated)
Maintenance	Regular cleaning of pump filter, water inlet filter, drum, door gasket and detergent drawer
Safety	Door lock, child safety, leak protection
Warranty	2 years (parts and labor)
Repairability	Spare parts available within 15 working days

Frequently Asked Questions - EMWY86BI EAS Electric

What to do if the machine does not start?

Check that the door is properly closed and that the laundry is not stuck. Make sure the appliance is plugged in and the water tap is open. If the problem persists, refer to the Troubleshooting section of the manual.

How to clean the drain pump filter?

Unplug the appliance, remove the front panel, turn the filter counterclockwise to open it, remove any foreign objects, then put it back. Perform this operation every 3 months.

What does error code E30 mean?

Error code E30 indicates that the door is not properly closed. Close it correctly and restart the program.

How to calibrate the washing machine?

Remove all accessories from the drum, close the door, plug in the appliance, turn it on, then press the Spin and Delay Start buttons simultaneously for 10 seconds until 't19' appears. Press ▷|| to start calibration.

Which detergent to use?

Use a detergent suitable for machine washing, low-sudsing. For white laundry, prefer a detergent with bleaching agents; for colors, a detergent without optical brighteners. Follow the recommendations of the dosage table.

How to activate the child lock?

Press the Temp. and Spin buttons simultaneously for 3 seconds until a beep sounds. To deactivate, repeat the same operation.

Why does the water not drain?

Check that the drain hose is not bent or blocked. Clean the drain pump filter. If error code E21 appears, the drainage is too long.

What is the maximum drying capacity?

The drying capacity is 6 kg for cotton laundry. For combined wash+dry programs, the wash load must not exceed 6 kg.

How to clean the detergent drawer?

Press the lock inside the drawer to remove it. Wash the parts with clear water, clean the compartment with a brush, then reassemble. Do this every 3 months.

What to do in case of water leak?

Check the connections of the inlet and drain hoses. Tighten the connections if necessary. If the leak persists, turn off the water and contact customer service.

USER MANUAL EMWY86BI EAS Electric

Simple line drawing of a container with a circular symbol containing three wavy lines, enclosed in a rectangular border (no text or symbols)

QR code with embedded logo and text 'EAS ELECTRICE' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Contenido

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Three-panel image showing four circular objects and a magnifying glass, alongside an open book (no text or symbols)

Simple line drawing of a rectangular box with a cross mark on the front page, no text or symbols present.

Desembalar la lavasecadora

Advertencia

Diagram showing a box with an open lid and a magnified view of a labeled object 'a' inside a container.

Close-up of a white car door with a metallic knob and a wrench, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a small metallic part (no visible text or symbols)

Close-up of a white object with a dark circular hole and a blue arrow pointing to it, partially overlaid by a striped pattern (no text or symbols)

Close-up of a mechanical component with a blue curved arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows indicating motion or direction, no visible text or symbols

Close-up of a faucet with a blue upward arrow indicating rotation or adjustment around a white pipe fitting (no text or symbols)

Nota

Line drawing of a sweater with a tag and tie (no text or symbols)

Simple line drawing of a bag being folded into a basket (no text or symbols)

Diagram illustrating a garment pattern with labeled parts and directional arrows indicating movement or folding.

Two handbags with circular designs, one open and one closed, shown in line drawing style (no text or symbols)

Simple line drawing of a bag with internal mesh pattern and a small object inside (no text or symbols)

Line drawing of a knitted sweater with patterned fabric (no text or symbols)

Technical diagram of a boat hull with labeled components and symbols

! Atención

Line drawing of a hand washing a washing machine (no text or symbols)

① Atención

Line drawing of a hand holding a curved object, possibly a tool or component (no text or symbols present)

Diagram of a faucet with rotating arrows indicating clockwise motion (no text or symbols)

Illustration of a hand holding a connector with a cable, no text or symbols present

Illustration of a hand holding a small object with a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a mechanical device with a circular component and a handle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a hand using a tool to remove or remove a dark object inside a container (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand holding a circular tool with an arrow indicating rotation, next to a plate with a small mark (no text or symbols)

Diagram of a pipe fitting with directional arrows indicating flow or movement (no text or symbols)

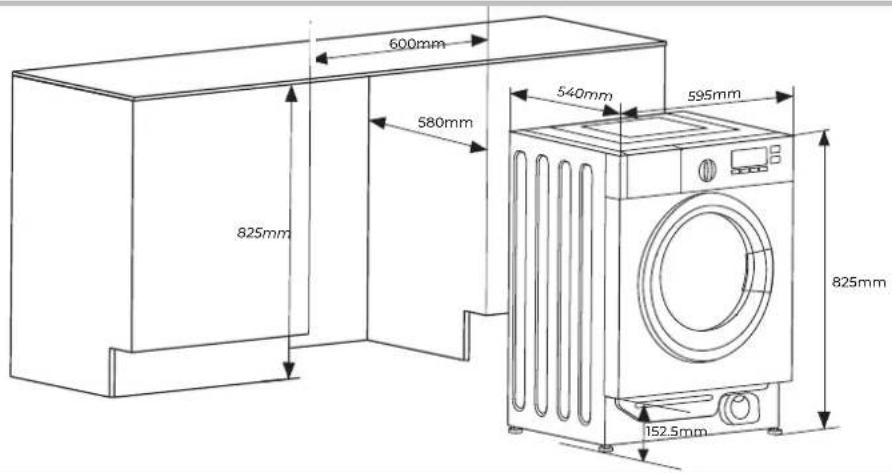

600mm 580mm 540mm 595mm 825mm 152.5mm 825mm

Dimensiones

Technical line drawing of a mechanical clamp or bracket assembly with three clamps and a base plate (no text or symbols)

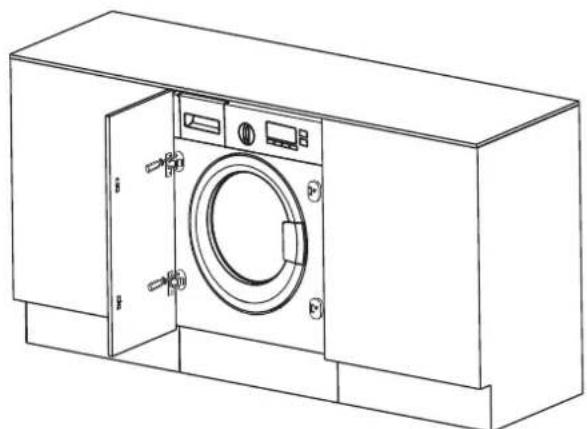

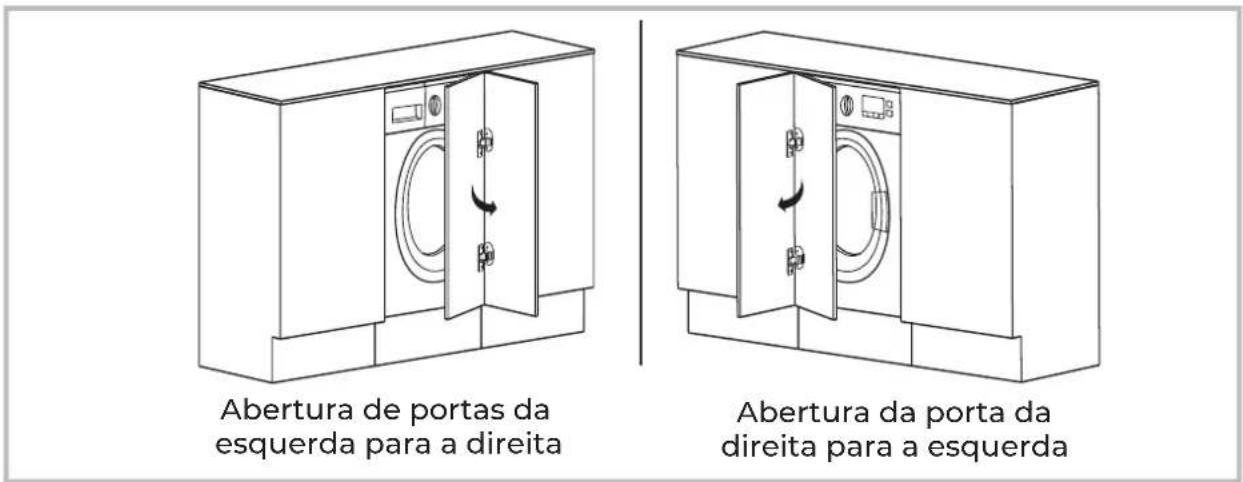

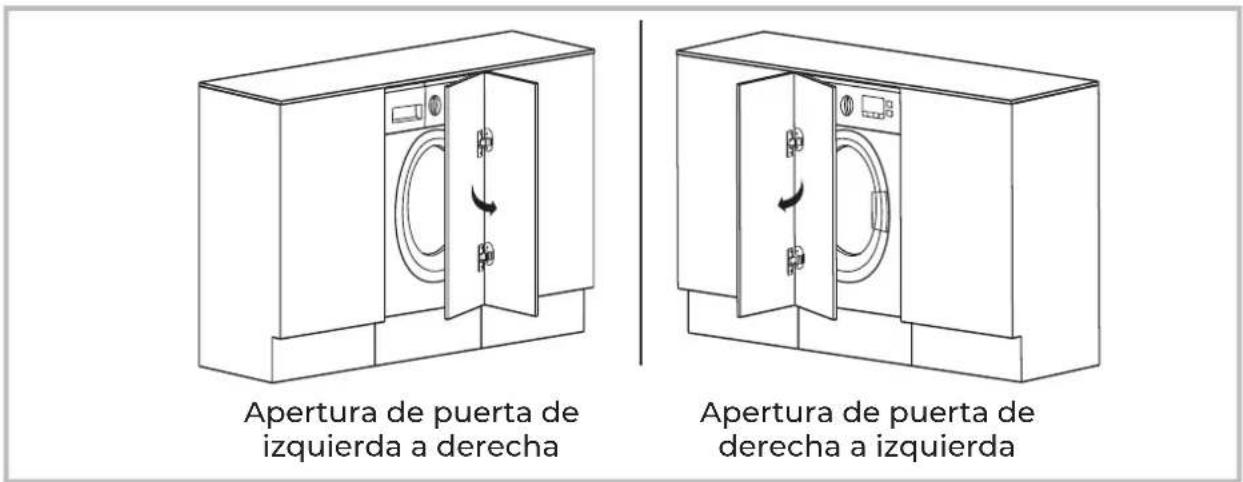

Line drawing of a washing machine with two lockers attached to the door (no text or symbols)

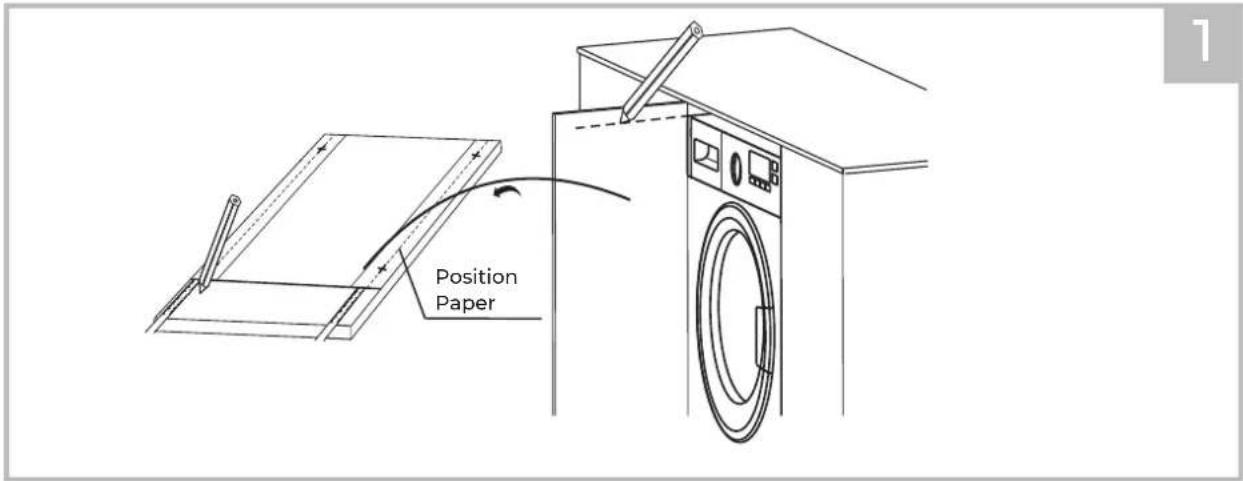

Instale los contraimanes

Line drawing of a washing machine cabinet with door open and internal components (no text or symbols)

3 Important safety instructions

INSTALLATION

10 Product description

11 Installation

OPERATION

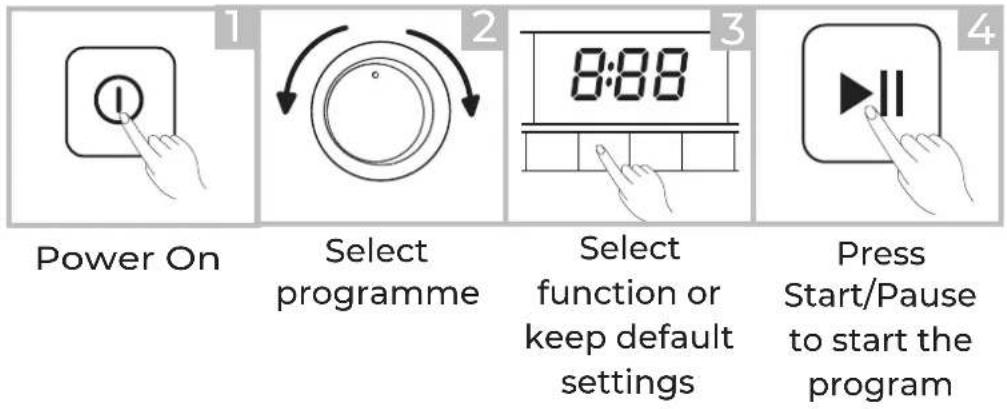

14 Quick Start

15 Before each washing

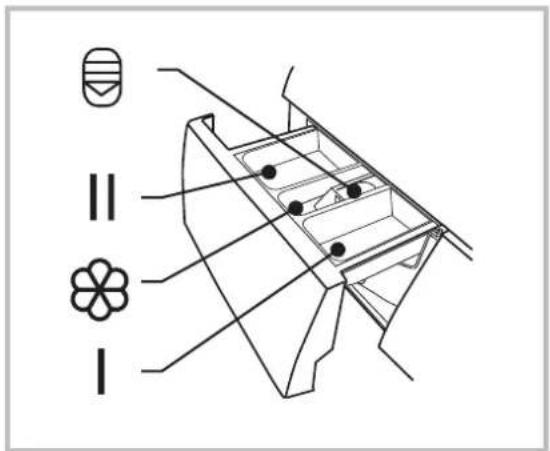

17 Detergent dispenser

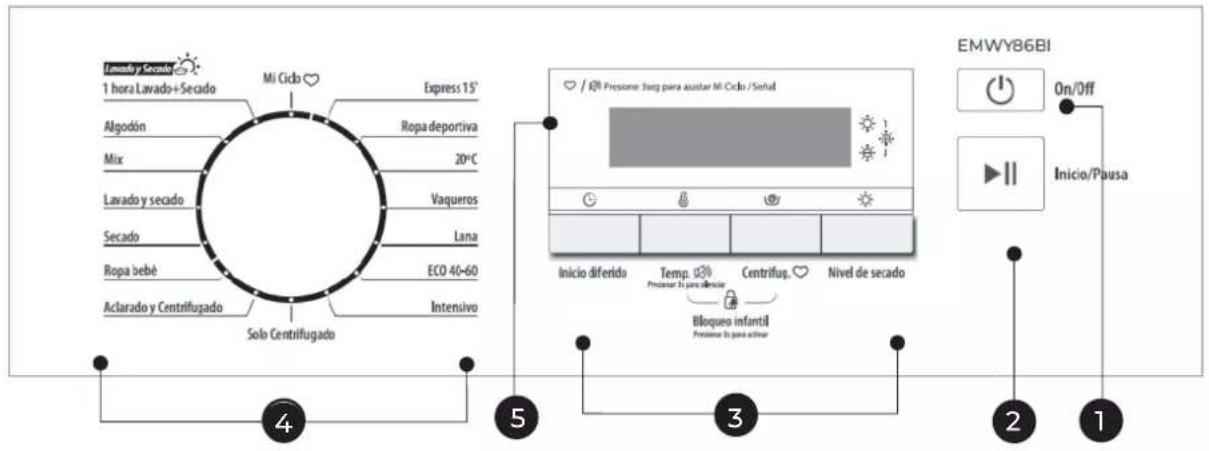

19 Control Panel

20 Programmes

24 Option

MAINTENANCE

28 Cleaning and care

31 Troubleshooting

32 Technical specifications

33 Product fiche

37 Built-in Installation

40 COMMERCIAL WARRANTY

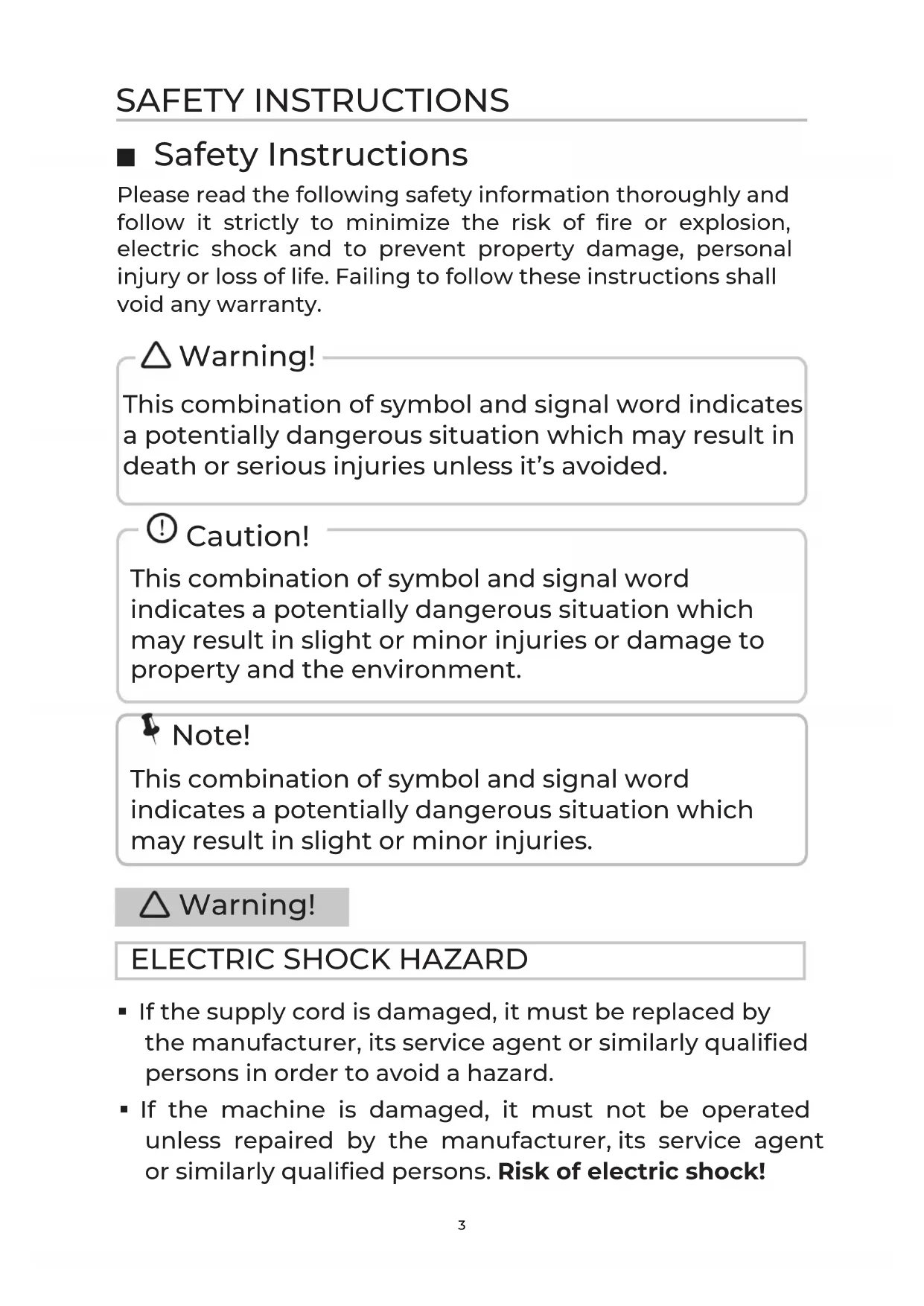

■ Safety Instructions

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.

△ Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

! Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

△ Warning!

ELECTRIC SHOCK HAZARD

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons. Risk of electric shock!

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised that they do not play with the appliance.
• Children 3 years and under shall be kept away from the appliance or continuously supervised.
• Animals and children may climb into the machine. Check the machine before every operation.
• Do not climb or sit on the appliance.

• All washing and additional substances are to be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.
• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer.

• Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see "Maintenance - Cleaning of drain pump filter") to avoid damages caused by frost.

• Never use flammable sprays or substances in the immediate proximity of the appliance.

INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• Mains plug must be accessible after installation.
  ■ Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.
  ■ Before using the washer dryer, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

ELECTRICAL CONNECTION

■ Make sure the supply cable is not trapped by the machine, it can get damaged.
- Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local regulations.

Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

△Warning!

such as a timer or connected to a circuit that is regularly switched on and off.

flammable gas around.

WATER CONNECTIONS

Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.

Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.

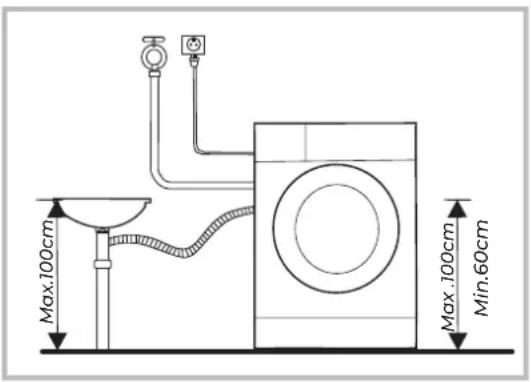

The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.

Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

Never stop the washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat can dissipate.

The washer dryer is not to be used if industrial chemicals have been used for cleaning. Risk of explosion.

Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.

Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.

Remove all objects from pockets such as lighters and matches before use the appliance.

Thoroughly rinse items that have been washed by hand.

Do not dry unwashed items in the appliance.

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.

Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine

Fabric softeners or similar products should be used as recommended in their instructions.

Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.

Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.

Always unplug the appliance and close the water tap before cleaning and maintenance and after each use.

Never pour water over the appliance for cleaning purpose. Risk of electric shock!

Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of not authorized persons.

TRANSPORT

Before Transport:

Bolts shall be reinstalled to the machine by a specialized person

Accumulated water shall be drained out of the machine.

This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

INTENDED USE

The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying.

This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use.

Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result of it.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;
  ■ Bed and breakfast type environments;
• Areas for communal use in blocks of flats or in launderettes.

Packaging/Old appliance

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

■ Product Description

Water supply hose Detergent dispenser Door Top cover Control panel Power supply cord Drum Service flap Drain hose

Note!

real product as reference.

Accessories

Three-panel image showing four globe icons, a magnifying glass, and an open book (no text or symbols)

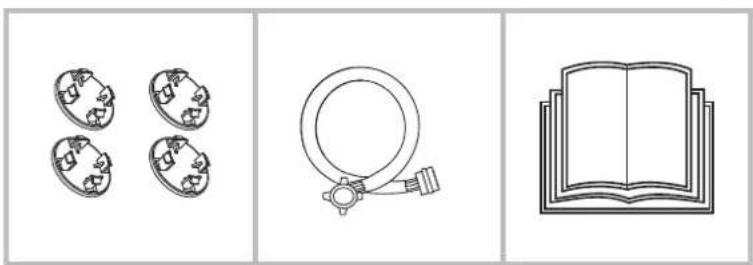

4 x Cover caps

1 x Supply

hose cold

water

1 x Owner's manual

■ Installation

Installation area

△Warning!

Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.

Make sure that the product does not stand onto the power cord.

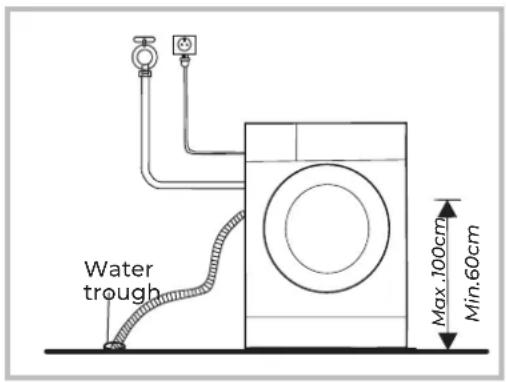

Make sure to maintain the minimum distances from the walls as shown in the picture

W W W> 20mm

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation
   4.Room temperature is above 0°C
4. Keep far away from the heat sources such as coal or gas burning appliances.

Simple line drawing of a rectangular box with a circular center and diagonal X mark, no text or symbols present.

Unpacking the washer dryer

△Warning!

Packaging material (e.g. Films, Styrofoam) can be dangerous for children.

There is a risk of suffocation! Keep all packaging well away from children.

Diagram of a box with an open lid and a magnified inset showing a small 3D object labeled 'a' (no text or symbols present)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

△Warning!

You must remove the transport bolts from the backside before using the product.

Close-up of a white car interior with a metallic knob and a wrench tool, no visible text or symbols.

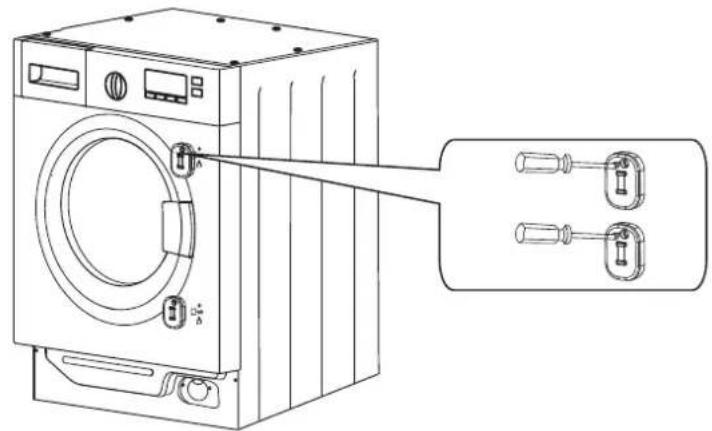

Loosen the 4 transport bolts with a spanner.

Close-up of a mechanical component with a blue arrow pointing to a small metallic part (no visible text or symbols)

Remove the bolts including the rubber parts and keep them for future use.

Close-up of a white object with a dark circular hole and a blue arrow pointing to it, partially overlaid by a striped pattern (no text or symbols)

Close the holes using the cover caps.

Levelling the washer dryer

△Warning!

The lock nuts on all four feet must be screwed tightly against the housing.

Close-up of a mechanical component with a blue curved arrow indicating rotation (no text or symbols)

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

Connect the water supply hose

△Warning!

To prevent leakage or water damage, follow the instructions in this chapter. Do not kink, crush or modify water inlet hose.

Close-up of a white object with blue arrows indicating motion or direction, next to a circular object (no text or symbols visible)

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Close-up of a faucet with a pipe fitting and blue arrows indicating flow direction (no text or symbols)

Note!

Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

Warning

Do not kink or protract the drain hose.

Position drain hose properly, otherwise damage might result of water leakage.

There are two ways to place the end of drain hose:

1. Put it into the water trough.

Water trough Max. 100cm Min. 60cm

1. Connect it to the branch drain pipe of the trough.

Max.100cm Max.100cm Min.60cm

Quick Start

Ⓐ Caution!

Before washing, please make sure the washer dryer is installed properly.

Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, start the Algodón program at 90°C without laundry and detergent.

Calibration

It's recommended to calibrate the washer dryer, so that provide the best performance.

The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

1- Remove all accessories from the drum and close the door;
2- Insert the mains plug to the socket;
3- Switch on the washer dryer and press "Speed" and "Delay" simultaneously for 10 seconds until "t19" is displayed;
4- Press [ ▷] to start the appliance and wait till “*****” is displayed.

1. Before Washing

Note!

Detergent need to be added in compartment I if the pre-wash function is selected.

2.Washing

3. After Washing

Buzzer beep and "End" on display.

■ Before Each Washing

The ambient temperature of the washer dryer should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a tag and tie (no text or symbols)

Check the care label

Simple line drawing of a bag being folded into a basket (no text or symbols)

Sort laundry according to color and textile type

Diagram illustrating garment styling process with labeled parts and directional arrows

Take all items out of the pockets

Line drawing of two backpacks with circular designs and straps, no text or symbols present

Tie together long textile strips and belts, close zips and button

Simple line drawing of a bag with a mesh net containing an animal, no text or symbols present

Put small items into a laundry bag

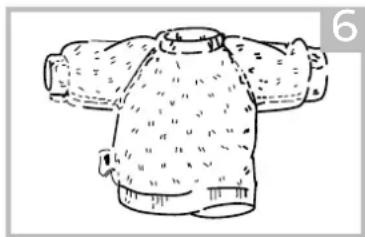

Line drawing of a knitted sweater with patterned fabric (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

△ Warning!

Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.

Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.

■ Detergent Dispenser

I Pre wash

II Main wash

Softener

Release button to pull out the dispenser

Technical diagram of a boat hull with labeled components and symbols

❗ Caution!

Detergent only need to be added in compartment I after selecting pre-wash function.

Programme |	II
Algodón	●	○
1 Hora Lavado+Secado	●	○
Vaqueros	●	○
Mix	●	○
Lana	●	○
Aclarado y centrifugado		○
ECO 40-60	●	○
	●	○

Programme	I	II
Secado
Solo centrifugado
Express 15'		●	○
Ropa deportiva		●	○
Ropa bebé		●	○
Lavado y secado		●	○
Intensivo		●	○

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Algodón, ECO 40-60, Intensivo	40/60	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Intensivo, Algodón, ECO 40-60, Mix, 20°C	20/30/40	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners		Cold/20	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent		Cold/20	Delicate textiles, silk, viscose
Special wool detergent	Lana	20/30/40	Wool

Note!

Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.

Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption

To achieve the best cleaning result a proper detergent dosing is important.

Use a reduced detergent amount if the drum is not filled completely.

Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.

Dose according to how dirty your laundry is, less dirty clothes require less detergent.

Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result
  Following symptoms are a sign of detergent underdosing:
• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/or the laundry

■ Control Panel

Model: EMWY86BI

Turn the appliance on and off.

3 Option

This allows you to select additional functions and will light when selected.

5 Display

The display shows settings, estimated remaining time, options and status messages.

2 Start/Pause

Start or pause your programme.

4 Programmes

Available according to the laundry type.

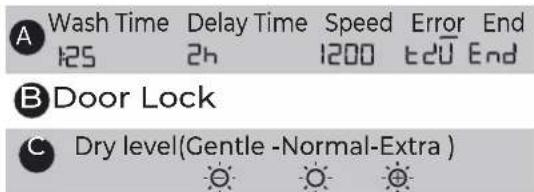

A 88:88 B D C

A Wash Time Delay Time Speed Error End 125 2h 1200 t2U End B Door Lock C Dry level(Gentle -Normal-Extra )

D Child Lock

■ Programmes

Model: EMWY86BI

Programme	Washing/Drying Load (kg)	Display Time(H)
	8.0	8.0
		1400
Express 15'	2.0	0:15
Ropa deportiva	4.0	1:11
	4.0	1:01
Vaqueros	8.0	1:45
Lana	2.0	1:07
ECO 40-60	8.0	3:35
Intensivo	8.0	3:48
Solo centrifugado	8.0	0:12
Aclarado ycentrifugado	8.0	0:20
Ropa bebé	8.0	1:43
Secado	/6.0	4:14
Lavado y secado	8.0/6.0	5:00
Mix	8.0/6.0	1:20
Algodón	8.0/6.0	3:49
1 Hora Lavado+Secado	1.0/1.0	0:58

Note!

The parameters in this table are only for user's reference. The actual parameters may be different with the parameters in above mentioned table.

The programme with ⚙ can be chosen dry function.

■ Programmes

EMWY86BI
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in h:min	Energy consumption in kWh/cycle	Water consumption in liter/cycle	Highest temperature ^^1)	Residual moisture in % / spin speed 2)
Express 15'	2.0	Cold	0:15	0.030	40.0	Cold	70%/800
20°C	4.0	20	1:01	0.183	44.0	20	65%/1000
Intensivo	8.0	40	3:48	1.013	71.0	40	70%/800
Mix	8.0	40	1:20	0.754	71.0	40	70%/800
Algodón	8.0	60	3:54	1.515	71.0	60	53%/1400
ECO 40-60 3)	8.0	-	3:38	0.871	64.0	38	53%/1400
	4.0	-	2:48	0.530	46.3	38	53%/1400
	2.0	-	2:48	0.205	33.4	21	53%/1400
Lavado y secado	6.0	-	9:30	4.400	108.4	39	0%/1400
	3.0	-	6:40	2.400	63.5	27	0%/1400

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme and the Lavado y Secado (Wash and Dry) cycle are indicative only.
• Concerning to EN 60456:2016 With (EU)No.1061/2010, the EU energy efficiency class is: A
  Energy test program: Intensive; Speed:The highest speed; Temp.: 60/40°C, Other as the default.
  Half load for 8.0Kg machine:4.0Kg.

Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023:

• The EU Wash energy efficiency class is B. Energy test program: ECO 40-60.
• The EU Wash and dry energy efficiency class is E. Energy test program: Lavado y secado; Extra Dry. Other as the default.
• Half load for 8.0Kg machine: 4.0Kg. Quarter load for 8.0Kg machine: 2.0Kg.

1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023.
4) The Lavado y Secado programme, dry level setting ✦ Extra Dry is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle, and to dry it in such a way that it can be immediately stored in a cupboard. This programme is used to assess the compliance with the regulation (EU) 2019/2023.
5) The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.
6) Loading the household washer-dryer up to the capacity indicated for the respective programmes will contribute to energy and water savings.
7) Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

Caution!

If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Programmes

Programmes are available according to the laundry type.

Programmes
Algodón	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Ropa bebé	Washing the baby's clothes, it can make the baby's wear cleaner and make the rinse performance better to protect the baby skin.
Vaqueros	Specially for jeans.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
Ropa deportiva	Washing the activewear.
Express 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
Lana	Hand or machine-washable wool or richwool textiles.Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
Solo centrifugado	Extra spin with selectable spin speed.
Aclarado ycentrifugado	Extra rinse with spin.
Secado	Select it to dry clothes, the temperature is different .The drying time according to the load .
1 Hora Lavado+Secado	For small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts). When you have an urgent appointment but no more clean shirt left in your cupboard, this program will help you. Time duration is only 1 hour including wash and dry. Remark: Big towels or jeans is not suitable for this program, they will enlarge the time duration and affect the moisture content.
ECO 40-60	Washing brightly colored clothes, it can protect the colors better. Default 40°C, not selectable, suitable for laundry washing at about 40°C-60°C.
Intensivo	To increase the washing effects, washing time is increased.
Lavado y secado	The standard energy program.

Option

Cycle	Default	Default spin speed in rpm	Additional functions
1400
Express 15'	Cold	800	Delay,
Ropa deportiva	40	800	Delay,
20°C	20	1000	Delay,
Vaqueros	60	1000	Delay,
Lana	40	600	Delay,
ECO 40-60	--	1400	Delay,
Intensivo	40	800	Delay,
Solocentrifugado	--	1000	Delay,
Aclarado ycentrifugado	--	1000	Delay,
Ropa bebé	60	800	Delay,
Solo secado	--	1400	Delay, ⚙,
Lavado y secado	--	1400	Delay, ⚙,
Mix	40	800	Delay, ⚙,
Algodón	40	1400	Delay, ⚙,
1 Hora Lavado+Secado	Cold	1400	Delay, ⚙,

Note!

For the maximum spin speed, program time, and other details of the ECO 40-60 and Wash and Dry programs, please refer to the content on the Product Fiche page.

The table shows which cycle offers which options for adjustment, or if an adjustment is not possible for a cycle.

Delay

Set the Delay function:

1. Select a programme
2. Press the Delay button to choose the time (the delaying time is 0-24 H.)
3. Press [Start/Pause] to commence the delay operation

On/Off

Choose the Programme

Setting time

Start

Cancel the Delay function:

Press the [Delay] button until the display be 0H. It should be pressed before starting the programme. If the programme already started, should press the [On/Off] button to reset the programme.

Caution!

If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, press the [On/Off] button the program will continue.

My Cycle

Memorize the frequently used programmes

Press [❤️] 3sec. to memory the running programme. The default is cotton.

Child Lock

To avoid misoperation by children.

Start/Pause
Press [Temp.] and
[Speed] 3 sec. till
buzzer beep.

On/Off

Caution!

Press the two button 3sec. also to be released the function.

The "Child Lock" will lock all buttons except [On/Off].

Cut off the power supply, the kid's protection is to be released. The child lock will remain effective when the power is resumed for some models.

Spin Speed

When needed, the spinning speed can be adjusted pressing the Speed button in the following steps:

1400: 0-400-600-800-1000-1200-1400

Caution!

When the lights of speed are off means the spin speed is 0.

Temp.

Temp.

Press the button to regulate the temperature (Cold, 20^ C, 30^ C, 40^ C, 60^ C, 90^ C)

Mute the buzzer

On/Off

Start/Pause

Press the [Temp.]button for 3sec.the buzzer is mute.

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

After Muting the buzzer function, the sounds will not be activated any more.

Dry Level

Press the Dry Level button continuously to choose the dry level: Extra Dry/Normal Dry/Gentle Dry.

Extra Dry: Need to wear clothes immediately, we can choose this function
Normal Dry: The normal dry procedure.
Gentle Dry: Only to dry slightly.

Note!

according to their kinds and the drying temperature.

them for a while.

woolen and silk, clothes with metal inserts, nylon stockings, bulky clothes, such as anoraks, bedcovers, quilts, sleeping bags and duvets must not be dried.

foam-rubber must not be machine dried.

sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours.

■ Cleaning and Care

△Warning!

Always unplug the appliance and close the water tap before cleaning and maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

Line drawing of a hand washing a washing machine (no text or symbols)

① Caution!

Never use abrasive or caustic agents. formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note!

Keep any laundry away from the machine while cleaning the drum.

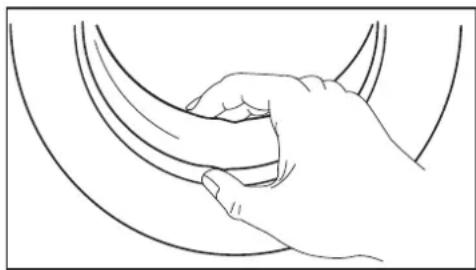

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.

Remove any coins, buttons and other objects from the seal after each wash.

Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Cleaning the Inlet Filter

Note!

Diminishing water flow is a sign that the filter need to be cleaned.

1. Close the tap and remove the water supply hose from it.

2. Clean the filter with a brush.

3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.

4. Use a brush to clean the filter.

5. Reinstall the filter to the water inlet and reconnect the water supply hose.

6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Diagram of a faucet with rotating valve mechanism (no text or symbols)

Illustration of a hand holding a connector with a cable, no text or symbols present

Illustration of a hand holding a small object with a magnified inset showing a mechanical component (no text or symbols)

Simple line drawing of a hand holding a circular object with a mesh pattern, mounted on a stand (no text or symbols)

Clean The Detergent Dispenser

1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
   3.Restore the softener cover and push the drawer back into the recess.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Pull out the dispenser drawer with press the A

Technical line drawing of a mechanical device with a lever and base plate (no text or symbols)

Clean the dispenser drawer under water

Line drawing of a hand using a tool to clean or store contents inside a container (no text or symbols)

Clean inside the recess with an old toothbrush

Technical line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Insert the dispenser drawer

Note!

Do not use abrasive or caustic agents to clean plastic parts. Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance

Cleaning the Drain Pump Filter

△ Warning!

Be careful of the hot water!

Allow detergent solution to cool down.

Unplug the machine to avoid electrical shock before washing.

Drain pump filter can filter the yarns and small foreign matters from the washing.

Clean the filter periodically to ensure the normal operation of washing machine.

Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

Dam-Board

After the power is disconnected, pull out the Dam-Board.

Hand holding a circular knob next to a plate with a pointer, no text or symbols visible

Turn the filter down as shown with the figure and take out sundries matters.

Diagram of a pipe fitting with directional arrows indicating flow or movement (no text or symbols)

Reinstall each part back after sundries matters are removed.

⚠ Caution!

Make sure emergency drain hose cap and the emergency drain hose are reinstalled properly, otherwise water may leak.

■ Troubleshooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible cause	Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can't be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe. Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts still in place. Floor is not solid or level.	Check if the fixing bolts have been removedMake sure the appliance is installed on a solid and level floor.

Error Codes

Description	Possible cause	Solution
E30	Door is not closed properly	Close the door properly and restart.
E10	Water injecting problem during wash cycle.	Check if the water pressure is high enough. Straighten the water pipe. Clean the inlet valve filter.
E21	Overtime water draining	Check the drain hose for blockage.
E12	Water overflow	Restart the appliance.
EXX	Others	Restart the appliance. If problem persists, please contact the customer service.

■ Customer service

Spare part for your appliance are available for a minimum of 10 years. In case of questions please contact our customer service.

△Warning!

Risk of electric shock

Never try repair an appliance which is defective of presumed to be defective.

You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Improper repair will void the warranty and subsequent damages can't be recognised!

Transport: IMPORTANT STEPS WHEN MOVING THE APPLIANCE

Unplug the appliance and close the water inlet tap.

Check if the door and the detergent dispenser are closed properly.

Remove the water inlet pipe and the outlet hose from the house installations.

Let the water drain completely from the appliance (see "Maintenance Cleaning the drain pump filter")

Important: Re-install the 4 transport bolts in the back of the appliance. This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

■ Technical Specifications

Power Supply	220-240V~, 50Hz
MAX.Current	10A

Standard Water Pressure 0.05MPa\~1MPa

W D H

Model	EMWY86BI
Power Supply	220-240V~, 50Hz
Washing Capacity	8.0kg
Drying Capacity	6.0kg
Dimension(W*D*H)	595*540*825
Weight	64kg
Rated Power	1900W
Drying Power	1300W

Product Fiche

Model	EMWY86BI
Washing Capacity	8kg
Drying Capacity	6kg
Spin Speed	1400 rpm
Energy efficiency class 1	A
Energy consumption per cycle (to wash and dry a full capacity wash load at 60°C)	5.44kwh/Cycle
Water consumption of per cycle (Total)	136 L/cycle
Annual energy consumption (Using the dryer) 2	1088kWh /annual
Annual water consumption (Using the dryer) 2	27200L /annual
Annual energy consumption (Never Using the dryer) 3	150kWh /annual
Annual water consumption(Never Using the dryer) 3	12800L /annual
Washing performance class 4	A
Spin- drying efficiency class 5	B
Standard washing cycle 6	Intensive 60°C /1400RPM
Energy consumption of the Intensive 60°C at full load (Washing)	0.75kwh/cycle
Water consumption of the Intensive 60°C at full load (Washing)	64L/cycle
Remaining moisture content of the Intensive 60°C at full load (Washing)	53%
Programme duration of Intensive 60°C at full load (Washing)	310min
Energy consumption of the Dry at full load (Drying)	4.69kwh /cycle
Water consumption of the Dry at full load (Drying)	72L/cycle
Remaining moisture content of the Dry at full load(Drying)	0%
Programme duration of Dry at full load(Drying)	420min
Power consumption of OFF mode	0.5W
Power consumption of Left on mode	1.0W
Noise level of washing	56dB (A)
Noise level of spinning	78dB (A)
Noise level of drying	62dB (A)

Remarks:

The energy efficiency class is from A (highest efficiency) to D (lowest efficiency).
② Estimated annual energy and water consumption for a four-person household, always using the dryer (based on 200 cycles) per year.
3 Estimated annual energy and water consumption for a four-person household, never using the dryer (based on 200 cycles) per year;
Water consumption per year based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
4 Washing performance class.
⑤ Spin-drying efficiency class from G (least efficient) to A (most efficient).
6 The standard programme is standard washing programme. The programme is suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle emperature.
Please choose the suitable type of detergent for the various washing temperatures to get the best washing performance with less water and energy consumption.

Parameter	Value		Parameter	Value
Rated capacity (Kg)	Rated capacity (c)	6.0	Dimensions in cm (a), (d)	Height	83
	Rated washing capacity (b)	8.0		Width	60
				Depth	54
Energy efficiency index	EEIw (b)	60.0	Energy efficiency class	EEIw (b)	B (e)
	EEIw (c)	78.4		EEIw (c)	E (e)
Washing efficiency index	Iw (b)	1.031	Rinsing effectiveness (g/kg dry textile)	Ir (b)	5.0
	Jw (c)	1.031		Jr (c)	5.0
Energy consumption in kWh per kg per cycle, for the washing cycle of the household washer-dryer, using the ECO 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used.	0.545		Energy consumption in kWh per kg per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual energy consumption will depend on how the appliance is used.	3.600
Water consumption in litre per cycle, for the ECO 40-60 programme at a combination of full and partial loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	48 90		Water consumption in litre per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water.
Maximum temperature inside the treated textile (°C) for the washing cycle of the household washer-dryer, using the eco 40-60 programme	Rated washing capacity	38	Maximum temperature inside the treated textile (°C) for the washing cycle of the household washer-dryer, using the wash and dry cycle	Rated capacity	39
	Half	54		Half	27
	Quarter	21
Spin speed (rpm) (b)	Rated washing capacity	1400	Weighted remaining moisture content % (b)	53.9
	Half	1400
	Quarter	1400
ECO 40-60programmeduration (h:min)	Rated washing capacity	3:38	Spin drying efficiency class(b)	B (e)
	Half	2:48
	Quarter	2:48
Airborne acoustical noise emissions during the spinning phase for the eco 40-60 washing cycle at rated washing capacity (dB(A) re 1 pW)	76		Wash and dry cycle duration (h:min)	Rated capacity	9:30
				Half	6:40
Type	Built-in		Airborne acoustical noise emission class for the spinning phase for the ECO 40-60 programme at rated washing capacity.	B (e)
Off-mode (W) (if applicable)	0.50		Standby mode (W) (if applicable)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (a, d): 2 years
This product has been designed to release silver ions during the washing cycle:			NO
Additional information (a, d)
Web to the supplier's website, where the information in point 9 of Annex II to Regulation EU 2019/2023 is found: www.easelectric.es
(a) This item shall not be considered relevant for the purposes of Article 2(6) of Regulation EU 2017/1369(b) For the ECO 40-60 programme.(c) For the wash and dry cycle(d) Changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of regulation EU 2017/1369(e) If the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the hardness of the water.
3) Delivery of the spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014

The product data sheet for your appliance can be found online. Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

■ Built-in installation

Appendix

Self-tapping screws (ST4*12)

Self-tapping screws(M5*1 2)

Hinges

Counter magnet

Spacer

Fixed position paper

Tool

Screw driver

Automatic driver

Ruler

Pencil

Install Steps

600mm 580mm 540mm 595mm 825mm 152.5mm 825mm

Overview

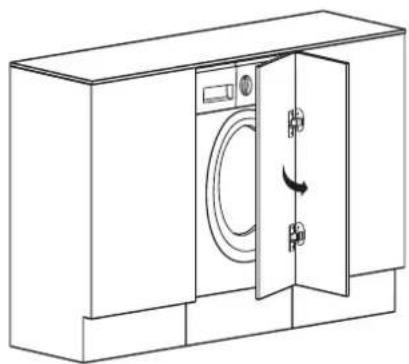

Line drawing of a washing machine with door open and directional arrow indicating rotation (no text or symbols)

The door is open from left to right

Line drawing of a washing machine cabinet with door open and side lock, showing internal mechanism (no text or symbols)

The door is open from right to left

Preparation and assembly of the door

Position Paper

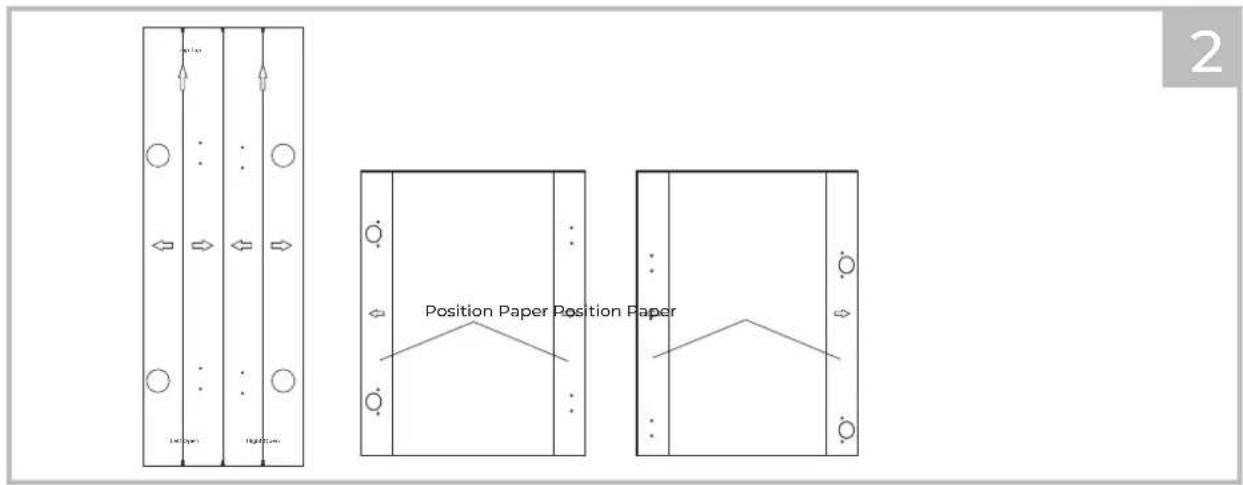

Make the mark on the door

Position Paper Position Paper 2

Fixed position paper on the door.

3

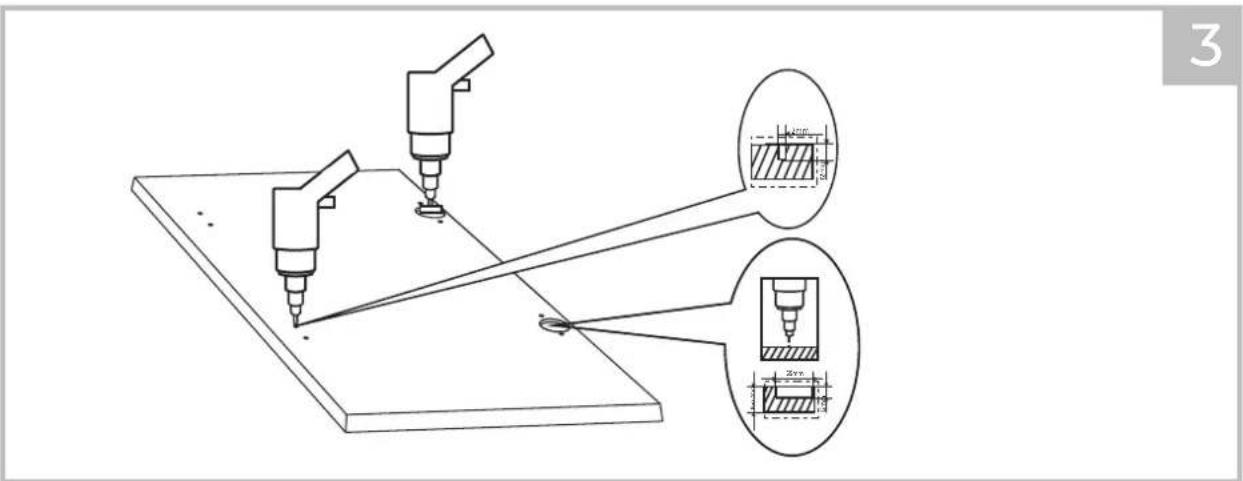

Drill hole on the door

Technical line drawing of a mechanical clamp or bracket assembly with three clamps and a base plate (no text or symbols)

Installation of the hinges and spacer

Line drawing of a washing machine with two lockers attached to the door (no text or symbols)

Installation of the counter magnet

Line drawing of a washing machine cabinet with door open and internal components (no text or symbols)

△ Warning!

When installing the appliance into the kitchen furniture, if possible, the hoses are placed in either of the two recesses on the back of the appliance. This will help to prevent the hoses from becoming kinked or trapped.

Contenu

PRÉCAUTIONS DE SÉCURITÉ

Symbol of a trash bin crossed with no text or numbers, accompanied by a black rectangular block below (no text or symbols present)

Simple line drawing of a rectangular box with a central circular pattern and two intersecting X-shaped lines (no text or symbols)

Illustration of a box with an upward arrow and a magnified inset showing a city skyline labeled 'a' (no text or symbols on the main diagram)

Close-up of a mechanical component with a wrench and circular knob, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a small metallic part (no visible text or symbols)

Close-up of a white object with a dark circular feature and a blue arrow pointing to it, partially overlaid by a striped pattern (no text or symbols)

Close-up of a white mechanical component with a blue curved arrow indicating rotation or change (no text or symbols)

Close-up of a white object with blue arrows indicating motion or direction, no visible text or symbols

Close-up of a faucet with a blue upward arrow indicating rotation or adjustment around a white plastic component (no text or symbols)

Note

Simple line drawing of a sweater with a tag and patterned tie (no text or symbols)

Simple line drawing of a basket with an arrow indicating rotation or movement, no text or symbols present.

Diagram illustrating a garment pattern with labeled parts and directional arrows indicating movement or processing steps.

Line drawing of two backpacks with circular designs and straps (no text or symbols)

Simple line drawing of a bag with a mesh net containing an animal, no text or symbols present

Line drawing of a knitted sweater with patterned fabric (no text or symbols)

Technical diagram of a boat hull with labeled components and symbols

① Attention

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Remarque

Line drawing of a hand holding a curved object, possibly a tool or component (no text or symbols present)

Diagram of a faucet with rotating arrows indicating clockwise motion (no text or symbols)

Illustration of a hand holding a connector with a cable inserted (no text or symbols)

Illustration of a hand holding a small object with a circular arrow symbol, next to a table with a mechanical component (no text or symbols present)

Line drawing of a hand holding a magnifying glass over a wall-mounted device (no text or symbols)

Technical line drawing of a mechanical device with internal components and a labeled section (no text or symbols)

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Technical line drawing of a mechanical device with internal compartments and a directional arrow (no text or symbols)

Hand holding a bulb above a plate with a circular arrow indicating rotation (no text or symbols)

Diagram of a pipe fitting with directional arrows indicating flow or movement (no text or symbols)

600mm 580mm 540mm 595mm 825mm 152.5mm 825mm

Schème

Technical line drawing of a mechanical clamp or bracket assembly with three clamps and a base plate (no text or symbols)

Line drawing of a washing machine with two lockers attached to the door (no text or symbols)

Line drawing of a washing machine cabinet with door open and internal components (no text or symbols)

CONDITIONS DE LA GARANTIE

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Simple line drawing of a rectangular box with a cross mark on the front page, no text or symbols present.

Desembalar a máquina de lavar e secar

Advertência

Diagram showing a 3D box with an arrow pointing to a labeled object 'a' inside a circular inset.

Close-up of a white car door with a metallic knob and a wrench, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a small metallic part (no visible text or symbols)

Close-up of a white object with a dark circular hole and a blue arrow pointing to it, partially overlaid by a striped pattern (no text or symbols)

Fechar os buracos com as tampas.

Equilibrar a máquina de lavar

Advertência

Close-up of a mechanical component with a blue curved arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows indicating motion or direction, no visible text or symbols

Close-up of a faucet with a blue upward arrow indicating rotation or adjustment around a white pipe fitting (no text or symbols)

Nota

Line drawing of a sweater with a tag and tie (no text or symbols)

Verifique a etiqueta

Simple line drawing of a bag being folded into a basket (no text or symbols)

Illustration showing a garment with labeled parts and directional arrows indicating movement or processing steps.

Two handbags with circular designs, one open and one closed, shown in line drawing style (no text or symbols)

Simple line drawing of a bag with a grid pattern and a small object inside (no text or symbols)

Line drawing of a knitted sweater with pleated design (no text or symbols)

Technical diagram of a boat hull with labeled components and symbols

! Atenção

Line drawing of a hand washing a washing machine (no text or symbols)

⚠️ Atenção

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a faucet with rotating arrows indicating clockwise motion (no text or symbols)

Illustration of a hand holding a connector with a cable, no text or symbols present

Illustration of a hand holding a small object with a magnified inset showing a mechanical component (no text or symbols)

Simple line drawing of a hand holding a circular object with a mesh pattern, mounted on a stand (no text or symbols)

Limpeza da gaveta do detergente

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Technical line drawing of a mechanical device with a lever and base plate (no text or symbols)

Line drawing of a hand using a tool to clean or store contents inside a container (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Recolocar a caixa

Nota

Hand holding a circular tool with an arrow indicating rotation, next to a plate with a small mark (no text or symbols)

Diagram of a pipe fitting with directional arrows indicating flow or movement (no text or symbols)

Substituir o filtro e fechar a tampa inferior.

⚠️ Atenção

600mm 580mm 540mm 595mm 825mm 152.5mm 825mm

Dimensões

Fazer as marcas na porta

Technical line drawing of a mechanical clamp or bracket assembly with three clamps and a base plate (no text or symbols)

Line drawing of a washing machine with two lockers attached to the door (no text or symbols)

Instalar os contra-imanes

Line drawing of a washing machine cabinet with door open and internal components (no text or symbols)

Scan for manual in other languages and further updates:
