USER MANUAL EMW9545VPDW EAS Electric

Abstract arrangement of gray and white triangular shapes pointing right (no text or symbols)

LAVADORA

WASHING MACHINE

LAVE-LINGE

MÁQUINA DE LAVAR

Line drawing of a washing machine with circular wheels and a button (no text or symbols)

EMW9545VPDINOX EMW9545VPDW

QR code with embedded logo and text 'EAS' and 'PILK TECHNOLOGY'

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Simple line drawing of a rectangular box with a circular center and intersecting X marks (no text or symbols)

Diagram showing a box with an arrow pointing upward, and a magnified inset illustrating a 3D object with a circular arc (no text or symbols)

Close-up of a white car wheel with a wrench and blue arrow indicating rotation (no text or symbols)

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Close-up of a medical device with a blue arrow pointing to a dark circular component (no text or symbols visible)

Close-up of a mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows indicating direction, no visible text or symbols

Close-up of a faucet with blue arrows indicating pipe movement (no text or symbols)

Nota

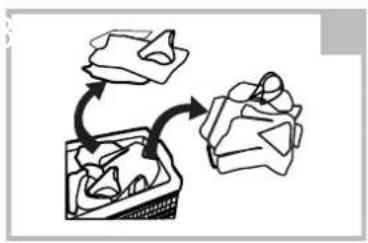

Simple line drawing of a sweater with a tag and patterned jacket (no text or symbols)

Diagram illustrating a garment pattern with labeled parts and directional arrows indicating movement or processing steps.

Line drawing of two fabric bags with circular designs, no text or symbols present

Simple line drawing of a bag with a hand holding a small object inside, no text or symbols present.

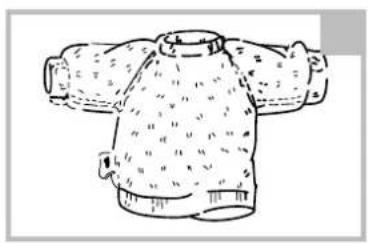

Line drawing of a knitted sweater with textured sleeves and buttons (no text or symbols)

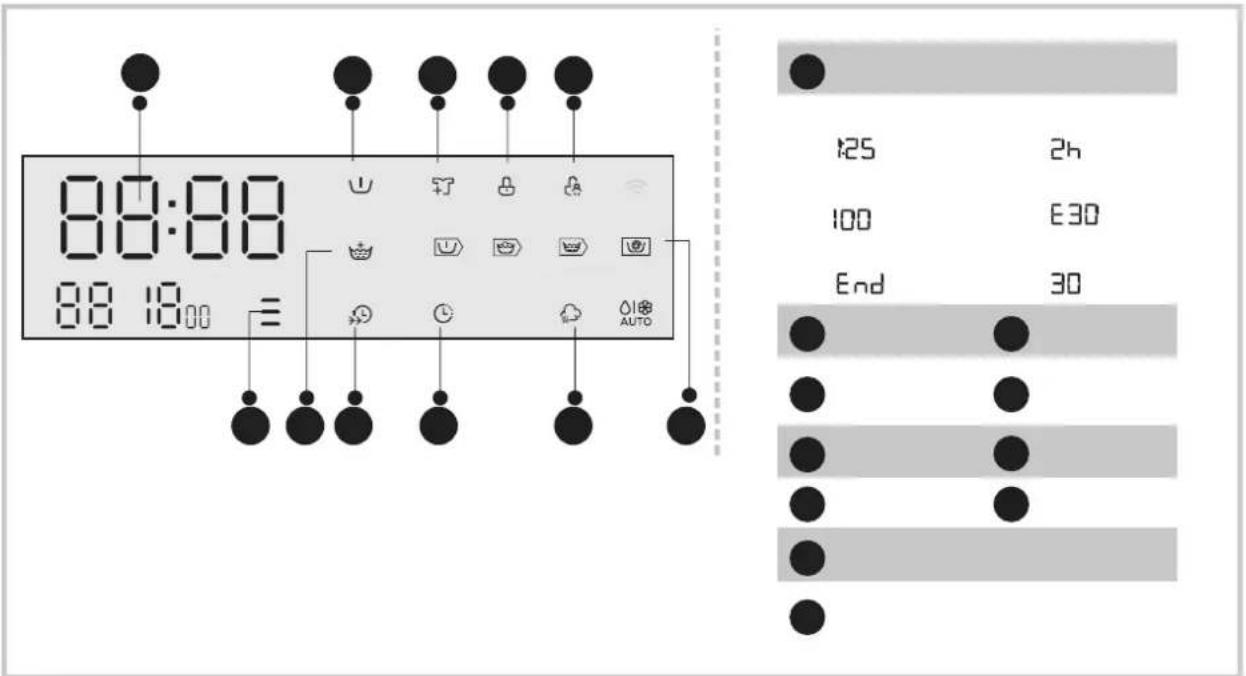

A 8:00:00 8:30 19:00 = B C D E F G H I J

A Display

Line drawing of a hand washing a washing machine (no text or symbols)

Nota

Line drawing of a hand holding a curved object, possibly a tool or component (no text or symbols present)

Diagram showing a faucet with rotating arrows indicating flow or movement (no text or symbols)

Line drawing of a hand holding a connector with a tool, no text or symbols present

Illustration of a hand holding a small device with a magnified inset showing a rotary switch (no text or symbols)

Line drawing of a hand holding a magnifying glass over a wall-mounted device (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand using a tool to remove or remove a dark object inside a container (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Line drawing of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Hand holding a rotary knob on a device panel, no text or symbols visible

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

■ Guarantee conditions 34

Blank white rectangle with a small black triangle symbol at the top-left corner (no text or symbols)

Two empty rectangular boxes with no text, numbers, or symbols inside.

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

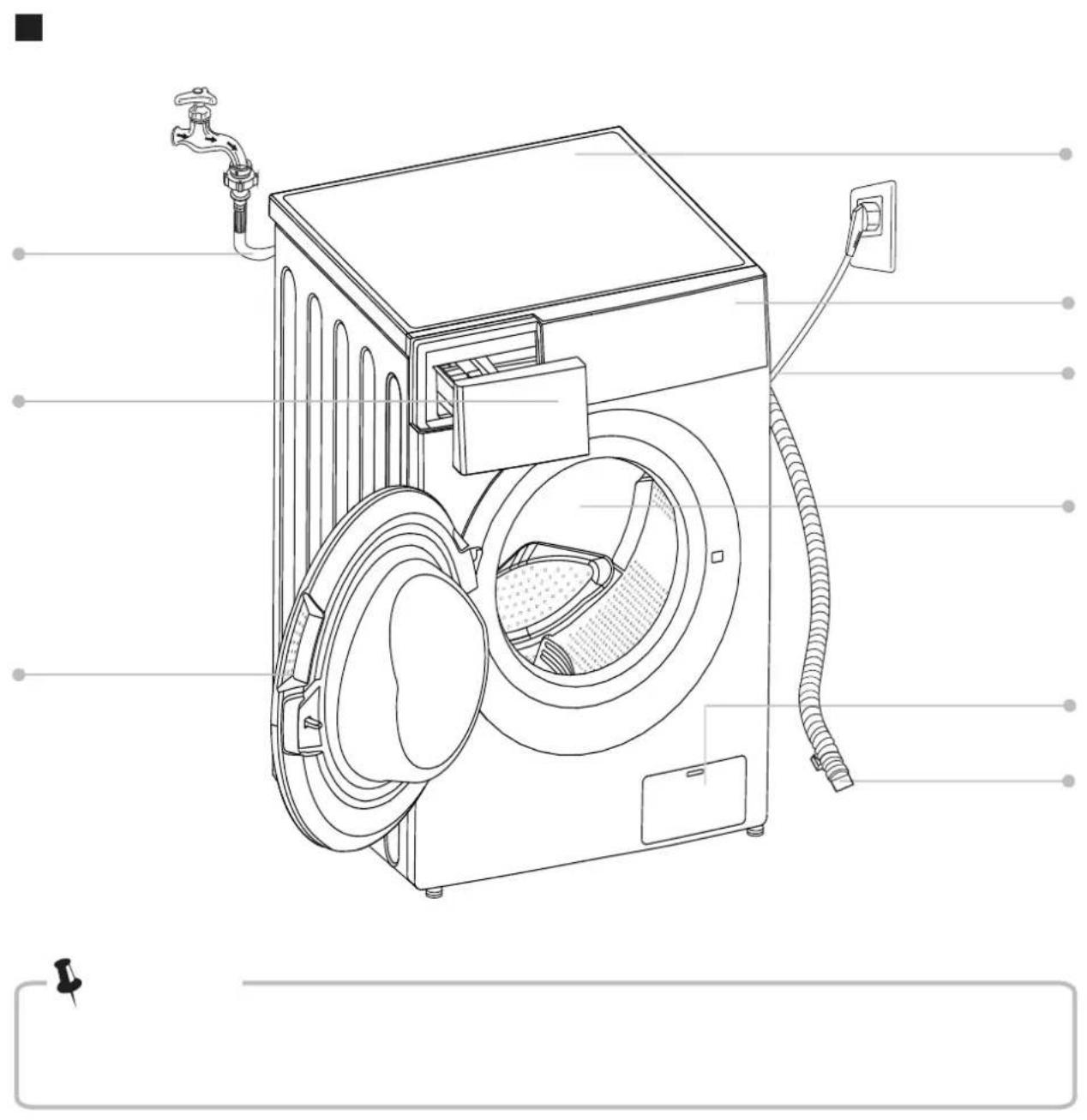

Line drawing of a washing machine with water inlet, fan, and hose (no text or labels)

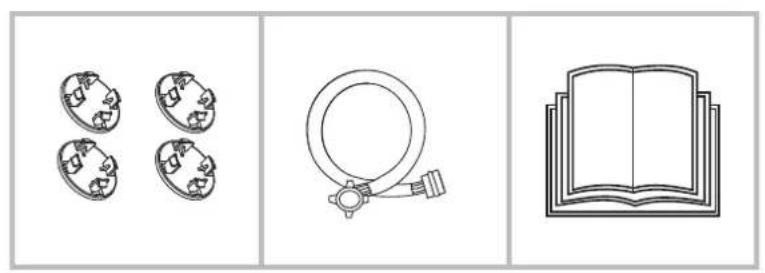

Three-panel image showing a grid of four circular objects, a magnifying glass, and an open book (no text or symbols)

W W≥ 20mm

Simple line drawing of a rectangular frame with a central circular pattern and intersecting diagonal lines (no text or symbols)

Diagram showing a 3D box with an arrow pointing to a labeled object, marked with 'a' in a circle.

Close-up of a white car wheel with a metallic knob and a wrench, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a textured surface (no visible text or symbols)

Close-up of a medical or laboratory procedure image showing a dark circular object with a blue arrow pointing to it, alongside a striped pattern (no text or symbols)

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Close-up of a white object with two blue arrows pointing to a circular object (no text or symbols visible)

Close-up of a faucet with blue arrows indicating rotation or adjustment around a white plastic component (no text or symbols)

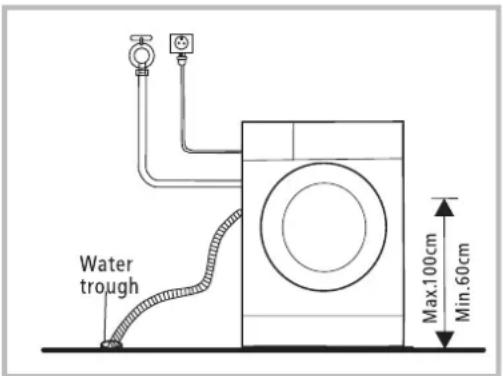

Water trough Max.100cm Min.60cm

Max.100cm Max.100cm Min.60cm

! ▶II

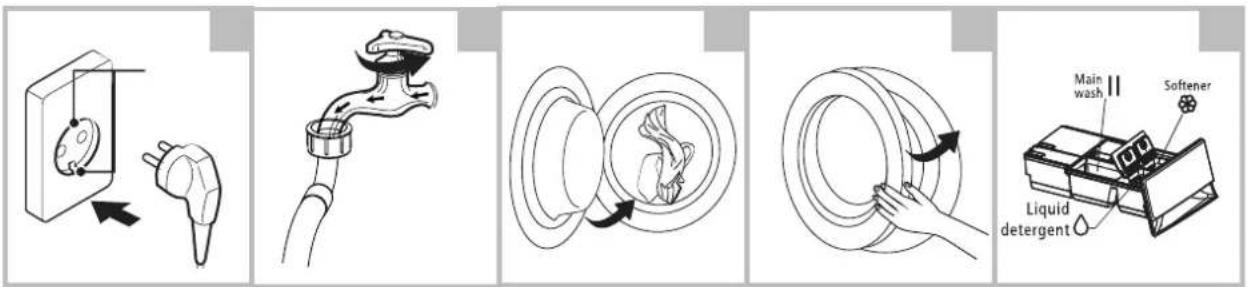

Diagram illustrating the steps of a washing machine with labeled components: main wash, softener, liquid detergent, and valve assembly.

Simple line drawing of a pushpin at the top-left corner of a rectangular frame (no text or symbols)

Four-step diagram showing hand gestures and control buttons: one with timer, one with clock, one displaying 8:88 digital display, and one with play button.

Line drawing of a sweater with a tag and tie (no text or symbols)

Diagram illustrating a garment pattern with labeled parts and directional arrows indicating movement or processing steps.

Line drawing of two fabric bags with circular designs and a bow, no text or symbols present

Line drawing of a money bag with a hand placed inside, no text or symbols present

Line drawing of a T-shirt with pleated collar and side ribs (no text or symbols)

Empty rectangular frame with a small triangle marker at the top-left corner (no text or symbols)

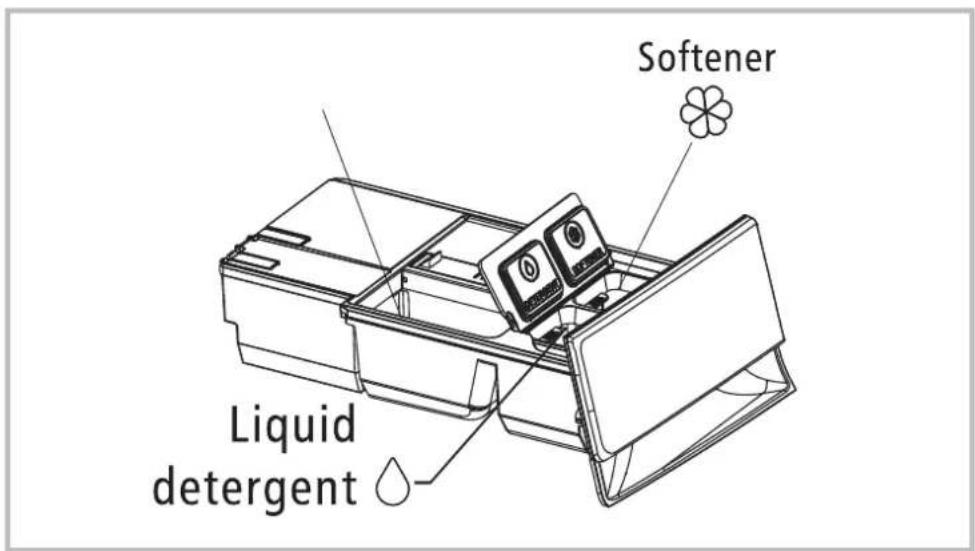

Softener Liquid detergent

AUTO
!

	◇	✿		◇	✿
Algodón	●	○	Lana	●	○
Sintéticos	●	○	Express 15'	●	○
Mixto	●	○	Intensivo	●	○
Ropa de cama	●	○	Solo centrífugado
Ropa Bebé	●	○	20°C	●	○
Autolimpieza
Aclarado y centrífugado		○
ECO 40-60	●	○

	Algodón, ECO 40-60, Intensivo
	Algodón, ECO 40-60, Intensivo
	20°C, Sintéticos
	Sintéticos
	Lana

Simple line drawing of a pushpin at the bottom of a blank rectangular border (no text or symbols)

Two horizontal gray bars with black circular markers in the center, no text or symbols present.

Two horizontal gray bars with black circular markers in the center (no text or symbols)

Simple gray horizontal bar with a black circular mark at the top (no text or symbols)

8:00:00 8:00 18:00 125 2h 100 E30 End 30

EMW9545VPDINOX / EMW9545VPDW
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter//operalling cycle	Highest temperature (°C^1)	residual moitsure in %/spin speed ^2)
20°C	4.5	20	1:01	0.189	47.6	20	65%/1000
Algodón	9.0	60	3:44	1.603	78.2	60	53%/1400
Intensivo	9.0	40	3:48	1.206	78.2	40	70%/800
Mixto	9.0	40	1:20	0.813	78.2	40	65%/800
Express 15'	2.0	Cold	0:15	0.030	40.0	Cold	75%/800
ECO 40-60 ^3)	9.0	-	3:48	0.952	63.2	38	53%/1350
	4.5	-	2:54	0.622	45.5	37	53%/1350
	2.5	-	2:54	0.211	41.4	22	53%/1350

!

Algodón

Sintéticos

Ropa de bebé

Mixto

Ropa de cama

20°C

Eco 40-60

Express 15'

Lana

Solo centrifugado

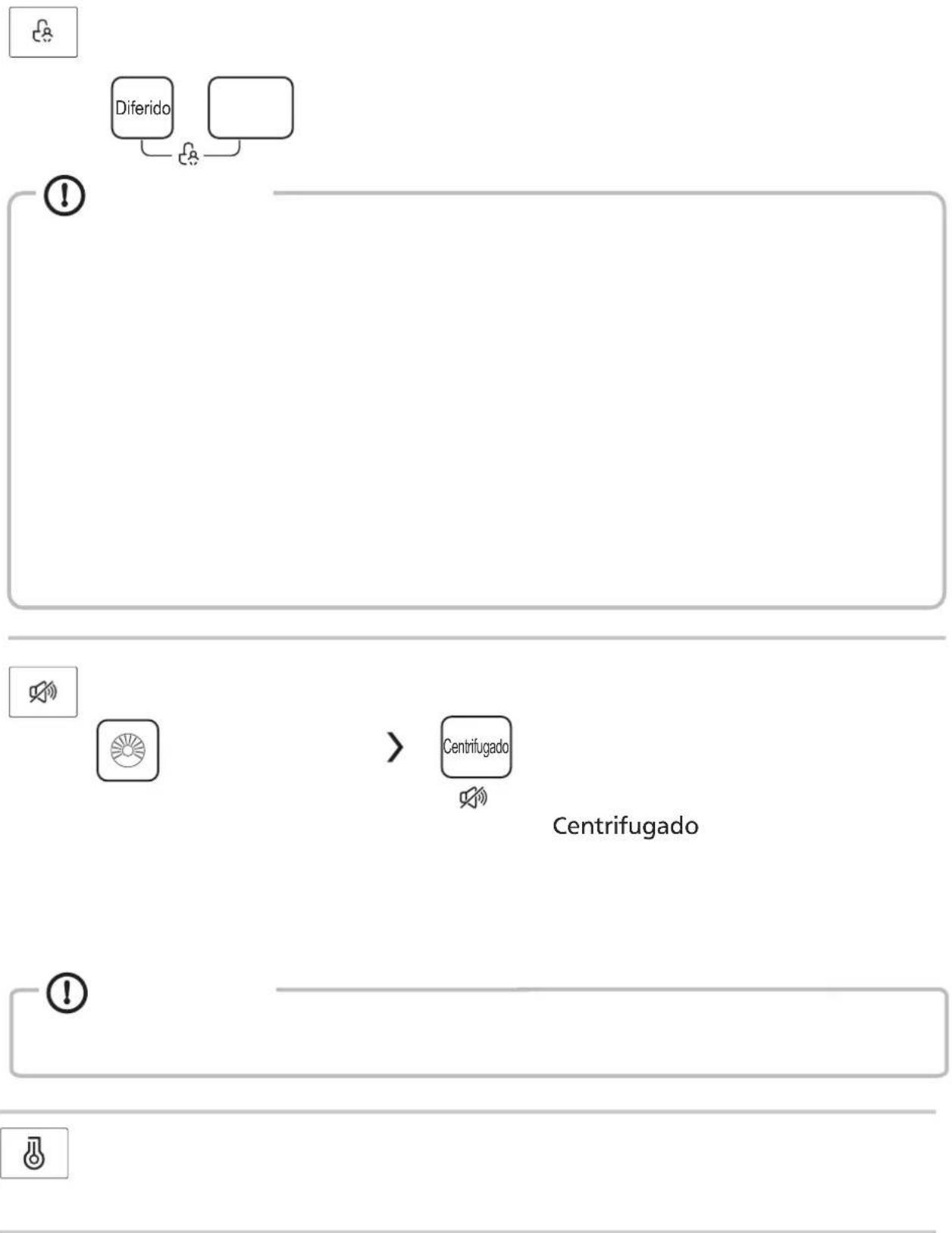

Sequence of three UI icons with symbols: sun icon, Diferido label, and double arrow symbol

Extra Rinse

Suciedad

Wash Speed

Mi Ciclo

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a faucet with rotating arrows indicating clockwise motion (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Illustration of a hand holding a small object with a circular inset showing a mechanical component (no text or symbols)

Line drawing of a hand holding a magnifying glass over a wall-mounted device (no text or symbols)

[Non-Text]

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand using a tool to insert or remove a dark object into a rectangular frame (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols visible)

Four-step diagram illustrating a mechanical device operation: cutting, rotary knobing, rotary switch, and rolling pin.

!

Blank gray image with no visible content, text, or symbols

Blank gray image with no visible content, text, or symbols

Blank gray image with no visible content, text, or symbols

Blank gray image with no visible content, text, or symbols

E30

E10

E21

E12

EXX

Line drawing of a washing machine with side panel and height dimension lines (no text or symbols)

Blank gray image with no visible content, text, or symbols

Model	Washing Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
EMW9545VPDINOX / EMW9545VPDW	9.0kg	595*565*850	71kg	1900W

Product Information Sheet acc. regulation (EU) 2019/2023

Supplier's name or trade mark:

EAS ELECTRIC SMART TECHNOLOGY

Supplier's address (b): P.I San Carlos, Camino de la Sierra S/N Parcela 11. 03370 Redován (ALICANTE)

Model identifier: EMW9545VPDINOX / EMW9545VPDW

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (a) (kg)	9.0		Dimensions in cm	Height	85
				Width	60
				Depth	57
EEI_w (a)	59.9		Energy efficiency class (a)	B
Washing efficiency index (a)	1.04		Rinsing effectiveness (g/kg) (a)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.570		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	50
Maximum temperature inside the treated textile (a) (°C)	Rated capacity	38	Remaining moisture content (a) (%)	Rated capacity	53
	Half	37		Half	53
	Quarter	22		Quarter	53
Spin speed (a) (rpm)	Rated capacity	1350	Spin-drying efficiency class (a)	B
	Half	1350
	Quarter	1350
Programme duration (a) (h:min)	Rated capacity	3:48	Type	free-standing
	Half	2:54
	Quarter	2:54
Airborne acoustical noise emissions in the spinning phase (a) (dB(A) re 1 pW)	76		Airborne acoustical noise emission class (a) (spinning phase)	B
Off-mode (W)	0.50		Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier ( ^b ): 2 years

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023(1) (b) is found: www.easelectric.es

(a) for the eco 40-60 programme.(b) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.(c) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

PRÉCAUTIONS DE SÉCURITÉ

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Simple line drawing of a rectangular box with a circular center and diagonal X mark (no text or symbols)

Diagram of a box with an arrow pointing upward, showing a magnified view of a small object inside (no text or symbols present)

Close-up of a white car wheel with a wrench and blue arrow indicating rotation (no text or symbols)

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Close-up of a medical device with a blue arrow pointing to a dark circular component (no text or symbols visible)

Close-up of a mechanical component with a blue circular arrow indicating rotational motion (no text or symbols)

Close-up of a white object with two blue arrows pointing outward from a circular component (no text or symbols visible)

Close-up of a faucet with blue arrows indicating pipe movement (no text or symbols)

Remarque

Simple line drawing of a sweater with a tag and patterned tie (no text or symbols)

Simple line drawing of a basket with an arrow indicating rotation or movement, no text or symbols present.

Diagram illustrating a garment disposal process with labeled parts and directional arrows indicating movement.

Line drawing of two bags with circular designs, no text or symbols present

Line drawing of a money bag with a hand placed inside, no text or symbols present

Line drawing of a T-shirt with pleated collar and side ribs (no text or symbols)

Line drawing of a hand cleaning a washing machine (no text or symbols)

Remarque

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Diagram showing a valve mechanism with rotating arrows indicating flow or movement (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Hand holding a small object with a magnified inset showing a rotary switch mechanism (no text or symbols)

Line drawing of a hand holding a tool near a mechanical component (no text or symbols)

Line drawing of a mechanical component with arrows indicating motion direction (no text or symbols)

Hand holding a rotary knob on a device panel, with no visible text or symbols

Diagram showing a device with a dial and buttons, including a magnified view of a mechanical component.

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

CONDITIONS DE LA GARANTIE

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Simple line drawing of a rectangular box with a cross mark on the front face, no text or symbols present.

Desembalar a máquina de lavar

△ Atenção

Illustration of a box with an arrow pointing upward, and a magnified inset showing a small structure inside (no text or symbols)

Close-up of a white car wheel with a wrench and blue arrow indicating rotation (no text or symbols)

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Remova os parafusos e arruelas de borracha e guarde-os para uso futuro.

Close-up of a medical device with a blue arrow pointing to a dark circular component (no text or symbols visible)

Close-up of a mechanical component with a blue circular arrow indicating rotational motion (no text or symbols)

Close-up of a white object with blue arrows indicating direction, no visible text or symbols

Close-up of a faucet with blue arrows indicating pipe movement (no text or symbols)

Note

Hand icon pointing at a button labeled with an exclamation mark, symbolizing alert or warning.

Ligue

Simple diagram showing two concentric circles with curved arrows indicating rotation or direction (no text or symbols)

Escolha o programa

8:88 3

Hand pointing at a button with a play symbol (no text or numbers present)

Line drawing of a sweater with a tag and tie, no text or symbols present

Verifique a etiqueta

Diagram showing a bag being folded into a basket with arrows indicating process flow (no text or symbols)

Diagram illustrating a garment pattern with labeled parts and directional arrows indicating movement or processing steps.

Two handbags with circular designs, one wrapped in a strap and the other in a tassel (no text or symbols)

Simple line drawing of a bag with a mesh pattern and a small object inside (no text or symbols)

Line drawing of a T-shirt with patterned fabric and side ribs (no text or symbols)

8:00:00 8:00 18:00 =

Silenciar as alertas

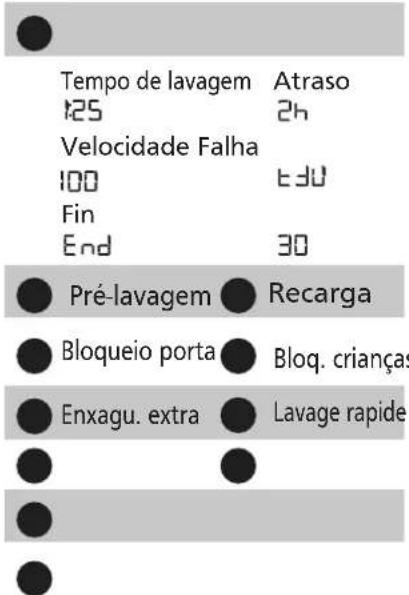

Escolha o programa

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Nota

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Diagram of a faucet with rotating arrows indicating clockwise motion (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Hand holding a small device with a circular diagram showing a rotary switch mechanism (no text or symbols)

Line drawing of a hand holding a magnifying glass over a wall-mounted device (no text or symbols)

Limpeza da gaveta do detergente

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a hand inserting a plug into a socket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Substitua a cassette

Nota

Line drawing of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Hand holding a rotary knob on a device panel, with no visible text or symbols

Diagram showing a switch mechanism with labeled parts and a magnified view of the switch component

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Scan for manual in other languages and further updates:

Complete documents about the product
