USER MANUAL EMW8440GW EAS Electric

21For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, elec- tric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. Before any maintenance the device, unplug the appliance from the mains. Electric shock! SAFETY INSTRUCTIONS Safety Instructions This combinatio n of symbol and signal word indi- cates a potentially dangerous situation which may result

Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries. Note! This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment. Caution!

Warning! V.2 Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals. To ensure your safety, power plug must be inser- ted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed. Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations. Pull out its plug from the power socket before cleaning or maintenance. Do not use any socket with rated current less than that of appliance. Never pull out power plug with wet hand. Please remember to disconnect water and power supply immediately after the clothes are washed. Risk to children! EN countries: the appliance can be used by chil- dren aged from 8 years and above and persons with reduced physical, sensory or mental capabi- lities or lack of experience and knowledge if they have been given supervision or instruction concer- ning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3years should be supervised to ensure that they do not play with appliance. Animals and children may climb into the machine. Check the machine before every operation. Kids should be supervised that they do not play with the appliance. SAFETY INSTRUCTIONS V.2 G

s door may be very hot during the operation.

ep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas. Remove all packages and transport bolts before using the appliance.

erious damage may result. Risk of explosion! Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combus- tible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kero- sene, etc.) This may result in fire or explosion. The washer dryer is not to be used if industrial chemicals have been used for cleaning. The exhaust air must not be discharged into a flue which is for exhausting fumes from appliances burning gas or other fuels. Before hand thoroughly rinse items of washing by hand. Installing the product! This appliance is for indoor use only. It isn't intended to be built-in using. The openings must not be obstructed by a carpet. The appliance shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases. The appliance with single inlet valve only can be connected to the cold water supply. The appliance with double inlet valves should be correctly connected to the hot water and cold water supply. SAFETY INSTRUCTIONS Caution! V.2 Plug must be accessible after installation. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer. The appliance shall not be installed at a humid place. Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result. Risk of damaging appliance! The product is only for home use and is only designed for the textiles suitable for machine washing and drying. Do not climb up and sit on top cover of the machine. Do not lean against machine door. Cautions during Handling Machine: Transport bolts shall be reinstalled to the ma- chine by a specialized person. The accumulated water shall be drained out of the machine. Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door cannot be used as the handle during the conveyance. This appliance is heavy. Transport with care. Hands shall not be inserted into running water extracting tub. Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the clothes are put in or distributed well. It is forbidden to wash carpets. SAFETY INSTRUCTIONS V.2 Before using the wash machine, the product shall be calibrated. Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside. Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc.Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum. Make sure that all pockets are emptied. Sharp and rigid items such as coin,brooch,nail,screw or stone etc. may cause serious damages to this machine. Please check whether the water inside the drum has been drained before opening its door. Please do not open he door if there is any water visible. Be careful of burning when the product drains hot washing water. After the program is completed, Please wait for two minutes to open the door(Some model). Never refill the water by hand during washing. If it is unavoidable that fabrics that contain vege- table or cooking oil or have been contaminated by hair care products. it be placed in a tumble dryer they should first be washed in hot water with extra detergent, this will reduce, but not eliminate, the hazard. Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires. SAFETY INSTRUCTIONS Operating the appliance! V.2 Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. The machine whose lid can be opended during water extraction, that it takes 15s or more for complete stop of water extracting chamber tub. Remove all objects from pockets such as ligh- ters and matches before use the appliance. SAFETY INSTRUCTIONS V.2INSTALLATION Accessories Product Description Transport hole plug Supply hose cold water Drain hose support (optional) Supply hose hot water (optional)

• The product line chart is for reference only, please refer to real product as standard. Note! Drum Control panel Power supply cord Detergent dispenser Service filter Door Water supply hose Top cover Drain hose Owner’s manual V.2INSTALLATION Installation Before installing the machine, the location characterized as follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation 4.Room temperature is above 0°C 5.Keep far away from the heat resources such as coal or gas. Unpacking the washing machine 1.Remove the cardboard box and styrofoam packing. 2.Lift the washing machine and remove the base packing. Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with side surface, then remove the small foam from the unit bottom manually. 3.Remove the tape securing the power supply cord and drain hose. 4.Remove the inlet hose from the drum. Please take the following steps to remove the bolts: 1.Loosen 4 bolts with spanner and then remove them.

Stop the holes with transport hole plugs.

Keep the transport bolts properly for future use. Remove transport bolts Stability is important to prevent the product from wandering! Make sure that the product should not stand on the power cord.

Warning! Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation! Keep all packaging well away from children.

Warning! You must remove the transport bolts from the backside before using the product. You’ll need the transport bolts again if you move the product, so make sure you keep them in a safe place.

W> 20mm Installation area V.2INSTALLATION 1.Check if the legs are closely attached to the cabinet. If not, please turnthem to their original positions tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor. 3.Adjust the legs and lock them with a spanner, make sure the machine issteady. Levelling the washer dryer The lock nuts on all four feet must be screwed tightly against the housing. Connect Water Supply Hose Connect the inlet pipe as indicated, there are two ways to connect the inlet pipe. 1.Connection between ordinary tap and inlet hose.To prevent leakage or water damage, follow the instructions in this chapterDo not kink, crush, modify or sever water inlet hose.For the model equips hot valve,connect it to hot water tap with hot water supply hose. Energy consumption will decrease automatically for some program.

Warning! Loosen clamp nut and four boltsTighten clamp nut Press slide bushing, insert inlet hose into connecting base slide bushing

Connection finished clamp nut Tap with threads and inlet hose Special tap for washer 2.Connection between screw tap and inlet hose.slide bushing V.2INSTALLATION

Warning! Drain Hose There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough. When installing drain hose, fix it properly with a rope. If drain hose is too long, do not force it into washing machine as it will cause abnormal noises. Do not kink or protract the drain hose. Position drain hose properly, otherwise damage might result of water leakage. Water trough Min.60cmMax.100cmTroughHose Retainer Bind Max.100cmMin.60cmMin.60cmMax.100cm If the machine has drain hose support, please install it like the following.

Warning! Note! water supply hose water inlet valve Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. V.21.Before Washing Open tap Load Close door Plug in Add detergent Quick Start

• Detergent need to be added in "case I “after selecting pre-washing for machines with this function.

Note! Caution! OPERATIONS Main wash PrewashSoftenerIt’s recommend to calibrate the wash machine so that can serve you better.1-Empty the wash machine;2-Plug in;3-Power on the wash machine and press “Inicio diferido” and“Centrifug.” at the same time within 10 seconds then display “t19”4- Pressto start the wash machine and wait till display “****”

• Before washing, please make sure it’s installed properly.

• Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. Calibration Select Programme V.2Knot the long strips, zip or button
• When washing a single clothes, it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.

• Don’t washing the clothes touching with kerosene, gasoline, alcohol and other flammable materials.

• The working condition of the washer should be(0-40)°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient tem- perature to ensure the water supply hose and drain hose are not frozen before use.

• Please check the labels and the explanation of using detergent before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly. Take out the items out of the pockets Put small clothes into the pillow slip Check the label Before Each Washing Turn easy-pilling and long-pile fabric inside out Separate clothes with different textures

Buzzer beep or “End” on display. 1.If default is selected, step 3 can be skipped. 2.The function button line chart is for reference only, please refer to real product as standard. Note! V.2Pull out the dispenser Caution!

• Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener

• As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.

• Please choose suitable type of detergent for the various washing temperature to get the best washing performance with less water and energy consumption. Note! Programme Algodón Express 15’ Rápido 45’ Diario 60’ ECO 40-60 Intensivo Aclarado y centrifugado Esterilización ○ Means optional Means must Programme Sport Sintéticos Mix Delicado Lana 20ºC Sólo centrifugado V.2OPERATIONS On/Off Product is switched On/Off. Inicio/Pausa Press the button to start or pause the washing cycle. Programmes Available according to the laundry type. Función This allows you to select an additional function and will light when selected. Note! The chart is for reference only, Please refer to real product as standard.

Display The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

• If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, the program will continue. Aclarado extra The laundry will undergo extra rinse once after you select it. Prelavado The Prewash function can get an extra wash before main wash, it is suitable for washing the dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it.PrelavadoAclarado extra Mi ciclo To memory the frequently used programme. After choosing the programme and setting the options, press [Centrifug.] 3 sec. before start to wash.The default setting course is Algodón. Inicio diferido V.2OPERATIONS Centrifug. Press the button to change the speed.1400: 0-400-600-800-1000-1200-1400 Temp. Press the button to regulate the temperature(Cold,20℃,30℃, 40℃,60℃,70℃,90℃) Other Functions Programme Default Speed(rpm) Algodón Express 15’ Rápido 45’ Diario 60' ECO 40-60 Intensivo Aclarado y centrifugado Esterilización Programme Sport Sintéticos Mix Delicado Lana 20ºC Solo centrifugado Default Speed(rpm)

Model: EMW7440GW, EMW8440GW, EMW8340GX1 Centrifug. V.2Mute the buzzer To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

• After Muting the buzzer function, the sounds will not be activated any more. Caution! OPERATIONS Press the [Temp.]button for 3sec., the buzzer is mute.Temp.Choose the Programme
• Only press and hold the two button can release child lock, even power off, switch off and program end

• The "Child Lock" will lock all buttons except Power button and Child Lock button

Please release child lock before selecting program and staring washing When child lock is activated and program starts, child lock indicator will switch on, and the CL and remaining time on the display are alternately displayed in 0.5s. Press the other buttons will make child lock indicator flash for 3s. when program finish, CL and END alternate for 10s in 0.5s, then the child lock lights flash for 3s Caution! Child Lock To avoid mis operation by children. Press [Temp.] and [Centrifug.] 3 sec. till buzzer beep.Temp.Centrifug. V.2Programmes OPERATIONS Programmes Lana Mix Algodón Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Mixed load consisting of textiles made of cotton and synthetics. 20ºC default, can choose cold water. Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry. Sólo centrifugado Aclarado y centrifugado 20ºC Express 15' Sintéticos Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. Programmes are available according to the laundry type. Intensivo ECO 40-60 Hand or machine-washable wool or richwool textiles. Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor). Extra spin with selectable spin speed. To increase the washing effects, washing time is increased. Rápido 45' This programme is suitable for washing not very dirty clothes, save more energy and washing. Diario 60' This programme is suitable for daily wash,for daily laundry, to achieve a good washing performance about 60min. Default 40ºC not selectable, suitable for laundry washing at about 40ºC-60ºC Esterilización Keep the washing temperature above 60 degrees for more than 30 minutes, effectively remove harmful bacteria. For delicate, washable textiles, e.g. made of silk, satin, synthetic fibres or blended fabrics. Delicado This programme is suitable for wash the sportwear.Sport Extra rinse with spin. V.2Washing Programmes Table OPERATIONS The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table. Note! Programme Load (kg)Default Time DefaultTemp.(°C) AlgodónExpress 15'Rápido 45'Diario 60'ECO 40-60IntensivoAclarado ycentrifugadoEsterilizaciónSport Sintéticos Mix Delicado Lana 20℃ Sólo centrifugado7.07.0/8.0

• Concerning to Regulation(EU) No 1061/2010, The EU energy efficiency class is: A+++ Energy test program: Intensive 60/40ºC; Speed: The highest speed; Other as the default. Half load for 7.0/8.0kg machine:3.5/4.0kg.

• Concerning to Regulation(EU) 2019/2023, The EU energy efficiency class is: E Energy test program: ECO 40-60. Other as the default. Half load for 7.0/8.0kg machine:3.5/4.0kg. Quarter load for 7.0/8.0kg machine:2.0/2.0kg.

and close the tap. Formic acid and its diluted solvents or equivalent are forbidden, such as alcohol, solvents or chemical products,etc. Don’t put laundry in the washing machine during the drum cleaning.

Warning! Note! Note! Cleaning And Care Cleaning The Drum The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents. Never use steel wool. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed. Cleaning The Door Seal And Glass Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leaks. Remove any coins, buttons and other objects from the seal after each wash. MAINTENANCE V.2MAINTENANCE Washing the filter in the tap 1.Close the tap.2.Remove the water supply hose from the tap.3.clean the filter.4.Reconnect the water supply hose. Cleaning The Inlet Filter

• Inlet filter must be cleaned if there is less water.
• If the brush is not clean, you can pull out the filter washed separately;• Reconnect,

urn on the tap. Washing the filter in washing machine: 1.Screw off the inlet pipe from thebackside of the machine.2.Pull out the filter with long nose pliersand reinstall it back after beingwashed.3.Use the brush to clean the filter.4.Reconnect the inlet pipe. Note! Note! Clean The Detergent Dispenser Do not use alcohol,solvents or chemical products to clean the machine.Pull out the dispenser drawer with press the AClean the dispenser drawer under waterClean inside the recess with an old toothbrushInsert the dispenser drawer Note! 1.Press down the arrow location on softener cover inside thedispenser drawer.2.Lift the clip up and take out softener cover and wash all grooveswith water.3.Restore the softener cover and push the drawer into position.

• Make sure that valve cap and emergency drain hose are reinstalledproperly, cap plates should be inserted aligning to hole plates otherwise water may leak.•Some machines don’t have emergency drain hose, so step 2 and step 3 canbe skipped. Rotate lower cover cap directly to make water run into basin.•When the appliance is in use and depending on the programme selectedthere can be hot water in the pump. Never remove the pump coverduring a wash cycle, always wait until the appliance has finished the cycle,and is empty. When replacing the cover, ensure it is securely re-tightened. Cleaning The Drain Pump Filter

• Be careful of the hot water!

• Allow detergent solution to cool down.

• Unplug the machine to avoid electrical shock before washing.

• Drain pump filter can filter the yarns and small foreign matters from the washing.

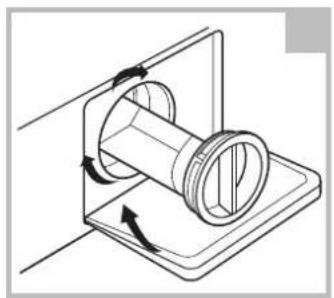

• Clean the filter periodically to ensure the normal operation of washing machine. Open the lower cover capRotate 90°C and pull out the emergency drain hose, and take off the hose capOpen the filter by turning to the counter clockwiseRemove extraneous matter

Close the lower cover cap

Emergency drain hoseAfter water runs out, reset the drain hose

Warning! Caution! V.2Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. MAINTENANCE Description Reason Solution Restart after the door is closedCheck if the clothes is stuck Door is not closed properlyDoor can’t be openedWasher's safety protection design is workingDisconnect the power, restart the productWater leakageThe connection between inlet pipe or outlet hose is not tightCheck and fasten water pipesClean up outlet hoseClean and wipe the detergent box Abnormal noise Check if the fixing (bolts) have been removedCheck it’s installed on a solid and level floorIndicator or display does not lightDisconnect the power PC board or harness has connection problemCheck if the power is shut down and the power plug is connected correctlyMachine cannot start upDetergent resi-dues in the boxDetergent is dampened or agglomeratedFixing bolts still in place.Floor is not solid or level. Error Codes Description Reason Solution Check if the water pressure is too lowStraighten the water pipeCheck if the inlet valve filter is blockedCheck if the drain hose is blockedWater injecting problem while washing Overtime water drainingTry again first, call up service line if there are still troublesOthersWater overflowRestart the washerRestart after the door is closed Check if the clothes is stuck Door is not closed properly After the check, activate the appliance. If the problem occurs or the display shows other alarm codes again, contact the service. Note! V.2MAINTENANCE Technical Specifications MAX.Current 10A Standard Water Pressure 0.05MPa~1MPa Power Supply 220-240V~, 50Hz

MAINTENANCE Product Fiche acc. Regulation (EU) No 1061/2010 Energy test program: Intensive 60/40°C. Speed: the highest speed; Other as the default. V.290.6

MAINTENANCE Energy test program: Intensive 60/40°C. Speed: the highest speed; Other as the default. Product Fiche acc. Regulation (EU) No 1061/2010 V.290.6

1.031MAINTENANCES Programme setting for testing in accordance with applicable standard En60456 for wash. When using the test programmes, wash the specified load using the maximum spin speed. The actual parameters will depend on how the applicance is used, and maybe different with the parameters in above mentioned table. The household washing machine is equipped with power management system. The duration of the left-on mode time is less than 10 minute. The noise emissions during washing/spinning for the standard washing cycle at full load. Note!

V.2WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions. WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.

2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of

aesthetic parts or components that do not affect the internal functioning of the appliance.

3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use

of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.

4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light

bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence

of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of

all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer. 10.Faults caused by incorrect or illegal installation, inadequate ventilation, lack of groun-ding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly

of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the

equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with

liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force , such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations

and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity". Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version. www.easelectric.es V.2DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. V.2Contenido
