Product type	Washer-dryer
Brand	EAS Electric
Model	EMWY1075V
Washing capacity	10 kg
Drying capacity	7 kg
Dimensions (W × D × H)	595 × 565 × 850 mm
Net weight	74 kg
Power supply	220-240 V ~ 50 Hz, 10 A
Rated power	1900 W
Maximum spin speed	1500 rpm
Wash programs	Cotton, Synthetics, Mix, Baby clothes, 20 °C, Eco 40-60, Express 15', Wool, etc.
Special functions	Steam Care, Delayed start, Child lock, Prewash, Extra rinse
Energy efficiency class (washing)	B
Energy efficiency class (wash + dry)	D
Spin noise level	80 dB (A)
Water pressure	0.05 MPa - 1 MPa
Installation type	Freestanding
Warranty	3 years
Maintenance and cleaning	Cleaning of pump filter, water inlet filter, detergent drawer, and door seal
Safety	Child safety, door lock, mandatory grounding
Included accessories	Cold water inlet hose, transport bolts, hose support, instruction manual

Frequently Asked Questions - EMWY1075V EAS Electric

What does error code E30 mean on my washing machine?

Error code E30 indicates that the door is not properly closed. Check that the door is securely latched and that no clothing is caught. Close it correctly and restart the cycle.

How to activate the child lock?

To activate child lock, press the Delayed start and Steam Care buttons simultaneously for 3 seconds until you hear a beep. To deactivate, repeat the same operation.

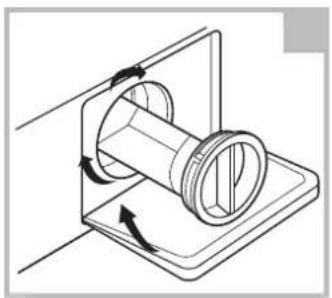

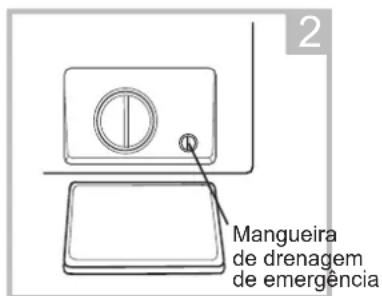

How to clean the drain pump filter?

Unplug the appliance. Open the lower cover, unscrew the filter counterclockwise after draining the water via the emergency hose. Remove foreign objects, clean it, and reassemble. Make sure the cap and hose are properly replaced.

Can I use bleach or stain removers?

Yes, but with caution. For the Self-cleaning program, you can add an appropriate amount of chlorine bleach. Avoid flammable solvents like gasoline. Use only products suitable for washing machines.

What to do if the machine does not drain?

Check that the drain hose is not kinked or clogged. Clean the pump filter (see previous question). If error code E21 appears, the drainage is too long. If the problem persists, contact technical service.

How to use the Steam Care function?

Select a compatible program (Cotton, Mix, or Baby clothes), then press the Steam Care button. Visible steam in the drum helps reduce wrinkles and allergies. This function cannot be combined with prewash or quick wash.

What detergent should I use?

Use a low-sudsing detergent suitable for washing machines. For low-temperature programs, prefer a special detergent. Follow the doses indicated by the manufacturer. For prewash, pour detergent into compartment I, for main wash into compartment II, and fabric softener into the center compartment.

How to install the machine correctly?

Place the machine on a solid and level surface. Remove the transport bolts at the back. Adjust the feet to level it. Connect the water inlet hose (cold water only unless double valve) and the drain hose. Open the tap and plug in the power supply. Run an empty cycle before using.

What to do in case of a power outage during a cycle?

The appliance saves the selected program. When power returns, the cycle resumes from where it stopped. If the door lock light stays on, wait a few minutes. If the door does not open, unplug and plug the appliance back in.

How to perform the first wash?

Before washing clothes, you need to calibrate the machine. Run it empty, select a program, and add a little detergent. This cleans the drum and checks proper operation. See the Quick start section of the manual for details.

USER MANUAL EMWY1075V EAS Electric

Simple line drawing of a container with two circular marks containing three curved lines inside, no text or symbols present.

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a washing machine with a cross mark on its side (no text or symbols)

Desembalar la lavadora

Advertencia

Diagram showing a 3D box with an upward arrow and a magnified inset of a building silhouette (no text or symbols)

Nivelar la lavadora

Advertencia

Pure diagram of a pipe fitting with no text, numbers, or symbols

Diagram of a mechanical assembly with a pipe fitting and upward arrow indicating motion (no text or symbols)

Conexión finalizada

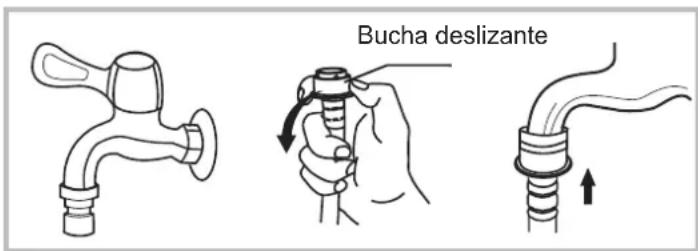

Diagram showing a faucet being adjusted to its base, with no text or symbols present

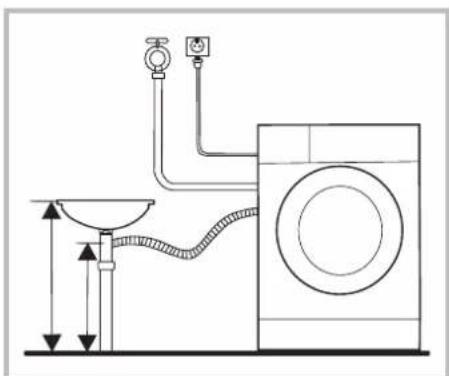

Line drawing of a washing machine with faucet and pipe connections (no text or symbols)

Nota

favorinstáleladelasiguentemanera:

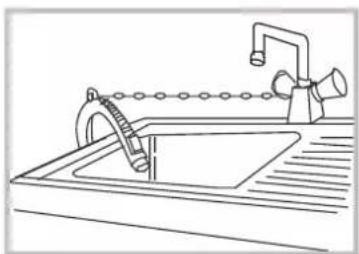

Line drawing of a kitchen sink with faucet and chain-link rings (no text or symbols)

Advertencia

Hand icon showing a hand pressing a button with a play symbol (no text or numbers)

Inicie

Nota

Simple line drawing of a sweater with a tag and tie (no text or symbols)

Revise la etiqueta

Two handbags with circular designs, one open and one closed, shown in line drawing style (no text or symbols)

Line drawing of a bag with a grid pattern and a small object inside (no text or symbols)

Line drawing of a T-shirt with pleated collar and side buttons (no text or symbols)

Simple line drawing of two stacked containers with arrows indicating motion (no text or symbols)

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Nota

Line drawing of a hand holding a curved object, possibly a tool or component (no text or symbols present)

Diagram of a faucet with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Hand holding a small device with a magnified inset showing a mechanical component (no text or symbols visible)

Line drawing of a hand holding a magnifying glass over a mechanical component (no text or symbols)

Nota

Line drawing of a mechanical device with internal components (no text or symbols)

Simple line drawing of a laboratory apparatus with a funnel and beaker (no text or symbols)

Line drawing of a hand inserting a plug into a device with a black connector (no text or symbols)

Simple line drawing of a refrigerator with a handle and seat (no text or symbols)

Diagram of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Line drawing of a kitchen appliance with a plate, sink, and bowl (no text or symbols)

Hand holding a rotary knob on a device panel, with no visible text or symbols

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

■ Commercial Guarantee.... 31

!

Empty white rectangle with a thin gray border (no text or symbols)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Line drawing of a washing machine with water inlet and side-mounted fan (no text or symbols)

Line drawing of a washing machine with water pump and attached tubing (no text or symbols)

Simple line drawing of a bolt with a checkmark indicator (no text or symbols)

Diagram of a pipe joint with tubing and connectors (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with a coiled pipe and directional arrow (no text or labels)

Diagram showing two hands performing a valve adjustment, one with a handle and the other with a handle and screw base (no text or symbols)

Line drawing of a faucet with handle and flange (no text or symbols)

Illustration of a person using a device to adjust equipment, with an inset showing close-up of the device (no text or symbols present)

Line drawing of a washing machine with pipes and valves (no text or symbols)

Diagram of a washing machine with faucet and piping connections (no text or labels)

Line drawing of a kitchen sink with faucet and chain-link rings (no text or symbols)

Technical line drawing of a simple electrical fuse and socket (no text or symbols)

Simple line drawing of a pushpin on a plain background (no text or symbols)

Simple line drawing of a sweater with a tag and tie (no text or symbols)

Line drawing of two fabric bags with bow and ribbon handles (no text or symbols)

Line drawing of a bag with a net and small object inside, no text or symbols present

Line drawing of a knitted sweater with pleated design (no text or symbols)

Simple line drawing of a container with an arrow indicating rotation or movement (no text or symbols)

	I	II /◇	✿
Algodón	○	●	○
Sintéticos	○	●	○
	○	●	○
Ropa bebé	○	●	○
		●	○
Autolimpieza
Solo centrifugado
			Solo secado
			Lavado y secado

Blank white rectangle with a small black pushpin icon at the top-left corner (no text or symbols)

Inicio diferido

!

Prelavado

Aclarado extra

Lavado rápido

Steam care

Temp.

Centrifug.

Line drawing of a hand cleaning a washing machine (no text or symbols)

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a faucet with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Hand holding a small device with a magnified inset showing a mechanical component (no text or symbols visible)

Line drawing of a hand holding a magnifying glass over a mechanical component (no text or symbols)

Line drawing of a mechanical device with internal compartments and housing (no text or symbols)

Simple line drawing of a kitchen sink with faucet (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a mechanical component or housing with no text or symbols

Empty rectangular frame with a small black triangle marker at the top-left corner (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Simple line drawing of a device with a circular button and pointer (no text or symbols)

Line drawing of a kitchen appliance with a plate, sink, and bowl (no text or symbols)

Hand holding a rotary knob with directional arrows, mounted on a tray (no text or symbols visible)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

E30

E10

E21

E12

EXX

Line drawing of a washing machine with circular vent and side grilles, shown with dimension lines (no text or symbols)

EMWY1075V

EMWY1075V

EAS ELECTRIC SMART TECHNOLOGY S. L.

ADDRESS: P.I San Carlos, Camino de la Sierra S/N, Parcela 11 03370 Redován (Alicante) ESPAÑA

MODEL: EMWY1075V

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (kg)	Rated capacity (b)	7.0	Dimensions in cm	Height
	Rated washing capacity (a)	10.0		Width
				Depth
Energy Efficiency Index	EEI_W (a)	60.0	Energy efficiency class	EEI_W (a)	B
	EEI_WD (b)	67.0		EEI_WD (b)	D
Washing efficiency index	I_W (a)	1.04	Rinsing effectiveness (g/kg dry textile)	I_R (a)
	J_W (b)	1.04		J_R (b)
Energy consumption in kWh per kg per cycle, for the washing cycle of the household washer-dryer, using the eco 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used	0.593		Energy consumption in kWh per kg per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual energy consumption will depend on how the appliance is used	3.430
Water consumption in litre per cycle, for the eco 40-60 programme at a combination of full and partial loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	52		Water consumption in litre per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	100
Maximum temperature inside the treated textile (°C) (a)	Rated washing capacity	38	Remaining moisture content (a)(%)	Rated capacity	53
	Half			Half	53
	Quarter			Quarter	53
Spin speed (rpm) (a)	Rated washing capacity	1500	Spin-drying efficiency class (a)	B
	Half	1500
	Quarter	1500
Eco 40-60 programme duration (h:min)	Rated washing capacity	3:59	wash and dry cycle duration (h:min)	Rated capacity	9:40
	Half	3:00		Half	7:00
	Quarter	3:00

Airborne acoustical noise emissions during the spinning phase for the eco 40-60 washing cycle at rated washing capacity		Airborne acoustical noise emission class for the spinning phase for the eco 40-60 programme at rated washing
Type	[built-in/free-standing]	free-standing
Off-mode (W)	0.50	Standby mode (W)
Delay start (W) (if applicable)	4.00	Networked standby (W) (if applicable)
Minimum duration of the guarantee offered by the supplier (°):
This product has been designed to release silver ions during the washing cycle		NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Regulation (EU) 2019/2023 is found ^(b) : www.easelectric.es

^(a) for the eco 40-60 programme. ^(b) for the wash and dry cycle ^(c) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369. ^(d) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Blank white rectangle with a small black pushpin icon at the top-left corner (no text or symbols)

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.

2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.

3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.

4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

www.easelectric.es

PRÉCAUTIONS DE SÉCURITÉ

■ 2

INSTALLATION

8

9

FONCTIONNEMENT

■ 12

■ 13

■ 14

■ 15

16

18

20

21

ENTRETIEN

22

■ 25

26

27

GARANTIE

■ Garantie commerciale .... 31

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Simple line drawing of a washing machine with a cross mark on its side (no text or symbols)

Diagram of a box with an upward arrow and a magnified inset showing a small 3D object (no text or symbols)

Diagram of a hand using a tool to switch or adjust a device into a washing machine (no text or symbols present)

Diagram of a mechanical assembly with pipes and housing (no text or symbols)

Diagram of a mechanical assembly with a threaded component and an upward arrow indicating motion (no text or symbols)

Connexion terminée

Diagram showing a faucet being inserted into a socket, with an arrow indicating the process (no text or symbols present)

Diagram of a washing machine with faucet and pipe connections (no text or labels)

Remarque

comme suit:

Line drawing of a kitchen sink with faucet and chain-link rings (no text or symbols)

Avertissement

Line drawing of a sweater with a tag and tie (no text or symbols)

Two handbags with circular designs, one open and one closed, shown in line drawing style (no text or symbols)

Line drawing of a bag with a grid pattern and a small animal inside (no text or symbols)

Line drawing of a T-shaped jacket with textured fabric and side connectors (no text or symbols)

Simple line drawing of two stacked containers with arrows indicating motion (no text or symbols)

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Remarque

Line drawing of a hand holding a curved object, possibly a tool or component (no text or symbols present)

Diagram of a faucet with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Illustration of a hand holding a small device with a magnified inset showing a rotary switch mechanism (no text or symbols)

Simple line drawing of a hand using a tool to interact with a screen (no text or symbols)

Remarque

Line drawing of a mechanical device with internal compartments and housing (no text or symbols)

Simple line drawing of a mechanical device with a lever and base plate (no text or symbols)

Line drawing of a hand using a tool to clean or store contents inside a container (no text or symbols)

Simple line drawing of a mechanical component or housing with no text or symbols

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Line drawing of a kitchen appliance with a plate, sink, and bowl (no text or symbols)

Hand holding a button with a circular arrow, pressing down on a tray (no text or symbols visible)

Diagram of a mechanical component with rotational arrows indicating motion, no text or symbols present

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a washing machine with a cross mark on its side (no text or symbols)

Desembalar a máquina de lavar

⚠️Atenção

Diagram of a box being inserted into a base, with an inset showing a 3D model of a cylindrical object (no text or symbols present)

Diagram showing a hand operating a switch to a door panel with arrows indicating motion (no text or symbols present)

Diagram of a mechanical assembly with tubing and a central component (no text or symbols)

Diagram of a mechanical component with a threaded shaft and flanged end, showing upward force direction (no text or symbols)

Conexão completada

Diagram showing a faucet being adjusted to its base, with no text or symbols present

Toque com rosca e mangueira de entrada

Diagram of a washing machine with faucet and pipe connections (no text or labels)

Nota

Line drawing of a kitchen sink with faucet and chain-link rings (no text or symbols)

Atenção

Line drawing of a sweater with a tag and tie (no text or symbols)

Verifique a etiqueta

Two handbags with circular designs, one wrapped in a ribbon and the other in a simple line drawing (no text or symbols)

Line drawing of a bag with a grid pattern and a small animal inside (no text or symbols)

Line drawing of a T-shaped jacket with textured fabric and side connectors (no text or symbols)

Simple line drawing of two objects in a basket, one moving and the other moving, with arrows indicating motion (no text or symbols)

Separe os itens de texturas diferentes.

⚠️ Atenção

Line drawing of a hand washing a washing machine (no text or symbols)

Nota

Line drawing of a hand holding a curved object, possibly a tool or component (no text or symbols present)

Diagram of a faucet with rotating arrows indicating clockwise motion (no text or symbols)

Line drawing of a hand holding a connector with a tool inserted (no text or symbols)

Illustration of a hand holding a small device with a magnified inset showing a rotary switch (no text or symbols)

Simple line drawing of a hand using a tool to adjust or install a component, no text or symbols present.

Nota

Line drawing of a mechanical or electrical component with internal compartments and housing (no text or symbols)

Simple line drawing of a mechanical device with a handle and base plate (no text or symbols)

Line drawing of a hand using a tool to clean or store contents inside a container (no text or symbols)

Line drawing of a mechanical component or housing with internal compartments and a handle (no text or symbols)

Reinsira o dispensador

Nota

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Abra a tampa inferior

Line drawing of a kitchen appliance with a plate, sink, and bowl (no text or symbols)

Hand holding a rotary knob on a device panel, with no visible text or symbols

Diagram of a mechanical component with directional arrows indicating motion, no text or symbols present

Scan for manual in other languages and further updates:
