Product type	Low-pressure electric paint sprayer
Brand	Wagner
Model	Universal Sprayer W 510
Category	Paint sprayer
Power supply	230 V ~ 50 Hz
Power consumption	460 W
Spray power	110 W
Weight	1.9 kg
Double insulation	Yes
Max. product flow rate	230 ml/min
Max. viscosity (Standard nozzle)	120 DIN/s
Max. viscosity (Wall nozzle)	3000 mPas
Sound pressure level	80 dB(A) (uncertainty K=4 dB)
Sound power level	93 dB(A) (uncertainty K=4 dB)
Vibrations	< 2.5 m/s² (uncertainty K=1.5 m/s²)
Adjustable spray patterns	Flat vertical, Flat horizontal, Round
Flow rate adjustment	Yes, via adjustment ring
2-stage trigger	Yes (1st position turbine, 2nd position paint)
Air filter	Yes, removable and replaceable
Removable nozzles included	Standard (for liquids) and Wall (for wall paints)
Standard cup capacity	800 ml
Wall cup capacity	1300 ml
Maintenance	Clean after each use, replace air filter, check nozzle seal
Safety	Respiratory protection recommended, do not point at people/animals, disconnect before maintenance
Warranty	3 years + 1 year after online registration

Frequently Asked Questions - Universal Sprayer W 510 WAGNER

What types of products can I spray with the Wagner W 510?

With the Standard nozzle, you can spray varnishes, stains, solvent-based or water-based paints, oils, etc. With the Wall nozzle, spray interior wall paints (water-based or solvent-based). Consult the manual for the complete list.

How do I adjust the spray pattern?

Loosen the union nut slightly, turn the air cap to the desired position (flat vertical, flat horizontal, or round), then retighten. Never pull the needle during adjustment.

What if the sprayer doesn't spray paint?

Check that the nozzle is not clogged, the pickup tube is clean, the flow rate adjustment is not too far left (-), the container is tightly closed, and the vent hole is clean.

How do I clean the sprayer after use?

Unplug the appliance, disassemble the sprayer, empty the container, clean parts with a brush and solvent or water, then rinse by spraying solvent/water. Never immerse the rear part in liquid.

What is the recommended spraying distance?

For liquid products (Standard nozzle), maintain a distance of 5 to 15 cm. For wall paints (Wall nozzle), about 20 to 30 cm.

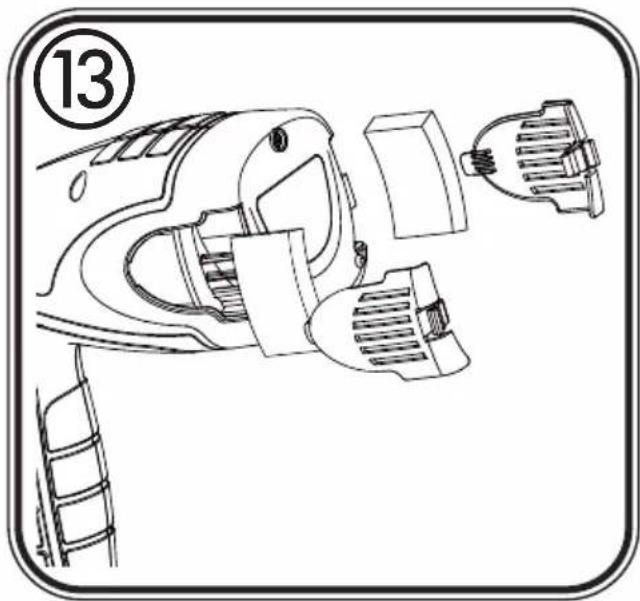

How do I maintain the air filter?

Check the filter after each use. Unplug the appliance, open the filter cover, remove the filter and replace it if dirty. Never operate the appliance without a filter.

Can I use two-component paints with the W 510?

Yes, but after use, clean the appliance immediately to prevent paint from hardening inside.

What if paint rises into the depressurization tube?

This indicates a dirty or defective diaphragm. Disassemble the tube, valve cap and diaphragm, clean or replace the diaphragm. Do not use the appliance until the problem is resolved.

How do I get the additional 1-year warranty?

Register your product within 28 days of purchase at https://go.wagner-group.com/3plus1. The basic warranty is 3 years, extended by 1 year after registration.

What are the essential safety precautions?

Always wear respiratory protection, gloves and safety glasses. Never point the sprayer at people or animals. Work in a well-ventilated area. Unplug the appliance before any maintenance. Use only original spare parts.

USER MANUAL Universal Sprayer W 510 WAGNER

Line drawing of a spray gun with attached gun barrel and handle (no text or symbols)

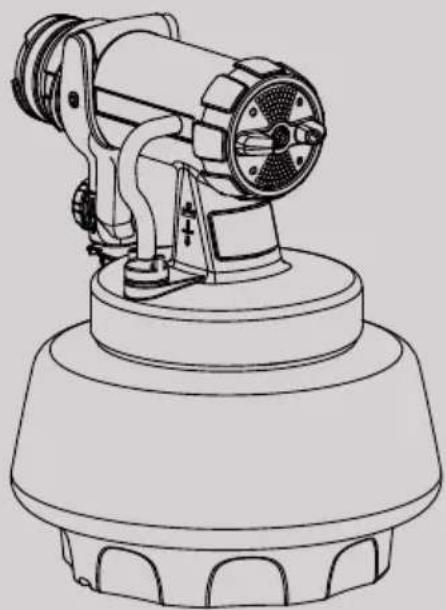

Line drawing of a mechanical device with a central fan and base mount (no text or symbols)

UNIVERSAL SPRAYER

W 510

ORIGINAL-

BETRIEBSANLEITUNG

DE EN FR NL

① ÜBERSICHT / OVERVIEW / APERÇU GÉNÉRAL / OVERZICHT 6

WAGNER Testposter 13 7 6 5 4 3 1/2 8 12 11 9 10 14 15

② A B

Technical diagram illustrating a spray gun mechanism with labeled components and directional arrows, including control buttons and lock symbols.

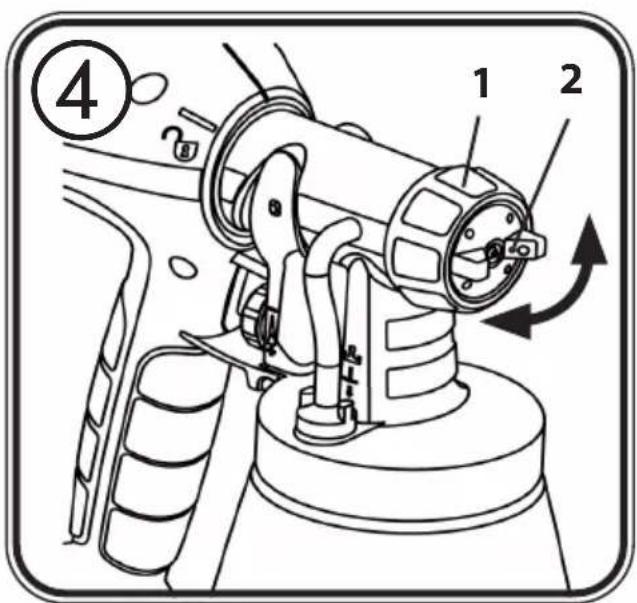

④ 1 2

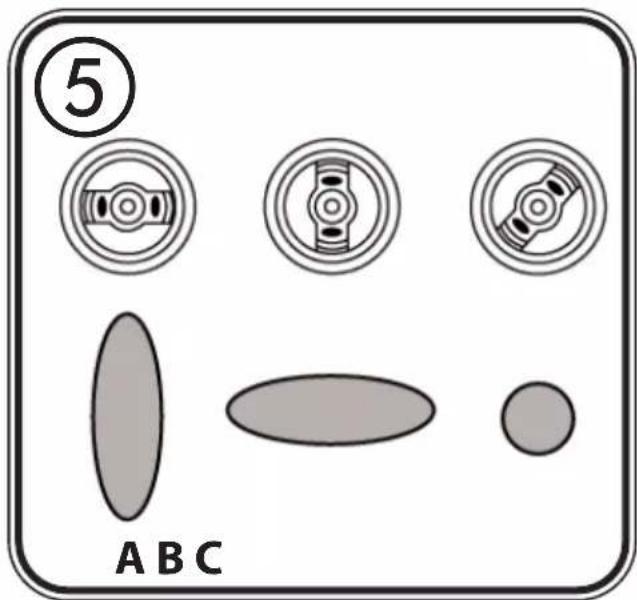

⑤ A B C

⑥

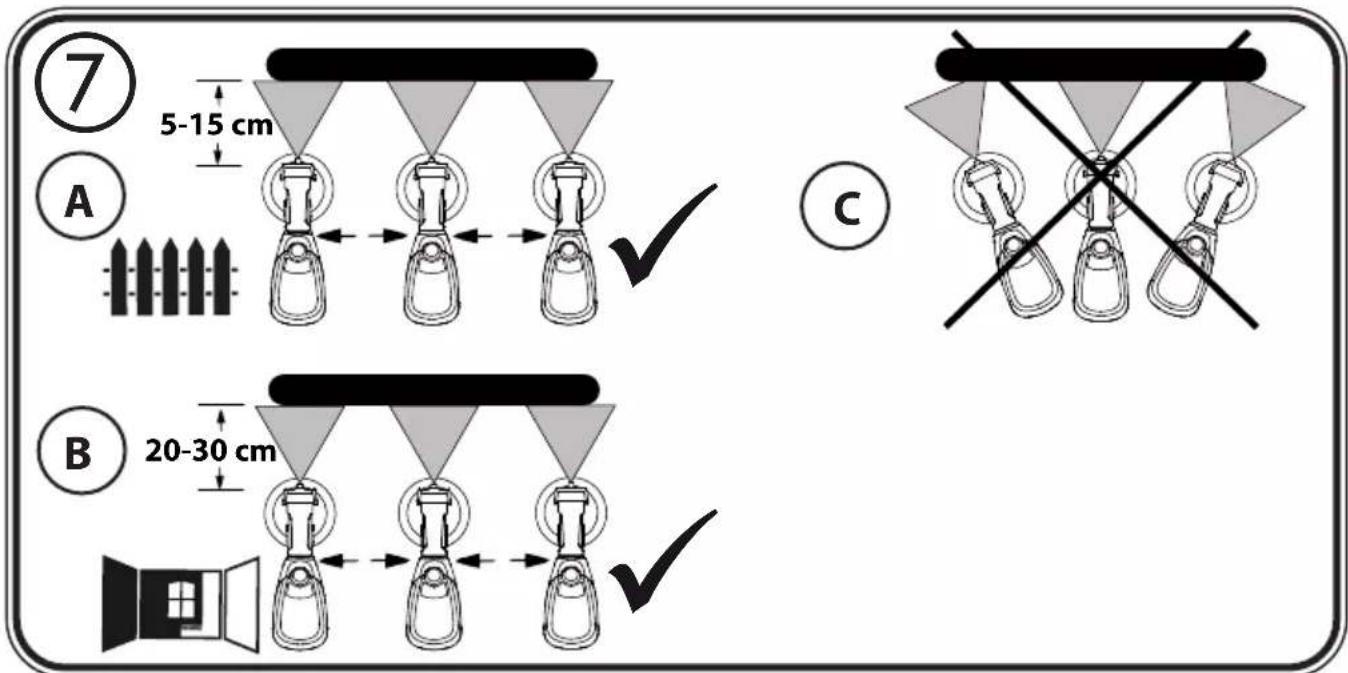

⑦ 5-15 cm A B 20-30 cm C

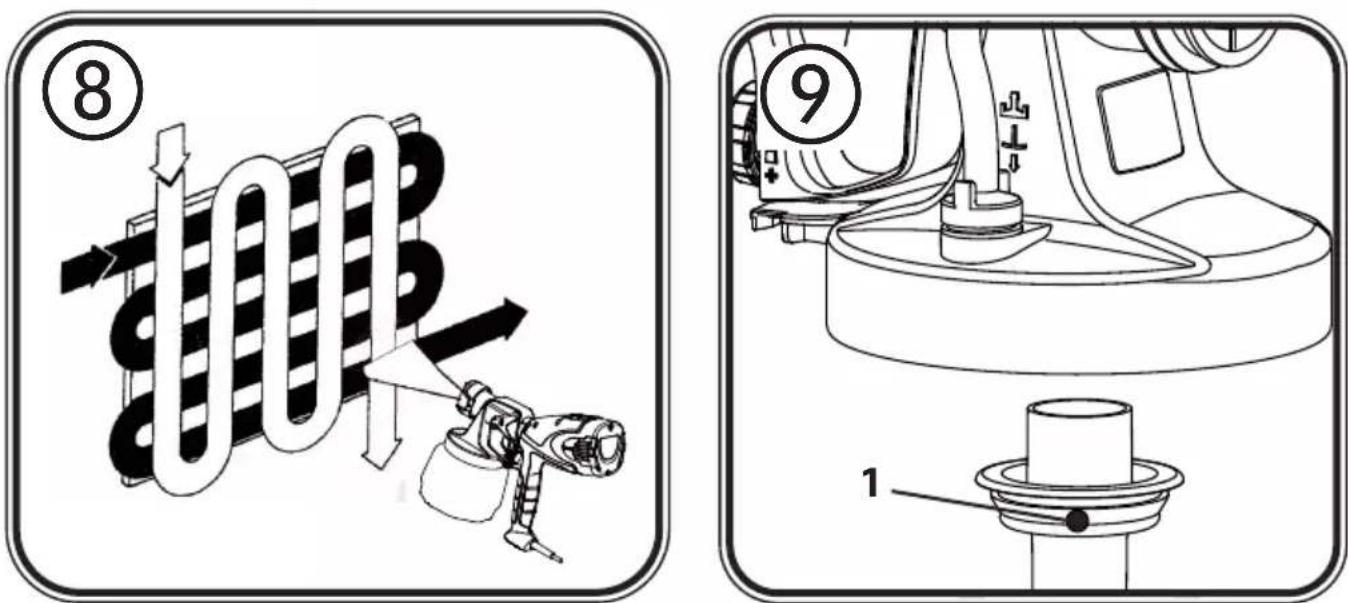

Technical diagram showing two steps of a mechanical assembly: step 8 depicts a coiled component with directional arrows, and step 9 shows a disassembled machine with labeled parts.

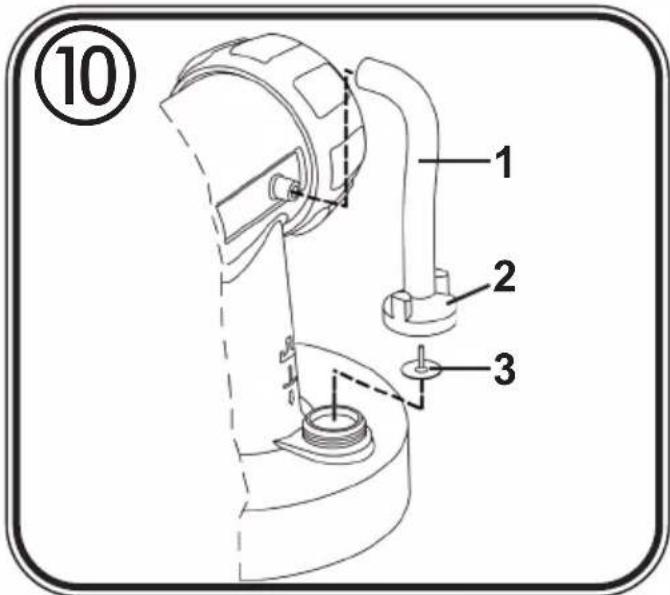

⑩ 1 2 3

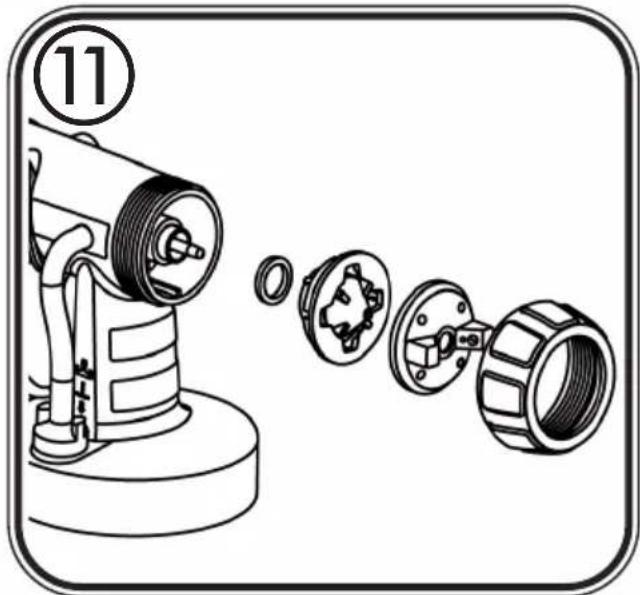

Diagram of a mechanical assembly showing a disassembled component with parts inside, no text or symbols present.

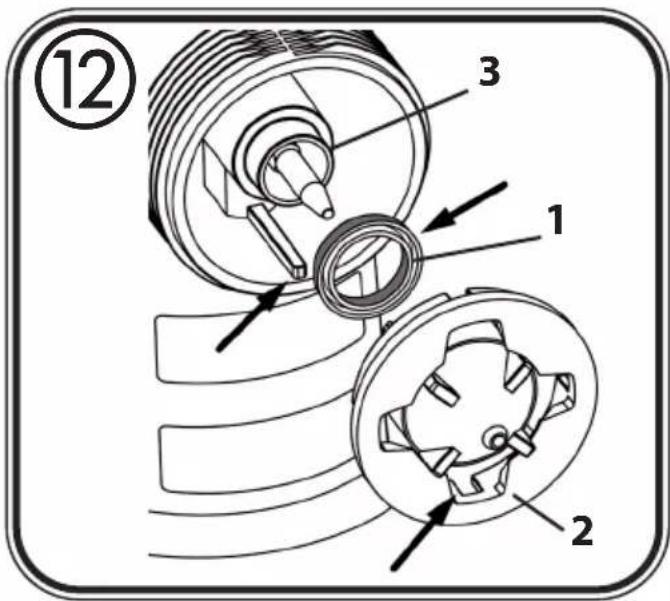

⑫ 1 2 3

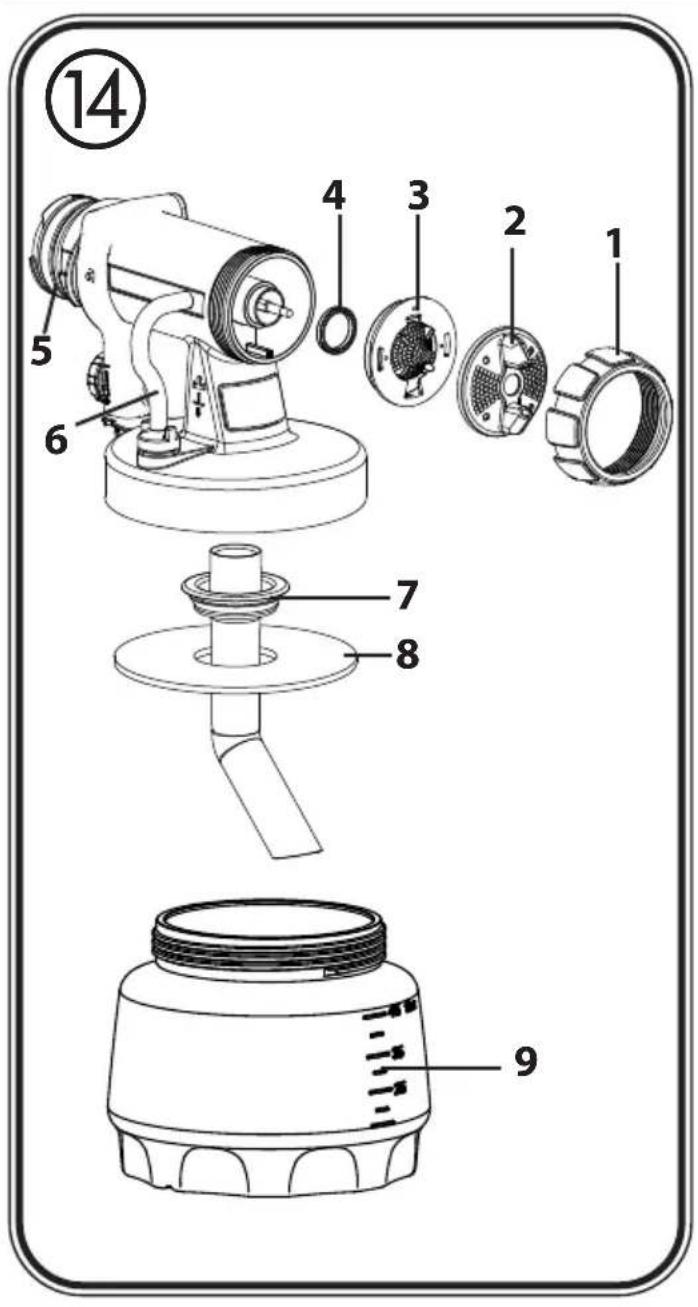

Technical line drawing of a handheld device with labeled parts (no text or symbols)

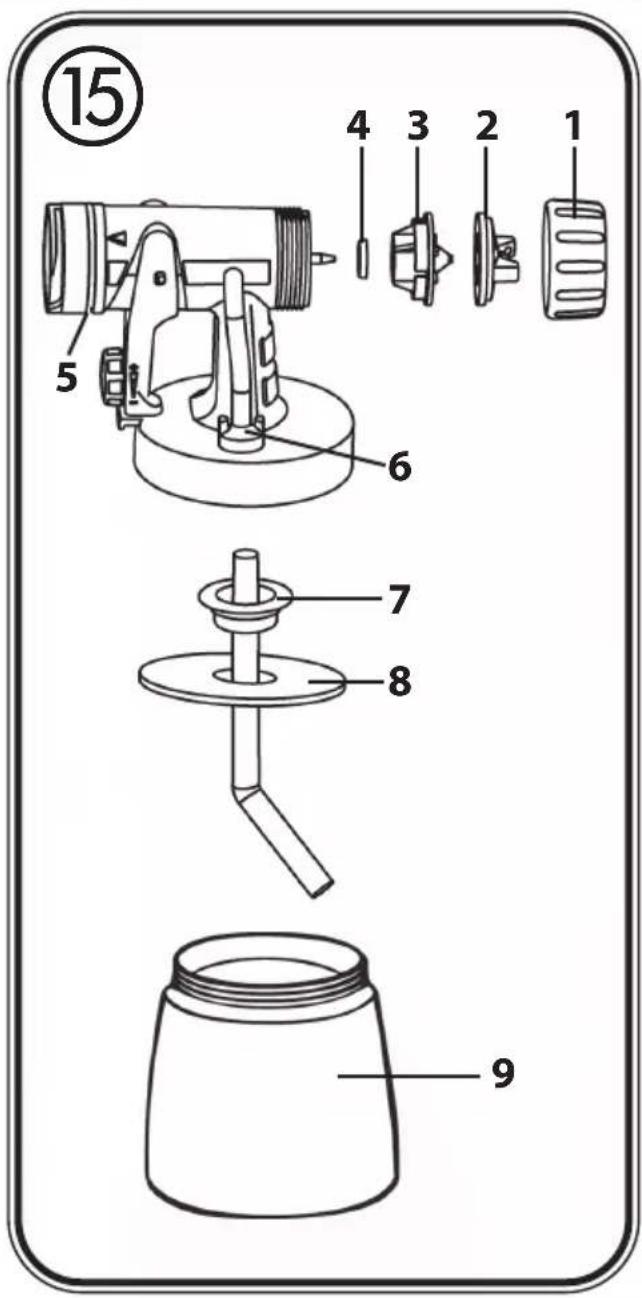

Exploded view diagram of a cleaning or cleaning device with numbered parts labeled 1 through 9

15 4 3 2 1 5 6 7 8 9

16

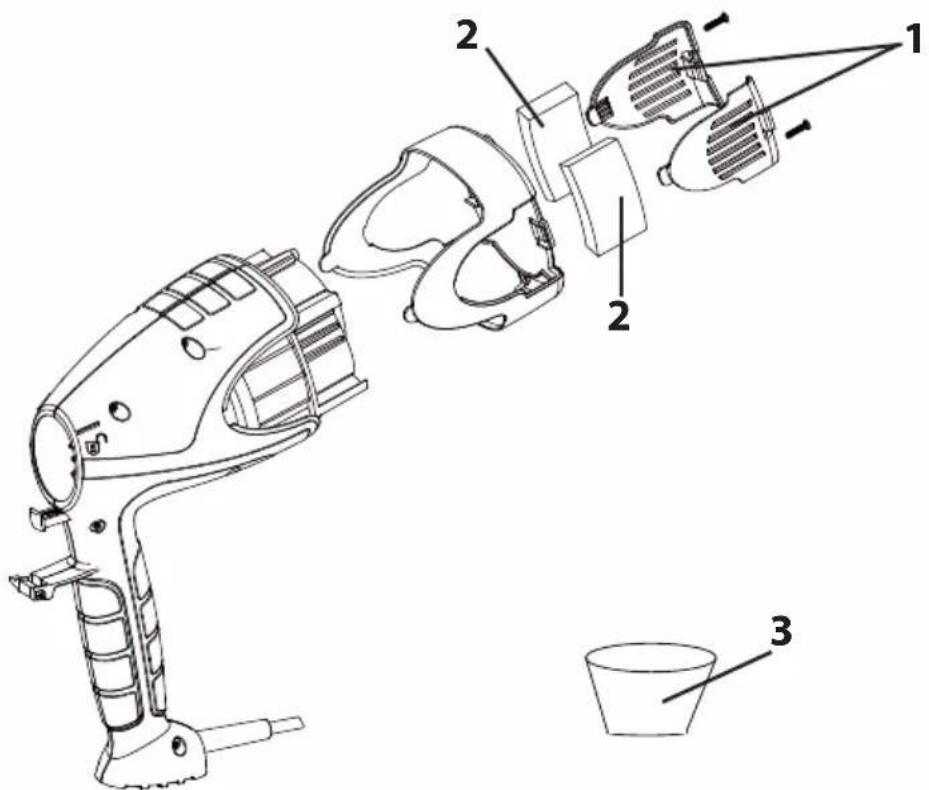

ERSATZTEILE / SPARE PARTS / PIÈCES DE RECHANGE / ONDERDELEN

Technical diagram of a handheld device with labeled parts including a power bulb, fan, and cup.

DE ....1 - 17 EN ....18 - 33 FR ....34 - 50 NL ....51 - 67

HERZLICHEN DANK FÜR IHR VERTRAUEN

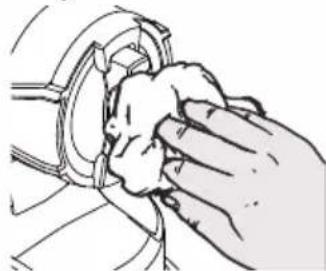

Hand cleaning a mechanical component with a circular head (no text or symbols visible)

https://go.wagner-group.com/hf-warranty-conditions

QR code image containing encoded data, no visible human-readable text

Translation of the original operating instructions

MANY THANKS FOR PLACING YOUR TRUST IN US

We would like to congratulate you on purchasing this brand product from Wagner; we are sure that you will enjoy working with it greatly.

Please read the Operating Manual carefully and observe the safety information before starting the device. Store the Operating Manual in a safe place close to the product in case it needs to be used by someone else.

We would be happy to be of assistance if you have any questions, suggestions or requests.

Please contact us via the phone number included on the back page or via our homepage,

www.wagner-group.com/service.

Contents

1. Explanation of symbols used.... 19
2. General Safety Instructions .... 19
3. Safety Instructions for Spray Guns....22
4. Description/ Scope of delivery 23
5. Field of application 23
6. Coating Materials Suitable for Use....23
7. Coating Materials Not Suitable for Use....24
8. Preparation of the workplace (for interior wall paint) 24
9. Preparation of the Coating Material 24
10. Start-up....25
11. Selecting the Spray Setting 25

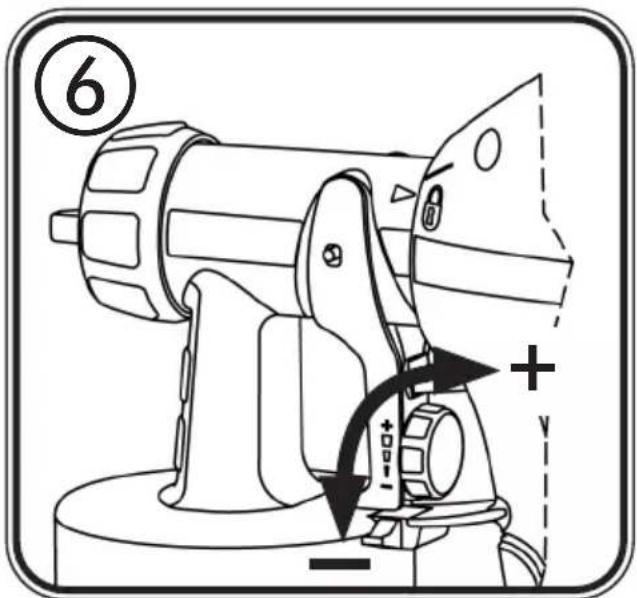

12. Adjusting the Material Volume (fig. 6)....26
13. Spray Technique.... 26
14. Interruption of Work....27
15. Taking Out of Operation and Cleaning....27
16. Cleaning the spray attachment 27
17. Maintenance 28
18. Spare Parts 29
19. Accessories....29
20. Correction of Malfunctions....30
21. Technical Data.... 31
22. Environmental protection.... 31
23. Important Note regarding Product Liability! 31

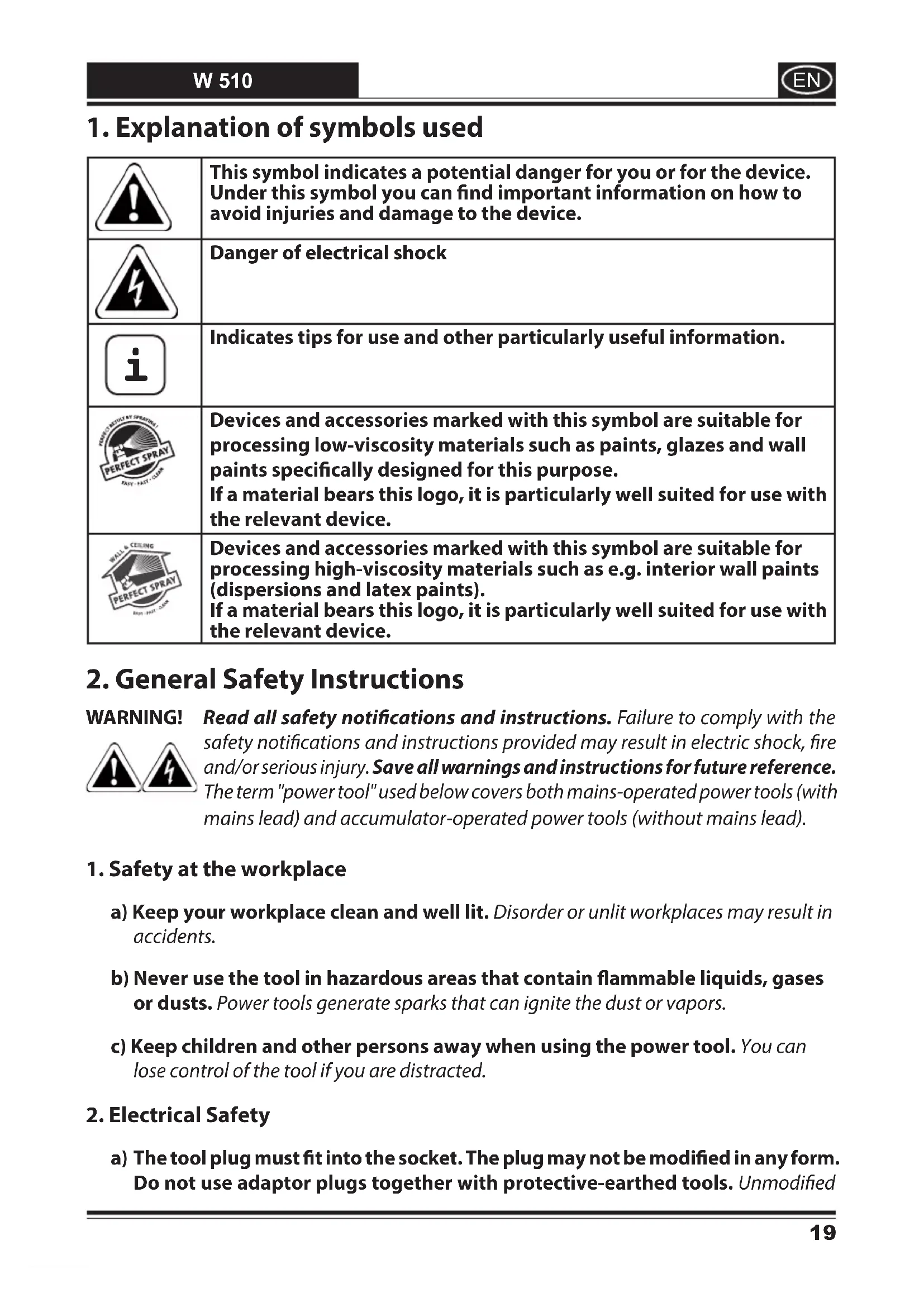

1. Explanation of symbols used

	This symbol indicates a potential danger for you or for the device. Under this symbol you can find important information on how to avoid injuries and damage to the device.
	Danger of electrical shock
	Indicates tips for use and other particularly useful information.
	Devices and accessories marked with this symbol are suitable for processing low-viscosity materials such as paints, glazes and wall paints specifically designed for this purpose.If a material bears this logo, it is particularly well suited for use with the relevant device.
	Devices and accessories marked with this symbol are suitable for processing high-viscosity materials such as e.g. interior wall paints (dispersions and latex paints).If a material bears this logo, it is particularly well suited for use with the relevant device.

2. General Safety Instructions

WARNING!

Read all safety notifications and instructions. Failure to comply with the safety notifications and instructions provided may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" used below covers both mains-operated power tools (with mains lead) and accumulator-operated power tools (without mains lead).

1. Safety at the workplace

a) Keep your workplace clean and well lit. Disorder or unlit workplaces may result in accidents.
b) Never use the tool in hazardous areas that contain flammable liquids, gases or dusts. Power tools generate sparks that can ignite the dust or vapors.
c) Keep children and other persons away when using the power tool. You can lose control of the tool if you are distracted.

2. Electrical Safety

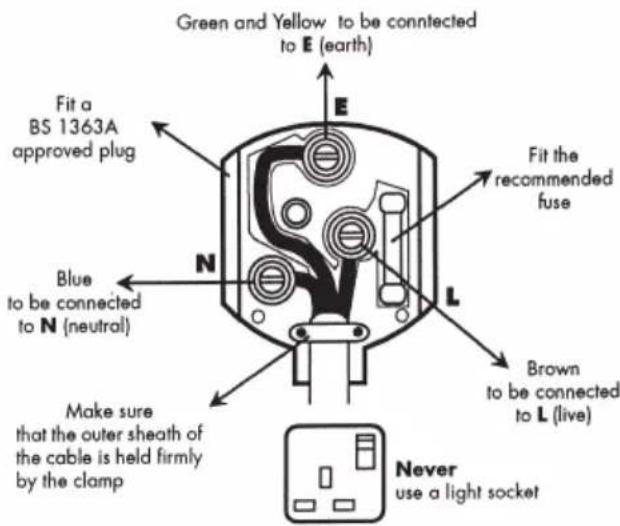

a) The tool plug must fit into the socket. The plug may not be modified in any form. Do not use adaptor plugs together with protective-earthed tools. Unmodified

plugs and suitable sockets reduce the risk of an electric shock.

b) Avoid physical contact with earthed surfaces such as pipes, heating elements, stoves and refrigerators. The risk through electric shock increases if your body is earthed.
c) Keep the equipment away from rain and moisture. The risk of an electric shock increases if water penetrates electrical equipment.
d) Do not misuse the mains lead by carrying the tool by the lead, hanging it from the lead or by pulling on the lead to remove the plug. Keep the lead away from heat, oil, sharp edges or moving tool parts. Damaged or twisted leads increase the risk of an electric shock.
e) If you work outdoors with a power tool, only use extension cables suitable for outdoor use. The use of an extension lead that is suitable for outdoors reduces the risk of an electric shock.
f) If you cannot avoid using the tool in a damp environment, use a residual current operated circuit-breaker. Using a residual current operated circuit-breaker avoids the risk of electric shock.

3. Safety of Persons

a) Be attentive. Pay attention to what you are doing and work sensibly with a power tool. Do not use the tool if you are tired or under the influence of drugs, alcohol or medication. Just a moment of inattentiveness while using the tool can lead to serious injuries.
b) Wear personal safety equipment and always wear safety goggles Wearing personal protective equipment, such as dust mask, non-slip safety shoes, safety helm or ear protection, depending on the type of power tools, reduces the risk of injury.
c) Avoid accidental starting-up. Make sure that the electric tool is switched off before you connect it to the power supply, pick it up or carry it. Accidents can occur if you carry the power tool while your finger is on the switch or if you connect the power tool to the power supply which it is on.
d) Remove setting tools or wrenches before switching on the power tool. A tool or wrench that is in a rotating tool part can lead to injuries.
e) Avoid an unnatural posture. Ensure that you are standing securely and have your balance at all times. This ensures that you can control the tool better in unexpected situations.
f) Wear suitable clothing. Do not wear wide clothing or jewellery. Keep your hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair

can be caught in moving parts.

g) Do not lull yourself into a false sense of security and do not think yourself above the safety rules for electric tools, even if you are familiar with the electric tool following extensive practical experience. Careless use can lead to serious injuries in fractions of a second.

4. Usage and treatment of the electric tool

a) Do not overload the tool. Use the power tool designed for the work that you are doing. You work better and safer in the specified performance range if you use the suitable power tool.
b) Do not use power tools whose switch is defective. A power tool that cannot be switched on or off is dangerous and has to be repaired.
c) Remove the plug from the socket before carrying out tool settings, changing accessories or putting the tool away. This precautionary measure prevents unintentional starting of the tool.
d) Store unused power tools so that they are inaccessible to children. Do not let persons use the tool who are not familiar with it or who have not read these instructions. Power tools are dangerous when they are used by inexperienced persons.
e) Take proper care of your tools. Check whether the moving parts function trouble-free and do not jam, whether parts are broken or damaged so that the tool function is impaired. Have damaged parts repaired before using the tool. Many accidents have their origin in power tools that have been maintained badly.
f) Use the power tool, accessories, insert tools, etc. in accordance with these instructions and in a fashion specified for this special tool type. Take the working conditions and the activity to be carried out into consideration. The use of power tools for purposes other than the intended ones can lead to dangerous situations.
g) Keep the handles and grip surfaces dry, clean and free of oil and grease. Slippery handles and grip surfaces hamper safe operation and control of the electric tool in unforeseen situations.

5. Service

a) Have your tool repaired only by qualified specialist personnel and only with original spare parts. This ensures that the tool safety is maintained.

b) If the supply cord is damaged, it must be replaced by the manufacturer or it's service agent or a similarly qualified person in order to avoid a safety hazard.

3. Safety Instructions for Spray Guns

- Caution! Wear breathing equipment: Paint mist and solvent vapors are damaging to health. Always wear breathing equipment and only work in well ventilated rooms or using supplementary ventilating equipment. It is advisable to wear working clothing, safety glasses, ear protection and gloves.

CAUTION: DANGER OF INJURY!

Never point the spray stream towards human beings or animals.

Sockets and plugs must be masked. Risk of an electric shock as a consequence of sprayed material entering the socket!

Attention! Never operate the device if the nozzle seal is either damaged or missing. If the nozzle seal is either missing or damaged liquids can enter the device and increase the risk of an electric shock. Check the nozzle seal before each use.

• Do not use the spray guns to spray flammable substances.
  •The spray guns are not to be cleaned with flammable solvents.
• Caution against dangers that can arise from the sprayed substance and observe the text and information on the containers or the specifications given by the substance manufacturer.
• Do not spray any liquid of unknown hazard potential.
• The device may not be used in workplaces covered by the explosion-protection regulations.
• To avoid the hazard of explosion when spraying, provide for effective natural or artificial ventilation.
• There must be no sources of ignition such as, for example, open fires, smoke of lit cigarettes, cigars and tobacco pipes, sparks, glowing wires, hot surfaces, etc. in the vicinity during spraying.
• When working with the W 510 indoors as well as outdoors ensure that no solvent vapors are sucked in by the spray gun.
• The spray gun is not a toy; children must therefore not be allowed to handle it or play with it.
• Before working on the spray gun remove the power plug from the socket.
• Cover areas that are not to be sprayed. When working keep in mind that wind, for example, may transport paint mist over great distances and cause damage.
• Never open the device yourself in order to carry out repairs in the electrical system!
• The units may only be used with a functional valve. If paints rises in the ventilating hose (Fig. 1, item 12) do not operate the unit further! Dismantle and clean the ventilating hose, valve and diaphragm and replace the diaphragm if necessary.
• Do not lay the spray gun.

With original WAGNER accessories and spare parts, you have the guarantee that all safety regulations are fulfilled.

4. Description/ Scope of delivery

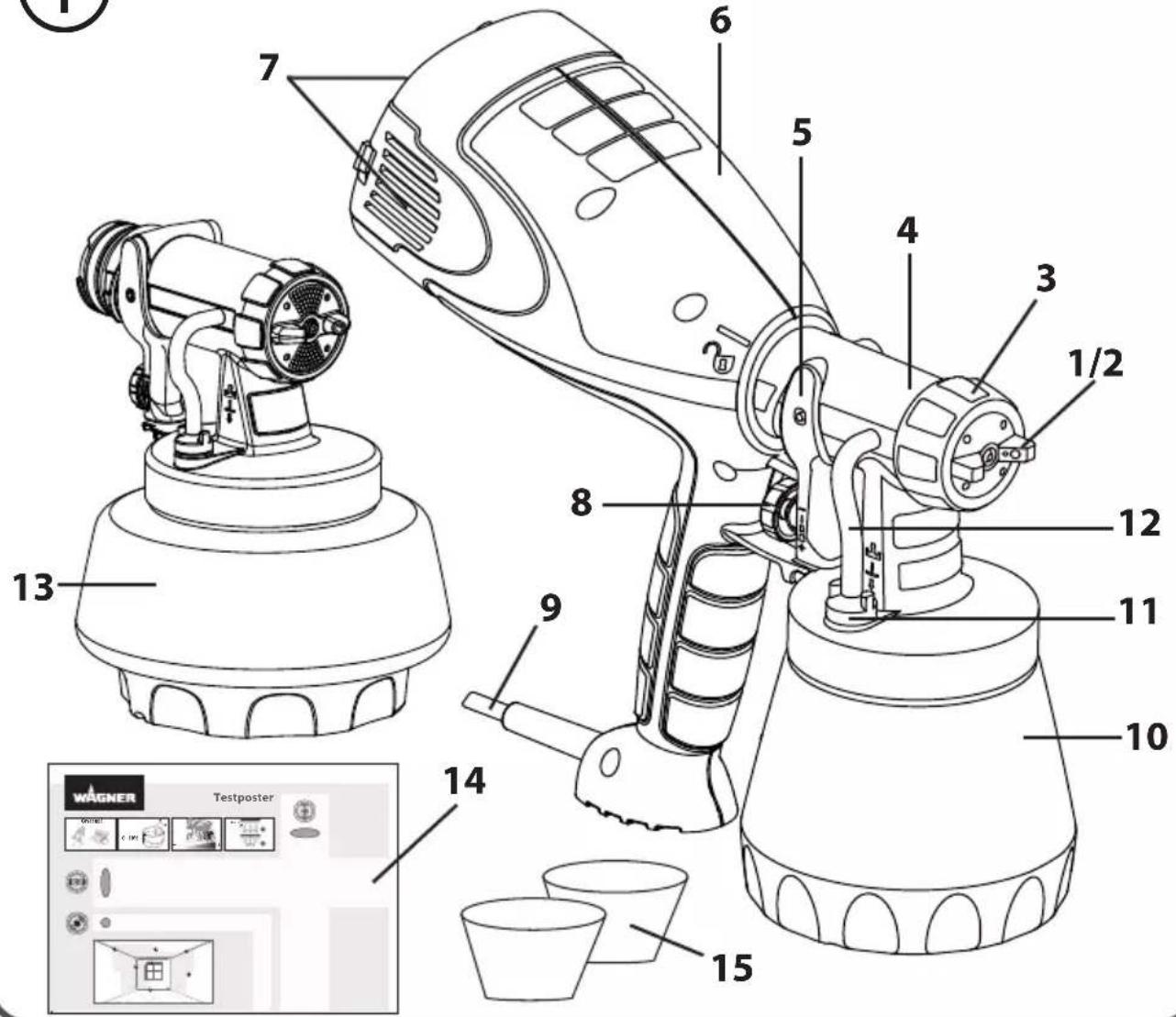

Description/ Scope of delivery (Fig. 1)
1) Air cap 2) Nozzle
3) Union nut 4) Standard spray attachment
5) Trigger 6) Spray gun rear part
7) Air filter cover (right + left) 8) Material volume adjustment
9) Mains lead 10) Container
11) Valve 12) Ventilating hose
13) Wall spray attachment 14) Practice poster
15) Feed hopper (2 pcs.) 16) Replacement nozzle seal (without illustration)*
17) Lubricating grease (without illustration)*

* This is inside the container: remove it before starting operations!

5. Field of application

Many different coating substances can be processed with the W 510.

A different spray attachment must be used, depending on the coating substance:

Coating Materials Spray attachment
Low-visc	Standarding substances:
Water- and solvent-based paints, finishes, primers, 2-component paints, clear finishes, automotive finishes, staining sealers and wood sealer-preservatives. All coating materials with the red Perfect Spray logo
Interior wall paint (dispersions and latex paint)All coating materials with the green Perfect Spray logo	Wall

6. Coating Materials Suitable for Use

Interior wall paint (dispersions and latex paint)

Water- and solvent-based paints, finishes, primers, 2-component paints, clear finishes, automotive finishes, staining sealers and wood sealer-preservatives.

7. Coating Materials Not Suitable for Use

Materials that contain highly abrasive components, plaster, facade paint, caustic solutions and acidic coating substances. Flammable materials.

8. Preparation of the workplace (for interior wall paint)

Sockets and plugs must be masked. Risk of an electric shock as a consequence of sprayed material entering the socket!

Mask all the areas and objects that are not to be spray painted, or remove them from the work area. No liability is assumed for damage due to overspray. Silicate paint corrodes glass and ceramic surfaces upon contact! All such surfaces must therefore be completely covered.

Pay attention to the quality of the adhesive tape used.

Do not use excessively strong adhesive tape on wallpaper and painted surfaces, in order to avoid damaging these surfaces when removing the tape. Remove adhesive tape slowly and evenly; do not use jerky movements.

Do not leave adhesive tape on surfaces any longer than necessary, in order to minimise the possibility of residues when removing.

Also observe the adhesive tape manufacturer's instructions.

9. Preparation of the Coating Material

The enclosed spray attachment can be used to spray interior wall paints, varnishes and glazes that are undiluted or slightly diluted. Detailed information is available in the technical data sheet of the manufacturer ( Internet Download).

1. Stir the material thoroughly and dilute it in the container as per the recommended dilution.

Thinning recommendation
Spray attachment	Sprayed material
	Glazes undiluted
	Wood preservatives, mordants, oils, disinfection agents, plant protective agents	undiluted
	Paints containing solvents and water-soluble paints, primers, vehicle coating paints, thick-film glazes	dilute by 0-10 %
	Interior wall paint (dispersions and latex paint)	dilute by 0-10 %

1. If the feed rate is too low even at maximum flow setting, dilute in steps of 5 - 10 % until the feed rate meets your requirements.

10. Start-up

Before connecting to the mains supply, be sure that the supply voltage is identical with the value given on the rating plate.

• Unscrew the container from the spray gun.

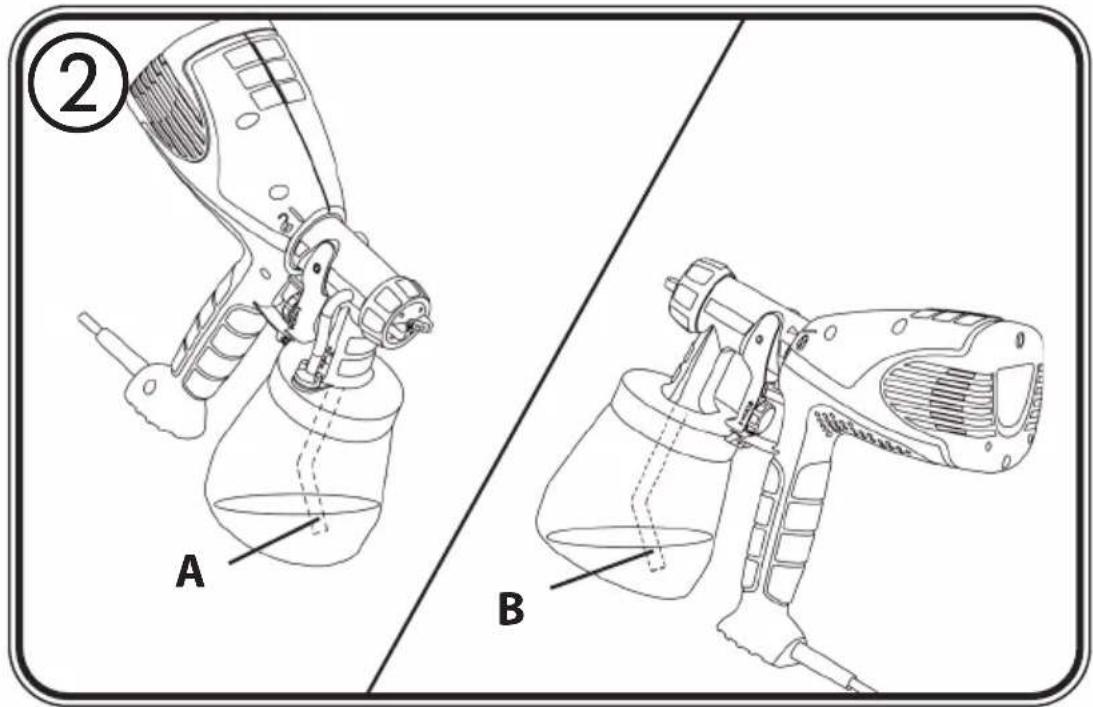

• Aligning suction tube. (Fig. 2)

If the suction tube is positioned correctly, the container contents can be sprayed without almost any residue.

When working on lying objects: Turn the suction tube forwards. (Fig. 2 A)

Spraying work when working on overhead objects: Turn the suction tube rearwards. (Fig. 2 B)

• Place the container on a paper base and pour in the prepared coating substance with the aid of the feed hopper included in the scope of supply. Screw the container tightly onto the spray gun.

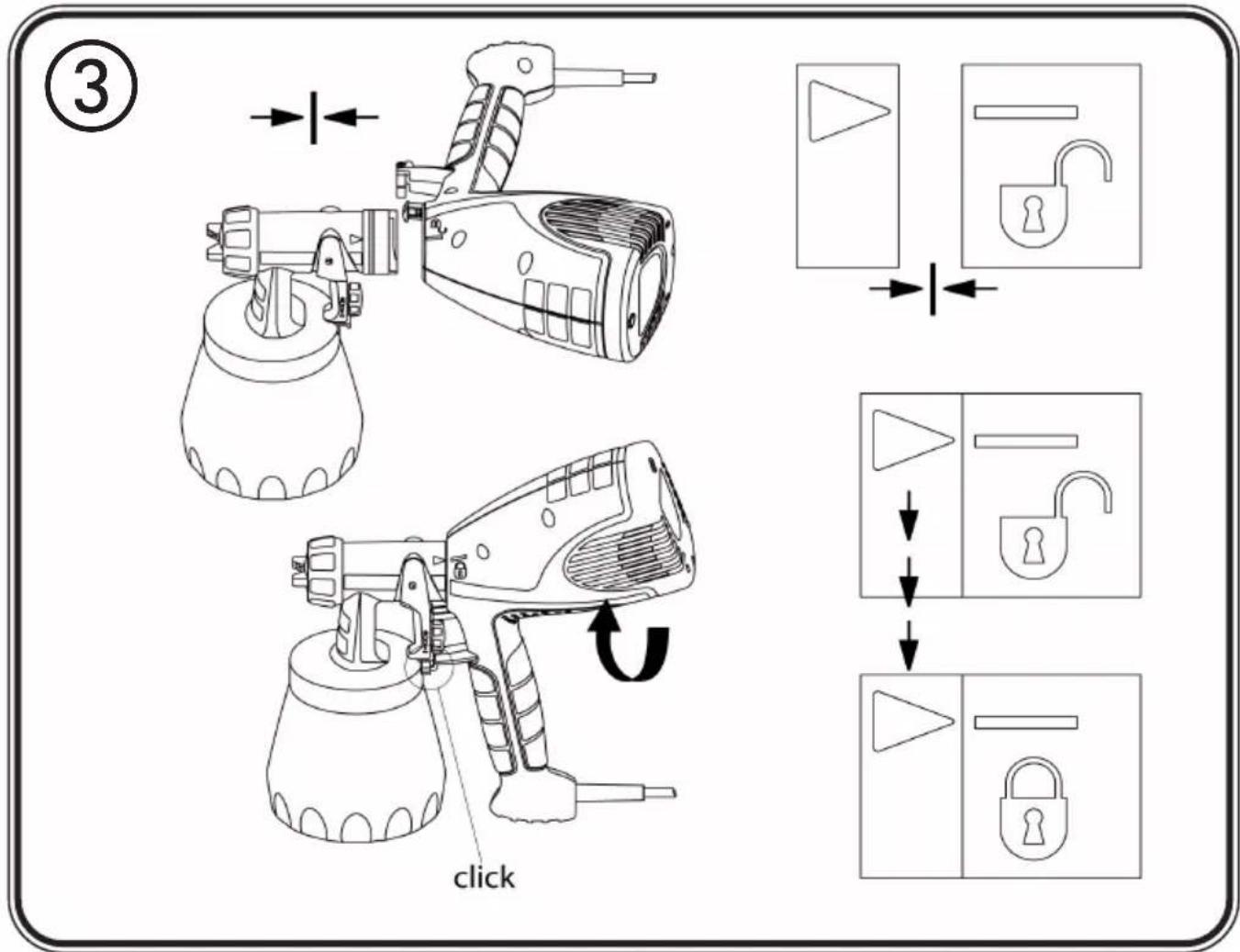

• Connect the front part with the rear part of the gun (Fig. 3).
• Put the machine down only on a level, clean surface. Otherwise the machine could tip over!
• Pull the trigger. The W 510 has a two-stage trigger. In the first stage the turbine is started. If the trigger guard is pressed further, the material is transported.
• Adjust the spray setting on the spray gun.

The enclosed practice poster is ideal for familiarising yourself with operation of the spray gun. After trying out the first spray coatings, it makes sense to test it further on cardboard or a similar surface in order to find out the right flow rate of paint and air for the best spray pattern.

11. Selecting the Spray Setting

WARNING! Danger of injury! Never pull the trigger guard while adjusting the air cap.

With the union nut (fig. 4, 1) slightly unscrewed, turn the air cap (2) to the desired spraysetting position (arrow). Then tighten the union nut.

Fig. 5 A = vertical flat jet → for horizontal surfaces

Fig. 5 B = horizontal flat jet → for vertical surfaces

Fig. 5 C = circular jet → for corners, edges and hard-to-reach surfaces

12. Adjusting the Material Volume (fig. 6)

Set the material volume by turning the regulator on the trigger guard of the spray gun.

lower material volume → turn anti-clockwise (-)

higher material volume → turn clockwise (+)

13. Spray Technique

The spray result depends heavily on the smoothness and cleanliness of the surface to be sprayed. Therefore the surface should be carefully prepared and kept free of dust.

• Cover all surfaces not to be sprayed.
- Cover screw threads or similar parts of the target object.

Important: Start at the edge of the area to be sprayed. Start the spray movement first of all, and then press the trigger. Avoid interruptions within the area to be sprayed.

- The spray movement should come from the arm, not just from the wrist. This ensures that a uniform distance is maintained between the spray gun and the spray surface during the spray operation. Select a distance of 5 - 15 cm, depending on the desired spray jet width. When you are using interior wall paint, the distance should be about 20-30 cm.

Fig. 7 A/7 B: CORRECT Even distance to the object.

Fig. 7 C: INCORRECT An uneven distance will result in uneven paint application.

• Move the spray gun evenly cross-wise or up-and-down, depending on the spray pattern setting.
• An even movement of the spray gun results in an even surface quality.

Important: Wipe off the nozzle and air cap regularly to make sure they do not get blocked.

Hand cleaning a mechanical component (no text or symbols visible)

"Cross spray" when using paint with a poor covering capacity or if the surface is highly absorbent (Fig. 8).

- Interior wall paint in strong colour shades should be applied at least twice (allow first paint coat to dry first). This will ensure good coverage.

14. Interruption of Work

• Turn the machine off.
• During longer breaks, vent the container by briefly opening and then closing it again.
• Clean nozzle openings after an interruption in operation.
• When processing 2-component varnishes, clean the device immediately.

15. Taking Out of Operation and Cleaning

Proper cleaning is the prerequisite for problem-free operation of the paint application device. No warranty claims are accepted in case of improper or no cleaning.

Never hold the spray gun rear part under water or immerse it into liquids. Clean the housing only with a moistened cloth.

1) Unplug the power plug. Vent the container in case of longer breaks and after the work has been terminated. This can be done by briefly turning open and then closing the container or by pulling the trigger guard and letting the paint into the original paint container.
2) Divide the spray gun. Press the hook (Fig. 3 b "click") slightly downwards. Turn the gun front part and gun rear part against each other and take them apart.
3) Unscrew the container. Empty any remaining coating material back into the material tin.
4) Preclean the container and feed tube with a brush. Clean the ventilating bore (Fig. 9, 1).
5) Pour water or solvent into the container. Screw the container back on.
Do not use flammable materials for cleaning purposes.
6) Assemble the gun again (Fig. 3).
7) Insert the power plug, turn on the machine and spray the water or solvent into a container or a cloth.
8) Repeat the above procedure until the water or solvent emerging from the nozzle is clear.
9) Turn off the machine and remove the plug.
10) Divide the spray gun. Press the hook (Fig. 3 b "click") slightly downwards. Turn the gun front part and gun rear part against each other and take them apart.

16. Cleaning the spray attachment

1) Screw of the container and empty it. Pull out the suction tub with container seal.

CAUTION! Never clean seals, diaphragm and nozzle or air holes of the spray gun with metal objects. The ventilation hose and diaphragm are only solvent-resistant to a limited extent. Do not immerse in solvent, only wipe.

2) The unit may only be operated with an integer diaphragm (Fig. 10, 3). If any paint has penetrated to the ventilation hose, check and clean the membrane (see the Maintenance chapter).

3) Unscrew the union nut and remove the air cap and nozzle. (Fig. 11) Clean the air cap, nozzle seal and nozzle with a brush and solvent or water.
4) Clean the outside of the spray gun and container with a cloth soaked in solvent or water.
5) Assemble the parts again (see "Assembly").

Assembly

Attention! Never operate the device if the nozzle seal is either damaged or missing. If the nozzle seal is either missing or damaged liquids can enter the device and increase the risk of an electric shock.

1) Push the nozzle seal (fig. 12, 1) over the needle (3); the groove (slot) should point towards you.
2) Put the nozzle (fig. 12, 2) onto the gun body and find the correct position by turning it.
3) Put the air cap onto the nozzle and tighten it using the union nut.
4) Place the container seal from below on the suction tube and slide it over the collar, while turning the container seal slightly.

5) Insert the suction tube with container seal in the gun body.

In order to mount the gun more easily apply lubricating grease (enclosed) liberally to the O-ring at the gun front part. (Fig. 14, 5 and fig. 15, 5)

17. Maintenance

Air filter

WARNING! Never operate the machine without the air filter; dirt could be sucked in and interfere with the function of the machine. Check the air filter after each use for contaminants. Disconnect plug before changing parts.

1) Open the air filter cover. (Fig. 13)
2) Pull out the air filter and replace it if necessary, depending on how soiled it is.

Ventilating hose / Valve

1) Pull the ventilating hose (Fig. 10, 1) at the top from the gun body. Screw off the valve cover (2). Remove the diaphragm (3). Carefully clean all parts or replace in the event of damage.
2) Place the diaphragm (Fig. 10, 3) with the pin facing upwards on the bottom section of the valve. Also see the marking on the gun body.
3) Place on the valve cover (Fig. 10, 2) and screw it closed.
4) Place the ventilating hose (Fig. 10, 1) on the valve cover and on the nipple at the gun body.

18. Spare Parts

Spare Parts List Wall Extra spray attachment (Fig. 14)

Pos. Designation Order No.
	Wall spray attachment complete with 1300 ml container 2301 734
1 Union nut 0417 471
2 Air cap 0417 470
3 Nozzle 0417 468
4 Nozzle seal 2304 433
5 O-ring of spray attachment 2362 875
6 Ventilating hose, valve cover, diaphragm 2304 027
7 Suction tube 2328 922
8 Container seal 2328 919
9 Container with cover 1300 ml 2305 155

Spare Parts List Standard spray attachment (Fig. 15)

Pos. Designation		Order No.
	Standard spray attachment complete with 800 ml container	2361 730
1 Union nut		2362 873
2 Air cap		2362 877
3 Nozzle		2362 878
4 Nozzle seal		0417 706
5 O-ring of spray attachment		2362 875
6 Ventilating hose, valve cover, diaphragm		2304 027
7 Suction tube		2362 876
8 Container seal		2323 039
9 Container with cover 800 ml		0413 909

Spare Parts List W 510 (Fig. 16)

Pos.	Designation	Order No.
1	Air filter cover (right + left)	2324 597
2	Air filter set (2 pcs.)	0417 912
3	Feed hopper (3 pcs.)	2304 028
	Lubricating grease (no fig.)	2315 539

19. Accessories

The CLICK&PAINT SYSTEM with additional spray attachments and accessories offers the right tool for each work. Further information about the WAGNER range of products for renovating is available under www.wagner-group.com

1. Correction of Malfunctions

Problem	Cause	Remedy
No coating material emerges from the nozzle	Nozzle cloggedFeed tube cloggedMaterial volume setting turned too far to the left (-)Feed tube looseNo pressure build-up in containerVentilating bore (Fig. 9, 1) clogged	CleanCleanTurn to the right (+)InsertTighten containerClean
Coating material drips from the nozzle	Nozzle looseNozzle wornNozzle seal is missing or wornCoating material assembly at air cap, nozzle or needle	TightenChangeChangeClean
Atomisation too coarse	Coating material too thickMaterial volume too largeMaterial volume adjusting screw turned too far to the right (+)Nozzle cloggedAir filter heavily soiledToo little pressure build-up in container	DiluteTurn material volume adjusting screw to the left (-)CleanChangeTighten container
Spray jet pulsates	Coating material in container running outAir filter heavily soiledNozzle seal is missing or worn	RefillChangeChange
Coating material causes "paint tears"	Too much coating material applied.	Turn material volume adjusting screw to the left (-)
Too much fog of coating material (Overspray)	Distance to the object too largeToo much coating material applied	Reduce distanceTurn material volume adjusting screw to the left (-)
Paint in the ventilating hose	Diaphragm soiledDiaphragm defective	Clean the diaphragmReplace the diaphragm
Poor covering capacity on the wall	Spray material is too coldHighly absorbent surface or paint with poor covering capacityDistance too large	The material you are spraying should be at room temperatureCross spray (Fig. 8)Closer to the object

21. Technical Data

Technical Data
Max. viscositVarnishes glazes (Standard spray attachment):Interior wall paint (Wall spray attachment):	120 dB/10mm
	3000 mPas
Power source: 230 V	~ , 50 Hz
Power consumption: 460 W
Atomizing output: 110 W
Double insulation:	□
Max. flow rate : 230 ml
Sound pressure level*: 80 dB (A); Uncertainty K =	4 dB
Sound pressure output*: 93 dB (A); Uncertainty K = 4 dB
Oscillation level*: < 2,5 m/s2; Uncertainty K = 1,5	m/s2
Weight: 1,9 kg

* Measured in accordance with EN 62841-1

Information about the oscillation level

The specified oscillation level has been measured according to a standard test procedure and can be used to compare against electric tools.

The oscillation level is also for determining an initial assessment of the vibrational strain.

Attention! The vibration emission value can differ from the specified value when the electric tool is actually in use, depending on how the electric tool is being used. It is necessary to specify safety measures to protect the operating personnel. These measures are based on an estimated shutdown during the actual conditions of use (all parts of the operating cycle are taken into consideration here, for example periods when the electric tool is switched off, and, when it is switched on but running without any load).

22. Environmental protection

The device and all accessories and packaging have to be recycled in an environmentally friendly manner. Do not dispose of the appliance with household waste. Support environmental protection by taking the appliance to a local collection point or obtain information from a specialist retailer. Leftover paint and solvents may not be emptied into drains, the sewage system or disposed of as household rubbish. It has to be disposed of separately as special waste. Please pay special attention to the instructions on the product packaging.

23. Important Note regarding Product Liability!

According to an EU directive, the manufacturer is only liable without limitation for faults in the product if all parts come from the manufacturer or have been approved by the

manufacturer and have been mounted to the device and are operated properly. If third-party accessories or spare parts are used, the manufacturer is exonerated wholly or partly from his/her liability if use of the third-party accessories or spare parts have caused a defect in the product.

3 + 1 year guarantee on this WAGNER DIY product

In addition to the statutory warranty for this product, J. Wagner GmbH, based in 88677 Markdorf, Germany, grants you a guarantee (device guarantee) of 36 months for this product. This guarantee is extended by a further 12 months if the product is registered within 28 days of purchase on the Internet at https://go.wagner-group.com/3plus1.

The guarantee includes the free repair of defects which are demonstrably caused by the use of unsuitable materials in the product's manufacture or by assembly errors, as well as the free replacement of faulty components provided there are no guarantee exclusions.

The statutory material defect rights to which you as the purchaser are entitled for the intended purpose from the time of handover of the purchased item are not restricted by the guarantee. The guarantee, along with your statutory warranty rights, will expire if the device has been opened by persons other than authorised WAGNER service personnel. The detailed guarantee conditions can be obtained on request from our authorised WAGNER partners (see website or operating instructions) or in text form on our website:

https://go.wagner-group.com/hf-warranty-conditions

QR code image containing encoded data, no visible human-readable text

- Modifications reserved -

UKCA Declaration of conformity

We declare under sole responsibility that this product conforms to the following relevant regulations:

Supply of Machinery (Safety) Regulations 2008

Electrical Equipment (Safety) Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012

The Waste Electrical and Electronic Equipment Regulations 2013

Applied harmonised standards

BS EN 62841-1:2015, BS EN 50580:2012+A1:2013, BS EN IEC 55014-1:2021,

BS EN IEC 55014-2:2021, BS EN 61000-3-2:2019+A1:2021, BS EN 61000-3-3:2013+A2:

2021, BS EN 62233:2008

Warning

If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required. The wires in this mains lead are coloured in accordance with the following code:

$$ \begin{array}{c} \text {green/yellow = earth} \ \text {blue = neutral brown = live} \end{array} $$

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

Green and Yellow to be connected to E (earth) Fit a BS 1363A approved plug Blue to be connected to N (neutral) Make sure that the outer sheath of the cable is held firmly by the clamp E N L Fit the recommended fuse Brown to be connected to L (live) Never use a light socket

• The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured green or green and yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured brown.
• Should the moulded plug have to be replaced, never re-use the defective plug or attempt to plug it into a different 13 A socket. This could result in an electric shock.
• Should it be necessary to exchange the fuse in the plug only use fuses approved by ASTA in accordance with BS 1362. Only 13 Amp fuses may be used.
• To ensure that the fuse and fuse carrier are correctly mounted please observe the provided markings or colour coding in the plug.
• After changing the fuse, always make sure that the fuse carrier is correctly inserted. Without the fuse carrier, it is not permissible to use the plug.
• The correct fuses and fuse carriers are available from your local electrical supplies stockist.

EU Declaration of conformity

We declare under sole responsibility that this product conforms to the following relevant stipulations:

2006/42/EC, 2014/30/EU, 2011/65/EU, 2012/19/EU

Applied harmonised norms:

EN 62841-1, EN 50580, EN 55014-1, EN 55014-2, EN IEC 61000-3-2, EN 61000-3-3, EN 62233

The EU declaration of conformity is enclosed with the product. If required, it can be re-ordered using order number 2386150.

Hand cleaning a mechanical component (no text or symbols visible)

https://go.wagner-group.com/hf-warranty-conditions

QR code image containing encoded data, no visible human-readable text

Illustration of a hand cleaning a car wheel rim (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

https://go.wagner-group.com/hf-warranty-conditions

QR code image containing encoded data, no visible human-readable text

GB Inspiration of a very special kind

Are you on the look-out for your next project? Then take a look at our project finder. Here, you'll find practical guides on renovation, decoration and DIY. Make your home unique. Make it beautiful!

Black-and-white photo of a woman sitting on a wooden deck with potted plants and a glass coffee table, no visible text or symbols.

Interior scene of a person sitting in a chair near a window with a potted plant, no visible text or symbols

Black-and-white photo of a person pushing a wheelbarrow beside a wooden fence in a garden setting (no visible text or symbols)

Interior scene of a child playing with a wooden play structure, surrounded by rug and small furniture (no visible text or symbols)

D Mehr Inspiration? wagner-group.com/projects
GB More inspiration? wagner-group.com/projects

Black-and-white photo of a woman sitting on a bench outdoors, leaning over a wooden deck, with garden and trees in the background (no visible text or symbols)

Black-and-white photo of a woman sitting on a wooden deck with potted plants and a wooden fence in the background (no visible text or symbols)

Interior scene of a woman sitting in a chair near a window with a potted plant, no visible text or symbols

F Repeignez votre terrasse!
NL Lak uw terras opnieuw!

Person pushing a wheelbarrow in a garden with a wooden fence and shrubbery (no visible text or symbols)

Interior scene of a child playing with a wooden play structure in a decorated room (no visible text or symbols)

Black-and-white photo of a woman sitting on a bench outdoors, leaning over a wooden deck, with garden and trees in the background (no visible text or symbols)

D

J. WAGNER GMBH

Silverstone Park, Silverstone

Northants NN12 8GX

T + 44 (0) 1327 368410

DK

DVA A/S

Marielundvej 48 C

2730 Herlev

T+45 70 234 239

DK

ORKLA HOUSE CARE DANMARK A/S

Stationsvej 13

3550 Slangerup

Danmark

T+45 47 33 74 00

F+45 47 33 74 01

NOR

ORKLA HOUSE CARE NORGE AS

41-605 Swietochlowice

T+48/32/346 37 00

F +48/32/346 37 13

SCH

ORKLA HOUSE CARE AB

Box 133

564 23 Bankeryd

Sweden

T [phone]

ROM

ROMIB S.R.L.
