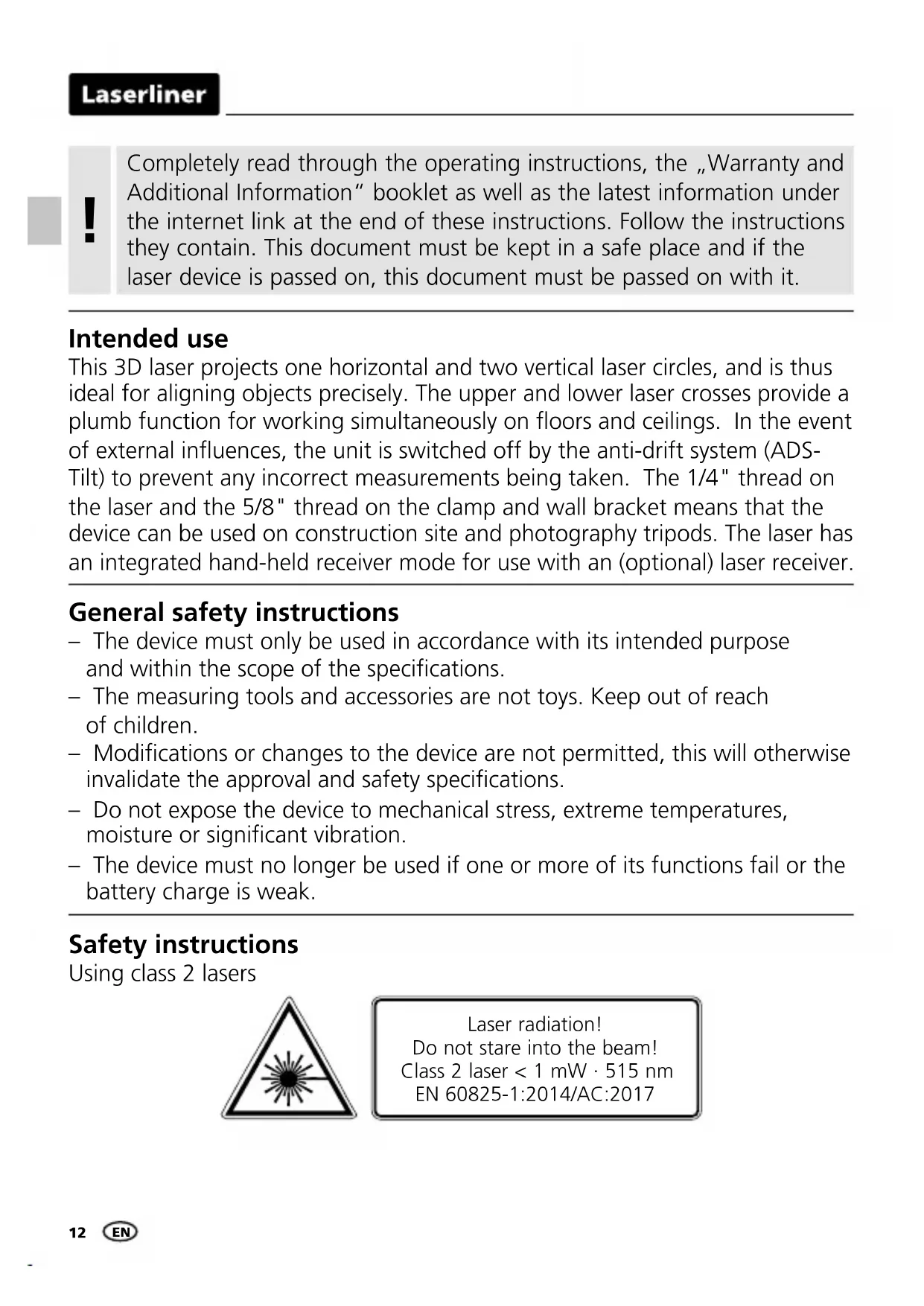

General safety instructions – The device must only be used in accordance with its intended purpose and within the scope of the specications. – The measuring tools and accessories are not toys. Keep out of reach of children. – Modications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specications. – Do not expose the device to mechanical stress, extreme temperatures, moisture or signicant vibration. – The device must no longer be used if one or more of its functions fail or the battery charge is weak. Laser radiation! Do not stare into the beam! Class 2 laser < 1 mW · 515 nm EN 60825-1:2014/AC:2017 Safety instructions Using class 2 lasers Intended use This 3D laser projects one horizontal and two vertical laser circles, and is thus ideal for aligning objects precisely. The upper and lower laser crosses provide a plumb function for working simultaneously on oors and ceilings. In the event of external inuences, the unit is switched off by the anti-drift system (ADS- Tilt) to prevent any incorrect measurements being taken. The 1/4" thread on the laser and the 5/8" thread on the clamp and wall bracket means that the device can be used on construction site and photography tripods. The laser has an integrated hand-held receiver mode for use with an (optional) laser receiver. ENMasterPlane-Laser 3G

Transport LOCK: The device is protected with a pendelum lock during transport. Automatic alignment of the device with a magnetically dampened pendulum system. The device is brought into initial position and aligns itself autonomously. Special product features Safety instructions Dealing with electromagnetic radiation – The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU. – Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference. – The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating elds. – Attention: Do not look into the direct or reected beam. – Do not point the laser beam towards persons. – If a person‘s eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam. – Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reections. – Do not use the laser at eye level (1.40 … 1.90 m) – Reective, specular or shiny surfaces must be covered whilst laser devices are in operation. – In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs. EN14 GRX-READY technology enables line lasers to be used even in unfavourable light conditions.The laser lines pulsate at a high frequency and this can be picked up by special laser receiversover long distances.

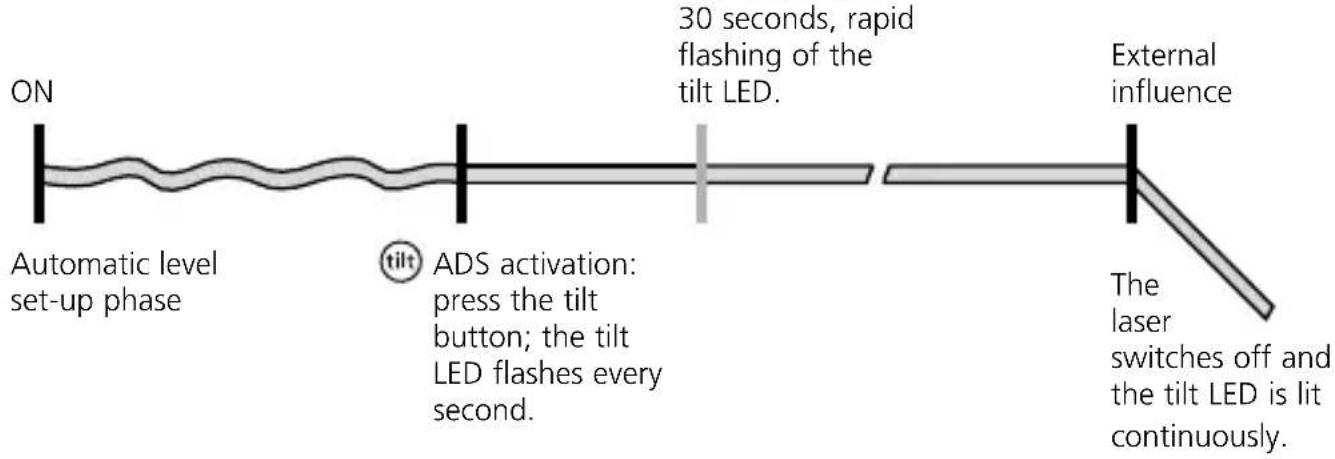

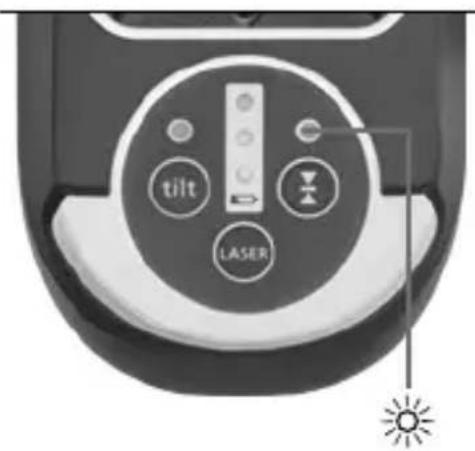

External influence Automatic level set-up phase ADS activation: press the tilt button; the tilt LED flashes every second. The laser switches off and the tilt LED is lit continuously. ADS active after 30 seconds, rapid flashing of the tilt LED. ADS function The ADS does not activate the monitoring function until 30 seconds after the laser levelling procedure has been completed (set-up phase). The tilt LED flashes every second during the set-up phase, rapid flashing, when ADS is active.

The ADS is not active following switch-on. Once the device has been set up, press the tilt button to activate the ADS, enabling you to protect the laser from changes in position caused by the device being disturbed by external factors. The tilt LED flashes to indicate that the ADS function is active; see the diagram below. The anti-drift system (ADS) prevents erroneous or inaccurate measurements. How it works: continuous monitoring of the align- ment of the laser is activated 30 seconds after the ADS is switched on. If the device moves due to external influences or if the laser loses its height reference, the laser switches off and the tilt LED lights up permanently. Press the tilt button to continue. Erroneous and inaccurate measurements are thus prevented simply and reliably. ENMasterPlane-Laser 3G

USB-C 1H360° 2V360° Number and direction of the lasers H = horizontal laser V = vertical laser S = slope function Devices with the PowerGreen+ technology have very bright, green high-performance diodes which provide outstanding visi- bility of the laser lines at great distances, on dark surfaces and in bright ambient lighting conditions. The battery may only be charged with the battery charger provided and used only in this laser device. Any other use may cause injury or fire.

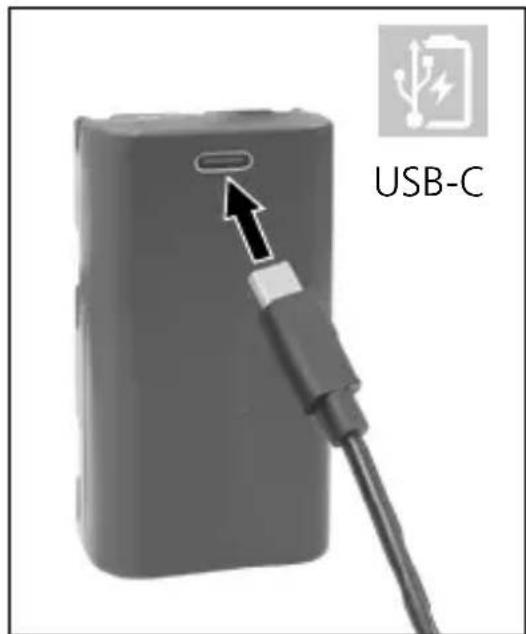

– Use the power supply/charger unit only in closed rooms; do not expose to moisture or rain otherwise risk of electric shock. – Charge the device‘s battery completely prior to use. – Connect the power pack/charger to the mains power supply and the socket in the battery pack. Please only use the power pack/charger supplied. Using any other power pack/charger will invalidate the warranty. – The LED on the battery pack lights up red while the battery is charging. When the LED changes to blue, charging is complete. Use of lithium-ion rechargeable battery Approx. 6 times brighter than a typical red laser with 630 - 660 nm. Green laser technology EN16

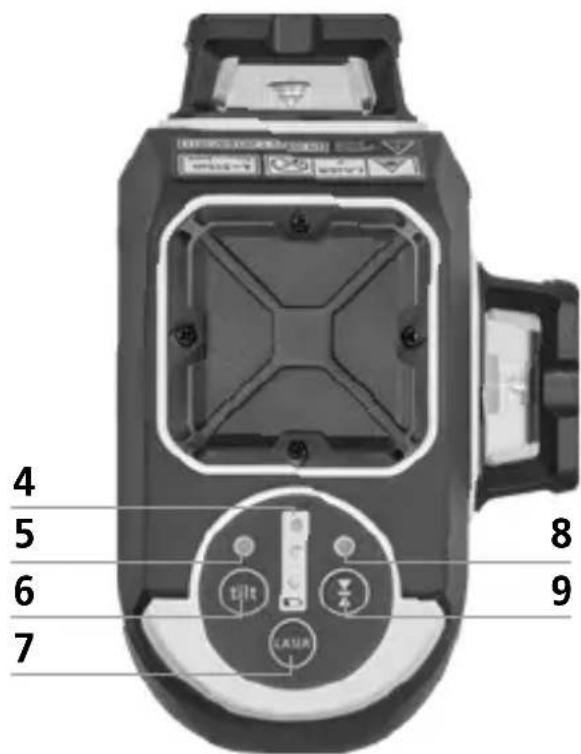

LED levelling Tilt function Laser line selection button; levelling on / off LED hand receiver mode Hand receiver mode on / off Laser output windows Slide switch a ON b OFF / Transport lock / Slope mode 1/4" tripod threads (bottom) Battery status Do not open the rechargeable battery. This could cause short-circuits.

Make sure there are no conductive objects in the vicinity of the battery contacts. Short-circuiting of these contacts can cause burn injuries or fire.

The transport restraint must be released for horizontal and vertical levelling. The laser lines flash as soon as the device is outside the automatic levelling range of 3.5°. Position the device such that it is within the levelling range. The laser lines stop flashing (steady light).

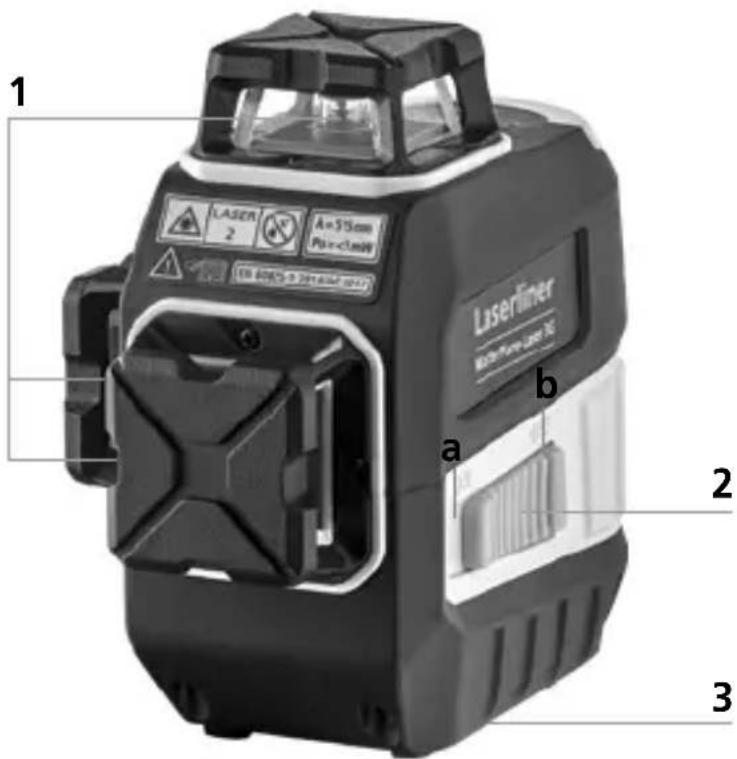

Release the transport restraint, push the slide switch (2) to the left. The laser cross will appear. The laser lines can be switched individually with the selection button. Horizontal and vertical levelling When transporting, always switch off all lasers, secure pendulum and push the slide switch (2) to the right.

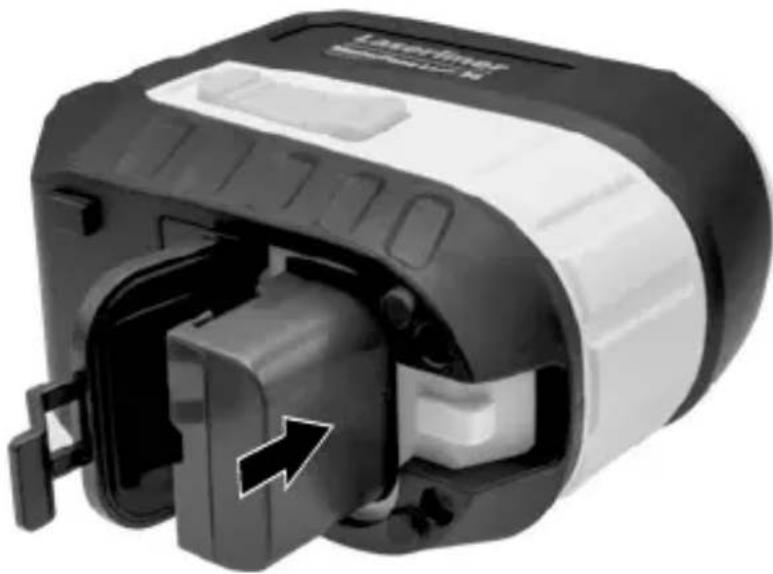

Open the battery compartment and insert the lithium-ion battery as illustrated. To insert the lithium-ion rechargeable battery Power supply EN18

LASER LASER LASER LASER LASER

Observe the laser receiver‘s operating instructions for line lasers.

Use an laser receiver (optional) to carry out levelling at great distances or when the laser lines are no longer visible. To work with a laser receiver, switch the line laser to hand-held receiver mode by pressing button 9 (handheld receiver mode on / off). The laser lines will now pulsate with high frequency, making the laser lines darker. The laser receiver can detect these pulsating laser lines.

Hand receiver mode Optional: Working with the laser receiver GRX

Slope mode Do not release transport restraint, push slide switch (2) to the right. Switch on the lasers by holding down the selection button (7). Press it again to set the selection. Sloping planes and tilts can now be measured. In this mode, the laser lines will no longer align automatically, which will be indicated by the laser lines switching off briey, roughly every ve seconds. The device can be switched off in any laser selection by holding down the button (7).

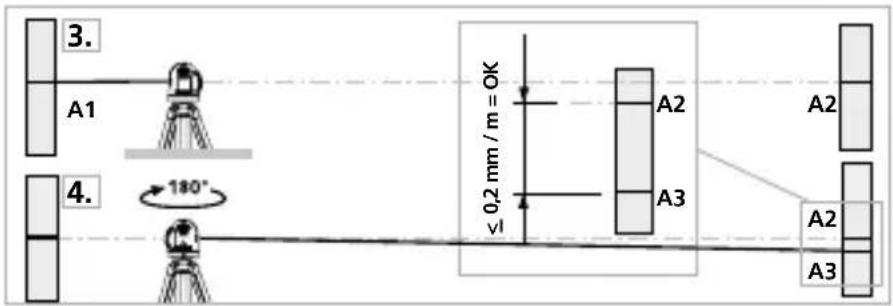

3. Position the device as near as possible to the wall at the height

4. Turn the device through 180° and mark point A3.

The difference between points A2 and A3 is the tolerance.

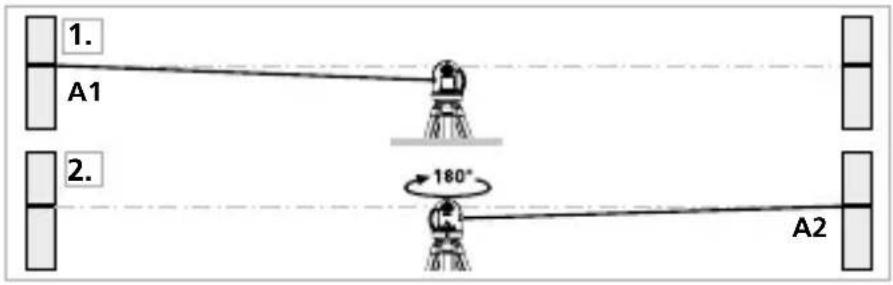

1. Mark point A1 on the wall.

2. Turn the device through 180° and mark point A2.

You now have a horizontal reference between points A1 and A2. Preparing the calibration check It is possible for you to check the calibration of the laser. To do this, position the device midway between 2 walls, which must be at least 5 m apart. Switch the device on (Laser cross ON). The best calibration results are achieved if the device is mounted on a tripod. Due to the special optics required to generate a continuous 360° laser line, the underlying technology may cause differences in brightness in different areas of the line. This may lead to different ranges in hand receiver mode.

Information on maintenance and care Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery before storing for longer periods. Store the device in a clean and dry place. Calibration The meter needs to be calibrated and tested on a regular basis to ensureit produces accurate measurement results. We recommend carrying out calibration once a year. Contact your authorised dealer or else the UMAREX-LASERLINER Service Department. Regularly check the calibration before use, after transport and after extended periods of storage.

Checking the horizontal line Position the device about 5 m from a wall and switch on the cross laser. Mark point B on the wall. Turn the laser cross approx. 2.5 m to the right and mark point C. Check whether the horizontal line from point C is level with point B to within ± 2 mm. Repeat the process by turning the laser to the left. Checking the vertical line Position the device about 5 m from a wall. Fix a plumb bob with a line of 2.5 m length on the wall, making sure that the bob can swing freely. Switch on the device and align the vertical laser to the plumb line. The precision is within the specified tolerance if the deviation between the laser line and the plumb line is not greater than ± 2 mm. When A2 and A3 are more than 0.2 mm / m apart, an adjustment is necessary. Contact your authorised dealer or else the UMAREX-LASERLINER Service Department.
