USER MANUAL PIXMA G2470 CANON

Read Safety and Important Information (addendum) first.

Icon showing a printer with a paper airplane and a document, symbolizing file transfer or sync (no text present)

Installing the Printer....

Line drawing of a printer with hands operating it (no text or symbols)

No

Setting Up the Printer

1. Box Contents

- Print Heads

• Ink Bottles
  • Power Cord
• Setup CD-ROM
  • Safety and Important Information
  • Getting Started (this manual)

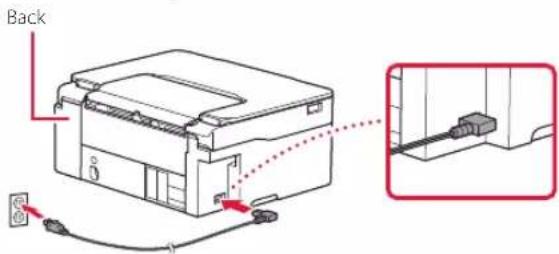

2. Turning on the Printer

1 Connect the power cord.

Back

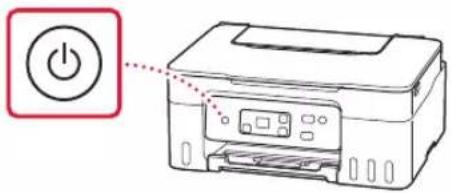

2 Press the ON button.

Diagram showing a printer with a power button icon and a dotted line indicating action or connection point.

Setting Up the Printer

Easy Setup Using Computer

Computer

Setup Using this Manual

Getting Started

3 Easy Setup Using Computer

Simple, easy-to-follow instructions are displayed on your computer.

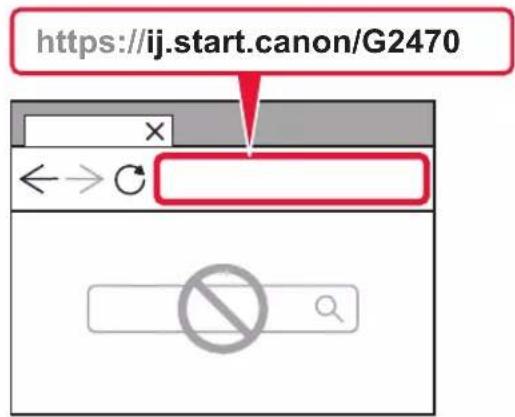

1 Visit the URL below to start setup.

https://ij.start.canon/G2470 ←→ C

2 Follow the instructions to complete setup and print.

1

Illustration of a printer with three speech bubbles containing icons: power button, documents, and a document (no text or symbols)

2

Simple line drawing of a printer connected to a laptop (no text or symbols)

4. Installing the Print Heads

1 Open the scanning unit / cover.

Caution

Do not touch the print head holder until it stops moving.

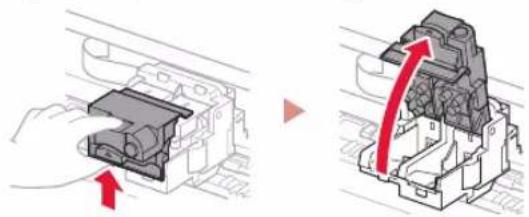

2 Open the print head locking cover.

Diagram showing a hand inserting a component into a device, with red arrows indicating the process (no text or symbols present)

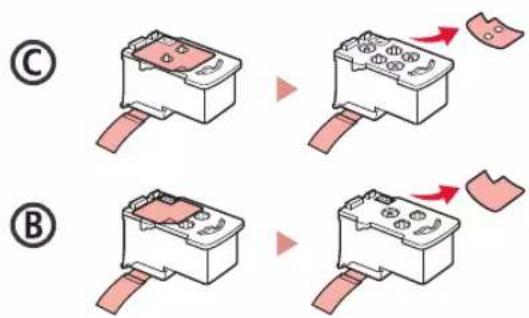

3 Take out each print head from the package and remove the label.

Diagram showing two steps (C and B) of a battery pack being inserted, with arrows indicating process direction.

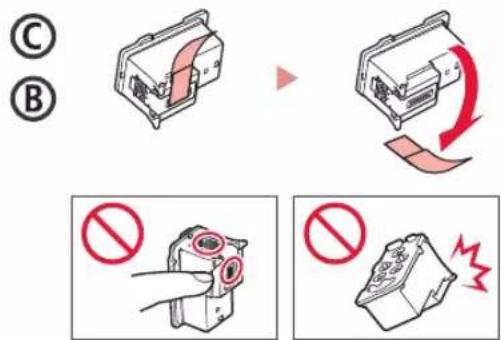

4 Remove the orange tape.

Diagram illustrating a mechanical device operation with labeled parts and prohibition signs

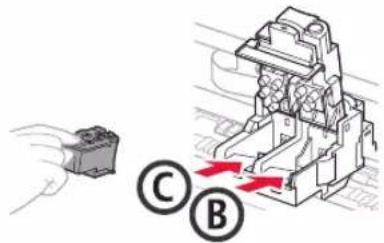

5 Insert the C (color) print head on the left and the B (black) print head on the right.

Diagram showing a device with labeled parts C and B, indicating a process or operation with red arrows indicating direction.

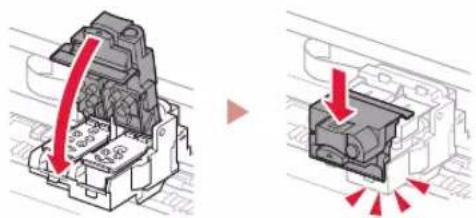

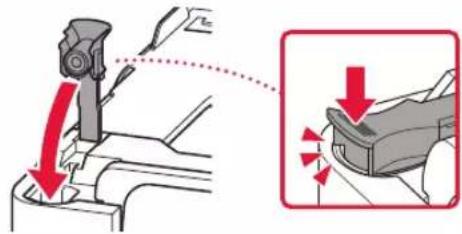

6 Close the print head locking cover and press down until it clicks.

Mechanical assembly diagram showing a component being reduced with red arrows indicating motion (no text or symbols present)

Setting Up the Printer

5. Pouring Ink

Important

This product requires careful handling of ink. Ink may splatter when the ink tanks are filled with ink. If ink gets on your clothes or belongings, it may not come off.

1 Open the tank cap on the left of the printer.

Mechanical assembly diagram showing a lever mechanism with red arrow indicating motion (no text or symbols)

2 Hold the ink bottle upright and gently twist the bottle cap to remove.

Check!

PGBK

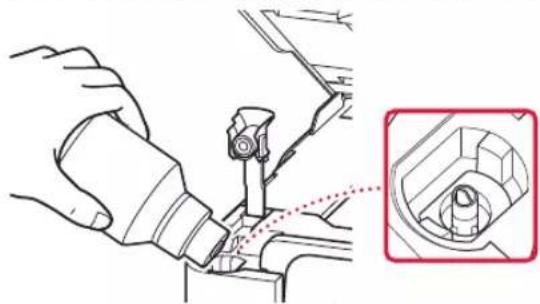

3 Align the nozzle of the ink bottle with the inlet.

Illustration of a mechanical assembly with tool and component details (no text or symbols)

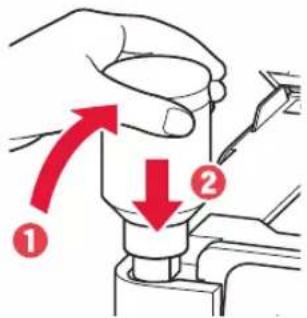

4 Slowly stand the ink bottle upside down and push down to pour the ink.

- If the ink does not pour, gently remove the ink bottle and try again.

Diagram showing a hand turning a tool with red arrows indicating direction of movement, labeled ① and ②.

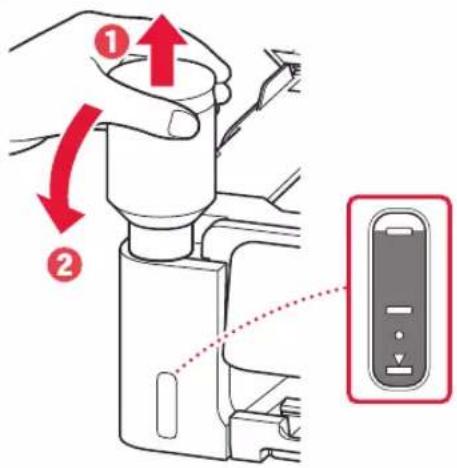

5 Gently remove the ink bottle from the inlet.

- Be careful not to spill the ink.

Diagram showing a hand operating a device with red arrows indicating rotation and movement, labeled with step numbers ① and ②.

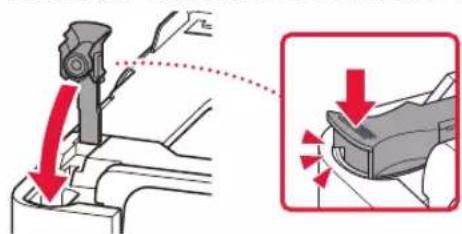

6 Replace the tank cap securely.

Diagram illustrating a mechanical assembly with red arrows indicating force or direction of movement, alongside a magnified inset showing the same lever mechanism.

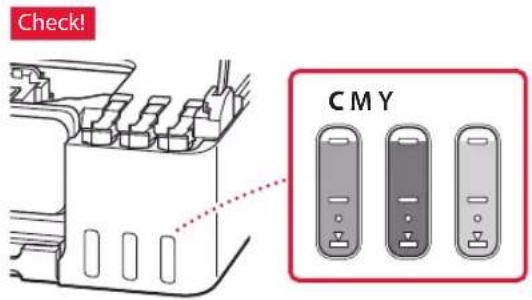

7 Repeat steps 1 through 6 to pour all ink into the corresponding ink tanks on the right.

Check! CMY

8 Close the scanning unit / cover.

- If you lift the scanning unit / cover slightly and release it, it will close by itself.

Diagram showing printer operation with numbered arrows indicating process steps

9 When the following screen appears, press the OK button.

. 0

- Ink system preparation starts. This takes about 6 minutes. Once complete, the following screen appears.

0°

Select the connection method that best matches how you will use the printer.

• To use the printer without connecting to any other devices

→ Setup is now complete.

• To use the printer connecting to a computer

→ Proceed to the next page.

If any of the following screens appear

Numbers or letters

Check the screen, and then follow the corresponding instructions below.

E04

Print heads are not installed correctly.

→ "4. Installing the Print Heads" on page 3

E05

Print heads cannot be recognized.

→ "4. Installing the Print Heads" on page 3

For all other cases, refer to the Online Manual.

6. Connecting to a Computer

If you are using multiple computers, perform these steps on each computer.

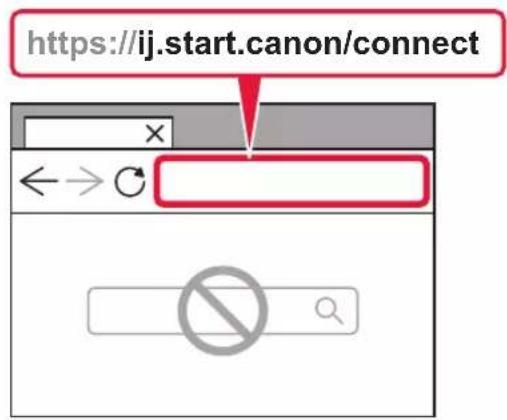

1 Access the Canon website directly. No need to search.

https://ij.start.canon/connect

2 Enter your printer's model name and click Go.
3 Follow the on-screen instructions.

Using the Setup CD-ROM

1. Double click EasySetup.exe on the screen that appears.
2. If the printer selection screen appears, select G2470. If the installation screen appears, click Next.
3. Follow the on-screen instructions.

If nothing appears, start Explorer and then run EasySetup.exe in the CD-ROM.

Loading Paper

1 Open the paper support.

Diagram showing printer operation with upward arrow and prohibition symbol indicating no action

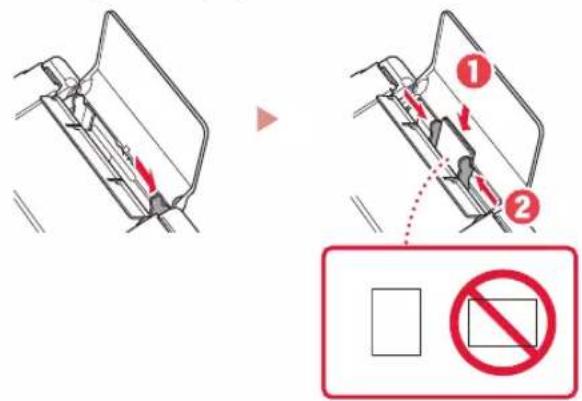

2 Slide the right-hand side paper guide to the far right.
3 Load several sheets of paper with the print side facing up and slide the side paper guide against the edge of the paper stack.

Diagram illustrating safety instructions for a vehicle, showing step 1 with red arrows and step 2 with a no-smoking symbol.

4 Press the Paper Select button, select a paper size, and then press the OK button.

0 OK

5 Extend the paper output tray.

Two-step diagram showing a printer's internal structure before and after processing, with no visible text or symbols.

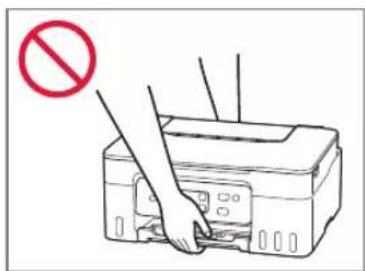

Transporting Your Printer

When relocating the printer, check the following. Refer to the Online Manual for details.

Check if the tank caps are completely closed.

Illustration of a hand holding a car with red arrows indicating motion or force (no text or symbols)

If the print head holder is in the center of the printer, check that the cover is closed.

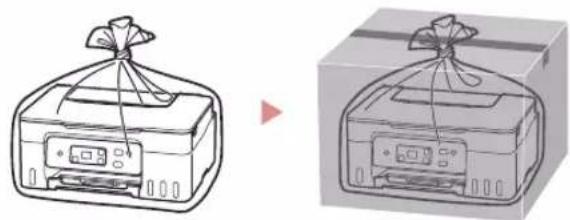

Pack the printer in a plastic bag in case ink leaks.

• Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sufficient protective material to ensure safe transport.
  • Do not tilt the printer. Ink may leak.
• Please handle with care and ensure the box remains flat and NOT turned upside down or on its side, as the printer may be damaged and ink in the printer may leak.
• When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE".

Illustration of a printer with a bag attached, shown from front and side views (no text or symbols)

Diagram showing a printer with a power button icon and a dotted line indicating rotation or adjustment.

https://ij.start.canon/G2470

Illustration of a printer with three speech bubbles containing icons: power button, documents, and phone (no text or symbols)

2

Simple line drawing of a printer connected to a laptop (no text or symbols)

Diagram showing a hand inserting a component into a device, with red arrows indicating direction (no text or symbols present)

Diagram illustrating a mechanical device operation with labeled steps and prohibition symbols

Diagram showing a device with labeled parts C and B, indicating a process or operation with red arrows indicating direction.

Technical diagram showing mechanical assembly with red arrows indicating force direction and component placement

Mechanical assembly diagram showing a lever mechanism with red arrow indicating motion (no text or symbols)

Illustration showing a hand performing a PGBK technique with a red arrow indicating motion direction, labeled '¡Comprobar!'

Illustration of a mechanical assembly with hands and a close-up inset showing a component detail (no text or symbols)

Diagram showing a hand operating a tool with two red arrows indicating direction of movement or force, labeled ① and ②.

Diagram showing a hand operating a device with labeled parts and directional arrows, including a zoomed-in view of the device.

Diagram illustrating a mechanical assembly process with red arrows indicating direction of motion, including a magnified inset showing the hand's rotation.

Diagram showing a computer interface with a CMY device labeled in English and Chinese, indicating 'iComprobar!'

Diagram showing printer operation with numbered arrows indicating process steps

https://ij.start.canon/connect ←→ C

Simple line drawing of a printer with a paper stack and a red upward arrow (no text or symbols)

Pure mechanical diagram showing a bracket with internal components and a red arrow indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

Two basic symbols: a blank rectangle and a red prohibition sign with a circle.

Two-step diagram showing printer insertion process: one with a red arrow indicating left motion, the other with a red arrow indicating right motion (no text or symbols)

Diagram of a mechanical component with red arrows indicating force or direction (no text or symbols)

Illustration of a printer with a bag attached, shown from front and side views (no text or symbols)

Configurando a impressora

Diagram showing a printer with a power button icon and a dotted line indicating the power output.

Configurando a impressora

https://ij.start.canon/G2470 ←→ C

Illustration of a printer with three speech bubbles containing icons: power button, documents, and a document (no text or symbols)

2

Simple line drawing of a printer connected to a laptop (no text or symbols)

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

Diagram showing two steps (C and B) of a battery pack being inserted, with arrows indicating process direction.

4 Remova a fita laranja.

Diagram illustrating a mechanical device operation with prohibition signs and labeled parts (C, B)

Diagram showing a hand holding a small electronic component and a mechanical device with red arrows labeled C and B indicating motion or force directions.

Technical diagram showing a mechanical component before and after disassembly, with red arrows indicating the process.

Configurando a impressora

5. Colocando tinta

Importante

Mechanical assembly diagram showing a lever mechanism with red arrow indicating motion (no text or symbols)

Illustration of a mechanical assembly with a close-up inset showing a component detail (no text or symbols)

Diagram showing a hand operating a tool with two red arrows labeled ① and ② indicating direction of movement or process.

5 Remova lentamente a garrafa de tinta da entrada.

Diagram showing a hand operating a device with labeled parts and directional arrows, including a zoomed-in view of the device.

6 Recoloque firmemente a tampa do cartucho.

Diagram illustrating a mechanical assembly with red arrows indicating force or direction of movement, alongside a magnified inset showing the same lever mechanism.

Verificar! CMY

Diagram showing printer operation with numbered arrows indicating process flow

https://ij.start.canon/connect ←→ C

Simple line drawing of a printer with a paper stack and a red upward arrow indicating compression (no text or symbols)

Pure mechanical diagram showing a lever mechanism with a red arrow indicating direction (no text or symbols)

Diagram showing mechanical assembly with numbered parts and directional arrows indicating motion or force

Two symbolic icons: a blank rectangle and a red prohibition sign with a circle.

Two-step diagram showing printer insertion process: one with a red arrow indicating left motion, the other with a red arrow indicating right motion (no text or symbols)

Transportando a Impressora

Diagram of a mechanical component with red arrows indicating force or direction (no text or symbols)

Illustration of a printer with a cloth and paper bag, shown from front and side views (no text or symbols)

Configuration de l'imprimante

Diagram showing a printer with a power button icon and a dotted line indicating rotation or adjustment.

Configuration de l'imprimante

https://ij.start.canon/G2470

Illustration of a printer with three speech bubbles containing icons: power button, documents, and a document (no text or symbols)

2

Simple line drawing of a printer connected to a laptop (no text or symbols)

Diagram of a printer with an open lid and red arrow indicating rotation (no text or symbols)

Attention

Diagram showing a hand inserting a component into a device, with red arrows indicating direction (no text or symbols present)

Diagram showing two printer-like devices with labeled parts (C and B) and a red arrow indicating rotation or change.

Two safety warning signs: one indicating no hazard, the other showing a device with lightning bolts.

Diagram showing a device with labeled parts C and B, indicating a process or operation with red arrows indicating direction.

Technical diagram showing mechanical assembly with red arrows indicating direction of motion or force, likely illustrating a process or component movement.

Configuration de l'imprimante

Mechanical assembly diagram showing a lever mechanism with a red arrow indicating motion (no text or symbols present)

Technical illustration of a mechanical assembly with a close-up inset showing a pin inserted into a component (no text or symbols present)

Diagram showing a hand holding a tool with two red arrows indicating direction of movement or force, labeled ① and ②.

Diagram showing a hand operating a device with labeled parts and directional arrows, including a zoomed-in view of the device.

Diagram illustrating a mechanical device with red arrows indicating force application and a magnified inset showing the lever mechanism.

Diagram of an HP printer with labeled parts and red arrows indicating assembly or status

https://ij.start.canon/connect ←→ C

Diagram showing printer operation with upward arrow and prohibition symbol indicating no operation

Technical diagram showing mechanical assembly with numbered annotations and a prohibition sign in Chinese

Diagram showing two printer printing process steps: one with a red arrow indicating compression, the other with a red arrow indicating reverse compression (no text or symbols present)

Diagram of a mechanical component with red arrows indicating force or direction (no text or symbols)

Illustration of a printer with a cloth and paper bag, shown from front and side views (no text or symbols)

Настройка принтера

Diagram showing a printer with a power button icon and a dotted line indicating rotation or adjustment.

Настройка принтера

https://ij.start.canon/G2470

Illustration of a printer with three speech bubbles containing icons: power button, documents, and a document (no text or symbols)

2

Simple line drawing of a printer connected to a laptop (no text or symbols)

Diagram of a printer with an open lid and red arrow indicating rotation (no text or symbols)

Осторожно!

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

Diagram showing two steps (C and B) of a device with labeled components and directional arrows indicating process flow.

Diagram illustrating three steps of a printer's internal structure, including no protection, disassembly, and heat release.

Diagram showing a connector emitting red arrows labeled B and C, indicating magnetic or electrical signal flow.

Technical diagram showing mechanical assembly with red arrows indicating direction of motion or force, likely illustrating a process or assembly step.

Настройка принтера

5. Заливка чернил

Внимание!

Mechanical assembly diagram showing a lever mechanism with red arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing tool path and component detail (no text or symbols)

Diagram showing a hand operating a tool with two red arrows indicating direction of movement or force, labeled ① and ②.

Diagram showing hand operating a device with red arrows indicating rotation and movement, labeled with step numbers ① and ②.

Diagram illustrating the mechanism of a car seatbelt switch, showing step-by-step assembly and rotation direction.

Diagram showing printer operation with labeled parts and red arrows indicating downward movement

https://ij.start.canon/connect ←→○

Simple line drawing of a printer with a paper stack and a red upward arrow (no text or symbols)

Pure mechanical diagram showing a bracket with internal components and a red arrow indicating direction (no text or symbols)

Diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

Two basic symbols: a blank rectangle and a red prohibition sign with a circle.

Two-step diagram showing printer insertion process: one with a red arrow indicating left motion, the other with a red arrow indicating right motion (no text or symbols)

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Line drawing of a printer with a cloth and paper bow (no text or symbols)

Line drawing of a printer with a paper bag attached to it, no text or symbols present

Diagram showing a printer with a power button icon and a dotted line indicating the power output.

https://ij.start.canon/G2470

Illustration of a printer with three speech bubbles containing icons: power button, documents, and a document (no text or symbols)

2

Simple line drawing of a printer connected to a laptop (no text or symbols)

Diagram of a printer with an open lid and red arrow indicating rotation (no text or symbols)

Увага!

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

Diagram illustrating a printer's internal structure and its prohibition signs, labeled with circled and non-circled symbols.

Diagram showing a device with labeled components (C and B) and directional arrows indicating flow or movement.

Technical diagram showing mechanical assembly with red arrows indicating motion or force direction, likely illustrating a process or assembly step.

Mechanical assembly diagram showing a lever mechanism with red arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing tool path and component detail (no text or symbols)

Diagram showing a hand operating a tool with two red arrows indicating direction of movement or force, labeled ① and ②.

Diagram showing a hand holding a device with two red arrows labeled ① and ② indicating movement or change, and a zoomed-in view of the device's internal structure.

Diagram illustrating a mechanical assembly with red arrows indicating force or motion, showing a lever mechanism and a close-up of the lever's movement.

Diagram showing printer operation with numbered arrows indicating process steps

https://ij.start.canon/connect ←→ C

Simple line drawing of a printer with a paper stack and a red upward arrow indicating compression (no text or symbols)

Pure mechanical diagram showing a bracket with a red arrow indicating direction (no text or symbols)

Diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

Two basic symbols: a blank rectangle and a red prohibition sign with a circle.

Two-step diagram showing printer insertion process: one with a red arrow indicating left motion, the other with a red arrow indicating right motion (no text or symbols)

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Illustration of a printer with a cloth and paper bag, shown from two different angles (no text or symbols)

17

تحميل الورق

Illustration of a printer with a red arrow indicating compression or disassembly (no text or symbols present)

Simple line drawing of a printer with a paper lid and an upward arrow (no text or symbols)

افتتح دعامة الورق.

Diagram showing a safety instruction with numbered steps and a no-smoking symbol below

Pure mechanical component diagram without any text, numbers, or symbols

Illustration of a printer with a ribbon tied to it, shown in line drawing style (no text or symbols)

Line drawing of a printer with a cloth and paper bag attached to the top (no text or symbols)

https://ij.start.canon/connect

Technical line drawing of a mechanical component with no visible text or symbols

CMY

Diagram showing printer operation with numbered arrows indicating process steps

8

Diagram showing a hand holding a tool with two red arrows labeled ① and ② indicating direction of movement or process.

Diagram showing hand operating a device with red arrows indicating rotation and movement, labeled with step numbers ① and ②.

Diagram illustrating a mechanical assembly with red arrows indicating force or direction, alongside a magnified view of the component being adjusted.

.5. صب الحير

三

Mechanical assembly diagram showing a lever mechanism with red arrows indicating motion direction (no text or symbols)

Technical illustration of a mechanical assembly with tool and component details (no text or symbols)

Diagram showing a device being processed with labeled parts C and B, indicating process steps or inspection.

Technical illustration of a mechanical component with red arrows indicating assembly or disassembly (no text or symbols present)

4. retirement رؤس الطباعة

Diagram of a printer with a red arrow indicating compression or disassembly, showing Chinese text labels.

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

Diagram showing four steps of a battery pack with red arrows indicating movement, labeled (C) and (B)

Diagram showing two printer-like devices with red arrows indicating rotation, labeled with circled and letter B.

Two safety warning signs: one indicating no hazard, the other showing a hazard with lightning bolts.

https://ij.start.canon/G2470

Simple line drawing of a printer connected to a laptop (no text or symbols)

Illustration of a printer with three speech bubbles containing icons: power button, documents, and folder (no text or symbols)

2. تشغيل الطابعة

Diagram showing a power button icon connected to a printer, with a red dashed line indicating the power connection.

1. محتويات العليا

رównس الطباعة

زجاجات الحبر

specialist الطاقة

https://ij.start.canon
