| Product Type | DAB+/FM/Bluetooth Radio |
| Brand | Lenco |
| Model | DAR-017 |
| Dimensions (W x D x H) | 170 x 97 x 103 mm |
| Weight | 600 g |
| Power Supply | AC adapter 100-240 V~ 50/60 Hz, output 5.9 V / 1.0 A (5.9 W) |
| Standby Power Consumption | < 1 W |
| Audio Power | 3 W RMS |
| Radio Bands | DAB+ (174-240 MHz), FM (87.5-108 MHz) |
| Wireless Connectivity | Bluetooth 2.4-2.48 GHz (reception only) |
| Headphone Jack | 3.5 mm jack output |
| Display | Color display with adjustable backlight |
| Station Presets | 10 DAB presets and 10 FM presets |
| Clock Functions | Alarm (dual), manual or auto setting (DAB/FM), sleep mode, sleep timer |
| Equalizer | Normal, Classic, Jazz, Pop, Rock, Speech, My equalizer (treble/bass) |
| Operating Temperature | 0 °C to 35 °C |
| Included Accessories | User guide, AC adapter |
| Care and Cleaning | Soft dry cloth; do not use solvents |
| Safety Instructions | Do not open, do not expose to moisture, keep a space of 5 cm around, use only the original adapter |
| Spare parts / repairability | Repair only by an approved professional; opening voids warranty |
| General Information | Non-professional household use; conformity declaration available at commaxx-certificates.com |
Frequently Asked Questions - DAR-017 LENCO
User questions about DAR-017 LENCO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Radio in PDF format for free! Find your manual DAR-017 - LENCO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DAR-017 by LENCO.

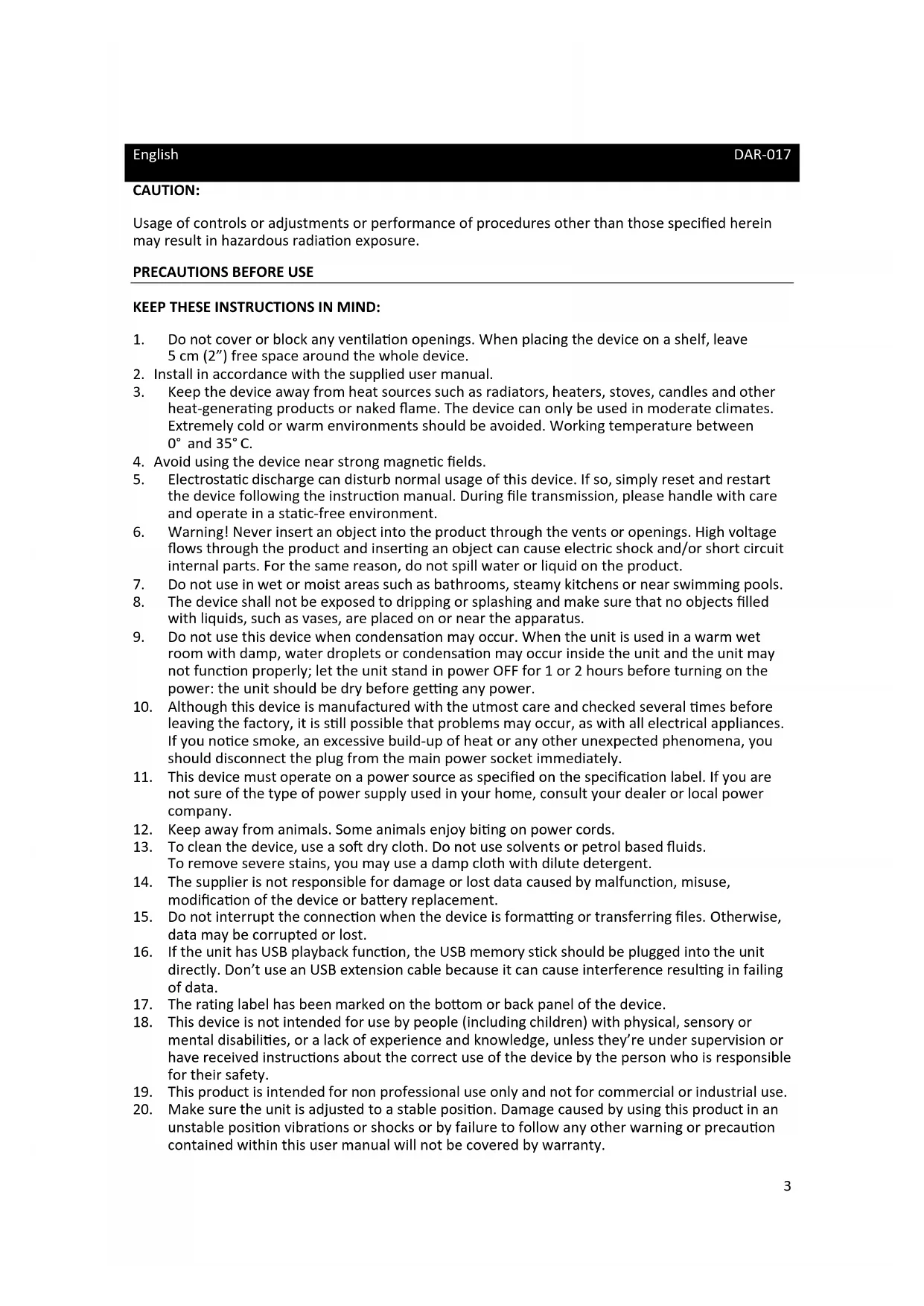

USER MANUAL DAR-017 LENCO
Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
KEEP THESE INSTRUCTIONS IN MIND:
- Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
- Install in accordance with the supplied user manual.
- Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^ C.
- Avoid using the device near strong magnetic fields.
- Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
- Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
- Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
- The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
- Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
- Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
- This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
- Keep away from animals. Some animals enjoy biting on power cords.
- To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.
- The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
- Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.
- If the unit has USB playback function, the USB memory stick should be plugged into the unit directly. Don't use an USB extension cable because it can cause interference resulting in failing of data.
- The rating label has been marked on the bottom or back panel of the device.
- This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
- This product is intended for non professional use only and not for commercial or industrial use.
-
Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
-
Never remove the casing of this device.
-
Never place this device on other electrical equipment.
-
Do not allow children access to plastic bags.
-
Only use attachments/accessories specified by the manufacturer.
-
Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Long exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.
-
If the product is delivered with power cable or AC power adaptor:
-
If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.
- Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.
● Unplug this device during lightning storms or when unused for a long period.
● The socket outlet must be installed near the equipment and must be easily accessible. - Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
● Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.
● Devices with class 2 construction do not require a earthed connection.
● Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit. -
Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.
-
If the product contains or is delivered with a remote control containing coin/cell batteries: Warning:
● "Do not ingest battery, Chemical Burn Hazard" or equivalent working.
● [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
- Keep new and used batteries away from children.
- If the battery compartment does not close securely, stop using the product and keep it away from children.
- If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- Caution about the use of Batteries:
● Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
● Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.
● Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.
- Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
● Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.
● A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
● Attention should be drawn to the environmental aspects of battery disposal.
INSTALLATION
- Unpack all parts and remove protective material.
- Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.
Accessories:
- User manual


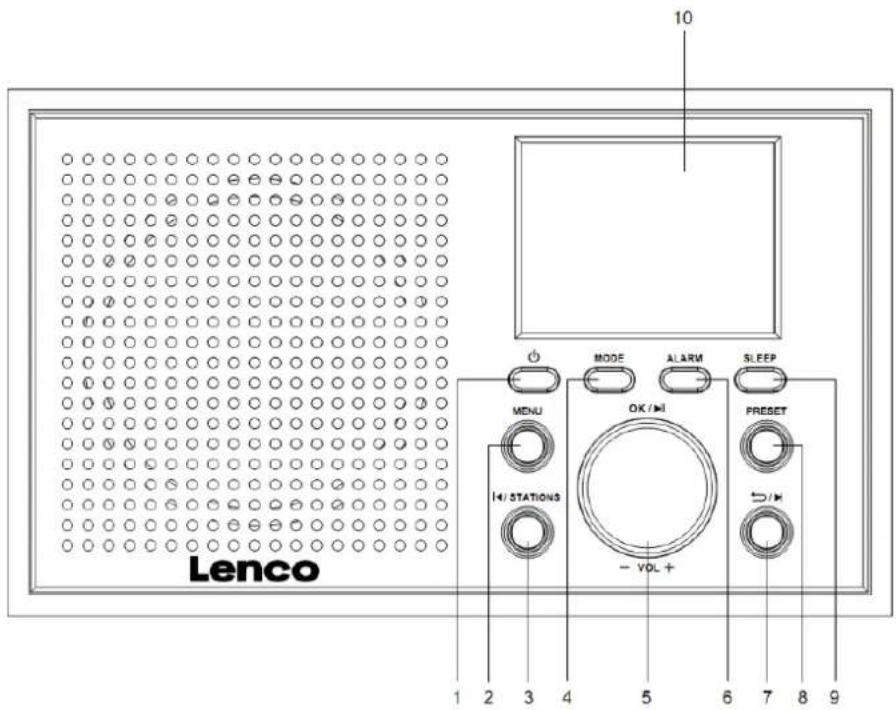

- Standby button
- Menu button
- Left/Stations button
- Mode button
- OK/Vol+/Vol-/Nagivate/play/pause/Snooze/Info knob
- Alarm button
- Back/Right button
- Preset button
- Sleep button
- Color display

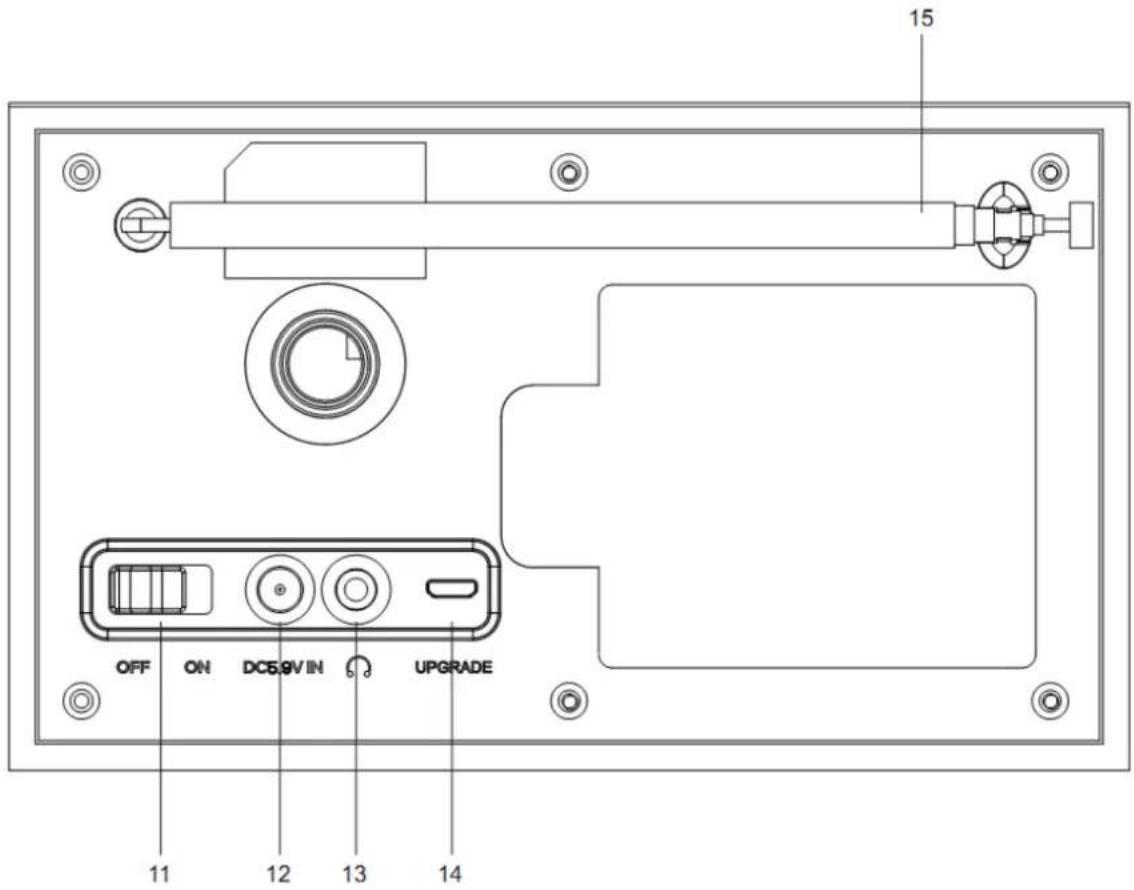

Product Rear Overview
- On/off switch button
- DC IN socket
- Headphone out socket
- Micro USB socket for upgrade
- Telescopic antenna
Initial use
Before operation, please make sure that the VOLTAGE mentioned on the power supply is same as the voltage of your local area.
Use the supplied mains adaptor to connect the device to a household mains socket.
Switch the device on with the power switch on the rear.
Basic operation-getting started
Basic operation-getting started
- Connect the mains adaptor to the DC IN socket, fully extend the telescopic antenna, plug in and switch on at the mains.
- The display backlight will illuminate and the clock (00:00:00) (Time is not set) will flash
- On the very first use the DAB mode will automatically be selected and the radio will perform a full scan. The display will show 'Scanning' with a bar indicator showing the scan progress and the total number of stations found.
- When the scan is finished the radio will play the first alphanumerically found station. If the radio does not find any stations, 'No DAB Station' will be displayed.
- Adjust the volume to the desired level using the VOL(+/-) knob.
- Press the stations button and use knob to scroll through the stations list. Press the OK knob on your favorite station.
- Press the Mode button to switch between DAB, FM, and Bluetooth mode,
- Press the Standby button to go into 'Standby' mode.
- Press Sleep to set the Set Sleep Timer: Use Volume knob and rotate to choose between Sleep off-15 minutes-30 minutes-45 mintues-60 minutes-90 minutes. The radio will go into standby when the selected minutes have been counted down.
Using the radio- DAB mode
DAB Mode- Full scan
This function will scan for all available DAB stations, Band III channels.
In DAB mode, press Menu button and rotate the ok knob to select 'Full Scan' then short press the ok knob to start the DAB full scan. When the scan is finished, the radio will return to the last played DAB radio station. All stations found will be listed in the station list, which is shown when pressing the 'stations' button.
Please note that the available DAB+ radio stations differ per region/city
DAB Mode- Manual tune
This function allows a specific or new ensemble to be manually added to the stations already available on the radio.
In DAB mode, press the Menu button and use the ok knob to navigate until "Manual tune" is highlighted, press the ok knob to confirm.
Use the ok knob to navigate until the desired frequency is selected and then press the ok knob, the frequency and name of the ensemble and the signal strength will be displayed.
Press the ok knob again to add the ensemble and automatically tune to that station.
DAB Mode- Prune Invalid
This function will remove unavailable stations from the station list. Press the Menu button. Use the ok knob to navigate to the “Prune Invalid” option and press the ok knob to confirm.
Rotate the ok knob to select (yes) to proceed to prune the invalid/unavailable stations. If (No) is selected the operation will be cancelled.
DAB Display modes, station Information on DAB Mode
Signal Strength: Displays a signal bar with the strength of the current station. Bit Error Rate (BER): Provides details of the signal error rate.
Channel and Frequency: Displays the station's transmission channel number and frequency.
PTY (Program Type): Shows the type and description of the program provided by the DAB station.
Time and Date: Displays the time and date information provided by the broadcaster.
Dynamic Label Segment (DLS): Displays scrolling text information supplied by the broadcaster.
Bit Rate: The data rate of which the signal is being transmitted.
DAB Mode- DRC
DRC is dynamic range compression, and it is about increasing the loudness of the quieter parts of the audio signal, and decreasing the loudness of the louder parts.
In DAB mode, press the Menu button, then use the ok knob to navigate until "DRC" is highlighted.
Press the ok knob to confirm.
Now use the ok knob to cycle through off, high, low level. Press the ok knob to confirm your choice.
DAB mode- System settings
Sleep:
The device features a sleep timer function, which switches off the radio off after a certain time if no actions have been performed up until then. Also you can enter sleep setting by press SLEEP button.
- Rotate the knob to select either OFF-15-30-45-60-90 minutes.
- Press the knob to confirm your selection.
Alarm Setting
Note: Check that the radio has the correct time and date before you set an alarm.
You can also enter Alarm setting by press the 'ALARM' button on the front of the radio.
Rotate knob to select 'Alarm 1' or 'Alarm 2' for setting.
When you select 'Alarm 1' and press ok knob, rotate the ok knob to "Alarm" and short press the ok knob to switch the alarm on- or off.
Rotate the ok knob to scroll to 'frequency'. You can choose Daily, Once, Weekends or Weekdays. Short press the ok knob to confirm your selection.
Rotate the ok knob to scroll to 'Wake Up Time' and short press the ok knob. The Hour digits will start to flash.
Rotate the ok knob to set the desired hour and then short press the ok knob to confirm.
The minute digits will start to flash.
Rotate the ok knob to set the minutes and short press the ok knob to confirm.
Rotate the ok knob to scroll to the Alarm sound 'source'. You can choose between Buzzer, Digital Radio or FM. Short press the ok button to confirm.
Rotate the ok knob to scroll to 'duration'. You can choose 15, 30, 45, 60, 90 or 120 minutes. Short press the ok knob to confirm.
Rotate the ok knob and select 'Volume' to set the volume for your alarm. Rotate the ok knob to set the volume. (The minimum volume you can select is 2). Short press the ok knob to confirm. Your Alarm is now ready to use.
Note: The alarm volume will increase progressively until it reaches the alarm volume you have set.
Repeat the above steps to set Alarm 2 if you need.
Equalizer: Rotate the ok knob to choose between -Normal-Classic-Jazz-Pop-Rock-Speech, My EQ, My EQ set up(Treble, Bass)
Time/Date: Set Time/Date
Press the ok knob, the Date digit will flash, rotate the ok knob to choose correct date and press the ok knob to confirm.
The Month digit will start to flash. Rotate the ok knob to choose correct month and press the ok knob to confirm.
The Year digit will start to flash. Rotate the ok knob to choose correct year and press the ok knob to confirm.
The Hour digit will start to flash. Rotate the ok knob to choose correct hour and press the ok knob to confirm.
The Minute digit will start to flash. Rotate the ok knob to choose the correct minute and press the ok knob to confirm.
Now you have finished the time/date configuration.
Auto update: Choose from what source the radio will update the time automatically.
You can choose the following options:
- From Any: updates the time from DAB or FM signal
- From Digital Radio update: updates the time from the DAB signal
- From FM: updates the time from an RDS channel
- No update: If you want to set the time manually
Set 12/24 hour: Rotate the ok knob to choose to set 12 hour- or 24 hour time display
Set date format: Rotate the ok knob to choose DD-MM-YYYY or MM-DD-YYYY.
Backlight: Timeout: off-10 sec-20 sec-30 sec-45 sec-60 sec-90 sec-120 sec-180 sec
On level: High-Medium-Low
Dim level: High-Medium-Low-Off
Language: English, Italian, Deutsch, Francais, Nederlands, Spanish
Factory reset: Press the Ok knob and choose 'Yes' to start factory reset.
Software update: Press the ok knob and choose "yes" to update the software if needed. Updating can only be done with a micro usb cable and connect to computer.
Notes: only select the software update option if you have an update for this unit. (if you accidentally selected this option, use the power off/on the restart the radio)
SW version: Press OK to view system version.
Using the radio- FM MODE
Turn the radio on, press the Mode button repeatedly and select the FM mode. The display will show 'FM' and the current station name or frequency if RDS is not available.
Manual search
To search manually, first short press the 'STATIONS' button, you will see 'start tune' displayed, and 'Tune' keep showing on right side of the display, then turn the ok knob right to scan upwards or turn the ok knob left to scan downwards, when you finished manual search, short press 'STATIONS' button, 'Tune' disappeared.
Auto search
To initiate auto search, press and hold the ok knob. The radio starts to scan the frequency band. It will stop automatically when a station has been found.
If you want the radio to auto search downwards or upwards then you have to do a manual search downwards or upwards prior to long pressing the ok button.
FM mode- Scan settings
Press the menu button and rotate the ok knob to select 'Scan setting'. Short press the ok knob and choose between 'Strong stations only' or 'All stations' by turning the ok knob. Press the ok knob to confirm your choice. If choose 'Strong station only', the radio will only scan and play stations with a strong signal. If selecting 'All stations', the radio will also scan and play stations with a weak signal.
FM mode- Audio setting
Press the menu button and rotate the ok knob. Choose 'Forced mono' 'Yes' or 'No' and short press the ok knob to confirm. If your favorite radio stations signal is weak, then choose 'Forced mono 'Yes' to get better sound quality.
FM mode-System settings (see DAB mode 'system settings)
FM Display Modes
This function allows information relating to the current station to be shown in the display, short press the ok knob repeatedly to scroll through the following information screens
RDS (scrolling text): The current selected Radio station may include a scrolling message about the current program.
Program type: This describes the style of the program being broadcast.
Station name: such as BBC RD of the Frequency in Mhz
Audio Mode: The display will show if the station being received is stereo or mono
Time/date: the time and date will be automatically updated by the radio time signal (if RDS is available).
Using the radio- preset station function
This radio allows you to store up to 10 DAB and 10 FM radio stations as preset. Presets are quickly selectable radio stations by using the 'preset' button on the Radio.
Storing DAB station as preset
Follow the instructions above to select a DAB radio station.
Press and hold the 'Preset' button. '1: (Empty)' is displayed. If no previous station has been stored.
Rotate the ok knob to scroll through the preset location that you would like to store the radio stations to (1-10).
Short press the Select knob to store the station. The message “Preset XX saved” will appear on the display.
Recalling DAB Preset stations
You can quickly select your presets by pressing the Preset button, then rotate the ok knob to scroll through the stored presets. Short press the ok knob to choose to the selected station.
If you choose an empty preset, then "Preset empty" will be displayed.
Snooze Function
When the alarm sounds, you can press the ok knob to snooze. The default snooze time is 5 minutes.
To stop the alarm, press the standby button.
Bluetooth function
Turn on the radio and short press the Mode button until Bluetooth mode is selected. Turn on the Bluetooth on your Bluetooth device, search for devices and then select "Lenco DAR-017". Click it to pair. When connected successfully you will hear a voice "connected".
You can press the Stations button to select previous track or the back button to go to the next track.
You can press the ok knob to play or pause the music playback.
The volume can be adjusted by turning the ok knob up- or downwards (note that the volume level is not synced with the Bluetooth device, meaning you have to turn up the volume of your Bluetooth device manually first)
To disconnect the existing pairing and pair with new device just press and hold the ok knob.
"This product has a bluetooth reception function, you can't transmit any bluetooth sound with it: this means that you can receive wirelessly a bluetooth sound signal from an external source like a smartphone."
Technical Specifications
| Connections | DC IN for power adapter, 3.5mm headphone out |
| Power adaptor Input | 100-240V~50/60 Hz, 0.2A max |
| Power adaptor Output | 5.9V/1.0A 5.9W |
| Power consumption | 3W RMS |
| Battery | 4 x AA(not included) |
| Power consumption (standby) | <1W |
| Operating Temperature | 0°C-35°C |
| Operating position | Horizontal |
Power supply adaptor: (For EU only)
Manufacturer: Shenzhen Adition Audio Science and Technology Co., Ltd
Model Number: AD0600591000EU
Use only original AC adaptor
Use only the power supply listed in the user instructions.
Dim. unit 170 x 97 x 103 mm (WxDxH)
Weight 600g
NOTE: Only use the power supply listed in this manual.
Information Power Adapter:
Manufacturers name and address : Shenzhen Adition Audio Science & Technology Co., Ltd.
Mingzhuo Industry Park, Guangming New District, Shenzhen, China.
Model Identifier : AD0600591000EU
Average active efficiency : 75.55 %
No load Power consumption : 0.07 W
Guarantee
Commaxx B.V. offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.
Important note: It is not possible to send products that need repairs to Commaxx B.V. directly.
Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.
This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.
Disclaimer
Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.
Disposal of the Old Device
DECLARATION OF CONFORMITY
Hereby, Commaxx declares that the radio equipment type [Lenco DAR-017] is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
https://commaxx-certificates.com/doc/dar-017_doc.pdf
| Type RF | Frequency range (MHz) | Power (dBm) |
| FM | 87.5-108 | - |
| DAB+ | 174-240 | - |
| Bluetooth | 2402-2480 | <6 |
Service
For more information and helpdesk support, please visit www.lenco.com
Commaxx B.V. Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands.
VOORZICHTIG:
Symbol of a trash bin crossed out by two diagonal lines, with a solid black rectangle below (no text or labels)natural_image
Simple line drawing of an open book with no text or symbols visible- Netzadapter
Modellidentifikator: AD0600591000EU
Simple line drawing of an open book with no text or symbols visiblenatural_image
Electric plug with attached cable and connector (no visible text or symbols)natural_image
Symbol of a trash bin crossed out by two diagonal lines, with a solid black rectangle below (no text or labels)DÉCLARATION DE CONFORMITÉ
Gray electronic device with attached cable and connector (no visible text or symbols)natural_image
Symbol of a trash bin crossed out by two diagonal lines, with a solid black rectangle below (no text or labels)natural_image
Simple line drawing of an open book with no text or symbols visible- Strømforsyning
- Knappen Standby
- Knappen Menu
- Knappen Venstre/Stations
- Knappen MODE
- Drejeknappen OK/Vol+/Vol-/Nagivation/Afspil/Pause/Snooze/Info
- Knappen Alarm
- Knappen Tilbage/Højre
- Knappen Preset
- Knappen Sleep
- Farvedisplay
Oversigt Over Bagpanelet
- Knappen On/Off
- DC IN-stik
- Stik til hovedtelefoner
- Micro USB-stik til opgradering
- Teleskopantenne
Første ibrugtagning
Producent: Shenzhen Adition Audio Science and Technology Co., Ltd
Modelnr.: AD0600591000EU
Brug kun den originale strømforsyning
Simple line drawing of an open book with no text or symbols visible- Strömadapter
Modellidentifiering: AD0600591000EU
Inspänning: 100–240 VAC
Inspänningens frekvens: 50/60 Hz
Utspänning: 5,9 VDC
Utström: 1,0 A
Uteffekt: 5,9 W
Genomsnittlig aktiv effektivitet: 75,55%
Simple line drawing of an open book with no text or symbols visible- Verkkolaite
Mallitunniste: AD0600591000EU
