USER MANUAL GS240C Greencut

DISPOSAL AND RECYCLING 29

DECLARATION OF CONFORMITY (EC) 30

INTRODUCTION Thank you for choosing this GREENCUT product. We are sure that you will appreciate its quality and that it will meet your needs for a long period of time. Remember that you can contact our Ofcial Technical Service for questions about assembly, use, maintenance, identication and troubleshooting and for the purchase of spare parts and/or accessories. ATTENTION: Read this manual carefully before using the product. Failure to observe the operating instructions and safety warnings may result in damage to the user and/or the product itself. The manufacturer is not liable for accidents and damage caused to the user, third parties and objects as a result of disregarding the contents of this manual. This product is not intended for professional use. Keep this instruction manual for future reference. If you sell this product, remember to give this manual to the new owner.

SAFETY RULES AND PRECAUTIONS

The following symbols and signal words are intended to explain the hazards and information related to this product.

ATTENTION Indicates a hazardous situation to which special attention must be paid to avoid injury and/or damage to the machine. NOTE Indicates useful information that can facilitate the work. All the information contained in this manual is relevant to your own safety and that of your environment. If you have any doubts about the information contained in this manual, please consult a professional or contact the Ofcial Technical Service. The following hazard and precautionary information includes the most likely situations that may arise during the use of this machine. Refer to all product literature, packaging and labels before use.25

WARNING ICONS Icons on the warning labels that appear on this machine and/or in the manual indicate information necessary for the safe use of this machine. Danger! Read this manual carefully before starting the machine. Wear a helmet. Wear eye and ear protection. Wear a respirator to protect against dust, vapour and other toxic fumes. Wear sturdy, slippery gloves. Wear leg protection and slip-resistant safety boots with steel toecaps. Material protection hazard. Beware of objects that may be ejected. DESCRIPTION

Cut wood only. Do not use the chain saw for other than its intended purpose. Do not use the chain saw to cut plastic materials, bricks or building materials other than wood. Any use other than that described above may lead to dangerous situations and exempts the manufacturer from any liability. TECHNICAL CHARACTERISTICS GS240C/GS240C-1 Power 2400W Tension 230-240V / 50Hz Blade dimensions 400 mm (16”) Chain tooth dimensions 1,27mm (1/20”) Chain pitch 9,4mm (1/27”) Cutting length 385 mm Lubricant tank capacity 150 ml Cutting speed 15m/s Weight 4,5 kg NOTE: GREENCUT reserves the right to modify the technical characteristics without prior notice.26

DETAILED PRODUCT DESCRIPTION

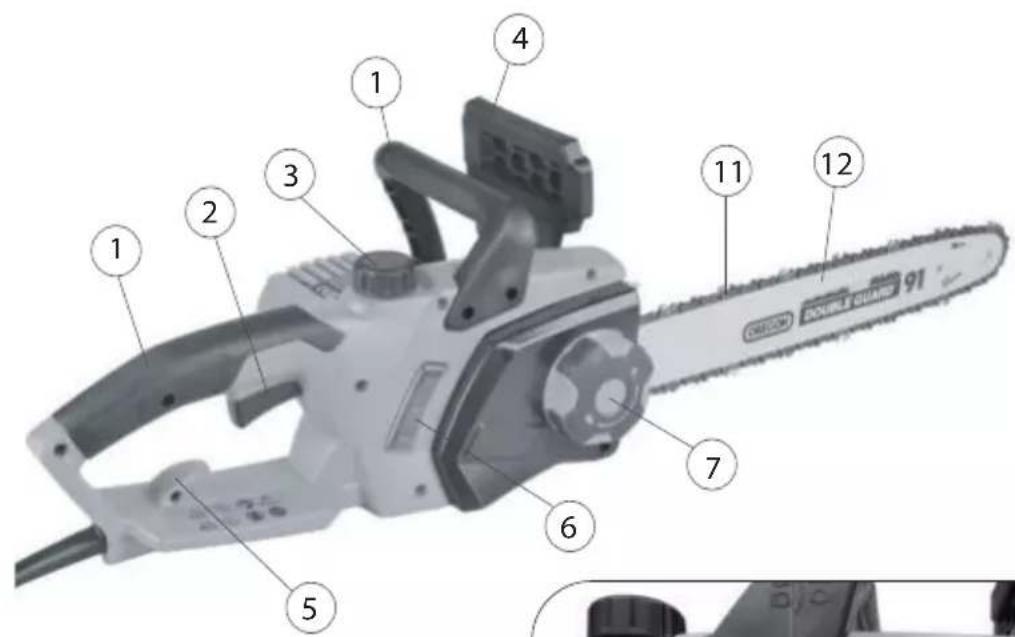

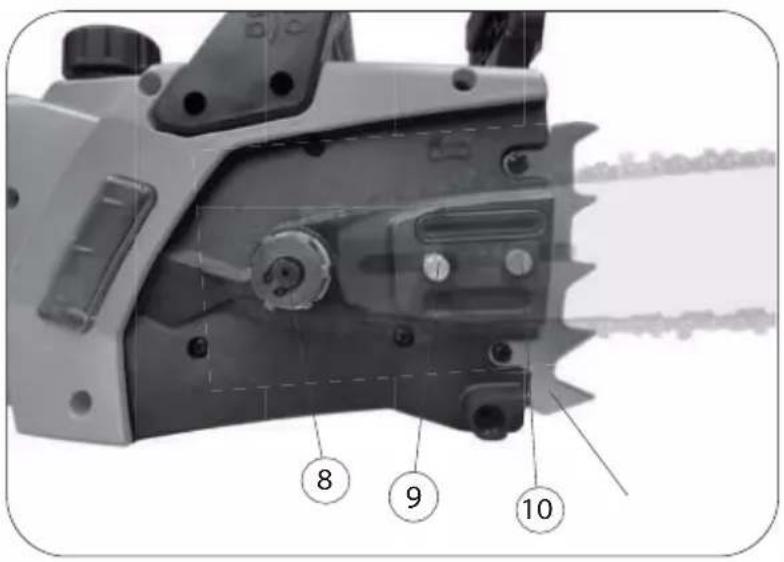

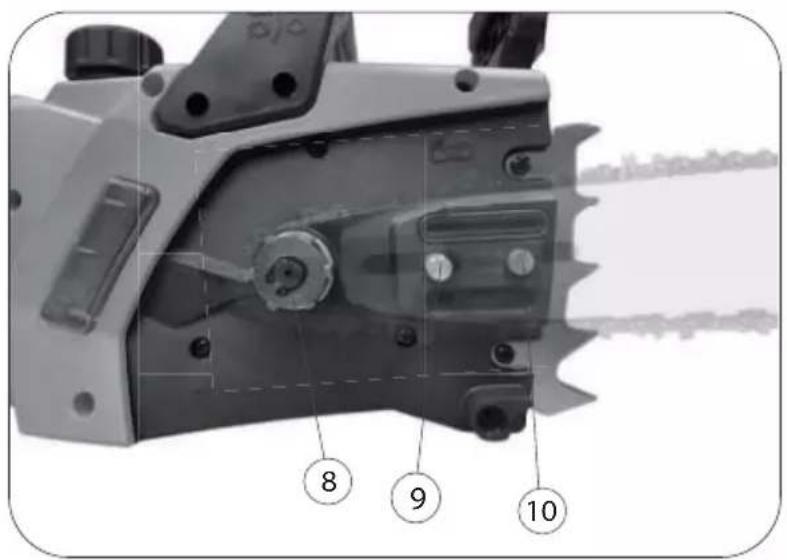

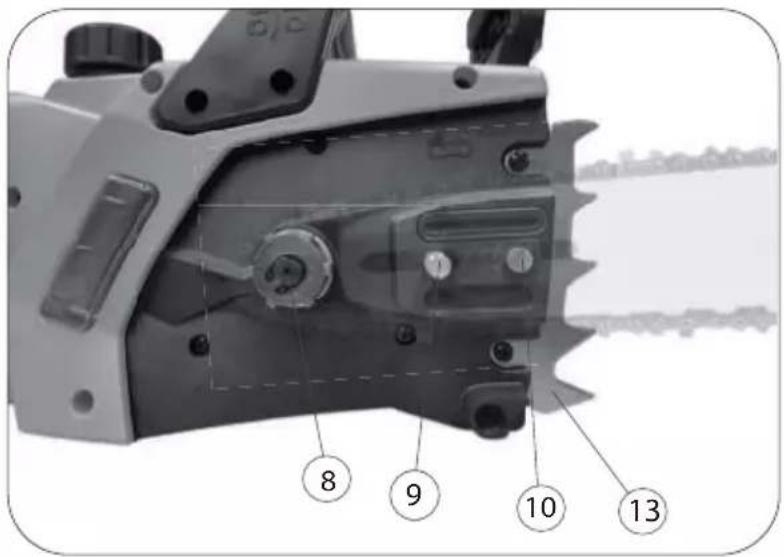

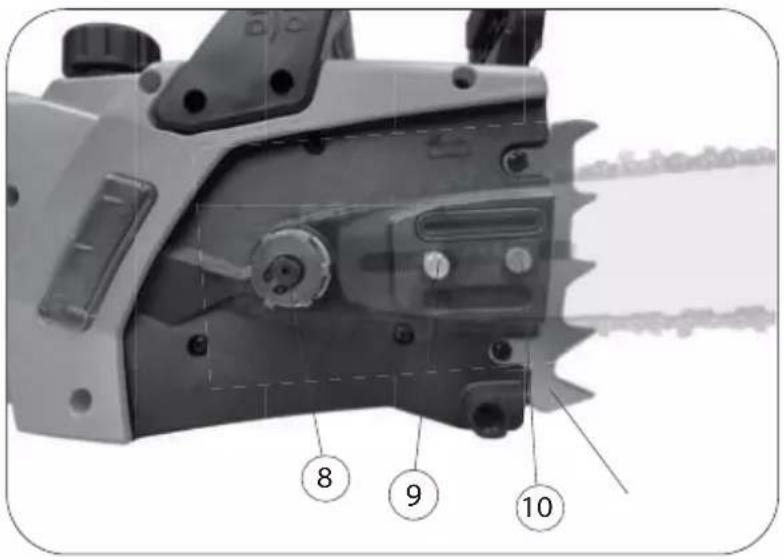

NOTE: Products detailed in this manual may vary in appearance, inclusions, description and packaging from those shown or described herein.1. Front and rear handle2. Stop-start button3. Oil tank4. Chain guard and brake5. Cable hook6. Oil level sight glass7. Sword clamping system8. Chain gear9. Guide shaft10. Chain tensioning shaft11. Chain12. Blade13. Claw

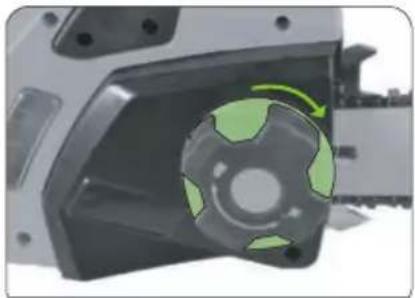

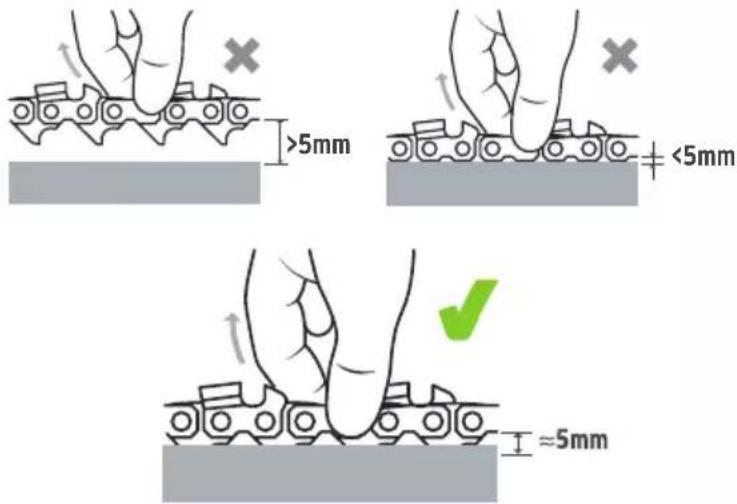

The chain must always be checked and tensioned when it is cold. All metals expand with temperature. If we tension the chain when it is hot, we run the risk of overtensioning it and causing it to suffer excessively when it is cold. Remember to always handle it when it is cold, with the machine switched off and always with the power cable disconnected. The chain tensioning of our GS240C is done by means of the side adjustment wheel on the bar cover. First of all, unlock the wheel to be able to manipulate it by slightly lifting and turning the inner part of the wheel (dark grey) counterclockwise. Once the rotation is unlocked, adjust the tensioning by turning the wheel (light grey): clockwise to tighten, anti- clockwise to loosen tension. Once the tensioning has been adjusted correctly, following the graphs above, lock the tensioner again by turning the inside of the wheel (dark grey part) clockwise until the position is adjusted and the wheel cannot rotate. To make sure that the tensioning is not excessive, switch on the machine and tap the trigger. The chain should not stop immediately, but should rotate for a second or two seconds more. >5mm <5mm28

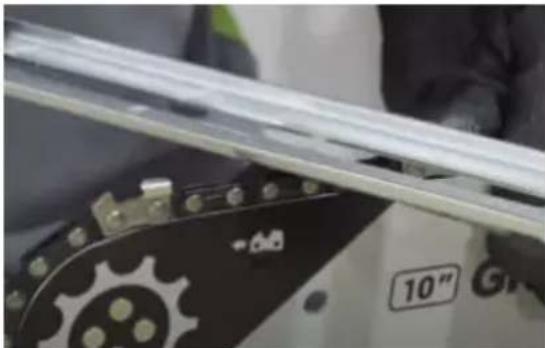

SHARPENING THE CHAIN TEETH

To sharpen the blade we will need: - A guide. - A limiting gauge. - A at le. - A round le.

1) We brake the chain so that we can start sharpening without it moving.

2) Mark with a pencil or felt-tip pen the tooth where we are going to start sharpening. This mark will serve as a guide

so that we don’t get lost and know where we have started sharpening.

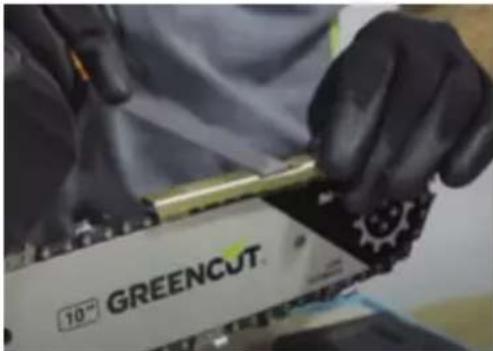

3) Insert the round le into the face of the tooth to be sharpened in a position of about 35º.

4) Start ling. Slide the le at the correct angle and with a slight upward force.

5) We perform the same procedure on all teeth.

6) In order to be able to work, we must unlock the chain, move the remaining part to the upper part of the sword

and lock it again so that we can work better.

7) Invert the machine and perform the same procedure (step 2 to 8) in the other direction.

8) Check the height with the gauge and rectify if necessary. The height between the guide tooth and the cutting

tooth should be about 3mm. You can watch our video explanation with all the details on our Youtube channel. (https://www.youtube.com/ watch?v=A-5fWqWKOwc).29

BLADE Clean the bar groove after each use. Clean the lubrication hole with chain oil. Check that the front wheel has not loosened: if it has loosened, the guide bar must be replaced. Check the guide bar for nicks. Remove any nicks or burrs with a at le. Check the tip of the guide bar for wear. If it is worn on one side only, turn it over. If it is worn on both sides, replace the guidebar with a new one. Check the bar groove for wear by shaking the chain. If it wobbles, you will need to replace the blade. MAINTENANCE SCHEDULE DAILY CHECK Chain tension Before each use, check Chain sharpening Before each use, visual check Oil level Before each use, visual check

INSPECCIONE Y LIMPIE

Blade Before each use Chain After each use

TRANSPORT AND STORAGE

• Allow the equipment to cool down completely before transporting or storing it.

• Always store the product in a clean, safe, dry place with temperatures between 0º and 45ºC.

• The equipment is not weatherproof and must not be stored in direct sunlight, at high temperatures or in damp locations.

• Never store the equipment in places where ammable materials, combustible gases or combustible liquids, etc. are present.

• Always store the machine with the cutting element guard tted.

• To reduce the risk of re, keep the machine clean by removing material, oil and grease.

• Store the machine out of the reach of children.

DISPOSAL AND RECYCLING

Worn products are potentially recyclable and should not be disposed of in the regular trash. Please help us to protect the environment and preserve natural resources. Dispose of the appliance in an environmentally friendly manner. Do not throw it away with household waste. Its plastic and metal components can be separated and recycled. Please take this appliance to an approved recycling centre. The materials used in the packaging of the machine are recyclable: please dispose of them in the appropriate container.30 WARRANTY GREENCUT guarantees all products for a period of 3 years (valid for Spain). The guarantee is subject to the date of purchase taking into account the intended use of the product. The warranty does not cover wear and tear due to normal use, especially on the battery, non-compliance with the operating and maintenance instructions. operating and maintenance instructions. In the event that repairs or modications have been carried out by the consumer or anyone else other than with original GREENCUT spare parts, the warranty will be void. In the event of a justied warranty claim, we are authorised, at our discretion, to repair or replace the defective tool free of charge.Other claims that go beyond this warranty are not valid. FOR FURTHER INFORMATION ON WARRANTY AND MAINTENANCE, PLEASE CLICK HERE. DECLARATION OF CONFORMITY (DOC) We, PRAT INTERNATIONAL BRANDS S.L., owner of the GREENCUT brand, with registered ofce in Blanquers Street (plot 7-8) Polígono Industrial Valls. 43800 - Valls, SPAIN, declare that the GS240C handheld chainsaw from serial number 2021 onwards, are in conformity with the requirements of the applicable European Parliament and Council Directives:

• Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast). The delivered product corresponds to the EC type-examination specimen. Valls (SPAIN), 15th May 2022, Mireia Calvet , CEO (Authorised representative and responsible for technical documentation).31
