Product type	Handheld chainsaw
Brand	Greencut
Model	GSM210L
Power source	21 V lithium-ion battery
Battery capacity	1500 mAh
Guide bar length	260 mm
Usable cutting length	90 mm
Cutting speed	5 m/s
Number of cutting teeth	14
Weight	1 kg
Battery type	Lithium-ion
Battery voltage	21 V
Charger included	Yes
Charging temperature	0 °C to 40 °C
Usage	Wood cutting only
Safety devices	Safety button, lock
Maintenance	Cleaning, sharpening, chain tension
Storage	Dry place, frost-free, out of reach of children
Included accessories	Battery, charger, carry case, maintenance kit
Guarantee	2 years
Certification	CE

Frequently Asked Questions - GSM210L Greencut

How to charge the battery of the GSM210L chainsaw?

Plug the charger into a power outlet, then connect the charger to the battery via the cable. The red light turns on during charging and turns off when the battery is fully charged. Charge only between 0°C and 40°C.

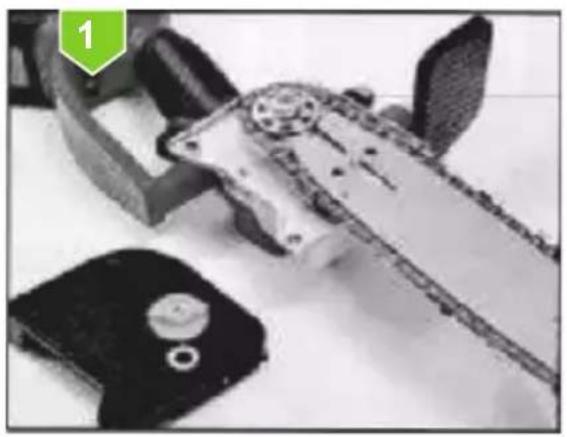

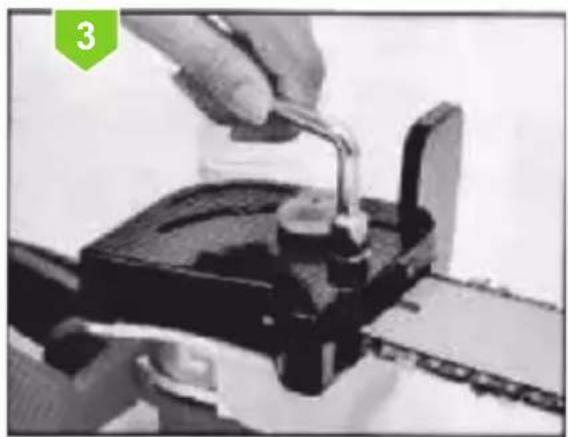

How to install the chain and guide bar?

Place the chain on the sprocket and guide bar, then insert the adjustment pin into the small hole. Cover with the cover, tighten the nut without locking it, adjust the chain tension by hand, then tighten the bolts with a wrench.

How to start the chainsaw?

Insert the battery, then press the switch button and the safety button simultaneously. The chainsaw starts and the LED light turns on. Release both to stop it.

How to adjust chain tension?

Check tension before each use. If the chain is too loose, loosen the guide bar nut, turn the adjustment screw to tighten, then retighten the nut. The chain should be tight but able to rotate freely.

How to sharpen the chain?

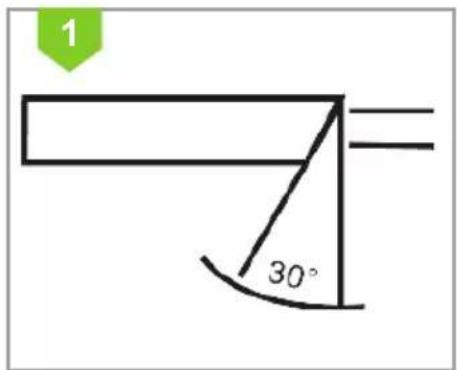

Use a suitable round file. The top tooth angle should be 30°, side teeth at 85°. File by pushing in the direction of the arrow. After a few sharpenings, lower the depth gauge (raker) to about 0.5 mm below the tip using a flat file.

What to do in case of kickback?

Kickback can occur if the tip of the guide bar touches an object. To avoid it: hold the saw firmly with both hands, do not cut with the tip, keep the chain sharp, and always start at full throttle. If kickback occurs, release the switch and secure the saw.

What are the important safety precautions?

Wear gloves, safety glasses, helmet, hearing protection, and safety boots. Keep children and bystanders more than 15 meters away. Do not work under the influence of substances. Check the tool condition before each use.

How to clean the chainsaw?

Use a damp cloth with water and mild soap. Do not allow liquids to penetrate inside. Do not use solvents. Clean the ventilation ducts and remove the battery before cleaning.

Where to find spare parts?

Contact Greencut's Official Technical Service. Use only original parts for safety and warranty. Non-original spare parts void the warranty.

How to store the chainsaw?

Remove the battery, clean the tool, cover the guide bar with the cover. Store in a dry, frost-free place out of reach of children. Store the battery separately between 10°C and 30°C, and recharge it every 3 months.

USER MANUAL GSM210L Greencut

Line drawing of a manual power tool with a saw blade and base (no text or symbols)

GSM210L / GSM210L-2 / GSM210L-4

ES

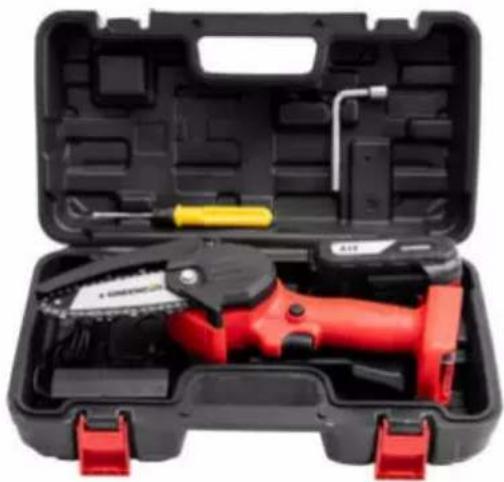

Open black and red tool kit with visible crimping and a yellow tool (no text or symbols)

MONTAJE

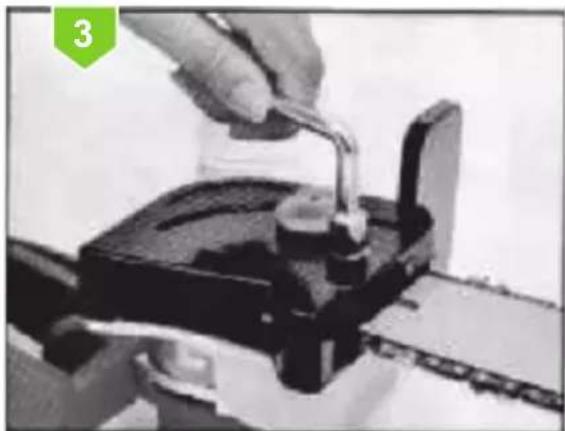

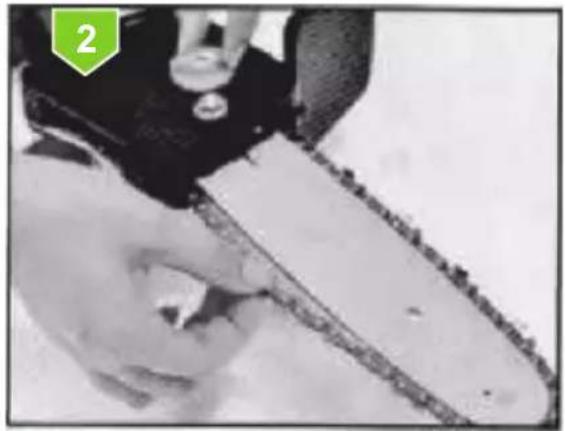

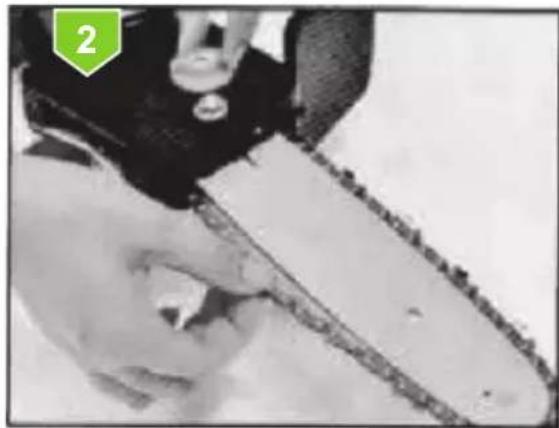

MONTAJE DE LA CADENA Y LA ESPADA

Close-up of mechanical components including a chain-linking device and a black plastic housing (no visible text or symbols)

Close-up of a person using a chainsaw to cut a piece of wood (no visible text or symbols)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

USO DEL PRODUCTO

2 Blade Tooth harrow 0.5 98°

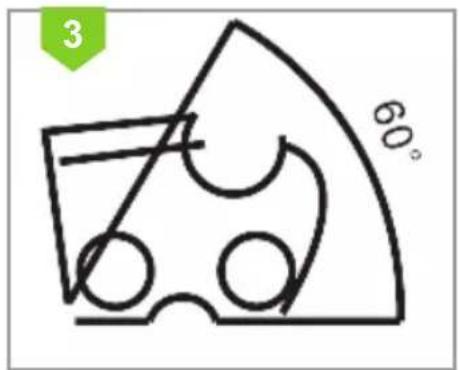

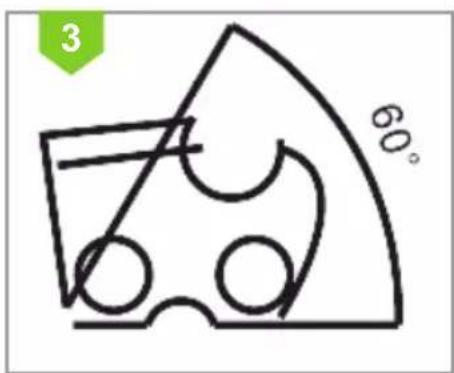

3 60°

makes your life go round

INDEX

INTRODUCTION 16

RÈGLES ET PRÉCAUTIONS DE SÉCURITÉ 16

ICÔNES D'AVERTISSEMENT 21

DESCRIPTION DU PRODUIT 22

CONTENU DE LA BOÎTE 23

ASSEMBLAGE 24

USAGE DU PRODUIT 25

ENTRETIEN 25

TRANSPORT ET STOCKAGE 27

ÉLIMINATION ET RECYCLAGE 27

GARANTIE 27

DÉCLARATION DE CONFORMITÉ (CE) 28

INTRODUCTION

Open black hard-shell tool kit with red and black components, no visible text or symbols

ASSEMBLAGE

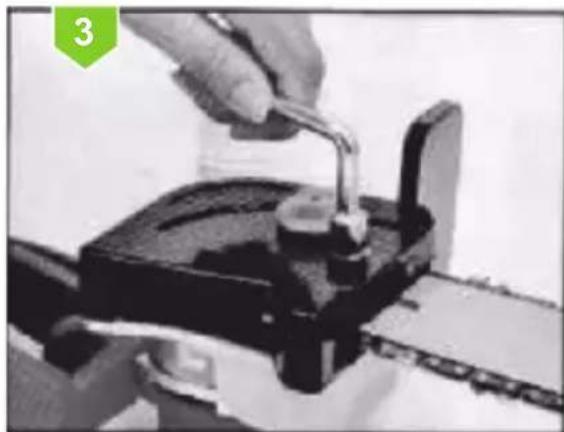

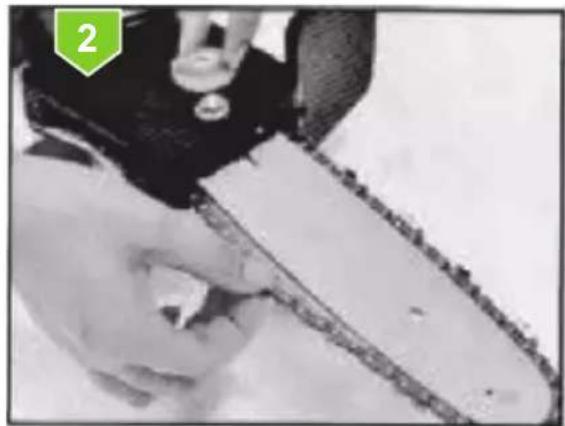

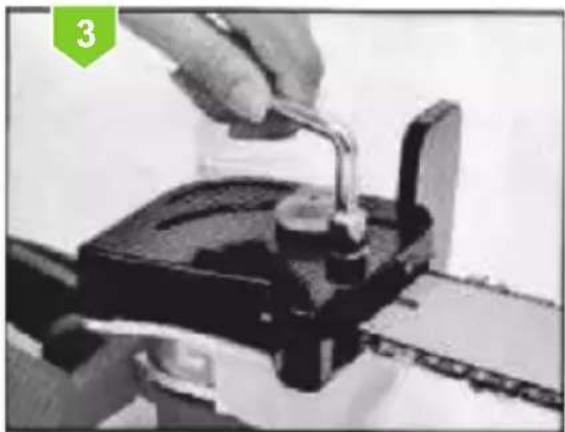

MONTAGE DE LA CHAÎNE ET DE L'ÉPÉE

Close-up of mechanical components including a clamping tool and a black plastic housing (no visible text or symbols)

Close-up of a person using a chainsaw to cut a piece of wood (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

USAGE DU PRODUIT

BOUTON D'INTERRUPTEUR ET BOUTON DE SÉCURITÉ

2 Blade Tooth harrow 0.5 98°

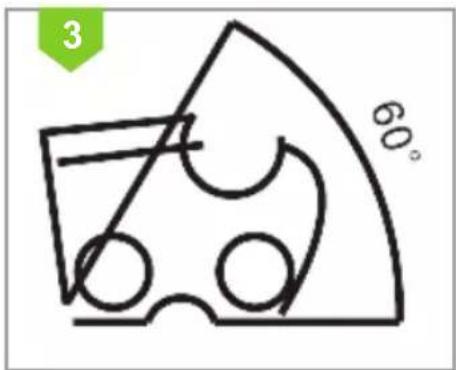

3 60°

makes your life go round

INDICE

INTRODUZIONE 29

Open black and red tool kit with visible tools and a yellow tool (no text or symbols)

MONTAGGIO

Close-up of mechanical components including a chain-linking tool and a black base plate (no visible text or symbols)

Close-up of hands using a chainsaw to cut a metal strip (no text or symbols visible)

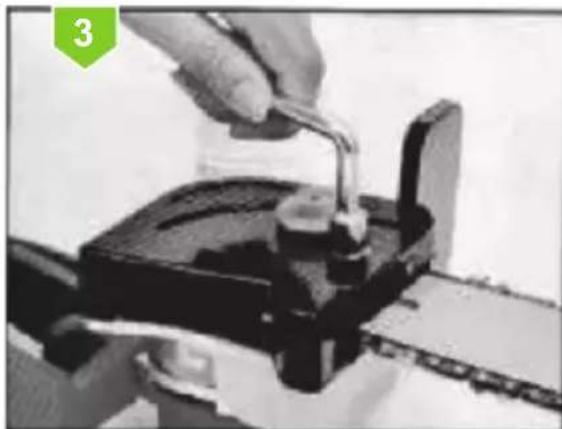

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

USO DEL PRODOTTO

PULSANTE DELL'INTERRUTTORE E PULSANTE DI SICUREZZA

2 Blade Tooth harrow 0.5 98°

3 60°

TRASPORTO E STOCCAGGIO

Valls (SPAIN), 9 March 2021,

makes your life go round

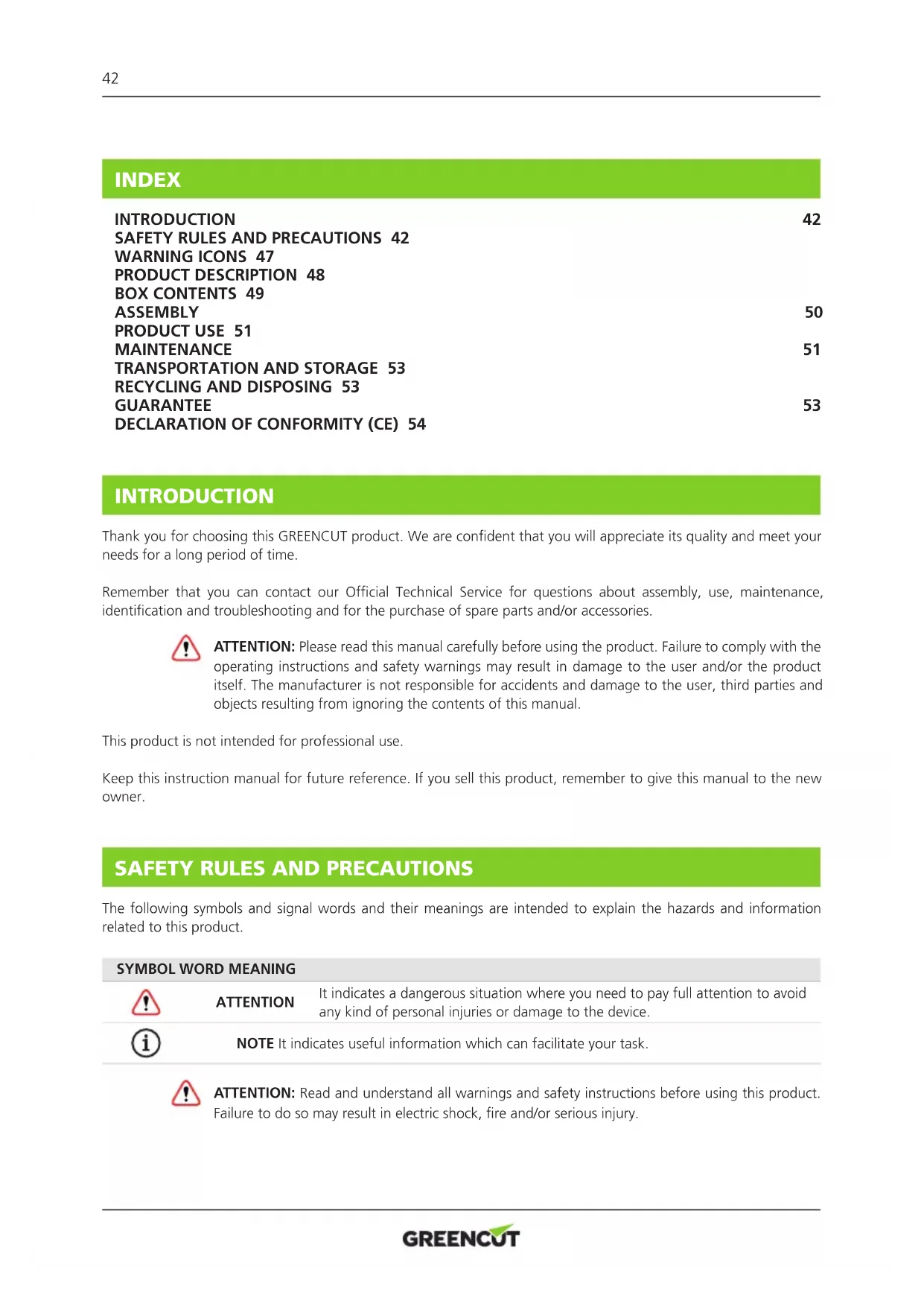

INDEX

INTRODUCTION 42

SAFETY RULES AND PRECAUTIONS 42

WARNING ICONS 47

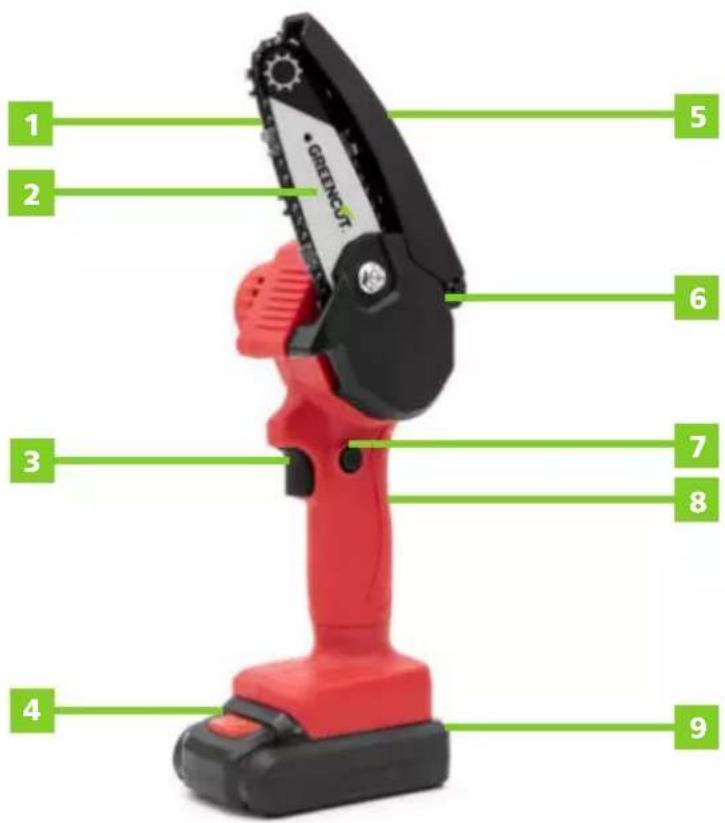

PRODUCT DESCRIPTION 48

BOX CONTENTS 49

ASSEMBLY 50

PRODUCT USE 51

MAINTENANCE 51

TRANSPORTATION AND STORAGE 53

RECYCLING AND DISPOSING 53

GUARANTEE 53

DECLARATION OF CONFORMITY (CE) 54

INTRODUCTION

Thank you for choosing this GREENCUT product. We are confident that you will appreciate its quality and meet your needs for a long period of time.

Remember that you can contact our Official Technical Service for questions about assembly, use, maintenance, identification and troubleshooting and for the purchase of spare parts and/or accessories.

ATTENTION: Please read this manual carefully before using the product. Failure to comply with the operating instructions and safety warnings may result in damage to the user and/or the product itself. The manufacturer is not responsible for accidents and damage to the user, third parties and objects resulting from ignoring the contents of this manual.

This product is not intended for professional use.

Keep this instruction manual for future reference. If you sell this product, remember to give this manual to the new owner.

SAFETY RULES AND PRECAUTIONS

The following symbols and signal words and their meanings are intended to explain the hazards and information related to this product.

SYMBOL WORD MEANING

ATTENTION

It indicates a dangerous situation where you need to pay full attention to avoid any kind of personal injuries or damage to the device.

NOTE It indicates useful information which can facilitate your task.

ATTENTION: Read and understand all warnings and safety instructions before using this product. Failure to do so may result in electric shock, fire and/or serious injury.

All information included in this manual is relevant to your own safety and that of your environment. If you have any questions about the information included in this manual, consult a professional or contact the Official GREENCUT Technical Service.

The following information on hazards and precautions includes the most probable situations that may arise during the use of this machine. Consult all the documentation, packaging and product labels before using it.

If you encounter a situation not described in this manual use common sense to use the machine as safely as possible and, if you see danger, do not use the machine.

USERS

• This machine has been designed to be manipulated only by users of legal age who have read and understood these instructions.
• Familiarize yourself with this machine before using it. Make sure you know the controls and safety devices and how they should be used.
• If you are an inexperienced user, we recommend that you do some practice doing simple jobs and, if possible, in the company of an experienced person.

PERSONAL SAFETY

• Use this machine, accessories, tools, etc. in accordance with these instructions and in the manner provided, taking into account the working conditions and the work to be performed.
• Be alert, watch what you are doing and use common sense when operating this machine. Never use the machine with defective protections or without safety devices.
• Do not modify the controls of this machine.
• Do not use this machine if any of its components are damaged.
• Do not use this machine when you are tired or under the influence of drugs, alcohol, or medication.
• Remove all keys or tools from the work area before starting this machine. A nearby key or tool may be touched and projected causing personal injury.
• Always maintain proper foot support and operate the machine only when it is on a fixed, secure, level surface. Sliding or unstable surfaces can cause a loss of balance or control of the machine.
• When operating from heights, never work on a ladder, tree, or unsafe support and never operate with one hand.
• Keep all body parts away from cutting elements and moving parts when the machine is running. Before starting the machine, make sure that the cutting element is not in contact with any objects. A moment of carelessness during operation may cause your clothing or body part to be cut by the cutting element.
• Always hold the saw with your right hand on the rear handle and your left hand on the front handle. Holding the saw with your hands upside down increases the risk of an accident and should never be done.
• Check the condition of the tree to prevent dry branches from falling on it while you cut. When cutting a branch that is under tension, be alert to the risk of elastic return. When the tension of the wood fibres is released, the branch, under a spring effect, can hit the operator and/or project the saw out of control.
• Use extreme caution when cutting weeds and young shrubs. Fine materials can trap the saw chain and be projected onto you, or cause you to lose your balance under the effect of traction.
• If you are an inexperienced user we recommend that you do a minimal amount of practice cutting logs on a sawhorse or sawing fork.
• Do not leave this machine unattended during operation. If you have to leave the machine unattended, turn it off completely.
• Do not attempt to remove the cut material from the cutting tool when it is moving. Make sure that the machine is switched off when cleaning up debris.
• Never pick up the machine by the cutting tool. Cutting tools have sharp edges that can hurt you.

WORKWEAR

- Dress appropriately. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothing, jewelry or long hair can be picked up by moving parts.

• Eye protection (safety glasses/mesh/methacrylate screens).
• Hearing protection (earmuffs/earplugs).
• Head and face protection (helmet and mask).
• Hand protection (gloves/mitons).
• Leg protection (trousers/pants).
• Foot protection (safety boots).

- Adequate protective clothing will reduce bodily hazards caused by projected debris or accidental contact with the saw chain.

VIBRATIONS

- A high level of vibration and long periods of exposure are the factors contributing to white finger disease (Raynaud's phenomenon). In order to reduce the risk of white finger disease, you need to be aware of these recommendations:

• Always wear gloves.
• Worry about always keeping your hands warm.
• Make sure that the chain is always sharp.
• Take frequent breaks.
• Always hold the machine firmly by the handles.

- If you notice any of the symptoms of white finger disease, see your doctor immediately.

WORK AREA SAFETY

• Do not use this machine in explosive atmospheres in the presence of flammable liquids, gases and dust.
• Do not start the machine in a closed room or enclosure. Exhaust gases and fuel vapors contain carbon monoxide and hazardous chemicals.
• The area within a 15-metre radius around the machine must be regarded as a danger zone which must not be entered by anyone while the machine is running (safety zone). When necessary, use ropes and warning signs to mark the safety zone. Keep children and curious persons away while operating this machine. Distractions can cause you to lose control.
• When the work must be performed simultaneously by two or more people, always check the presence and location of the others in order to maintain a sufficient distance between each person to ensure safety.
• Keep the work area clean and work in good lighting. Only use this machine in daylight or with good artificial lighting.
• Remember that the machine operator is responsible for hazards and accidents caused to other people or things. The manufacturer is in no way liable for damage caused by improper or incorrect use of this machine.

MAINTENANCE, TRANSPORTATION AND STORAGE SAFETY

• Carry out maintenance on the machine. We recommend that maintenance and repairs not described in this manual be performed by an Official Service Facility.
• Check that moving parts are not misaligned or jammed, that there are no broken parts or other conditions that could affect the operation of the machine. Whenever it is damaged, repair it before use.
• Keep the handles dry and clean. Dirty handles can cause a loss of control.
• Keep cutting instruments sharp and clean.
• Avoid accidental starting of the machine. Make sure that the switch is in the "off" position before picking up or transporting this machine. Transporting electrical machines with the switch in the "on" position can endanger their safety and lead to accidents.
• When transporting, hold the chainsaw by the front handle with the machine off, the chain and sword covered

with the cover and at a distance from the body parts. When storing the chainsaw, always cover the sword with the cover.

• Disconnect the battery from the machine before making any adjustments, cleaning or storing this machine.
• Store the product with the battery disconnected out of the reach of children.

UNINVITED REACTIONS WHILE OPERATING WITH THE CHAINSAW

- Always be careful when cutting with the chainsaw and be aware of any unexpected reaction forces. There are three unforeseen reaction forces that occur on a chainsaw: rebound, forward pull and recoil.

REBOUND

- If an object is touched with the cutting chain in the area of the tip of the sword while it is running. Contact of the chain on the tip of the sword can cause an unforeseen reaction force that can push the tip of the sword upwards generating a rotating movement that can cause the chain's sword to collide with the user. This reaction can result in loss of control of the machine and severe personal injury.

PULL FORWARD

• When the chain stops abruptly when it is caught in the cutting area by a foreign body in the wood or because it is not cut properly. The chain, when stopped, pushes the saw forward and, if it is not correctly held against the branch or tree by the claw, it causes an unexpected pull that can cause loss of control and severe personal injury.
• To avoid this "pull forward", start cutting at full throttle and always keep the machine at full throttle during cutting and support the saw's claw against the wood to be cut.

REGRESSION

• Backdown can occur if the sword touches an object or when the wood is closed and the chain is stuck in the cut. The tip contact in some cases can cause an extremely fast reverse reaction, moving the sword upwards and towards the user. If the chain is locked in a position on the top edge of the sword, it can be pushed towards the user. In either case, the user may lose control of the machine and be seriously injured.
• Any of these reactions can cause you to lose control of the saw that could result in a serious personal injury.

• These reaction forces are the result of misuse of the tool and/or improper procedures or operating conditions and can be avoided by taking the appropriate precautions specified below:

• Hold the saw firmly with both hands and with both thumbs and fingers around the saw handles and position your body and arms to allow it to withstand unexpected forces.

• Do not extend your arms too far and do not cut above shoulder height.

- Always be aware of where the tip of the chain sword is.

- Make sure that the tip of the sword does not touch anything.

- Do not cut branches with the tip of the sword.

• Make sure there are no nails or pieces of metal in the cutting area and pay special attention to nails or pieces of iron that may be around the cutting area. Also be careful when cutting hardwood where the chain may become caught and blocked and therefore cause rebound.
• Start at full throttle and always keep the machine at full throttle during cutting.

- Cut a single branch or piece of wood at a time.

• Use caution when inserting the saw chain into an already started cut to continue.
• Do not cut with the chainsaw until you are familiar with the cutting technique.
• Do not cut into branches or pieces of wood that may change position during cutting.

- Keep the chain in good condition.

• Work only if the chain is well sharpened and correctly tensioned.
• Never stand on the cutting plane of the chainsaw.
• Use only replacement swords and chains specified by the manufacturer. Incorrectly replaced swords and chains can cause a chain break and/or recoil.
• Follow the manufacturer's instructions for sharpening and maintaining the saw chain.

ELECTRICAL SAFETY

• Never modify the plug in any way. Unchanged pins and matching bases will reduce the risk of electric shock. If any damage is discovered, send your machine to the Official Technical Service.
• Do not open or attempt to repair the battery or battery charger.
• Protect the battery and charger from moisture. Keep the battery away from extreme heat and cold.
• Only charge the battery at an ambient temperature (surrounding air) between 0^ and 40^ .
• Do not use the cable to carry, lift or unplug the charger. Keep the cable away from heat, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
• Do not operate the battery charger outdoors.
• When not in use or before cleaning and repairing, disconnect the charger from the power supply. Take special care with the battery.
• Store the battery in a dry place between 10^ and 30^ when not in use.
• This battery is sealed and must never leak liquid. If the seal becomes damaged and the liquid touches your skin quickly, wash with plenty of soap and water, neutralize the liquid with a weak acid such as lemon or vinegar and go to your medical center urgently. If liquid from the battery touches your eyes, flush them thoroughly with water for 10 minutes and call for immediate medical attention.
• The battery should be recharged when it does not produce enough power in the work that was easily done before. Do not continue to use the product with its battery depleted.
• The battery is not fully charged at the factory, before attempting to use it, fully charge it first.

SERVICE

- Have the product checked regularly by a qualified technician and use only original replacement parts. If you have any questions, please contact the Official Technical Service.

WARNING ICONS

The icons on the warning labels on this machine and/or in the manual indicate information necessary for the safe use of this machine.

Attention! Danger!

Keep unprotected people away and at a safe distance from the work area.

Read this manual carefully before starting or using the machine.

Keep children away from this machine.

Wear a helmet.

To prevent serious injury, do not touch cutting blades.

Wear eye and ear protection.

Do not expose to rain or damp conditions.

Wear a face mask to protect against dust, steam and other toxic fumes.

Before performing maintenance or repair work on the machine, turn it off and remove the battery.

Use resistant and anti-slippery gloves.

Guaranteed sound power level XX LWA, dB (A).

Wear leg protection and non-slip safety boots with steel protections.

Dispose of your device in an environmentally friendly way. This product should not be disposed of with household waste.

Danger of material protection. Beware of objects that may be fired.

Complies with the European Union Directive.

PRODUCT DESCRIPTION

CONDITIONS OF USE

Cut only wood. Do not use the chainsaw for any other purpose not intended. Do not use the chainsaw to cut plastic, bricks or building materials other than wood. Any use other than that described above may cause dangerous situations and exempts the manufacturer from any liability.

DETAILED DESCRIPTION OF THE PRODUCT

1 2 3 4 5 6 7 8 9 GREENOT

1. Chain
2. Sword Front handle
3. Switch button
4. Button to remove battery
5. Safety cover
6. LED light
7. Safety button
8. Handle
9. Battery

NOTE: The products detailed in this manual may vary in appearance, inclusions, description and packaging as shown or described here.

TECHNICAL DATA

GSM210L

Battery type 21V lithium-ion battery

Battery capacity 1500 mAh

Blade dimensions 260 mm (4")

Usable cutting length 90 mm

Cutting speed 5 m/s 300 rpm

Number of teeth 14

Product weight 1 kg

NOTE: GREENCUT reserves the right to modify the technical characteristics without prior notice.

BOX CONTENTS

• Remove the product and accessories from the box. Make sure all items are present.
• Inspect the product to ensure that it has not been broken or damaged in transit.
• Do not discard the packaging material until you have carefully inspected and satisfactorily used the product.

ATTENTION: If any part is missing or damaged, contact the Official Technical Service. Do not use this product without having replaced the missing or damaged part. Using this product with damaged or missing parts can cause serious injury to the operator.

1x Chain saw

1x Blade
1x Chain
1x Battery
1x Charger
1x Carrying case
1x Maintenance kit

Open black hard-shell tool kit with red and yellow components, no visible text or symbols

ASSEMBLY

ASSEMBLY OF THE CHAIN AND THE SWORD

1. Install the guide plate and chain onto the sprocket, and install the guide plate adjusting spring pin into the small hole in the guide plate.
2. Cover the guide plate cover, install the nut and hold it loosely, adjust the chain tightness by hand.
3. Tighten the bolts with a spanner.

Close-up of mechanical components including a chain clamp and a black base, with no visible text or symbols.

Close-up of a hand using a chainsaw to cut a piece of wood (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

PRODUCT USE

SWITCH BUTTON AND SAFETY BUTTON

Before inserting the battery into the chain saw, make sure that the switch button and the safety button are released. To prevent accidental starting, the chainsaw has a safety button.

After inserting the battery, press the switch button and the safety button together to turn the saw on and off. When they are pressed together, the chainsaw will start and the led light on the side of the saw will come on.

BATTERY

When the product arrives, the battery may not be fully charged. We recommend charging it and then using the product. To install it, it must be fitted to the lower part of the drill and to remove it, press the red button on the battery to be able to extract it correctly.

CHARGE

To charge the battery, the charger must be connected to the mains socket and the mains socket must be connected to the battery via the cable.

the cable. When you connect the charger to the battery, the red indicator light on the charger will come on, this means that it is charging.

When the red light turns off it means that the battery is full.

The battery contains a key to display its status by illuminating three green LED lights. When

When the battery is discharged the indicator light will not light up.

MAINTENANCE

Good maintenance will extend the life of the machine. Prolonged or constant use may require more intensive maintenance for the machine to continue to function properly.

ATTENTION: Make sure the engine is completely shut down before performing any maintenance or repair. This will eliminate any potential risk.

Chain tension Before every use and frequently

Sharpening the chain Before each use, visual check

For damaged parts Before every use

For loose bolts Before every use

INSPECT AND CLEAN

Sword Before every use

Complete saw After each use

ATTENTION

• Always wear gloves when working around the blade assembly.
- Use only original spare parts for this machine.

SHARPENING THE SAW TEETH

To maintain the best conditions for your tool cutting operation, be sure to keep the saw teeth sharp. It is ideal to do this when the angle of the upper tooth is 30 degrees. You can sharpen them properly by performing the following steps:

1. It will be ideal to do so when the upper tooth angle is 30 degrees.
2. Side tooth angle: Sharpen the side teeth to 85 degrees.
3. Top grinding angle: If the top and side teeth are sharpened correctly, the top grinding angle should automatically become a 60 degree angle.

When filing the chain saw, when pushing the file in the direction indicated by the arrow, be careful not to touch the blade with the file. After the chain has been filed two or three times, it may be necessary to file the target teeth slightly lower.

This is because the rake of the tooth serves to due to the characteristic curved shape of the tooth blade. As a result, the drilled blade will be lower than the depth gauge, resulting in a failure to cut.

To compensate for this defect, use a flat file to sharpen the top of the tooth blank so that it is about 0.5 mm lower than the tip of the tooth. Be careful not to file the tooth rake too much, otherwise the tooth blade will be sawed off suddenly, causing the tool to jam during cutting.

1 30°

2 Blade Tooth harrow 0.5 98°

3 60°

TRANSPORTATION AND STORAGE

- Stop the machine, remove the battery and allow the tool to cool down before storing or transporting.

- Transport the battery in accordance with local and national regulations and standards.

- Ensure that no batteries can come into contact with other batteries or conductive materials during transport by protecting exposed connectors with non-conductive caps or insulation tape.

- Do not carry batteries that are cracked or leaking.

- Clean any foreign material from the product. Store in a cool, dry, well-ventilated place out of the reach of children. Keep product away from corrosive agents such as garden chemicals and thawing salts. Do not store outdoors.

- Cover the sword with its cover before storing the unit or during transport.

- Store the battery and charger separately in a dry place without moisture or frost.

- Do not store the battery in places where static electricity may be generated. Never carry the battery in a metal box.

- Store the battery in a place without extreme temperatures and away from direct sunlight.

- Store the charger only in a closed, dry place.

- All batteries gradually lose their charge. Recharge the batteries every 3 months.

RECYCLING AND DISPOSING

Used products are potentially recyclable and should not be disposed of in the usual rubbish. Help us protect the environment and preserve natural resources.

Dispose of the appliance in an environmentally friendly way. Do not throw it away with the household rubbish. Its plastic and metal components can be separated and recycled. Take this device to an approved recycling centre (green point).

Package materials are recyclables. Please, throw them away on the appropriate trash can.

ATTENTION: Take the battery to a local recycling and/or disposal centre that is certified for disposal. If the battery pack breaks or cracks, whether it leaks or not, do not recharge it and do not use it. Get rid of it and replace it with a new battery pack. DO NOT ATTEMPT TO REPAIR IT!

GUARANTEE

GREENCUT guarantees all GREENCUT products for a period of 24 months (valid for Europe). The warranty is subject to the date of purchase taking into account the intended use of the product.

As a condition subject to warranty, the original receipt must be presented indicating the date of purchase and its description as well as the defective tool.

The warranty does not cover normal wear and tear, especially on blades, blade fasteners, turbines, light sources, fan and transmission belts, impellers, air filters, spark plugs and damage caused by improper use, especially non-compliance with operating and maintenance instructions.

In the event that repairs or modifications have been made by the consumer or other than with original GREENCUT spare parts, the warranty will be voided.

In the event of a justified warranty claim, we are entitled, at our discretion, to repair or replace the defective tool free of charge. Other claims beyond this warranty are not valid.

DECLARATION OF CONFORMITY (EC)

We, PRAT INTERNATIONAL BRANDS S.L., owner of the GREENCUT brand, with registered office in Blanquers Street (plot 7-8) Polígono Industrial Valls. 43800 - Valls, SPAIN, declare that the hand chainsaw GSM210L from 2021 series onwards, is in accordance with the European Parliament Directives and of the Council.

- Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The product delivered coincides with the prototype that was submitted for CE exam.

Valls (SPAIN), March 9 2021,

Albert Prat Asensio, FOUNDER (Authorized representative and responsible for technical documentation).

GREENCUT®

PRAT BRANDS

makes your life go sound

INHALT

EINLEITUNG 55

Open black and red tool kit with visible crimping tool and wrench (no text or symbols)

MONTIEREN

MONTAGE DER KETTE UND DES SCHWERTES

Close-up of mechanical components including a chain saw and a black base, with no visible text or symbols.

Close-up of hands using a chain-linking tool to cut a piece of material (no visible text or symbols)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

ACHTUNG

2 Blade Tooth harrow 0.5 98°

3 60°

makes your life go round

GREENCUT®
