Product type	Monobloc mobile air conditioner
Brand	Calor
Model	Intense Cool AU4010
Dimensions (W x H x D)	374 x 709 x 341 mm
Weight	22.5 kg
Power supply	220-240 V / 50 Hz
Nominal cooling capacity	2000 W (7000 Btu/h)
Nominal power consumption	0.8 kW
Energy efficiency class	A
Refrigerant	R290 (0.175 kg)
Sound power level	65 dB(A)
Operating modes	Cooling, dehumidification, fan only
Fan speed	3 speeds (low, medium, high)
Timer	Programmable from 1 to 24 hours
Remote control	Yes, with AAA batteries (not included)
Filter maintenance	Cleaning every 100 hours of use
Drainage	Manual or continuous drainage in dehumidification mode
Operating temperature	16 to 35 °C
Minimum room area	9 m² (ceiling height > 2 m)

Frequently Asked Questions - Intense Cool AU4010 CALOR

What to do if the FULL indicator lights up?

The condensate water tank is full. Drain the water through the hole no. 10. In dehumidification mode, use continuous drainage.

How to install the exhaust hose?

Attach the nozzle (no. 15) to the connector (no. 14). Slide the other connector (no. 13) into the rear air outlet (no. 7) and snap it. Unroll the hose and place the nozzle in an open window.

Can I use the appliance without the exhaust hose?

Only in fan or dehumidification mode. In cooling mode, the hose must exhaust hot air to the outside.

How to clean the air filters?

Remove the filters after approximately 100 hours of use. Clean them with a vacuum cleaner or lukewarm water, dry them, and replace them. Never use the appliance without filters.

What to do if the appliance displays E1 or E2?

Contact an authorized service center. Do not attempt to repair yourself as R290 refrigerant requires specialized handling.

What type of refrigerant does this appliance use?

R290 (propane) gas is flammable. The charge is 175 grams. Follow safety instructions: ventilated room, no source of ignition.

How to set the timer?

Press TIMER, then set the hours with + or -. Range from 1 to 24 hours. When on: auto stop. When standby: auto start.

The appliance does not start, what to do?

Wait 3 minutes after turning off before restarting. Check the plug and cable. If the FULL indicator is lit, drain the water.

Can I use an extension cord?

No, it is forbidden to use an electrical extension cord with this appliance for safety reasons.

How to store the appliance in winter?

Drain the water, run in fan mode for a few hours to dry the interior. Remove the batteries from the remote control. Store in a ventilated room of at least 9 m².

USER MANUAL Intense Cool AU4010 CALOR

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Schéma 1

- NETTOYAGE ET ENTRETIEN

Diagram of a portable electronic device with ventilation grilles and control panel (no text or symbols)

Schéma 2

MODE D'EMPLOI

Simple line drawing of a cylindrical object with a triangular cutout, labeled (15) below (no text or symbols on the object itself)

Simple line drawing of two overlapping circular glasses (no text or symbols)

Installation 1 - Installation mobile

Diagram showing airflow control mechanism with labeled components and a hand interacting with a device

Schémas 3 et 4

Line drawing of indoor air conditioner unit with pipes and doors, no text or symbols present

Schéma 5

Installation semi-permanente

(16) (16)

Schémas 7 et 8

VIDANGE CONTINUE

Please read the instruction manual and safety instructions carefully before using the appliance and keep the instruction manual for reference.

For your safety, this appliance complies with all applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Environmental directives, etc.).

	WARNING(Risk of fire)	This unit uses a flammable refrigerant.If refrigerant leaks and comes in contact with fire or heating part, it will create harmful gas and there is risk of fire.
	Read the OPERATING INSTRUCTIONS carefully before operation
	Service personnel are required to carefully read the OPERATING INSTRUCTIONS and INSTALLATION MANUAL before operation
	Further information is available in the OPERATING INSTRUCTIONS,INSTALLATION MANUAL, and the like

Model name Symbol AU4010F0 Unit
Refrigerant R290
Total refrigerant amount 175 g
Global warming potential GWP 3 kg CO2 eq
Climate class 16 – 35 °C
Cooling capacity	Pratedfor cooling	7000 Btu/h
		2000	W
Energy efficiency cooling	EERd	2.6
Energy Efficiency Class		A
Cooling power input	PEER	0.8 kW
Voltage/frequency		220-240V / 50Hz	V/Hz
Power consumption in thermostat-off mode	PTO	1.0	W
Power consumption in standby mode	PSB	0.5	W
Electricity consumption	QSD	0.8 kWh/h
Sound Power Level	LWA	65	dB(A)
dimensions	WxHxD	374 x 709 x 341	mm
weight		22.5	kg

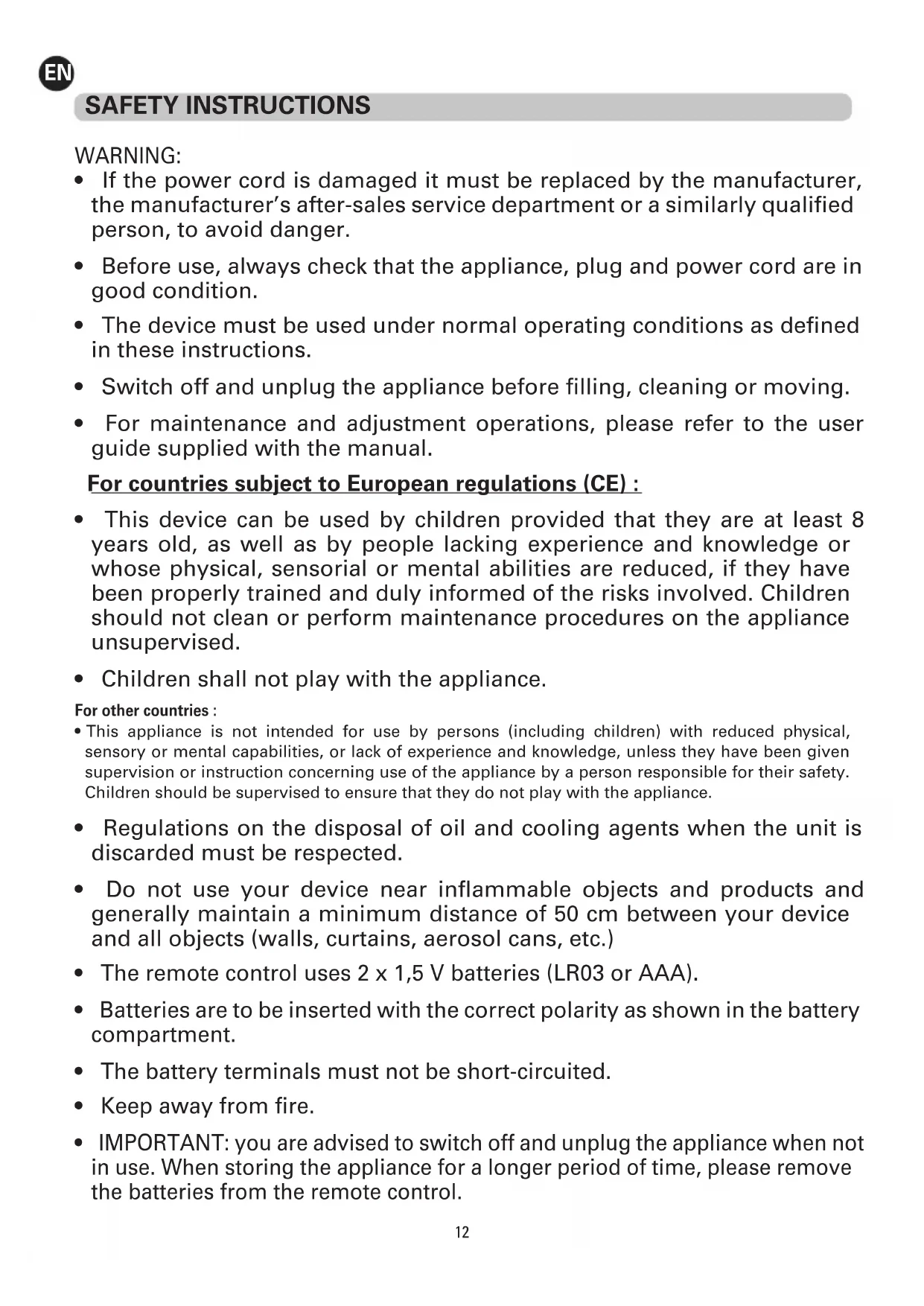

• If the power cord is damaged it must be replaced by the manufacturer, the manufacturer's after-sales service department or a similarly qualified person, to avoid danger.
• Before use, always check that the appliance, plug and power cord are in good condition.
• The device must be used under normal operating conditions as defined in these instructions.
• Switch off and unplug the appliance before filling, cleaning or moving.
• For maintenance and adjustment operations, please refer to the user guide supplied with the manual.

For countries subject to European regulations (CE) :

- This device can be used by children provided that they are at least 8 years old, as well as by people lacking experience and knowledge or whose physical, sensorial or mental abilities are reduced, if they have been properly trained and duly informed of the risks involved. Children should not clean or perform maintenance procedures on the appliance unsupervised.

• Children shall not play with the appliance.

For other countries :

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Regulations on the disposal of oil and cooling agents when the unit is discarded must be respected.

- Do not use your device near inflammable objects and products and generally maintain a minimum distance of 50 cm between your device and all objects (walls, curtains, aerosol cans, etc.)

- The remote control uses 2 x 1,5 V batteries (LR03 or AAA).

- Batteries are to be inserted with the correct polarity as shown in the battery compartment.

- The battery terminals must not be short-circuited.

- Keep away from fire.

- IMPORTANT: you are advised to switch off and unplug the appliance when not in use. When storing the appliance for a longer period of time, please remove the batteries from the remote control.

• Put the device in standby mode and unplug the device from the mains prior to replacing the battery.
• Follow the battery manufacturer's instructions when installing new batteries.
• Please find more information in the User Guide document to activate the battery.

Specific instructions regarding appliances with R290 gas

• This appliance contains approximately 0.175 kg of R290 refrigerant gas. The maximum refrigerant charge amount is 0.3 kg; R290 refrigerant gas complies with European environmental directives.
• The mimum rated airflow is 270m^3/h ;
• A surface area greater than 9m^2 (with ceiling height >2m ) is necessary for the installation, use and storage of the appliance
• Stagnation of possible leaks of refrigerant gas in unventilated rooms could lead to fire or an explosion hazard should the refrigerant come in contact with electric heaters, stoves or other sources of ignition.
• Use care when storing the appliance to prevent mechanical faults.
• Only persons authorized by an accredited agency certifying their competence to handle refrigerants in compliance with sector legislation should work on refrigerant circuits.
• Maintenance and repairs requiring the assistance of other qualified personnel must be carried out under the supervision of specialists in the use of inflammable refrigerants.
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater)
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.

PRECAUTIONS OF USE

This appliance is designed for household use only. It should not be used for industrial applications. The appliance must be installed in accordance with the regulations in force in your country. The working temperature is between 16°C and 35°C.

Do not pull on the power cord or the appliance, even when unplugging it from a wall socket.

Always unroll the power cord completely before use.

Do not use the appliance in a dusty room or a location where there is a risk of fire.

Never put objects inside the appliance (e.g. needles, etc.).

Do not use an extension lead.

Never use the appliance in an inclined or horizontal position. Place the appliance on a flat stable surface.

Do not place heavy items or children on top of the appliance.

Do not cover the appliance.

Do not cover the air inlet and/or outlet grills.

Do not touch the appliance with wet hands.

Stop your appliance by using the (A) button before unplugging it.

Do not use the appliance outdoors.

The warranty will be invalidated if damage occurs due to incorrect use.

- TRANSPORTATION

• Caution: your device includes a refrigerating compressor; laying the device flat could lead to malfunctions.
  • After transportation, do not turn on the appliance for at least one hour before starting it.

- STORAGE

• If you do not use the device, it must be placed in a well-ventilated area where the room corresponds to the room area as specified for operation and away from humidity.

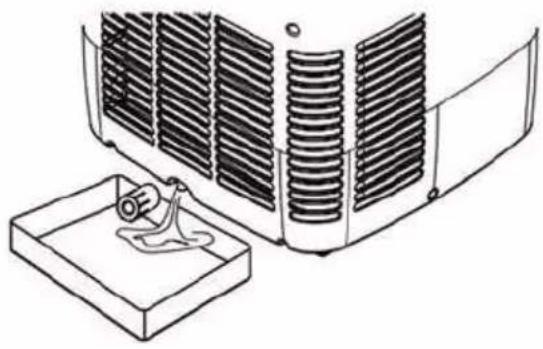

• Before storage, be sure to pull out the rubber plug of the drain port underside (#10), and allow the water to drain out in a basin. (fig. 1) Run the unit in fan mode only for a few hours to dry any moisture on the coils to prevent mold.

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Fig.1

- CLEANING & MAINTENANCE

Before cleaning or maintenance, turn the appliance off and always unplug the appliance.

Cleaning: Wipe with a soft dry cloth. Never wash the air conditioner with water. Never use volatile substance such as gasoline or polishing powder to clean the appliance.

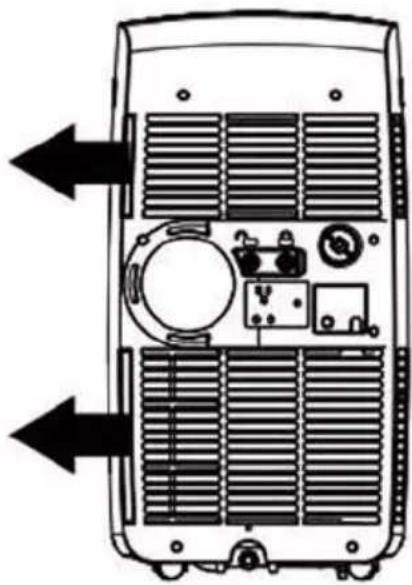

Air filters maintenance: It is necessary to clean the air filters after using it for about 100 hours. Stop the appliance and then pull back the air filters. (fig.2) Use a vaccum cleaner, water or a soft dry cloth to clean the filters, and then reinstall it. Do not use the appliance without the filters.

Diagram of a portable electronic device with ventilation grilles and internal components (no text or symbols)

Fig.2

OPERATING INSTRUCTIONS

The electrical facilities of the room, as well as the installation and use of the appliance must comply with the standards in force in your country.

Before first use, ensure that the voltage, frequency and power of your appliance are suitable for your electrical supply.

Your device must operate with an earthed power socket. It is a class I appliance.

Before switching on your appliance, ensure that:

• The appliance is positioned in accordance with the instructions in this manual;
- The air intake and outlet grills are completely unobstructed;
- The appliance is placed on a stable horizontal surface;

Do not place under a clothesline or any other object likely to cause water to fall in the product.

N.B.: You are advised to unplug the appliance when not in use.

INSTALLATION INSTRUCTIONS

1 2 3 4

5 6 7 8 10 9 11

(13) (12) (14)

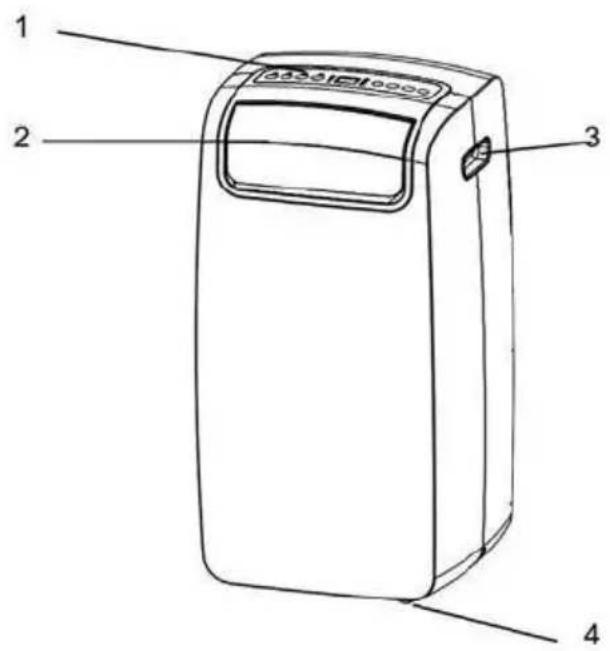

1. Control panel
2. Interior air outlet flap
3. Handle hole
4. Caster
5. Air filter

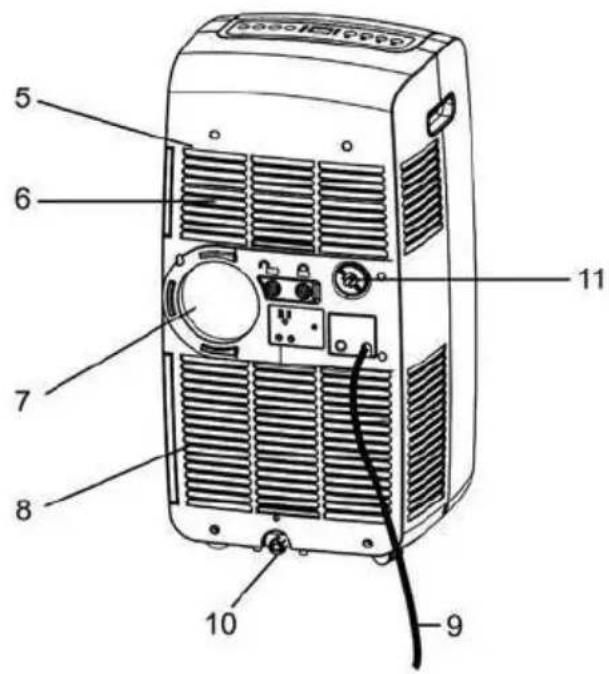

6. Air intake (Evaporator)
7. "External" air outlet (air conditioner mode)
8. Air intake (Condenser)
9. Power supply cord
10. Water outlet drain
11. Water outlet drain (dehumidify mode only)

Note : Please ensure if the water outlet drain is well installed before use.

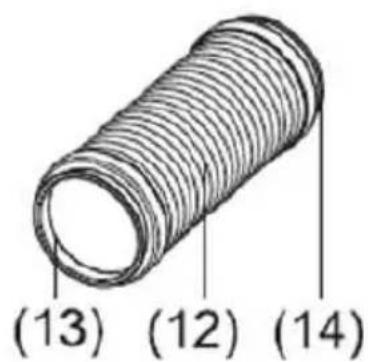

1. Exhaust hose
   13&14. Exhausted connectors
2. Exhaust nozzle
3. Wall flange accessory and cap

(15)

Simple line drawing of two overlapping circular objects with a stem (no text or symbols)

(16)

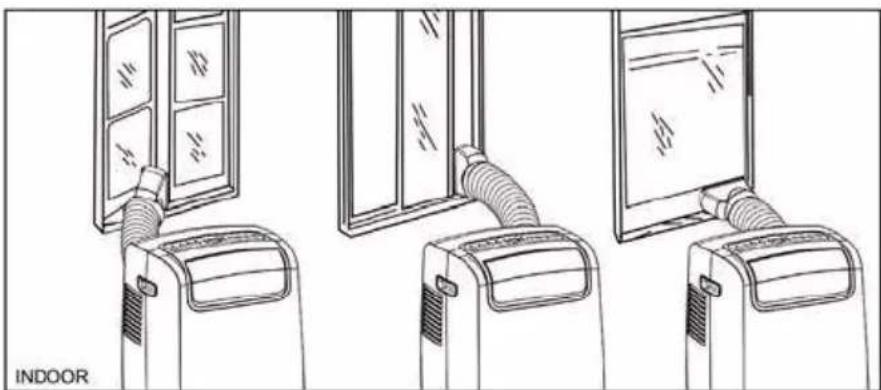

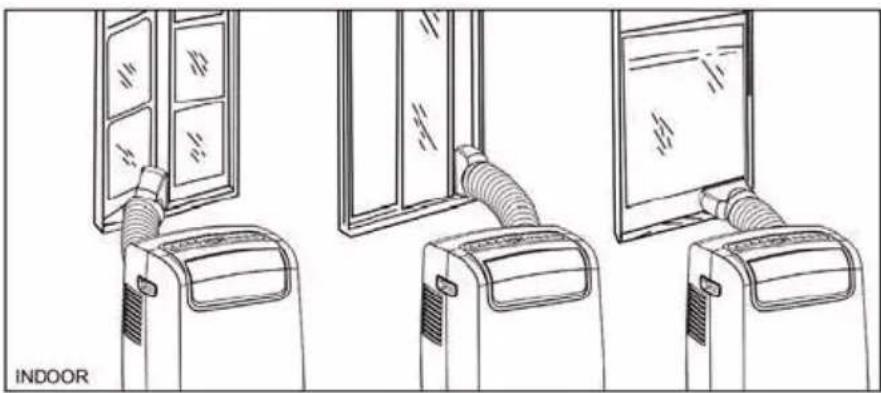

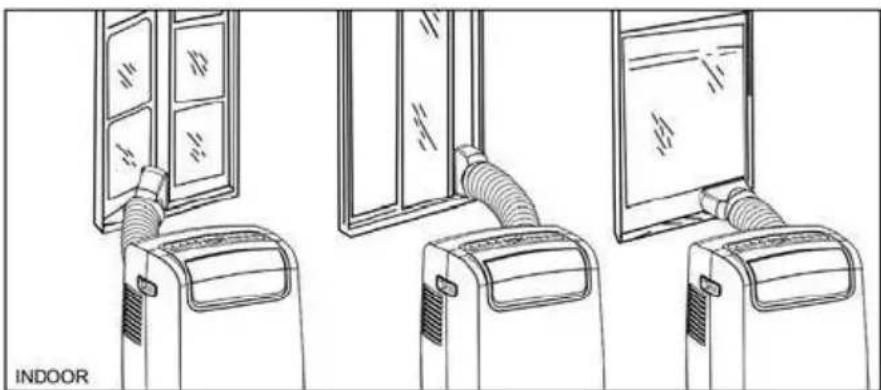

Installation 1 - mobile installation

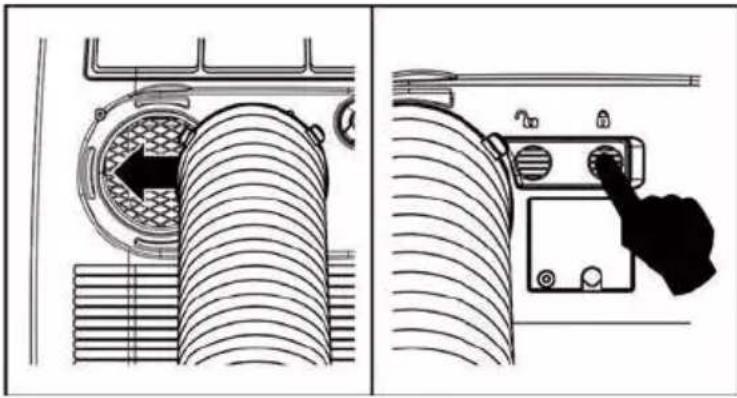

1/ Click the exhausted nozzle (#15) to the exhausted connector without notches (#14)
2/ Slide the other exhausted connector (#13) to the air outlet (#7) on the rear of the unit and push the rocker switch to fix the assembly firmly. (Fig 3 &4) Extend hose (#12) to desired length and position the exhausted nozzle (#15) through an open window as shown on fig.5.

Diagram illustrating airflow or ventilation system with labeled components and directional arrows, including a hand pressing a button.

Fig. 3 & 4

Line drawing of indoor air conditioner unit with hose and door, showing three different configurations (no text or symbols)

Fig. 5

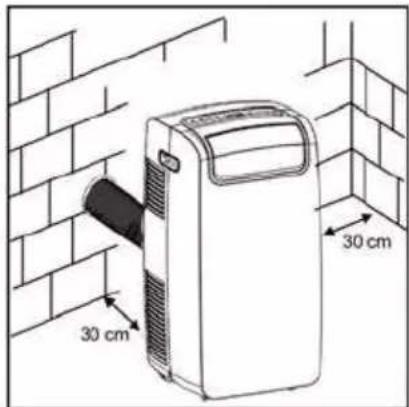

Semi-permanently installation

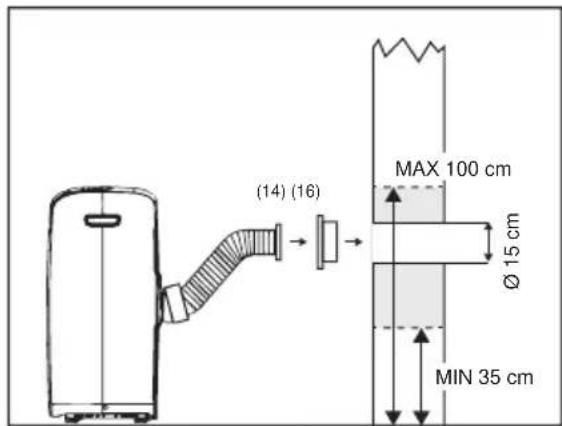

If required, your appliance can also be installed semi permanently (Fig. 6)

Proceed as follows:

• Drill a hole in an outside wall or through a window pane. Ensure the MIN / MAX dimensions for the hole size and its position are adhered to. (Fig. 7 and 8)
• Fit the wall flange accessory (#16) provided in the hole.
• Insert another end of the hose assembly to the fixture previously fit on the wall a shown in (Fig. 6)

When the hose is not in use, place the cap (#16) on connector to cover the hole on the wall.

NOTE: When installing the air conditioner semi permanently, to maintain the balance of air pressure between indoors and outdoors always leave an internal door slightly open.

30 cm 30 cm

Fig. 6

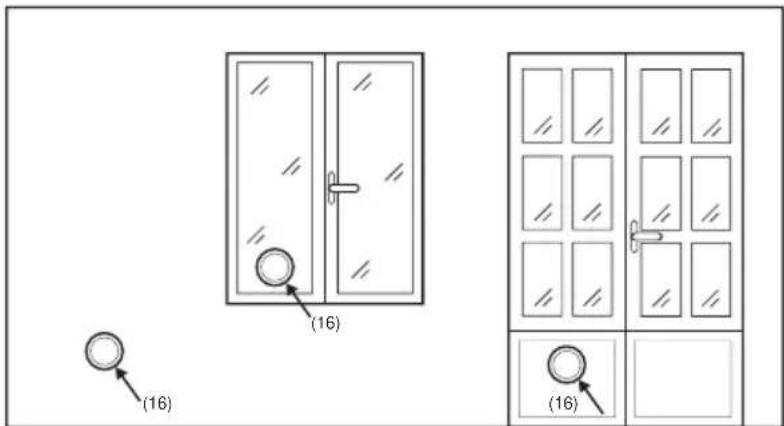

(14) (16) MAX 100 cm Ø 15 cm MIN 35 cm

(16) (16)

Fig. 7&8

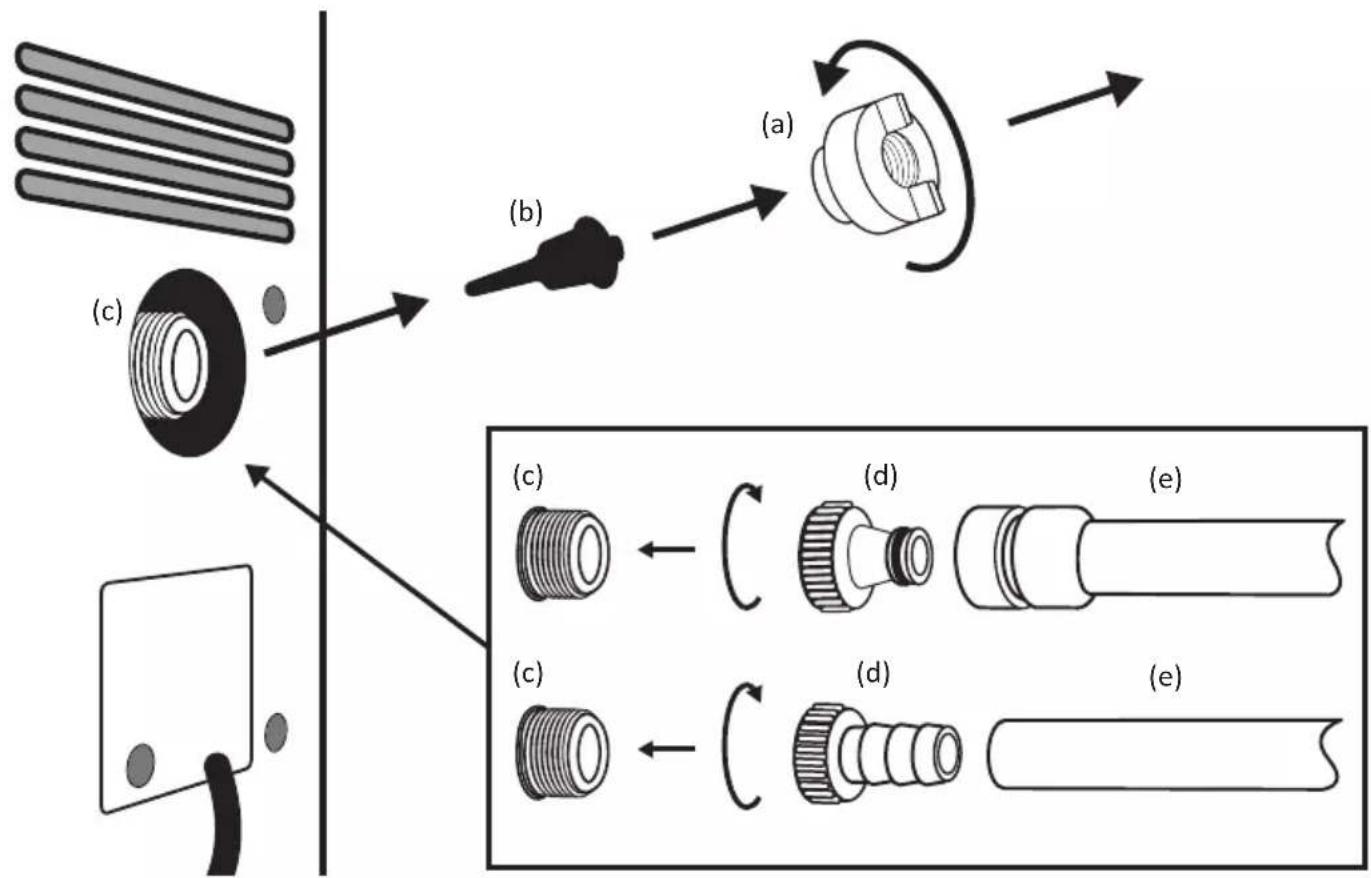

CONTINUOUS DRAINAGE

To use the unit in dehumidifying mode, you will need to settle continuous drainage as follow. Note: The drain hose and connector are not included.

You will need a tap connector (20/27 or 3/4" thread), which can be easily obtained from DIY stores.

1. Unscrew drain cover (a) from drainage outlet n°11.
2. Remove the rubber stopper (b).
3. Screw the connector (d) onto the thread (c).
4. Connect a hose (e) to the chosen connector.

The water can now be continuously drained through the hose into a floor drain or sink.


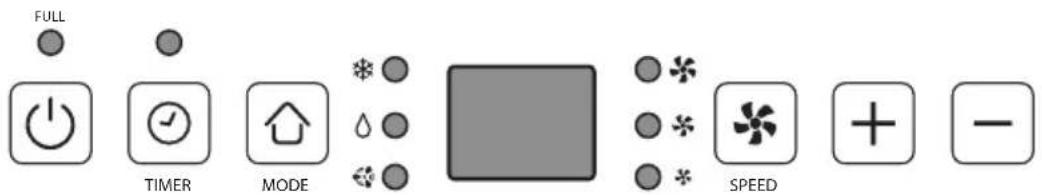

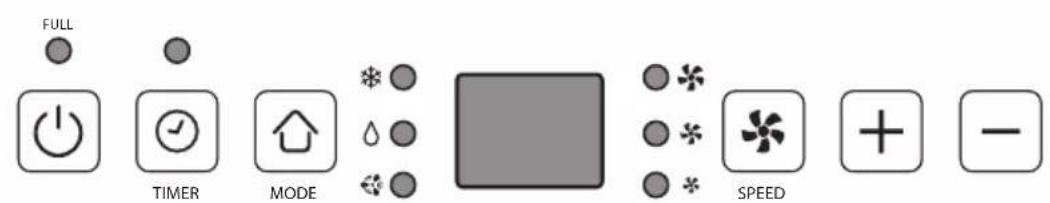

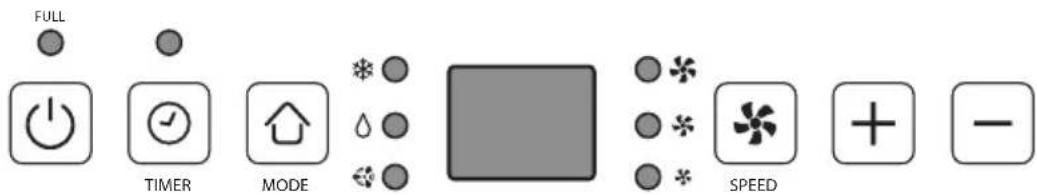

FULL POWER TIMER MODE SPEED + -

Make sure to open the louver (#2) before using.

Power Control (A)

The power control turns the unit on and off. After switching the air conditioner off, you must wait 3 minutes before switching it back on again.

Warning Light "FULL" (B)

Condensed water may accumulate in the unit.

If the internal tank becomes full, the warning light will come on and the unit will stop operating until the unit has been drained (evacuation #10). To drain the unit, refer to storage instructions p.2. If you are using the unit on dehumidifying mode, make sure to install continuous drainage properly (refer to continuous drainage p.17)

Timer (C)

Auto turn OFF: with the machine in running mode, press the timer button. Then set the desired working time in hours before shut down by pressing the "+" or "-" buttons.

Auto turn ON: With the machine in OFF mode, press the timer button. Then set the desired time delay ON in hours by pressing the "+" or "-" buttons before the unit automatically starts running in the latest used mode.

The time is adjustable between 1 to 24 hours

Mode Control (D)

The mode control has three settings. A green light indicates which mode is currently being used.

• Cooling mode: During the cooling mode the air is cooled and hot air is expelled through the heat exhaust hose (#13). Adjust fan speed and air temperature to suit your desired comfort level. Use the buttons (-) and (+) to set the desired temperature between 16 and 32°C. After 10 seconds the display will revert to room temperature.
  Note: the air exchange hoses must vent outside the room when using cooling mode.

- Dehumidify mode: Air is dehumidified as it passes through the unit, without being in full cooling mode. In this mode, If temperature is higher than 25^ C, fan speed can be adjusted; otherwise, fan speed is fixed to "low". In this mode, do not connect the exhaust hose and let the warm air return to the room. You will need to install a drainage hose (evacuation #11), with the water discharging to the outside. (please see the paragraph p.17)

- Fan Mode: air is circulated throughout the room with no cooling. Note: Unit doesn't need to be vented in fan mode. Adjust fan speed to suit your desired comfort level.

Fan Speed Control (E)

The fan speed control has three settings: High, Medium and Low.

Remote control

The remote control uses 2 x AAA or LR03 1.5V batteries which are not included.

To change the remote's battery, remove the cover on the back of the remote controller and insert batteries with the (+) and (-) poles pointing in the proper direction.

Remove the batteries if the remote control is not used for a month or longer.

Remote control operations are identical to the functions on the control panel. Please take care not to scratch or damage the transmitter (LED) located on the end of the remote control as this will impair its proper operation.

TROUBLESHOOTING

Trouble Analysis
The appliance does not start - Please wait 3	minutes and start again, protector device may be preventing unit from working.- The plug is not properly plugged.
The appliance stops running during operation -	Set temperature is too high.- The louver is not opened.- Air outlets are blocked by obstacles or hose is obstructed- Air inlets (filters) are blocked by dust
The appliance does not run and water full indicator is lit	- Water needs to be drained : please refer to paragraph “control panel – B”- Drainage hose is obstructed or twisted
LEDs display “E1” or “E2”	- Please refer to a specific Approved Service Centre.

SHOULD A PROBLEM ARISE

Never dismantle the appliance yourself because R290 gas requires specific agreement for repairing. A poorly repaired appliance may be dangerous for the user.

Do not use the appliance and contact a specific Approved Service Centre if:

• The appliance has broken.
• Unit or its power cord is damaged,
• If your appliance does not work properly.

You can find a list of specific Approved Service Centres on Rowenta website.

HELP PROTECT THE ENVIRONMENT!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a waste collection point or an approved service centre so that it can be disposed of correctly.

Do not throw away the batteries with your household waste: instead, bring them to anyone of the special battery collection points.

These instructions can also be found on our internet site www.rowenta.com

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Abb. 1

Diagram of a device rear panel with ventilation grilles and internal components (no text or labels)

Abb. 2

BEDIENUNGSANLEITUNG

Simple line drawing of a cylindrical mechanical component with a triangular cutout, labeled (15) below (no text or symbols on the diagram itself)

Simple line drawing of two overlapping circular objects, labeled (16) at the bottom (no text or symbols on the shapes themselves)

Installation 1 – mobile Installation

Diagram showing airflow or ventilation system with labeled components and a hand cursor pointing to a device.

Abb. 3 & 4

Line drawing of three indoor air purifiers with hoses, no text or symbols present

Abb. 5

Halbpermanente Installation

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Fig. 1

- LIMPIEZA Y MANTENIMIENTO

Diagram of a portable electronic device with ventilation grilles and control panel (no text or symbols)

Fig. 2.

Simple line drawing of a cylindrical object with a curved internal structure, labeled (15) below (no text or symbols on the object itself)

Simple line drawing of two overlapping circular objects, labeled (16) at bottom (no text or symbols on the shapes)

Diagram showing two views of a ceiling structure with a hand pressing a button (no text or symbols present)

Fig. 3 y 4

Line drawing of indoor air conditioner unit with three different configurations (no text or symbols)

Fig. 5

FULL POWER TIMER MODE SPEED + -

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Fig. 1

Diagram of a portable electronic device with ventilation grilles and control panel (no text or symbols)

Fig. 2.

Simple line drawing of a cylindrical object with a triangular cutout, labeled (15) below (no text or symbols on the object itself)

Simple line drawing of two overlapping circular objects with a handle, labeled (16) below (no text or symbols on the shapes)

Diagram illustrating airflow or ventilation system with labeled components and directional arrows, including a hand pressing a button.

Fig. 3 e 4

Line drawing of indoor air conditioner unit with three different configurations (no text or symbols)

Fig. 5

(16) (16)

Fig. 7 e 8

DRENAGEM CONTÍNUA

PAINEL DE CONTROLO

FULL POWER TIMER MODE SPEED + -

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Fig. 1

Diagram of a portable electronic device with ventilation grilles and internal components (no text or symbols)

Fig. 2.

Simple line drawing of a cylindrical object with a curved top and internal lines, labeled (15) below (no text or symbols on the object itself)

Simple line drawing of two overlapping eyeglasses labeled (16), no text or symbols present.

Diagram illustrating airflow dynamics in a ventilation duct with labeled components and directional arrows

Fig. 3 e 4

Line drawing of indoor air conditioner unit with three different configurations (no text or symbols)

Fig. 5

(16) (16)

Fig. 7 e 8

SCARICO CONTINUO

FULL POWER TIMER MODE SPEED + -

Technical line drawing of a heat exchanger unit with cooling fins and a heating element (no text or symbols)

Fig. 1

- REINIGING EN ONDERHOUD

Diagram of a portable electronic device with ventilation grilles and control panel (no text or symbols)

Fig. 2.

BEDIENINGSINSTRUCTIES

Simple line drawing of a cylindrical object with a triangular cutout, labeled (15) below (no text or symbols on the object itself)

Simple line drawing of two overlapping circular objects with a handle (no text or symbols)

(16)

Diagram showing airflow control mechanism with labeled components and a hand interacting with a device

Fig. 3 & 4

Line drawing of indoor air conditioner unit with three different configurations (no text or symbols)

Fig. 5

Semipermanente installatie

BEDIENINGSPANEEEL

FULL POWER TIMER MODE SPEED + -
