| Product type | Portable monobloc air conditioner |
| Brand | Calor |
| Model | Turbo Eco Sense+ AU5620F0 |
| Power supply | 220-240 V ~ 50 Hz |
| Nominal cooling capacity | 3.5 kW |
| Nominal power consumption (cooling) | 1.4 kW |
| Energy efficiency ratio (EER) | 2.6 |
| Energy class | A |
| Refrigerant | R290 (propane) |
| Refrigerant charge | 285 g |
| Dimensions (L × H × P) | 415 × 736 × 345 mm |
| Net weight | 32.6 kg |
| Sound power level | 65 dB(A) |
| Nominal air flow | 300 m³/h |
| Operating temperature range | 16 °C to 35 °C |
| Operating modes | Cooling, Dehumidification, Fan, Economy (ECO) |
| Fan speeds | 3 speeds (Low, Medium, High) |
| Programmable timer | Delayed start/stop from 1 to 24 h |
| Grill oscillation | Yes, button-controlled |
| Remote control | Yes, with AAA batteries (not included) |
| Air filter maintenance | Clean every 100 hours of use |
| Safety | Automatic shut-off when tank full; flammable R290 gas |
| Included accessories | Exhaust hose, window sealing kit, wall flange |
Frequently Asked Questions - Turbo Eco Sense+ AU5620 CALOR
How to clean the air filter?

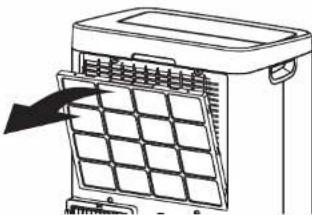

Turn off and unplug the appliance. Remove the air filter (diagram 2). Vacuum or wash with clean water and dry. Replace. Clean after approximately 100 hours of use.
What to do if the 'FULL' indicator lights up?

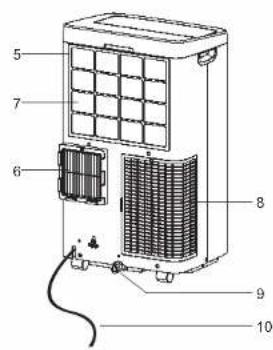

This means the condensed water tank is full. Drain the water by removing the drain cap (No. 9) located at the bottom of the appliance. Place a basin underneath. Refer to the 'Storage' section of the manual.
How to install the exhaust hose?

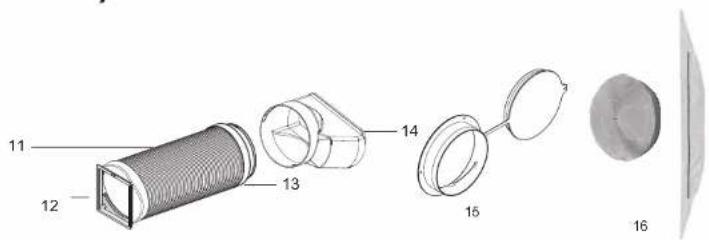

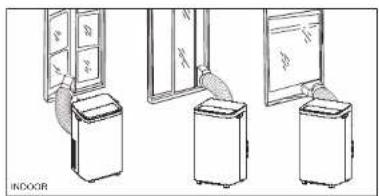

Attach the exhaust nozzle (No. 14) to the connector (No. 12). Slide the connector into the rear air outlet. Unroll the hose and place the nozzle in an open window. Use the sealing kit for semi-permanent installation (wall drilling).
Can I use an extension cord?
No, the use of an extension cord is prohibited to avoid any risk of overheating or fire. Plug the appliance directly into a grounded wall outlet.
How to set the timer?
Press the TIMER button. Use the + and - buttons to set the delay (1 to 24 h). For automatic shut-off, do it while the unit is running. For automatic start, do it while in standby. The appliance will start or stop after the set time.
What is ECO mode?
In cooling mode, ECO mode automatically lowers the target temperature by 3°C compared to the ambient temperature to save energy. The compressor stops when the target is reached, but the fan continues to circulate air at speed 1.
How to drain water in dehumidification mode?
In dehumidification mode, the exhaust hose is not used. Water accumulates in the tank. When the 'FULL' indicator lights up, drain through the lower opening (No. 9) as indicated in the 'Storage' section.
What type of refrigerant is used? Is it dangerous?
The appliance uses refrigerant R290 (propane), which is flammable. In case of a leak, ventilate the room. Do not pierce the appliance. Maintenance must be carried out by a qualified professional. The charge is 285 g.
Why won't the appliance start?
Wait 3 minutes after stopping before restarting (compressor protection). Check that the plug is properly connected and that the power supply works. If the 'FULL' indicator is on, drain the water.
How to use the remote control?
Insert two AAA batteries (1.5 V) respecting polarity. The functions are the same as on the control panel. Point the remote control towards the appliance without blocking the emitter. Remove batteries if not used for more than one month.
