USER MANUAL DSB 995 GRUNDIG

2.1 Channel Connected Soundbar

User Manual

Black musical note symbol on white background (no text or numbers)

DSB 995

DE -EN - FR - ES - TR

DEUTSCH	7-24
ENGLISH	25-38
FRANÇAIS	39-55
ESPAÑOL	56-71
TÜRKÇE	72-89

A

① ② ③ ④

Technical diagram showing a mechanical or electronic component with labeled parts 5 and 6

7 8 9 10

B

① ② ③ DEF

C

1 2 3 4 5 6 7 8 MUSIC MOVIE NEWS 9 10 11 12 GRUNDIG

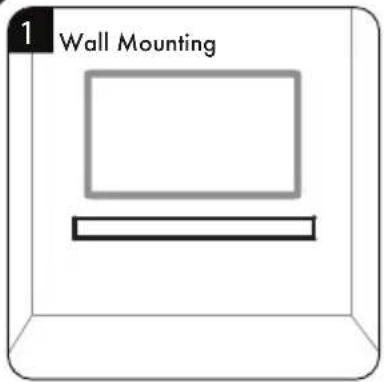

1 Wall Mounting

2 730mm

3 730mm

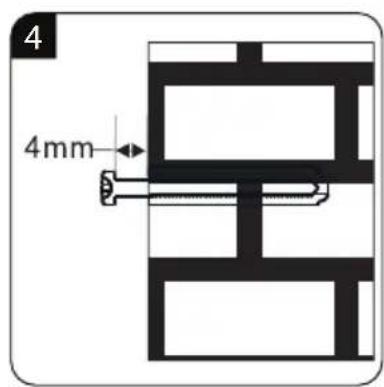

4mm

Diagram of a brick wall with two hanging objects and a horizontal bar, no text or symbols present

Simple 3D illustration of a cylindrical object with an arrow indicating direction (no text or symbols)

Diagram of a cylindrical device with a battery inside, showing internal components and an arrow indicating rotation (no text or symbols)

Diagram of a cylindrical object with a shaded base and an arrow indicating direction (no text or symbols)

12 VCD, CD, VCR DVD Optical Input Optical Output

OPt OPTICAL mode

VCD, CD, VOR DVD LINE IN LINE Output

4 LINE LINE mode

5 -AC IN ARC/DEC ↑ ① TV HDMI ARC ②

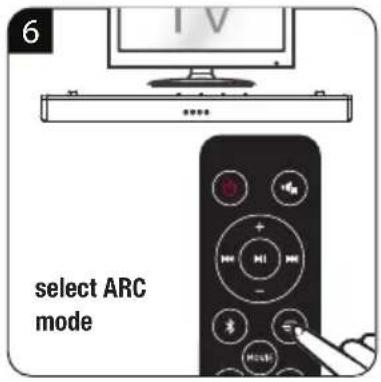

6 select ARC mode

7

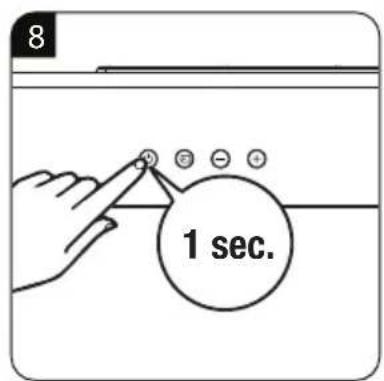

8 1 sec.

9 Searching Connected

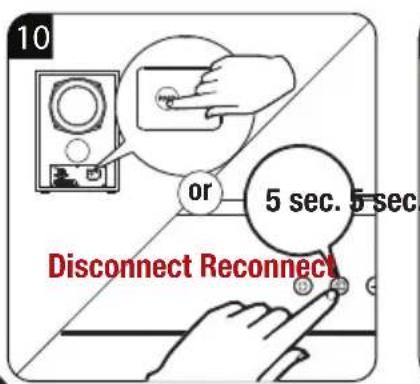

10 or 5 sec. 5 sec Disconnect Reconnect

Diagram showing hand positioning a button on a device with an 'OR' label, illustrating electrical contact or adjustment mechanism.

1 or

2 no bt

3 ANDROID IPHONE 0 ELECTRIC Gndwig DSB 995

DE	MONTAGE ANSO	HLÜSSE BLUETOOTH USB
EN	MOUNTING CONNECTIONS	BLUETOOTH USB
FR	MONTAGE CONNEXIONS	BLUETOOTH USB
ES	MONTAJE CONEXIONES	BLUETOOTH USB
TR	MONTAJ BAĞLA	NTILAR BLUETOOTH USB

Diagram showing a hand pointing to an electronic device panel with labeled buttons and indicators, including a +10.85 power symbol.

USB

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Grundig appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

	Important information and useful hints about usage.
	WARNING:Warnings against dangerous situations concerning the security of life and property.
	WARNING:Warning for electric shock.
	Protection class for electric shock.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICE-ABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude as to constitute a risk of electric shock to persons.

The point exclamation within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Safety:

- Read these instructions – All the safety and operating instructions should be read before this product is operated.

- Keep these instructions – The safety and operating instructions should be retained for future reference.

- Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.

- Follow all instructions – All operating and usage instructions should be followed.

- Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool and the like

- Clean only with a dry cloth.

- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat sources such as radiators, heaters, stoves, or other apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Only use attachments/accessories specified by the manufacturer.

only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

- Unplug the apparatus during lightning storms or when unused for long periods of time.

•Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power

supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped.

This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

•The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.
- Minimum distance around the apparatus for sufficient ventilation is 5cm.
•The ventilation should not be impeded by covering the ventilation openings

with items, such as newspapers, table-cloths, curtains, etc...

• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Batteries should be recycled or disposed of as per state and local guidelines.
  •The use of apparatus in moderate or tropical climates.

Caution:

• Use of controls or adjustments or performance of procedures other than those described herein, may result in hazardous radiation exposure or other unsafe operation.
  •To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus must not be exposed to dripping or splashing and objects

filled with liquids, such as vases, must not be placed on apparatus.

•The mains plug/appliance coupler is used as the disconnect device, the disconnect device must remain readily operable.

- Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Warning

•The battery (batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

- Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.

- Do not place this unit close to strong magnetic fields.

- Do not place this unit on

the amplifier or receiver.

- Do not place this unit close to damp areas as the moisture will affect the life of the laser head.

- If any solid object or liquid falls into the system, unplug the system and have it checked by qualified personnel before operating it any further.

- Do not attempt to clean the unit with chemical solvents as this may damage the finish. Use a clean, dry or slightly damp cloth.

- When removing the power plug from the wall outlet, always pull directly on the plug, never yank on the cord..

- Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user's authority to operate the equipment.

•The rating label is pasted on the bottom or back of the equipment.

Battery usage CAUTION

⚠️ To prevent battery leakage which may result in bodily injury, property damage, or damage to the apparatus:

• Install all batteries correctly, + and - as marked on the apparatus.
- Do not mix old and new batteries.
- Do not mix alkaline, standard (Carbon-Zinc) or rechargeable (Ni-Cd, Ni-MH, etc.) batteries.
- Remove batteries when the unit is not used for a long time.

Bluetooth®

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

HDMI

HIGH DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Dolby Audio

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

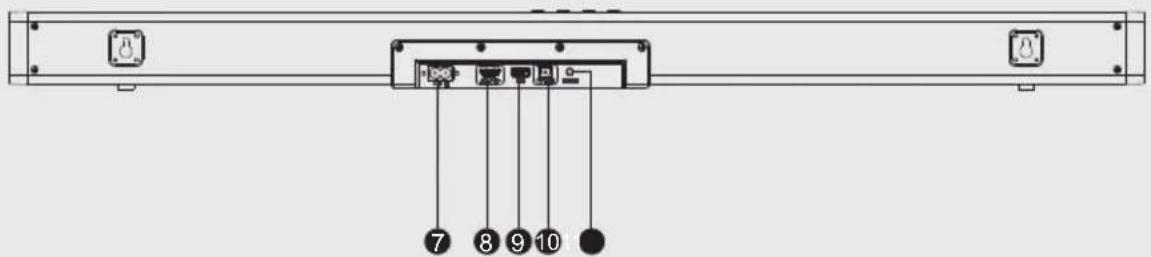

Controls and parts

See the figure on page 3.

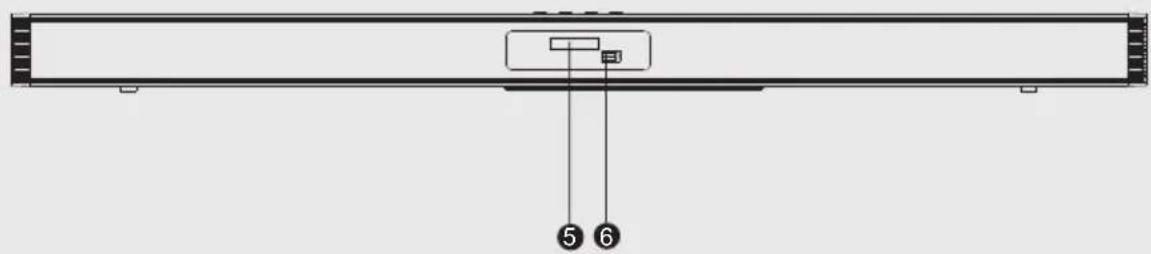

A Main unit

1. Standby
2. Source
3. Volume-
4. Volume+
5. Display screen
6. Remote sensor
7. AC in socket
8. HDMI (Arc in)
9. USB
10. Optical digital audio input
11. Line in

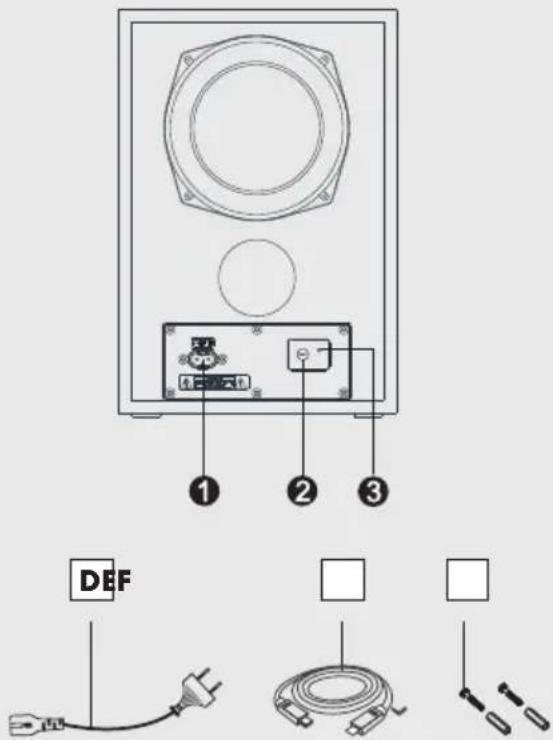

    B Rear panel for subwoofer
12. Ac in socket
13. Pair
14. Indicator light
    C Remote control

1 2 3 4 5 6 7 8 MUSIC MOVIE NEWS 9 10 11 12

D Ac power cord (x2)
E HDMI cable
F Wall plug(2x) and screw(2x)

1. Standby
2. Volume+
3. Previous
4. Play/pause
5. Volume-
6. Bluetooth
7. Movie
8. Music
9. Mute
10. Next
11. Source
12. News

Prepare the Remote Control

• The provided Remote Control allows the unit to be operated from a distance.
• Even if the Remote Control is operated within the effective range (8 m), remote control operation may be impossible if there are any obstacles between the unit and the remote control.
• If the Remote Control is operated near other products which generate infrared rays, or if other remote control devices using infra-red rays are used near the unit, it may operate incorrectly. Conversely, the other products may operate incorrectly.

Precautions Concerning Batteries

• Be sure to insert the batteries with correct positive
  •⊕” and negative “⊖”polarities.
• Use batteries of the same type. Never use different types of batteries together.
• Either rechargeable or non-rechargeable batteries can be used. Refer to the precautions on their labels.
• Be aware of your fingernails when removing the battery cover and the battery.
• Do not drop the remote control.
• Do not allow anything to impact the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control

under direct sunlight or near sources of excessive heat.

• Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and/or property damage, and/or fire.
• Do not use any batteries other than those specified.
• Do not mix new batteries with old ones.
• Never recharge a battery unless it is confirmed to be a rechargeable type.

PLACEMENT AND MOUNTING

Normal Placement (place Soundbar on leveled surface in front of TV)

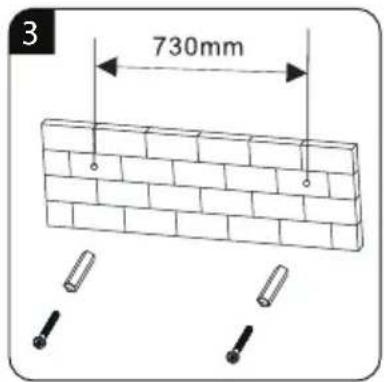

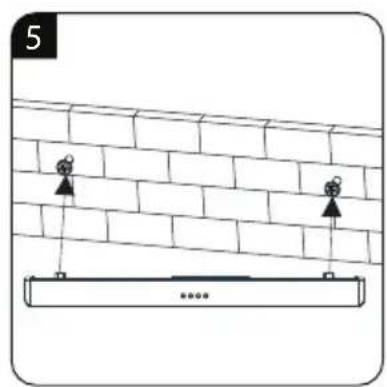

Wall Mounting (option-B)

Note:

- Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried

inside the wall). It is the installer's responsibility to verify that the wall will safely support the total load of the unit and wall brackets.

• Additional tools (not included) are required for the installation.
• Do not overtighten screws.
• Keep this instruction manual for future reference.
• Use an electronic stud finder to check the wall type before drilling and mounting.

CONNECTIONS

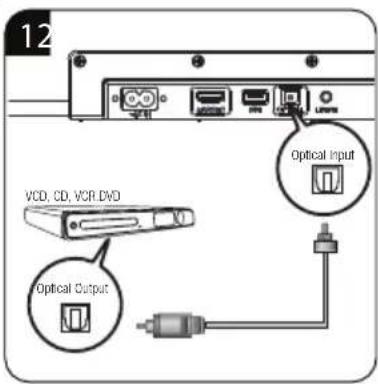

Optical input

• Use the optical cable to connect the optical input of this sound bar to the optical output of VCD, CD, VCR, DVD player.

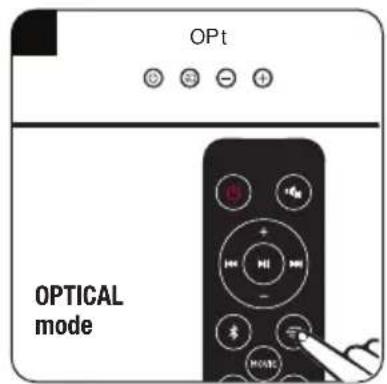

• Press"→,button on the remote control to switch to the Optical input mode, the word "OPt" will be shown on the display screen means to select the Optical mode.

The external device audio output must be set to PCM.

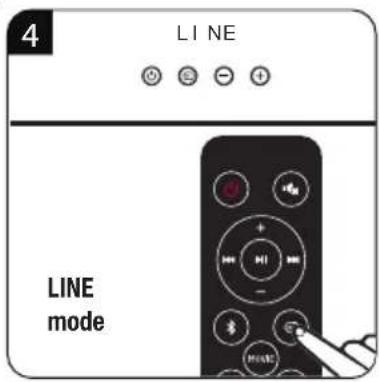

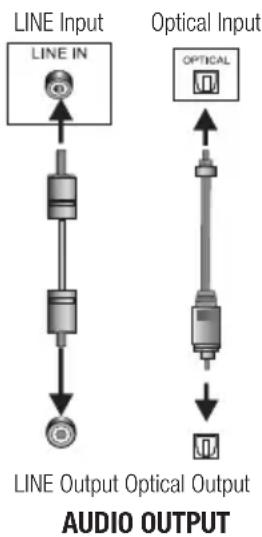

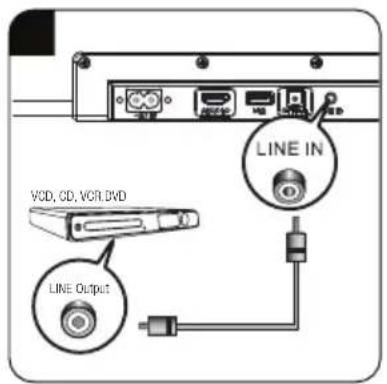

Line in

This sound bar has an extra groups of audio input terminals. You can input the analogue stereo audio signals from extra devices such as VCD, CD, VCR, DVD player, etc.

Use the audio cable to connect the stereo audio output terminals of a VCD, CD, VCR,DVD player to the stereo input terminals LINE IN of this sound bar. Its corresponding signal source is LINE will be shown on the display screen which can be available by pressing "button" on the remote control.

AUDIO INPUT

ARC (Audio return channel)

ARC is audio return channel function, it is used in digital audio output of liquid-crystal display television in order to get the optimal synchronous sound quality. Use the HDMI cable to connect the HDMI-ARC input port of this sound bar

to the ARC output port of the liquid-crystal display television. Press "→" button repeatedly on the remote control to select ARC mode.

The external device audio output must be set to PCM.

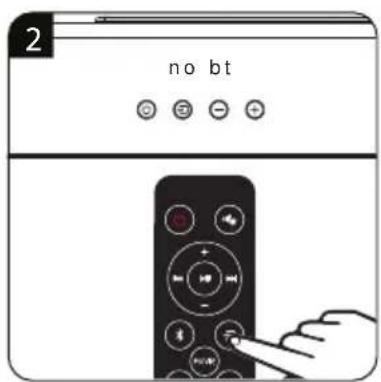

Bluetooth

Press "STANDBY," button on the remote control to power on the sound bar, then press "button on the remote control to switch the bluetooth mode, the word "no bt" will be shown on the display screen, the sound bar is in searching bluetooth signal status, use your smart phone to search the bluetooth signal of the sound bar, select DSB 995 on your list, input the password 0000 if need the password prompt, the sound bar will synchronize to play songs on your mobile phone while the word "bt" is shown on the display screen and a beep will be heard means to be connected successfully.

Disconnected the bluetooth on the smart phone to switched off the bluetooth connection.

• Bluetooth connection range in 10 meters.
• The model DSB 995 in your device was not deleted.
• In bluetooth mode, [PLAY/PAUSE], [NEXT], [PREVIOUS], [VOLUME+/-] etc. are also active.

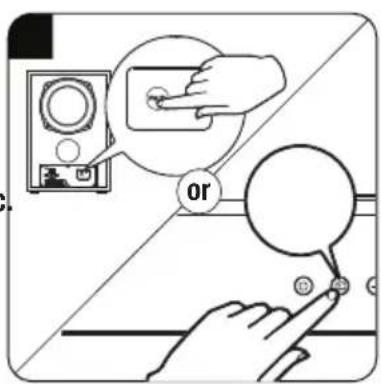

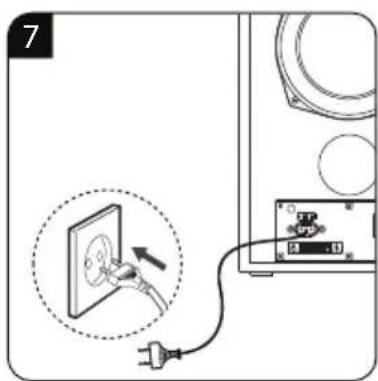

Subwoofer connection

Make sure the AC power cord for the subwoofer is connected to a power supply securely. Power on the sound

bar, press and hold "button for 5 seconds, the subwoofer can receive the wireless audio signal from the sound bar. when the red indicator flashing on the subwoofer, the subwoofer is in searching wireless signal status, the blue indicator keeps lighting on the subwoofer means the sound bar and subwoofer was connected. Press and hold "PAIR", button on the Subwoofer or press and hold "button for 5 seconds to disconnect with the sound bar and the red indicator on the subwoofer flashing when the subwoofer and sound bar was connected, press "PAIR", button on the Subwoofer or press and hold "button on the sound bar for 5 seconds again, the subwoofer will be reconnected with the sound bar.

Diagram showing a hand interacting with an electronic device panel, with labeled buttons and a circular head above.

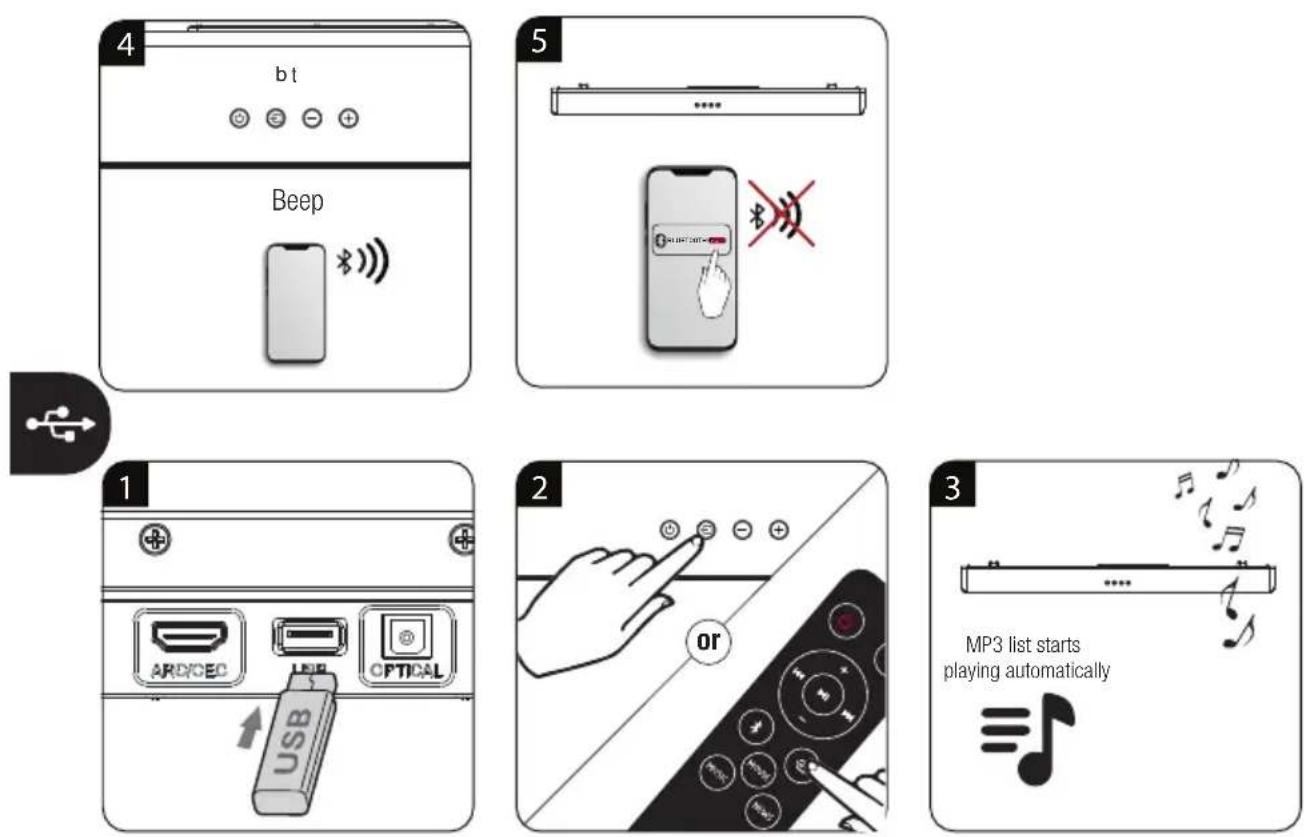

USB

1. Insert USB storage drive into the USB slot on the rear panel.
2. Press 📋 button repeatedly on the remote control to select USB mode.
3. The sound bar will start playing the MP3 track automatically from the connected USB drive.

If play does not start automatically, press "▶" button

1. To skip to the previous/next track, press "◀", buttons on the remote control.

For using Dolby Audio

1. Dolby Audio is available only in ARC/OPT mode. To use Dolby Audio in HDMI-ARC mode, your TV has to support Dolby Audio.
2. Make sure that "No Encoding" is selected for bit stream in the audio output of the connected external device (e.g. Blu-ray DVD player, TV etc.).
3. While entering Dolby Audio / PCM format, the soundbar will show dOL-by AUdIO /PCN AUdIO.

Tips:

- The Soundbar will still function when connected via other methods (such as a Digital Optical cable) but these are unable to support all of the Dolby features.

ARC Connection

- The ARC (Audio Return Channel) function allows you to send audio from your ARC- compliant TV to your sound bar through a single HDMI connection. To enjoy the ARC function, please ensure your TV is ARC compliant and set up accordingly. When correctly set up, you can use your TV remote control to adjust the volume output (VOL +/- and MUTE) of the sound bar.

- HDMI (ARC) socket to the HDMI (ARC) socket on your ARC compliant TV. Then press the remote control to select ARC.

Tips:

• Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On.
• The setting method of HDMI-CEC and ARC may differ depending on the TV. For details about ARC function, please refer to the owner's manual.
• Only HDMI 1.4 or higher version cable can support the ARC function.
• Your TV digital sound output S/PDIF mode setting must be PCM or Dolby Digital

Operation

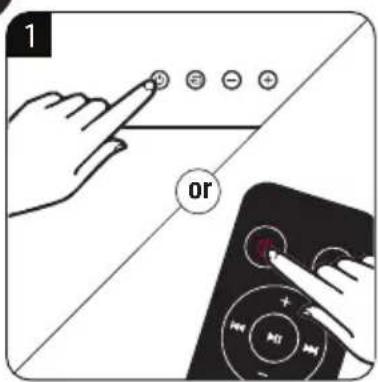

Standby

Press to switch on the unit. Press it again to put the unit in standby mode.

Mute

Press to temporarily switch off the sound. Press it again to switch it on.

Volume +/- Press [VOLUME+] to turn up the volume

Press [VOLUME-] to turn down the volume.

Play/pause

Press to temporarily pause a playback. Press it again to resume the playback.

Hold down this button for 3 seconds to disconnect bluetooth.

Previous

Press to return to the previous track.

Next

Press to skip to the next track.

Bluetooth

Press to enter the BT(Bluetooth) mode.

Source

Press repeatedly to switch among in, BLUETOOTH, LINE IN, USB, OPTICAL IN and ARC mode.

Movie Press to enter the Eq2 equalizer mode, Eq2 stands for MOVIE.

Music Press to enter the Eq1 equalizer mode, Eq1 stands for MUSIC.

News Press to enter the Eq3 equalizer mode, Eq3 stands for NEWS.

INFORMATION

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

This device is noise-suppressed according to the applicable EU directives.

This product fulfils the European directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

Never open the device casing. The manufacturer will not accept any liability for damage resulting from improper handling.

You can find the CE declaration of conformity for the device in the form of a pdf file on the Grundig Homepage www.grundig.com/downloads/doc.

The type plate is located on the bottom of the device

Soundbar
Power supply 100-240V~ 50/60Hz
Power consumption 20W / < 0,5 W (Standby)
USB 5.0 V --- 500mA	Full Speed USB 2.0 / FAT32/ FAT16; 64G (max), MP3
Dimension (WxDxH) 920*72*59 mm
Net weight 2.3 kg
Frequency response 120Hz - 20KHz
Audio S/N ratio ≥60dB
Audio separation ≥50dB
Bluetooth / Wireless specification
Bluetooth version /Profiles V5.3 (A2DP,	AVRCP)
Bluetooth Maximum power transmitted ≤	13 dBm
Bluetooth frequency bands 2402 MHz ~	2480 MHz
Subwoofer
Power supply 100-240V~50/60Hz
Subwoofer power consumption 25W / <0.5W (Standby)
Dimension (WxDxH) 200*225*293 mm
Net weight 5.5 kg
Frequency response 50Hz - 120Hz
Amplifier (Output power)
Total Max. 220 W
Main Unit (RMS) 25W (6Ω) x 2
Subwoofer (RMS) 60W (4Ω)
Working environment	Temperature -10~+35°CRelative humidity 5%~90%

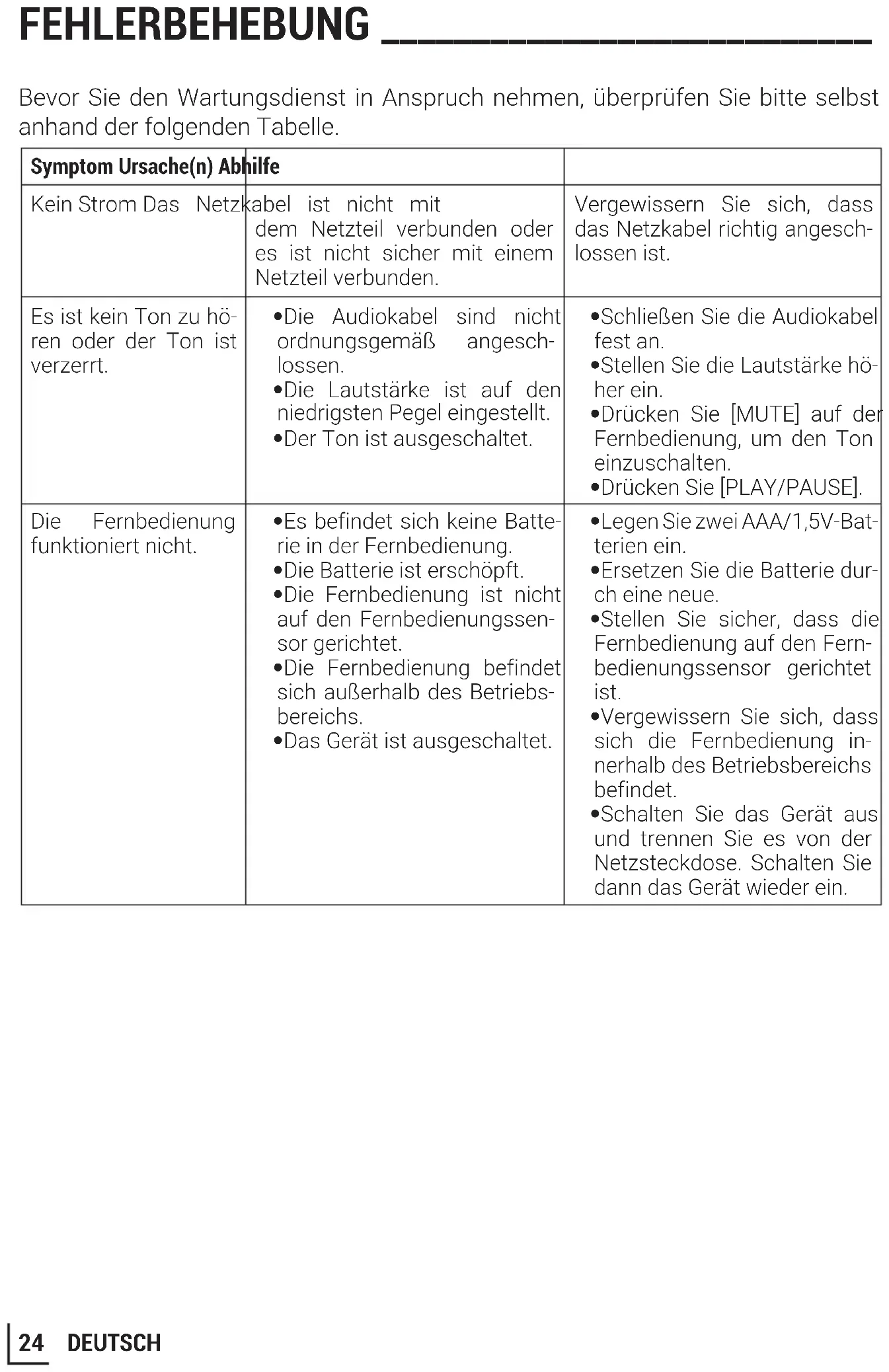

TROUBLESHOOTING

Before resorting to maintenance service, please kindly check by yourself with the following chart.

Symptom Cause(s) Remedy
No Power The AC power cord is not connected to the power supply or is not connected to a power supply securely.		Please check that the AC power cord is connected securely.
There is no sound or the sound is distorted.	The audio cables aren't connected securely.The volume is set to the minimum level.The sound is switched off.	Connect the audio cables securely.Turn up the volume.Press [MUTE] on the remote control to switch on the sound.Press [PLAY/PAUSE].
The remote control does not function.	There is no battery in the remote control.The battery is out of charge.The remote control isn't pointed to the remote sensor.The remote control is out of its operating area.The unit is shut down.	Install two AAA/1.5V batteries in it.Replace the battery with new one.Make sure that the remote control is pointed to the remote control sensor.Make sure the remote control is within the operating area.Switch off the unit and disconnect it from the AC outlet. Then power on the unit again.

ARC (Audio Return Channel)

Diagram showing a hand interacting with an electronic device panel, labeled with ports and indicators.

USB

Diagram showing a hand interacting with an electronic device panel, labeled with ports and indicators such as 'AC 10' and 'VAR'.

USB

Diagram showing a hand interacting with an electronic device panel, labeled with ports and indicators.

USB
