USER MANUAL M 1050 BT GRUNDIG

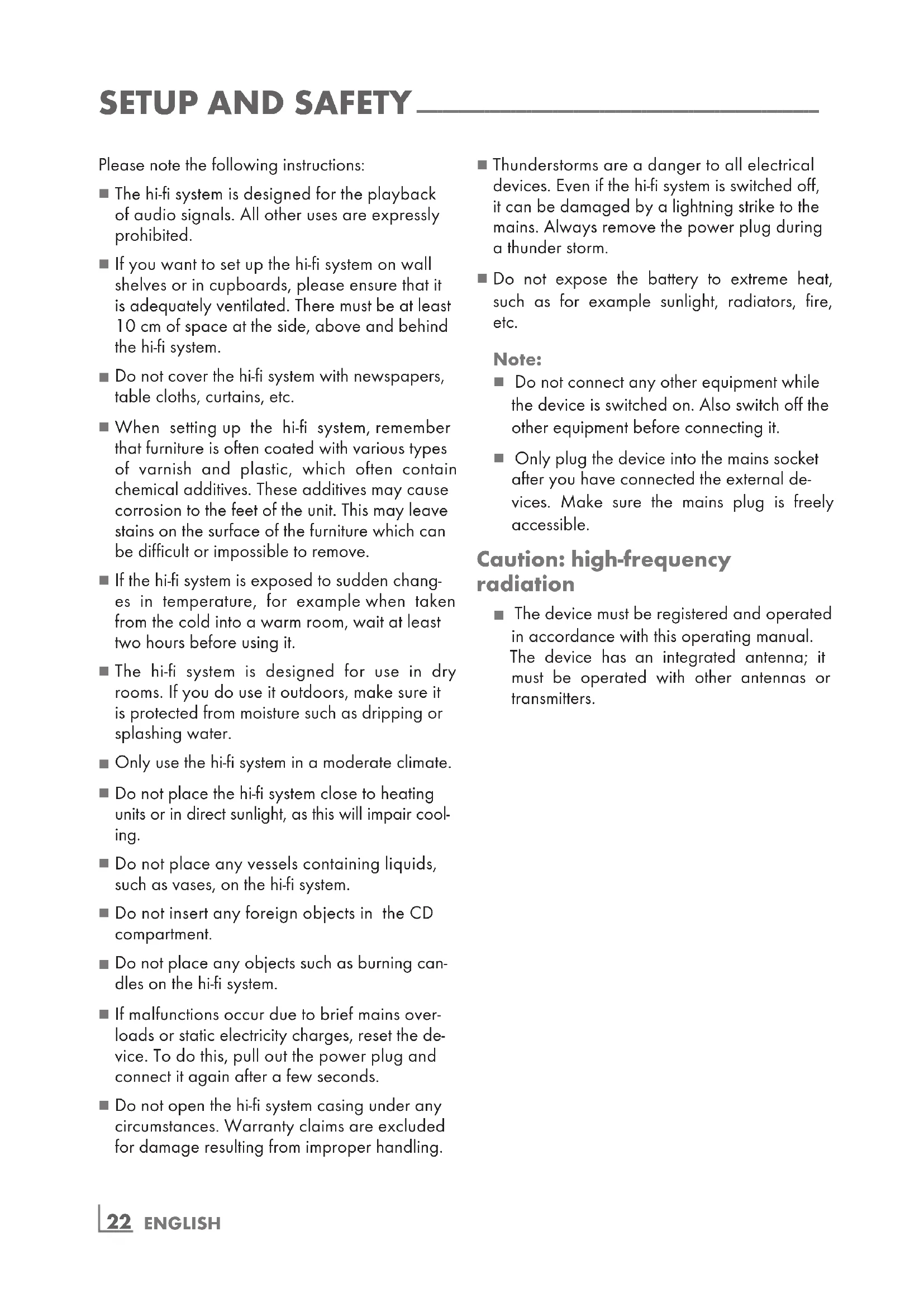

Please note the following instructions:

The hi-fi system is designed for the playback of audio signals. All other uses are expressly prohibited.

If you want to set up the hi-fi system on wall shelves or in cupboards, please ensure that it is adequately ventilated. There must be at least 10 cm of space at the side, above and behind the hi-fi system.

Do not cover the hi-fi system with newspapers, table cloths, curtains, etc.

When setting up the hi-fi system, remember that furniture is often coated with various types of varnish and plastic, which often contain chemical additives. These additives may cause corrosion to the feet of the unit. This may leave stains on the surface of the furniture which can be difficult or impossible to remove.

If the hi-fi system is exposed to sudden chang- es in temperature, for example when taken from the cold into a warm room, wait at least two hours before using it.

The hi-fi system is designed for use in dry rooms. If you do use it outdoors, make sure it is protected from moisture such as dripping or splashing water.

Only use the hi-fi system in a moderate climate.

Do not place the hi-fi system close to heating units or in direct sunlight, as this will impair cool- ing.

Do not place any vessels containing liquids, such as vases, on the hi-fi system.

Do not insert any foreign objects in the CD compartment.

Do not place any objects such as burning can- dles on the hi-fi system.

If malfunctions occur due to brief mains over- loads or static electricity charges, reset the de- vice. To do this, pull out the power plug and connect it again after a few seconds.

Do not open the hi-fi system casing under any circumstances. Warranty claims are excluded for damage resulting from improper handling.

Thunderstorms are a danger to all electrical devices. Even if the hi-fi system is switched off, it can be damaged by a lightning strike to the mains. Always remove the power plug during a thunder storm.

Do not expose the battery to extreme heat, such as for example sunlight, radiators, fire, etc. Note:

Do not connect any other equipment while the device is switched on. Also switch off the other equipment before connecting it.

Only plug the device into the mains socket after you have connected the external de- vices. Make sure the mains plug is freely accessible. Caution: high-frequency radiation

The device must be registered and operated in accordance with this operating manual. The device has an integrated antenna; it must be operated with other antennas or transmitters.23 ENGLISH The hi-fi system controls See the figure on page 3. The front of the device

The hi-fi system displays. 8 Press briefly to switch the device in and out of standby mode. Press to activate CLOCK mode. VOLUME Adjusts the audio volume.

CD compartment. USB port type A for connecting a USB memory stick or an MP3 player. AUDIO IN Audio signal input (Audio In) for connecting an external device. In external data media mode: starts and pauses playback. 7 In external data media mode: ends playback. In tuner mode: press to start auto scan.

In tuner mode: press briefly to change the pre set stations down. In external data media mode: re- verse track selection; press and hold down to search for a certain passage back wards. 4 In tuner mode: press briefly to change the pre set stations up. In external data media mode: forward track selection, press and hold down to search for a certain passage forwards. Selects the input sources Tuner, Bluetooth, AUDIO IN, Disc and USB, DAB . Opens and closes the CD com- partment. The back of the device SPEAKER Terminals for connecting the OUTPUT (4 ) loudspeaker cables. + R– + L – R = right channel, L = left channel. DAB ANTENNA Antenna socket for the the aux- iliary antenna or the roof anten- na supplied.

The remote control 8 Switches the hi-fi system to standby mode and from standby mode to the last input source selected. SLEEP Activates sleep timer mode, sets the time for the sleep timer. . Opens and closes the CD com- partment. INTRO In external data media mode: for playing brief introductions to tracks.

Selects the input sources Tuner, Bluetooth, AUDIO IN, Disc and USB, DAB INFO In tuner mode: opens RDS informa- tion. In external data media mode: switches the display between the current track number and the elapsed playing time and displays the ID3 tag information, if avail- able. REP In external data media mode: to repeat a track, the CD, the album or the playlist; plays back tracks in random order

Selects different sounds settings.

Press briefly to change the preset stations down. In external data media mode: re- verse track selection; press and hold down to search for a certain passage back wards. In standby and timer mode: for setting the hours. In external data media mode and in Bluetooth mode: starts play back; pauses playback. 4 Press briefly to change preset stations up. In external data media mode: forward track selection, press and hold down to search for a certain passage forwards. In standby and timer mode: for setting the minutes. TUN

10 – + In tuner mode: press and hold down to start the reverse or forwards frequency search; press briefly to change the frequency backwards or forwards in steps. In external data media mode: press briefly to select the track in 10 steps. 7 In external data media mode: ends playback. FOLD – + In external data media mode: select albums MEMORY PROG In tuner mode: activates the memo- ry function; saves radio stations to presets. In external data media mode: activates the Create playlist func- tion; stores the track when creating a playlist. – VOL + Adjust the volume. CLOCK In standby mode: for setting the hours/minutes. ALARM In tuner mode: Switches the hi-fi system speakers to and from mute mode. In external data media mode: Switches the hi-fi system speakers to and from mute mode. In timer mode: for setting the alarm.25 ENGLISH

Observe the left and right channels (L = left channel, R = right channel). Connecting the antenna 1 Plug the roof antenna cable into the antenna socket »FM ANTENNA« on the hi-fi system. Note:

If no roof antenna is available, use the auxiliary antenna supplied. When suitably positioned and with adequate signal, this antenna provides adequate reception of FM channels. Do not shorten the auxiliary antenna. Connecting an MP3 player or a USB memory stick Caution:

The hi-fi system must be switched off while the USB connection is being made. If it is not switched off, data can be lost. 1 Connect the USB interface of the MP3 player to the » « socket of the hi-fi system with a standard USB cable;

Switch the hi-fi system off before you connect external devices. 1 Use standard audio cables (3,5mm) to cona- nect the audio outputs of the external device to the »AUDIO IN« sockets on the hi-fi system. Connecting the power cord Notes:

Check that the mains voltage on the type plate (on the bottom of the hi-fi system) cor- responds to your local mains supply. If this is not the case, contact your specialist dealer.

All the other devices/loudspeakers must be connected before you connect the power cord. 1 Plug the power cord into the wall socket. Caution:

The hi-fi system is connected to the mains with the power cord. Pull out the power plug if you want to completely disconnect the hi-fi system from the mains.

Make sure the power plug is easily acces- sible during operation and not hindered by other objects. Activating the battery in the re- mote control 1 Open the battery compartment by pressing down on the catch and then remove the lid. 2 Observe the polarity marked on the base of the battery compartment when inserting the batteries (micro batteries, 1 x 1.5 V, R 03/UM 4/AAA). 3 Close the battery compartment. Notes:

Do not expose the batteries to extreme heat, caused for example by direct sunlight, heat- ers or fire.

Remove the batteries when they are flat or when you know that the hi-fi system will not be used for a long period of time. The man- ufacturer accepts no liability for damage caused by leaking batteries. Environmental note:

Batteries, including those which do not con- tain heavy metal, should not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations.ENGLISH

Switching on and off The only way to disconnect the hi-fi system from the mains supply is to pull out the plug. 1 Switch on the hi-fi by pressing »8«. – The last input source used is automatically selected. 2 Switch the hi-fi system to standby mode by pressing »8«. CLOCK mode The hi-fi system switches to standby in the CLOCK- mode after 15 minutes. This lowers the power con- sumption to below 1 W. Automatic Standby The device switches to standby mode automati- cally after 15 minutes if: – the device is in the stop position; – there is no audio signal detected at the »AUDIO IN« socket; – the Bluetooth auxiliary devices is not sending an audio signal. To use the device, switch it back on. Adjusting the volume 1 Turn the control knob on the hi-fi system or press

on the remote control to change the volume. Selecting sound settings You can choose between preset sound settings. 1 Select the sound setting using »EQ« on the re- mote control. Muting You can switch the hi-fi speakers to and from mute mode with this function. 1 Activate mute with » « on the remote control. 2 Deactivate mute with » « on the remote con- trol. Displaying the time 1 Display the time with » CLOCK « on the remote control. GENERAL FUNCTIONS

ENGLISH Automatic station search for FM radio stations 1 Switch on the hi-fi system by pressing »8«. 2 Select TUNER with » « on the remote con- trol or » « on the appliance 3 For the automatic station search press briefly »AUTO« on the remote control. – The device searches for up to 40 stations with strong reception and stores them auto- matically. After the search has finished, you will hear the station stored at preset 01. Notes:

You can cancel the automatic station search by pressing »

You can restart the automatic station search by pressing briefly »AUTO« until the frequency display changes to rapid run- through. Setting and storing radio stations manually 1 Set the radio station by briefly pressing » TUNE+ « or » TUNE- « repeatedly. – Display: the frequency changes in steps of 50 kHz;

Some RDS stations transmit an RDS time signal. If the selected RDS station transmits time information, the time can be updated automatically. Press »INFO« repeatedly until the time is displayed. If »RDS CLK« displayed, the time signal has not yet been received. Please wait until the time is displayed.

If you want to disable the alarm, press once the »ALARM« button and the symbol »TIMER« will disappear from the screen.29 ENGLISH

Using CDs The device is suitable for music CDs displaying the logo shown here (CD- DA) and for CD-Rs and CD-RWs with audio data.

The device cannot play CD-ROM, CD-I, CDV, VCD, DVD or computer CDs.

In MP3/WMA mode, the terms "album" and "file" are very important. "Album" corresponds to a folder on a PC, "file" to a file on a PC or a CD-DA track. An MP3/WMA CD may not contain more than 999 tracks/folders in total.

When burning CD-R and CD-RWs with audio files, various problems may arise which could lead to problems with playback. This can be caused by faulty software or hardware set- tings or by the CD being used. Should such problems arise, contact the customer services of your CD burner or software manufacturer or look for relevant information, for example on the Internet.

When you are making audio CDs, observe all legal guidelines and ensure that the copyright of third parties is not infringed.

Always keep the CD compartment closed to prevent dust from collecting on the laser op- tics. The CD compartment closes automatically after a short time.

Do not attach adhesive labels to CDs. Keep the surfaces of CDs clean.

You can play standard 12 cm CDs as well as 8 cm CDs on your device. An adapter is not necessary. Operation with an MP3 player or USB memory stick

The » « socket is not compatible with USB hubs and cannot be connected directly to a PC.

The USB interface of this device is a standard interface. All currently- known MP3 chip concepts were taken into account when it was developed. Due to rapid progress in MP3 technology and new manufacturers appearing every day, the compatibility of MP3 players/USB memory sticks can only be partially guaran- teed. If USB operation is impaired or is not pos- sible, this does not indicate a malfunction of the device.

Bi-directional data transfer as defined for ITE devices in EN 55022/EN 555024 is not possible.

USB transfer is not in itself an operating mode. It is only an additional function.

Never remove a MP3 player/USB memo- ry stick during playback. This can result in damage to the data and the devices. No warranty claims are accepted for dam- age incurred as a result of this.ENGLISH

Charging a USB Device Your Micro HiFi System include a USB port at the back. This allow you to charge a USB De- vice using the Micro HiFi System. 1 Connect your USB using the USB cable into the » 5V 1A « socket. – The USB Device will begin to charge. Notes:

The Micro HiFi System switches off automati- cally after approx. 15 minutes.

Power output of the USB port is 1A. If your device require more power may not charge through this USB port.

Charging function may not be support for all smartphones, tablets or electronic devices. Caution:

If no data medium is inserted/connected, the message »NO DISC« or »NO USB« ap- pears. Inserting/connecting music data media Inserting the disc 1 Press ».« to open the CD compartment. – The CD compartment opens. 2 Put in the disc with its label facing upwards. 3 Press ».« to close the CD compartment. – The disc is read. – Display in MP3/WMA mode: the total num- ber of albums and tracks. – Display in CD-DA mode: the total number of tracks and the total playing time. 4 Playback starts automatically. Connecting an MP3 player or a USB memory stick 1 Switch the device to standby mode by pressing »8«. 2 Connect the USB interface of the MP3 player to the » « socket of the hi-fi system with a standard USB cable;

insert the USB plug of the USB memory stick into the USB interface » « of the hi-fi sys- tem. 3 Switch on the device from standby by pressing »8«. – Display: the total number of albums and tracks. Playback Pausing and resuming playback 1 Press »eII« to pause playback. – Display: the playing time flashes. 2 Resume playback with »eII«. – Display: number of folders and tracks or track information and the elapsed playing time. Resuming playback 1 Pause playback by selecting another input source or press »8«. – If you select the data medium again, play- back continues from the point at which it stopped. Stopping playback 1 To stop playback, press »

– When playback starts again, it begins from the first track. Repeating the current track 1 Press »REP« briefly during playback. Selecting another track or folder When you play music CDs, you can select the track; when you play MP3/WMA files, you can also select folders.31 ENGLISH

« or »4 « repeatedly during playback until the number of the track you want appears in the display;

select the folder by pressing »FOLD – +«, then select the track with»

« or »4 «. Displaying track information (for MP3/WMA) If information about the artist, album and track are available on the data medium, this is dis- played (ID3 tag). 1 Press »INFO« repeatedly to display informa- tion. Repeat functions Repeating a track (Repeat One) 1 Press »REP« once during playback on the re- mote control. – Display: »REP ONE« – Display: »REP« flashes, the current track is repeated. 2 To stop the function, press »REP« so repeat- edly until the display »OFF« disappears. Repeating all the tracks of a folder (Repeat Folder) (MP3/WMA only) 1 Press »REP« twice during playback. – Display: »REP FOLD« – Display: »REP« flashes, all the tracks in the current folder are played back repeatedly. 2 To stop the function, press »REP« repeatedly until the display »OFF« disappears. Repeating all tracks on the data me- dium (Repeat All) 1 Press »REP« three times during playback. – Display: »REP ALL«. – Display: »REP« and »ALL« flashes, all the tracks in the current folder are played back repeatedly. 2 To stop the function, press »REP« repeatedly until the display »OFF« disappears. Playing back tracks in random order (Random) 1 Press »REP« four times during playback. – Display: »SHUFFle«. – Display: »SHUF« flashes, all tracks on the data medium are played back once in ran- dom order. 2 Press »REP« to switch off the random function. – The display »OFF«.disappears. Playing the start of each track (intro) 1 Press »INTRO« during playback. – Intro playback starts automatically. – The first ten seconds of all the tracks or all the remaining tracks on the data medium are played. 2 To quit this function, press »INTRO« again. Creating a playlist You can create a track memory of up to 20 tracks for the current data medium in anyENGLISH

order you choose and then play them back in that sequence. A track may be saved more than once. The entries can only be made in stop mode. Selecting and storing tracks 1 Press »

« once to stop playback. 3 To play the playlist again, press »MEMORY PROG« in the stop position, followed by »eII«. Deleting the playlist 1 To delete the playlist, press »

open the CD compartment;

Activating a Bluetooth auxiliary device that is logged on Notes:

You only have to log Bluetooth auxiliary de- vices on once.

When the Bluetooth auxiliary device leaves and then moves back into signal range of the Micro HiFi System the auxiliary device logs on automatically.

The Micro HiFi System automatically cony- nects to the last Bluetooth auxiliary device that was logged on.

If the Bluetooth auxiliary device is not recog- nised, it has to be activated again via its own menu. Playback from the Bluetooth auxiliary device 1 Start playback on the Bluetooth auxiliary de- vice. 2 Set the preferred volume with the control knob on the hi-fi system or press »– VOL +« on the remote control 3 End playback on the Bluetooth auxiliary de- vice. Notes:

Note that the data transmission range can be as much as 9 m, depending on the Blue- tooth device that is used and the structure of the building. Logging out the Bluetooth auxiliary device 1 Log out the Bluetooth device. – The display changes to »NO BT«. Logging the Bluetooth device back

Compatible with the following devices Your Micro HiFi System can be connected to any commercially available Bluetooth-compatible de- vices that comply with the A2DP standard. This includes smartphones, laptops and tablet PCs, for example. Selecting the Bluetooth input source 1 Select the Bluetooth input source by pressing » « on the device or » « on the remote control. – Display: »BT«. Finding and connecting a Bluetooth auxiliary device 1 Activate the Bluetooth function on the Blue- tooth auxiliary device. 2 Start the search function on the Bluetooth aux- iliary device. – After a short time, your Grundig connected Hifi System will be displayed on the Bluetooth auxiliary device. 3 Select the Grundig connected Hifi System on the Bluetooth auxiliary device and connect to it. 4 When the Bluetooth auxiliary device is con- nected to your device, »BT« is displayed on the Micro HiFi System Note:

Your Micro HiFi System can only receive and play the audio signal from one Blue- tooth device; however, up to 8 Bluetooth auxiliary devices can be logged on.ENGLISH

Compliance with the WEEE Direc- tive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classifica- tion symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its ser- vice life. Used device must be re- turned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the prod- uct was puchased. Each household performs im- portant role in recovering and recycling of old appliance. Appropriate disposal of used appli- ance helps prevent potential negative conse- quences for the environment and human health. Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials speci- fied in the Directive. Package information Packaging materials of the product are manufactured from recyclable ma- terials in accordance with our Na- tional Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points desig- nated by the local authorities. BLUETOOTH MODE

1 If you move out of data transmission range or switch off Bluetooth mode, the Bluetooth auxil- iary device is logged out. 2 To log back on, select your Micro HiFi System again on the Bluetooth auxiliary device. Note:

If it is not possible to connect to a Bluetooth auxiliary device that was registered previ- ously, remove your Micro HiFi System from the Bluetooth auxiliary device's device list and repeat the search and connection pro- cedure.35 ENGLISH INFORMATION

Technical data This device is noise-suppressed according to the applicable EU directives. This product fulfils the European directives 2014/53/EU, 2009/125/ EC and 2011/65/ EU. You can find the CE declaration of conformity for the device in the form of a pdf file on the Grundig Homepage www.grundig.com/downloads/doc. The type plate is located on the bottom of the hi-fi system. System Power supply Operating voltage: 220 - 240 V

Mains frequency: 50/60 Hz Rated power consumption: 20 W Power consumption (ECO mode): ≤ 1 W Amplifier unit Output: Sine wave power: 2 x 15 W Loudspeaker impedance: 4 Ω Signal-to-noise ratio: ≥ 60dBA Receiver unit Reception range: DAB/DAB+: 174,928 ... 239,200 MHz FM: 87.5 ...108.0 MHz BT frequency : 2402 - 2480 MHz BT maximum output power: 2.05 dBm CD unit Frequency response: 50Hz ... 20kHz Noise voltage ratio: ≥ 60dBA MP3/WMA Folder and track: Max. 99 folders and 999 tracks per CD File system/folder management: ISO 9660 Level 1 compatible USB USB 2.0 for FAT 32/16 format Dimensions and weight Device dimensions: W x H x D 180 x 121 x 231mm Device weight: 1.67 kg Loudspeaker dimensions: W x H x D 155 x 254 x 129mm Loudspeaker weight: 1.07 kg Technical and design modifications are reserved. General information on laser devices CLASS 1 LASER PRODUCT This device is a CLASS 1 LASER PRODUCT. This means that the laser is designed in such a way as to ensure that the maximum per- missible emission value cannot be exceeded under any circumstances. Caution: If operating devices or methods other than those specified here are employed, it may lead to dan- gerous exposure to emissions. This device emits laser radiation. Because of the danger of eye injuries, the unit may only be opened or serviced by trained personnel. If settings other than those stated here are used or other procedures are carried out, this may lead to dangerous exposure to radiation.FRENCH
