Product type	Drip coffee maker
Brand	Bosch
Model	TKA4M233
Carafe capacity	Approximately 8 cups (125 ml per cup)
Available carafe types	Thermal carafe or glass carafe with hot plate
Power	Approximately 1000 W (estimated)
Power supply	220-240 V ~ 50/60 Hz
Dimensions (W x H x D)	270 x 340 x 180 mm (estimated)
Weight	Approximately 2.5 kg (estimated)
Intense Aroma function	Longer percolation for a stronger aroma
Automatic shut-off	Adjustable: 20, 40 or 60 minutes after percolation ends
Water hardness setting	3 levels: soft, medium, hard (factory: hard)
Descaling indicator	Buttons flash when descaling is needed
Anti-drip system	Stops flow when carafe is removed
Removable filter holder	Yes, with swivel holder
Removable water tank	With water level display
Maintenance	Regular cleaning of removable parts, periodic descaling
Safety	Supervision required during use, do not immerse, keep out of reach of children
Repairability	Repairs by qualified personnel only, spare parts available via customer service
Warranty	According to country conditions, contact customer service

Frequently Asked Questions - TKA4M233 BOSCH

How to prepare the appliance for first use?

Run a first cleaning cycle with a mixture of 5 cups of water and 1 cup of vinegar, then two rinses with 6 cups of clear water. Let it cool for 5 minutes between each cycle.

How to adjust the water hardness on the Bosch TKA4M233 coffee maker?

Plug in the appliance when turned off, press and hold the Aroma and Descaling buttons for 3 seconds. The last setting flashes. Press the On/Off button within 7 seconds to select: soft, medium, or hard.

What to do when the descaling indicator flashes?

The appliance needs descaling. Use a commercial descaling agent without phosphoric acid and follow the instructions in the manual (fig. 21-27). Regular descaling extends the life of the appliance.

How to activate the Intense Aroma function?

Press the Aroma button within one minute after starting percolation. The symbol lights up white. The function remains active for subsequent cycles until deactivated.

Can I use the thermal carafe in the microwave or dishwasher?

No, the thermal carafe and its lid must not be heated in the microwave or oven, nor placed in the dishwasher. Clean them by hand with a solution of soda or denture cleaning tablets.

How to adjust the automatic shut-off time?

Plug in the appliance when turned off, press and hold the Descaling button for 3 seconds. The last setting flashes. Press the On/Off button within 7 seconds to choose 20, 40, or 60 minutes.

Why is the coffee not flowing or flowing slowly?

This may be due to a need for descaling or a clogged filter. Clean the filter holder and the anti-drip device. Ensure the carafe is correctly positioned.

How much ground coffee to use per cup?

Use about 6 g of ground coffee per cup (125 ml) with a medium grind. For optimal aroma, do not brew fewer than 3 cups.

Is the appliance safe for children?

Children under 8 years old must be kept away. Children aged 8 and above may use the appliance under supervision. Cleaning and maintenance must not be performed by children without supervision.

What to do if the anti-drip device leaks?

Remove the filter holder and clean the anti-drip device under running water. Press the device several times with your finger towards the filter holder to restore the seal.

USER MANUAL TKA4M233 BOSCH

new device on MyBosch now and get free benefits:

bosch-home.com/ welcome

Filter coffee machine

TKA3M... TKA4M... TKA6M...

QR code image containing encoded data, no visible human-readable text

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[da]	Scan QR-koden, eller besøg hjemmesiden, for at åbne de udvidede anvisninger om anvendelse. Der kan der findes yderligere oplysninger om apparatet eller tilbehøret.
[no]	Skann QR-koden eller besøk nettstedet for å åpne mer informasjon om bruken. Der finner du mer informasjon om apparatet eller tilbehøret.
[sv]	Scanna QR-koden eller gå till webbplatsen och öppna de utökade användningsanvisningarna. Där finns mer information om din apparat eller dina tillbehör.
[fi]	Skannaa QR-koodi tai vieraile internet-sivustollamme, jotta voit avata laajennetut käyttötiedot. Sieltä löydät laitetta tai varustetta koskevia lisätietoja.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratin veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrıntılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[cs]	Pro další informace k používání načtěte QR kód nebo navštivte webovou stránku. Tam najdete další informace ke spotřebiči nebo příslušenství.
[sk]	Naskenujte QR kód alebo navštívte webovú stránku, aby ste sa dozvedeli rozšírené informácie o používaní. Tam nájdete d'alšie informácie o vašom spotrebiči alebo príslušenstve.
[uk]	Щоб отримати докладніші вказівки з користування, зіскануйте QR-код або відвідайте сайт. Там ви знайдете додаткові відомості про прилад або приладдя.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.

QR code image containing encoded data, no visible human-readable text

https://digitalguide.bsh-group.com?mat-no=8001280188

Diagram illustrating cable installation process with blue cable and plug, showing two steps with directional arrows indicating movement.

2

Illustration of a portable coffee maker with a blue cloth cover and black arrow pointing to the lid (no text or symbols)

3

5x 1x

4

ON

5

Illustration showing a hand pouring liquid into a sink and a water dispenser with a black arrow indicating flow direction (no text or symbols)

6

7

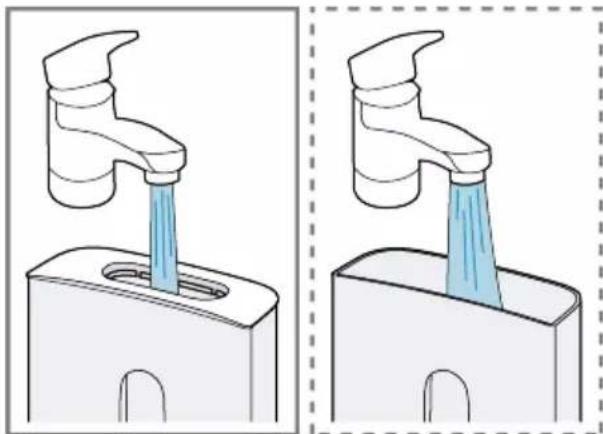

Three-panel illustration showing a faucet with blue liquid flowing into a basin and a bucket pouring liquid from a pan (no text or symbols)

8

Illustration of a faucet with blue liquid being inserted into a container, shown in two different stages (no text or symbols)

9

Diagram of a medical device with a blue cover and black arrow indicating a downward motion (no text or symbols present)

10

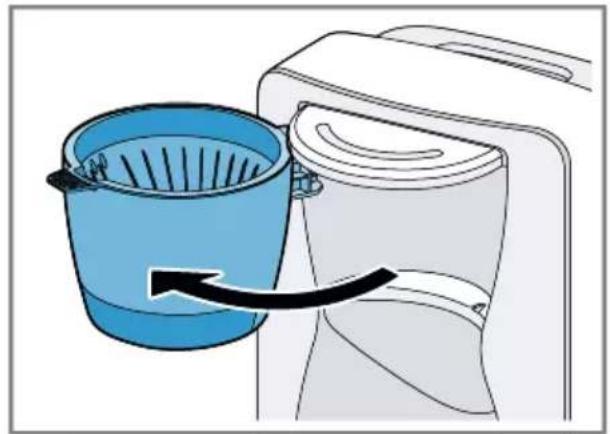

Illustration of a blue bucket being inserted into a kitchen sink, with an arrow indicating the direction (no text or symbols present)

The image is too blurry to recognize any text content.

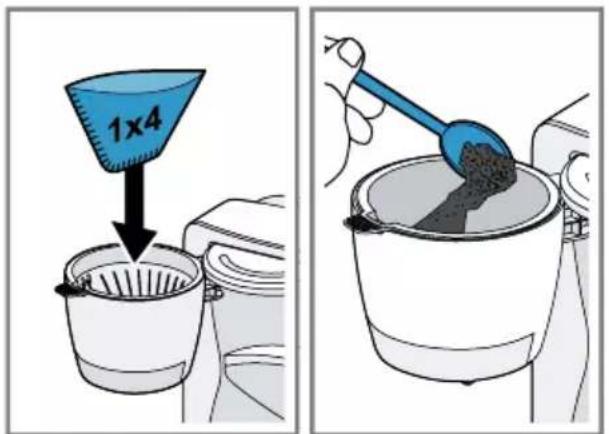

1x4

12

CLICK

The image is too blurry to recognize any text content.

Illustration of a kitchen sink with a blue cloth and arrow pointing to the interior (no text or symbols)

14

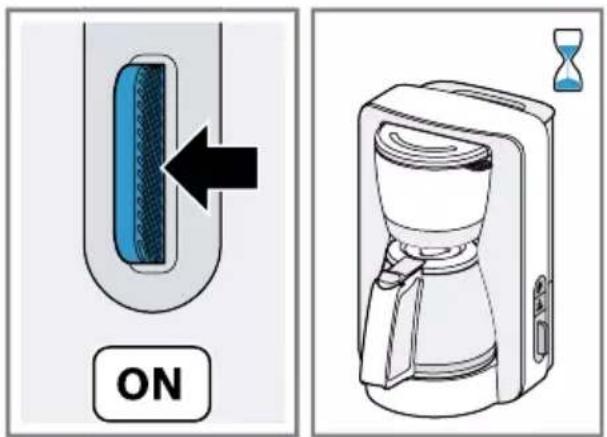

ON

The image is too blurry to recognize any text content.

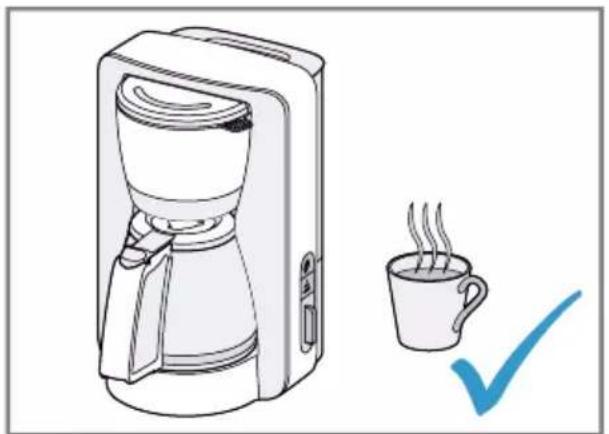

Illustration of a coffee maker with a steaming cup and a checkmark (no text or symbols)

16

Illustration of a hand pressing down on a blue capsule with circular patterns (no text or symbols)

Illustration of a hand pouring liquid from a teapot into a cup (no text or symbols)

18

Diagram illustrating a mechanical device with directional arrows and a waveform symbol, likely illustrating a motion or signal flow.

The image is too blurry to recognize any text content.

Diagram illustrating a device being opened into a container, showing the process with a speaker icon and directional arrows.

20

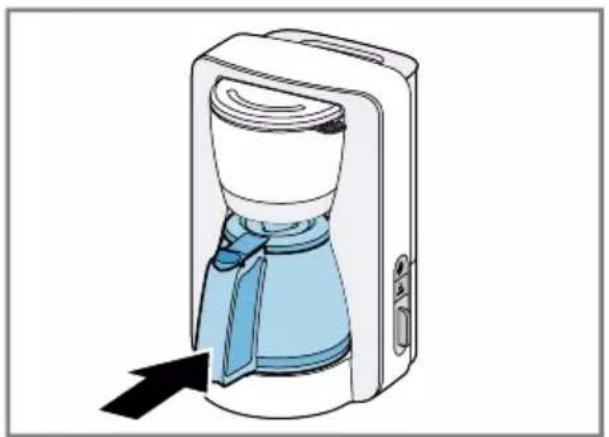

Illustration of a portable coffee maker with a blue cloth cover and black arrow pointing to the lid (no text or symbols)

The image is too blurry to recognize any text content.

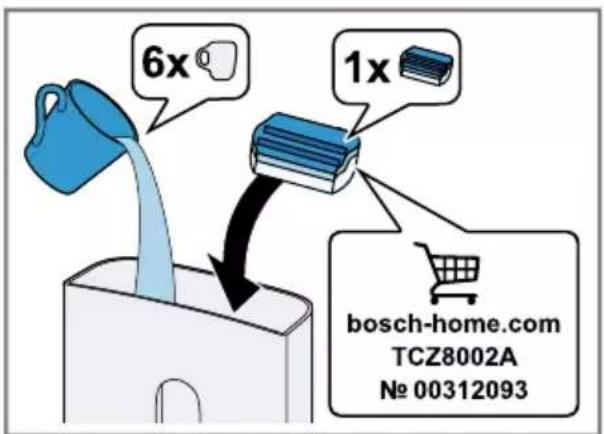

6x 1x bosch-home.com TCZ8002A No 00312093

22

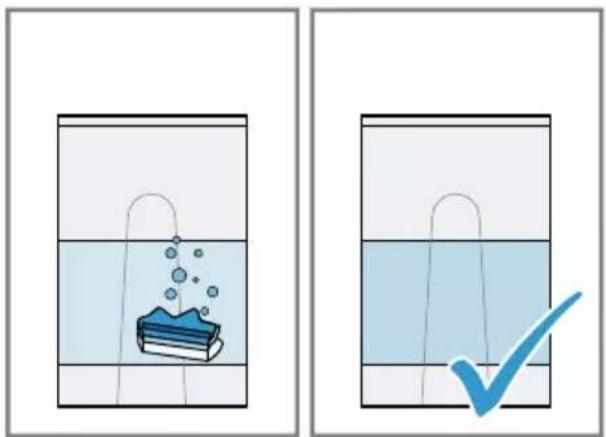

Two-panel illustration showing a container with bubbles and liquid, one partially submerged and the other with a checkmark (no text or symbols)

The image is too blurry to recognize any text content.

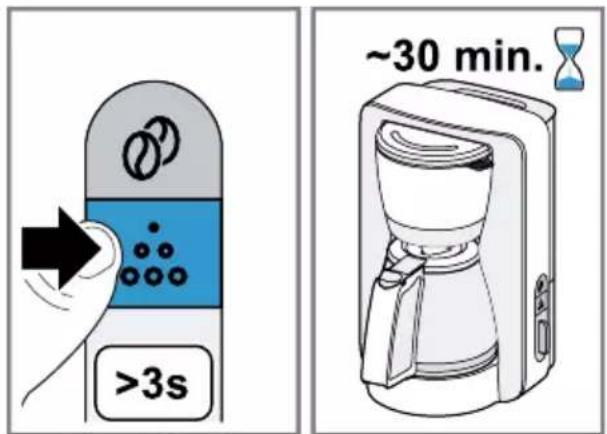

>3s ~30 min.

24

Illustration showing a hand pouring liquid into a sink and a water dispenser pouring liquid into a container (no text or symbols)

The image is too blurry to recognize any text content.

26

Three-panel illustration showing a faucet with blue liquid flowing into a basin, then dropping into a bucket (no text or symbols)

The image is too blurry to recognize any text content.

	√	×	×	×	×
	√	√	×	√	×
	√	√	√	√	√
	√	√	×	×	×

28

Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

Only use this appliance:

■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ for normal processing quantities and for normal processing times for domestic use.
■ up to an altitude of max. 2000 m above sea level.
■ for brewing filter coffee.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.
• Keep small parts away from children.
  ▶ Do not let children play with small parts.
• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
  ▶ Never operate a damaged appliance.
  ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
• Repairs to the appliance should only be carried out by trained specialist staff.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
▶ Never immerse the appliance or the power cord in water or clean in the dishwasher.
- Liquids must not be spilled on the appliance plug connection.
▶ Ventilate the appliance adequately.
▶ Never operate the appliance in a cupboard.
▶ Never leave the appliance unattended while it is switched on.
▶ Never place the appliance on or near hot surfaces.
▶ Never cover the warming plate.
▶ Only use replacement jugs that are approved for your model by customer service.
▶ Never touch hot appliance parts.
- Allow hot appliance parts to cool down before touching.
▶ Only hold the jug by the handle.
▶ To avoid injuries, only use the appliance for its intended purpose.
▶ Follow the cleaning instructions.
- Clean surfaces which come in contact with food before each use.
- To prevent bacteria forming, do not keep dairy products, baby food or similar foodstuffs in the thermos jug or keep them warm in it.

Preventing material damage

▶ Only use the appliance with fresh, cold, non-carbonated water. Never add milk, ready-made drinks or instant products.
▶ Never operate the appliance when empty or overfilled. Observe the water level indicator.
Leave the appliance to cool down for at least 5 minutes after each use.
▶ Never heat the thermos jug in the microwave or oven.
▶ Never put the thermos jug or the lid of the thermos jug in the dishwasher or in soapy water.
▶ Only place the jug in the appliance with the lid closed.

• Do not remove the jug during the brewing process.
  ▶ Only use the jug supplied.

Overview

→ Fig. 1

A	Coffee machine with thermos jug ^1
B	Coffee machine with glass jug ^1
C	Controls
1	Water tank with water level indicator, removable
2	Cover for water tank, removable
3	Filter holder, removable

^1 Depending on the model

en Preparing the appliance for first use

4	Drip stop
5	Filter housing, swivelling
6	Thermos jug with lid ^1
7	Lid-opening button
8	Glass jug with lid ^1
9	Warming plate ^1
10	Cord storage compartment
11	Aroma button, illuminated
12	Descale button, illuminated
13	On/off button, illuminated

^1 Depending on the model

Preparing the appliance for first use

Notes

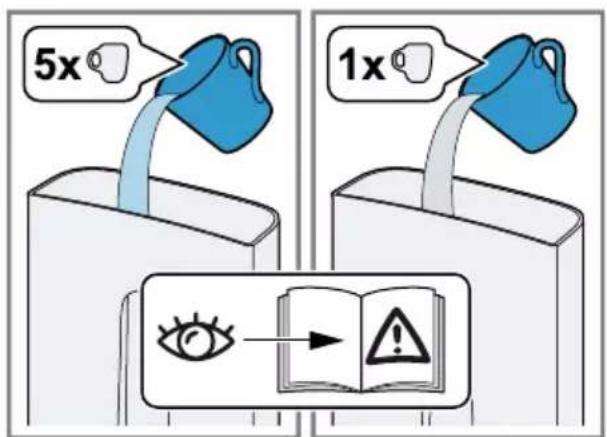

■ Perform the first cleaning process with a mixture of 5 cups of water and 1 cup of vinegar.
■ Before each rinsing process switch off the appliance using the on/off button and leave it to cool down for 5 minutes.

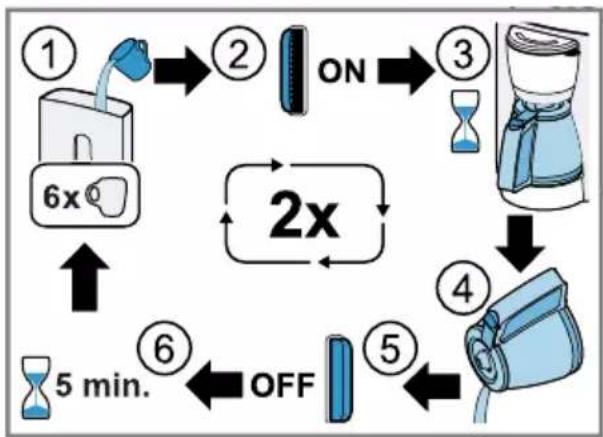

■ Run the rinsing process twice using 6 cups of water without adding vinegar.

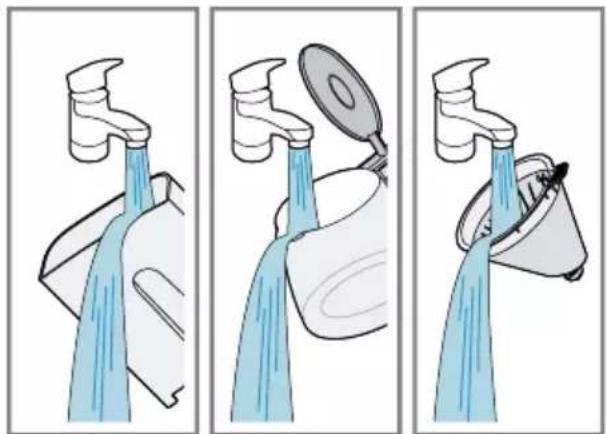

Fig. 2 - 8

General information

• Observe the water level indicator on the water tank. Fill the water tank to at least the bottom marking line and no more than the top marking line.
  ■ To attain an adequate coffee temperature and the full aroma, do not brew less than 3 cups of coffee. A cup is approx. 125 ml.
  ■ Add approx. 6 g medium-ground coffee for each cup.
  ■ Store ground coffee in a cool place or freeze.
  ■ Once a pack of coffee has been opened, always close it tightly to preserve the aroma.
  ■ How coffee beans are roasted affects their flavour and aroma.
• Darker roast = more flavour

- Lighter roast = more acidity

■ Condensation may form on the filter housing for technical reasons.

Setting the water hardness

The preset water hardness can be adjusted.

Note: It is important to set the right water hardness so your appliance indicates in good time that it needs descaling.

Requirement: The mains plug is inserted and the appliance is switched off.

1. Press and hold and for at least 3 seconds.

√ The last setting saved flashes.

1. Press the on/off button within 7 seconds and select the required setting.

Display Setting
On/off button flashes	Soft
flashes	Medium
On/off button and flash	Hard ^1

^1 Factory setting

Water hardness levels:

	German de-grees in °dH	French hard-ness in °fH
Soft 1-8.4 1-14
Me-dium	8.4-14 14-25
Hard > 14 > 25

√ If no further setting is made for 7 seconds, the displayed setting will be saved.
√ The on/off button is no longer lit up and the appliance switches off.

Brewing coffee

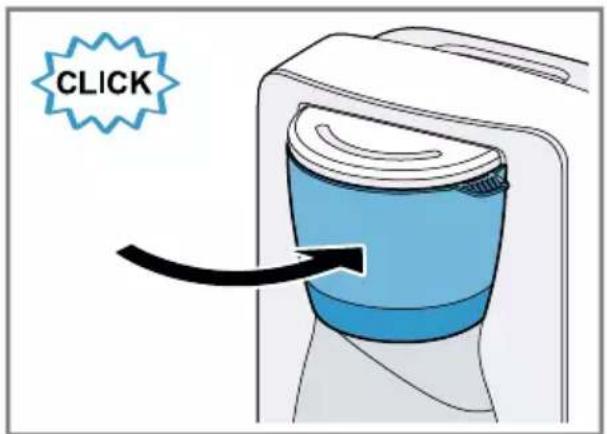

Follow the illustrated instructions.

→ Fig. 9 - 16

Aroma intense

Your appliance has a special aroma programme. The coffee is brewed for longer, giving it a more intense aroma.

Using the aroma programme

Note: The aroma programme can only be activated or deactivated within the first minute after brewing starts.

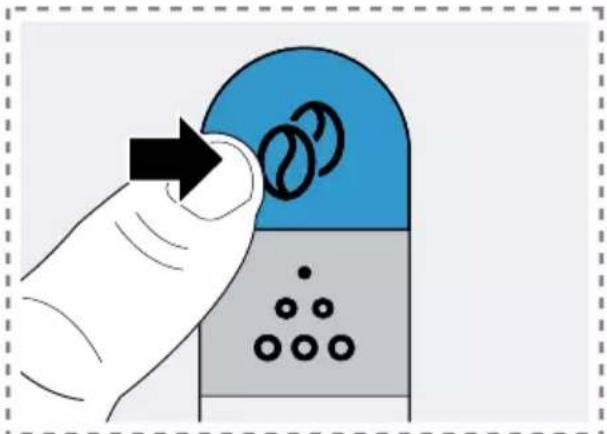

1. To activate the aroma programme, press 🔒 button.

→ Fig. 17

√ The symbol lights up white.
√ The aroma programme remains activated for all other brewing processes.
2. To deactivate the aroma programme, press Ⓤ button.
√ The symbol is no longer lit up.

Auto switch-off

Your appliance is equipped with an automatic switch-off function that switches the appliance off after a certain period of time. Models with a thermos jug switch off a few minutes after the end of brewing. Models with a glass jug keep the coffee warm for approx. 40 minutes ^1 and then switch off. The on/off button lights up red until the coffee machine switches off automatically.

Adjusting the switch-off time ^2

The period of time after which the appliance switches off automatically can be adjusted.

Requirement: The mains plug is inserted and the appliance is switched off.

1. Press and hold ⓦ for at least 3 seconds.
   √ The last setting saved flashes.
2. Press the on/off button within 7 seconds and select the required setting.

Display Setting
On/off button flashes	20 minutes
flashes	40 minutes^1
On/off button and flash	60 minutes

^1 Factory setting

√ If no further setting is made for 7 seconds, the displayed setting will be saved.
√ The on/off button is no longer lit up and the appliance switches off.

Thermos jug

The thermos jug has a capacity of around 8 cups.

Notes

■ The seal is not hermetically tight to stop it adhering through a suction effect.
■ Never transport the thermos jug in a horizontal position or coffee might leak out.
■ Do not keep or transport carbonated drinks in the thermos jug.
■ If you rinse the thermos jug with hot water before use, the coffee will stay hot for longer.

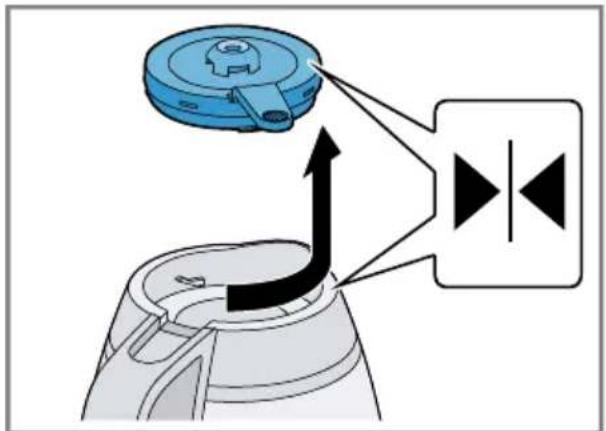

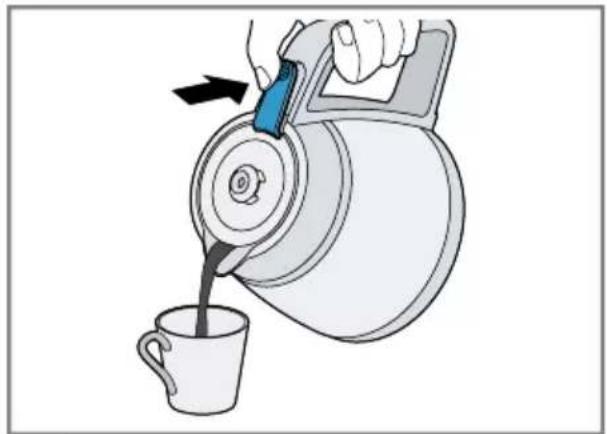

Pouring out the coffee, removing and attaching the lid

→ Fig. 18 - 20

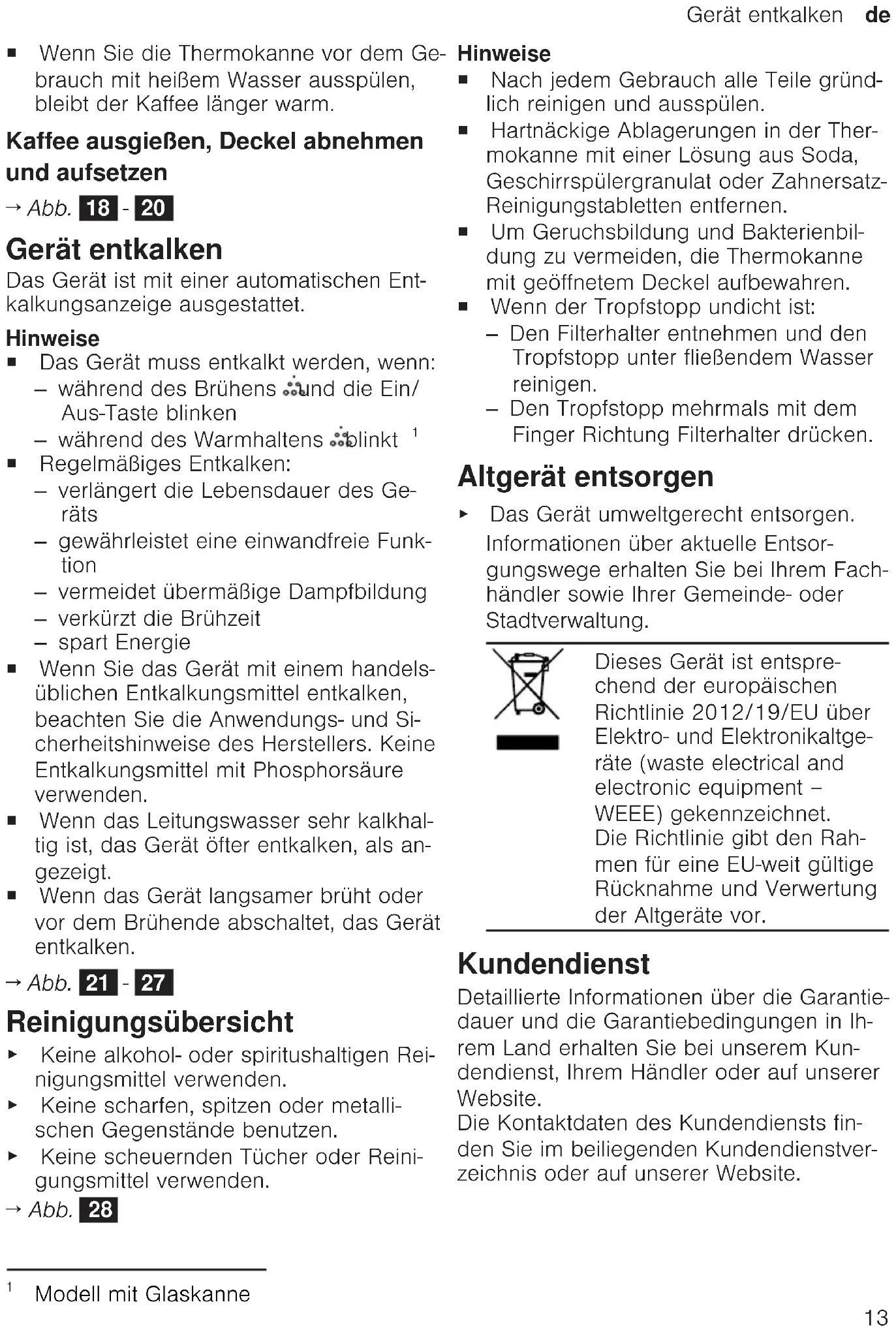

Descaling the appliance

The appliance is equipped with an automatic descaling indicator.

Notes

■ The appliance needs to be descaled if:

• during brewing and On/off button flash
• while keeping warm flashes ^2

en Overview of cleaning

■ Regular descaling:
– prolongs the life of the appliance
– ensures proper functioning
- prevents excessive steam
– shortens the brewing time
- saves energy
If you are descaling the appliance with a commercially available descaler, follow the manufacturer's instructions for use and safety. Do not use descaler with phosphoric acid.
■ If your tap water is very hard, descale the appliance more frequently than indicated.
■ If the appliance is brewing more slowly or switches off before the brewing process ends, descale it.

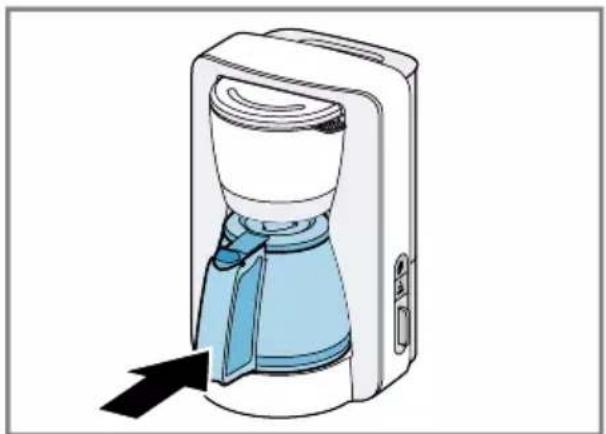

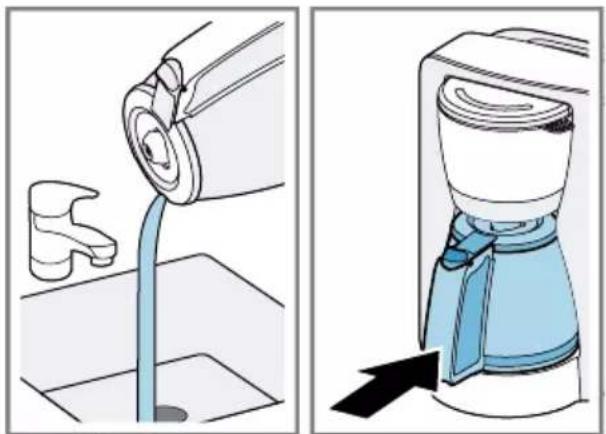

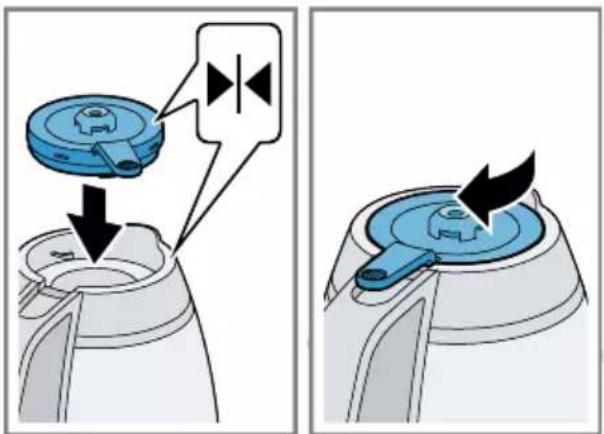

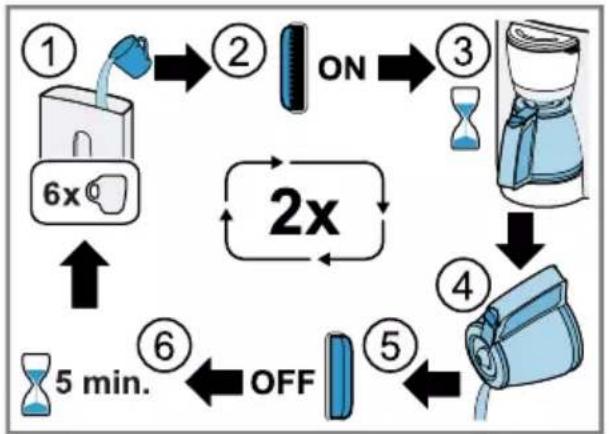

→ Fig. 21 - 27

Overview of cleaning

• Do not use cleaning agents containing alcohol or spirits.
• Do not use sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.

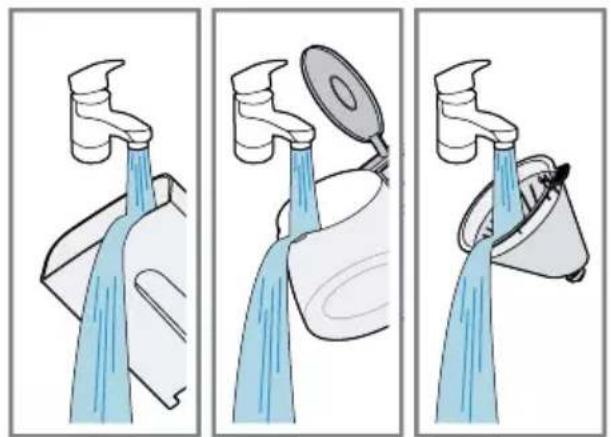

→ Fig. 28

Notes

■ After each use, clean all parts thoroughly and rinse out.
■ Remove stubborn deposits in the thermos jug with a solution of baking soda, dishwasher granulate or denture tablets.
■ Store the thermos jug with the lid open to prevent any odours and bacteria forming.

■ If the drip stop is leaking:
- Remove the filter holder and clean the drip stop under running water.
- Press the drip stop towards the filter holder with your finger several times.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Sécurité

I displayet Innstilling

På/av-tast blinker 20 minutter
∅ blinker	40 minutter1
På/av-tast og ∅ blinker	60 minutter

^1 Fabrikkinnstilling

QR code image containing encoded data, no visible human-readable text

الأمان

■. Grenية
■ ق أو

electrical and electronic

.(equipment - WEEE

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

8001280185 (030526)

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

de, en, fr, it, nl, da, no, sv, fi, es, pt, el, tr, pl, cs, sk, uk, ru, ar
