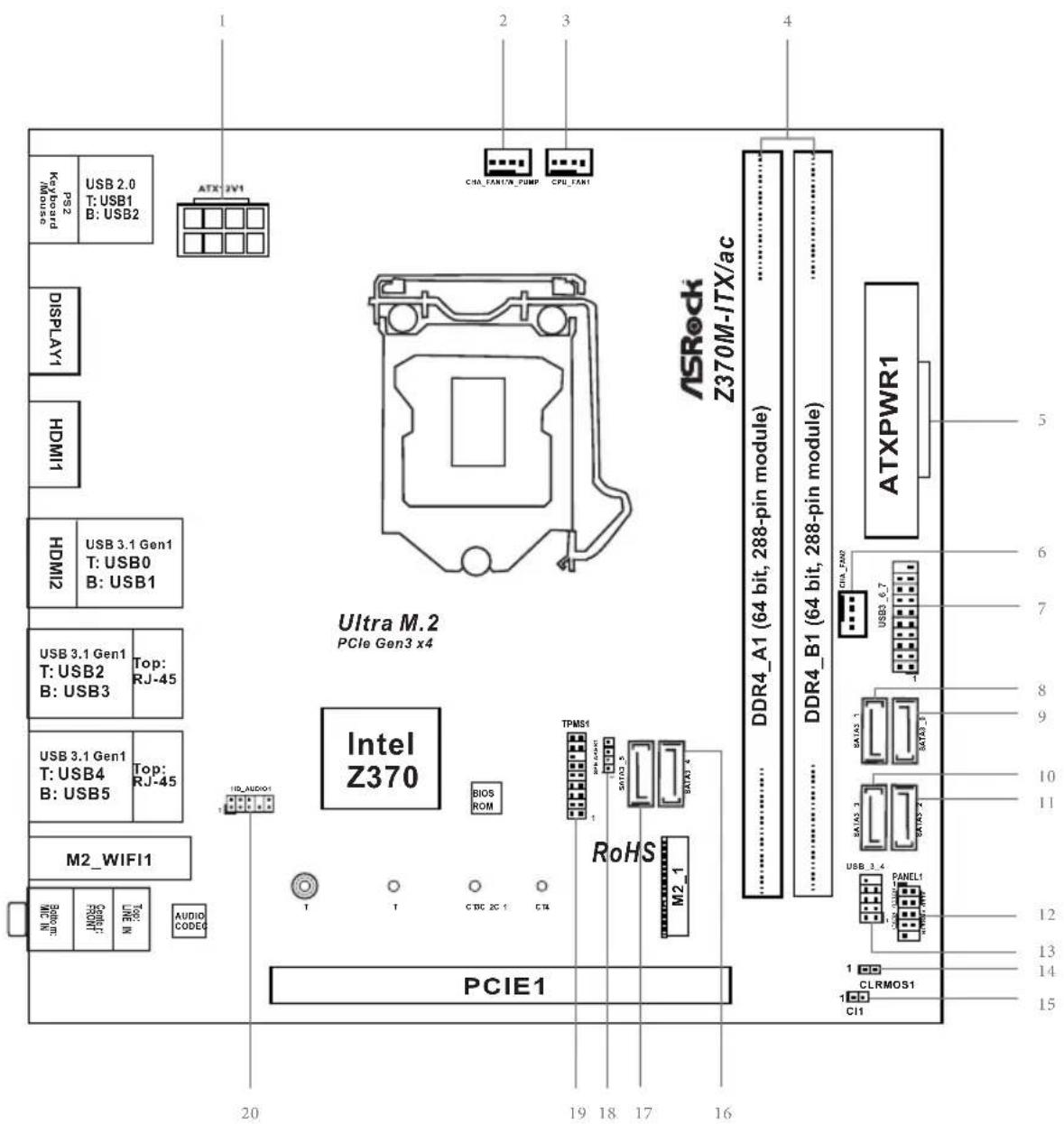

Motherboard Layout

USB 3.1 Gen1 T: USB4 B: USB5 Topi RJ-45 USB 3.1 Gen1 T: USB2 B: USB3 Topi RJ-45 USB 3.1 Gen1 T: USB2 B: USB3 USB 3.1 Gen1 T: USB0 B: USB1 USB 2.0 T: USB1 B: USB2 HYMI DISPLAVI HYMI PS2 KyaBoard Mouse CPU 2 USB 2.0 T: USB1 B: USB2 ATX-VI1 Intel Z370 Ultra M.2 PCIe Gen3 x4 PCIE1 RoHS M2_1 TPNEM ROM CPE 26.1 CPIA ASRock Z370M-ITX/ac DDR4_A1 (64 bit, 288-pin module) DDR4_B1 (64 bit, 288-pin module) ATXPWR1 CLRMOS1 CPIA USB 3.4 PANEL1 SATA3_3 SATA3_2 SATA3_1 USB3_6.7 CHA_PAN2

No. Description

1 ATX 12V Power Connector (ATX12V1)
2 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/W_PUMP)
3 CPU Fan Connector (CPU_FAN1)
4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
5 ATX Power Connector (ATXPWR1)
6 Chassis Fan Connector (CHA_FAN2)
7 USB 3.1 Gen1 Header (USB3_6_7)
8 SATA3 Connector (SATA3_1)
9 SATA3 Connector (SATA3_0)
10 SATA3 Connector (SATA3_3)
11 SATA3 Connector (SATA3_2)
12 System Panel Header (PANEL1)
13 USB 2.0 Header (USB_3_4)
14 Clear CMOS Jumper (CLRMOS1)
15 Chassis Intrusion Header (CI1)
16 SATA3 Connector (SATA3_4)
17 SATA3 Connector (SATA3_5)
18 Chassis Speaker Header (SPEAKER1)
19 TPM Header (TPMS1)

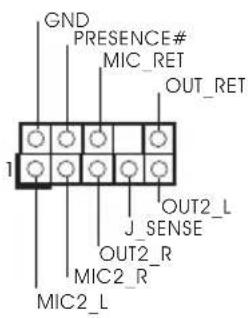

20 Front Panel Audio Header (HD_AUDIO1)

I/O Panel

Diagram showing 8 labeled electronic device ports with icons and numbers, likely representing a rack-mounted or connector layout.

No. Description No. Description

1 USB 2.0 Ports (USB12) 8 Microphone (Pink)**
2 USB 3.1 Gen1 Ports (USB3_01) 9 USB 3.1 Gen1 Ports (USB3_45)
3 LAN RJ-45 Port* 10 USB 3.1 Gen1 Ports (USB3_23)
4 LAN RJ-45 Port* 11 HDMI Port (HDMI2)
5 Antenna Ports (M2_WIFI1) 12 HDMI Port (HDMI1)
6 Line In (Light Blue)** 13 Display Port (DISPLAY1)
7 Front Speaker (Lime) ^** 14 PS/2 Mouse/Keyboard Port

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

LAN Port

Activity / Link LED		Speed LED
Status	Description	Status	Description
Off	No Link	Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On	Link	Green	1Gbps connection

** To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

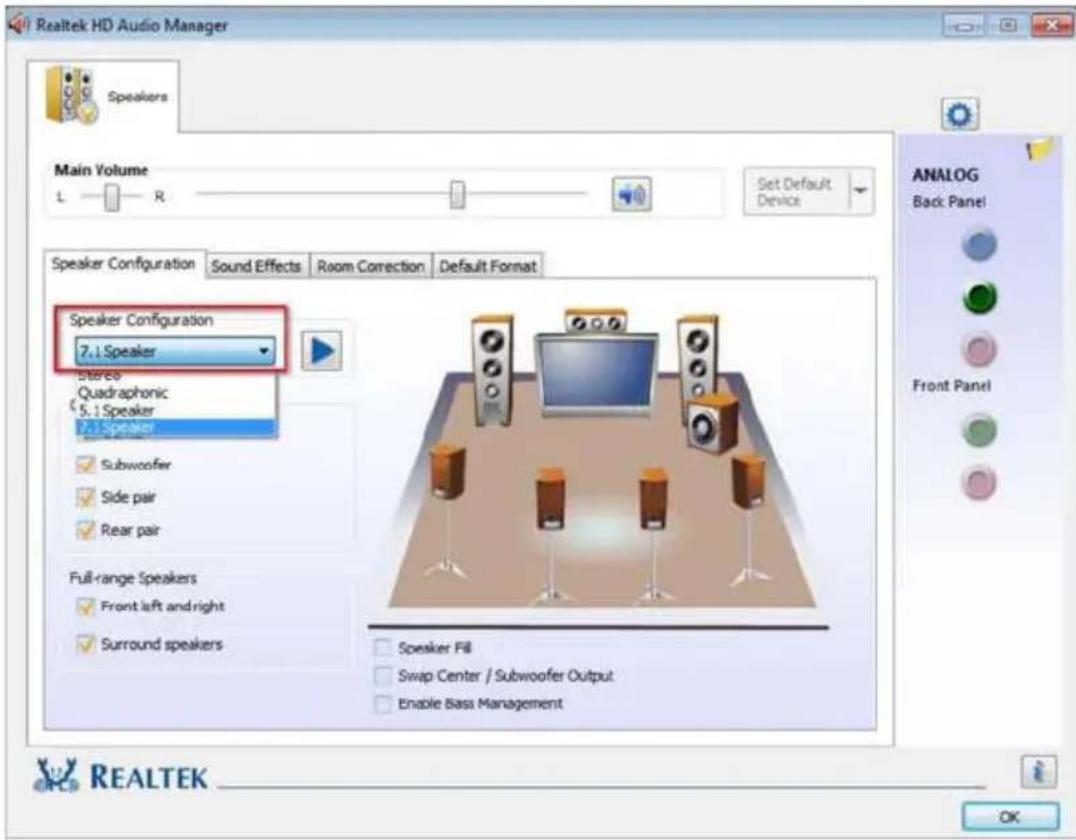

Please set Speaker Configuration to "7.1 Speaker" in the Realtek HD Audio Manager.

Realtek HD Audio Manager Speakers Main Volume L R Set Default Device Speaker Configuration Sound Effects Room Correction Default Format Speaker Configuration 7.1 Speaker Stereo Quadraphonic 5.1 Speaker 7.1 Speaker Subwoofer Side pair Rear pair Full-range Speakers Front left and right Surround speakers Analog Back Panel Front Panel Soesker Fill Swap Center / Subwoofer Output Enable Bass Management REALTEK OK

Function of the Audio Ports in 7.1-channel Configuration:

Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

Chapter 1 Introduction

Thank you for purchasing ASRock Z370M-ITX/ac motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

ASRock Z370M-ITX/ac Motherboard (Mini-ITX Form Factor)

ASRock Z370M-ITX/ac Quick Installation Guide

ASRock Z370M-ITX/ac Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

2 x ASRock WiFi 2.4/5 GHz Antennas (Optional)

1 x Screw for M.2 Socket (Optional)

1.2 Specifications

Platform	Mini-ITX Form Factor
CPU	Supports 8 ^th Generation Intel® Core ^TM Processors (Socket 1151)Digi Power design6 Power Phase designSupports Intel® Turbo Boost 2.0 TechnologySupports Intel® K-Series unlocked CPUsSupports ASRock BCLK Full-range Overclocking
Chipset	Intel® Z370
Memory	Dual Channel DDR4 Memory Technology2 x DDR4 DIMM SlotsSupports DDR4 4000+(OC)*/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2666/2400/2133 non-ECC, un-buffered memory* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)* 8 ^th Gen Intel® CPU supports DDR4 up to 2666.Supports ECC UDIMM memory modules (operate in non-ECC mode)Max. capacity of system memory: 32GBSupports Intel® Extreme Memory Profile (XMP) 2.015μ Gold Contact in DIMM Slots
Expansion Slot	1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* Supports NVMe SSD as boot disks1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

Graphics

* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Supports Intel ^® UHD Graphics Built-in Visuals : Intel ^®

Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD

Technology, Intel ^® Insider ^TM , Intel ^® UHD Graphics

DirectX 12

HWAEncode/Decode: VP9 8-bit, VP9 10-bit (Encode only),

VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264),

MPEG2-Part2 (h.262), JPEG/MJPEG, VC-1

Max. shared memory 1024MB

* The size of maximum shared memory may vary from different operating systems.

Three graphics output options: DisplayPort 1.2 and 2 x HDMI ports

Supports Triple Monitor

Supports HDMI with max. resolution up to 4K x 2K

(4096x2160) @ 30Hz

Supports DisplayPort 1.2 with max. resolution up to 4K x 2K

(4096x2304) @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port

(Compliant HDMI monitor is required)

Supports HDCP with HDMI and DisplayPort 1.2 Ports

Supports 4K Ultra HD (UHD) playback with HDMI and

DisplayPort 1.2 Ports

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Premium Blu-ray Audio support

Supports Surge Protection

Nichicon Fine Gold Series Audio Caps

LAN	Gigabit LAN 10/100/1000 Mb/s1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211ATSupports Wake-On-LANSupports Lightning/ESD ProtectionSupports Energy Efficient Ethernet 802.3azSupports PXE
Wireless LAN	Intel® 802.11ac WiFi ModuleSupports IEEE 802.11a/b/g/n/acSupports Dual-Band (2.4/5 GHz)Supports high speed wireless connections up to 433MbpsSupports Bluetooth 4.2 / 3.0 + High speed class II
Rear Panel I/O	2 x Antenna Ports1 x PS/2 Mouse/Keyboard Port2 x HDMI Ports1 x DisplayPort 1.22 x USB 2.0 Ports (Supports ESD Protection)6 x USB 3.1 Gen1 Ports (Supports ESD Protection)2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone
Storage	6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15), NCQ, AHCI and Hot Plug** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.1 x Ultra M.2 Socket, supports M Key type2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**** Supports Intel® OptaneTM Technology** Supports NVMe SSD as boot disks** Supports ASRock U.2 Kit

Connector

1 x TPM Header

1 x Chassis Intrusion Header

1 x CPU Fan Connector (4-pin)

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

1 x Chassis Fan Connector (4-pin)

1 x Chassis Optional/Water Pump Fan Connector (4-pin)

* The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

1 x Front Panel Audio Connector

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

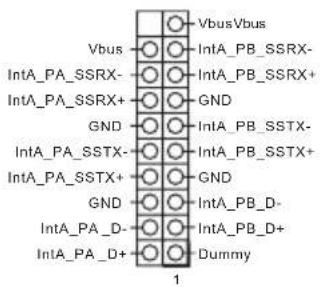

1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

BIOS

AMI UEFI Legal BIOS with multilingual GUI support

Feature

ACPI 6.0 Compliant wake up events

SMBIOS 2.7 Support

CPU, DRAM, PCH 1.0V, VCCST, CPU Internal PLL Voltage Multi-adjustment

Hardware

Temperature Sensing: CPU, Chassis, Chassis Optional/Water Pump Fans

Monitor

Fan Tachometer: CPU, Chassis, Chassis Optional/Water Pump Fans

Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis Optional/Water Pump Fans

Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/Water Pump Fans

CASE OPEN detection

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

os

Microsoft ^® Windows ^® 10 64-bit

Certifica-

tions

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

1.3 WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antenna

WiFi-802.11ac + BT Module

This motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.2 module (pre-installed on the rear I/O panel) that offers support for WiFi 802.11 a/b/g/n/ac connectivity standards and Bluetooth v4.2. WiFi + BT module is an easy-to-use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth v4.2 standard features Smart Ready technology that adds a whole new class of functionality into the mobile devices. BT 4.2 also includes Low Energy Technology and ensures extraordinary low power consumption for PCs.

* The transmission speed may vary according to the environment.

WiFi Antennas Installation Guide

Two cylindrical test tubes with ribbed ends, no text or symbols present

Step 1

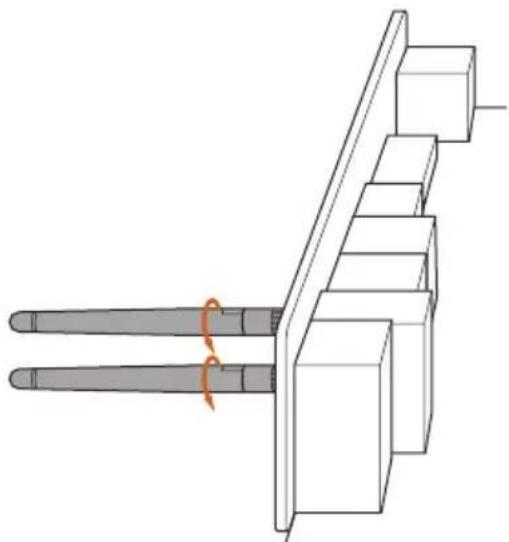

Prepare the WiFi 2.4/5 GHz Antennas that come with the package.

Pure mechanical assembly diagram showing two shafts inserted into a housing with a curved arrow indicating rotation (no text or symbols)

Step 2

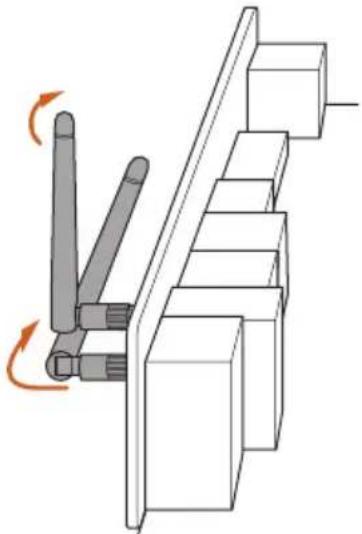

Connect the two WiFi 2.4/5 GHz Antennas to the antenna connectors. Turn the antenna clockwise until it is securely connected.

Diagram of a mechanical assembly with rotating components and a base plate (no text or symbols)

Step 3

Set the WiFi 2.4/5 GHz Antenna as shown in the illustration.

*You may need to adjust the direction of the antenna for a stronger signal.

Chapter 2 Installation

This is a Mini-ITX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.

In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

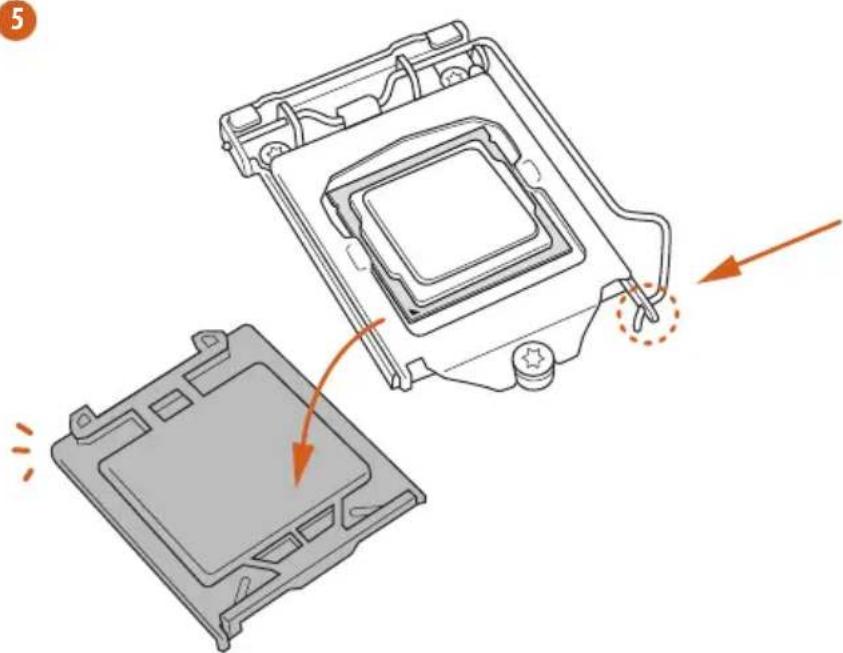

2.1 Installing the CPU

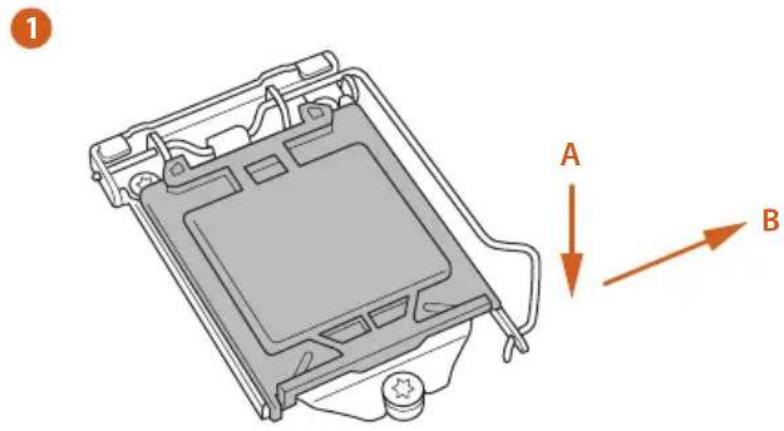

1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.

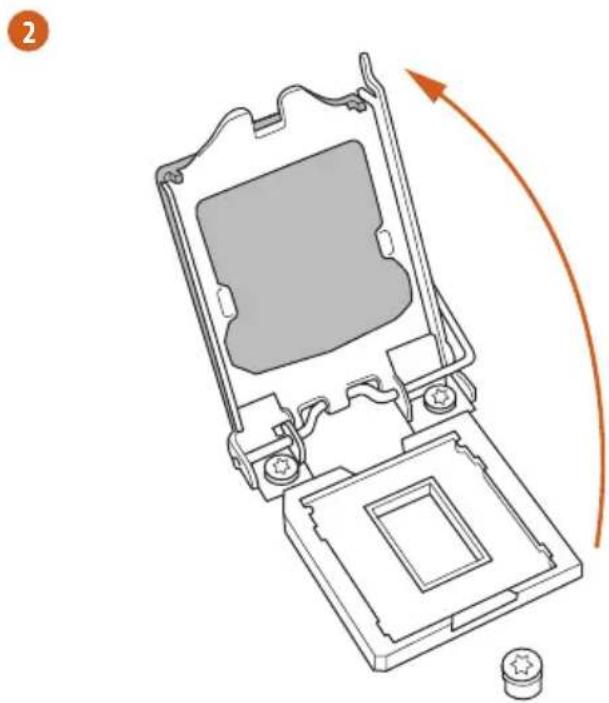

1 A B

Technical line drawing of a mechanical device with an arrow indicating rotation or assembly (no text or symbols present)

3

Technical diagram of a computer processor internal structure showing internal components and a highlighted section (no text or symbols)

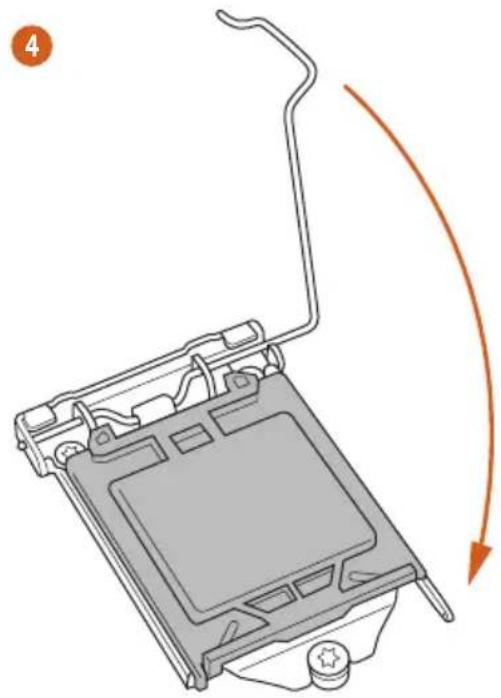

Diagram of a computer monitor with an orange curved arrow indicating motion (no text or symbols)

5

Diagram showing a computer processor's internal structure and external casing, with arrows indicating motion (no text or symbols)

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

2.2 Installing the CPU Fan and Heatsink

Line drawing of a pipette dispensing liquid into a container with a droplet inside (no text or symbols)

Diagram illustrating the cooling mechanism of a CPU, showing fan cooling and heatsink assembly with directional arrows.

2 25.1 pm

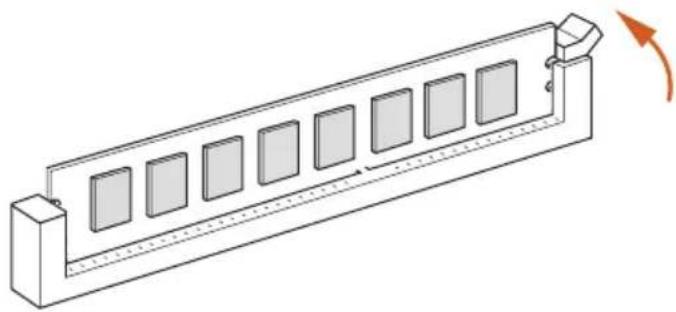

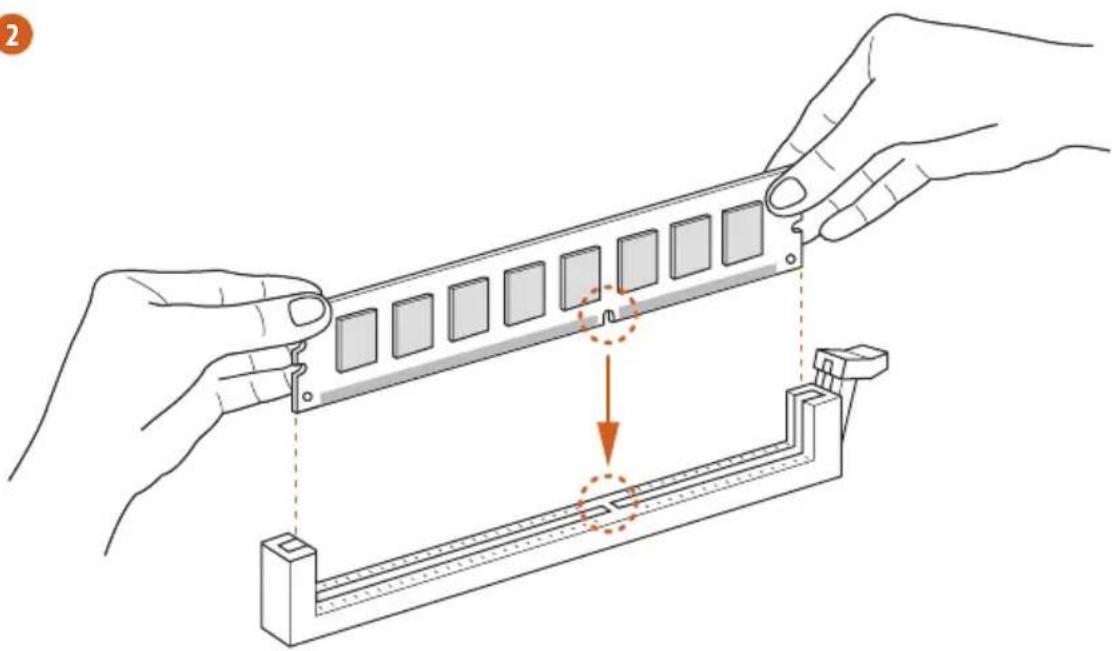

2.3 Installing Memory Modules (DIMM)

This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged..

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

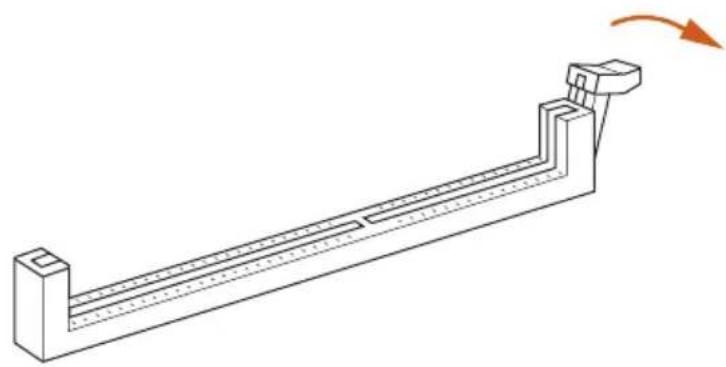

1

Technical line drawing of a mechanical support structure with an arrow indicating rotation (no text or symbols)

2

Illustration of hands installing a component into a mechanical bracket with an arrow indicating the process (no text or symbols present)

3

Isometric line drawing of a rectangular device with multiple square panels and a handle, showing internal structure and an orange arrow indicating rotation (no text or symbols)

2.4 Expansion Slot (PCI Express Slot)

There is 1 PCI Express slot on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCIe slot:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

2.5 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open".

Short

Open

Clear CMOS Jumper (CLRMOS1)

(see p.1, No. 14)

2-pin Jumper

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short the pins on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed. Please remember to remove the jumper cap after clearing the CMOS.

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

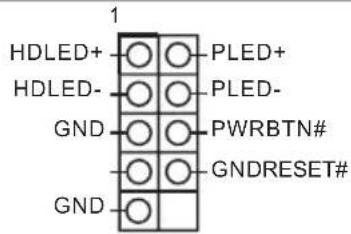

System Panel Header (9-pin PANEL1) (see p.1, No. 12)

1 HDLED+ HDLED- GND GND PLED+ PLED- PWRBTN# GNDRESET# Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin

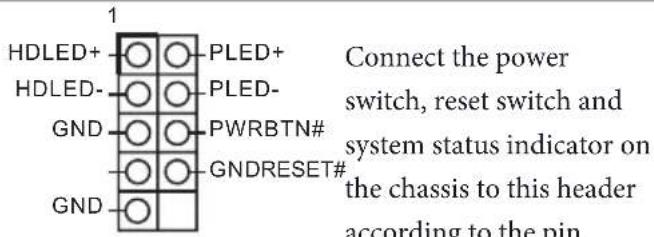

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Serial ATA3 Connectors

(SATA3_0:

see p.1, No. 9)

(SATA3_1:

see p.1, No. 8)

(SATA3_2:

see p.1, No. 11)

(SATA3_3:

see p.1, No. 10)

(SATA3_4:

see p.1, No. 16)

(SATA3_5:

see p.1, No. 17)

These six SATA3

connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

USB 2.0 Header

(9-pin USB_3_4)

(see p.1, No. 13)

DUMMY GND P+4 P-4 USB_PWR G G P+3 P-3 USB_PWR 1

There is one USB2.0 N header on this motherboard. This USB 2.0 header can support two ports.

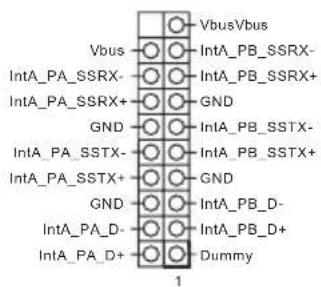

USB 3.1 Gen1 Header

(19-pin USB3_6_7)

(see p.1, No. 7)

VbusVbus IntA_PB_SSRX- IntA_PB_SSRX+ GND GND IntA_PB_SSTX- IntA_PB_SSTX+ GND GND IntA_PB_D- IntA_PB_D+ Dummy 1

There is one header on this motherboard. This USB 3.1 Gen1 header can support two ports.

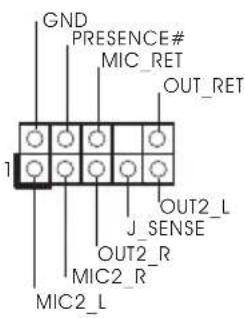

Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 20)

GND PRESENCE# MIC_RET OUT_RET J_SENSE OUT2_L J_R MIC2_R MIC2_L

This header is for connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis Speaker Header

(4-pin SPEAKER1)

(see p.1, No. 18)

Please connect the chassis speaker to this header.

Chassis Fan / Waterpump

Fan Connector

(4-pin CHA_FAN1/W_PUMP)

(see p.1, No. 2)

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL 1 2 3 4

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

Chassis Fan Connector

(4-pin CHA_FAN2)

(see p.1, No. 6)

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

CPU Fan Connector (4-pin CPU_FAN1) (see p.1, No. 3)

FAN_VOLTAGE GND CPU_FAN_SPEED FAN_SPEED_CONTROL 1 2 3 4

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 5)

12 24 1 13

This motherboard provides a 24-pin ATX power connector.

ATX 12V Power Connector (4-pin ATX12V1) (see p.1, No. 1)

Please connect an ATX 12V power supply to this connector.

Chassis Intrusion Header (2-pin CI1) (see p.1, No. 15)

This motherboard supports CASE OPEN detection feature that detects if the chassis cove has been removed. This feature requires a chassis with chassis intrusion detection design.

TPM Header (17-pin TPMS1) (see p.1, No. 19)

SE RIRQ S_ PWRDWN# GND LA D1 LA D2 SM B_DATA_MA1 N SM B_CLK_MAIN GND GN DGN +3 VSB LA D0 +3V LA D3 PC IRS# FR AME PC ICK 1

This connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

2.7 M.2\_SSD (NGFF) Module Installation Guide

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_1) supports SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

Please be noted that if the Ultra M.2 Socket (M2_1) is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

Installing the M.2\_SSD (NGFF) Module

Pure technical line drawing of a rectangular component with cutouts and mounting brackets (no text or symbols)

Step 1

Prepare a M.2_SSD (NGFF) module and the screw.

D C B A 1 2 3 4

Step 2

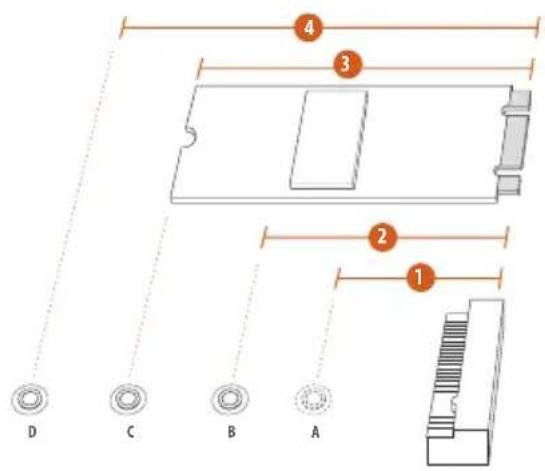

Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.

No.1234

Nut Location A B C D

Move the standoff based on the module type and length.

The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.

Step 4

Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.

Technical diagram of a mechanical assembly with labeled components A, B, and C, showing cross-sectional view and alignment indicators.

Technical line drawing of a mechanical component with labeled points A, B, C, D and an orange arrow indicating direction (no text or symbols beyond labels)

Step 5

Align and gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.

Pure technical diagram showing a mechanical setup with no text, numbers, or symbols

Step 6

Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

M.2_SSD (NGFF) Module Support List

Vendor Interface P/N
ADATA SATA3 AXNS330E-32GM-B
ADATA SATA3 AXNS381E-128GM-B
ADATA SATA3 AXNS381E-256GM-B
ADATA SATA3 ASU800NS38-256GT-C
ADATA SATA3 ASU800NS38-512GT-C
ADATA PCIe3 x4 ASX7000NP-128GT-C
ADATA PCIe3 x4 ASX8000NP-256GM-C
ADATA PCIe3 x4 ASX7000NP-256GT-C
ADATA PCIe3 x4 ASX8000NP-512GM-C
ADATA PCIe3 x4 ASX7000NP-512GT-C
Apacer PCIe3 x4 AP240GZ280
Corsair PCIe3 x4 CSSD-F240GBMP500
Crucial SATA3 CT120M500SSD4
Crucial SATA3 CT240M500SSD4
Intel SATA3 Intel SSDSCKGW080A401/80G
Intel PCIe3 x4 SSDPEKKF256G7
Intel PCIe3 x4 SSDPEKKF512G7
Kingston SATA3 SM2280S3
Kingston PCIe3 x4 SKC1000/480G
Kingston PCIe2 x4 SH2280S3/480G
OCZ PCIe3 x4 RVD400 -M2280-512G (NVME)
PATRIOTPCIe3 x4 PH240GPM280SSDR NVME
Plextor PCIe3 x4 PX-128M8PeG
Plextor PCIe3 x4 PX-1TM8PeG
Plextor PCIe3 x4 PX-256M8PeG
Plextor PCIe3 x4 PX-512M8PeG
Plextor PCIe	PX-G256M6e
Plextor PCIe	PX-G512M6e
Samsung	PCIe3 x4	SM961 MZVPW128HEGM (NVM)
Samsung	PCIe3 x4	PM961 MZVLW128HEGR (NVME)
Samsung	PCIe3 x4	960 EVO (MZ-V6E250) (NVME)
Samsung	PCIe3 x4	960 EVO (MZ-V6E250BW) (NVME)
Samsung	PCIe3 x4 SM951 (NVME)
Samsung	PCIe3 x4	SM951 (MZHPV256HDGL)
Samsung	PCIe3 x4	SM951 (MZHPV512HDGL)
Samsung	PCIe3 x4 SM951 (NVME)
Samsung	PCIe x4	XP941-512G (MZHPU512HCGL)
SanDisk	PCIe	SD6PP4M-128G
SanDisk	PCIe	SD6PP4M-256G
Team	SATA3 TM4PS4128GMC105
Team	SATA3 TM4PS4256GMC105
Team	SATA3 TM8PS4128GMC105
Team	SATA3 TM8PS4256GMC105

TEAM PCIe3 x4 TM8FP2240G0C101

TEAM PCIe3 x4 TM8FP2480GC110

Transcend SATA3 TS256GMTS400

Transcend SATA3 TS512GMTS600

Transcend SATA3 TS512GMTS800

V-Color SATA3 VLM100-120G-2280B-RD

V-Color SATA3 VLM100-240G-2280RGB

V-Color SATA3 VSM100-240G-2280

V-Color SATA3 VLM100-240G-2280B-RD

WD SATA3 WDS100T1B0B-00AS40

WD SATA3 WDS240G1G0B-00RC30

WD PCIe3 x4 WDS256G1X0C-00ENX0 (NVME)

WD PCIe3 x4 WDS512G1X0C-00ENX0 (NVME)

For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com

Serial-ATA-III-Anschlüsse

(SATA3_0:

siehe S. 1, Nr. 9)

(SATA3_1:

siehe S. 1, Nr. 8)

(SATA3_2:

siehe S. 1, Nr. 11)

(SATA3_3:

siehe S. 1, Nr. 10)

(SATA3_4:

siehe S. 1, Nr. 16)

(SATA3_5:

siehe S. 1, Nr. 17)

Cavalier Clear CMOS (CLRMOS1)

(voir p.1, No. 14)

Scheda madre ASRock Z370M-ITX/ac (Form Factor Mini-ITX)

Apagar o Jumper CMOS (CLRMOS1)

(ver p.1, N.° 14)

Jumper de 2 pinos

TPM(Trusted Platform Mod-

ule) 시스템을 지원합니다.

TPM 시스템은 네트워크 보

안을 강화하고,디지털 신원

을 보호하며 플랫폼 무결성

을 유지합니다.

1.1 パッケージの内容

1.2 仕様

CPU

TM

^* Z370

$$ \mu $$

TM

TM

(4096x2304) @ 60Hz

LAN

LAN

I/O

** Intel® Optane™

os

Microsoft® Windows® 10 64-bit

Warning sign with exclamation mark and triangular warning symbol

日本語

1.3 ジャンパー設定

Short

Open

(CLRMOS1)

1.4 オンボードのヘッダーとコネクタ

HDLED+ HDLED- GND GND PLED+ PLED- PWRBTN# GNDRESET#

(SATA3_0:

(SATA3_1:

(SATA3_2:

(SATA3_3:

(SATA3_4:

(SATA3_5:

DUMMY GND P+4 P-4 SB_PWR USB_PWR 1

VbusVbus IntA_PB_SSRX- IntA_PB_SSRX+ GND GND IntA_PB_SSTX- IntA_PB_SSTX+ GND GND IntA_PB_D- IntA_PB_D+ Dummy 1

GND PRESENCE# MIC_RET OUT_RET J_SENSE OUT2_L JOUT2_R MIC2_R MIC2_L

1.

2.

GND FAN_VOLTAGE CHA_FAN_SPEED FAN_SPEED_CONTROL 1 2 3 4

FAN VOLTAGE GND CPU_FAN_SPEED FAN_SPEED_CONTROL 1 2 3 4

12 24 1 13

SE RIO# S_ PWRDW N# GND LA D1 LA D2 SM B_DAT A_MAIN SM B_CLK _MAIN GND GN DGN D +3 VSB LA D0 +3V LA D3 PC IRS# FR AME PC ICK I

第1章简介

Nichicon Fine Gold Series Audio Caps

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name: ASRock Incorporation

Address: 13848 Magnolia Ave, Chino, CA91710

Phone/Fax No: [phone]/[phone]

hereby declares that the product

Product Name : Motherboard

Model Number : Z370M-ITX/ac

Conforms to the following specifications:

☒ FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Representative Person's Name: James

Signature :

Date : May 12, 2017

EU Declaration of Conformity

ASRock

For the following equipment:

Motherboard

(Product Name)

Z370M-ITX/ac / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

EMC — Directive 2014/30/EU (from April 20th, 2016)

□ EN 55022:2010/AC:2011 Class B

EN 55024:2010/A1:2015

EN 61000-3-3:2013

RED-Directive 2014/53/EU

□ EN 300 328 V2.1.1 EN 301 489-17 V3.1.1

□ EN 301 893 V2.1.1

□ EN 300 220 V3.1.1

□ LVD — Directive 2014/35/EU (from April 20th, 2016)

□ EN 60950-1:2011+A2:2013

□ EN 60950-1:2006/A12:2011

— Directive 2011/65/EU

CE

(EU conformity marking)

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

September 22, 2017

(Date)

P/N: 15G062057000AK V1.0
