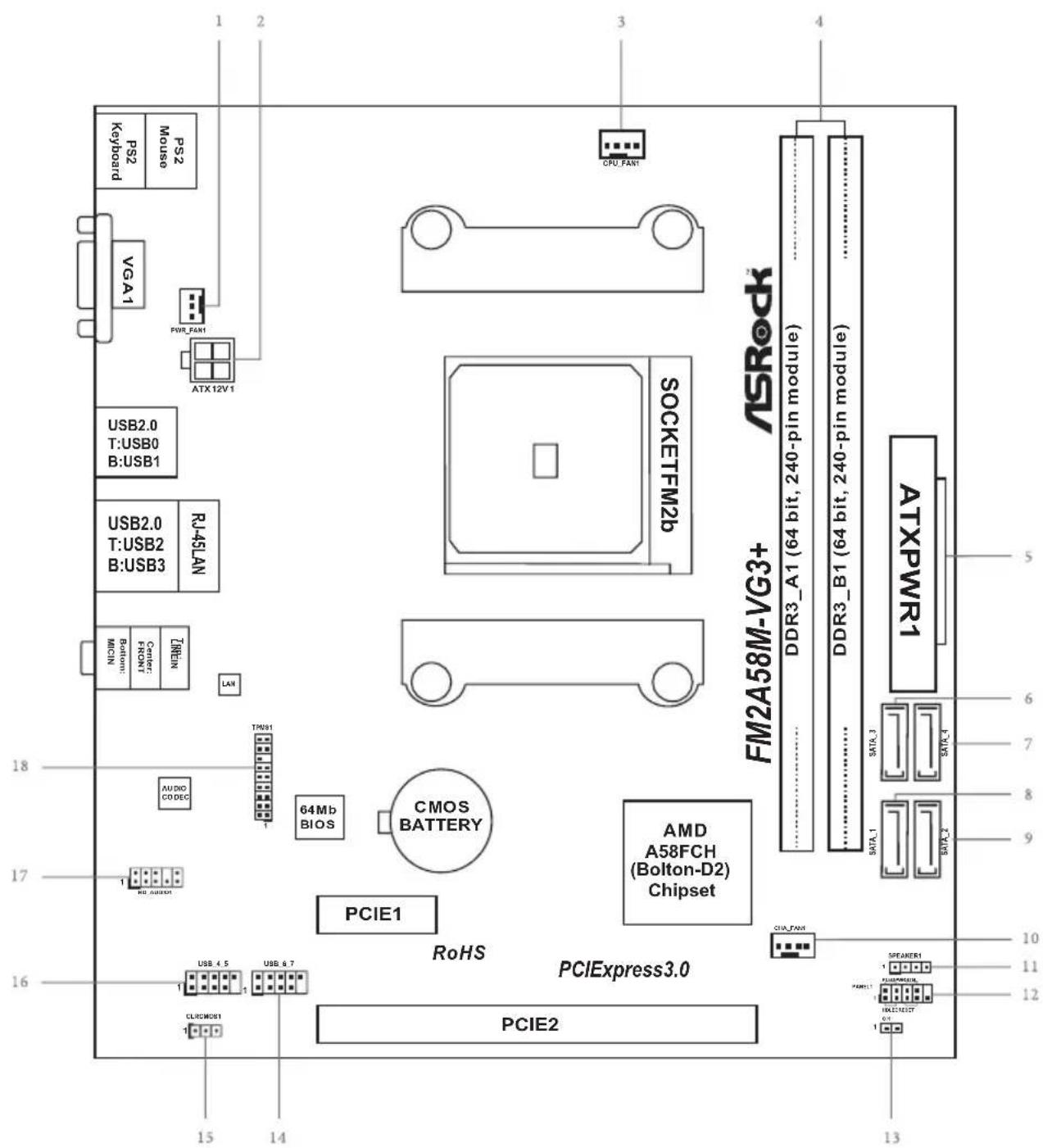

Motherboard Layout

FM2A58M-VG3+ ASRock DDR3_A1 (64 bit, 240-pin module) DDR3_B1 (64 bit, 240-pin module) ATXPWRI CPUE1 ROHS PCIeExpress3.0 PCIe2 PCIE1 64Mb BIOS CMOS BATTERY AMD (Bolton-D2) Chipset SOCKEFFMB2 VGA1 VGA2.0 T:USB2 B:USB3 USB2.0 T:USB0 B:USB1 RJ-4SLAN Timing RFONT Bluetooth MCIN AVI NO CODEC CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.1 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.2 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.3 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.4 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.5 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.6 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.7 CPU1.8

No. Description

1 Power Fan Connector (PWR_FAN1)
2 ATX 12V Power Connector (ATX12V1)
3 CPU Fan Connector (CPU_FAN1)
4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)
5 ATX Power Connector (ATXPWR1)
6 SATA2 Connector (SATA_3)
7 SATA2 Connector (SATA_4)
8 SATA2 Connector (SATA_1)
9 SATA2 Connector (SATA_2)
10 Chassis Fan Connector (CHA_FAN1)
11 Chassis Speaker Header (SPEAKER1)
12 System Panel Header (PANEL1)
13 Chassis Intrusion Header (CI1)
14 USB 2.0 Header (USB_6_7)
15 Clear CMOS Jumper (CLRCMOS1)
16 USB 2.0 Header (USB_4_5)
17 Front Panel Audio Header (HD_AUDIO1)
18 TPM Header (TPMS1)

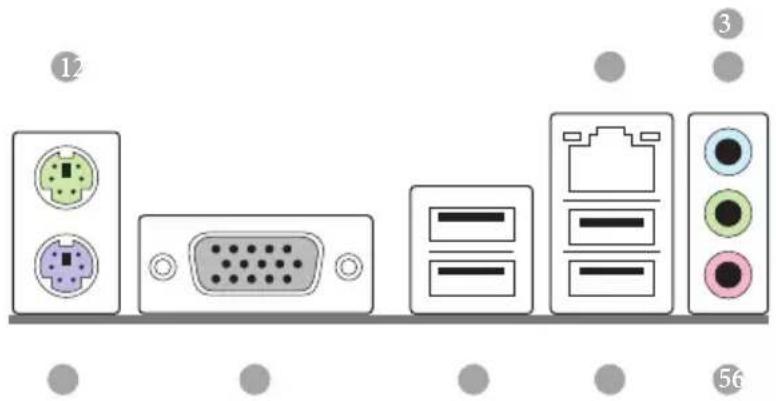

I/O Panel

Diagram showing labeled electronic components including VGA, socket, port, and indicator lights with numbered annotations.

No. Description No. Description

1 PS/2 Mouse Port 6 USB 2.0 Ports (USB_2_3)
2 LAN RJ-45 Port* 7 USB 2.0 Ports (USB_0_1)
3 Line In (Light Blue) 8 D-Sub Port
4 Front Speaker (Lime)** 9 PS/2 Keyboard Port
5 Microphone (Pink)

* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

Off No Link Off	10Mbps connection
Blinking Data Activity	Orange 100Mbps connection
On Link Green	1Gbps connection

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. Please refer to below steps for the software setting of Multi-Streaming. After restarting your computer, please double-click "Realtek HD Audio Manager" on the system tray. Set "Speaker Configuration" to "Quadraphonic" or "Stereo". Click "Device advanced settings", choose "Make front and rear output devices playbacks two different audio streams simultaneously", and click "ok". Then reboot your system.

1. Introduction

Thank you for purchasing ASRock FM2A58M-VG3+ R2.0 motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-step installation guide. More detailed information of the motherboard can be found in the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. www.asrock.com/support/index.asp

1.1 Package Contents

ASRock FM2A58M-VG3+ R2.0 Motherboard (Micro ATX Form Factor)

ASRock FM2A58M-VG3+ R2.0 Quick Installation Guide

ASRock FM2A58M-VG3+ R2.0 Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

1.2 Specifications

Platform - Micro ATX Form Factor- All Solid Capacitor design- High Density Glass Fabric PCB
CPU - Supports Socket FM2+ 95W / FM2 100W processors
Chipset - AMD A58 FCH (Bolton-D2)
Memory - Dual Channel DDR3 Memory Technology- 2 x DDR3 DIMM Slots-Supports DDR3 2400+(OC)/2133/1866/1600/1333/1066 non-ECC, un-buffered memory (seeCAUTION 1)- Max. capacity of system memory: 32GB (seeCAUTION 2)- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2- Supports AMD Memory Profile Technology (AMP) up to AMP 2400
Expansion Slot - 1 x PCI Express 3.0 x16 Slot (PCIE2 @ x16 mode)* PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.- 1 x PCI Express 2.0 x1 Slot- Supports AMD Dual Graphics
Graphics - Integrated AMD RadeonTM R7/R5 Series Graphics in A-series APU- DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.- Max. shared memory 2GB-Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz-Supports AMD Steady VideotM 2.0: New video post processing capability for automatic jitter reduction on home/online video
Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)- Supports Surge Protection (ASRock Full Spike Protection)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111GR-Supports Wake-On-WAN-Supports Wake-On-LAN-Supports Lightning/ESD Protection (ASRock Full Spike Protection)- Supports LAN Cable Detection-Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Rear Panel I/O - 1 x PS/2 Mouse Port- 1 x PS/2 Keyboard Port- 1 x D-Sub Port- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone
Storage - 4 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
Connector - 1 x Chassis Intrusion Header- 1 x TPM Header- 1 x CPU Fan Connector (4-pin)- 1 x Chassis Fan Connector (4-pin)- 1 x Power Fan Connector (3-pin)- 1 x 24 pin ATX Power Connector- 1 x 4 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support- Supports “Plug and Play”- ACPI 1.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3.1 support- DRAM, CPU Voltage multi-adjustment
Hardware - CPU temperature sensingMonitor - Chassis temperature sensing- CPU Fan Tachometer- Chassis Fan Tachometer- CPU/Chassis Quiet Fan- CPU/Chassis Fan multi-speed control- CASE OPEN detection- Voltage monitoring: +12V, +5V, +3.3V, Vcore
OS - Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.164-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit* For the updated Windows® 10 driver, please visit ASRock’s website for details: http://www.asrock.com* Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.164-bit / 7 32-bit / 7 64-bit only.

Certifications - FCC, CE, WHQL

- ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

CAUTION!

1. Whether 2400/2133/1866/1600MHz memory speed is supported depends on the CPU you adopt. If you want to adopt DDR3 2400/2133/1866/1600 memory module on this motherboard, please refer to the memory support list on our website for the compatible memory modules.

ASRock website http://www.asrock.com

1. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ^® 10 / 8.1 / 8 / 7. For Windows ^® 64-bit OS with 64-bit CPU, there is no such limitation.

1.3 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is "Short". If no jumper cap is placed on pins, the jumper is "Open". The illustration shows a 3-pin jumper whose pin1 and pin2 are "Short" when jumper cap is placed on these 2 pins.

Short

Open

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 15)

Clear CMOSDefault

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, user default profile, 1394 GUID and MAC address will be cleared only if the CMOS battery is removed.

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.

1.4 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!

Serial ATA2 Connectors These four Serial ATA2

(SATA_1: see p.2, No. 8) (SATA2) connectors support

(SATA_2: see p.2, No. 9) SATA data cables for internal

(SATA_3: see p.2, No. 6) storage devices. The current

(SATA_4: see p.2, No. 7) SATA2 interface allows up to

3.0 Gb/s data transfer rate.

SATA

SATA

SATA _25

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB_4_5) ports on the I/O panel, there

(see p.2 No. 16) are two USB 2.0 headers on

this motherboard. Each USB 2.0

header can support two USB P-4 USB PWR

(9-pin USB_6_7) 2.0 ports.

(see p.2 No. 14)

USB_PWR P-7 P+7 GND DUMMY 1 P-6 P+6 GND USB_PWR

Front Panel Audio Header This is an interface for the front

(9-pin HD_AUDIO1) panel audio cable that allows

(see p.2 No. 17) convenient connection and

control of audio devices.

S is an interrad able that allows ection and J_SENSE OUT2_R MIC2_R MIC2_L OUT2_L

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instruction in our manual and chassis manual to install your system.

2. If you use AC'97 audio panel, please install it to the front panel audio header as below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don't need to connect them for AC'97 audio panel.
E. To activate the front mic.

For Windows ^® 8.1 / 8.1 64-bit / 7 / 7 64-bit 64-bit OS:

Go to the "FrontMic" Tab in the Realtek Control panel. Adjust "Recording Volume".

System Panel Header This header accommodates

(9-pin PANEL1) several system front panel

(see p.2 No. 12) functions.

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below.

Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys-tem is in S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assign-ments are matched correctly.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1) speaker to this

(see p.2 No. 11)

+5V DUMMY

Chassis and Power Fan Connectors Please connect the fan cables

(4-pin CHA_FAN1) to the fan connectors and

(see p.2 No. 10) match the black wire to the

speed can be controlled through

UEFI or A-Tuning.

CPU Fan Connectors Please connect the CPU fan

(4-pin CPU_FAN1) cable to the connector and

(see p.2 No. 3) match the black wire to the

ground pin.

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.

Pin 1-3 Connected

3-Pin Fan Installation

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1) supply to this connector.

(see p.2 No. 5)

Though this motherboard provides 24-pin ATX power connector, it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13.

20-Pin ATX Power Supply Installation

12 24 13 1

ATX 12V Power Connector

(4-pin ATX12V1)

(see p.2 No. 2)

Please connect an ATX 12V

power supply to this connector.

Chassis Intrusion Header This motherboard supports

(2-pin CI1) CASE OPEN detection ^1 feature

(see p.2, No. 13) that detects if the chassis cover

has been removed. This feature requires a chassis with chassis intrusion detection design.

TPM Header This connector supports

(17-pin TPMS1) Trusted Platform Module (TPM)

(see p.2, No. 18) system, which can securely

store keys, digital certificates, passwords, and data. A TPM

system also helps enhance network security, protects

digital identities, and ensures platform integrity.
