USER MANUAL X399 Phantom Gaming 6 ASROCK

Published October 2018

Copyright©2018 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel: [phone] ext.123 (Standard International call charges apply)

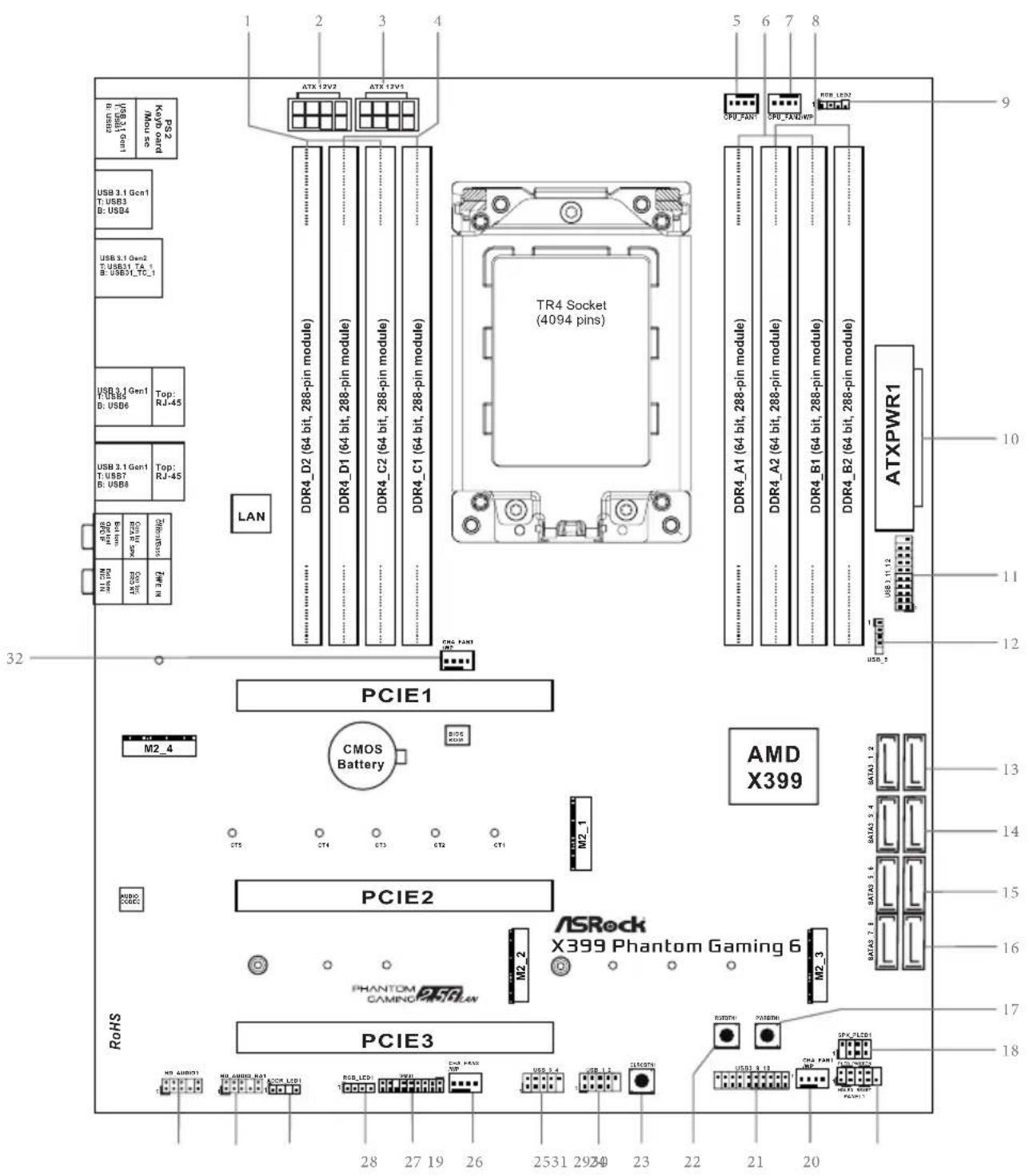

Motherboard Layout

RoHS PCIE3 PHANTOM CAMPING X399 Phantom Gaming 6 M2_2 PCIE2 CMOS Battery PCIE1 ATXPWR1 ATXP4 PINS TR4 Socket (4094 pins) DDR4_D2 (64 bit, 288-pin module) DDR4_D1 (64 bit, 288-pin module) DDR4_C2 (64 bit, 288-pin module) DDR4_C1 (64 bit, 288-pin module) USB3.1 Gen1 T USB7 B USB8 USB3.1 Gen1 T USB9 B USB10 USB3.1 Gen1 T USB11 B USB12 USB3.1 Gen1 T USB13 B USB14 USB3.1 Gen1 T USB15 B USB16 USB3.1 Gen1 T USB17 B USB18 USB3.1 Gen1 T USB19 B USB20 USB3.1 Gen1 T USB21 B USB22 USB3.1 Gen1 T USB23 B USB24 USB3.1 Gen1 T USB25 B USB26 USB3.1 Gen1 T USB27 B USB28 USB3.1 Gen1 T USB29 B USB30 USB3.1 Gen1 T USB31 B USB32 USB3.1 Gen1 T USB33 B USB34 USB3.1 Gen1 T USB35 B USB36 USB3.1 Gen1 T USB37 B USB38 USB3.1 Gen1 T USB39 B USB40 USB3.1 Gen1 T USB41 B USB42 USB3.1 Gen1 T USB43 B USB44 USB3.1 Gen1 T USB45 B USB46 USB3.1 Gen1 T USB47 B USB48 USB3.1 Gen1 T USB49 B USB50 USB3.1 Gen1 T USB51 B USB52 USB3.1 Gen1 T USB53 B USB54 USB3.1 Gen1 T USB55 B USB56 USB3.1 Gen1 T USB57 B USB58 USB3.1 Gen1 T USB59 B USB60 USB3.1 Gen1 T USB61 B USB62 USB3.1 Gen1 T USB63 B USB64 USB3.1 Gen1 T USB65 B USB66 USB3.1 Gen1 T USB67 B USB68 USB3.1 Gen1 T USB69 B USB70 USB3.1 Gen1 T USB71 B USB72 USB3.1 Gen1 T USB73 B USB74 USB3.1 Gen1 T USB75 B USB76 USB3.1 Gen1 T USB77 B USB78 USB3.1 Gen1 T USB79 B USB80 USB3.1 Gen1 T USB81 B USB82 USB3.1 Gen1 T USB83 B USB84 USB3.1 Gen1 T USB85 B USB86 USB3.1 Gen1 T USB87 B USB88 USB3.1 Gen1 T USB89 B USB90 USB3.1 Gen1 T USB91 B USB92 USB3.1 Gen1 T USB93 B USB94 USB3.1 Gen1 T USB95 B USB96 USB3.1 Gen1 T USB97 B USB98 USB3.1 Gen1 T USB99 B USB9A USB3.1 Gen1 T USB9A/B USB3.1 Gen1 T USB9B/C USB3.1 Gen1 T USB9C/D USB3.1 Gen1 T USB9D/C USB3.1 Gen1 T USB9E/C USB3.1 Gen1 T USB9F/C USB3.1 Gen1 T USB9G/C USB3.1 Gen1 T USB9H/C USB3.1 Gen1 T USB9I/C USB3.1 Gen1 T USB9J/C USB3.1 Gen1 T USB9K/C USB3.1 Gen1 T USB9L/C USB3.1 Gen1 T USB9M/C USB3.1 Gen1 T USB9N/C USB3.1 Gen1 T USB9O/C USB3.1 Gen1 T USB9P/C USB3.1 Gen1 T USB9Q/C USB3.1 Gen1 T USB9R/C USB3.1 Gen1 T USB9S/C USB3.1 Gen1 T USB9T/C USB3.1 Gen1 T USB9U/C USB3.1 Gen1 T USB9V/C USB3.1 Gen1 T USB9W/C USB3.1 Gen1 T USB9X/C USB3.1 Gen1 T USB9Y/C USB3.1 Gen1 T USB9Z/C USB3.1 Gen1 T USB9X/D USB3.1 Gen1 T USB9Y/D USB3.1 Gen1 T USB9Z/D USB3.1 Gen1 T USB9X/E/G/V/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

No. Description

1 2 x 288-pin DDR4 DIMM Slots (DDR4_D2, DDR4_C2)

2 ATX 12V Power Connector (ATX12V2)

3 ATX 12V Power Connector (ATX12V1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_D1, DDR4_C1)

5 CPU Fan Connector (CPU_FAN1)

6 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

7 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

8 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

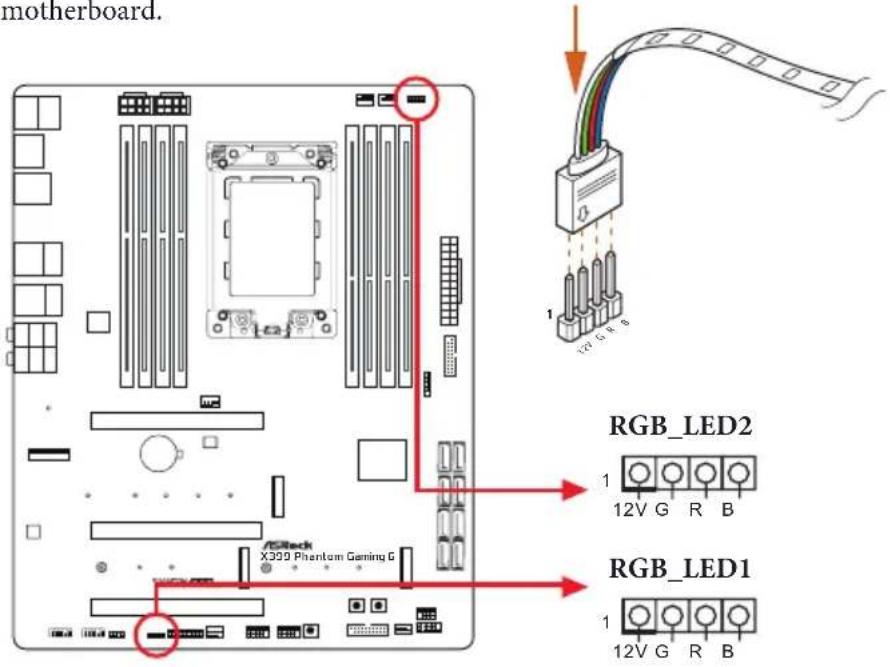

9 RGB LED Header (RGB_LED2)

10 ATX Power Connector (ATXPWR1)

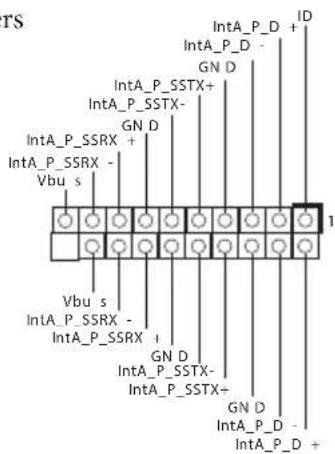

11 USB 3.1 Gen1 Header (USB3_11_12)

12 AMD LED Fan USB Header (USB_5)

13 SATA3 Connectors (SATA3_1_2)

14 SATA3 Connectors (SATA3_3_4)

15 SATA3 Connectors (SATA3_5_6)

16 SATA3 Connectors (SATA3_7_8)

17 Power Button (PWRBTN1)

18 Power LED and Speaker Header (SPK_PLED1)

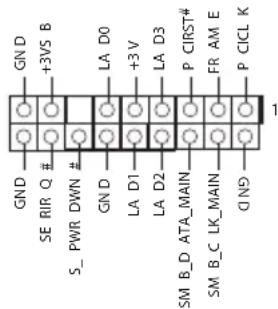

19 System Panel Header (PANEL1)

20 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

21 USB 3.1 Gen1 Header (USB3_9_10)

22 Reset Button (RSTBTN1)

23 Clear CMOS Button (CLRCBTN1)

24 USB 2.0 Header (USB_1_2)

25 USB 2.0 Header (USB_3_4)

26 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

27 TPM Header (TPMS1)

28 RGB LED Header (RGB_LED1)

29 Addressable LED Header (ADDR_LED1)

30 Right Angle Front Panel Audio Header (HD_AUDIO_RA1)

31 Front Panel Audio Header (HD_AUDIO1)

32 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

I/O Panel

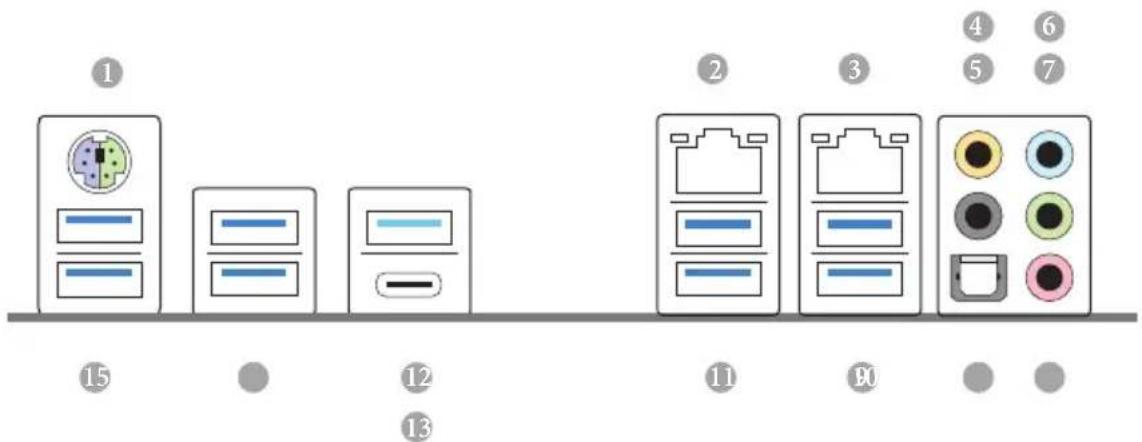

① ⑫ ⑫ ⑫ ⑫ ② ③ ④ ⑤ ⑥ ⑦ ⑩ ⑩ ⑩

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 9 Optical SPDIF Out Port
2 LAN RJ-45 Port (I211AT)* 10 USB 3.1 Gen1 Ports (USB3_7_8)
3 LAN RJ-45 Port (Dragon RTL8125AG)** 11 USB 3.1 Gen1 Ports (USB3_5_6)
4 Central / Bass (Orange) 12 USB 3.1 Gen2 Type-A Port (USB31_TA_1)
5 Rear Speaker (Black) 13 USB 3.1 Gen2 Type-C Port (USB31_TC_1)
6 Line In (Light Blue) 14 USB 3.1 Gen1 Ports (USB3_3_4)
7 Front Speaker (Lime)*** 15 USB 3.1 Gen1 Ports (USB3_1_2)
8 Microphone (Pink)

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

LAN Port

Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On Link Green	Gbps connection

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

LAN Port

Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off	10Mbps connection
Blinking Data Activity Orange			100Mbps/1Gbps connection
On Link Green	2.5Gbps connection

*** If you use a 2-channel speaker, please connect the speaker's plug into "Front Speaker Jack". See the table below for connection details in accordance with the type of speaker you use.

Audio Output Channels	Front Speaker (No. 7)	Rear Speaker (No. 5)	Central / Bass (No. 4)	Line In (No. 6)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V

Chapter 1 Introduction

Thank you for purchasing ASRock X399 Phantom Gaming 6 motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

ASRock X399 Phantom Gaming 6 Motherboard (ATX Form Factor)

ASRock X399 Phantom Gaming 6 Quick Installation Guide

ASRock X399 Phantom Gaming 6 Support CD

1 x I/O Panel Shield

4 x Serial ATA (SATA) Data Cables (Optional)

1 x ASRock SLI_HB_Bridge_2S Card (Optional)

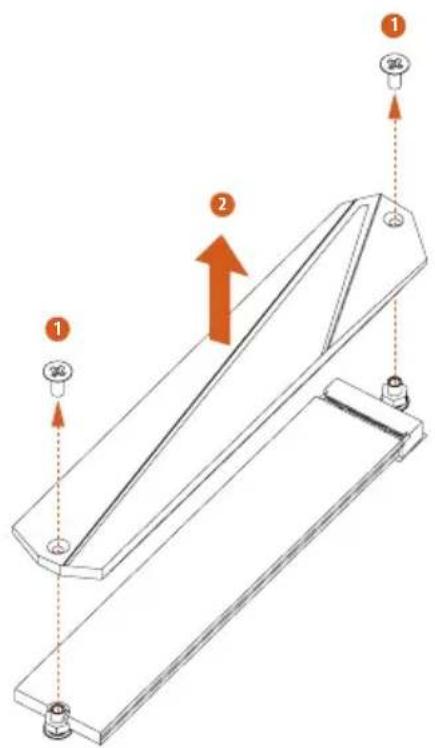

4 x Screws for M.2 Sockets (Optional)

1 x WiFi Bracket (Optional)

1.2 Specifications

Platform	ATX Form Factor8 Layer PCB
CPU	Supports AMD TR4 Socket Ryzen Threadripper Series CPUsSupports CPU up to 180WDigi Power design8 Power Phase design
Chipset	AMD X399
Memory	Quad Channel DDR4 Memory Technology8 x DDR4 DIMM SlotsSupports DDR4 3400+(OC)/3200(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory** Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)Max. capacity of system memory: 128GB15μ Gold Contact in DIMM Slots
Expansion Slot	3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE2); triple at x16 (PCIE1) / x16 (PCIE2) / x16 (PCIE3))*Supports NVMe SSD as boot disksSupports AMD Quad CrossFireXTM, 3-Way CrossFireXTM and CrossFireXTMSupports NVIDIA® Quad SLITM, 3-Way SLITM and SLITM1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module 15μ Gold Contact in VGA PCIe Slot (PCIE1, PCIE2 and PCIE3)
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)Premium Blu-ray Audio supportSupports Surge ProtectionNichicon Fine Gold Series Audio Caps120dB SNR DAC with Differential Amplifier

NE5532 Premium Headset Amplifier for Front Panel Audio

Connector (Supports up to 600 Ohm headsets)

Pure Power-In

Direct Drive Technology

PCB Isolate Shielding

Impedance Sensing on Rear Out port

Individual PCB Layers for R/L Audio Channel

Gold Audio Jacks

15μ Gold Audio Connector

Supports Creative SoundBlaster Cinema5

LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG)

Supports Phantom Gaming LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Efficient Ethernet 802.3az

Supports PXE

1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I211AT)

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Efficient Ethernet 802.3az

Supports PXE

Rear Panel 1 x PS/2 Mouse/Keyboard Port

I/O 1 x Optical SPDIF Out Port

1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD

Protection)

1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD

Protection)

8 x USB 3.1 Gen1 Ports (Supports ESD Protection)

2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED

LED)

HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

Front Speaker / Microphone (Gold Audio Jacks)

Storage

8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type
2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
1 x Ultra M.2 Socket (M2_2), supports M Key type
2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
1 x Ultra M.2 Socket (M2_3), supports M Key type
2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

* Supports NVMe SSD as boot disks

* Supports ASRock U.2 Kit

Connector

1 x TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers

* Support in total up to 12V/3A, 36W LED Strip
1 x Addressable LED Header

* Supports in total up to 5V/3A, 15W LED Strip
1 x CPU Fan Connector (4-pin)

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart F Speed Control)

* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors
1 x Front Panel Audio Connector (15μ Gold Audio Connector)*
1 x Right Angle Front Panel Audio Connector*

* Connect the audio device to either one of the audio connectors.

1 x AMD LED Fan USB Header
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
1 x Clear CMOS Button
1 x Power Button with LED
1 x Reset Button with LED

BIOS

Feature

AMI UEFI Legal BIOS with GUI support

Supports "Plug and Play"

ACPI 5.1 compliance wake up events

Supports jumperfree

SMBIOS 2.3 support

VCORE, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V,

+1.8VSB, VDDCR_SOC_S5, PROM 2.5V, Voltage Multi-adjustment

Hardware

Monitor

Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans

Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans

Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans

Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDCR_SOC

os

Microsoft® Windows® 10 64-bit

Certifica-

FCC, CE

tions

ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Chapter 2 Installation

This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.

In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

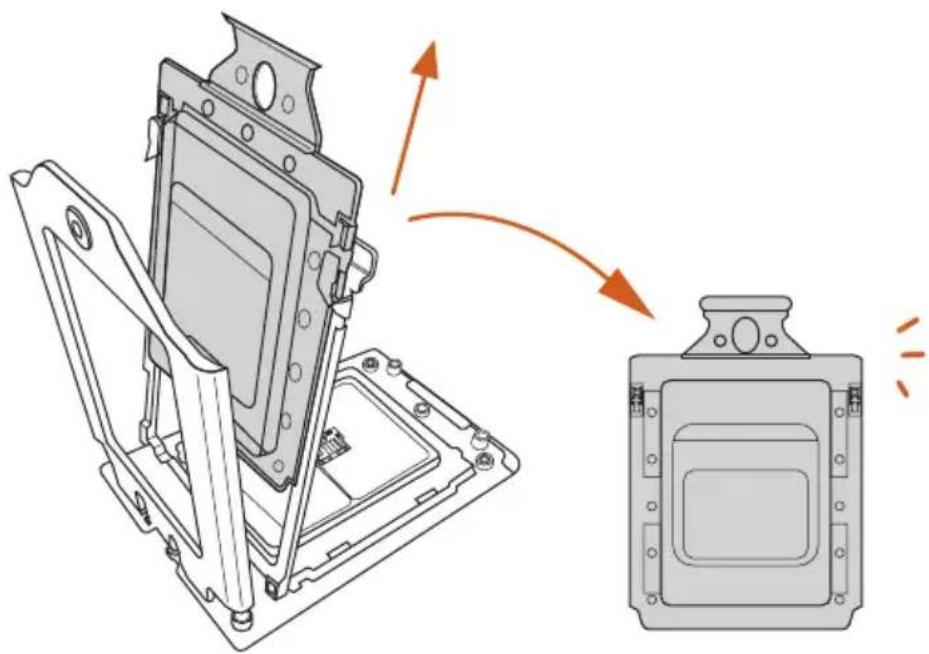

2.1 Installing the CPU

Tutorial Video

Unplug all power cables before installing the CPU.

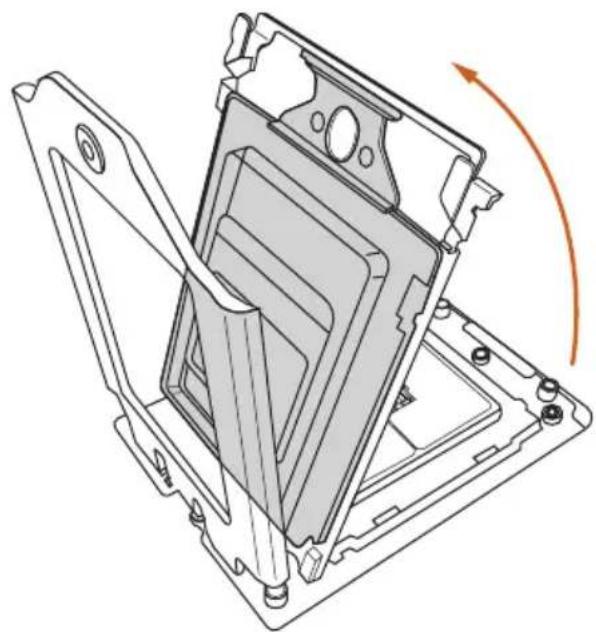

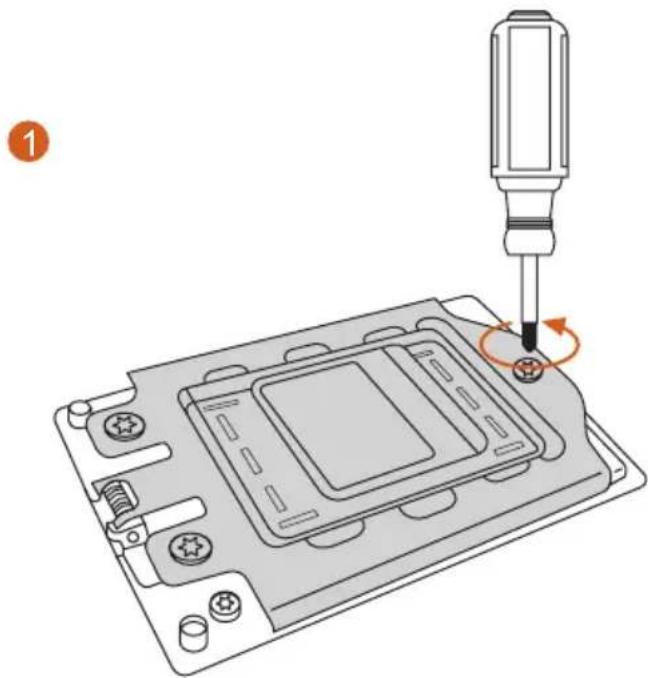

Diagram showing a screwdriver inserted into a computer motherboard with a circular tool on the next component (no text or symbols present)

2

Technical illustration of a mechanical assembly with mounting holes and a highlighted internal component (no text or symbols)

3

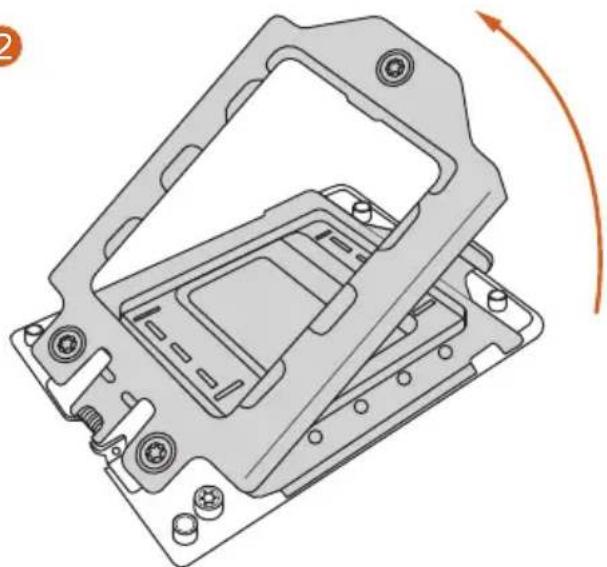

Technical line drawing of a mechanical assembly with an orange arrow indicating rotational motion (no text or symbols)

4

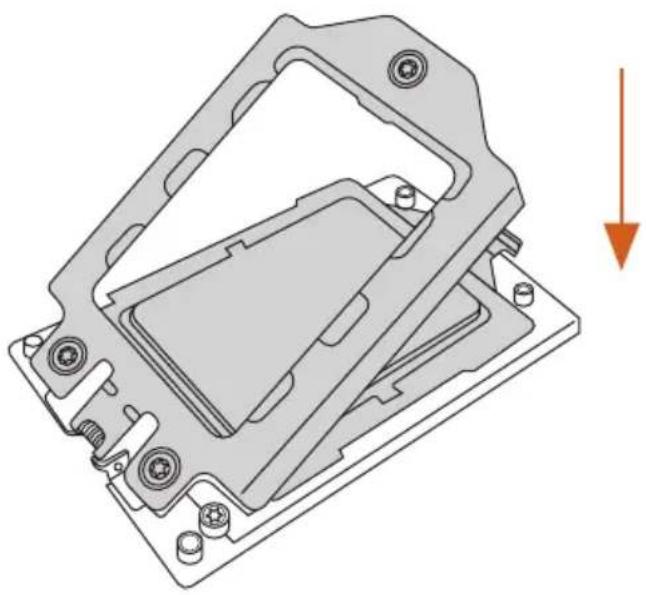

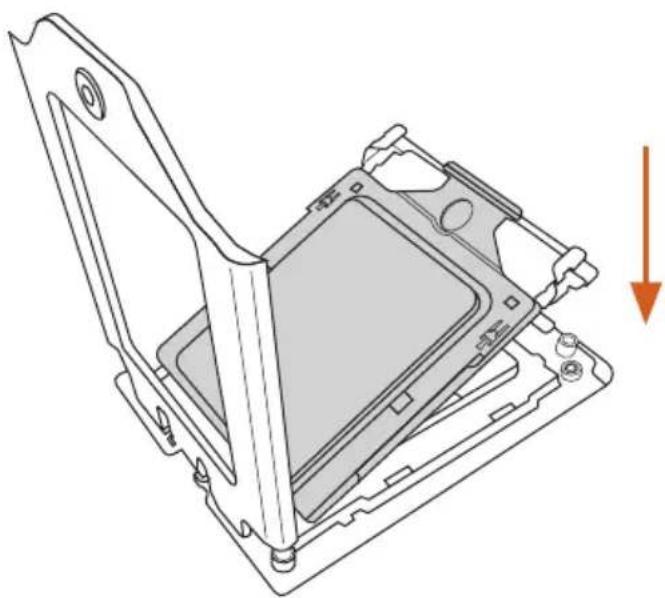

Technical illustration of a mechanical assembly with an arrow indicating direction, showing internal components and motion (no text or symbols)

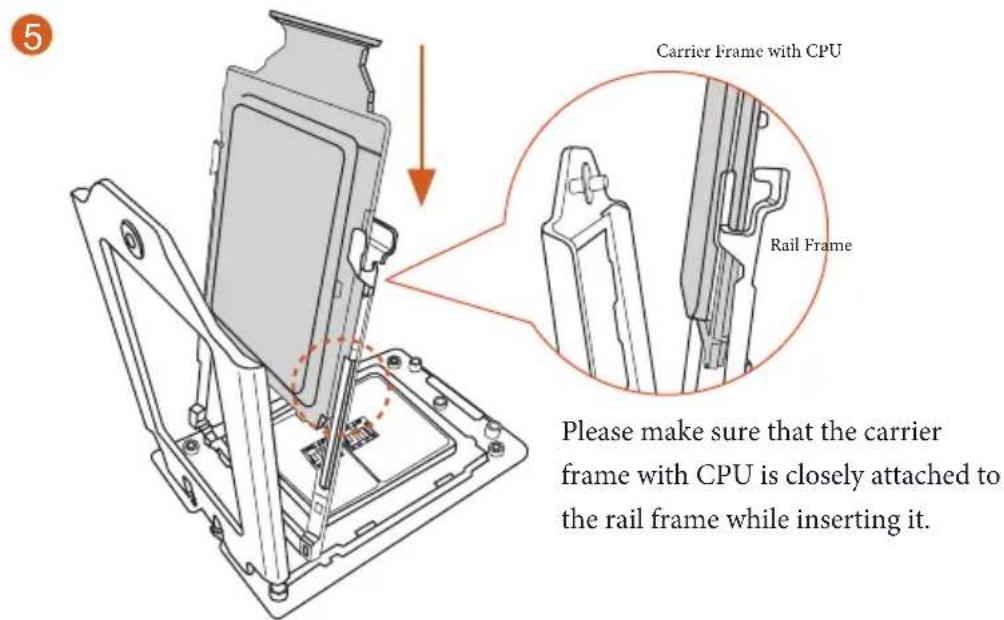

Carrier Frame with CPU Rail Frame Please make sure that the carrier frame with CPU is closely attached to the rail frame while inserting it.

Install the orange carrier frame with CPU. Don't separate them.

Technical line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols present)

7

Technical illustration of a mechanical component with mounting holes and a downward arrow indicating force or direction (no text or symbols)

8

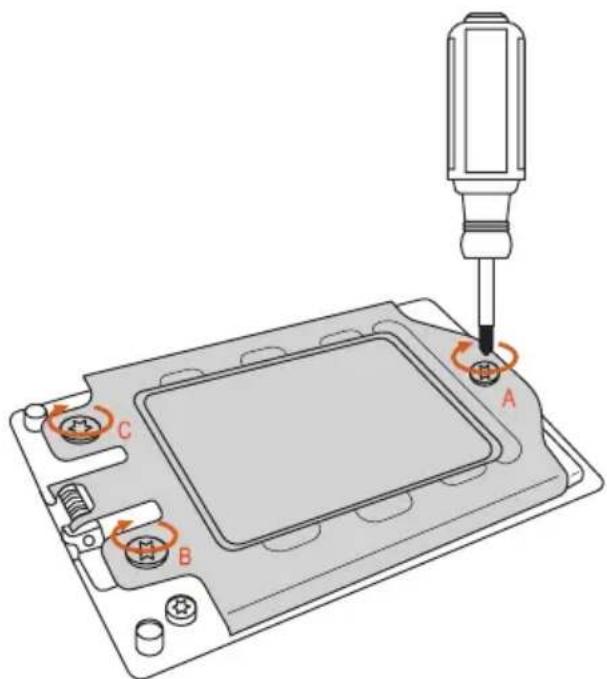

Diagram showing a screwdriver inserted into a device with labeled points A, B, and C indicating specific components.

2.2 Installing the CPU Liquid Cooler

After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other.

Please turn off the power or remove the power cord before changing a CPU or heatsink.

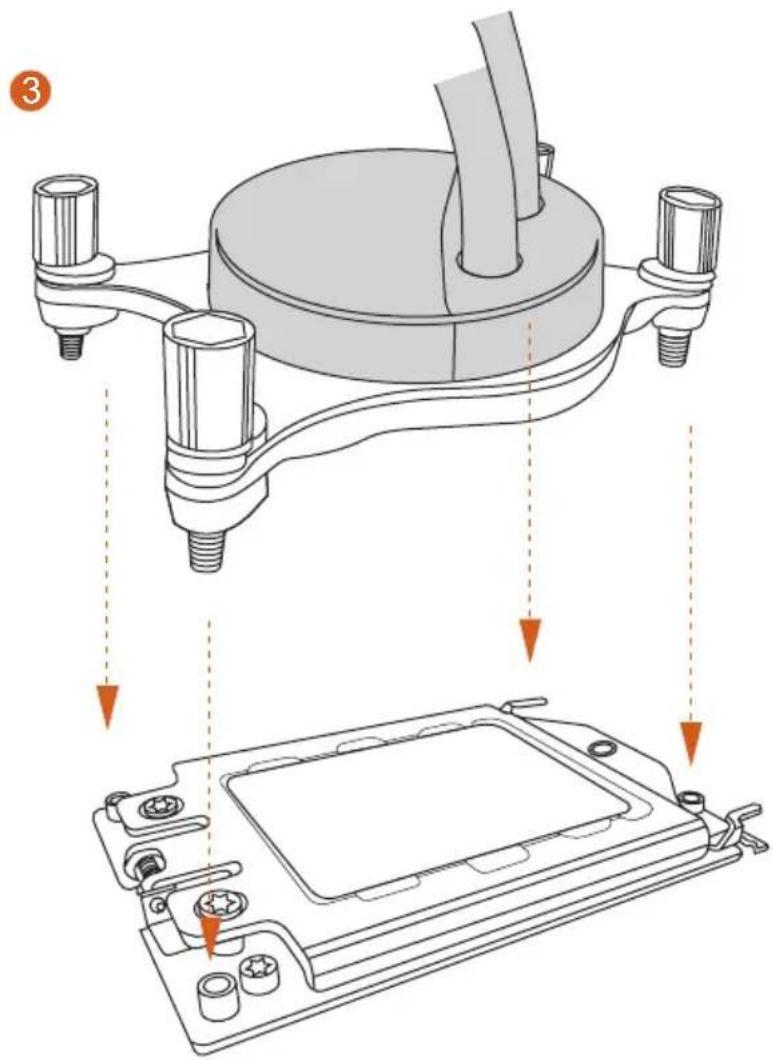

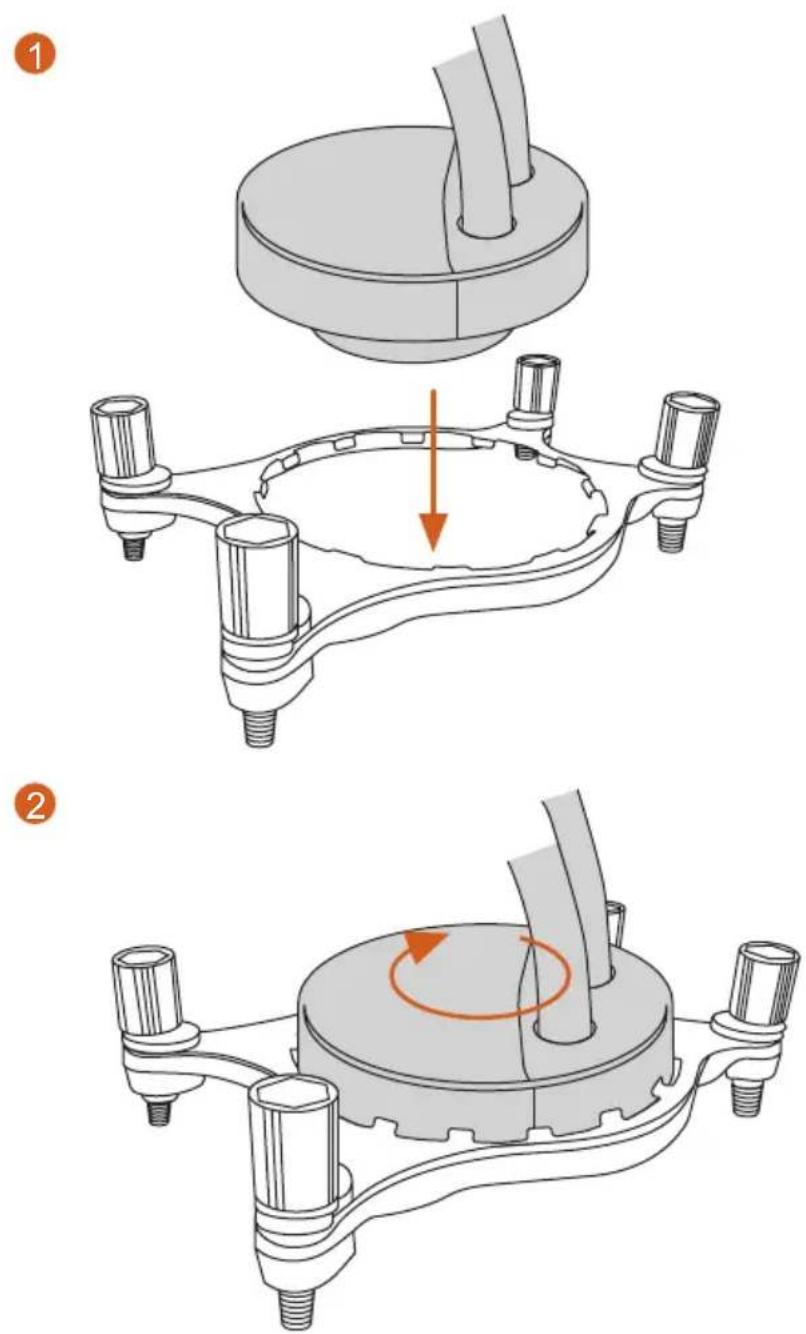

Technical diagram showing assembly of a mechanical component with labeled parts and directional arrows indicating assembly steps.

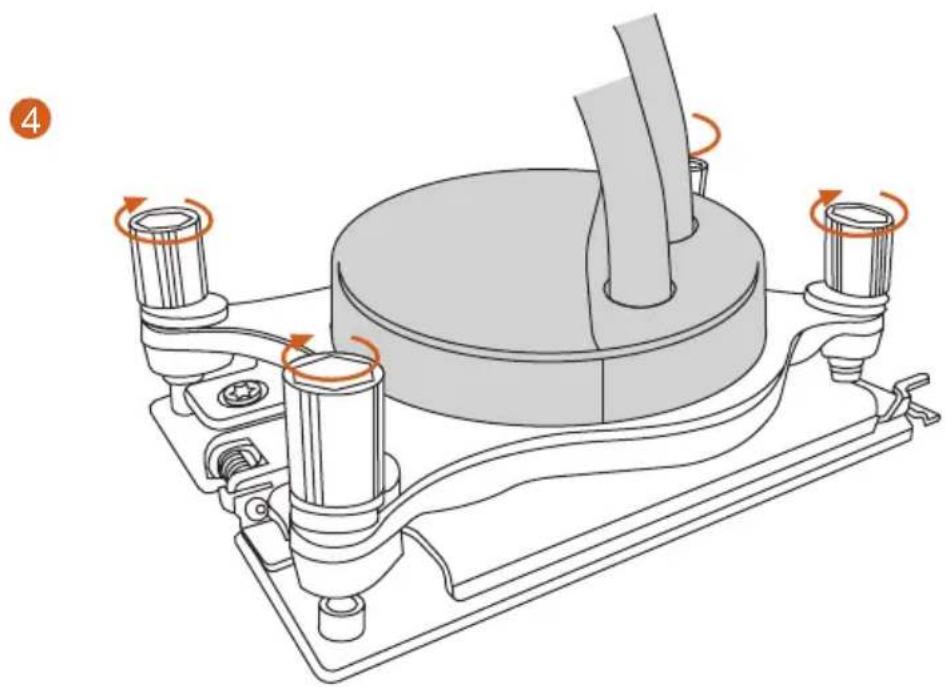

Technical diagram of a mechanical assembly with rotating components and a central circular component (no text or symbols)

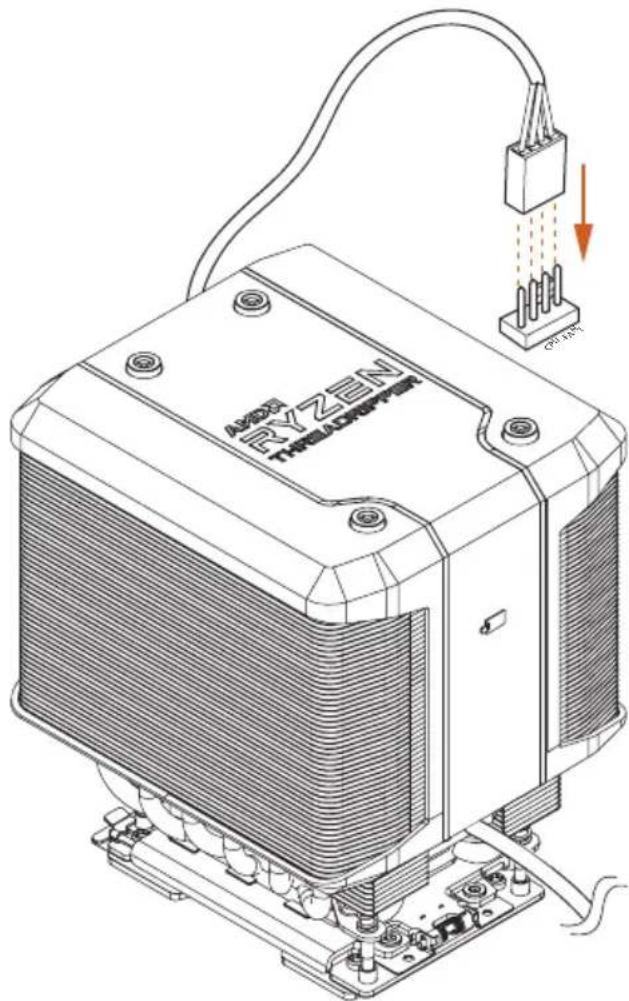

2.3 Installing the CPU Cooler

After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other.

Please turn off the power or remove the power cord before changing a CPU or heatsink.

1

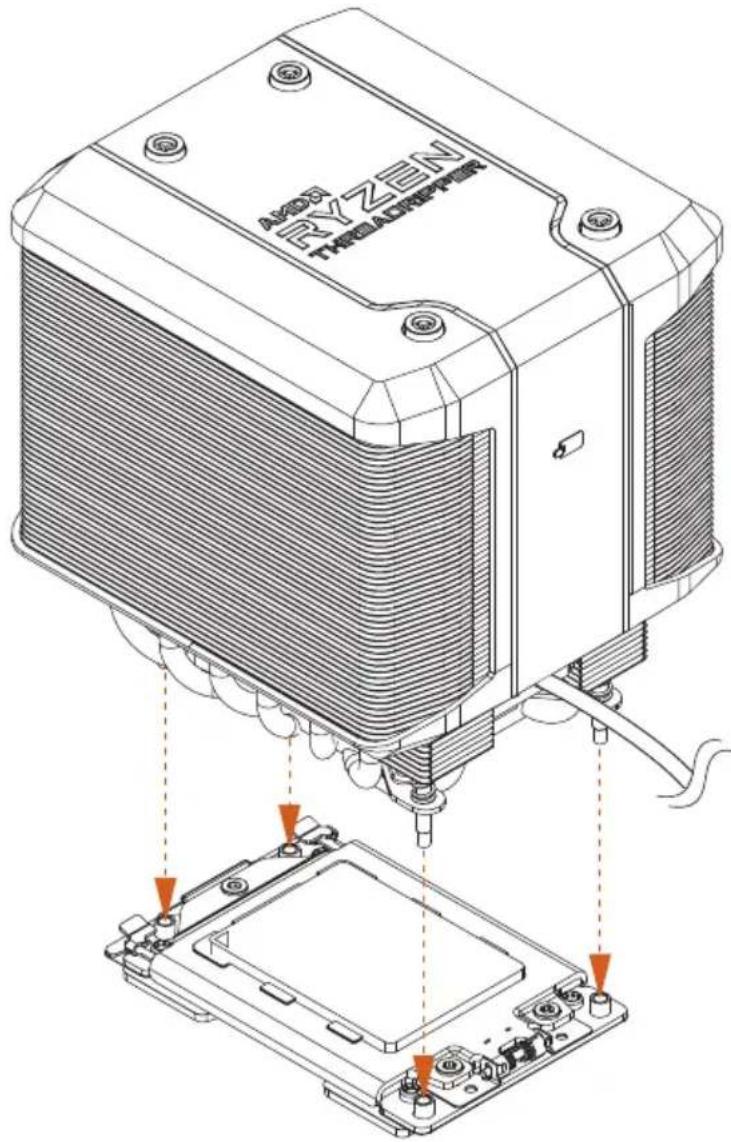

AMD RYZEN TEHRODRIPERS

2

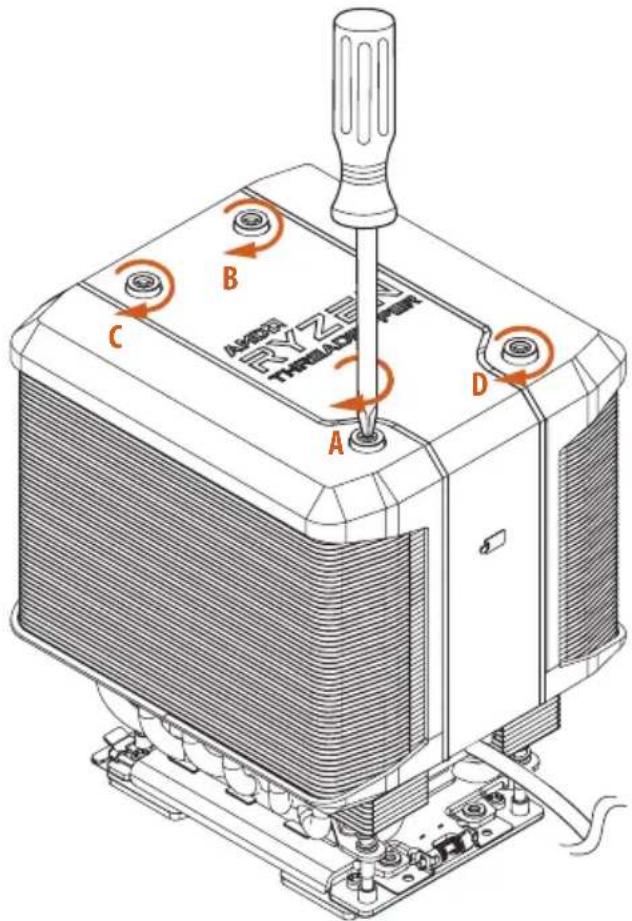

A B C D AUDIO RHYADEM A B C D

3

THALAWATER NEN THALAWATER

4

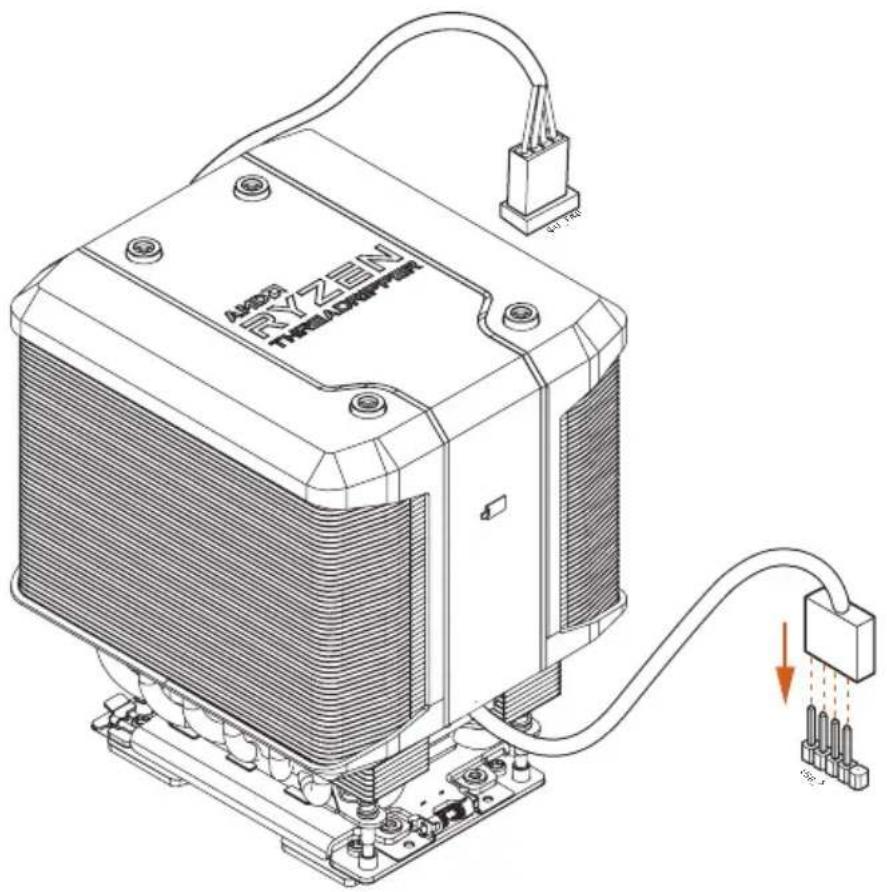

RYZEN TELEMONITOR

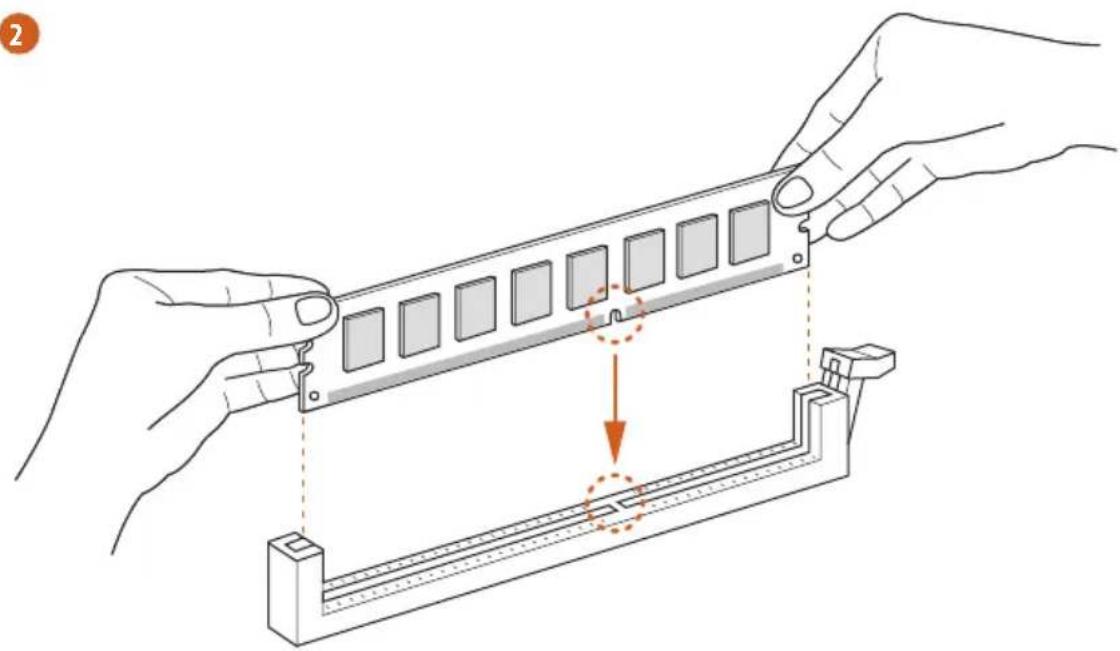

2.4 Installation of Memory Modules (DIMM)

This motherboard provides eight 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Quad Channel Memory Technology.

1. For quad channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.
3. The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

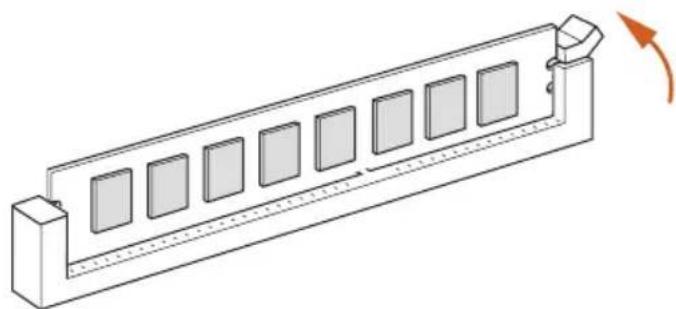

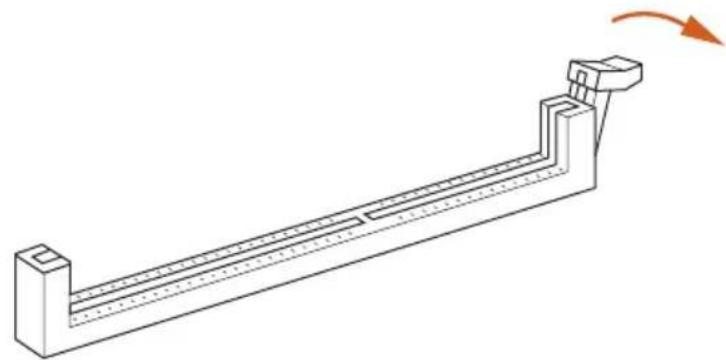

Memory Configuration

2 - DIMM 4 - DIMM 8 - DIMM
Priority 1 2 3
DDR4_D2		Populated Populated
DDR4_D1
DDR4_C2		Populated Populated
DDR4_C1
DDR4_A1
DDR4_A2	Populated Populated Populated
DDR4_B1
DDR4_B2	Populated Populated Populated

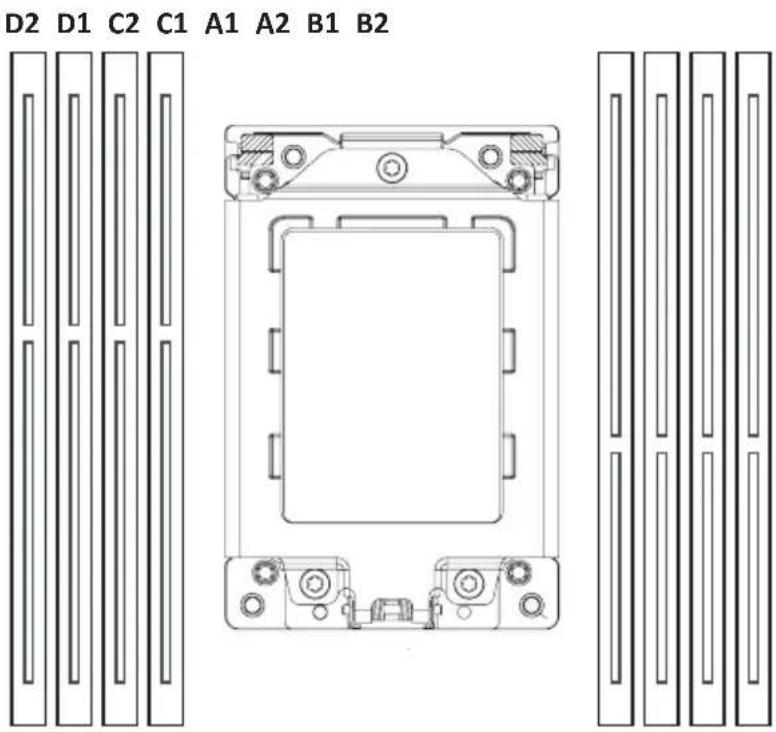

D2 D1 C2 C1 A1 A2 B1 B2

If only two memory modules are installed in the DDR4 DIMM slots, then Dual Channel Memory Technology is activated. If three memory modules are installed, then Triple Channel Memory Technology is activated. If more than four memory modules are installed in the DDR4 DIMM slots, then Quad Channel Memory Technology is activated.

1

Technical line drawing of a mechanical support structure with an arrow indicating rotation (no text or symbols)

2

Illustration of hands installing a component into a mechanical bracket with a highlighted circular detail (no text or symbols)

3

Isometric line drawing of a rectangular electronic component with multiple square slots and a curved arrow indicating rotation (no text or symbols)

2.5 Expansion Slots (PCI Express Slots)

There are 3 PCI Express slots on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCIe slots:

PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE3 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIe Slot Configurations

PCIE1 PCIE2 PCIE3

Single Graphics Card x16 N/A N/A

Two Graphics Cards in

CrossFireX ^TM or SLI ^TM x16 x16 N/A

Mode

Three Graphics Cards in

3-Way CrossFireX ^TM Mode x16 x16 x16

or 3-Way SLI ^TM Mode

For a better thermal environment, please connect a chassis fan to the motherboard's chassis fan connector (CHA_FAN1/WP, CHA_FAN2/WP or CHA_FAN3/WP) when using multiple graphics cards.

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1)

(see p.1, No. 19)

PLED+ PLED- PWRBTN# GND 1 GND RESET# GND HDLED- HDLED+

Connect the power button, reset button and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Button):

Connect to the power button on the chassis front panel. You may configure the way to turn off your system using the power button.

RESET (Reset Button):

Connect to the reset button on the chassis front panel. Press the reset button to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power button, reset button, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Power LED and Speaker Header

(7-pin SPK_PLED1)

(see p.1, No. 18)

Please connect the chassis power LED and the chassis speaker to this header.

Serial ATA3 Connectors

(SATA3_1_2:

see p.1, No. 13)

(SATA3_3_4:

see p.1, No. 14)

(SATA3_5_6:

see p.1, No. 15)

(SATA3_7_8:

see p.1, No. 16)

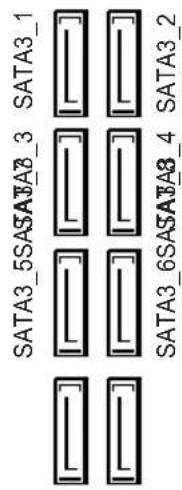

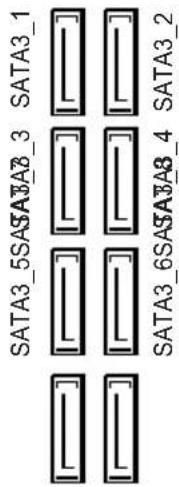

SATA3_5SASA7A8_3 SATA3_1 SATA3_6SASA7A8_4 SATA3_2

These eight SATA3

connectors support SATA

data cables for internal

storage devices with up to

6.0 Gb/s data transfer rate.

AMD LED Fan USB

Header

(4-pin USB_5)

(see p.1, No. 12)

This header is used for

connecting the USB

connector on the AMD

Heatsink.

USB 2.0 Headers

(9-pin USB_1_2)

(see p.1, No. 24)

(9-pin USB_3_4)

(see p.1, No. 25)

USB_PWR P- P+ GND DUMMY 1 P+ GND USB_PWR P-

There are two headers

on this motherboard.

Each USB 2.0 header can support two ports.

USB 3.1 Gen1 Headers

(19-pin USB3_9_10)

(see p.1, No. 21)

TS IntA_P_D + IntA_P_D - GN D IntA_P_SSTX+ GN D IntA_P_SSTX- Vbu s Vbu s IntA_P_SSRX - IntA_P_SSRX + GN D IntA_P_SSTX- IntA_P_SSTX- GN D IntA_P_D - IntA_P_D +

There are two headers on

this motherboard. Each

USB 3.1 Gen1 header can support two ports.

(19-pin USB3_11_12)

(see p.1, No. 11)

Vbus IntA_PA_SRX- IntA_PA_SRX+ GND IntA_PA_SSTX- IntA_PA_SSTX+ GND IntA_PA_D- IntA_PA_D+ Vbus/Vbus IntA_PB_SRX- GND IntA_PB_SSTX- GND IntA_PB_D+ Dummy 1

Front Panel Audio Headers

(9-pin HD_AUDIO1)

(see p.1, No. 31)

(9-pin HD_AUDIO_RA1)

(see p.1, No. 30)

GND PRESENCE# MIC_RET OUT_RET 1 J_SENSE OUT2_R MIC2_R MIC2_L

These two headers are for connecting audio devices to the front audio panel.

* Connect the audio device to either one of the audio connectors.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis/Water Pump Fan Connectors

(4-pin CHA_FAN1/WP)

(see p.1, No. 20)

(4-pin CHA_FAN2/WP)

(see p.1, No. 26)

(4-pin CHA_FAN3/WP)

(see p.1, No. 32)

GND FAN_VOLTAGE FAN_SPEED FAN_SPEED_CONTROL 1 2 3 4

This motherboard provides three 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.

CPU Fan Connector (4-pin CPU_FAN1)

(see p.1, No. 5)

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector.

If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

CPU/Water Pump Fan Connector (4-pin CPU_FAN2/WP) (see p.1, No. 7)

This motherboard provides a 4-Pin water cooling CPU fan connector. If you plan to connect a 3-Pin CPU water cooler fan, please connect it to Pin 1-3.

ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 10)

This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.

ATX 12V Power Connectors (8-pin ATX12V1) (see p.1, No. 3) (8-pin ATX12V2) (see p.1, No. 2)

This motherboard provides two 8-pin ATX 12V power connectors. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.

TPM Header (17-pin TPMS1) (see p.1, No. 27)

GND +3V5 B SE RIR Q # S_ PWR DWN # GND LA D0 +3 V LA D1 LA D2 LA D3 P CIRST# P CIRST# FR AM E P CICL K SM B_D ATA_MAIN SM B_C LK_MAIN Q N9 1

This connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

RGB LED Headers

(4-pin RGB_LED1)

(see p.1, No. 28)

(4-pin RGB_LED2)

(see p.1, No. 9)

RGB LED header is used to connect RGB LED extension cable which allows users to choose from various LED lighting effects.

Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.

*Please refer to page 44 for for further instructions on this header.

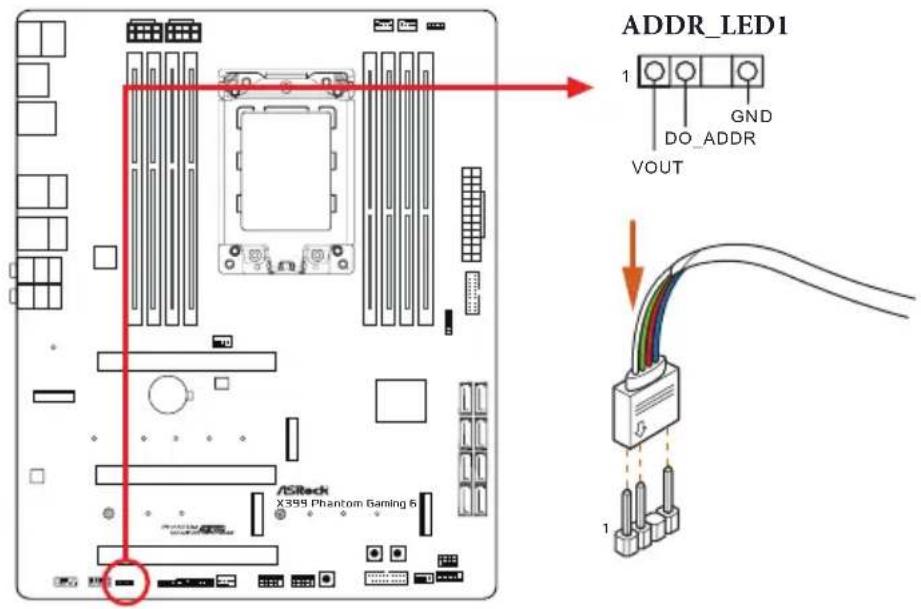

Addressable LED Header

(3-pin ADDR_LED1)

(see p.1, No. 29)

This header is used to connect Addressable LED extension cable which allows users to choose from various LED lighting effects.

Caution: Never install the Addressable LED cable in the wrong orientation; otherwise, the cable may be damaged.

*Please refer to page 45 for further instructions on this header.

2.7 Smart Switches

The motherboard has three smart switches: Power Button, Reset Button and Clear CMOS Button.

Power Button

(PWRBTN)

(see p.1, No. 17)

Power Button allows users to quickly turn on/off the system.

Reset Button

(RSTBTN)

(see p.1 No. 22)

Reset Button allows users to quickly reset the system.

Clear CMOS Button

(CLRCBTN1)

(see p.1, No. 23)

Clear CMOS Button allows users to quickly clear the CMOS values.

This function is workable only when you power off your computer and unplug the power supply.

2.8 M.2 WiFi/BT Module Installation Guide

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT module.

Installing the WiFi/BT module

Pure technical line drawing of a mechanical component with no text or symbols

Step 1

Prepare a type 2230 WiFi/BT module and the screw.

Pure technical line drawing of a rectangular component with mounting holes (no text or symbols)

PCB Length: 3cm Module Type: Type2230 A

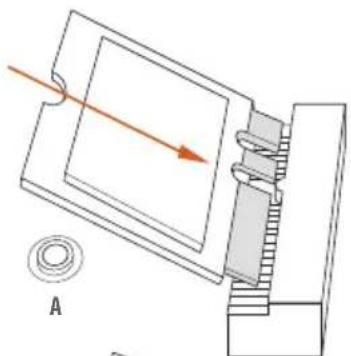

Step 2

Find the nut location to be used.

Pure mechanical assembly diagram showing a component with arrows indicating direction, no text or symbols present

Step 3

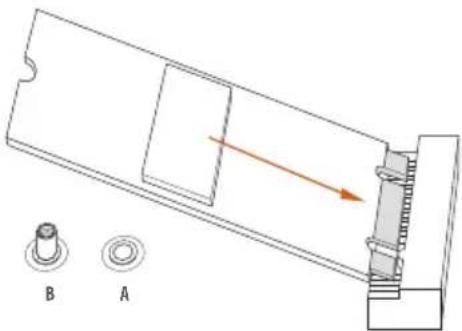

Gently insert the WiFi/BT module into the M.2 slot. Please be aware that the module only fits in one orientation.

A 20°

Diagram of a lamp interacting with a rectangular panel, showing motion direction (no text or symbols)

Step 4

Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

2.9 M.2\_SSD (NGFF) Module Installation Guide (M2\_1)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_1) supports M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

Installing the M.2_SSD (NGFF) Module

Pure technical line drawing of a rectangular component with internal cutouts and a small protrusion (no text or symbols)

Step 1

Prepare a M.2_SSD (NGFF) module and the screw.

5 4 3 2 1 E D C B A

Step 2

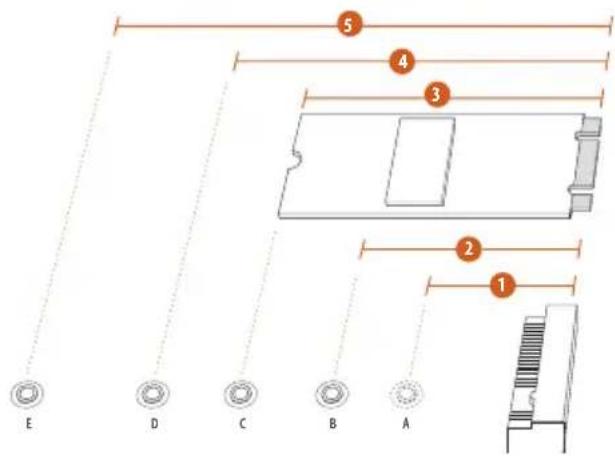

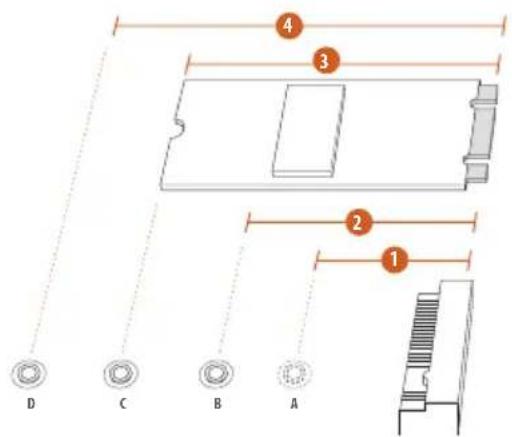

Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.

No.12345

Nut Location A B C D E
PCB Length	3cm	4.2cm	6cm	8cm	11cm
Module Type	Type2230	Type 2242	Type2260	Type 2280	Type 22110

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

Step 3

Before installing a M.2 (NGFF) SSD module, please loosen the screws to remove the M.2 heatsink.

DE

Step4

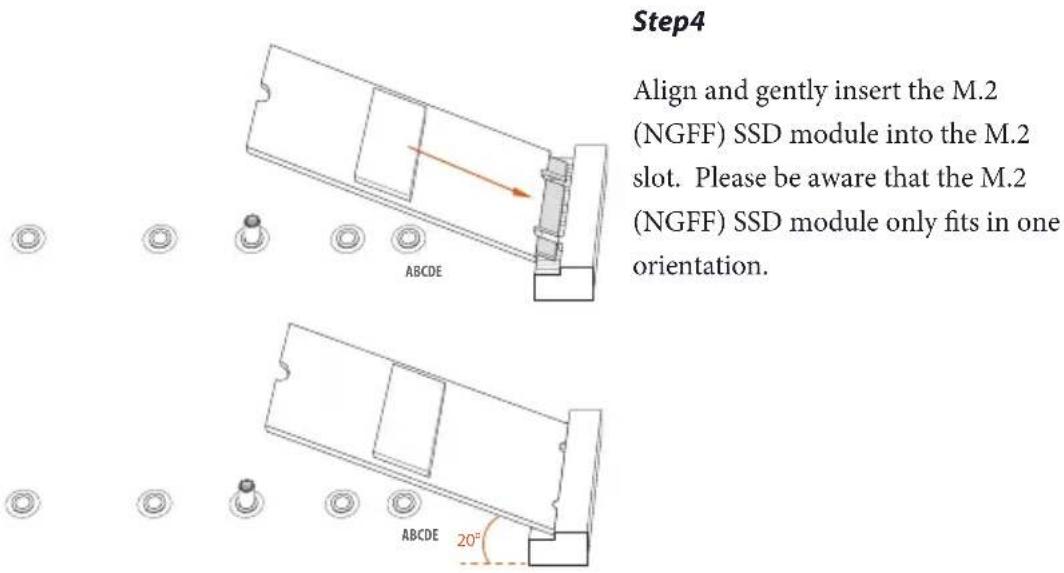

Align and gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.

Step 5

Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

M.2\_SSD (NGFF) Module Support List

Vendor Interface P/N
ADATA PCIe3 x4 ASX7000NP-128GT-C
ADATA PCIe3 x4 ASX8000NP-256GM-C
ADATA PCIe3 x4 ASX7000NP-256GT-C
ADATA PCIe3 x4 ASX8000NP-512GM-C
ADATA PCIe3 x4 ASX7000NP-512GT-C
Apacer PCIe3 x4 AP240GZ280
Corsair PCIe3 x4 CSSD-F240GBMP500
Intel PCIe3 x4 SSDPEKKF256G7
Intel PCIe3 x4 SSDPEKKF512G7
Kingston PCIe3 x4 SKC1000/480G
Kingston PCIe2 x4 SH2280S3/480G
OCZ PCIe3 x4 RVD400 -M2280-512G (NVME)
PATRIOTPCIe3 x4 PH240GPM280SSDR NVME
Plextor PCIe3 x4 PX-128M8PeG
Plextor PCIe3 x4 PX-1TM8PeG
Plextor PCIe3 x4 PX-256M8PeG
Plextor PCIe3 x4 PX-512M8PeG
Plextor PCIe PX-G256M6e
Plextor PCIe PX-G512M6e
Samsung PCIe3 x4 SM961 MZVPW128HEGM (NVM)
Samsung PCIe3 x4 PM961 MZVLW128HEGR (NVME)
Samsung PCIe3 x4 960 EVO (MZ-V6E250) (NVME)
Samsung PCIe3 x4 960 EVO (MZ-V6E250BW) (NVME)
Samsung PCIe3 x4 SM951 (NVME)
Samsung PCIe3 x4 SM951 (MZHPV256HDGL)
Samsung PCIe3 x4 SM951 (MZHPV512HDGL)
Samsung PCIe3 x4 SM951 (NVME)
Samsung PCIe x4 XP941-512G (MZHPU512HCGL)
SanDisk	PCIe SD6PP4M-128G
SanDisk	PCIe SD6PP4M-256G

2.10 M.2\_SSD (NGFF) Module Installation Guide (M2\_2)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_2) supports M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

Installing the M.2_SSD (NGFF) Module

Pure technical line drawing of a rectangular component with a slot and two protruding pins (no text or symbols)

Step 1

Prepare a M.2_SSD (NGFF) module and the screw.

C B A 1 2 3

Step 2

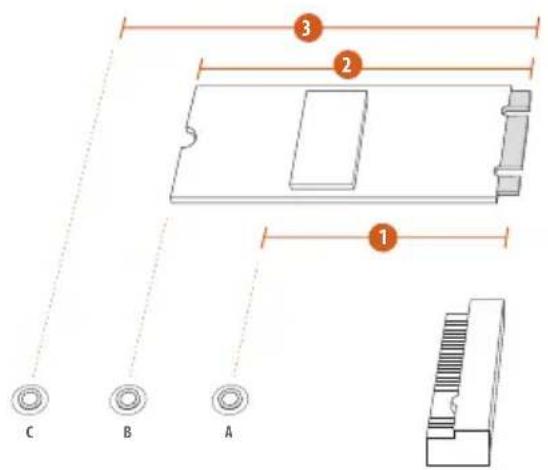

Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.

No.123

Nut Location A B C

PCB Length 4.2cm 6cm 8cm

Module Type

Type 2242

Type2260

Type 2280

Step 3

Move the standoff based on the module type and length. The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.

Step 4

Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and directional arrow (no text or symbols beyond labels)

Step 5

Align and gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.

B A 20°

Pure mechanical diagram showing a lever system with weights and a base plate, without any text or symbols

Step 6

Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

M.2\_SSD (NGFF) Module Support List

Vendor Interface Length P/N
ADATA PCIe3 x4 2280 ASX7000NP-128GT-C
ADATA PCIe3 x4 2280 ASX8000NP-256GM-C
ADATA PCIe3 x4 2280 ASX7000NP-256GT-C
ADATA PCIe3 x4 2280 ASX7000NP-512GT-C
ADATA PCIe3 x4 2280 ASX8000NP-512GM-C
Corsair PCIe3 x4 2280 CSSD-F240GBMP500
Intel PCIe3 x4 2280 SSDPEKKF256G7
Intel PCIe3 x4 2280 SSDPEKKF512G7
Kingston PCIe2 x4 2280 SH2280S3/480G
OCZ PCIe3 x4 2280 RVD400 -M2280-512G (NVME)
Plextor PCIe3 x4 2280 PX-128M8PeG
Plextor PCIe3 x4 2280 PX-1TM8PeG
Plextor PCIe3 x4 2280 PX-256M8PeG
Plextor PCIe3 x4 2280 PX-512M8PeG
Plextor PCIe 2280 PX-G256M6e
Plextor PCIe 2280 PX-G512M6e
Samsung	PCIe3 x4	2280	SM961 MZVPW128HEGM (NVM)
Samsung	PCIe3 x4	2280	PM961 MZVLW128HEGR (NVME)
Samsung	PCIe3 x4	2280	960 EVO (MZ-V6E250) (NVME)
Samsung	PCIe3 x4	2280	960 EVO (MZ-V6E250BW) (NVME)
Samsung PCIe3 x4 2280 SM951 (NVME)
Samsung	PCIe3 x4	2280	SM951 (MZHPV256HDGL)
Samsung	PCIe3 x4	2280	SM951 (MZHPV512HDGL)
Samsung PCIe3 x4 2280 SM951 (NVME)
Samsung	PCIe x4	2280	XP941-512G (MZHPU512HCGL)
SanDisk	PCIe	2260	SD6PP4M-128G
SanDisk	PCIe	2260	SD6PP4M-256G
TEAM	PCIe3 x4	2280	TM8FP2240G0C101
TEAM	PCIe3 x4	2280	TM8FP2480GC110
WD	PCIe3 x4	2280	WDS256G1X0C-00ENX0 (NVME)
WD	PCIe3 x4	2280	WDS512G1X0C-00ENX0 (NVME)

2.11 M.2\_SSD (NGFF) Module Installation Guide (M2\_3)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_3) supports SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

Installing the M.2\_SSD (NGFF) Module

Pure technical line drawing of a rectangular component with internal features and a small symbol at the bottom right (no text or labels)

Step 1

Prepare a M.2_SSD (NGFF) module and the screw.

4 3 2 1 D C B A

Step 2

Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.

No.1234

Nut Location A B C D

Diagram showing four circular components labeled A, B, C, D with directional arrows and a 3D mechanical part outline (no text or symbols beyond labels)

Step 3

Move the standoff based on the module type and length.

The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut.

Otherwise, release the standoff by hand.

Diagram showing five circular components labeled D, C, B, A with no text or symbols beyond labels

Step 4

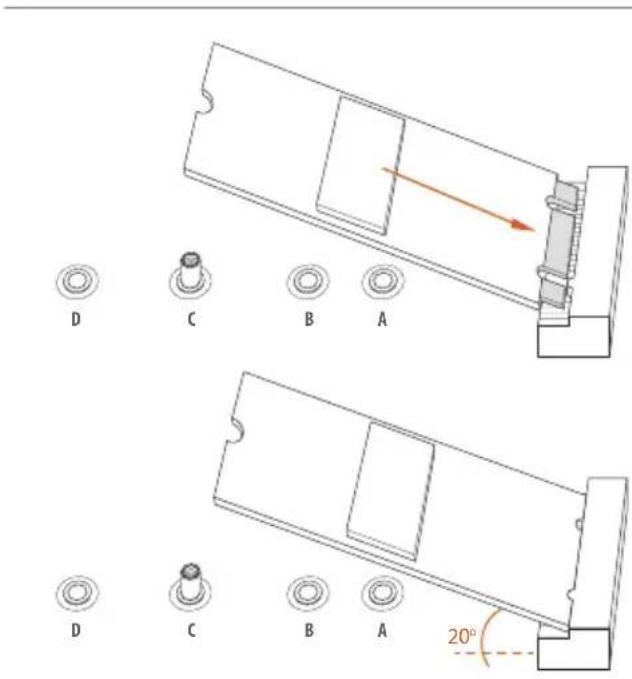

Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.

D C B A D C B A 20°

Step 5

Align and gently insert the M.2

(NGFF) SSD module into the M.2

slot. Please be aware that the M.2

(NGFF) SSD module only fits in one orientation.

Pure technical diagram showing a mechanical setup with a lever and base plate, no text or symbols present

Step 6

Tighten the screw with a screwdriver to secure the module into place.

Please do not overtighten the screw as this might damage the module.

M.2\_SSD (NGFF) Module Support List

Vendor Interface Length P/N
ADATA SATA3 2230 AXNS330E-32GM-B
ADATA SATA3 2280 AXNS381E-128GM-B
ADATA SATA3 2280 ASU800NS38-256GT-C
ADATA SATA3 2280 AXNS381E-256GM-B
ADATA SATA3 2280 ASU800NS38-512GT-C
ADATA PCIe3 x4 2280 ASX7000NP-128GT-C
ADATA PCIe3 x4 2280 ASX8000NP-256GM-C
ADATA PCIe3 x4 2280 ASX7000NP-256GT-C
ADATA PCIe3 x4 2280 ASX7000NP-512GT-C
ADATA PCIe3 x4 2280 ASX8000NP-512GM-C
Corsair PCIe3 x4 2280 CSSD-F240GBMP500
Crucial SATA3 2280 CT120M500SSD4
Crucial SATA3 2280 CT240M500SSD4
Intel SATA3 2280 Intel SSDSCKGW080A401/80G
Intel PCIe3 x4 2280 SSDPEKKF256G7
Intel PCIe3 x4 2280 SSDPEKKF512G7
Kingston SATA3 2280 SM2280S3
Kingston PCIe2 x4 2280 SH2280S3/480G
OCZ PCIe3 x4 2280 RVD400 -M2280-512G (NVME)
Plextor	PCIe3 x4	2280	PX-128M8PeG
Plextor	PCIe3 x4	2280	PX-1TM8PeG
Plextor	PCIe3 x4	2280	PX-256M8PeG
Plextor	PCIe3 x4	2280	PX-512M8PeG
Plextor	PCIe	2280	PX-G256M6e
Plextor	PCIe	2280	PX-G512M6e
Samsung	PCIe3 x4	2280	SM961 MZVPW128HEGM (NVM)
Samsung	PCIe3 x4	2280	PM961 MZVLW128HEGR (NVME)
Samsung	PCIe3 x4	2280	960 EVO (MZ-V6E250) (NVME)
Samsung	PCIe3 x4	2280	960 EVO (MZ-V6E250BW) (NVME)
Samsung	PCIe3 x4	2280	SM951 (NVME)
Samsung	PCIe3 x4	2280	SM951 (MZHPV256HDGL)
Samsung	PCIe3 x4	2280	SM951 (MZHPV512HDGL)
Samsung	PCIe3 x4	2280	SM951 (NVME)
Samsung	PCIe x4	2280	XP941-512G (MZHPU512HCGL)
SanDisk	PCIe	2260	SD6PP4M-128G
SanDisk	PCIe	2260	SD6PP4M-256G
Team SATA3 2242 TM4PS4128GMC105
Team SATA3 2242 TM4PS4256GMC105
Team SATA3 2280 TM8PS4128GMC105
Team SATA3 2280 TM8PS4256GMC105
TEAM	PCIe3 x4	2280	TM8FP2240G0C101
TEAM	PCIe3 x4	2280	TM8FP2480GC110
Transcend SATA3 2242 TS256GMTS400
Transcend SATA3 2260 TS512GMTS600
Transcend SATA3 2280 TS512GMTS800
V-Color SATA3 2280 VLM100-120G-2280B-RD
V-Color SATA3 2280 VLM100-240G-2280B-RD
V-Color SATA3 2280 VLM100-240G-2280RGB
V-Color SATA3 2280 VSM100-240G-2280
WD SATA3 2280 WDS100T1B0B-00AS40
WD SATA3 2280 WDS240G1G0B-00RC30
WD	PCIe3 x4	2280	WDS256G1X0C-00ENX0 (NVME)
WD	PCIe3 x4	2280	WDS512G1X0C-00ENX0 (NVME)

2.12 ASRock Polychrome RGB

ASRock Polychrome RGB is a lighting control utility specifically designed for unique individuals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connecting the LED strip, you can customize various lighting schemes and patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more.

Connecting the LED Strip

Connect your RGB LED strips to the RGB LED Headers (RGB_LED1, RGB_LED2) on the motherboard.

motherboard. RGB_LED2 RGB_LED1 12V G R B 12V G R B

1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.

1. Please note that the RGB LED strips do not come with the package.
2. The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Connecting the Addressable RGB LED Strip

Connect your Addressable RGB LED strip to the Addressable LED Header (ADDR_LED1) on the motherboard.

ADDR_LED1 1 GND DO_ADDR VOUT ASReck X399 Phantom Gaming 6

1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.

1. Please note that the RGB LED strips do not come with the package.
2. The RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V) and length within 2 meters.

ASRock Polychrome RGB Utility

Now you can adjust the RGB LED color through the ASRock Polychrome RGB Utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way!

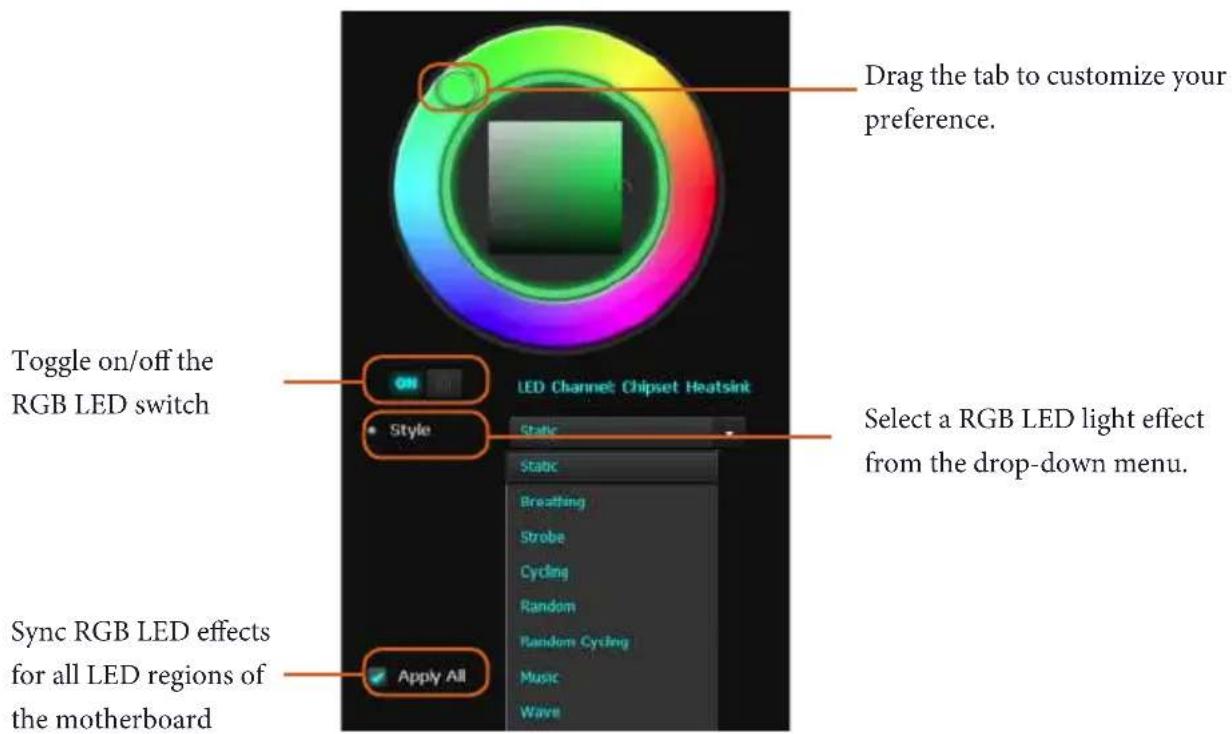

Drag the tab to customize your preference. Toggle on/off the RGB LED switch Style Select a RGB LED light effect from the drop-down menu. Sync RGB LED effects for all LED regions of the motherboard Apply All

1 Einleitung

ASRock X399 Phantom Gaming 6-Support-CD

Serial-ATA-III-Anschlüsse

(SATA3_1_2:

siehe S. 1, Nr. 13)

(SATA3_3_4:

siehe S. 1, Nr. 14)

(SATA3_5_6:

siehe S. 1, Nr. 15)

(SATA3_7_8:

siehe S. 1, Nr. 16)

SATA3_5SASA3A8_3 SATA3_1 SATA3_6SASA3A8_4 SATA3_2

(4-polig, CHA_FAN1/WP)

(4-polig, CHA_FAN2/WP)

(4-polig, CHA_FAN3/WP)

Embases USB 3.1 Gen1

Scheda madre ASRock X399 Phantom Gaming 6 (Form Factor ATX)

Supporto WOL (Wake-On-LAN)

Supporta "Plug and Play"

(CHA_FAN1/WP a 4 pin)

(CHA_FAN3/WP a 4 pin)

2230/2242/2260/2280/22110 módulo M.2 PCI Express até Gen3 x4 (32 Gb/s)**

1 x soquete M.2 Ultra (M2_2), suporta chave M tipo

2242/2260/2280 módulo M.2 PCI Express até Gen3 x4 (32 Gb/s) *

1 x Soquete Ultra M.2 (M2_3), suporta Chave M tipo

2230/2242/2260/2280 módulo M.2 SATA3 6,0 Gb/s e módulo M.2

VCORE, VCORE_NB, DRAM, VPPM, PCH 1,05V, +1,8V,

VCORE_NB, DRAM, PCH 1,05V, +1,8V, VDDCR_SOC

so

Microsoft® Windows® 10 64-bit

Certificações

FCC, CE

(3-pinowe ADDR_LED1)

Simple graphic with a magnifying glass icon and a horizontal line, no text or symbols present.

1.1 パッケージの内容

1.2 仕様

CPU

15μ

TM

TM

TM

TM

TM

TM

LAN

L8125AG)

I/O

OS

1.3 オンボードのヘッダーとコネクタ

PLED+ PLED- PWRBTN# GND 1 GND RESET# GND HDLED- HDLED+

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name: ASRock Incorporation

Address: 13848 Magnolia Ave, Chino, CA91710

Phone/Fax N o: [phone]/[phone]

hereby declares that the product

Product Name : Motherboard

Model Number : X399 Phantom Gaming 6

Conforms to the following specifications:

☒ FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Representative Person's Name: James

Signature :

Date : May 12, 2017

EU Declaration of Conformity

ASRock®

For the following equipment:

Motherboard

(Product Name)

X399 Phantom Gaming 6 / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

EMC —Directive 2014/30/EU (from April 20th, 2016)

□ EN 55022:2010/AC:2011 Class B

EN 55024:2010/A1:2015

EN 61000-3-3:2013

☐ LVD — Directive 2014/35/EU (from April 20th, 2016)

□ EN 60950-1:2011+ A2:2013

□ EN 60950-1:2006/A12:2011

— Directive 2011/65/EU

(EU conformity marking)

CE

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

November 16, 2018

(Date)

P/N: 15G062132000AK V1.0
