Tutti - Toothbrush Neno - Free user manual and instructions

Product type	Electric toothbrush for children
Brand	Neno
Model	Tutti
Use	Brushing teeth and massaging gums of babies and young children
Power supply	2 AAA batteries (not included)
Battery life	Approximately 2 minutes per session, auto shut-off
Brushing speed	22,000 strokes per minute
Built-in timer	Yes, 1-second pause every 30 seconds, stops at 2 minutes
Lighting	Built-in LED (RGB light with vibrations and sound)
Bristle material	Nylon
Water resistance rating	IPX5 (splash-proof)
Package contents	1 toothbrush, 3 replacement heads, user manual
Dimensions (approx.)	20 cm x 3 cm x 3 cm (length, diameter)
Weight (approx.)	100 g (with batteries)
Safety	Screw-locked battery compartment, no accessible batteries for children; do not immerse in water; adult supervision required
Maintenance and cleaning	Rinse the head under running water after use; wipe the handle with a soft cloth; do not use water above 40°C or acidic products
Head replacement	Every 3 months for hygiene reasons
Available spare parts	Replacement brush heads
Warranty	24 months (conditions at https://neno.pl/gwarancja)
Manufacturer contact	https://neno.pl/kontakt

Frequently Asked Questions - Tutti Neno

What type of batteries should I use for the Neno Tutti toothbrush?

Use 2 AAA batteries. Unscrew the bottom cover with a screwdriver (see figure B) and insert the batteries respecting polarity (figure C).

How do I change the brush head?

Turn the used head to the right to unlock it, then remove it. Place the new head on the holder and turn it to the left until locked.

Does the toothbrush stop automatically?

Yes, it stops automatically after 2 minutes of brushing. Every 30 seconds, a brief one-second pause indicates you should change brushing zone.

Can I immerse the toothbrush in water?

No, never immerse the handle. It is splash-proof (IPX5) but should not be submerged. Clean it with a soft cloth and let it dry.

Is the toothbrush suitable for a baby?

Yes, it is designed for young children. However, use must be under adult supervision who has read the instructions.

What if the vibrations weaken?

You are probably pressing too hard. The brush should gently touch the teeth. Reduce pressure.

How to clean the brush after use?

Rinse the head and bristles under running water, wipe the handle with a soft cloth, and air dry. Do not use water above 40°C.

How often should I replace the brush head?

It is recommended to replace the head every three months for optimal hygiene.

What if the device does not turn on?

Check that the batteries are correctly inserted (respect polarity) and that the cover is closed properly. If the problem persists, replace the batteries with new ones.

Can I use whitening toothpaste?

If the toothpaste contains peroxides or baking soda, rinse the brush thoroughly after use to avoid damaging the plastic housing.

USER MANUAL Tutti Neno

Illustration of a light green toothbrush holding a toothbrush, with decorative sparkles at the base (no text or symbols)

Table of contents

Spis treści

4 Instrukcja obsługi PL
7 User manual EN
10 Bedienungsanleitung DE
13 Návod k použití CZ
16 Használati utasítás HU
19 Návod na použitie SK
22 Användarhandbok SE
25 Käyttäjän käsikirja FI
28 Brukerhändbok NO
31 Brugermanual DK
34 Gebruikershandleiding NL
37 Manual del usuario ES
40 Manuale utente IT
43 Manuel de l'utilisateur FR
46 Manual de utilizare RO

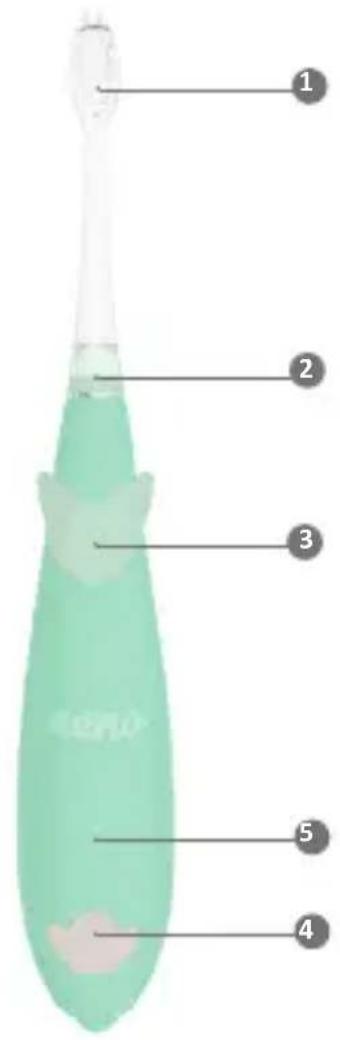

A

Labeled diagram of a toothbrush with numbered parts for identification

B

Close-up of a white electronic device with a black handle and yellow internal components (no visible text or symbols)

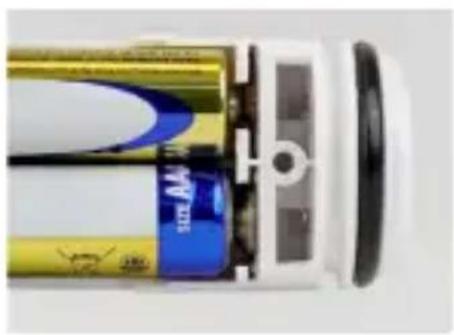

C

Close-up of a yellow and blue battery with a black cap, showing internal components (no visible text or symbols)

D

Hand-drawn diagram showing a directional arrow with an arrow symbol and a minus sign, enclosed in a green curved border.

PL

INSTRUKCJA OBSŁUGI

Dear Customer, thank you for purchasing NENO TUTTI. The product you have obtained is an electric toothbrush for small children. This device is used to brush the teeth of a baby and maintain their oral hygiene. Before using the device, please read instructions below.

01. PRECAUTIONS

1. If you do not understand the instructions for use or precautions listed in this manual, do not use the device. Incorrect use of the device may damage it.
2. Do not disassemble the product. This may result in damage to the product, electric shock and voiding the warranty.
3. Do not use accessories other than those recommended by the manufacturer.
4. Do not use flammable or explosive substances to clean the product.
5. This product is only used for brushing teeth and massaging gums. Do not use the device for any other purpose.
6. Stop using the device if it is clearly damaged.
7. Do not submerge the product in water. This can lead to a malfunction and may result in fire, electric shock or explosion.
8. Keep the device away from water containers such as a bath or sink.
9. Do not replace the battery of the device when your hands are wet.
10. Do not use used, old batteries in your device.
11. Before each use, make sure the toothbrush is securely tightened in the lower battery cover and there is a seal between the toothbrush and the battery cover.
12. Pay attention to the poles of the battery when placing it in the device.
13. Do not place the device in rooms with high moisture or high temperatures, such as bathrooms.
14. Remove the battery from the device if you will not use it for an extended period of time to avoid the risk of fire.
15. If the toothpaste used contains peroxides or bicarbonate (often present in tooth whitening pastes), wash the device thoroughly after use to avoid destroying its plastic casing.
16. If using the device causes your child discomfort or bleeding from the gums, consult your dentist before continuing to use it.
17. Children may only use the appliance under supervision adults who have read the operating instructions.
18. The device is not a toy – keep it away from children, so that they do not use it without the supervision of an adult.
19. The device is used for personal hygiene and should not be used on many people

in dental offices.

02. DESCRIPTION OF THE DEVICE

SEE FIGURE A

1. Head with bristles
2. Light
3. Power switch
4. Screw cap/ battery space
5. Suction cup

03. PACKAGE CONTENTS

1. Toothrush
2. 3x replacement toothbrush heads
3. User Manual

04. POWER

The device needs 2 pieces of AAA battery for proper operation. Unscrew the lid at the bottom of the device to access the battery space. The battery compartment cover is held in place with a screw so that the child does not have access to the power supply of the device. Unscrew the cover with a screwdriver SEE FIGURE B. and put in the AAA battery as shown in the FIGURE C.

Place the lid back in place and turn it, making sure it stays in place. The bump on the lid should be under the bottom of the arrow on the housing before turning, and under the dot after turning the lid. SEE FIGURE D

05. USING THE DEVICE

1. Place the head with the toothbrush on the plastic part of the holder with the light, then turn the head to the left to lock it in place.
2. Press the power button of the brush to turn on the light of the device head.
3. Moisten the bristles at the toothbrush head.
4. Squeeze the toothpaste onto the toothbrush head.
5. Press the toothbrush gently to your teeth and gums.
6. Press the power button to activate the toothbrush vibration, sound and RGB light. Thoroughly clean each part of your child's teeth. Every 30 seconds of brushing, the toothbrush will stop for 1 second to allow the user to change the brushed area. Correct tooth brushing should take a total of 2 minutes. The device will automatically switch off after 2 minutes.
7. When you're done brushing your teeth, turn off the toothbrush by pressing the power button again.
8. After cleaning the baby's teeth, wash the toothbrush under running water. Remove the remaining water from the bristles of the brush and use soft cloth to wipe the handle of the device.
9. When you are not using the brush, keep it upright.

NOTE: To avoid toothpaste splashing around, turn off the device before removing it from

the baby's mouth. For the sake of your child's hygiene and safety, replace the brush head every three months.

06. CLEANING THE BRUSH

1. Wash the brush head and its bristles after using the device and let it dry naturally.
2. Do not press the bristles or pull them out with your fingers. This can deform the toothbrush and destroy it.
3. Wipe the handle with a soft piece of cloth and let it dry naturally.
4. Do not submerge the handle underwater.
5. Do not use water above 40 °C or acidic cleaning agents to clean the device.

07. FAQ

Q: Vibrations weaken during use:

A: You push the toothbrush too hard. It should gently touch the teeth.

08. SPECIFICATION

Power source: 2x AAA batteries

Waterproof: IPX5

Nylon bristles: Yes

Strokes per minute: 22000

Built-in timer: Yes

Built-in LED light: Yes

Dimensions: 202x57x57mm

Weight: 54g

09. WARRANTY CARD

The product is covered by a 24-month warranty. The terms of the guarantee can be found at: https://neno.pl/gwarancja

Details, contact and website address can be found at: https://neno.pl/kontakt

Specifications and contents of the kit are subject to change without notice. We apologise for any inconvenience.

DE

BEDIENUNGSANLEITUNG

03. PAKETETS INNEHÅLL

Dimensioner: 202x57x57mm

Vægt: 54 g

09. GARANTIKORT

Dimensions: 202x57x57mm

Poids: 54g

09. CARTE DE GARANTIE

The crossed out trash can symbol indicates that unusable electrical or electronic devices, its accessories (such as power supplies, cords) or components (for example batteries, if included) cannot be disposed of alongside with household waste. In order to dispose of the devices or its components (for example, batteries) deliver the device to the collection point, where it will be accepted free of

charge. Disposal is subject to the recast version of the WEEE Directive (2012/19/ EU) and the Directive on batteries and accumulators (2006/66 / EC). Proper disposal of the device prevents degradation of the natural environment. Information about the collection points of the facilities is issued by the competent local authorities. Incorrect disposal of waste is subject to penalties provided for by the law in force in the given area.

DE

KGK TREND Sp. z o.o.

ul. Ujastek 5b,

31-752 Kraków, Polska.

Wyprodukowano w PRC

Manufacturer:

KGK TREND Sp. z o. o.

st. Ujastek 5b,

31-752 Cracow, Poland.

Made in PRC

CE
