USER MANUAL Medic T06 Neno

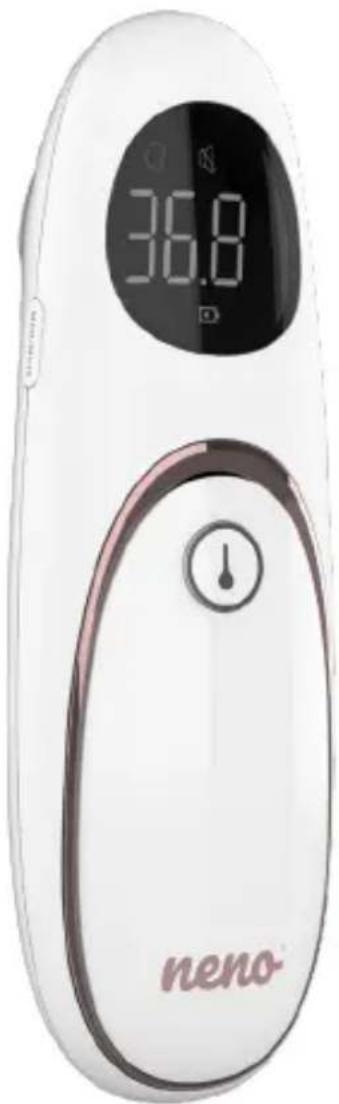

Infrared thermometer

36.8 neno

A

A.1 IP22 CE0598 A.2 A.3 A.4 A.5 A.6 A.7 EC REP A.8 MD A.9

B

Diagram of a remote control device with numbered parts for identification and assembly reference.

©

888.0 °C °F M 9 1 2 3 4 5 6 7 8

PL

INSTRUKCJA OBSŁUGI

Szanowny Kliencie,

Thank you for choosing the Neno Medic T06. The device you have purchased is a non-contact thermometer that measures body or object temperature using an infrared light wave sensor. Please read the instructions below before use.

01. PRECAUTIONS

1. Do not use the non-contact thermometer in any way other than that described in the instructions. The thermometer is suitable for both domestic use and as a medical product.
2. Do not immerse the thermometer in water or other liquids. When cleaning the device, refer to the instructions under "Cleaning and storage".
3. The thermometer should be stored in a dry, clean place away from the sun. The thermometer works best at a temperature of 10^ C– 40^ C and a humidity: 15%–95% R.H, non-condensing.
4. Do not touch the thermometer sensor.
5. Sweat, hair, headgear, etc. may underestimate the measured temperature. Ensure that the sensor does not cover the bare skin of the person being tested.
6. Do not drop the product, disassemble the device into its original parts, or carry out repairs or modifications yourself.
7. Do not keep the thermometer near strong electrostatic fields or magnetic fields, which can cause measurement errors.
8. If problems occur, stop using the device and contact manufacturer.
9. Do not dispose of either the product or the battery in the container for mixed municipal waste. Follow the prevailing laws regarding the disposal of electronic equipment and batteries.
10. If the device will not be used for a long period of time, remove the batteries to avoid the risk of damaging the thermometer.
11. Do not put new batteries and partially used batteries in the device at the same time. This can damage the device.
    Caution: keep thermometer out of reach of children. Do not throw batteries into fire. The thermometer is not a substitute for medical examination and recommendations.

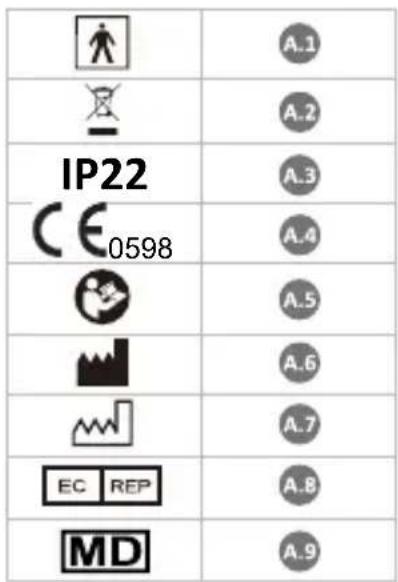

02. EXPLANATION OF SYMBOLS

SEE FIGURES A.1-A.8

A.1 Device with BF type parts | A.2 Do not dispose of the product in the container for mixed municipal waste. Dispose of the product in accordance with the guidelines for the disposal of electronic devices of this type | A.3 Luminaires that have protection against condensation and drips | A.4 CE mark: Product complies with EU requirements | A.5 Follow instructions for use | A.6 Manufacturer | A.7 Date of manufacture | A.8 Authorised representative in the European Community | A.9 Medical device.

03. PRODUCT DESCRIPTION

Purpose of the device

The non-contact thermometer is used to measure body temperature on the patient's forehead, object and room temperature. The device is suitable for both home use and use as a medical device. The thermometer can be used to measure temperature regardless of the age of the subject.

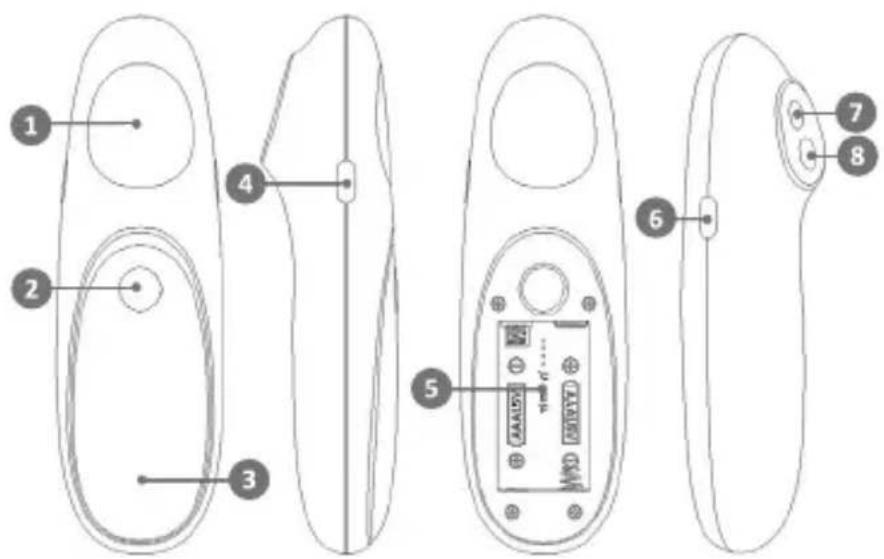

Construction of the device: SEE FIG. B

1. LCD display
2. Power and measurement button
3. Magnetic battery cover
4. Memory/Mute button - press the button to view stored measurements/hold the button until the crossed-out speaker icon appears or disappears to mute the unit or restore sounds
5. Button to change the unit (°C/°F)
6. Mode button - pressing this button switches the device between body and object temperature mode and between adult and child mode up to 12 years of age
7. Probe to check distance in real time
8. Infrared light wave sensor

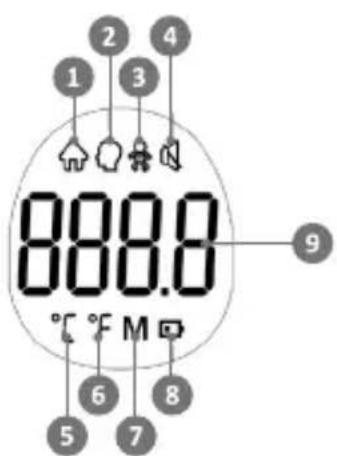

Display: SEE FIG. C

1. Object and room temperature measurement mode
2. Forehead temperature measurement mode

3. Measurement mode for children up to 12 years of age

4. Mute

5. Temperature unit (°C)
6. Temperature unit (°F)
7. Recall of measurements from memory
8. Low battery
9. Temperature value

04. USE OF THE DEVICE

1. Installing batteries:

a. Remove the battery cover.
b. Insert two AAA batteries. Make sure the battery terminals are turned the right way.
c. Replace the battery cover.

NOTE: Incorrectly installed batteries can damage the thermometer.

If the batteries or device have traces of leakage or mould on them, stop using them immediately.

Do not keep batteries near a fire or throw them into a fire. This could lead to an explosion.

Do not store batteries in rooms with high temperatures and humidity.

To avoid short circuits, do not keep batteries or metal objects (such as coins or keys) near electrical equipment.

1. Preparation for measurement:

Follow the instructions below to ensure the most accurate temperature measurement:

a. Before measuring, brush the hair off the subject's forehead and clean the skin of sweat.
b. Select child or adult mode using the "Mode" button.
c. When taking a measurement, aim the thermometer at the centre of the subject's forehead, above the eyebrows. Hold the thermometer at a distance up to 5 cm from the subject. When you press the measurement button and wait until you hear the beep to start the measurement and then the beep to finish, the value of the temperature measurement taken will be shown on the display of the device.
d. If the test person's body temperature differs significantly from the temperature in the room where the measurement is taken, the test person should wait at least 5 minutes in the measurement room before taking the measurement.
e. A cold compress or other methods of cooling the forehead in people with a fever will mean that the measured temperature may be lower.
f. The temperature in the room where the measurement is taken should be stable. Do not take the measurement in rooms with high air flow, such as rooms cooled with fans or ventilation systems.
g. The thermometer should be in the same room where the measurement is taken. If the thermometer has been brought in from another room, leave it in the measurement room for at least 20 minutes before taking the measurement.
h. Do not expose the thermometer to strong sunlight.

1. Making a measurement:

a. Forehead temperature measurement:

Select forehead mode using the "Mode" button. Aim the thermometer sensor at the forehead of the person whose temperature you want to measure. Press the measurement button and hold down until you hear the completion signal. If the result does not appear on the display, this means that the distance of the thermometer was too great. Remember not to change the distance from the end of the first beep until you hear the completion signal and the result is displayed.

b. Measuring room and object temperature:

Select the object mode using the "Mode" button. Aim the thermometer sensor at an object or at a distance of 10 cm from objects to check the room temperature. Press the measurement button and wait for the result.

1. Viewing of stored measurements

When the device is switched on, press the "Memory/ Mute" button to view the measurements stored in memory. Measurement 01 is always the last measurement taken by the unit. If there is no stored measurement in the device's memory, the sequence number will be displayed normally, but instead of the temperature measurement, the display will show "---". The thermometer can store up to 20 temperature measurements. If you take more measurements the oldest stored result will be deleted to make room in the memory for a new measurement. Measurements taken for objects are not stored in memory.

05. ERROR MESSAGES

1. Hi - measured temperature too high, outside the measurement range.
2. Lo - measured temperature too low, outside the measuring range.
3. Er1 - operating temperature outside the range 10\~40°C
4. ErC - an error occurs when data is read from or written to memory or temperature correction is not completed.
5. When the battery voltage drops below 2.5V ± 0.1V , the low battery symbol appears on the display. Replace the

batteries.

1. Blank screen:

a. The thermometer switches off automatically after a moment of inactivity, this is an intentional action of the device - restart the device by pressing the power/measurement button
b. Batteries incorrectly installed - ensure battery terminals are facing the correct way
c. Dead batteries - replace batteries with new ones
d. The display does not start despite the above instructions - contact the service department

06. CLEANING AND STORAGE

1. Do not touch or press the device's sensors.
2. To clean the thermometer, remove the batteries and then clean the sensors with a cotton swab and the casing with a slightly damp and soft cloth.
3. Note: Keep water away from the lens during the cleaning process. Otherwise the lens may be damaged. Sensors can be scratched if cleaned with a hard object, which may result in inaccurate readings. Do not clean the thermometer with caustic cleaners. Do not immerse any part of the thermometer in liquid during the cleaning process and do not allow liquid to penetrate the thermometer.

07. TYPICAL HUMAN BODY TEMPERATURE

The human body is a complex, biological system and the range of temperature that can be considered 'normal' depends in large part on what part of the body we measure and on factors such as age, sex, skin colour and skin thickness. Women's body temperature is higher than men's by about 0.3°C. In addition, body temperature in women increases by an additional 0.3-0.5°C during ovulation.

08. SPECIFICATION

Place of measurement: forehead, room, food, object | Units of measurement: degrees Celsius (°C) or degrees Fahrenheit (°F) | Operating temperature: 10\~40°C | Storage temperature: -20\~50°C | Measuring distance: Less than 5 cm | Measurement range: forehead 22\~43°C (71.6\~109.4°F), object 0\~100°C (32\~212°F) | Measurement accuracy: forehead: ±0.2°C in the range 36.0°C-39.0°C, ±0.3°C in the ranges: 22.0°C-36.0°C and 39.0°C\~43.0°C); Subject/room: ±1.0°C/±2.0°F | Memory: 20 measurements | Dimensions: 149.8x47.3x39.1 mm | Reference body site: Armpit | Mode of operation: Adjusted mode | Weight (with batteries): 93.6 g | Batteries: 2xAAA, DC 3V (included) | Auto shut-off: after 10 seconds of inactivity.

09. WARRANTY CARD

Dear customer, thank you for purchasing our Neno Medic T06 thermometer. If you have any problems with the operation of the device under normal conditions, please contact an authorised Neno brand service centre or distributor. Keep your warranty card in case of repair.

The product comes with a 24-month warranty. Warranty conditions can be found at: https://neno.pl/gwarancjaDetails, contact and service address can be found at: https://neno.pl/kontakt

Specifications and contents are subject to change without notice. We apologise for any inconvenience.

KGK TREND declares that the Neno Medic T06 device complies with the essential requirements of Directive 2014/53/EU. The full declaration can be found at the following link: https://neno.pl/download/DOC/deklaracja-CE-Neno-Medic-T06.pdf.

10. ELECTROMAGNETIC COMPATIBILITY

WARNING: Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally.

WARNING: Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.

WARNING: Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the ME equipment, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.

Table 1

declaration - electromagnetic emission
Emissions test Compliance
RF emissionsCISPR 11	Group 1
RF emissionsCISPR 11	Class B
Harmonic emissionsIEC 61000-3-2	Not applicable
Voltage fluctuations/flicker emissionsIEC 61000-3-3	Not applicable

Table 2

declaration - electromagnetic immunity
Immunity test IEC 60601 test level Compliance level
Electrostatic discharge (ESD)IEC 61000-4-2	±8 kV contact±2 kV, ±4 kV, ±8 kV, ±15 kV air	±8 kV contact±2 kV, ±4 kV, ±8 kV, ±15 kV air
Electrical fast transient/ burstIEC 61000-4-4	±2 kV for power supply lines±1 kV for input/output lines	Not applicable
SurgeIEC 61000-4-5	±0.5kV, ±1 kV line(s) to lines±0.5kV, ±1 kV, ±2 kV line(s) to earth	Not applicable
Voltage dips, short interruptions and voltage variations on power supply input linesIEC 61000-4-11	0% U; σ.5 cycle At 0°, 45°, 90°, 135°, 180°, 225°, 270° and 315°0% U, cycle and 70% UT; 25/30 cyclesSingle phase: at 0°0% UT; 250/300 cycles	Not applicable
Power frequency (50/60 Hz) magnetic fieldIEC 61000-4-8	30 A/m 30 A/m
NOTE: UT is the a.c. mains voltage prior to application of the test level.

Table 3

declaration - electromagnetic immunity
Immunity test IEC 60601 test level	Compliance level
Conducted RFIEC 61000-4-6	3 V0.15 MHz to 80 MHz6 V in ISM bands between 0.15 MHz and 80 MHz	Not applicable
Radiated RFIEC 61000-4-3	10V/m80 MHz to 2.7 GHz	10V/m

Table 4

declaration - IMMUNITY to proximity fields from RF wireless communications equipment
Immunity test	IEC60601 test level Com-				pliance level
	Test frequency Modulation Maximum		power	Immunity level
Radiated RF IEC 61000-4-3	385 MHz **Pulse Modulation: 18Hz		1.8W 27 V/m 27	V/m
	450 MHz *FM+ 5Hz deviation: 1kHz sine		2 W 28 V/m 28	V/m
	710 MHz745 MHz780 MHz	**Pulse Modulation: 217Hz	0.2 W 9 V/m 9	V/m
	810 MHz870 MHz930 MHz	**Pulse Modulation: 18Hz	2 W 28 V/m 28	V/m
	1720 MHz1845 MHz1970 MHz	**Pulse Modulation: 217Hz	2 W 28 V/m 28	V/m
	2450 MHz **Pulse Modulation: 217Hz		2 W 28 V/m 28	V/m
	5240 MHz5500 MHz5785 MHz	**Pulse Modulation: 217Hz	0.2 W 9 V/m 9	V/m
Note* - As an alternative to FM modulation, 50 % pulse modulation at 18 Hz may be used because while it does not represent actual modulation, it would be worst case.Note** - The carrier shall be modulated using a 50 % duty cycle square wave signal.

PL

The crossed out trash can symbol indicates that unusable electrical or electronic devices, its accessories (such as power supplies, cords) or components (for example batteries, if included) cannot be disposed of alongside with household waste. In order to dispose of the devices or its components (for example, batteries) deliver the device to the collection point, where it will be accepted free of charge. Disposal is subject to the recast version of the WEEE Directive (2012/19/ EU) and the Directive on batteries and accumulators (2006/66 / EC). Proper disposal of the device prevents degradation of the natural

environment. Information about the collection points of the facilities is issued by the competent local authorities. Incorrect disposal of waste is subject to penalties provided for by the law in force in the given area.

Model: JPD-FR205

Shenzhen Jumper Medical Equipment Co., Ltd.

Address: D Building, No. 71, Xintian Road, Fuyong Street,

Baoan, Shenzhen, Guangdong, China 518103

Tel:[phone]

Fax:[phone]

Website: http://www.jumper-medical.com

EC | REP

Authorised representative in the EU:

MedPath GmbH

Mies-van-der-Rohe-Strasse 8,

80807 Munich, Germany

Importer:

KGK TREND Sp. z o.o.

Ujastek 5b, 31-752 Kraków, Polska.

Wyprodukowano w PRC

Importer:

KGK TREND Sp. z o. o.

Ujastek 5b, 31-752 Cracow, Poland.

Made in PRC

CE0598

Version: 1.1

Date: 02.2024
