X5 Plus - Smartphone HONOR - Free user manual and instructions

Product Type	Smartphone
Brand	Honor
Model	X5 Plus (WOD-LX1)
Display	Capacitive touchscreen
Operating System	Android (Google LLC)
Networks	GSM, WCDMA, LTE (4G)
Wireless Connectivity	Wi-Fi 2.4/5 GHz, Bluetooth, NFC
SIM Card Slot	Dual nano-SIM + microSD (shared)
Fingerprint Sensor	Yes, integrated into power button
Ports	USB Type-C, 3.5 mm headphone jack
Power	Built-in lithium-ion battery, charging via USB Type-C
Operating Temperature	0°C to 35°C
Storage Temperature	-20°C to +45°C
SAR (Head)	0.84 W/kg
SAR (Body)	1.19 W/kg
SAR (Limbs)	2.81 W/kg
Maintenance and Cleaning	Wipe with a soft cloth, avoid moisture and dust
Safety	Fingerprint sensor, screen lock, SAR warning
Spare Parts and Repairability	Built-in battery, replacement only by authorized center
General Information	4G compatibility depends on operator; use indoors for 5 GHz band

Frequently Asked Questions - X5 Plus HONOR

How to turn the smartphone on and off?

To turn on, press and hold the power button. To turn off, press and hold the same button, then tap Power off.

How to force a restart?

Simultaneously press the Power and Volume down buttons for more than 10 seconds.

How to insert the SIM card and microSD card?

Use the provided ejector pin to open the tray. Place the nano-SIM in the SIM1 slot and optionally a second SIM or a microSD in the SIM2 slot. Close the tray keeping it flat.

How to manage SIM cards?

Go to Settings > Mobile network to choose the default card for calls and data. See the Tips app for more details.

Is the smartphone compatible with 4G?

Yes, it supports 4G LTE. Availability depends on your operator and network coverage. Contact your operator to activate 4G service.

How to use NFC function?

Hold the NFC area (usually on the back of the phone) near another device or NFC reader to make payments or transfers.

What usage precautions for people with a cardiac implant?

Keep the phone at least 15 cm away from the pacemaker and do not place it in a front pocket.

How to reduce exposure to waves?

Use a hands-free kit or speakerphone, avoid long calls, and prefer SMS. The maximum SAR of this device is 0.84 W/kg for the head.

Where to find more information about the phone?

Visit the official site https://www.hihonor.com or the support page https://www.hihonor.com/global/support/. In settings, enter keywords like 'Legal information'.

How to recycle the smartphone?

Do not throw it in household waste. Drop it off at a collection point designated by local authorities, in store or at a recycling center. See www.quefairedemesdechets.fr.

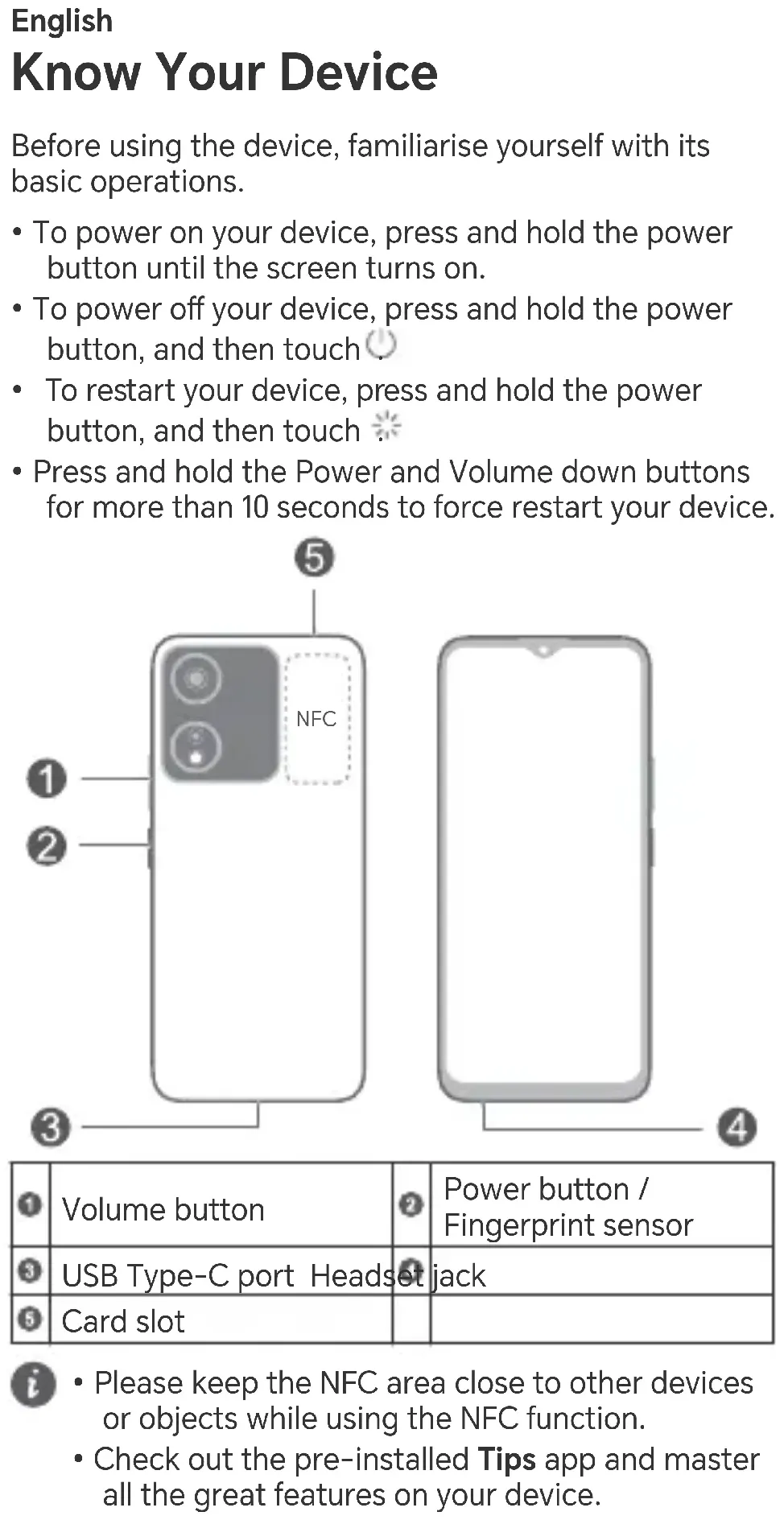

USER MANUAL X5 Plus HONOR

Before using the device, familiarise yourself with its basic operations.

• To power on your device, press and hold the power button until the screen turns on.
• To power off your device, press and hold the power button, and then touch ⏻
• To restart your device, press and hold the power button, and then touch
• Press and hold the Power and Volume down buttons for more than 10 seconds to force restart your device.

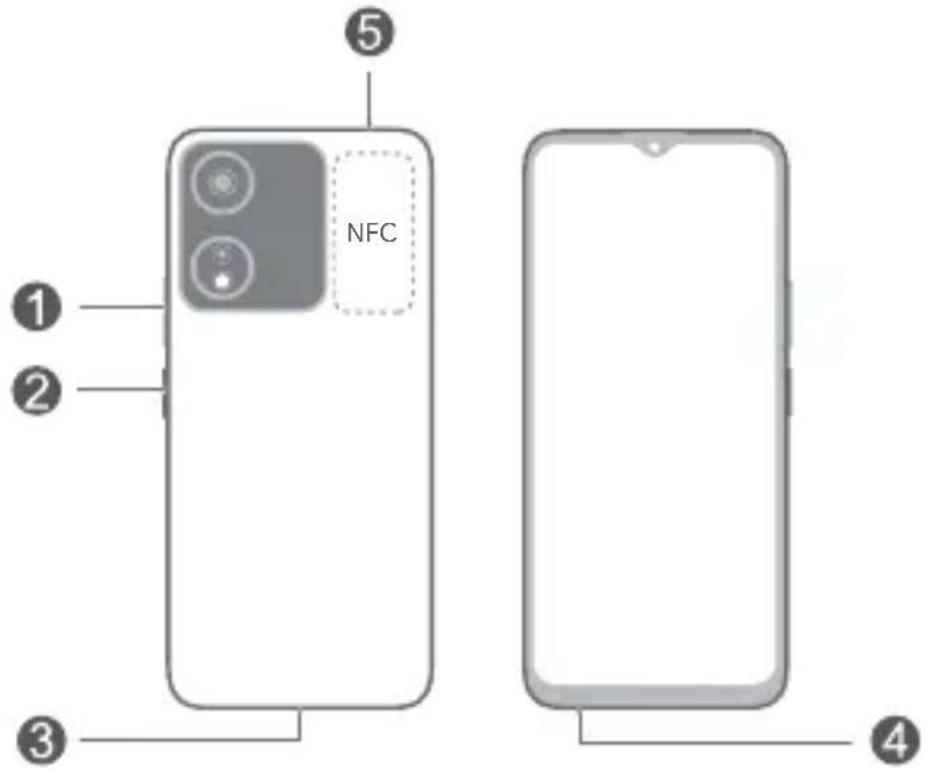

NFC ① ② ③ ④ ⑤

1	Volume button	2	Power button /Fingerprint sensor
3	USB Type-C port Headset	4	jack
5	Card slot

• Please keep the NFC area close to other devices or objects while using the NFC function.
• Check out the pre-installed Tips app and master all the great features on your device.

Getting Started

• Be careful not to scratch your device or hurt yourself when using the eject pin.
• Store the eject pin out of the reach of children to prevent accidental swallowing or injury.
• Do not use cut or modified SIM or microSD cards with your device as these may not be recognised and could damage the card tray (slot).
• If your SIM card does not match your device, please contact your carrier.

Follow the instructions in the following figures to set up your device. Please use the eject pin included.

Ensure that the card is correctly aligned and that the card tray is level when you insert it into your device.

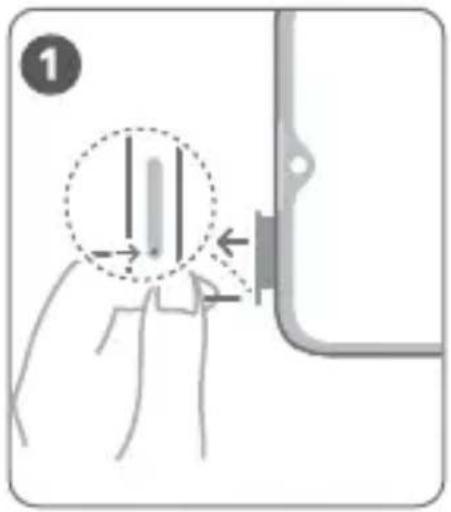

Diagram showing a hand holding a device with a magnified view of the screen and arrow indicating direction or movement.

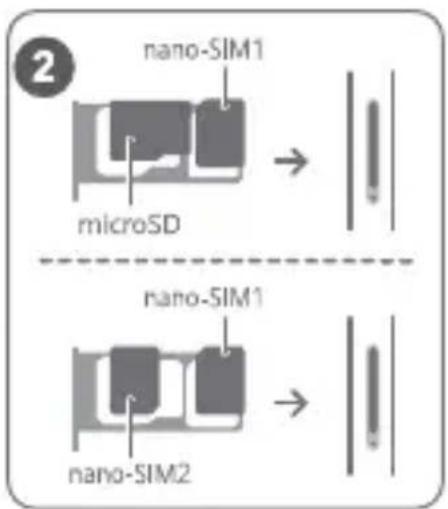

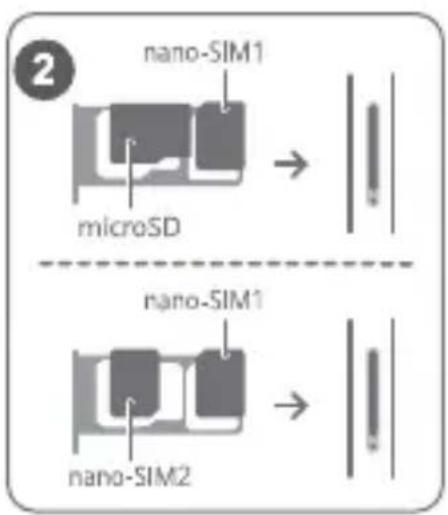

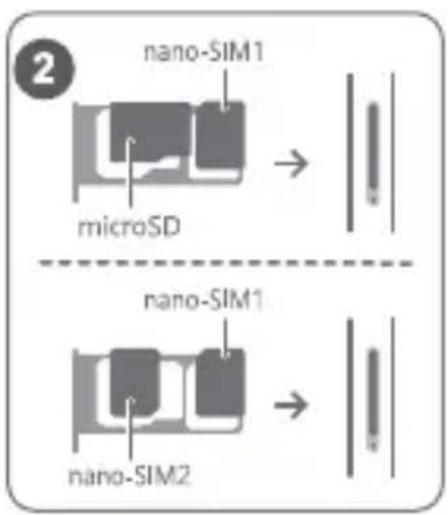

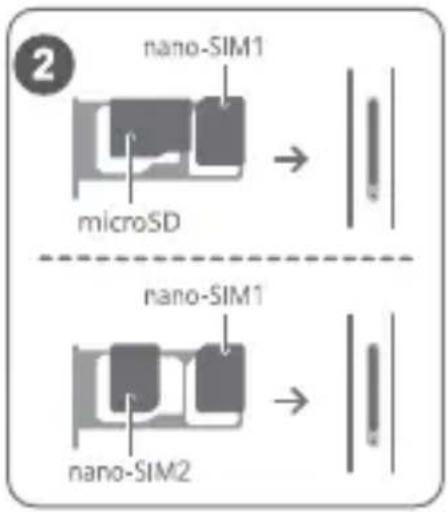

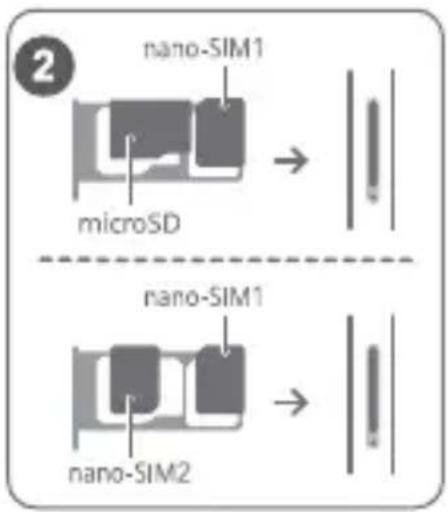

nano-SIM1 microSD nano-SIM1 nano-SIM2

SIM Card Management

Select the default mobile data card and calling card as needed. For details, check out the pre-installed Tips app.

• 4G service depends on the support of your network carrier and its deployment of relevant services. Please contact your carrier to activate 4G service.
• 4G service may be unavailable in certain areas due to network interference.
• If this guide is inconsistent with the description on the official website, the latter prevails.

For More Information

If you encounter any problems while using your device, you can obtain help from the following resources:

• Visit https://www.hihonor.com to view device information and other information.
• Visit https://www.hihonor.com/global/support/ for the most up-to-date contact information for your country or region.
• Go to Settings and enter the following keywords in the search box to view the corresponding information. E.g. Legal information, Safety information, Authentication info, Regulatory information.

Safety Information

Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly.

Operation and Safety

• To prevent possible hearing damage, do not listen at high volume levels for long periods.
• Using an unapproved or incompatible power adapter, charger or battery may damage your device, shorten its lifespan or cause a fire, explosion or other hazards.
• Ideal operating temperatures are 0^ to 35^ . Ideal storage temperatures are -20^ to +45^ .
• Pacemaker manufacturers recommend maintaining a minimum distance of 15 cm between a pacemaker and a wireless device to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.
• Keep the device and the battery away from fire, excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, water heaters, stoves or radiators.
• Adhere to local laws and regulations while using the device. To reduce the risk of accidents, do not use

your wireless device while driving. If you must make or answer a call, stop your vehicle at a safe location first.

- While flying in an aircraft or immediately before boarding, ensure that you use your device according to the instructions provided. Using a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operations or be illegal under law.

- In order to avoid damaging the internal circuit of the device or charger, do not use the device in a dusty, damp, or dirty place, or near a magnetic field.

- When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible.

- Unplug the charger from the electric socket and from the device when not in use.

- Do not use, store or transport the device where flammables or explosives are stored (e.g. in a petrol station, oil depot or chemical plant). Using your device in these environments increases the risk of explosion or fire.

- Keep the battery away from fire, and do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in water or other liquids, or expose it to external force or pressure, as this may cause the battery to leak, overheat, catch fire, or even explode.

- Dispose of this device, the battery and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion or other hazards.

- Please consult your doctor and the device manufacturer to determine if operation of your device may interfere with the operation of your medical device.

- Adhere to any rules or regulations set forth by hospitals and health care facilities.

- This device contains a built-in battery. Do not attempt to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that your device runs properly, you are

strongly advised to contact an authorised service centre for a replacement.

Potentially Explosive Atmosphere

Power off your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not power on your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity.

Disposal and Recycling Information

The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and the environment. For more information, please contact your local authorities, retailer, or household waste disposal service or visit the website https://www.hihonor.com/.

Reduction of hazardous substances

This device and its electrical accessories comply with local applicable rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment, such as EU REACH regulation,

RoHS and Batteries (where included) directive. For declarations of conformity about REACH and RoHS, please visit the website https://www.hihonor.com/global/legal/certification/.

RF Exposure Information

The World Health Organisation has stated that exposure can be reduced by limiting your usage or simply using a hands-free kit to keep the device away from the head and body.

Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.

For the countries that adopted the SAR limit 2.0 W/kg over 10 grams of tissue.

The device complies with RF specifications when used near your ear or at a distance of 0.50 cm from your body. The highest reported SAR value: head SAR: 0.84 W/kg; body SAR: 1.19 W/kg.

EU Regulatory Compliance

Statement

Hereby, Honor Device Co., Ltd. declares that this device WOD-LX1 is in compliance with the following Directive: RED 2014/53/EU, RoHS 2011/65/EU.

The full text of the EU declaration of conformity, and most recent information about accessories & software are available at the following internet address:

https://www.hihonor.com/global/legal/certification/. This device may be operated in all member states of the EU.

Observe national and local regulations where the device is used.

This device may be restricted for use, depending on the local network.

Restrictions in Norway

Use of this radio equipment is not allowed in the geographical area within a radius of 20 km from the center of Ny-Ålesund, Svalbard.

Restrictions in the 5 GHz band:

The 5150 to 5350 MHz frequency range is restricted to indoor use in: AT, BE, BG, CH, CY, CZ, DE, DK, EE, EL, ES, FI, FR, HR, HU, IE, IS, IT, LI, LT, LU, LV, MT, NL, NO, PL, PT, RO, SE, SI, SK, TR, UK(NI).

Frequency Bands and Power

The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows:

WOD-LX1

GSM900: 35.5dBm, GSM1800: 32.5dBm, WCDMA900/2100: 25.7dBm, LTE Band 1/3/7/8/20/28: 25.7dBm, Bluetooth 2.4GHz: 20dBm, Wi-Fi 2.4GHz: 20dBm, Wi-Fi 5G: 5150-5250MHz: 23dBm, 5250-5350MHz: 20dBm, 5470-5725MHz: 20dBm, 5725-5850MHz: 14dBm, NFC 13.56MHz: 42 dBμA/m @ 10m

Legal Notice

Trademarks and Permissions

Android is a trademark of Google LLC.

LTE is a trademark of ETSI.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Honor Device Co., Ltd. is under licence. Wi-Fi ^® , the Wi-Fi CERTIFIED logo and the Wi-Fi logo are trademarks of Wi-Fi Alliance.

Copyright © Honor Device Co., Ltd. 2023. All rights reserved.

ALL PICTURES AND ILLUSTRATIONS IN THIS GUIDE, INCLUDING BUT NOT LIMITED TO THE DEVICE COLOUR, SIZE, AND DISPLAY CONTENT, ARE FOR YOUR REFERENCE ONLY. THE ACTUAL DEVICE MAY VARY. NOTHING IN THIS GUIDE CONSTITUTES A WARRANTY OF ANY KIND, EXPRESS OR IMPLIED.

Privacy Policy

To better understand how we protect your personal information, please see the privacy policy at https://www.hihonor.com/privacy-policy/worldwide/.
