USER MANUAL DS36DC HiKOKI

0000BookDS18DC.indb60000BookDS18DC.indb6 2022/10/1618:24:432022/10/1618:24:437 English c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power toolʼs operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease.

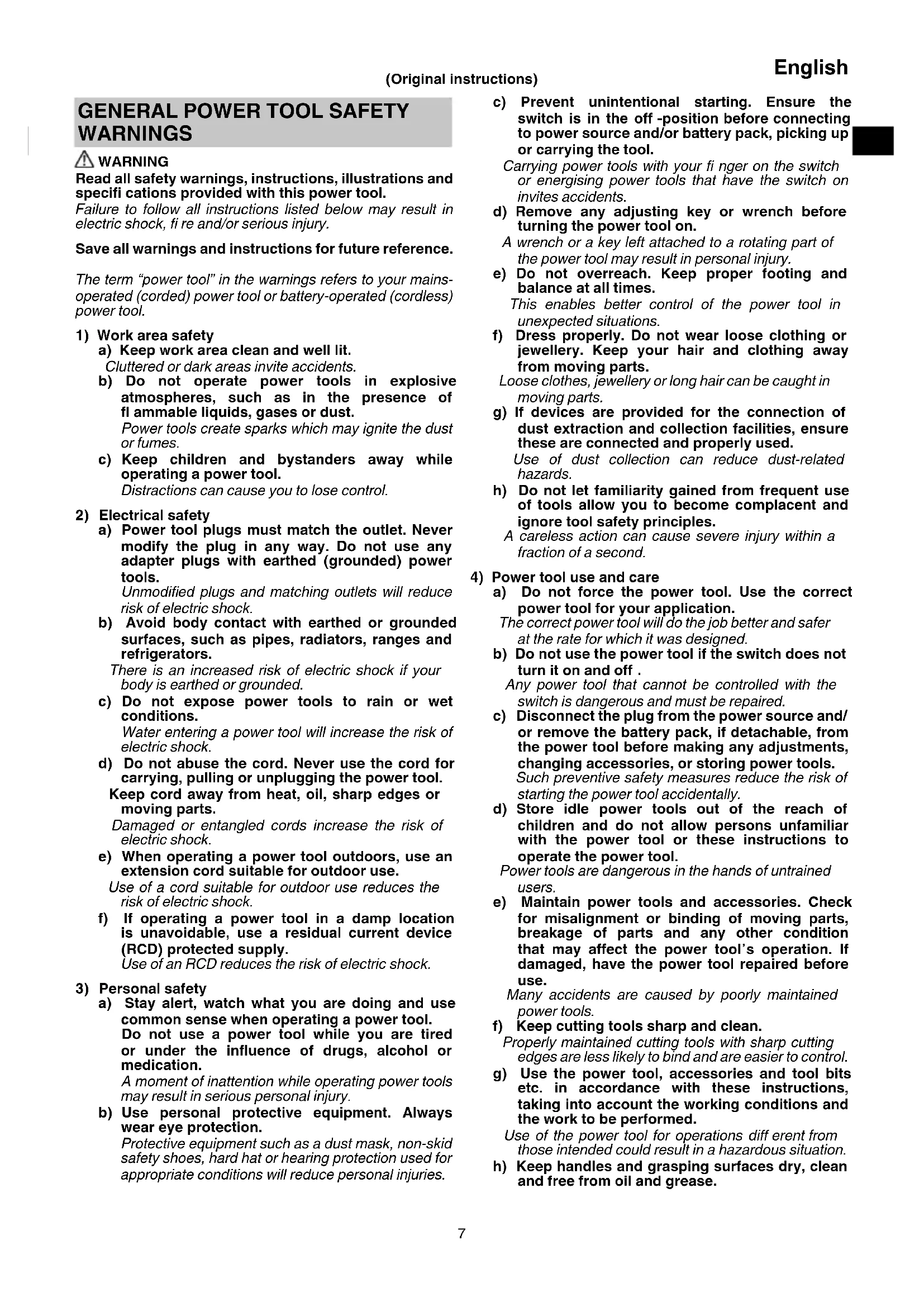

GENERAL POWER TOOL SAFETY

WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. (Original instructions) 0000BookDS18DC.indb70000BookDS18DC.indb7 2022/10/1618:24:432022/10/1618:24:438 English Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modifi ed. Damaged or modifi ed batteries may exhibit unpredictable behaviour resulting in fi re, explosion or risk of injury. f) Do not expose a battery pack or tool to fi re or excessive temperature. Exposure to fi re or temperature above 130°C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specifi ed in the instructions. Charging improperly or at temperatures outside the specifi ed range may damage the battery and increase the risk of fi re.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. PRECAUTION Keep children and infi rm persons away. When not in use, tools should be stored out of reach of children and infi rm persons.

Safety instructions for all operations <DV18DC / DV36DC> a) Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss. <DS18DC / DS36DC / DV18DC / DV36DC> b) Use the auxiliary handle(s). Loss of control can cause personal injury. c) Brace the tool properly before use. This tool produces a high output torque and without properly bracing the tool during operation, loss of control may occur resulting in personal injury. d) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Safety instructions when using long drill bits a) Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. b) Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. c) Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

ADDITIONAL SAFETY WARNINGS

1. Make sure that the area to be drilled is absolutely free

of any hidden obstructions including electrical wiring, water, or gas pipes. Drilling into the aforementioned may result in electric shock or short circuit, gas leak or other hazards that can cause serious accidents or injuries.

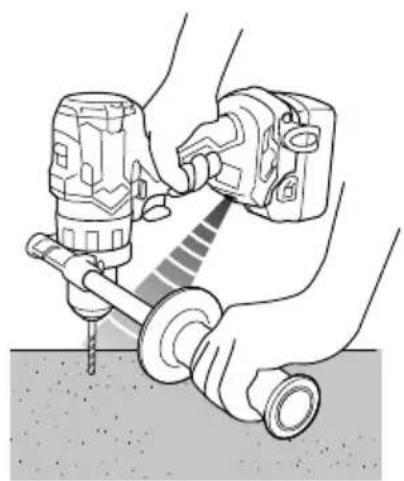

2. Make sure to securely hold the tool during operation.

Failure to do so can result in accidents or injuries (Fig. 2).

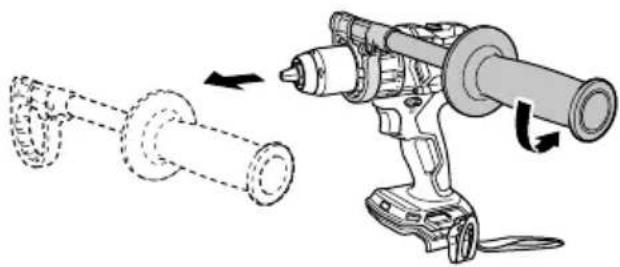

3. When using the tool, make sure the side handle is

attached and fi rmly secured. If not fi rmly secured, the tool may jerk out of position when overburdened, resulting in injury.

4. During operation, make sure to fi rmly hold the tool’s

handle and side handle with both hands. Failure to do so may result in injury.

5. Secure the workpiece. A workpiece clamped with

clamping devices or in a vice is held more secure than by hand.

6. Setting up and checking the work environment. Check

if the work environment is suitable by following the precaution.

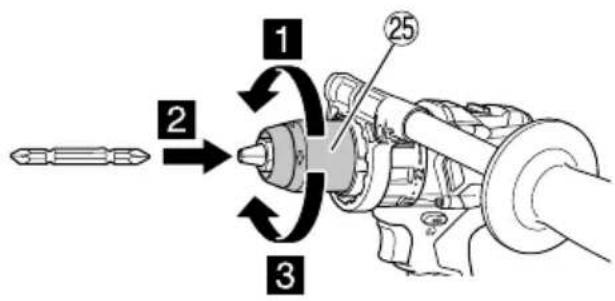

7. When mounting a bit into the keyless chuck, tighten the

sleeve adequately. If the sleeve is not tight, the bit may slip or fall out, causing injury.

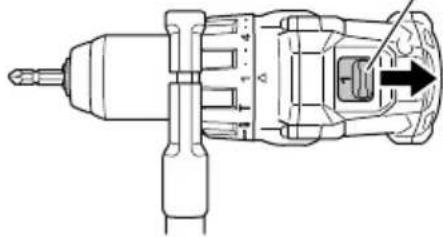

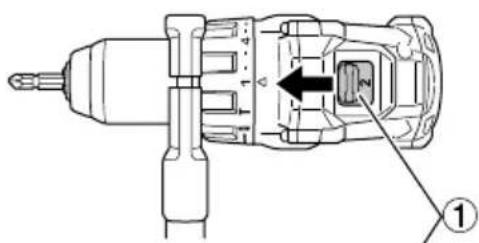

8. When changing the rotational speed with the shift knob,

confi rm that the switch is off . Changing the speed while the motor is rotating will damage the gears.

9. The clutch dial cannot be set between the numerals

"1, 4, 7 … 22" or the dots, and do not use with the clutch dial numeral between "22" and the line at the middle of the drill mark. Doing so may cause damage.

10. Always use this unit with clockwise rotation, when using

it as impact drill. (DV18DC, DV36DC only)

11. Resting the unit after continuous work.

12. The power tool is equipped with a temperature

protection circuit to protect the motor. Continuous work may cause the temperature of the unit to rise, activating the temperature protection circuit and automatically stopping operation. If this happens, allow the power tool to cool before resuming use.

13. The motor may stop in the event the tool is overloaded. In

this should occur, release the tool’s switch and eliminate the cause of the overload.

14. Do not touch metal parts of the tool body, bits, drills, or

swarf immediately after use, as these will be hot.

15. The motor rotation may be locked to cease while the unit

is used as drill. While operating the driver drill, take care not to lock the motor. 0000BookDS18DC.indb80000BookDS18DC.indb8 2022/10/1618:24:432022/10/1618:24:439 English

16. The use of the battery in a cold condition (below 0 degree

Centigrade) can sometimes result in the weakened tightening torque and reduced amount of work. This, however, is a temporary phenomenon, and returns to normal when the battery warms up.

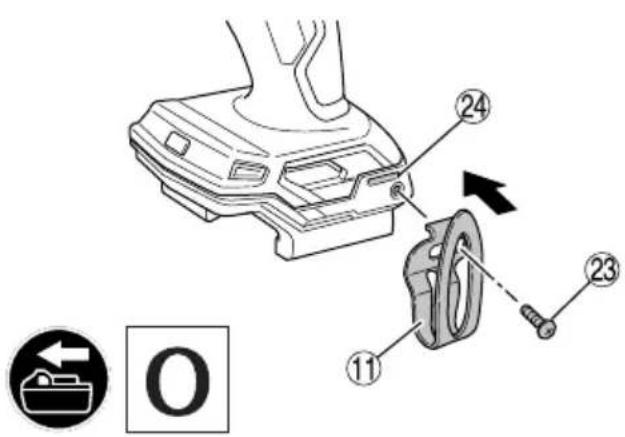

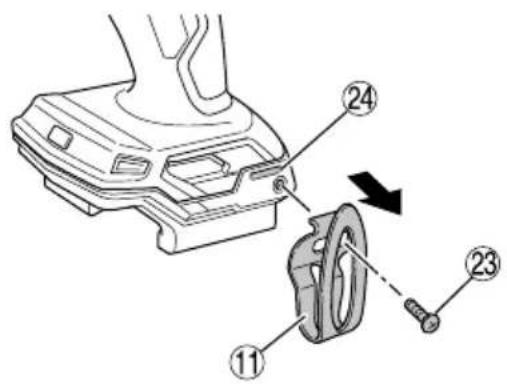

17. Install securely the hook. Unless the hook is securely

installed, it may cause an injury while using. When electing to carry the tool hooked to your hip belt, make sure to detach the tool bit and side handle. Failure to do so may result in unexpected injury.

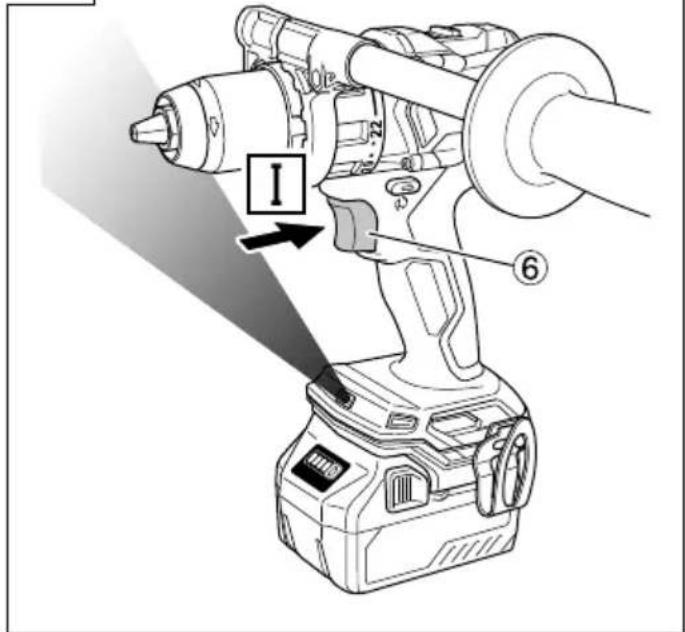

18. Do not look directly into the light. Such actions could

result in eye injury. Wipe off any dirt or grime attached to the lens of the LED light with a soft cloth, being careful not to scratch the lens. Scratches on the lens of the LED light can result in decreased brightness.

19. When working at elevated locations, clear the area of

other people and aware of conditions below you.

20. Always charge the battery at a temperature of 0°C–40°C.

A temperature of less than 0°C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40°C. The most suitable temperature for charging is that of 20°C–25°C.

21. Do not use the charger continuously.

When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.

22. Do not allow foreign matter to enter the hole for

connecting the rechargeable battery.

23. Never disassemble the rechargeable battery and

24. Never short-circuit the rechargeable battery.

Shortcircuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

25. Do not dispose of the battery in fi re. If the battery is burnt,

26. Bring the battery to the shop from which it was purchased

as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

27. Do not insert object into the air ventilation slots of the

charger. Inserting metal objects or infl ammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

28. When using this unit continuously, the unit may overheat,

leading to damage in the motor and switch. Therefore, whenever the housing becomes hot, give the tool a break for a while.

29. Make sure that the battery is installed fi rmly. If it is at all

loose it could come off and cause an accident.

30. Do not use the product if the tool or the battery terminals

(battery mount) are deformed. Installing the battery could cause a short circuit that could result in smoke emission or ignition.

31. Keep the tool’s terminals (battery mount) free of swarf

and dust. ○ Prior to use, make sure that swarf and dust have not collected in the area of the terminals. ○ During use, try to avoid swarf or dust on the tool from falling on the battery. ○ When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust. Doing so could cause a short circuit that could result in smoke emission or ignition.

32. Always use the tool and battery at temperatures between

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor

stops. In such a case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this

case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work, the

battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again. Furthermore, please heed the following warning and caution. WARNING In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the

battery. ○ During work make sure that swarf and dust do not fall on the battery. ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery. ○ Do not store an unused battery in a location exposed to swarf and dust. ○ Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a

nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed battery.

4. Do not use the battery for a purpose other than those

5. If the battery charging fails to complete even when a

specifi ed recharging time has elapsed, immediately stop further recharging.

6. Do not put or subject the battery to high temperatures or

high pressure such as into a microwave oven, dryer, or high pressure container.

7. Keep away from fi re immediately when leakage or foul

8. Do not use in a location where strong static electricity

9. If there is battery leakage, foul odor, heat generated,

discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

10. Do not immerse the battery or allow any fl uids to fl ow

inside. Conductive liquid ingress, such as water, can cause damage resulting in fi re or explosion. Store your battery in a cool, dry place, away from combustible and fl ammable items. Corrosive gas atmospheres must be avoided. CAUTION

1. If liquid leaking from the battery gets into your eyes,

do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with

clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you fi nd rust, foul odor, overheating, discolor,

deformation, and/or other irregularities when using the battery for the fi rst time, do not use and return it to your supplier or vendor. 0000BookDS18DC.indb90000BookDS18DC.indb9 2022/10/1618:24:442022/10/1618:24:4410 English WARNING If a conductive foreign matter enters in the terminal of lithium ion battery, the battery may be shorted, causing fi re. When storing the lithium ion battery, obey surely the rules of following contents. ○ Do not place conductive debris, nail and wires such as iron wire and copper wire in the storage case. ○ To prevent shorting from occurring, load the battery in the tool or insert securely the battery cover for storing until the ventilator is not seen.

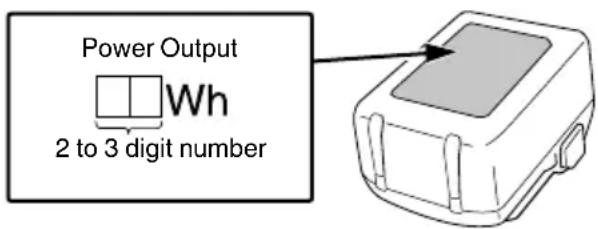

REGARDING LITHIUM-ION BATTERY

TRANSPORTATION When transporting a lithium-ion battery, please observe the following precautions. WARNING Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport. ○ Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classifi cation of Dangerous Goods and will require special application procedures. ○ For transportation abroad, you must comply with international law and the rules and regulations of the destination country. Power Output 2 to 3 digit number

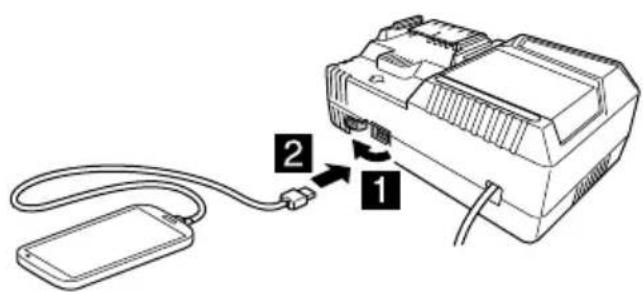

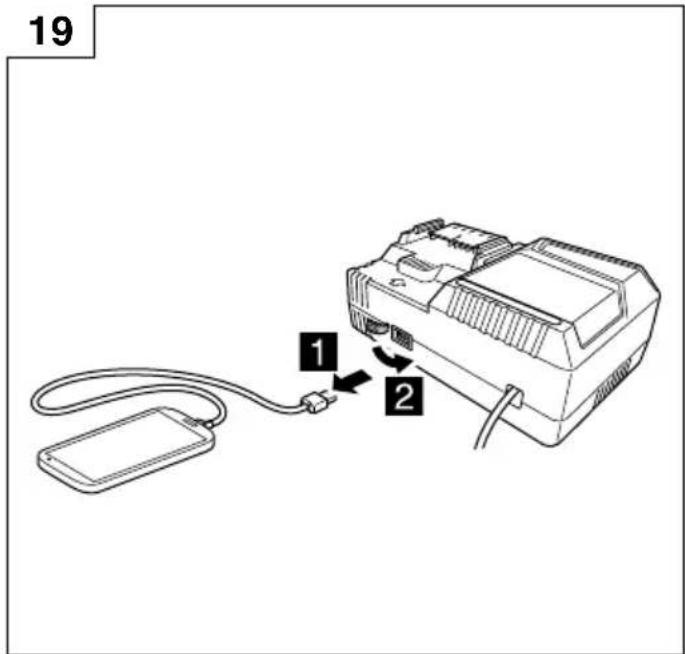

USB DEVICE CONNECTION

PRECAUTIONS (UC18YSL3) When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost. Always make sure to back up any data contained in the USB device prior to use with this product. Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device. WARNING ○ Prior to use, check the connecting USB cable for any defect or damage. Using a defective or damaged USB cable can cause smoke emission or ignition. ○ When the product is not being used, cover the USB port with the rubber cover. Buildup of dust etc. in the USB port can cause smoke emission or ignition. NOTE ○ There may be an occasional pause during USB recharging. ○ When a USB device is not being charged, remove the USB device from the charger. Failure to do so may not only reduce the battery life of a USB device, but may also result in unexpected accidents. ○ It may not be possible to charge some USB devices, depending on the type of device. NAMES OF PARTS (Fig. 1–Fig. 19) Shift knob Side handle Name plate Housing Clutch dial Latch Keyless chuck Charge indicator lamp Push button Pilot lamp Trigger switch Drill mark Handle Triangle mark LED light Hammer mark Ventilation holes Screw Battery Groove Hook Sleeve Strap Remaining battery indicator switch Gear case Remaining battery indicator lamp Motor Display panel SYMBOLS WARNING The following show symbols used for the machine. Be sure that you understand their meaning before use. DS18DC, DS36DC: Cordless Driver Drill DV18DC, DV36DC: Cordless Combi Drill To reduce the risk of injury, user must read instruction manual. Only for EU countries Do not dispose of electric tools together with household waste material! In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Direct current V Rated voltage

Weight* (According to EPTA-Procedure 01/2014) Drilling Impact drilling Switching ON Switching OFF Disconnect the battery

Change rotation speed – High speed

• Depending on attached battery. The heaviest weight is measured with BSL36B18 (sold separately). Battery Lights ; The battery remaining power is over 75%. Lights ; The battery remaining power is 50%–75%. Lights ; The battery remaining power is 25%–50%. Lights ; The battery remaining power is less than 25%. Blinks ; The battery remaining power is nearly empty. Recharge the battery soonest possible. Blinks ; Output suspended due to high temperature. Remove the battery from the tool and allow it to fully cool down. Blinks ; Output suspended due to failure or malfunction. The problem may be the battery so please contact your dealer. STANDARD ACCESSORIES In addition to the main unit (1 unit), the package contains the accessories listed on page 229. Standard accessories are subject to change without notice. APPLICATIONS <DS18DC, DS36DC> ○ Driving and removing of machine screws, wood screws, tapping screws, etc. ○ Drilling of various metals ○ Drilling of various woods <DV18DC, DV36DC> ○ Drilling of brick and concrete block, etc. ○ Driving and removing of machine screws, wood screws, tapping screws, etc. ○ Drilling of various metals ○ Drilling of various woods SPECIFICATIONS

The specifi cations of this machine are listed in the Table on page 228. <DS36DC, DV36DC>

• Existing batteries (BSL3660/3620/3626, BSL18xx and BSL14xx series) cannot be used with this tool. Use a multi volt type battery. NOTE Due to HiKOKI’s continuing program of research and development, the specifi cations herein are subject to change without prior notice.

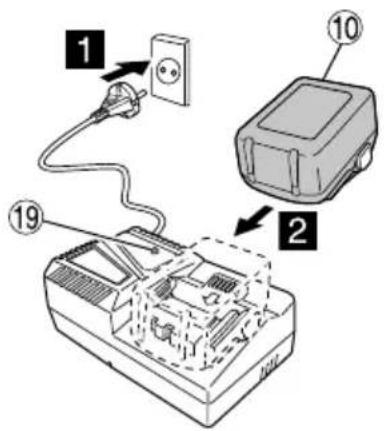

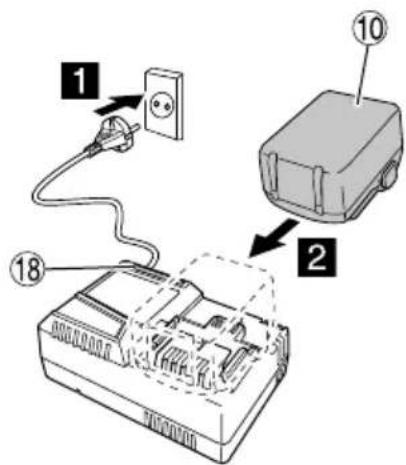

1. Connect the charger’s power cord to the receptacle.

When connecting the plug of the charger to a receptacle, the pilot lamp will blink in red (At 1- second intervals).

2. Insert the battery into the charger.

Firmly insert the battery into the charger as shown in Fig. 4 (on page 2).

When inserting a battery in the charger, charging will commence and the pilot lamp will light continuously in red. When the battery becomes fully recharged, the pilot lamp will blink in red. (At 1-second intervals) (See Table 1) ● Pilot lamp indication The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery. Table 1 Indications of the pilot lamp (RED) Before charging ON/OFF at 0.5 sec. intervals Plugged into power source While charging Lights continuously

Charging complete ON/OFF at

Overheat standby Lights for 1 sec. at intervals of 0.5 sec. Battery overheated. Unable to charge. (Charging will commence when battery cools) Charging impossible ON/OFF at 0.1 sec. intervals Malfunction in the battery or the charger ● Regarding the temperatures and charging time of the battery. The temperatures and charging time will become as shown in Table 2. Table 2 Charger Battery UC18YFSL Charging voltage V 14.4–18 Weight kg 0.5 Temperatures at which the battery can be recharged 0°C–50°C Charging time for battery capacity, approx. (At 20°C)

Number of battery cells 4–10 NOTE The recharging time may vary according to the ambient temperature and power source voltage. CAUTION When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

4. Disconnect the charger’s power cord from the

5. Hold the charger fi rmly and pull out the battery.

NOTE Be sure to pull out the battery from the charger after use, and then keep it. Regarding electric discharge in case of new batteries, etc. As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the fi rst and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times. How to make the batteries perform longer. (1) Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter. (2) Avoid recharging at high temperatures. A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while. CAUTION ○ If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights up green or lights for 1 second, does not light for 0.5 seconds (off for

0.5 seconds). In such a case, fi rst let the battery cool,

then start charging. ○ When the pilot lamp fl ickers in red (at 0.2-seconds intervals), check for and take out any foreign objects in the charger’s battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center. <UC18YSL3>

1. Connect the charger’s power cord to the receptacle.

When connecting the plug of the charger to a receptacle, the charge indicator lamp will blink in red (At 1- second intervals).

2. Insert the battery into the charger.

Firmly insert the battery into the charger as shown in Fig. 4 (on page 2).

When inserting a battery in the charger, the charge indicator lamp will blink in blue. When the battery becomes fully recharged, the charge indicator lamp will light up in green. (See Table 3) (1) Charge indicator lamp indication The indications of the charge indicator lamp will be as shown in Table 3, according to the condition of the charger or the rechargeable battery. 0000BookDS18DC.indb120000BookDS18DC.indb12 2022/10/1618:24:452022/10/1618:24:4513 English Table 3 Charger status Status of indicator lamp Indication meaning Before charging ON/OFF at 0.5 sec. intervals (RED) Plugged into power source *1 While charging Lights for 0.5 sec. at intervals of 1 sec. (BLUE) Charged at less than 50% Lights for 1 sec. at intervals of 0.5 sec. (BLUE) Charged at less than 80% Lights continuously (BLUE) Charged at more than 80% Charging complete Lights continuously (GREEN) (Continuous buzzer sound: about 6 sec.) Overheat standby ON/OFF at 0.3 sec. intervals (RED) Battery overheated. Unable to charge. *2 Charging impossible ON/OFF at 0.1 sec. intervals (PURPLE) (Intermittent buzzer sound; about 2 sec.) Malfunction in the battery or the charger *3 *1 If the red lamp continues to blink even after the charger has been attached, check to confi rm that the battery has been fully inserted. *2 Although charging will start once the battery has cooled down even when left in situ, the best practice is to remove the battery and allow it to cool down in a shaded, well-ventilated location before charging.

○ Fully insert the battery. ○ Check to confi rm that no foreign matter is stuck to the battery mount or terminals. <If charging takes a long time> ○ Charging will take longer at extremely low ambient temperatures. Charge the battery in a warm location (such as indoors). ○ Do not block the air vent. Otherwise the interior will overheat, reducing the charger’s performance. ○ If the cooling fan is not operating, contact a HiKOKI Authorized Service Center for repairs. (2) Regarding the temperatures and charging time of the rechargeable battery The temperatures and charging time will become as shown in Table 4. Table 4 Model UC18YSL3 Type of battery Li-ion Charging voltage 14.4–18 V Temperatures at which the battery can be recharged 0°C–50°C Charging time for battery capacity, approx. (At 20°C)

52 min Number of battery cells 4–10 Charging voltage for USB 5 V Charging current for USB 2 A Weight 0.6 kg NOTE The recharging time may vary according to the ambient temperature and power source voltage.

4. Disconnect the charger’s power cord from the

5. Hold the charger fi rmly and pull out the battery.

NOTE Be sure to pull out the battery from the charger after use, and then keep it. Regarding electric discharge in case of new batteries, etc. As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the fi rst and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times. How to make the batteries perform longer. (1) Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter. (2) Avoid recharging at high temperatures. A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while. 0000BookDS18DC.indb130000BookDS18DC.indb13 2022/10/1618:24:462022/10/1618:24:4614 English CAUTION ○ If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the charge indicator lamp of the charger lights for 0.3 seconds, does not light for 0.3 seconds (off for

0.3 seconds). In such a case, fi rst let the battery cool,

then start charging. ○ When the charge indicator lamp fl ickers (at 0.2-second intervals), check for and take out any foreign objects in the charger’s battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

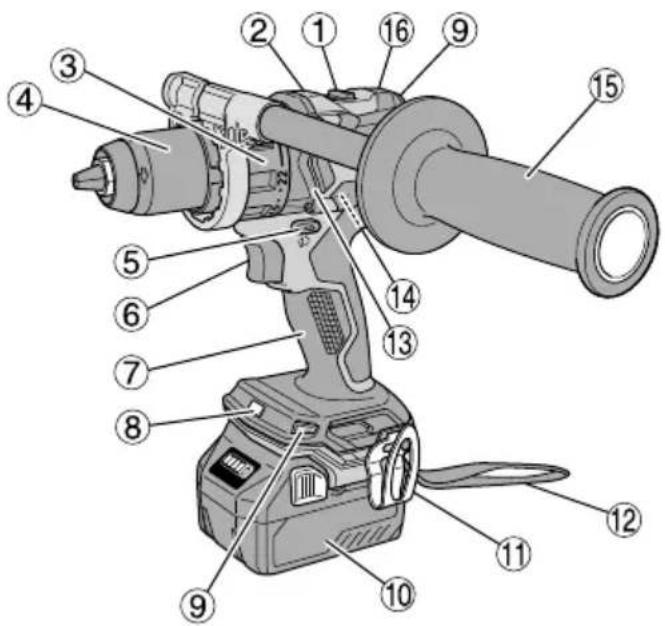

MOUNTING AND OPERATION

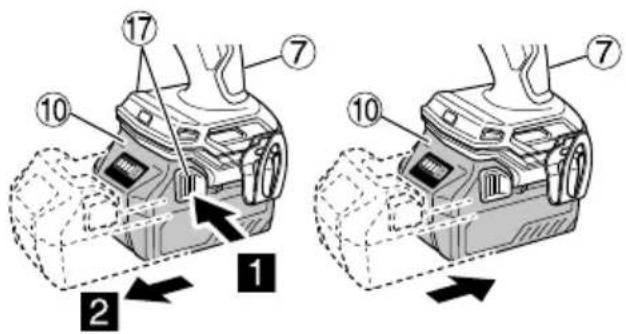

Action Figure Page Removing and inserting the battery

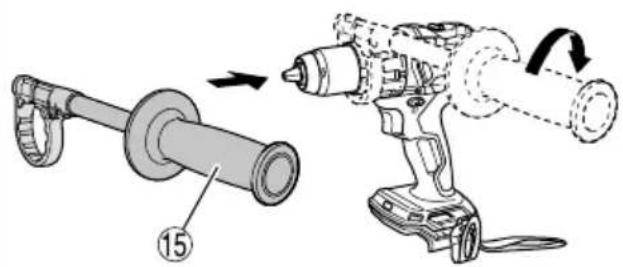

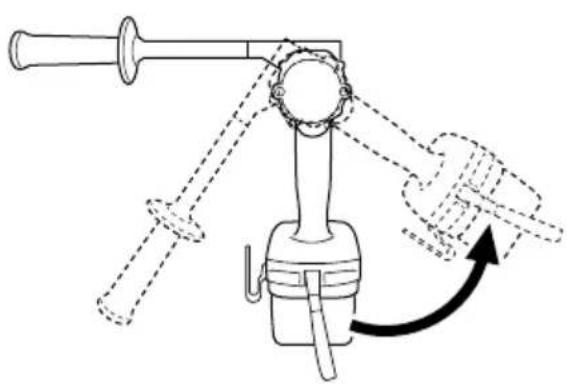

Charging 4 2 Installing / Removing the side handle

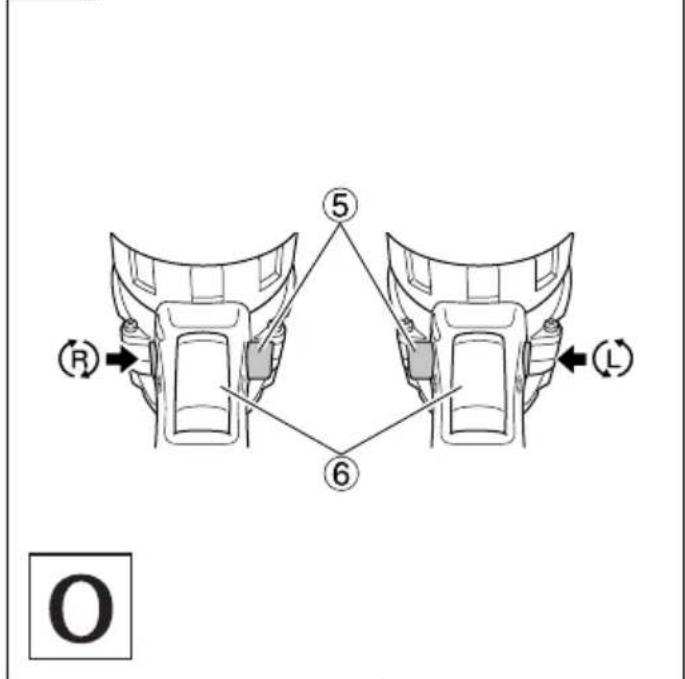

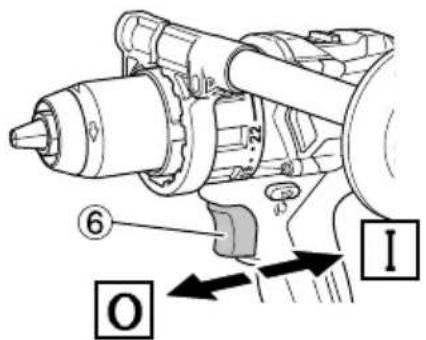

Tightening torque adjustment 6 3 Selecting the drill position 7 3 Selecting the impact position 8 3 Change rotation speed 9 3 Mounting and removing the hook 10 4 How to use the LED light 11 4 Mounting the bit 12 4 Reversing the rotational direction 13 4 Switch operation 14 4 Remaining battery indicator 15 5 Charging a USB device from a electrical outlet 17-a 5 Charging a USB device and battery from a electrical outlet 17-b 5 How to recharge USB device 18 5 When charging of USB device is completed

Selecting accessories ― 230 RFC (Reactive force control) This product features RFC. This stops the motor automatically if the tool is jerking excessively. The LED light fl ashes to indicate that RFC has been activated. If this occurs, release your fi nger from the switch before restarting. (Fig.16) NOTE ● RFC may not always activate under certain working conditions or situations. ● Take care to hold the tool fi rmly to prevent any jerking motion. ● RFC may also activate if you change position suddenly while holding the tool.

LED LIGHT WARNING SIGNALS

This product features functions that are designed to protect the tool itself as well as the battery. If any of the safeguard functions are triggered during operation, the LED light will blink as described in Table 5. When any of the safeguard functions are triggered, immediately remove your fi nger from the switch and follow the instructions described under corrective action. Table 5 Safeguard Function LED Light Display Corrective Action Overburden Protection On 0.1 second/off

(rapid blinking) Blinks for approximately 3 seconds after the switch has been released. If the operating with the shift knob set on “2”, adjust to “1” and continue operation. Remove the cause of the overburdening. RFC On 0.15 second/off

3 times/Off 2 seconds Blinks for approximately 3 seconds after the switch has been released. Remove the problem causing the tool to jerk excessively. When operating the tool, fi rmly hold the tool to make sure it doesn't jerk. Temperature Protection On 0.5 second/ Off 0.5 second (slow blinking) Blinks while protection is in eff ect. Allow the tool and battery to thoroughly cool. 0000BookDS18DC.indb140000BookDS18DC.indb14 2022/10/1618:24:462022/10/1618:24:4615 English

MAINTENANCE AND INSPECTION

WARNING Be sure to turned off the switch and remove the battery before maintenance and inspection.

1. Inspecting the tool

Since use of as dull tool will degrade effi ciency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspection of terminals (tool and battery)

Check to make sure that swarf and dust have not collected on the terminals. On occasion check prior, during and after operation. CAUTION Remove any swarf or dust which may have collected on the terminals. Failure to do so may result in malfunction.

5. Cleaning on the outside

When the power tool is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

Store the power tool and battery in a place in which the temperature is less than 40°C and out of reach of children. NOTE Storing lithium-ion batteries. Make sure the lithium-ion batteries have been fully charged before storing them. Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, signifi cantly reducing battery usage time or rendering the batteries incapable of holding a charge. However, signifi cantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times. If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. Important notice on the batteries for the HiKOKI cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modifi ed (such as disassembly and replacement of cells or other internal parts). GUARANTEE We guarantee HiKOKI Power Tools in accordance with statutory/ country specifi c regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center. Information concerning airborne noise and vibration The measured values were determined according to EN62841 and declared in accordance with ISO 4871. Measured A-weighted sound power level: 86 dB (A) (DS18DC) 91 dB (A) (DS36DC) 101 dB (A) (DV18DC) 100 dB (A) (DV36DC) Measured A-weighted sound pressure level: 75 dB (A) (DS18DC) 80 dB (A) (DS36DC) 90 dB (A) (DV18DC) 89 dB (A) (DV36DC) Uncertainty K: 5 dB (A). Wear hearing protection. Vibration total values (triax vector sum) determined according to EN62841. Drilling into metal: Vibration emission value

(DV18DC, DV36DC) The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another. They may also be used in a preliminary assessment of exposure. WARNING ○ The vibration and noise emission during actual use of the power tool can diff er from the declared total value depending on the ways in which the tool is used especially what kind of workpiece is processed; and

на батерията 4,0 Ah 5,0 Ah 2,5 Ah / 5,0 Ah*

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that Cordless Driver Drill / Cordless Combi Drill, identifi ed by type and specifi c identifi cation code *1), is in conformity with all relevant requirements of the directives *2) and standards *3). Technical fi le at *4) – See below. The European Standard Manager at the representative offi ce in Europe is authorized to compile the technical fi le. The declaration is applicable to the product affi xed CE marking.

DECLARATION OF CONFORMITY

We declare under our sole responsibility that Cordless Driver Drill/Cordless Combi Drill, identified by type and specific identification code *1), is in conformity with all relevant requirements of the UK regulations *2) and Designated standards *3). Technical file at *4) – See below. This declaration is applicable to the product affixed UKCA marking. *1) DS18DC C362682S DS36DC C362688S DV18DC C362693S DV36DC C362699S *2) S.I. 2008/1597, S.I. 2016/1091, S.I. 2016/1101, S.I. 2012/3032 *3) EN62841-1:2015 EN62841-2-1:2018 EN60335-1:2012+A11:2014 EN60335-2-29:2004+A2:2010 EN55014-1:2006+A1:2009+A2:2011 EN55014-2:1997+A1:2001+A2:2008 *4) Importer and authorized person to compile the technical file Hikoki Power Tools (U.K.) Ltd. 25 Majestic Road, Southampton, SO16 OYT, United Kingdom Head office in Japan Koki Holdings Co., Ltd. Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan Osamu Kawanobe General Manager, Quality Assurance Division
