Product type	Universal saw (jigsaw)
Brand	Toolson
Model	PRO-US 650
Power consumption	650 W
Mains voltage	230-240 V ~ 50 Hz
Stroke rate	500-3000 min⁻¹ (electronically adjustable)
Stroke height	20 mm
Cutting depth (wood)	150 mm
Cutting depth (iron)	10 mm
Maximum blade width	1.4 mm
Protection class	II / ☐
Weight	2.7 kg
Sound pressure level (LpA)	86.8 dB(A) (K=3 dB)
Sound power level (LwA)	97.8 dB(A) (K=3 dB)
Vibrations (front handle, wood)	16.083 m/s² (K=1.5 m/s²)
Vibrations (rear handle, wood)	13.588 m/s² (K=1.5 m/s²)
Blade type	Universal saw blade (1/4 turn shank)
Blade change	Tool-less: turn the ring, insert the blade, release
Foot plate adjustment	Yes, with side locking button
Switch lock	Yes, lock button for continuous operation
Commonly machined materials	Wood, iron, non-ferrous metals, plastics
Cleaning	Damp cloth and mild soap; no aggressive products
Maintenance	Checking of carbon brushes by a specialist
Warranty	60 months (conditions: non-professional use)

Frequently Asked Questions - PRO-US 650 Toolson

How to change the saw blade on the Toolson PRO-US 650?

First unplug the device. Turn the ring at the blade holder (6) until the blade slides into the slot. Release the ring: it must return to its initial position. Check the attachment by pulling on the blade. No tool is required.

How to adjust the foot plate (sole) of the saw?

Unplug the saw. Press the foot plate lock button (7) on the right side (viewed from below) to unlock. Adjust the desired clearance, then press the button on the left side to lock. Make sure the foot plate is securely fastened.

What materials can I cut with the PRO-US 650?

This universal saw is designed to cut wood (up to 150 mm thickness), iron (up to 10 mm), non-ferrous metals and plastics. Use the appropriate blade for each material.

What are the essential safety instructions?

Always wear hearing protection (sound level up to 97.8 dB(A)), a dust mask and safety goggles. Do not work on asbestos. Read all safety instructions provided.

How to clean the saw after use?

Unplug the device. Clean the ventilation slots and housing with a clean cloth or low-pressure compressed air. Use a damp cloth with a little mild soap; avoid aggressive products and water inside the device.

When should the carbon brushes be replaced?

If the brushes produce too many sparks, have them checked by a qualified electrician. Only a professional can replace them. There are no other parts requiring maintenance inside.

The power cord is damaged, what to do?

Do not use it. Have the mains connection line replaced by the manufacturer, its customer service or a qualified person to avoid any electrical risk.

How to dispose of the saw at the end of its life?

Do not throw the device into household waste (WEEE directive). Deposit it at an appropriate collection center or inquire with your local council. The packaging made of recyclable materials can be sorted.

What is the warranty period?

The warranty is 60 months from the date of purchase for non-professional use. To assert your rights, register the defect at www.isc-gmbh.info with your proof of purchase.

What is the noise level of the saw and how to protect yourself?

The sound pressure level is 86.8 dB(A) and the sound power level is 97.8 dB(A). Always wear ear protection to avoid hearing loss. Limit exposure time.

USER MANUAL PRO-US 650 Toolson

GB Original operating instructions All Purpose Saw

FR Instructions d'origine Scie universelle

Close-up of hands using a power tool on a wooden surface (no text or symbols visible)

-3-

DE

(vorderer Handgriff)

(hinterer Handgriff)

(vorderer Handgriff)

(hinterer Handgriff)

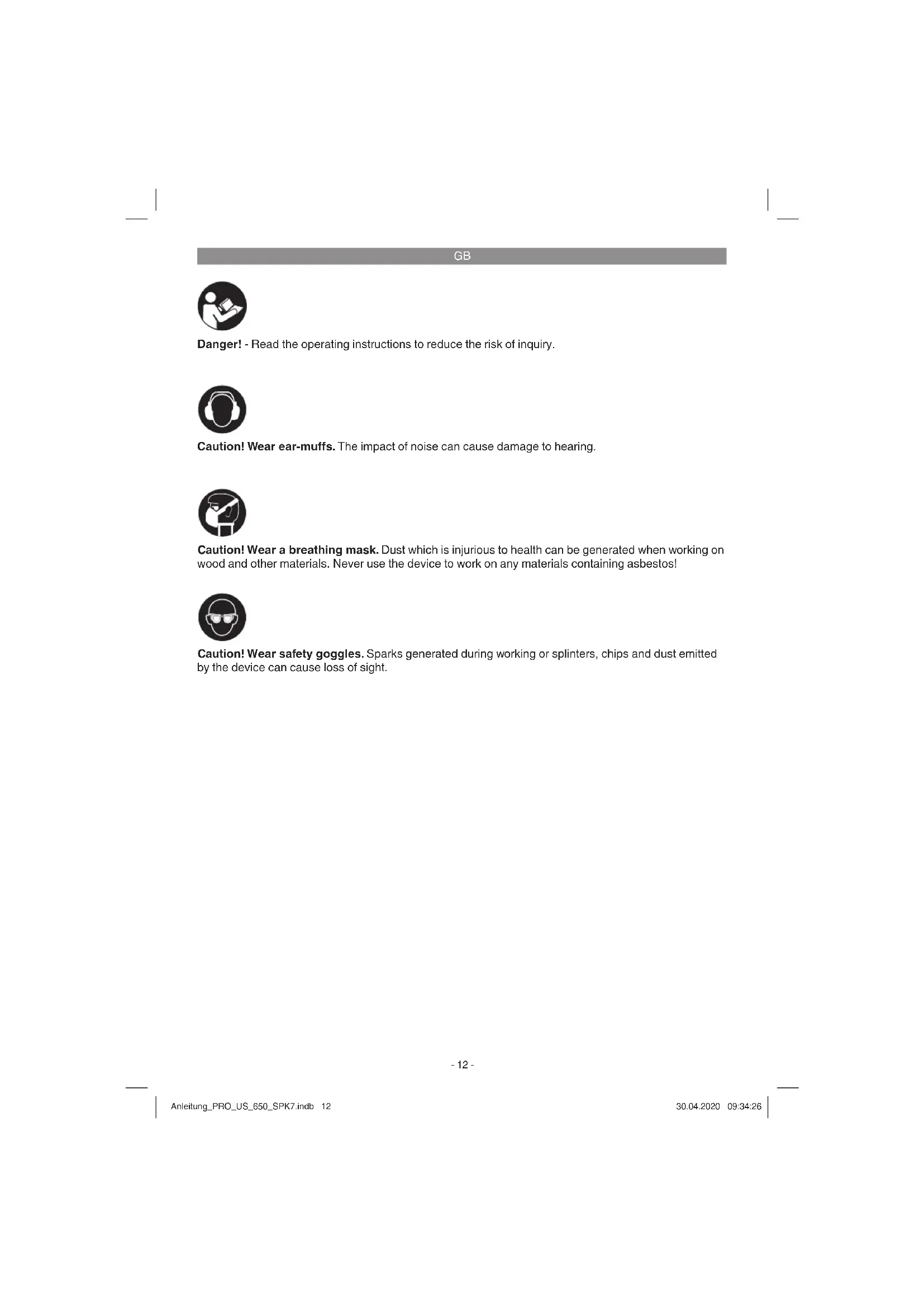

Danger! - Read the operating instructions to reduce the risk of inquiry.

Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.

Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!

Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Warning!

Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury.

Keep all the safety information and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1+3)

1 ON/OFF switch

2 Locking knob

3 Wheel selector for selecting the blade speed

4 Saw blade

5 Soleplate

6 Blade holder

7 Locking button for soleplate

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.

• Remove the packaging material and any packaging and/or transportation braces (if available).

• Check to see if all items are supplied.

• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Universalsaw
• Saw blade
  • Original operating instructions
• Safetyinstructions

3. Proper use

The multi-saw is designed for sawing wood, iron, non-ferrous metals and plastic. It should only be used with the appropriate saw blade.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains voltage: 230-240 V\~50 Hz
Power: 650 W
Stroke rate: 500-3000 min ^1
Stroke height: 20 mm
Cutting depth in wood: 150 mm
Cutting depth in iron: 10 mm
Maximum saw blade width: 1.4 mm
Protection class:
Weight: 2.7 kg

GB

Danger!

Sound and vibration

Sound and vibration values were measured in accordance with EN 62841.

L_pA sound pressure level 86.8 dB(A)

K_pA uncertainty 3 dB

L_WA sound power level 97.8 dB(A)

K_WA uncertainty 3 dB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 62841.

Cutting wooden boards (front handle)

Vibration emission value a_h = 16.083m / s^2

Uncertainty K = 1.5 m/s²

Cutting wooden boards (rear handle)

Vibration emission value a_h = 13.588 m/s^2

Uncertainty K = 1.5 m/s²

Cutting wooden beams (front handle)

Vibration emission value a_h = 16.345 m/s^2

Uncertainty K = 1.5 m/s ^2

Cutting wooden beams (rear handle)

Vibration emission value a_h = 13.813m / s^2

Uncertainty K = 1.5m / s^2

The stated vibration emission levels and stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.

The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.

Warning:

The vibration and noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
  • Wear protective gloves.

Limit the operating time!

All stages of the operating cycle must be considered (for example, times in which the electric tools are switched off and times in which the tool is switched on but operates without load).

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

Always pull the power plug before making adjustments to the equipment.

5.1 Changing the saw blade (Fig. 2)

Always switch off and unplug the multi-saw before working on the machine or changing the saw blade.

Turn the ring (a) on the blade holder (6) as shown in Fig. 2 until the blade (4) lets itself be slipped into the slot of the blade holder (6).

When you now let go of the ring (a) again, the ring

(a) should return to its starting position.

GB

If this fails to happen, try turning the ring (a) by hand into its starting position. Pull on the blade to check whether it sits tightly in the holder.

5.2 Adjusting the soleplate (Fig. 3) Warning!

Pull out the power plug.

To adjust the soleplate, press the soleplate locking button (7) on the right-hand side (looking from the bottom) in order to unlock the soleplate (5). Set the required distance and press the soleplate locking button (7) on the left-hand side (looking from the bottom) in order to lock the soleplate again. Check that the soleplate is secure.

6. Operation

6.1 ON/OFF switch (Fig. 1/Item 1)

To switch on:

Press the ON/OFF switch

To switch off :

Release the ON/OFF switch

6.2 Locking button (Fig. 1/Item 2)

You can lock the ON/OFF switch (1) using the locking button (2) when the equipment is in operation. To switch off the equipment briefly hold down the ON/OFF switch (1).

6.3 Electronic stroke rate control

Use the wheel selector (3) to set the required blade speed.

The general rules for cutting speeds for cutting work apply.

6.4 Use as a jigsaw (Fig. 4)

Place the multi-saw on the material to be cut as shown in Fig. 4. Switch on the multi-saw and push it along against the material to be cut. Adapt your cutting speed to the material.

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Danger! The carbon brushes should not be replaced by anyone but a qualified electrician.

8.3 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.4 Ordering spare parts and accessories

Please provide the following information when ordering spare parts:

• Type of unit
  • Article number of the unit
  • ID number of the unit
• Spare part number of the required spare part For our latest prices and information please go to www.isc-gmbh.info

GB

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Carbon brushes
Consumables* Saw blade
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 60 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

FR

Negotovost K_pA .....3 dB

Negotovost K_WA .....3 dB

Utrošak snage: 650 W

Broj podizanja: 500-3000 min ^1

Visina podizanja: 20 mm

Dubina rezanja, drvo: 150 mm

Dubina rezanja, gvožđe: 10 mm

Maksimalna širina lista testere: 1,4 mm

Klasa zaštite: ......II /回

Težina: 2,7 kg

Opasnost!

Buka i vibracije

Vrednosti buke i vibracija utvrđene su u skladu s

RS

normom EN 62841.

Nivo zvučnog pritiska L_pA 86,8 dB(A) Nesigurnost K_pA 3 dB Intenzitet buke L_WA 97,8 dB(A) Nesigurnost K_WA 3 dB

Nosite zaštitu za sluh.

Buka može da utiče na gubitak sluha.

Ukupne vrednosti vibracija (vektorska suma triju pravaca) utvrđene su u skladu s normom EN 62841.

Rezanje drvenih ploča (prednja ručka)

Vrednost emisije vibracija a_h=16,083 m/s^2 Nesigurnost K=1,5 m/s ^2

Rezanje drvenih ploča (zadnja ručka)

Vrednost emisije vibracija a_h=13,588 m/s^2 Nesigurnost K=1,5 m/s ^2

Rezanje drvenih greda (prednja ručka)

Vrednost emisije vibracija a_h=16,345 m/s^2 Nesigurnost K=1,5 m/s ^2

Rezanje drvenih greda (zadnja ručka)

Vrednost emisije vibracija a_h=13,813 m/s^2 Nesigurnost K=1,5 m/s ^2

Navedene ukupne vrednosti vibracija i navedene vrednosti emisije buke su izmerene prema normiranom postupku kontrole i mogu da se koriste u svrhu poređivanja jednog elektroalata sa drugim.

Svingningsemissionstal a_h = 16,345 m/s^2

Usikkerhed K = 1,5 m/s ^2

X 2006/42/EC
□ Annex IV Notified Body: Reg. No.:

□2000/14/EC_2005/88/EC

□ Annex V □ Annex VI

Noise: measured L_WA = dB (A); guaranteed L_WA = dB (A) P = KW; L/∅ = cm Notified Body:

2012/46/EU_(EU)2016/1628 Emission No.:

Standard references: EN 62841-1; EN 62841-2-11; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR013224

Documents registrar: Alex Kurz Wiesenweg 22, D-94405 Landau/Isar

EH 04/2020 (02)
