Product Type	Electronic Hi-Hat E-Cymbal
Models	HC14 (cymbal only), HC14-AC (with accessories), HC14-T (top cymbal only)
Dimensions	355 mm diameter; height 133 mm (HC14); 52 mm (HC14-T)
Weight	1280 g (HC14), 1580 g (HC14-AC), 850 g (HC14-T)
Power Supply	Passive (powered by drum module via trigger cable)
Sensors	Body: piezo; Edge and Choke: FSR with MIDI velocity; Bell: FSR with MIDI velocity
Main Functions	Triggering body, edge, bell sounds; choke function; trigger output and hi-hat control output
Connections	Trigger output (6.35 mm TRS), hi-hat control output, optional bell output
Stand Compatibility	Standard hi-hat stand (rod max. 7 mm, free length min. 220 mm, sleeve height max. 25.4 mm)
Height Adjustment	Via Tilter (tightening wing screw); minimum spacing 19 mm between cymbals
Maintenance	Soft dry cloth; use silicone oil for top surface; avoid solvents
Safety	Do not disassemble; avoid humid, dusty or extreme temperature environments; use only specified stand; keep out of reach of children
Spare Parts / Repairability	Repairs by GEWA authorized service; parts available: Tilter, damper, cables, controller, etc.
Package Contents (HC14-AC)	Top cymbal, bottom cymbal, hi-hat controller, Tilter with rotation lock, damper, stereo cables (1.47 m and 1.6 m), manual
General Information	Designed for GEWA modules; compatible with other brands subject to conditions; updates via gewamusic.com

Frequently Asked Questions - G9 GEWA

How to mount the top cymbal on the Tilter?

Loosen the bottom nut of the Tilter, attach the rotation lock to the rod, pass the Tilter through the center hole of the cymbal, orient the lock toward the concave part, retighten the bottom nut and attach the damper. Tighten the top nut for a light hold.

How to connect the cables for dual triggering?

Plug the right-angle to right-angle stereo cable into the jack of the top cymbal near the center hole. Route the cable through the hole of the bottom cymbal. Connect the straight plug of the controller cable to the controller. Then, connect both cables to the corresponding trigger inputs on the drum module.

Which hi-hat stands are compatible?

The stand must have a rod diameter of max. 7 mm, a free rod length of at least 220 mm, a sleeve height of max. 25.4 mm, and a sleeve width of max. 11.5 mm. Refer to the dimension table in the manual.

How to adjust the height of the top cymbal?

Lift the top cymbal until the controller's movable support stops following. Tighten the wing screw on the Tilter. The damper must touch the controller without exerting downward pressure. Minimum spacing is about 19 mm. You can repeat for wider spacing.

How to clean the cymbal?

Use a soft dry cloth. For stick marks, apply silicone oil to the top surface with a sponge. Avoid benzene, dissolvents, alcohol or solvents. For daily cleaning, a slightly damp cloth is sufficient.

What types of sensors are used?

The cymbal uses a piezoelectric element for the body and FSR (Force Sensing Resistor) switches for the edge, bell and choke function. The signals capture MIDI velocity.

What to do in case of condensation?

If the device has been moved from a cold to a warm environment, condensation may form inside. Let the unit rest for several hours before use until the moisture has fully evaporated.

Can I use this cymbal with a drum module from another brand?

Yes, provided the module is compatible with analog sensors. Check if the manufacturer provides a trigger bank for GEWA. However, GEWA does not guarantee perfect operation with third-party equipment.

How to perform a choke?

After hitting the edge of the cymbal, press your fingers on the edge sensor area to stop the sound. This works mainly on open and sustained sounds.

Where to find the complete user manual?

The complete manual is available for download on the official website: gewamusic.com/downloads. You can also find it via the QR code or link in the paper manual.

USER MANUAL G9 GEWA

Black cylindrical electronic device with a metallic sensor or antenna, shown against a white background (no text or symbols visible)

INDEX

ČESKY 11

DEUTSCH 5

ENGLISH 5

ESPAÑOL 11

FRANÇAIS 11

ITALIANO 11

POLSKI 11

PORTUGUÊS....11

HC14 | HC14-AC | HC14-T Electronic Hi-Hat Cymbals

Models	HC14 | HC14-AC | HC14-T
Document	Owner's Manual
Version	1.0
Release Date	2020-10-09

Black circular mechanical component with a metallic top and base, shown against a white background (no text or symbols visible)

Manufacturer

GEWA music GmbH

Please read this Owner's Manual carefully before operating the device and take note of the safety information! Keep this document available for immediate reference.

Download the complete user's manual on gewamusic.com: https://int.gewamusic.com/downloads

www.gewaelectronics.com

1 SAFETY INFORMATION

Failure to observe the following safety directives may result in fire, electric shock, injury, device damage or damage of other objects or property. Read the following safety instructions completely before operating this product. Further risks are possible; therefore, the following list does not claim to be complete.

About the symbols

	WARNING	Calls your attention to risks which can result in serious injuries or death.
	CAUTION	Calls your attention to risks which can result in minor injuries and/or device damage.
	REGULATION	Indicates a required action. The action which must be carried out is stated more precisely by the white design contained.
	BAN	The symbol alerts the user to items that must never be carried out (are forbidden). The prohibited action is stated more precisely by the design contained within the circle.

WARNING

Indicates a hazard that could result in serious injury or death.

Do not disassemble or modify

Do not disassemble or modify this product unless this manual provides specific instructions.

Do not repair or replace parts by yourself

Do not attempt to repair the unit or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, GEWA service partner.

Do not use or store in the following locations

• Locations of high temperature (in direct sunlight, near heating equipment)
• Moist or humid locations (near a bath or shower, or a wet floor)
• Locations exposed to steam or smoke
• Locations subject to salt damage
• Locations subject to water or rain
  • Expressively dusty or sandy environment
• Locations subject to high levels of vibration
  • Environment with poor ventilation

Don't allow foreign objects or liquids to enter the unit; never place containers with liquid on the unit

Do not place containers containing liquid on this product. Never allow foreign objects (e.g., flammable objects, coins, wires) or liquids to enter this product. Doing so may cause short circuits, faulty operation, or other malfunctions.

Do not drop or expose to strong impact

Otherwise, you risk causing damage or malfunction.

Be cautious to protect children from injury

Always make sure that an adult is on hand to provide supervision and guidance when using the unit in places where children are present, or when a child will be using the unit.

CAUTION

Indicates a hazard that could result in injury or property damage.

Use only the specified stand

Install the unit only on the hi-hat stand which satisfies the specifications described on p.10. Remove only the specified screws during the installation.

Evaluate safety issues before using stands

Even if you observe the cautions given in the owner's manual, certain types of handling may allow this product to fall from the stand or cause the stand to overturn. Please be mindful of any safety issues before using this product.

Do not place in unstable locations

Never place the unit on unstable stands. Such stands encourage malfunction and add potential risk for children by falling over.

Manage cables for safety

Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

Route all power cords and cables in such a way as to prevent them from getting entangled

Injury could result if someone were to trip on a cable and cause the unit to fall or topple.

Avoid climbing on top of the unit, or placing heavy objects on it

Otherwise, you risk injury as the result of the unit toppling over or dropping down.

Take care not to pinch your fingers in the movable parts

Be careful not to allow your fingers or hands to be caught between the top and bottom hi-hat. Adult supervision is recommended whenever small children use the unit.

Disconnect all cords/cables before moving the unit Damage or malfunction may result if you fail to disconnect all cables before moving the unit.

Keep small items out of the reach of children

To prevent accidental ingestion of the parts listed below, always keep them out of the reach of small children.

Removable Parts:

Clutch or clamp screws and nuts, clutch bumper, cymbal seat, felt washers, spin lock and cable plugs.

Placement

• This unit may interfere with radio and television reception. Do not use this unit in the vicinity of such receivers.
• When moved from one location to another where the temperature and/or very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
• Whenever any liquid has been spilled on the surface of this unit, be sure to promptly wipe it away using a soft, dry cloth.
• Spurs included with stands and pads might scratch the floor. Use a mat or similar, adequate object to protect the floors from damage.
• Make sure that children are not exposed to risks of injury caused by improper placement or setup of stands.

Maintenance

- Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

• Remove stick marks and dust by treating the top surface of the cymbal with a sponge lightly soaked in silicone oil. Silicone oil protects the top surface and restores a fresh and even look.
• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.

Additional Precautions

• Use a reasonable amount of care when using the unit's jacks and connectors. Rough handling can lead to malfunctions.
• When disconnecting all cables, grasp the connector itself - never pull on the cable. This way you will avoid causing cable breakage and short circuits.
• This instrument is designed to minimize the extra-neous sounds produced when it's played. However, impact noise still can be transmitted through floors and walls to a greater degree than expected, take care not to allow these sounds to become a nuisance to others nearby.

- Continuous playing may cause discoloration of the pad, but this will not affect the pad's function.

2 DISPOSAL AND RECYCLING

EU Countries

Devices labeled with this symbol fall under the scope of the European Waste Electrical and Electronic Equipment Directive (WEEE) under which owners are obliged to dispose such devices separately from domestic waste. Manufacturers and EU member states on the other hand are obliged to transpose the directive into federal law and provide separate collection systems to ensure an effective protection of human health and the environment. In case this product needs to be disposed, take it to your local community waste management service (e.g. disposal companies, recycling centers) or to the dealer where the product was purchased.

USA

CA This product contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm, including lead.

3 PACKAGE CONTENTS

The original packaging contains the following items. Please check carefully the completeness of the purchased product:

Model

Description

GEWA Order N°

HC14

14" Electronic Hi-Hat (Included with drum set configurations)

GD835215

14" Top Cymbal

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Hi-Hat Bottom Cymbal

Simple diagram with three circles inside an oval, no text or symbols present

1x

Hi-HAT Controller

1x

Clutch Bumper

1x

Model

Description

GEWA Order N°

HC14-AC

14" Electronic Hi-Hat with accessories

GD835225

14" Top Cymbal

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Hi-Hat Bottom Cymbal

Simple line drawing of an oval shape with three smaller circles inside, no text or symbols present.

1x

Hi-HAT Controller

1x

Hi-Hat Clutch with Spin Lock

1x

Clutch Bumper

1x

Stereo Controller Cable

1,47 m (4' 10")

6,35 mm (1/4") Plugs

(Straight - Angled)

Line drawing of a U-shaped connector with attached ports (no text or symbols)

1x

Stereo Cable Top Cymbal

1,6 m (5' 3")

6,35 mm (1/4") Plugs

(Angled - Angled)

Pure diagram of a U-shaped connector with two side connectors (no text or symbols)

1x

Model

Description

GEWA Order N°

HC14-T

14" Electronic Hi-Hat (top cymbal only)

GD835213

14" Top Cymbal

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

4 ASSEMBLY INSTRUCTIONS

Assembly top cymbal

Figure 1

Figure 2

1 Unscrew the bottom nut (D) from the Hi-Hat Clutch (A).
2 Attach the spin lock (B) to the shaft of the top part of the clutch (A).
3 Guide clutch and spin lock through the middle hole of the Top Cymbal (C).
4 Orient the spin lock (B) inside the cymbal mold as shown in Figure 2.
Screw the bottom nut (D) onto the shaft of
5 Clutch (A) again and clip the clutch bumper (E) on the bottom nut (D).
6 Lightly clamp the cymbal by fastening the top nut (A).

Assembly bottom cymbal

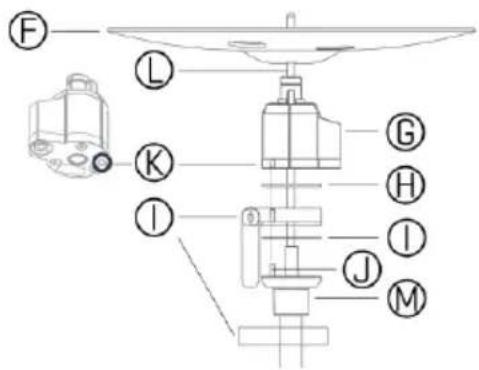

Figure 3

1 Remove any felt padding from the Hi-Hat seat (M) of the stand (see also compatible stands).
2 Place the steel washer (I) on the seat.
3 (Optional) Only for Hi-Hat seats without pin (J): Attach the universal cymbal seat (I) to the hi-hat cymbal seat (M).
4 Place the rubber washer (H) on either cymbal seat or universal cymbal seat.
5 Guide the Hi-Hat Controller (G) over the Hi-Hat rod (L) and align hole (K) with pin (J).
6 Place the Bottom cymbal (F) on the controller (G) and match the profiles around the middle hole.
Loosen the clamp of the Hi-Hat stand top tube and orient the whole system. Arrow (A2) on the bottom cymbal should face the player. With the correct orientation, fasten the tube clamp again.

HC14 cable connections – Trigger Type Dual

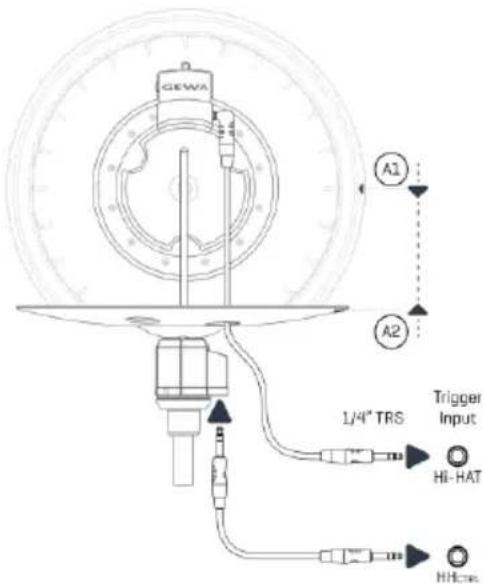

Figure 4

Take the top cymbal (C) and connect the stereo cable (angled - angled) to the jack closest to the middle hole (see Figure 4).
2 Guide the cable through the hole of the bottom cymbal which is closest to the Hi-Hat rod.
3 Align the arrows (A1) and (A2) and guide the top cymbal over the Hi-Hat rod, so that both cymbals rest on top of each other.
4 Straighten the cable carefully if needed.
5 Connect the straight plug of the Stereo Controller Cable to the Hi-Hat Controller as shown in Figure 4.
Connect both cables to the corresponding Trigger Inputs of your drum console as shown in Figure 4.
6 The naming convention regarding trigger Inputs might vary from manufacturer to manufacturer, but always offer individual inputs for Cymbal and Controller.

Height adjustment top cymbal (GEWA System)

For the use with GEWA factory Trigger Banks the top cymbal needs to be mounted high enough, so that the Clutch Bumper (E) does not press down the controller shaft (O). See Figure 6 for comparison.

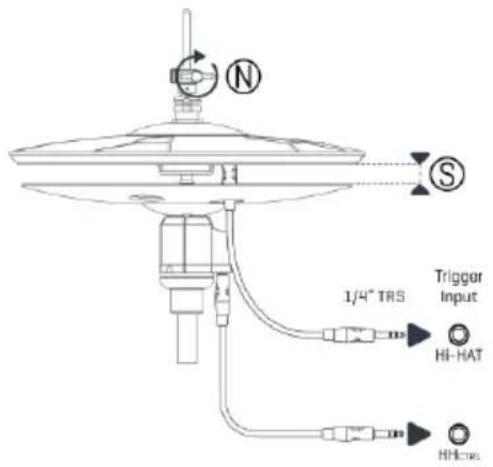

Figure 5

Figure 6

1	Lift the top cymbal gradually, until the carriage of the Hi-Hat Controller (O) stops following the movement.
2	In this position, fasten the clutch wing screw (N) as shown in Figure 5.
3	After step 2, the Clutch Bumper (E) should be touching the carriage Hi-Hat Controller (O), without pressing the shaft down (see Figure 6). This corresponds to a minimum cymbal spacing (S) of approximately 19 mm ( 34 ).
4	(Optional) Repeat steps 1-3 with a higher position of the top cymbal for wider cymbal spacing.

Note

GEWA Drum Consoles: Cymbal spacing below the minimum (S) is possible but requires adjusting the trigger parameter "High Position" (Hi-Hat Controller). For more information, please refer to the section Trigger Settings in the owner's manual of your GEWA drum console.

5 TRIGGER SETTINGS

Having set up the hardware along the lines described in this document, proceed with the trigger settings in your drum module. The operation with GEWA Consoles requires loading the Trigger Bank shown below. Regarding other manufacturers, please take note of the hints given.

GEWA consoles

Trigger Bank: GEWA HH14

Input Channel: Hi-Hat

(See owner's manual of your GEWA console for more information about loading trigger banks)

Other manufacturers\*

• Check first whether your drum module supports the trigger types (Sensors) built into GEWA pads.
• Check whether the manufacturer of your module offers a trigger bank for the GEWA pad you want to connect.
• Consult the owner's manual of your drum module for Information about trigger setups, accessible parameters and customization of 3^rd party equipment.

Note

*Although GEWA cymbals are manufactured to meet industry standards of analogue trigger systems, GEWA does not guarantee flawless functioning with equipment of other manufacturers. The operation of this product with 3rd party equipment is at your own risk. If you still decide to operate this product with 3rd party drum modules, please take first note of the hints above.

6 PLAYING TECHNIQUES

Hi-Hat Pedal

Open-Closed

Line drawing of a foot and ankle mechanism with no text or symbols

The Hi-Hat sound will vary in any of its sound components (Bell, Bow, Edge), depending on the angle of the foot board. I closed states, the controller can distinguish between splash techniques (short closing time) and chick techniques with longer closing times. The full potential of electronic Hi-Hats is described by the interplay between, Cymbal, Controller, Pedal action and Sound Module.

Closed with additional pressure

Line drawing of a person's foot wearing a sneaker, with a vertical guide and arrow indicating motion (no text or symbols)

Applying even more pressure in closed states can alter the closed sound towards an even tighter sound. Hi-Hat sound will become even sharper, while applying this technique to Bass Drums, it can be utilized to mimic the effect of burying the beater (pitch bend).

Hi-Hat

Tip Stroke (Bow)

Diagram of a mechanical component with a magnified inset showing a pin inserted into a circular housing (no text or symbols)

Strike the bow region with the tip of the stick within the highlighted area. This will trigger the bow sound. Use this technique in conjunction with the pedal techniques to produce different sound qualities of the cymbals.

Bell Stroke

Technical diagram showing a mechanical assembly with a shaft and circular component, no text or symbols present.

Bells on acoustic cymbals produce musical sounds using either the shoulder or the tip of the stick. Utilize both techniques to trigger the bell sound. Use this technique in conjunction with the pedal techniques to make use of the full range bell sounds stored within a multi-layered sample.

Edge Stroke

Technical line drawing of a mechanical component with a circular head and radial arms, shown alongside an inset diagram (no text or symbols)

Strike the edge with the shoulder of the slick in the region of the edge sensor. This will trigger the edge sound. Use this technique in conjunction with the pedal techniques to produce open and closed edge sounds.

Cymbal Choke

Line drawing of a hand holding a circular mechanical component with a central hub (no text or symbols)

After performing an Edge Stroke, subsequently apply pressure to the edge sensor using the fingers. This will prevent the edge sound from sustaining any longer. Regarding Hi-Hats this technique is only practical for longer sounding, open sounds.

With pressure applied to the edge, striking the cymbal will result in a short, staccato edge sound.

7 COMPATIBLE STANDS

Compatible Hi-Hat stands (HC14 & HHC)

The following measurements describe the minimum requirements for a Hi-Hat stand to fit the GEWA HHC Hi-Hat Controller. Note that the HHC is not a DIY product. It is a spare part for the HC14 Hi-Hat Cymbal and only works in conjunction with Clutch, Top Cymbal and Bottom Cymbal included with HC14. To prevent the Controller from spinning freely on the Hi-Hat seat, additional accessories might be required.

			Measure in [mm]	Measure in Inch [""]
A	Rod Diameter	max	7 mm	14"
B	Excess Rod Length	min	220 mm	834"
C	Excess Sleeve Height	max	25,4 mm	1"
D	Hi-Hat Sleeve Width	max	11,5 mm	7/16"

8 TECHNICAL DATA

HC14 Hi-Hat cymbal
(Included with drum set configurations)

Size	14"
Sensors	Bow (piezo ceramic element)
	Edge & Choke (FSR Switch - MIDI ve-locity from piezo signal)
	Bell (FSR Switch - MIDI velocity from piezo signal)
Choke	Yes
Connections	Trigger OutputHi-Hat Control OutputBell Trigger Output (optional for 3Way triggering)
Dimensions	133 (H) x 355 (∅) mm5 1⁄4 (H) x 14 (∅) inches
Weight	1280 g / 2 lbs 13 oz
Accessories included	Owner's manual (this document)

HC14-AC Hi-Hat cymbal with accessories

Size	14"
Sensors	Bow (piezo ceramic element)
	Edge & Choke (FSR Switch - MIDI velocity from piezo signal)
	Bell (FSR Switch - MIDI velocity from piezo signal)
Choke	Yes
Connections	Trigger OutputHi-Hat Control OutputBell Trigger Output (optional for 3Way triggering)
Dimensions	133 (H) x 355 (∅) mm5 1/4 (H) x 14 (∅) inches

Weight	1580 g / 3 lbs 8 oz
Accessories included	Hi-Hat clutch, 2 x 6,35 mm (1/4") TRS stereo cables (Controller & Cymbal), owner's manual (this document)

HC14-T Hi-Hat top cymbal

Size	14"
Sensors	Bow (piezo ceramic element)
	Edge & Choke (FSR Switch – MIDI velocity from piezo signal)
	Bell (FSR Switch – MIDI velocity from piezo signal)
Choke	Yes
Connections	Trigger OutputBell Trigger Output (optional for 3Way triggering)
Dimensions	52 (H) x 355 (∅) mm2 (H) x 14 (∅) inches
Weight	850 g / 1 lb 14 oz
Accessories included	Owner's manual (this document)

For reasons of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice. The present specifications describe the version of the product at the time this document was issued. For the latest specifications please refer to gewamusic.com.

HC14 | HC14-AC | HC14-T Elektronische Hi-Hats

Black circular mechanical component with a small protrusion and reflective surface (no visible text or symbols)

Hersteller

GEWA music GmbH

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Hi-Hat Bottom Cymbal

Simple diagram with three small circles inside an oval shape, no text or symbols present.

1x

Hi-HAT Controller

1x

Clutch Bumper

1x

Modell

Beschreibung

HC14-AC

Simple line drawing of a circular object with segmented segments and a central hole (no text or symbols)

1x

Hi-Hat Bottom Cymbal

Simple diagram of an oval shape with three smaller circles inside, no text or symbols present.

1x

Hi-HAT Controller

1x

Line drawing of a U-shaped connector with two connectors and a small connector (no text or symbols)

1x

Stereo Kabel Top Cymbal

1,6m

6,35 mm Stecker

Line drawing of a U-shaped connector with two connectors and a central shaft (no text or symbols)

1x

Modell

Beschreibung

HC14-T

14" Electronic Hi-Hat Top Cymbal (Nur Top Cymbal)

GEWA Bestellnr.

GD835213

14" Top Cymbal

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

4 MONTAGEANLEITUNG

Montage Top Cymbal

Abbildung 1

Abbildung 2

Abbildung 3

Abbildung 4

Abbildung 5

Abbildung 6

Input Channel: Hi-Hat

Line drawing of a foot and ankle mechanism with measurement arrows (no text or symbols)

Line drawing of a person's foot wearing a sneaker, with a vertical guide and arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a magnified inset showing a pin or wire connection (no text or symbols present)

Diagram showing a mechanical assembly with a shaft and circular component, no text or symbols present

Technical line drawing of a mechanical component with a circular head and radial arms, plus an inset showing a wire or rod assembly (no text or symbols)

Line drawing of a hand holding a circular mechanical component with a central hub (no text or symbols)

HC14-T Hi-Hat Top Cymbal

HC14 | HC14-AC | HC14-T E-Činely Hi-Hat

Model	HC14 | HC14-AC | HC14-T
Dokument	Návod k obsluze
Verze	1.0
Ke dni	2020-10-09

Black circular mechanical component with a metallic top and base, shown against a white background (no text or symbols visible)

Výrobce

GEWA music GmbH

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Hi-Hat spodní činel

Simple diagram with three small circles inside an oval shape, no text or symbols present.

1x

Hi-HAT Kontrolér

1x

Clutch Bumper

1x

Model

Popis

GEWA obj. číslo

HHC14-AC

Simple line drawing of a circular object with segmented segments and a central hole (no text or symbols)

1x

Hi-Hat spodní činel

Simple diagram of three concentric ovals with small circles inside, no text or symbols present.

1x

Hi-HAT Kontrolér

1x

Hi-Hat Clutch/spona s otočnou pojistkou

1x

Clutch Bumper

1x

Stereo Controller – kabel

1,47 m

6,35 mm Jack

(rovný - zahnutý)

Line drawing of a U-shaped audio jack with attached microphone (no text or symbols)

1x

Stereo kabel - Top Cymbal

1,6m

6,35 mm Jack

(zahnutý - zahnutý)

Pure diagram of two U-shaped connectors without any text, numbers, or symbols

1x

Model

Popis

GEWA obj. číslo

HHC14-T

14" E-Činel Hi-Hat (pouze horní činel)

GD835213

14" Horní činel

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

4 NÁVOD PRO MONTÁŽ

Zobrazení 3

Zobrazení 4

Zobrazení 5

Zobrazení 6

Line drawing of a foot and ankle mechanism with a foot highlighted, showing no text or symbols

Line drawing of a person's foot wearing a sneaker and holding a small object, with no visible text or symbols

Diagram of a mechanical component with a magnified inset showing a pin or wire connection (no text or symbols present)

Technical line drawing of a mechanical component with a circular inset showing a wire or wire connection (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing a pin or wire (no text or symbols)

Line drawing of a hand holding a circular mechanical component with a central hub (no text or symbols)

Black circular scientific instrument with a metallic top and base, shown against a white background (no text or symbols visible)

Fabricante

GEWA music GmbH

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Simple diagram of three concentric circles inside an oval shape (no text or symbols)

1x

Controlador del Hi-HAT

1x

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Simple line drawing of an oval shape with three smaller circles inside, no text or symbols present.

1x

Line drawing of a U-shaped connector with attached ports (no text or symbols)

1x

Cable estéreo (plato superior) 1,6 m (5' 3") Conectores: 6,35 mm (1/4") (acodado - acodado)

Pure electrical circuit lines without any symbols

1x

Modelo

Descripción

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

4 INSTRUCCIONES DE MONTAJE

Figura 3

Figura 4

Figura 6
Figura 5

Line drawing of a foot and ankle mechanism with no text or symbols

Line drawing of a person's foot wearing a sneaker, with a vertical guide and arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a pin and circular base, showing internal structure and a magnified inset (no text or symbols)

Diagram showing a mechanical assembly with a pin-like component and a magnified inset of a circular component (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing a wire or filament (no text or symbols)

Line drawing of a hand holding a circular mechanical component with a central hub (no text or symbols)

HC14 | HC14-AC | HC14-T E-Cymbales Charley

Black circular scientific instrument with a metallic top and base, shown against a white background (no text or symbols visible)

Fabricant

GEWA music GmbH

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Simple diagram with three circles inside an oval shape, no text or symbols present

1x

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Simple diagram with three small circles inside an oval, no text or symbols present

1x

Pure electrical circuit lines without any symbols

1x

Line drawing of a U-shaped connector with two connectors and a central connector (no text or symbols)

1x

Modèle Description

HC14-T 14" E-Cymbale Charley (Uniquement cymbale supérieure)

Commande de GEWA n°

GD835213

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

4 INSTRUCTIONS POUR LE MONTAGE

Figure 3

Figure 4

Figure 6

Figure 5

Line drawing of a shoe's foot and ankle mechanism (no text or symbols)

Line drawing of a shoe's sole and foot assembly (no text or symbols)

Diagram of a mechanical component with a magnified inset showing a pin or wire connection (no text or symbols present)

Technical diagram showing a mechanical assembly with a shaft and circular component, no text or symbols present.

Technical line drawing of a mechanical component with a circular inset showing a pin or wire (no text or symbols)

Line drawing of a hand holding a circular mechanical component with radial blades (no text or symbols)

Black circular mechanical component with a metallic top and base, no visible text or symbols

Fabbricante

GEWA music GmbH

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Simple diagram with three small circles inside an oval shape, no text or symbols present.

1x

Paraurti in gomma (per Hi-Hat Clutch)

1x

Modello

Descrizione

Ordine GEWA n.

HC14-AC

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Simple line drawing of an oval shape with three small circles and a central star-like symbol (no text or labels)

1x

Paraurti in gomma (per Hi-Hat Clutch)

1x

Pure electrical circuit lines without any symbols

1x

Pure electrical circuit lines without any symbols

1x

Modello

Descrizione

Ordine GEWA n.

HC14-T

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

4 ISTRUZIONI PER IL MONTAGGIO

fig. 3

fig. 4

fig. 5

Line drawing of a foot and ankle mechanism with a vertical guide bar (no text or symbols)

Line drawing of a person's foot wearing a sneaker, with a vertical guide and arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a circular base and radial shaft, showing internal components and a close-up inset (no text or symbols)

Technical line drawing of a mechanical component with a pin and circular features (no text or symbols)

Technical line drawing of a mechanical component with a circular cross-section and a separate inset showing a wire or filament (no text or symbols)

Line drawing of a hand holding a circular mechanical component with a central hub (no text or symbols)

HC14 | HC14-AC | HC14-T E-Talerze Hi-Hat

Black circular mechanical component with a metallic top and base, possibly a fan or sensor device (no visible text or symbols)

Producent

GEWA music GmbH

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Dolny talerz

Simple diagram of an oval shape with three smaller circles inside, no text or symbols present.

1x

Hi-HAT Kontroler

1x

Amortyzator hihatu

1x

Model

Opis

HC14-AC

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Dolny talerz

Simple diagram with three circles inside an oval, no text or symbols present

1x

Hi-HAT Kontroler

1x

Pure electrical circuit lines without any symbols

1x

Pure electrical circuit lines without any symbols

1x

Model

Opis

HC14-T

Circular diagram with radial segments and a central circle, no text or symbols present

1x

4 INSTRUKCJA ZŁOŻENIA

Obraz 3

Obraz 4

Line drawing of a shoe's foot and ankle mechanism (no text or symbols)

Line drawing of a foot wearing a sneaker and standing on a vertical post (no text or symbols)

Diagram of a mechanical component with a magnified inset showing a pin inserted into a circular housing (no text or symbols)

Technical line drawing of a mechanical component with a shaft and circular component inset (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing a pin or wire (no text or symbols)

Line drawing of a hand holding a circular mechanical component with a central hub (no text or symbols)

Black circular scientific instrument with a metallic top and base, shown against a white background (no text or symbols visible)

Fabricante

GEWA music GmbH

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Simple diagram with three circles inside an oval shape, no text or symbols present

1x

Controlador do Hi-HAT

1x

Amortecedor de borracha do clutch

1x

Modelo

Descrição

Pedido de GEWA N°

HC14-AC

Simple line drawing of a circular object with internal geometric patterns (no text or symbols)

1x

Simple diagram with three circles inside an oval shape, no text or symbols present

1x

Controlador do Hi-Hat

1x

Line drawing of a U-shaped connector with attached connectors (no text or symbols)

1x

Cabo estéreo do
prato superior 1,6 m (5' 3")
Jacks/Plugs: 6,35 mm (1/4") (angular - angular)

Pure diagram of two U-shaped connectors without any text, numbers, or symbols

1x

Modelo

Descrição

Pedido de GEWA N°

HC14-T

Circular diagram with radial segments and a central circular element (no text or symbols)

1x

4 INSTRUÇÕES DE MONTAGEM

Figura 3

Figura 4

Figura 6

Figura 5

Line drawing of a foot and ankle mechanism with measurement arrows (no text or symbols)

Line drawing of a person's foot wearing a sneaker, with a hand pointing to the knee (no text or symbols)

Diagram of a mechanical component with a magnified inset showing a pin inserted into a circular housing (no text or symbols)

Technical diagram showing a mechanical component with a shaft and circular features, no text or symbols present.

Technical line drawing of a mechanical component with a circular inset showing a pin or wire (no text or symbols)

Hand holding a circular mechanical component with a central hub and radial blades (no text or symbols visible)
