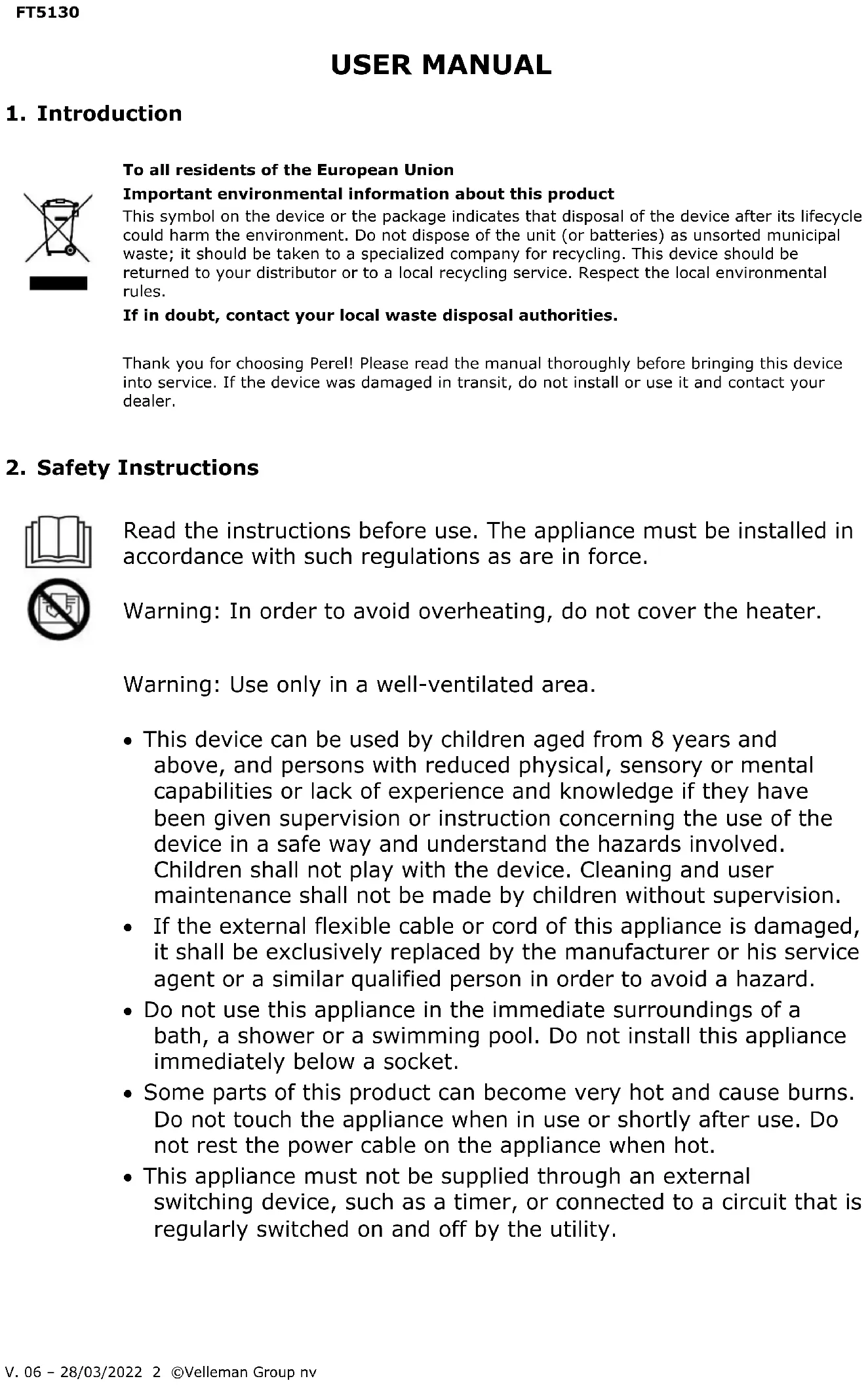

USER MANUAL FT5130 Perel

For outdoor use only

To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

Read the instructions before use. The appliance must be installed in accordance with such regulations as are in force.

Warning: In order to avoid overheating, do not cover the heater.

Warning: Use only in a well-ventilated area.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

• If the external flexible cable or cord of this appliance is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

• Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. Do not install this appliance immediately below a socket.

• Some parts of this product can become very hot and cause burns. Do not touch the appliance when in use or shortly after use. Do not rest the power cable on the appliance when hot.

• This appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.FT5130

• The use of an extension lead or multi-plug adaptor is not advised when connecting this appliance to the mains. Connection through these devices could lead to a risk of overloading, overheating and even fire at the extension lead or adaptor due to inadequate connection quality.

• Install the appliance in a vertical position and at a distance of minimum 0.5 m away from furniture and other objects. Never operate the appliance near inflammable or explosive materials or gases.

• The first time you use the appliance, a little smoke and smell due to the protective substances applied to the heating element before transport may be given off. This is normal and should not be considered a fault.

• This appliance must only be used for space heating.

• Never leave the appliance unattended.

• The erroneous use of this heater may result in damage and lead to life-threatening risks such as injuries, burns, explosions, or poisoning. The first symptoms of carbon monoxide poisoning may be confused with those of the flu: headache, dizziness and/or nausea. These symptoms may be caused by an improper working of the heater. If you experience one of these symptoms, immediately proceed in the open air. Also, ask a qualified technician to repair the device.

• This device requires a flexible gas hose and gas regulator. Check with your gas supplier. Hose: EN 16436-1 class 2/class 3 compliant hose (length < 2 m); regulator: G30:28-30 mbar, G31: 37 mbar.

• Any cleaning, maintenance or repair activity involving a dangerous component (e.g. replacement of a damaged power cable, repair of the burner) must be done by the manufacturer, its after-sales service or a qualified technician in order to avoid risks.

• Any maintenance, replace or repair activity involving a dangerous component must be done by the manufacturer, its after-sales service or a qualified technician in order to avoid risks. A list of spare parts can be obtained from the manufacturer.

• The heater must only be used when an adequate air exchange rate can be guaranteed. Install the device following all local regulations, included those with respect to technical standards and the regulations concerning the prevention of accidents and fires.

• This appliance is only destined for following countries: Belgium (BE), Spain (ES), France (FR), Great Britain (GB), Ireland (IE), Portugal (PT).FT5130

• The appliance shall not be used in basements or below ground level.

• Not for domestic use.

• Do not position the heater near flammable materials. The following minimum distances should be respected: 100 cm from sides, 150 cm from front or 200 cm above the heater.

Number of radiant continuously in use Well-ventilated area size Ventilation

Low level High level

• Refer to the Velleman

Service and Quality Warranty on the last pages of this manual.

• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

• Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product.

• Keep this manual for future reference.

1. Make sure all components are standing safely.

2. Use a clamping screw to fix the holder on the bottle.

3. Screw the pressure controller and the gas hose on the valve of the gas cylinder.

4. Use the butterfly nut and the chrysanthemum gasket to put the heater to the required

position. Fix it on the stand.

5. Screw the other end of the gas hose to the safety valve. Make sure all the screws are tight.FT5130

V. 06 – 28/03/2022 5 ©Velleman Group nv

4.2 Connection to the Gas Cylinder

Keep the gas cylinder and heater away from any open flames.

Before connecting the appliance, check the installation regulations in force in the country where the appliance is to be used.

1. Place the heater element on top of the gas cylinder.

2. Connect the gas regulator to the gas cylinder. If the regulator is not supplied, please

contact your gas dealer for more information on the correct type for the gas cylinder being used. Compliant gas regulator: G30 at 28-30 mbar, G31 at 37 mbar, which must comply with regulation EN 16129:2013 or EN 12864:2001+A1:2003+A2:2009.

To avoid twisting the hose please connect the hose with the regulator and heater carefully. Make sure the length of the hose is between 50 cm and 2 m, PVC or rubber type, which must comply with EN 16436-1:2014+A3:2020.

3. Turn open the regulator.

Before putting the device into operation, check for gas leaks at the screwcaps using a detection spray or soapy water. Retighten them if necessary.

4. Test for gas leaks.

Testing must be carried out in a well-ventilated area, free from naked flames and any other sources of ignition. With the regulator connected to the cylinder turn on the regulator control. Brush all hose connections, pipe connections to the valve and gas cylinder valve with a 50:50 solution of detergent and water. A stream of bubbles forming indicates a leak. If a leak is found turn off at the regulator and disconnect the regulator from the bottle and remove the gas cylinder outdoors or to a well-ventilated area. Contact your gas supplier for assistance. Stop using the heater.

5. After leak testing is satisfactory, close the back of the heater. It may be necessary to move

the heater slightly to allow the regulator and hose to fit in the back without kinking them.

6. Regularly check the hose, regulator and cylinder for leaks. If necessary, replace the hose.

7. Install the cylinder in a proper and safe place.

4.3 What to Do if You Smell Gas

1. Do not touch any electric switch nor use any phone in the building. Do not try to switch on

2. Immediately call your gas supplier from a neighbour’s phone and follow the gas supplier’s

instructions. If you cannot reach your gas supplier, call the fire department.

3. Push in or turn off the gas control using only your hand and never use tools if the control

cannot be pushed in. Excessive force or use of tools may result in fire or an explosion. Contact a qualified service technician.

4. Do not use this appliance if any part of it has been under water. Immediately contact a

qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.FT5130

Never aim the heater at the cylinder. The hose must always trail at the rear of the heater. Never separate a switched-on heater from the gas cylinder.

start/position 1 (high) position 2 (low)

1. Make sure the heater has been assembled correctly.

2. Open the regulator to feed the gas.

3. Turn the control knob to position 1 and hold pressed. Ignite the pilot light with a match.

Keep pressing the control knob for another 10 seconds.

4. Turn the control knob to position 2 to adjust the flame.

5. To turn off the heater, interrupt the gas feeding by closing the regulator. Once the flame

has died out, turn the control knob back to position 1.

4.5 Disconnection of the Gas Cylinder

1. Switch off the heater by closing the cylinder valve. Let the heater cool down for 30

2. Disconnect the regulator form the cylinder.

3. Loose the butterfly screw by turning it in an anticlockwise direction and take the heater

element from the cylinder.

4.6 Changing a Gas Cylinder

Only replace the gas cylinder in a non-flammable and non-smoking environment.

1. Close the valve of the gas cylinder.

2. Unscrew the regulator from the valve of the cylinder. Remove the device. Take the empty

cylinder away from the heater.

3. Make sure the sealing of the pressure controller is still place.

4. Install the heater onto a new gas cylinder. To do so, follow the instructions described

1. Disconnect the heater from the cylinder. Refer to the instructions described above.

2. Store the cylinder in a well-ventilated area, preferably in an outhouse, away from any

3. Store the heater in its original package and keep in a dry and dust-free environment.FT5130

V. 06 – 28/03/2022 7 ©Velleman Group nv

5. Care and Maintenance

• Have the heater checked by a qualified authorized technician once a year.

• Periodically check that the gas hose is intact. If it is expired, have it replaced. Only use a gas hose of the correct length.

• Clean the heater using a soft and dry cloth. Avoid using aggressive, abrasive or inflammable products.

For more information and advice on spare parts, service materials, please contact:

B-9890 Gavere, Belgium

6. Service Instructions Intended for the Technician

• Any maintenance, replace or repair activity involving a dangerous component must be done by the manufacturer, its after-sales service or a qualified technician in order to avoid risks. A list of spare parts can be obtained from the manufacturer.

• Warning: Use only original replacement parts. This heater must use design-specific parts. Do not substitute or use generic parts. Improper replacement parts could cause serious or fatal injuries. This will also protect your warranty coverage for parts replaced under warranty.

• The technician must read this user manual prior to start replacement, repair or maintenance activities on the heater. Please contact the manufacturer if technical support, information on spare parts or other information about this heater is needed.

• Never operate the heater in a non-authorized manner.

• Maintaining, replacing and repairing parts of the heater does not require special tools. Always check for gas leaks in the circuit or at the connections, and make sure the pressure is correct after and before each replacement or reparation.

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.FT5130

B-9890 Gavere, Belgium

B-9890 Gavere, Belgium

A Velleman Group nv detém os direitos de autor deste manual do utilizador. Todos os direitos mundiais reservados. Nenhuma parte deste manual pode ser copiada, reproduzida, traduzida ou resumida por qualquer eletrónica, ou de outra forma, sem prévio consentimento por parte da detentora dos direitos de autor.Velleman® Service and Quality Warranty Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries. All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions). General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion. You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty: - all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits; - consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non- rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list); - flaws resulting from fire, water damage, lightning, accident, natural disaster, etc.…; - flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer’s instructions; - damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally); - damage resulting from an inappropriate packing and shipping of the article; - all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

• The above conditions are without prejudice to all commercial warranties. The above enumeration is subject to modification according to the article (see article’s manual).
