TC78070N - Heating Perel - Free user manual and instructions

Product type	Fan heater
Brand	Perel
Model	TC78070N
Nominal heat output	3.30 kW
Minimum heat output	1.65 kW
Maximum continuous heat output	3.30 kW
Power supply	230 V ~, 50 Hz
Air flow	288 m³/h
Temperature control	Mechanical thermostat
Overheat protection	Yes, with automatic shut-off and manual reset
Cooling fan	Continues after shutdown until cool
Safety distance to furniture	0.5 m minimum
Recommended use	Well-insulated rooms or occasional use
Cleaning	Damp cloth, no chemical agents
Maintenance	Unplug and let cool before cleaning
Installation	Vertical, stable flat surface
Protection rating	Do not immerse, protect from splashes
Warranty	Velleman warranty (see manual)
Repairability	Cable replaceable by qualified professional
Dimensions (approx.)	Not specified in the manual
Weight (approx.)	Not specified in the manual
Number of power settings	At least 2 (min 1.65 kW, max 3.30 kW)

Frequently Asked Questions - TC78070N Perel

What is the power of the Perel TC78070N heater?

This heater has a nominal heat output of 3.30 kW and a minimum output of 1.65 kW.

How to adjust the temperature?

Turn the thermostat knob fully clockwise for max power, then adjust by turning left until the unit switches off. The temperature is then maintained automatically.

What should I do if the unit turns off by itself?

This is likely overheat protection. Unplug, let it cool, then manually reset the device before plugging back in.

Can I leave the heater on overnight?

It is not recommended to leave the unit unattended. Do not use with a timer or programmer to avoid fire risk.

How to clean the TC78070N?

Turn off, unplug and let cool. Clean with a damp cloth without aggressive products. Never immerse.

Is it safe to use in a bathroom?

No, do not use near a bathtub, shower or swimming pool.

What distance should I keep around the device?

Install it at least 0.5 m from furniture and other objects. Never cover the device.

Does the heater emit odor or smoke on first use?

This is normal: protective substances on the heating element evaporate. It disappears after the first cycles.

Can I use an extension cord?

No, do not use a multi-plug or extension cord to avoid overload and fire. Plug directly into a wall socket.

Where can I find spare parts or get repairs?

Contact your retailer or an approved technical service. The damaged cable must be replaced by a qualified professional.

USER MANUAL TC78070N Perel

This product is only suitable for well-insulated spaces or occasional use.

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Warning: In order to avoid overheating, do not cover the heater.

CAUTION – Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• Children of less than 3 years should be kept away unless continuously supervised.
  Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

- Do not use the heater with a programmer, timer, separate remote-control system or any other device that switches the

heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

- If the external flexible cable or cord of this appliance is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

- Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. Do not install this appliance immediately below a socket.

- Some parts of this product can become very hot and cause burns. Do not touch the appliance when in use or shortly after use. Do not rest the power cable on the appliance when hot.

- This appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- The use of an extension lead or multi-plug adaptor is not advised when connecting this appliance to the mains. Connection through these devices could lead to a risk of overloading, overheating and even fire at the extension lead or adaptor due to inadequate connection quality.

- Install the appliance in a vertical position and at a distance of minimum 0.5 m away from furniture and other objects. Never operate the appliance near inflammable or explosive materials or gases.

- Do not use the appliance in rooms when these are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

- The first time you use the appliance, a little smoke and smell due to the protective substances applied to the heating element before transport may be given off. This is normal and should not be considered a fault.

3. General Guidelines

- Refer to the Velleman ® Service and Quality Warranty on the last pages of this manual.

- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

- Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.

- Keep this manual for future reference.

4. Installation

Install vertically on a flat, dry, stable and non-slippery surface.

5. Operation

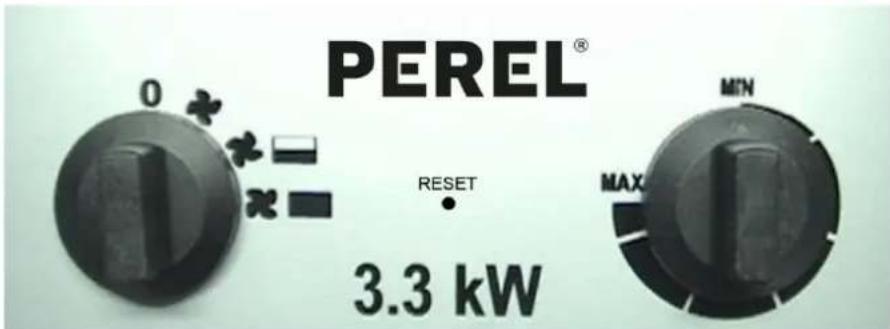

5.1 The Thermostat

• Insert the power plug into the mains.
  • Turn the thermostat knob fully to the right.
• Switch on the heater by selecting the power.
• When the room has reached the desired temperature, turn the thermostat knob to the left until the heater switches off. The temperature is now set and the heater will automatically switch on/off to keep the temperature at a constant level.
• Switch off and disconnect the heater after use.

When the appliance is switched off (with supply cord in socket), the fan will keep blowing until the appliance is cooled down.

5.2 Overheating Protection

This heater is equipped with an overheating protection, which will automatically switch off the heater in case of overheating. If this occurs, please unplug from the mains after the appliance has cooled down. Then manually reset the overheat protector before re-connecting and switching on again.

To avoid overheating, check that the appliance is sufficiently ventilated and that the air intakes are unobstructed. Please contact your local dealer if the heater keeps switching off.

6. Cleaning and Maintenance

• Before cleaning, switch of the appliance, disconnect from the mains and allow to cool completely.
• Never immerse the appliance in water or any other liquid. Protect it from splashes and spraying liquid.
• Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

7. Technical Specifications

power supply 230 V\~, 50 Hz

power consumption....3300 W

IP rating....IP24

air output 288 m³/h

Information requirements for electric local space heaters

Model identifier(s): TC78070N
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat output/room temperature control (select one)
Nominal heat output	Pnom 3,30 kW				single stage heat output and no room temperature control	no
Minimum heat output (indicative)	Pmin 1,65 kW				two or more manual stages, no room temperature control	no
Maximum continuous heat output	Pmax,c	3,30 kW			with mechanic thermostat room temperature control	yes
Power consumption					with electronic room temperature control	no
In off mode	Po	0 W			electronic room temperature control plus day timer	no
In standby mode	Psm	0 W			electronic room temperature control plus week timer	no
In idle mode	Pidle	0	W		Other control options (multiple selections possible)
In network standby P	nsm	0 W			room temperature control, with presence detection	no
Standby mode with display information or status			no		room temperature control, with open window detection	no
Seasonal space heating energy efficiency in active mode	η5,on	85	%		with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
					self-learning functionality	no
					control accuracy	no
Contact details	Velleman Group nvLegen Heirweg, 33 9890 Gavere, Belgium

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
