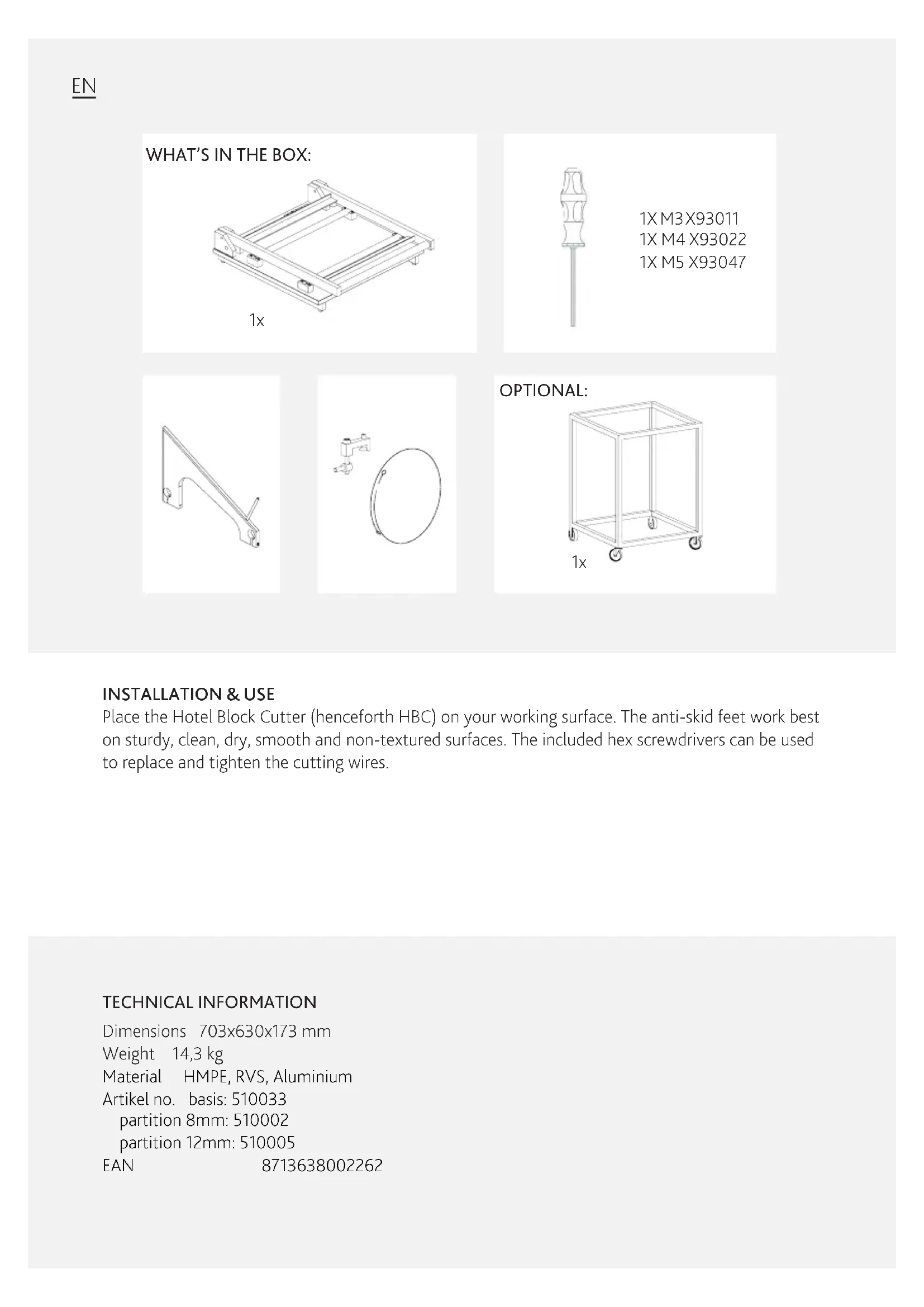

USER MANUAL Hotel Block Cutter Boska

Place the Hotel Block Cutter (henceforth HBC) on your working surface. The anti-skid feet work best on sturdy, clean, dry, smooth and non-textured surfaces. The included hex screwdrivers can be used to replace and tighten the cutting wires.

TECHNICAL INFORMATION

Dimensions 703x630x173 mm

Weight 14,3 kg

Material HMPE, RVS, Aluminium

Article no. basis: 510033

partition 8mm:510002

partition 12mm:510005

EAN

8713638002262

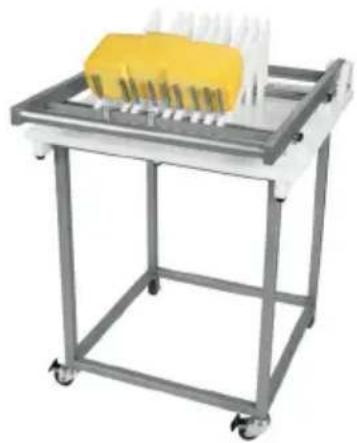

HOW TO CUT CHEESE

The Cheese Blocker Pro is suitable for cutting all semi-hard cheeses. The rind of the cheese needs to be removed before use. The CBP is also suitable for cutting Tofu, butter, or products with a similar consistency.

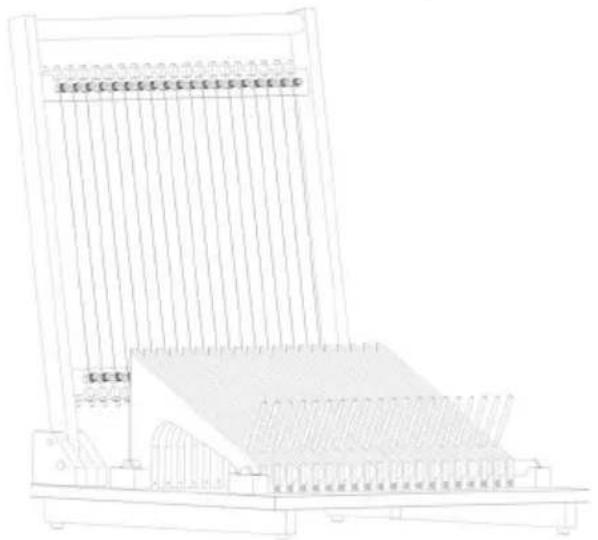

1. Place the block of cheese on the partitions.

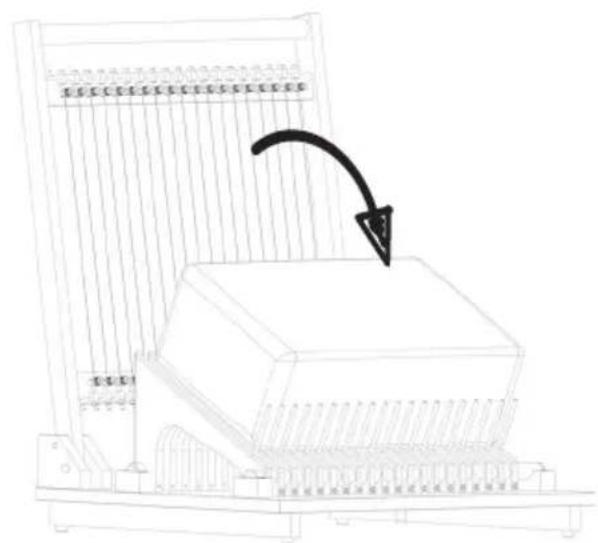

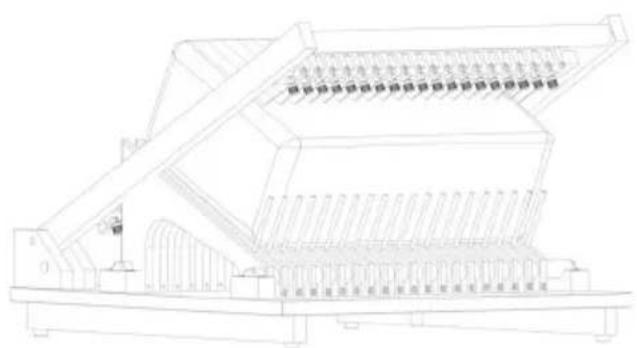

1. Pull down the handle once. You now have blocks of cheese.

PLACING OR REPLACING PARTITIONS

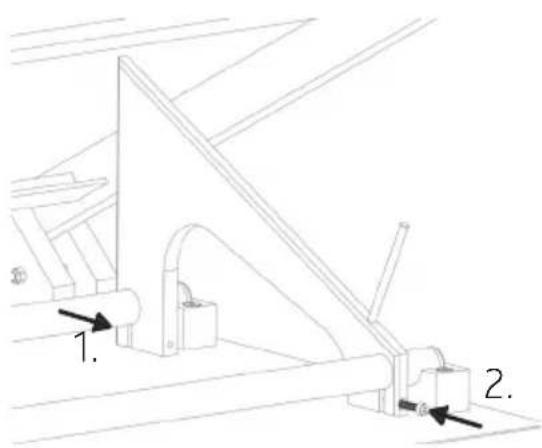

• Place the partitions on the tubes, and slide them to the desired position.
• In case you want to relocate the partitions, first loosen the bolts on the front and back of the partition.
• Use the Hex screwdriver (M4) to fasten the bolts like shown on the right.
• Do this for both sides of the partition.
• Once all partitions are in position and fastened, the tubes and partitions can be placed on the base.

INSTALLING THE CUTTING WIRE

1. Using the Hex (M5) screwdriver, loosen the screw in the tensioner, so the pawn is in the lowest position.

2. Place both tighteners on the frame as shown. Use the ruler to align the wire. Then place the wire over both pawns.

EN

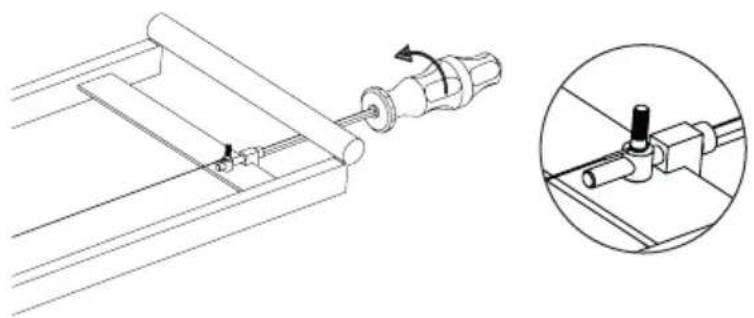

1. Use the Hex screwdriver (M5) to fasten the screw. By doing so, tension is restored.

2. Be aware! The wire should be tight, but when pressed against with a finer, it should bend slightly.

REPLACING THE CUTTING WIRE

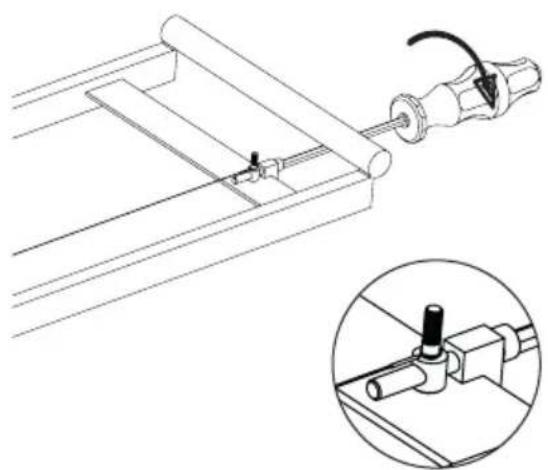

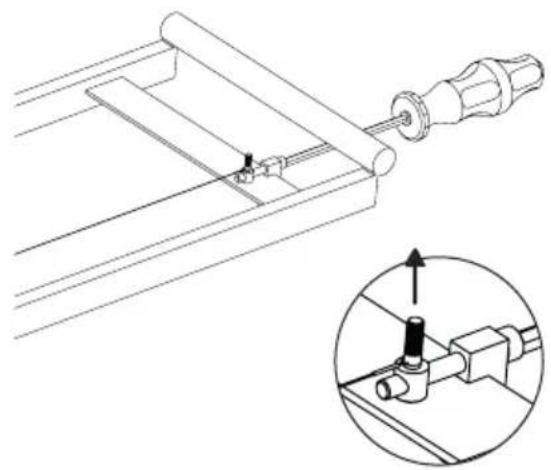

1. Using a hex screwdriver (M5), loosen the screw, like shown below.

2. This will relief the tension on the wire, allowing you to remove the wire.

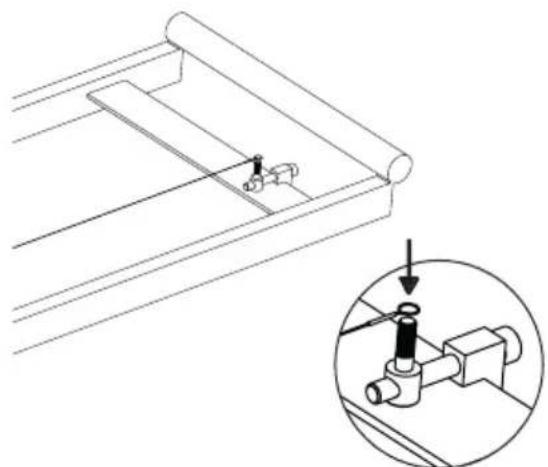

1. Place the new wire, then fasten the screw using the Hex screwdriver, until the tension is restored.

2. Be aware! The wire should be tight, but when pressed against with a finer, it should bend slightly.

3. Be aware! Make sure the wires are placed against the head of the pawn, to all wires are aligned.

EDITIONS

The partitions are available in thicknesses 8mm (X62810) and 12mm (X62812). There are also partitions available with cutting guide. You can place your block of cheese next to the guide, so it doesn't move during cutting. And your cutting result will become more consistent across blocks.

CLEANING

• Clean the HBC daily after final use.
• The HBC needs to be cleaned between switching to a different type of cheese to prevent cross-contamination.
• Use hot water, a soft brush and a neutral cleaning detergent, such as green soap or dish soap, to clean the HBC. It is also possible to clean the CBP using a high-pressure cleaner.
• Do not use water hotter than 70^ (160^) to prevent damage to the plastic parts.
• Never use hard brushes, scratching materials, soda- chlorine- disinfectant or aggressive cleaning detergents for cleaning.
• Flush the HBC with water after cleaning. Dry the machine thoroughly to prevent deterioration of parts due to dust and moisture.
• The partitions are removable and easily cleanable separately.

WARNING

• The CBP is used exclusively for cutting semi-hard cheeses without rind.
• Using cheeses with rind can cause breakage of the cutting wire, or severely reduce their lifespan.
• Using harder cheeses can cause breakage of the cutting wire, or severely reduce their lifespan.
• It is highly recommended to cut less than 25 slices at once. Be aware that as the number of pieces increases, the resistance becomes higher and a breakage will occur faster.

INHOUD:

1XM3X93011

1X M4 X93022

1X M5 X93047

OPTIONEL:

INSTALLATIE & GEBRUIK

Material HMPE, RVS, Aluminium

Article nr. basis: 510033

schot 8mm:510002

schat 12mm:510005

EAN

8713638002262

HOE SNIJD JE DE KAAS

Material HMPE, RVS, Aluminium

Article-lr. basis: 510033

schot 8mm:510002

schot 12mm:510005

EAN 8713638002262

Article no. basis: 510033

Séparations 8mm: 510002

Séparations 12mm: 510005

EAN 8713638002262

COMMENT DÉCOUPER LE FROMAGE

PLACER OU DEPLACER DES SEPARATIONS

Use the Cheese Blocker Pro with the following accessories;

510031 cutting wires for Hotel Block Cutter, set of 10 pieces

Manufactured from hardened, foodsafe spring steel of the highest quality.

510008 cutting wires for Hotel Block Cutter, set of 10 pieces

Manufactured from hardened, foodsafe spring steel of the highest quality. Extra thick for harder cheeses.

904733 Gastronorm collection bin

Gastronorm 1/1, 100mm deep. Made of foodsafe stainless steel.

Visit www.boska.com for more cheese cutting solutions.

Dutch cheese knife XL, 430mm

Cheese dicing machine

Cheese Blocker Pro
