Cheese Commander Pro+ - Slicer Boska - Free user manual and instructions

Product type	Cheese slicer
Brand	Boska
Model	Cheese Commander Pro+
Dimensions (L × W × H)	400 × 305 × 111 mm
Weight	1.44 kg
Materials	ABS, PP, PA plastic, silicone, stainless steel, aluminum
Compatible cheese types	Soft to semi-hard cheeses (cheddar, etc.)
Attachment	Non-slip suction cups (3 possible mounting points)
Cleaning	Hot water (< 70 °C), soft brush, mild detergent; dishwasher safe (< 70 °C)
Safety instructions	Do not use for hard cheeses; do not pull the appliance by the counter
Spare parts available	Replacement wires (pack of 6), handle, brake pads, pulley, sheath, carriage, wire closure, spring, suction cup, screws
Repairability	Spare parts available; wire replacement possible as per instructions
Warranty	Check the website www.en.boska.com/warranty

Frequently Asked Questions - Cheese Commander Pro+ Boska

How to install the Cheese Commander Pro+ on the counter?

Place the appliance on a clean, dry, smooth surface. The suction cups adhere better on sturdy surfaces. Press firmly to secure. Make sure the handle is facing you.

What types of cheese can be cut with this appliance?

The Cheese Commander Pro+ is suitable for soft to semi-hard cheeses like cheddar. For cheeses with a rind, first make a cut in the rind. Do not use it for very hard cheeses.

How to clean the Cheese Commander Pro+?

Use hot water (max 70 °C), a soft brush, and a mild detergent. You can also put it in the dishwasher as long as the temperature does not exceed 70 °C. Avoid hard brushes and abrasive products.

Can you cut hard cheese?

No, this appliance is designed only for soft to semi-hard cheeses. Using it on harder cheeses may damage the wires and reduce their lifespan.

How to replace the cutting wire?

1. Unscrew the handle. 2. Remove the wire through the slot. 3. Remove the ball from the holder. 4. Place the ball of the new wire into the holder. 5. Insert the wire through the slot. 6. Screw on the handle.

Where can I buy replacement wires?

Replacement wires are available under reference 553000 (pack of 6). Check the Boska website or your retailer.

The counter is too small, how to attach the appliance?

You can move the suction cups to one of the other mounting points on the appliance. Always mount 2 feet per side to ensure a solid attachment.

What are the dimensions and weight?

Dimensions: 400 × 305 × 111 mm. Weight: 1.44 kg.

What is the warranty?

Check the warranty conditions for professional tools on the website www.en.boska.com/warranty.

Can the appliance go in the dishwasher?

Yes, as long as the water temperature does not exceed 70 °C. Dry the appliance well after washing.

USER MANUAL Cheese Commander Pro+ Boska

White and red cheese cubes on a scale, one with a yellow block placed on top (no text or symbols visible)

Cheese Commander Pro+

EN, NL, DE, FR, ES

PROFESSIONAL

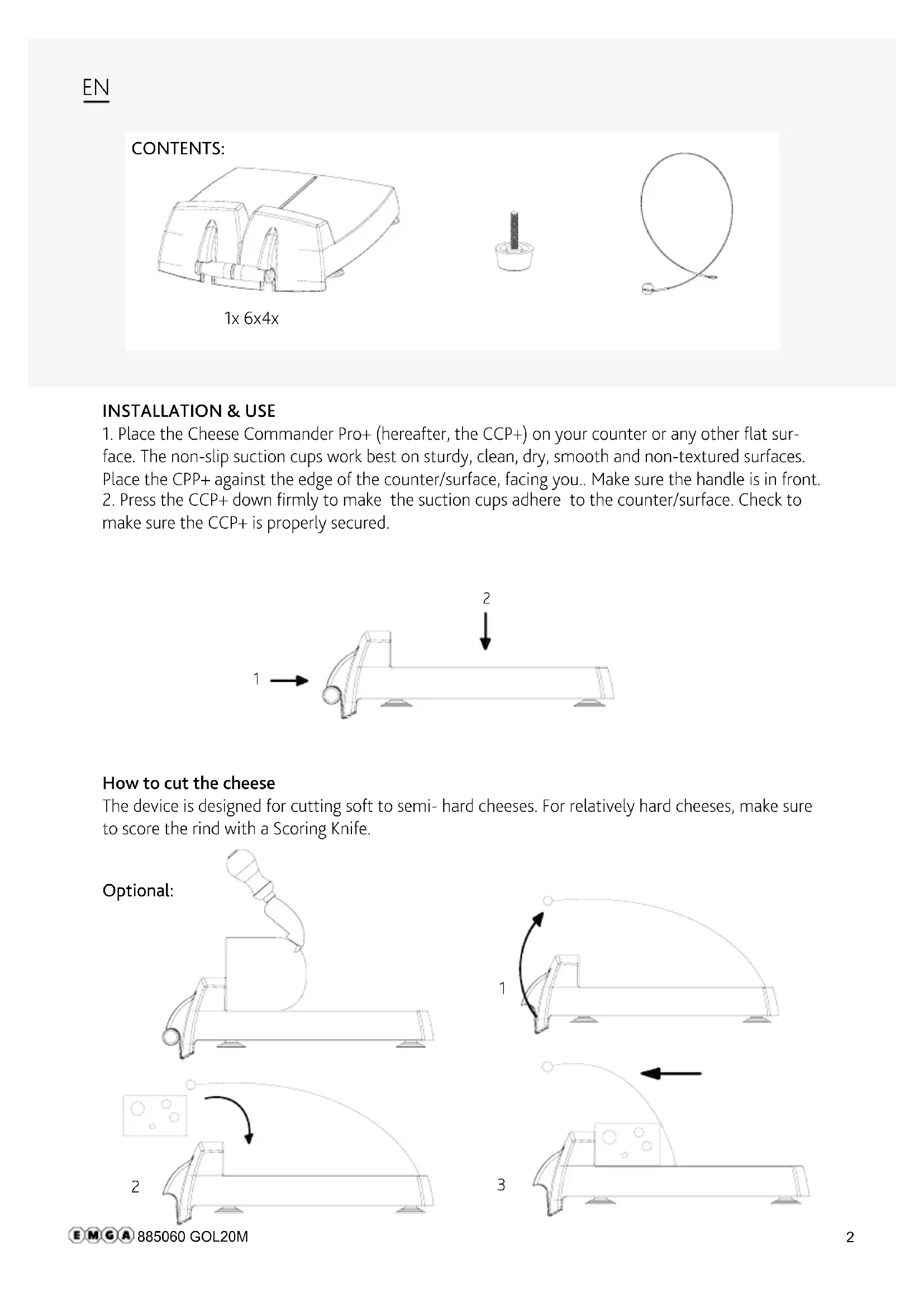

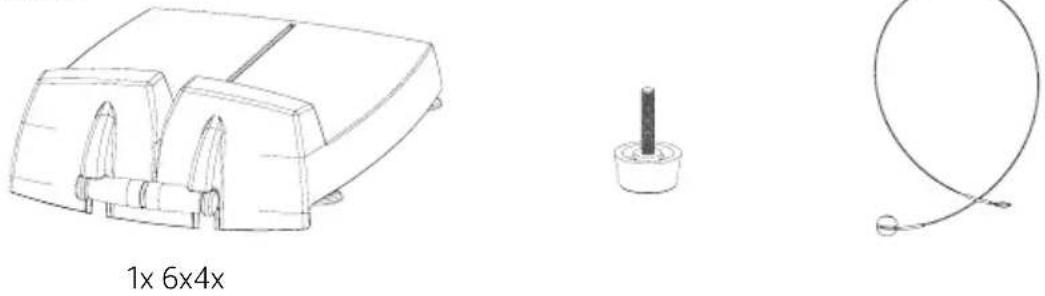

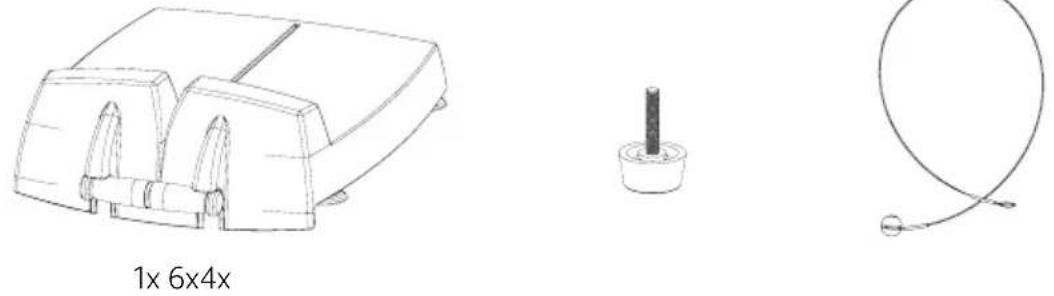

CONTENTS:

Technical line drawings of mechanical components including a housing, a cylindrical component, and a curved cable (no text or symbols)

INSTALLATION & USE

1. Place the Cheese Commander Pro+ (hereafter, the CCP+) on your counter or any other flat surface. The non-slip suction cups work best on sturdy, clean, dry, smooth and non-textured surfaces. Place the CPP+ against the edge of the counter/surface, facing you.. Make sure the handle is in front.
2. Press the CCP+ down firmly to make the suction cups adhere to the counter/surface. Check to make sure the CCP+ is properly secured.

Diagram of a mechanical component with labeled parts 1 and 2, showing no text or symbols beyond labels

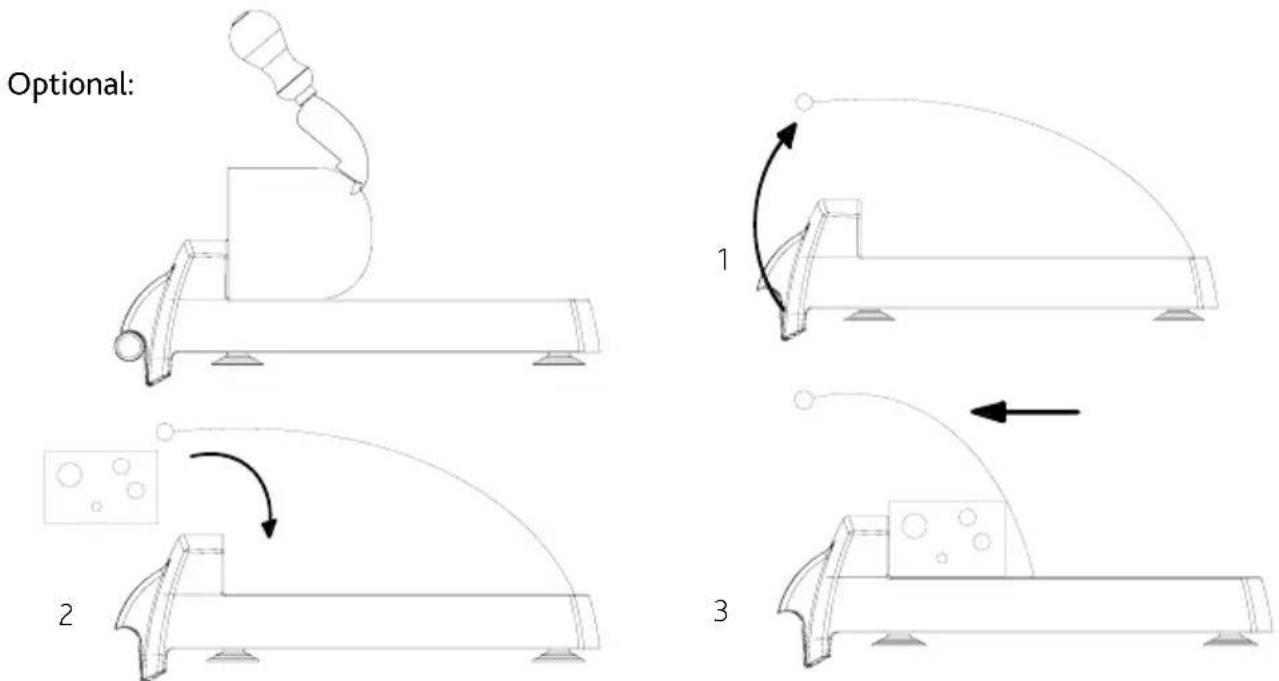

How to cut the cheese

The device is designed for cutting soft to semi-hard cheeses. For relatively hard cheeses, make sure to score the rind with a Scoring Knife.

Optional: 1 2 3

EN

CLEANING

• Clean the CCP+ every day after the last use, and between cheese types to prevent cross-contamination.
• Use hot water, a soft brush and a neutral detergent, such as dish soap, to clean the CCP+.
• Hot water up to 158^ can be used, higher temperatures may cause damage to the plastic parts of the CCP+
• Never clean with a hard-bristle brush, abrasive materials, baking soda, disinfecting or corrosive cleaning agents.
• Rinse the CCP+ with clean water. Dry the machine thoroughly.
  • The CCP+ is dishwasher safe up to 158 °F.

WARNING

• The CCP+ is only intended for cutting soft to semi-hard cheeses.
• Using the CCP+ for harder cheeses can cause a breaking of the wires or a shortening of the lifespan of the wires.
• As an additional safety measure to make sure the CCP+ does not come off the counter top, please always position the hand not used to cut the cheese on the CCP+

TECHNICAL INFORMATION

Dimensions 400x305x111mm / 15.7x12x4.4 inch

Weight 1.44kg / 3.17 lbs

Material ABS, PP and PA Plastic, Silicone, Stainless Steel, Aluminum

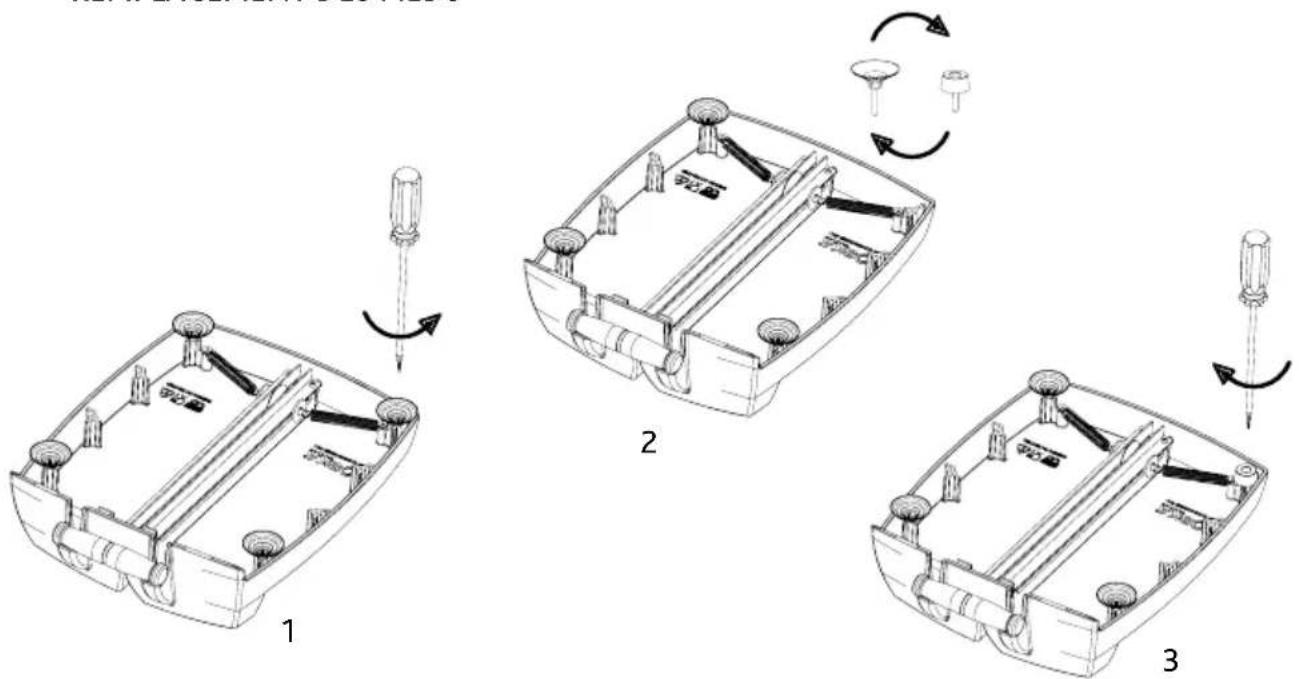

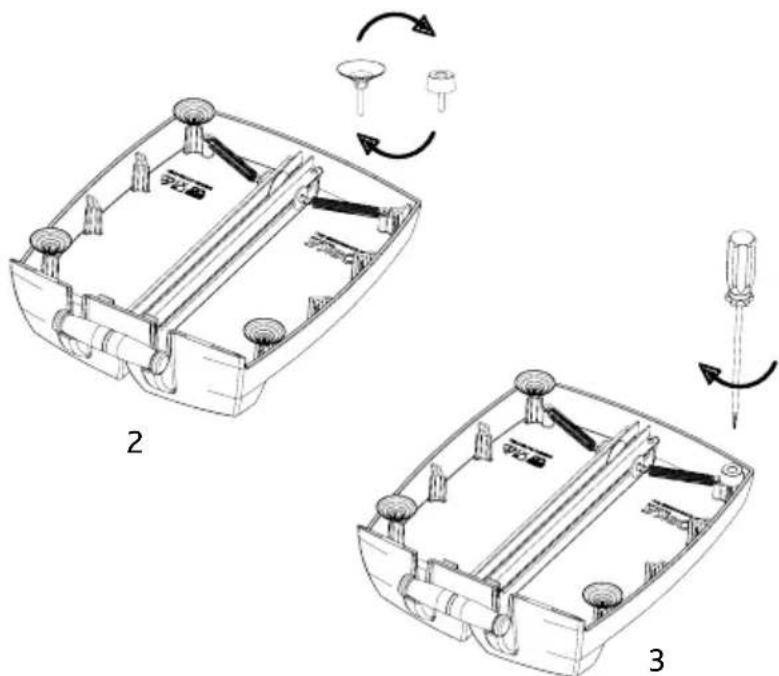

REPLACING THE SUCTION CUPS

EN

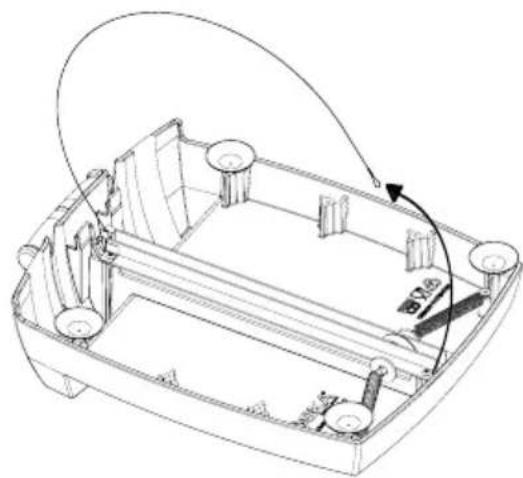

REPLACING THE CUTTING WIRE

1 Loosen the handle

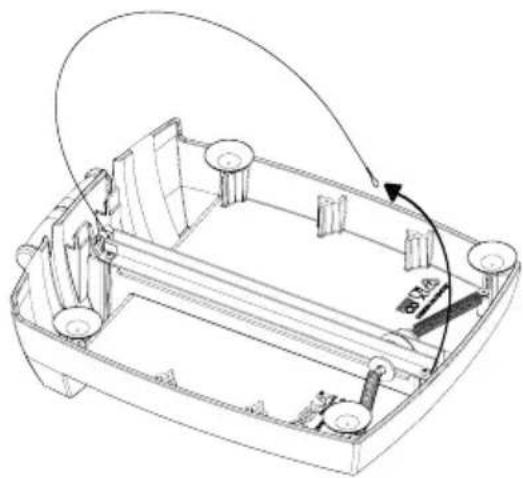

2 Thread the wire back through the slot

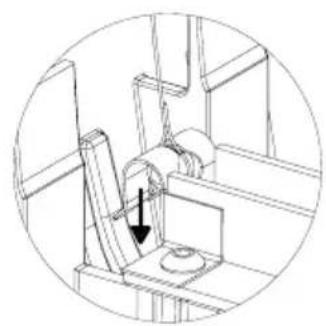

3 Pull the ball out of the holder
4 Place the ball of the new wire in the holder

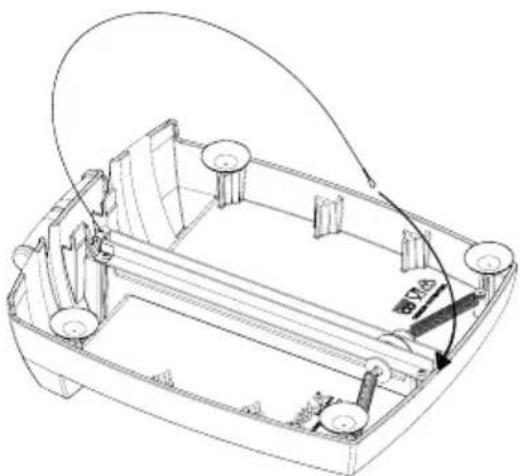

5 Thread the wire through the slot
6 Tighten by hand

Simple line drawing of a mechanical assembly with two cylindrical components and a rod, no text or symbols present.

1

Technical line drawing of a mechanical housing or enclosure with internal components and a curved arrow indicating motion (no text or symbols)

2

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

3

Technical line drawing of a mechanical assembly with no visible text or symbols

4

Technical line drawing of a mechanical assembly with no visible text or symbols

5

Simple line drawing of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or symbols)

6

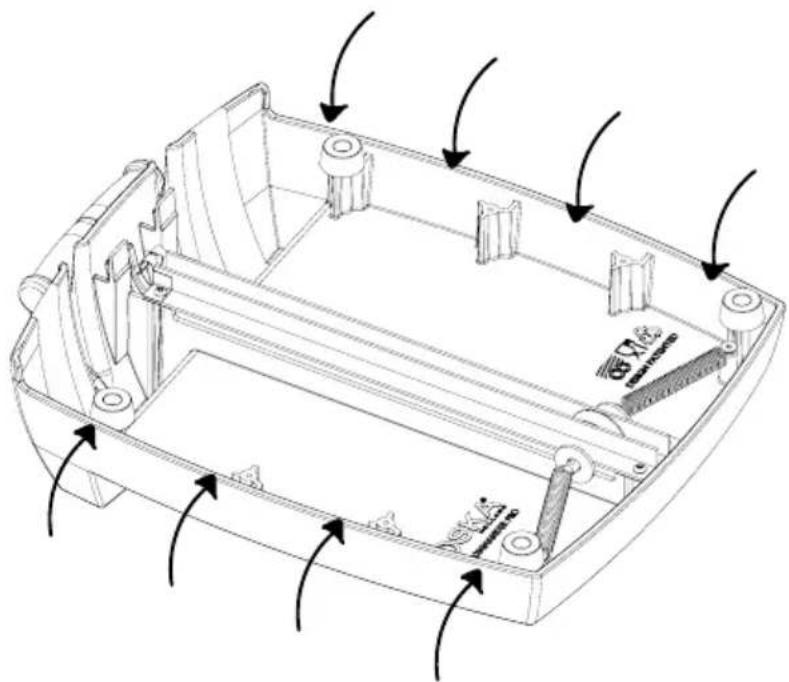

MOVING THE SUCTION CUPS

Is your counter too narrow for the CCP+? If so, move the suction cups to one of the other mounting points so that the CCP+ is always adhered firmly to the counter. This makes the CCP+ suitable for every work surface. Make sure you always mount 2 suction cups per side; otherwise the CCP+ may accidentally get pulled off the counter while working.

Technical line drawing of a mechanical housing component with directional arrows indicating movement or assembly (no text or symbols present)

Warranty

See the warranty conditions for professional cheese tools at www.boska.com.

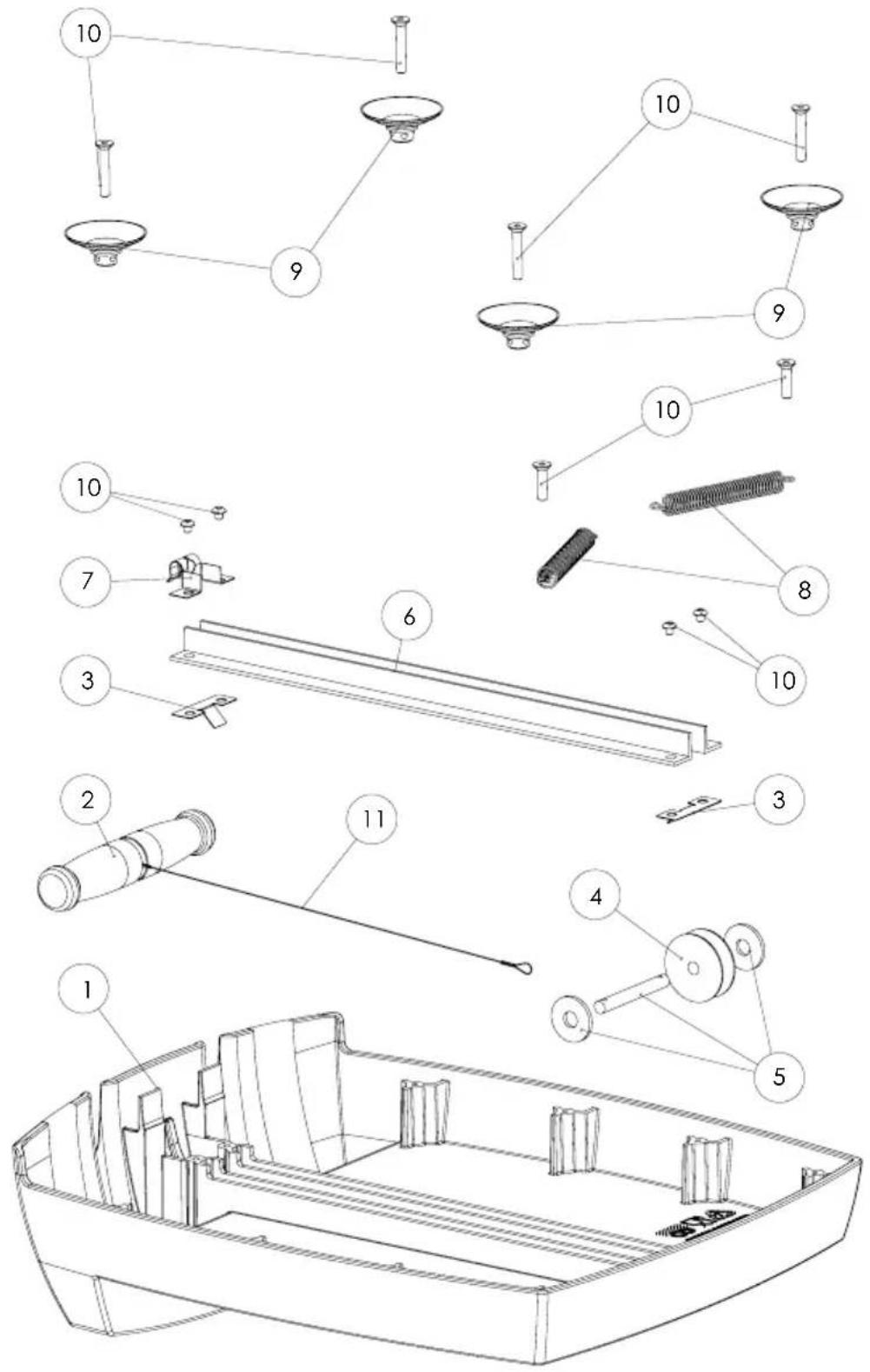

Technical diagram of a mechanical assembly with numbered components, including parts like rollers, springs, and a housing.

1. 550601 Cheese Commander Pro+
2. 553014 Handle
3. 553018 Brake pads
4. 553017 Pulley
5. 553020 Shaft
6. 553016 Spare carrier
7. 553015 Wire lock
8. 553011 Spring
9. 553012 Suction cup
10. X87526 DIN 7981 5X20
11. 553000 Spare wires: set of 6 wires

INHOUD:

Technical line drawing of a mechanical component with two protruding slots (no text or symbols)

1× 6×4×

Simple curved line drawing with a small circle at the bottom-left corner (no text or symbols)

INSTALLATIE & GEBRUIK

Simple line drawing of a mechanical device with labeled components (no text or symbols)

Line drawing of a treadmill with a curved handle and base, no text or symbols present

1

Simple line drawing of a curved ramp with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating motion or force direction (no text or symbols)

3

Simple line drawing of a mechanical device with an arrow indicating motion or force direction (no text or symbols)

NL

REINIGEN

Technical line drawing of a mechanical component with screwdriver and housing (no text or symbols)

Technical diagram showing three-step assembly of a mechanical component with labeled parts and directional arrows indicating motion.

NL

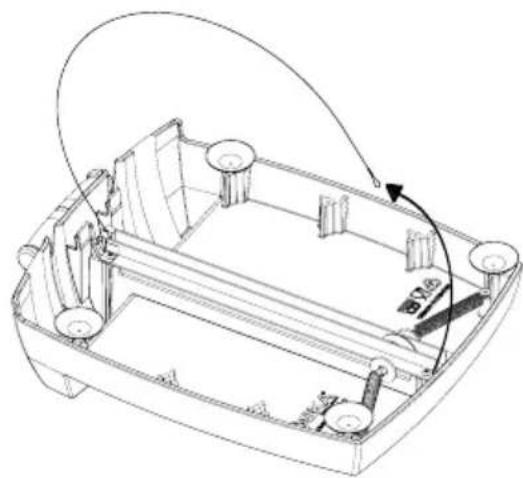

VERVANGEN VAN SNIJDRAAD

Simple line drawing of a mechanical device with rotating components and a rod (no text or symbols)

1

Technical line drawing of a mechanical housing or enclosure with internal components and a curved arrow indicating motion (no text or symbols)

2

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

3

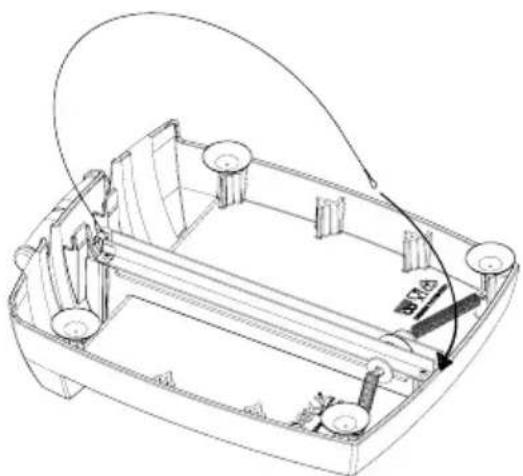

Technical line drawing of a mechanical assembly or lifting mechanism (no text or symbols)

4

Technical line drawing of a mechanical assembly with no visible text or symbols

5

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or symbols)

6

NL

VERPLAATSEN VOETJES

Technical line drawing of a mechanical housing component with directional arrows indicating movement or assembly (no text or symbols present)

Garantie

Technical diagram of a mechanical assembly with numbered components for identification

1. 550601 Cheese Commander Pro+
2. 553014 Handvat
3. 553018 Remblokjes
4. 553017 Katrol
5. 553020 Schacht
6. 553016 Reserve slede
7. 553015 Draad slot
8. 553011 Veer
9. 553012 Zuignap
10. X87526 DIN 7981 5X20
11. 553000 Reserve draden set à 6 stuks

INHALT:

Technical line drawings of mechanical components including a bracket, a cylindrical component, and a curved wire (no text or symbols)

INSTALLATION & GEBRAUCH

Technical line drawing of a mechanical component with labeled parts 1 and 2 (no text or symbols beyond labels)

Käse schneiden

Line drawing of a treadmill with a curved handle and base, no text or symbols present

1

Simple line drawing of a curved ramp with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating motion, no text or symbols present

3

Simple line drawing of a mechanical device with an arrow indicating motion or direction (no text or symbols)

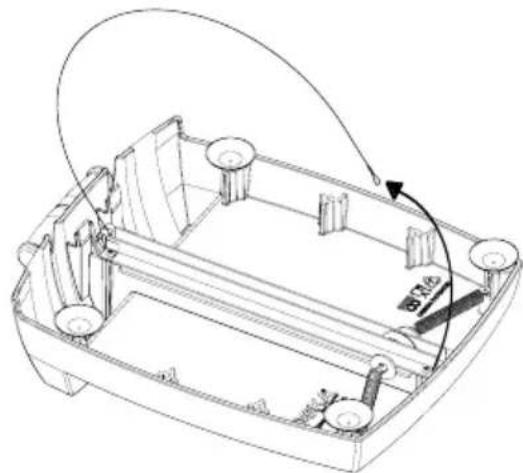

REINIGEN

Simple line drawing of a mechanical device with rotating components and a string (no text or symbols)

1

Technical line drawing of a mechanical housing or enclosure with internal components and a curved arrow indicating motion (no text or symbols)

2

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

3

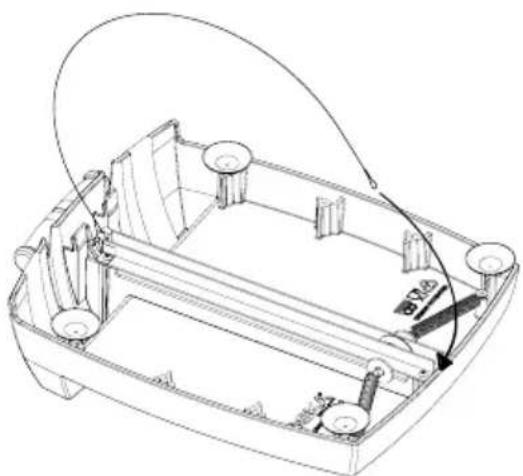

Technical line drawing of a mechanical assembly with no visible text or symbols

4

Technical line drawing of a mechanical housing with internal components and a curved wire (no text or symbols)

5

Diagram of a mechanical assembly with rotating components and a rod, no text or symbols present

6

FUSSPOSITION ÄNDERN

Technical line drawing of a 3D mechanical component with arrows indicating assembly or movement (no text or symbols present)

Garantie

Technical diagram of a mechanical assembly with numbered components for identification and assembly reference.

1. 550601 Cheese Commander Pro+

2. 553014 Griff

3. 553018 Bremsblöcke

4. 553017 Rolle

5. 553020 Schacht

6. 553016 Reserveschlitten

7. 553015 Drahtschloss

8. 553011 Feder

9. 553012 Saugnapf

10. X87526 DIN 7981 5 X 20

11. 553000 Reservedrahtsatz à 6 Stück

SOMMAIRE:

Technical line drawings of mechanical components including a housing, a pin, and a cable (no text or symbols)

INSTALLATION & UTILISATION

Technical line drawing of a mechanical component with labeled parts 1 and 2 (no text or symbols beyond labels)

Line drawing of a mechanical device with a handle and base, no text or symbols present

1

Simple line drawing of a curved ramp with an arrow indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating motion, no text or symbols present

3

Simple line drawing of a conveyor belt system with an arrow indicating direction (no text or symbols)

FR

NETTOYAGE

REPLACEMENT DES PIEDS

FR

REMPLACEMENT DU FIL À COUPER

Simple line drawing of a mechanical device with rotating components and a rod (no text or symbols)

1

Technical line drawing of a mechanical housing or enclosure with internal components and a curved arrow indicating motion (no text or symbols)

2

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

3

Technical line drawing of a mechanical assembly or lifting mechanism (no text or symbols)

4

Technical line drawing of a mechanical assembly with no visible text or symbols

5

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or symbols)

6

FR

DÉPLACEMENT DES PIEDS

Technical line drawing of a mechanical housing with directional arrows indicating movement or force (no text or symbols present)

Garantie

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

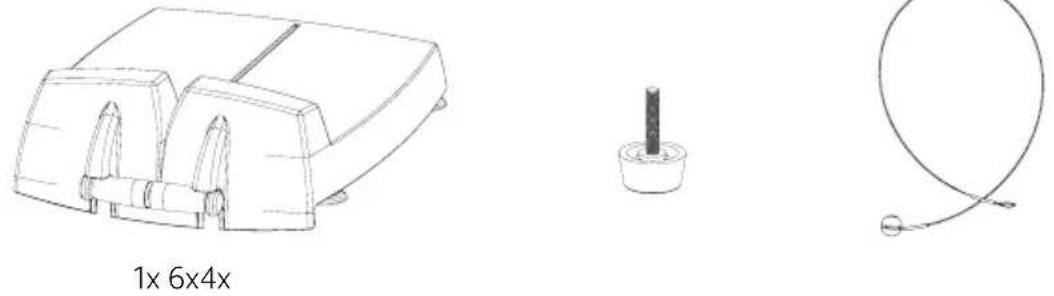

Technical line drawing of a mechanical component with two symmetrical slots and a central slot (no text or symbols)

1x 6x4x

Simple line drawing of a curved shape resembling a loop or ribbon, with no text or symbols present.

INSTALACIÓN Y USO

Simple line drawing of a mechanical component with labeled parts 1 and 2 (no text or symbols on the object itself)

Line drawing of a mechanical device with a curved handle and base, no text or symbols present

1

Simple line drawing of a curved ramp with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating motion, no text or symbols present

3

Simple line drawing of a mechanical device with an arrow indicating motion or direction (no text or symbols)

ES

LIMPIEZA

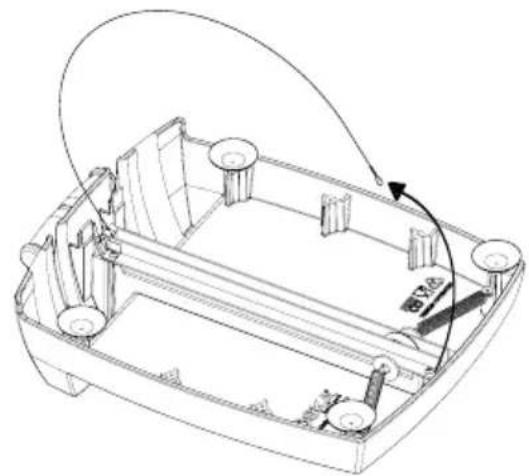

Simple line drawing of a mechanical device with two cylindrical components and an angled arm (no text or symbols)

1

Technical line drawing of a mechanical housing with internal components and a curved arrow indicating motion (no text or symbols)

2

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

3

Technical line drawing of a mechanical assembly or machine component (no text or symbols visible)

4

Technical line drawing of a mechanical housing or enclosure with internal components and a curved wire or cable (no text or symbols)

5

Diagram of a mechanical assembly with two cylindrical components and directional arrows indicating motion (no text or symbols)

6

ES

AJUSTE DE LAS PATAS

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols present)

Garantía

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

1. 550601 Cheese Commander Pro+
2. 553014 Asa
3. 553018 Topes
4. 553017 Polea
5. 553020 Vástago
6. 553016 Carro de repuesto
7. 553015 Cierre del alambre
8. 553011 Muelle
9. 553012 Ventosa

10. X87526 DIN 7981 5X20

11. 553000 Juego de alambres de repuesto de 6 unidades
