USER MANUAL Unika+ Boska

Three identical mechanical device holders with metallic and white bases, no visible text or symbols.

PRO

Unika +

EN, NL, DE, FR, ES

PROFESSIONAL

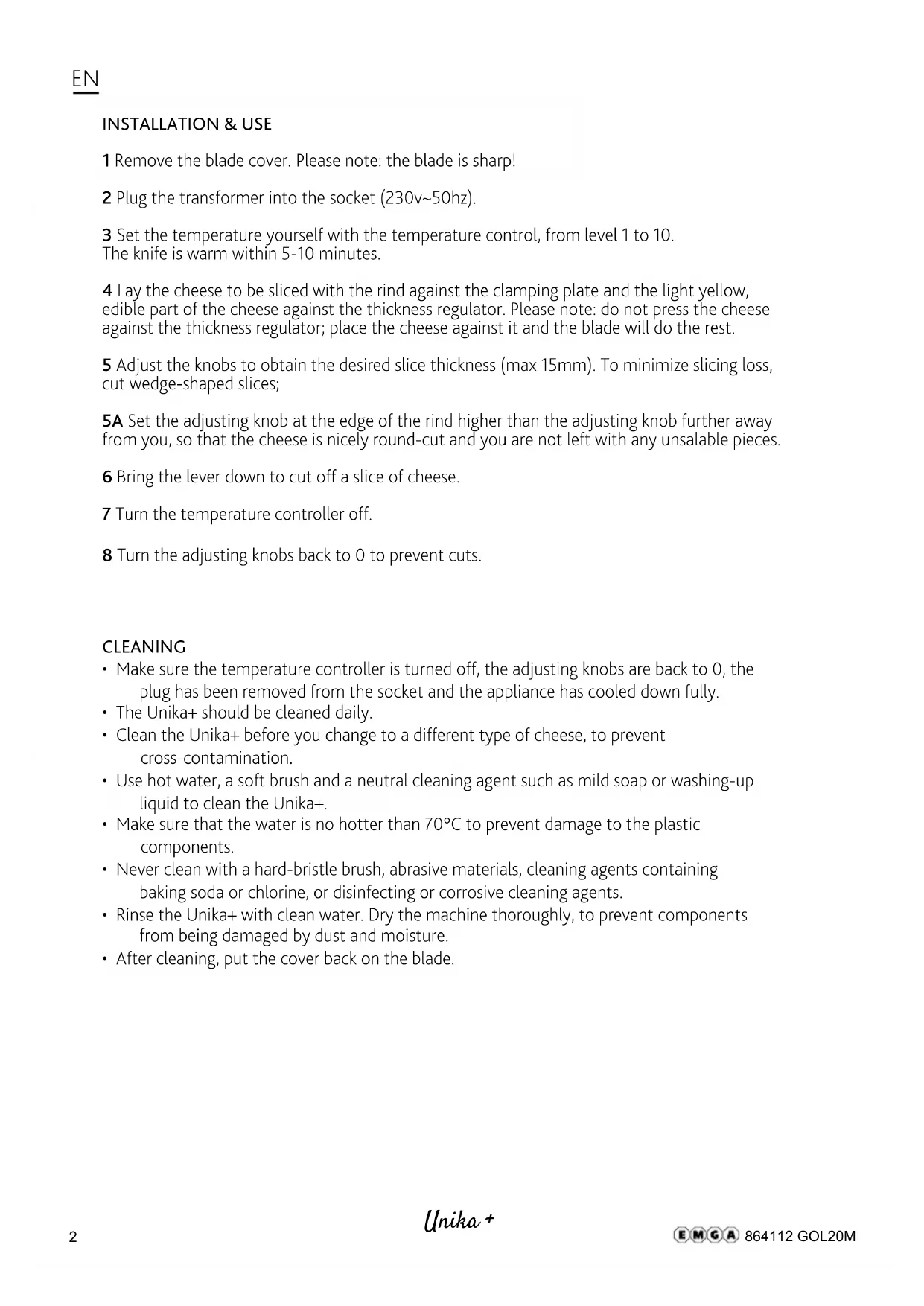

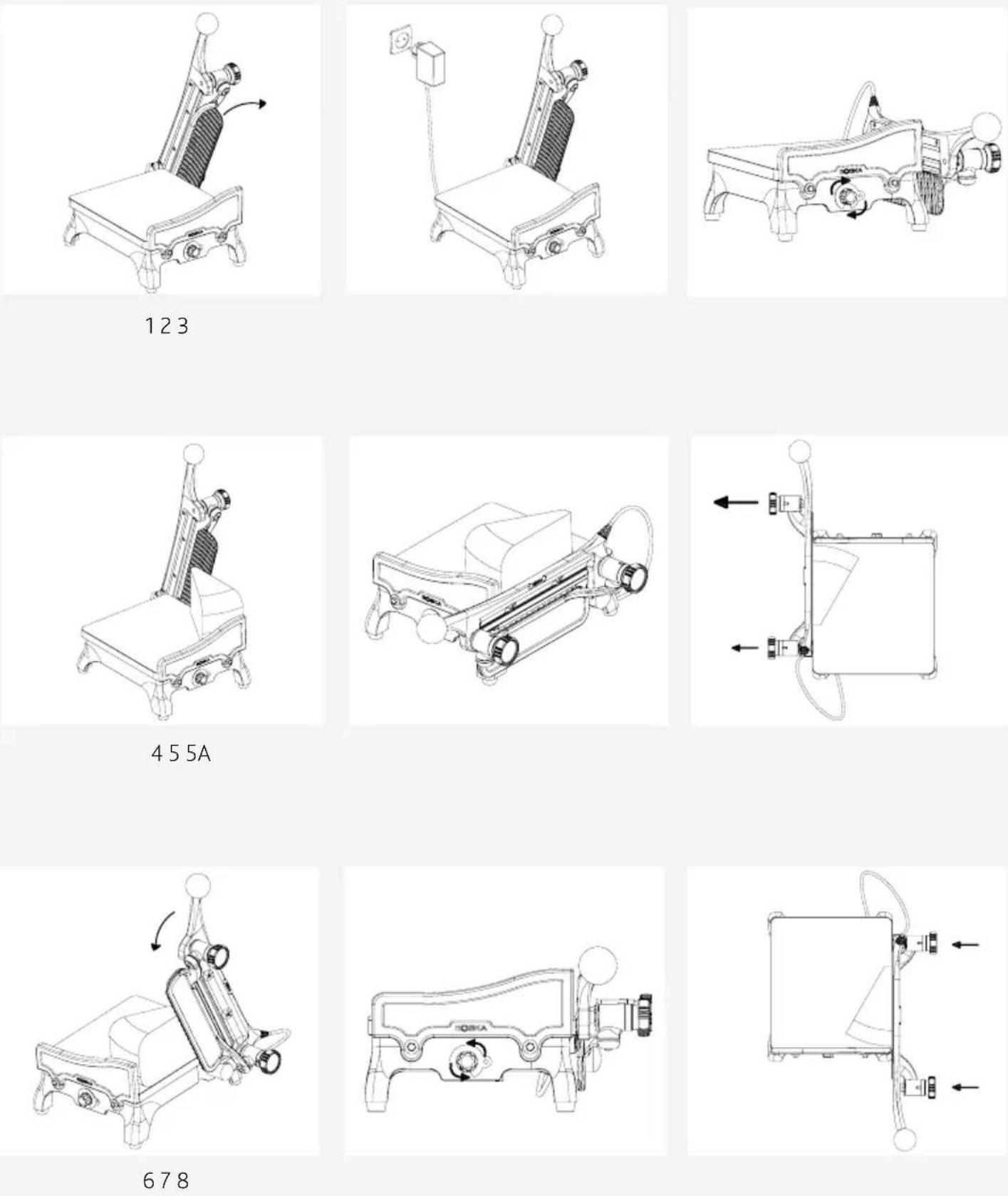

INSTALLATION & USE

1 Remove the blade cover. Please note: the blade is sharp!

2 Plug the transformer into the socket (230v\~50hz).

3 Set the temperature yourself with the temperature control, from level 1 to 10. The knife is warm within 5-10 minutes.

4 Lay the cheese to be sliced with the rind against the clamping plate and the light yellow, edible part of the cheese against the thickness regulator. Please note: do not press the cheese against the thickness regulator; place the cheese against it and the blade will do the rest.

5 Adjust the knobs to obtain the desired slice thickness (max 15mm). To minimize slicing loss, cut wedge-shaped slices;

5A Set the adjusting knob at the edge of the rind higher than the adjusting knob further away from you, so that the cheese is nicely round-cut and you are not left with any unsalable pieces.

6 Bring the lever down to cut off a slice of cheese.

7 Turn the temperature controller off.

8 Turn the adjusting knobs back to 0 to prevent cuts.

CLEANING

- Make sure the temperature controller is turned off, the adjusting knobs are back to 0, the plug has been removed from the socket and the appliance has cooled down fully.

• The Unika+ should be cleaned daily.

- Clean the Unika+ before you change to a different type of cheese, to prevent cross-contamination.

- Use hot water, a soft brush and a neutral cleaning agent such as mild soap or washing-up liquid to clean the Unika+.

- Make sure that the water is no hotter than 70^ to prevent damage to the plastic components.

- Never clean with a hard-bristle brush, abrasive materials, cleaning agents containing baking soda or chlorine, or disinfecting or corrosive cleaning agents.

- Rinse the Unika+ with clean water. Dry the machine thoroughly, to prevent components from being damaged by dust and moisture.

• After cleaning, put the cover back on the blade.

EN

WARNINGS

• The Unika+ is intended exclusively for cutting semi hard cheeses up to 16 kilos.
  • To prevent short circuiting, make sure that the appliance does not come into direct contact with water or any other liquids. In the event of a short circuit, have the appliance checked by a designated Boska service technician.

- Never allow children to use the appliance.

- The Unika+ may only be used by professionals who are fully aware of the safety measures that are described in this manual. New staff must read this manual before using the appliance.

- The blade is razor-sharp; never place fingers or other body parts in the cutting area of the blade.

- Never use the appliance without having placed cheese on it.

• Always make sure that the Unika+ is stable; place it on a flat surface.

• Never leave the Unika+ unattended.

- Turn the temperature controller off, turn the adjusting knobs back to 0 and remove the plug from the wall socket when the appliance is not in use.

• Always check the area on and around the Unika+ for items that could set fire to or melt items (cloths, paper etc.) when the appliance is in use or is still warm.

- Put the blade cover over the blade before moving the appliance or if it is not in use.

- Only use tools that are supplied together with the appliance.

- Never use hard, abrasive materials to avoid damage to the appliance.

- When removing the transformer from the socket, always hold the powerstrip firmly. Never pull on the cable, as this can damage the cable and cause a short circuit.

- Check the plug and cable regularly for damage. If either is damaged, have it repaired by a designated Boska service technician and replaced if necessary. Do not attempt to repair the appliance yourself; this can cause danger to life.

- Never attempt to open the housing of the appliance yourself. Repairs should only be done by a technician/repairer designated by Boska.

• The electrical installation must meet the applicable national and local requirements.

- Incorrect use of the Unika+ can result in serious physical injury; the blade is sharp and can become extremely hot!

- No liability is accepted for damage resulting from incorrect operation and improper use.

TECHNICAL INFORMATION

Length 536 mm

Width 377 mm

Height 221 mm

Power supply to transformer 230 VAC v

Length of blade 29 cm

Weight 11.06 kg

Material Stainless steel, Aluminum, HMPE

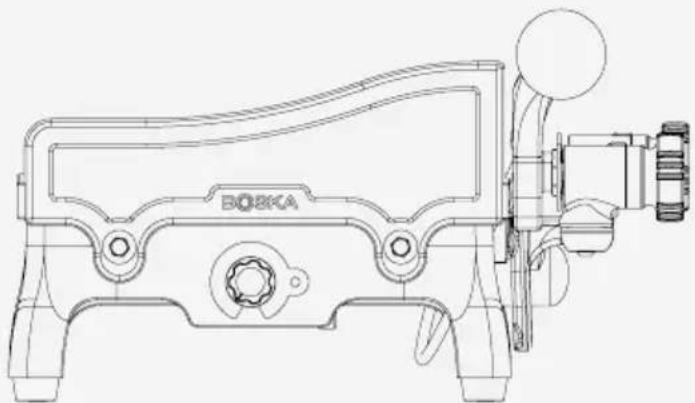

Technical line drawing of a BOSKA-branded mechanical device (no text or symbols on the diagram itself)

EN

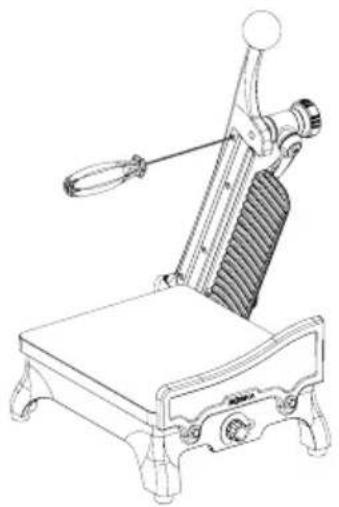

REPLACING THE BLADE

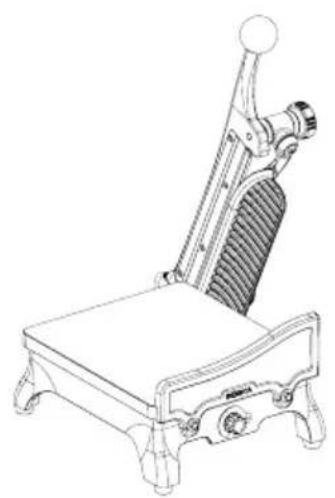

1. Place the protective cover over the blade to be replaced.
2. Unscrew the four blade screws and remove the blade.

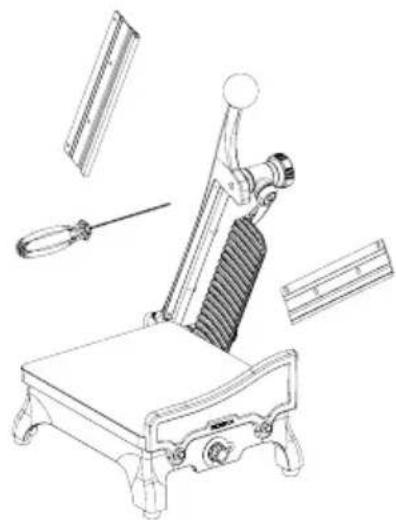

3. Place the new blade, including the cover, into the holder.

4. Tighten the screws firmly one by one.

5. If the appliance is used daily, it is advisable to replace the blade 2 to 3 times a year.

6. In addition to the blade, the heating element can also need replacing. See our website for comprehensive instructions or contact our customer service.
7. Apart from replacing the blade and the heating element, repairs should only be done by service technicians designated and certified by Boska.

Line drawing of a simple chair with adjustable arm and legs (no text or symbols)

1

Line drawing of a vintage mechanical device with handle and base (no text or symbols)

2

Line drawing of a mechanical device with labeled parts, including a handle, lever, and base plate (no text or symbols present)

3

Line drawing of a mechanical device with handle and base (no text or symbols)

4

Warranty

conditions for professional cheese tools at www.en.boska.com/guarantee.

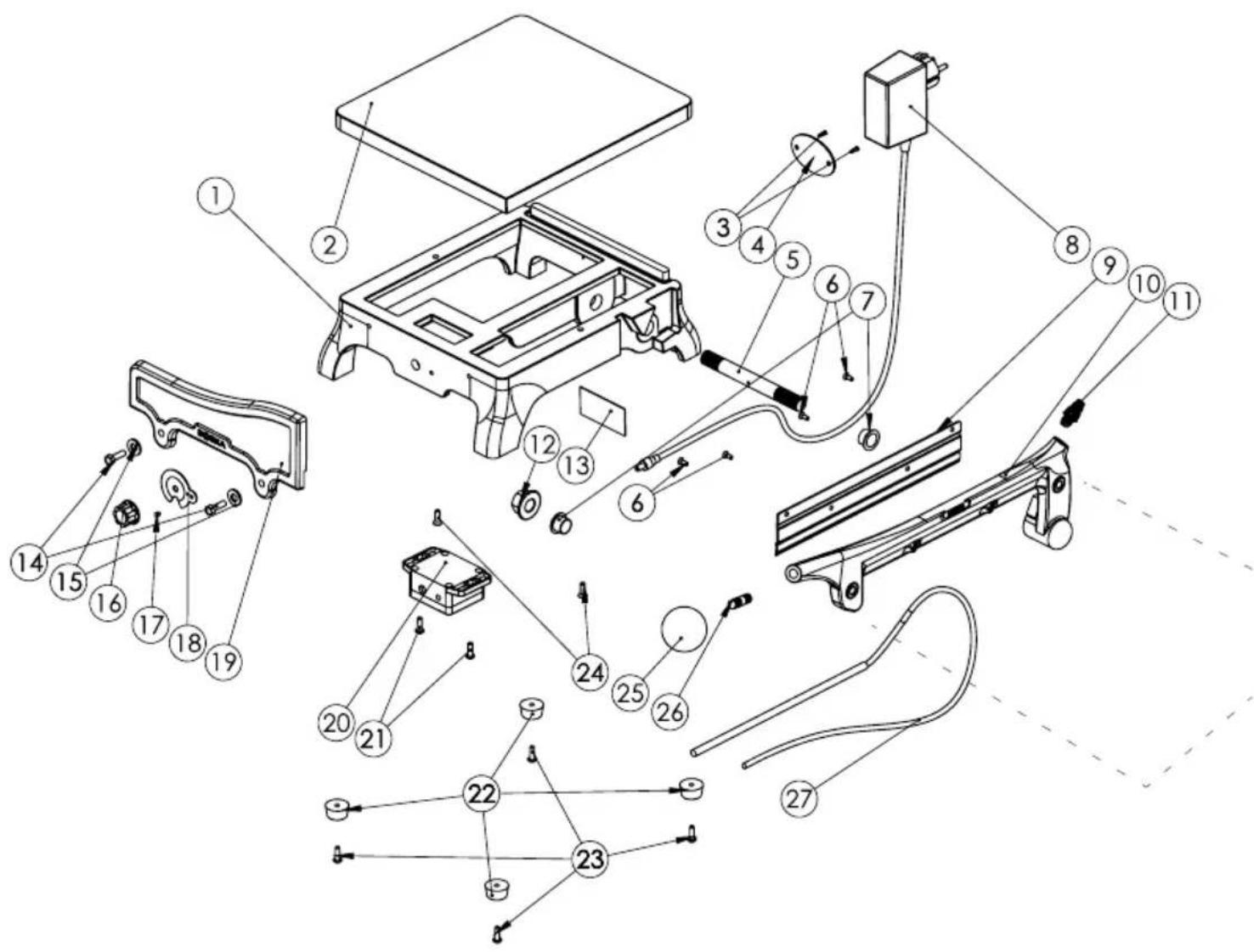

Exploded view diagram of a mechanical assembly with numbered parts for identification

1. X00020 Unika frame cream X00022 Unika frame red X00021 Unika frame green

2. X00035 Cutting board

3. X00051 Nameplate bolt

4. X00042 Logo plate

5. X00047 Cutting arm shaft

6. X00056 Blade screw

7. X00049 Slide bearing

8. 509048 Transformer with socket connetor

9. X00027 Blade

10. X00024 Blade arm

11. X00041 Gland

12. X00055 Shaft nut for blade arm

13. X00034 Machinery marking plate cream X00030 Machinery marking plate red X00040 Machinery marking plate green

14. X00052 Clamping plate bolt

15. X00053 clamping plate washer regulator
16. X00031 Temperature control dial
17. X00032 Lens temperature control
18. X00033 Temperature plate
19. X00033 Temperature plate
20. X00023 Clamping plate
21. X00029 Heat control module
22. X00057 Bolt for heat control module
23. X90000 Rubber foot
24. X00059 Bolt for foot
25. X00058 Screw for cutting board
26. X00039 Ball knob blade arm
27. X00063 Screw thread ball knob

Technical diagram of a mechanical assembly with numbered parts and exploded views

1. X00028 Heating element
2. X00048 Thickness regulator shaft
3. X00043 Compression spring
4. X00026 Thickness adjustment system
5. X00037 Number sticker for control knob
6. X00054 Narrow nut fot thickness regulator
7. X00050 Washer for thickness regulator
8. X88002 Spring
9. 509022 Detent
10. X00036 Control knob
11. X00038 Bearing spacer
12. X00025 Thickness regulator
13. X00061 Small washer for thickness regulator
14. X00060 Bolt for thickness regulator

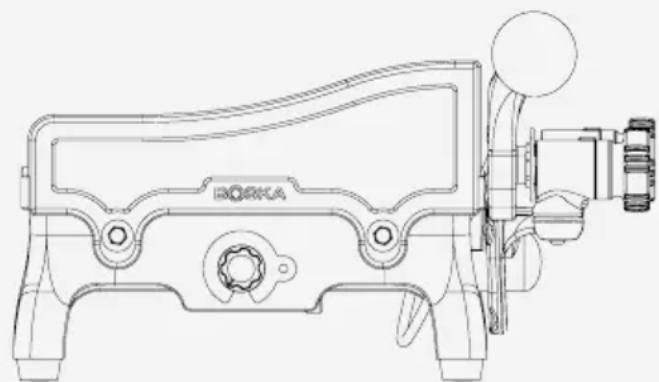

INSTALLATIE & GEBRUIK

RVS, Aluminium, HMPE

Technical line drawing of a BORKA mechanical device (no text or symbols)

NL

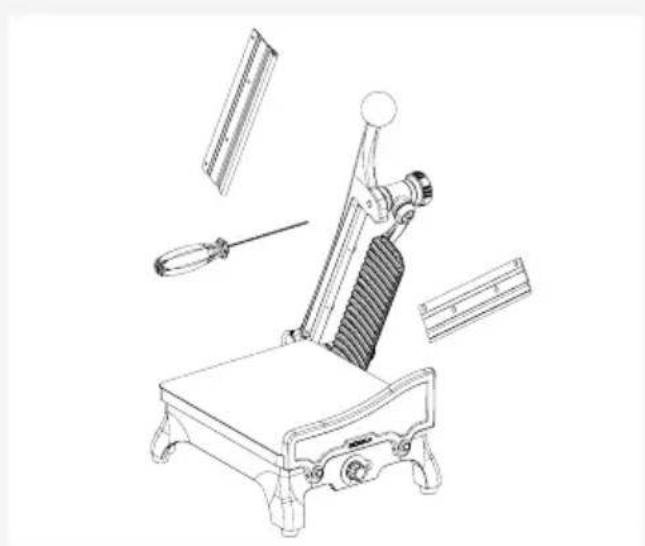

VERVANGEN VAN HET MES

Line drawing of a mechanical device with a vertical arm and base plate (no text or symbols)

1

Line drawing of a vintage office chair with a vertical arm and handle (no text or symbols)

2

Line drawing of a mechanical device with exploded view, showing parts like a tool, screwdriver, and clamped parts (no text or symbols)

3

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

4

Garantie

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a mechanical assembly with numbered parts and exploded view, likely for assembly or maintenance instructions.

1. X00048 Dikteregelaar as
2. X00043 Drukveer
3. X00026 Dikte stelsysteem
4. X00037 Cijfersticker tbv stelknop
5. X00054 Smalle moer dikteregelaar
6. X00050 Ring dikteregelaar
7. X88002 Veer
8. 509022 Palletje
9. X00036 Stelknop
10. X00038 Busje
11. X00025 Dikteregelaar
12. X00061 Ringetje dikteregelaar
13. X00060 Bout dikteregelaar

INSTALLATION & GEBRAUCH

Technical line drawing of a BOSKA electric shaver mechanism (no text or symbols)

DE

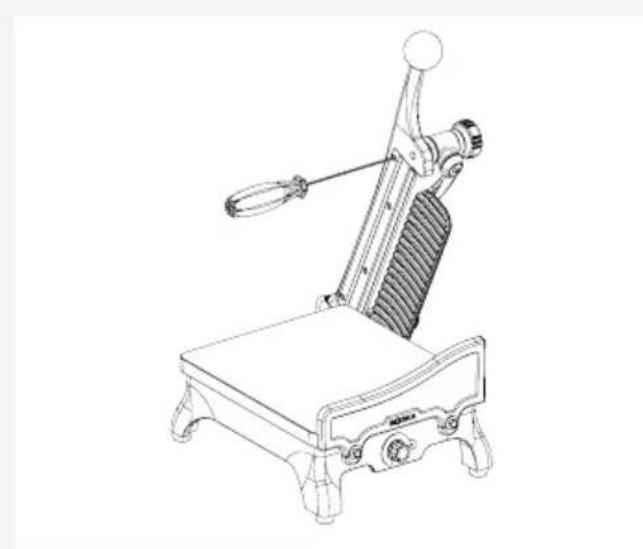

MESSERAUSTAUSCH

Line drawing of a mechanical device with a vertical support and base plate (no text or symbols)

1

Line drawing of a vintage office chair with a vertical arm and handle (no text or symbols)

2

Line drawing of a mechanical device with exploded view showing parts like a screwdriver, switch, and base plate (no text or symbols)

3

Line drawing of a mechanical device with lever and base (no text or symbols)

4

Garantie

Exploded view diagram of a device with numbered parts for identification and assembly reference.

Technical diagram of a mechanical assembly with numbered parts, likely for assembly or maintenance instructions.

1. X00048 Achse Dickeregler
2. X00043 Druckfeder
3. X00026 Dickeneinstellsystem
4. X00037 Ziffern-Sticker für Einstellknopf
5. X00054 Schmale Mutter Dickeregler
6. X00050 Ring Dickeregler
7. X88002 Feder
8. 509022 Sperrklinke
9. X00036 Einstellknopf
10. X00038 Verbindung
11. X00025 Dickeregler
12. X00061 Kleiner Ring Dickeregler
13. X00060 Schraube Dickeregler

INSTALLATION & UTILISATION

Technical line drawing of a BOSKA motor assembly (no text or symbols)

FR

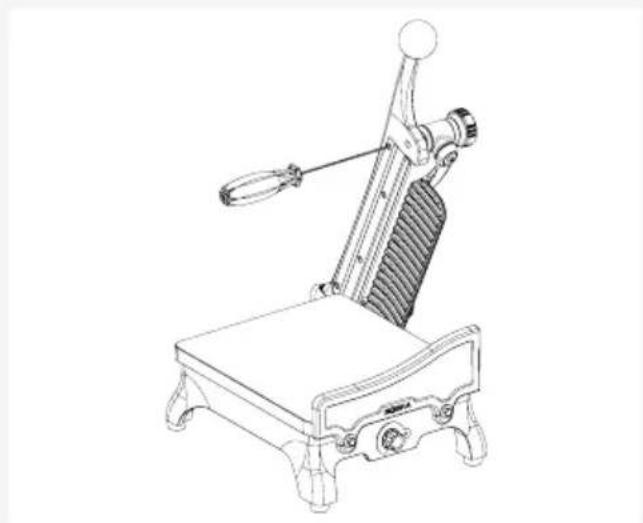

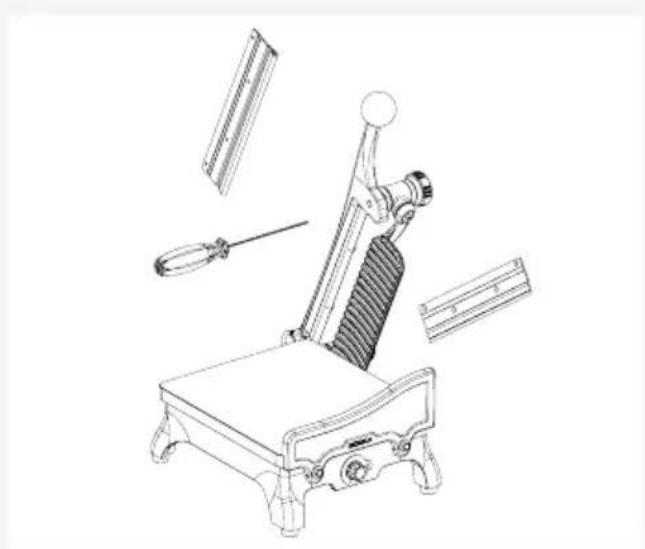

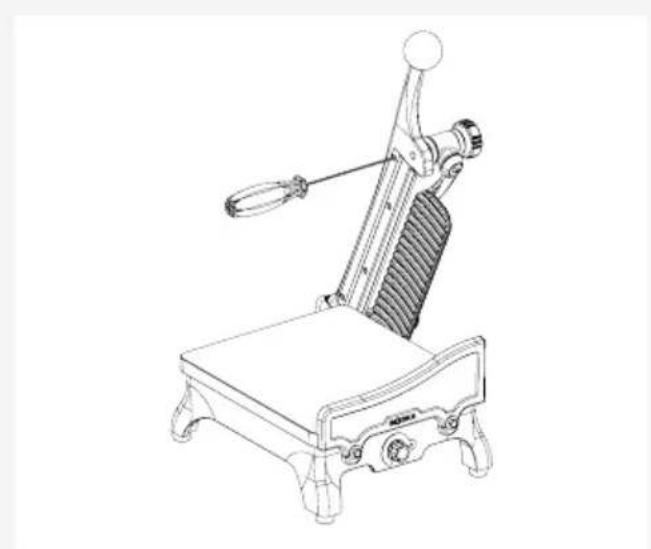

REPLACEMENT DU COUTEAU

Line drawing of a mechanical device with a vertical arm and base, no text or symbols present

1

Line drawing of a vintage office chair with a vertical arm and handle (no text or symbols)

2

Line drawing of a mechanical device with tools and components, no text or symbols present

3

Line drawing of a mechanical device with a handle and base, no text or symbols present

4

Garantie

Exploded view diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components and exploded views

Technical line drawing of a BOSKA motorcycle housing (no text or symbols)

ES

Line drawing of a mechanical device with a vertical arm and base, no text or symbols present

1

Line drawing of a mechanical device with a handle and base, no text or symbols present

2

Line drawing of a mechanical device with exploded view, showing components like a tool, screwdriver, and base plate (no text or symbols)

3

Line drawing of a mechanical device with handle and base plate (no text or symbols)

4

Garantía

Exploded view diagram of a mechanical assembly with numbered components for identification

Technical diagram of a mechanical assembly with numbered parts and exploded view, likely for assembly or maintenance instructions.
