USER MANUAL Cheese-O-Matic Boska

PROFESSIONAL Cheese-O-Matic PROFESSIONALEN INSTALLATION & USE The Cheese-O-Matic® is a safe, hand-operated cutting device, that allows you to cut both young and ripened cheese fast, perfect and straight. Even cutting very aged, crumbly cheese is no problem with the Cheese-O-Matic®. Not only can it be used to halve large cheeses, but also for cutting smaller pieces or thick slices, always with an impeccably clean and straight cutting edge. The Cheese-O-Matic® can of course also be used as a cutting board!

3. Repeat on the other side.

5. Place the Cheese-O-Matic® on the countertop.

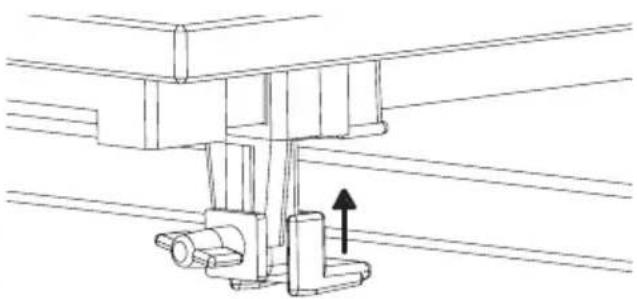

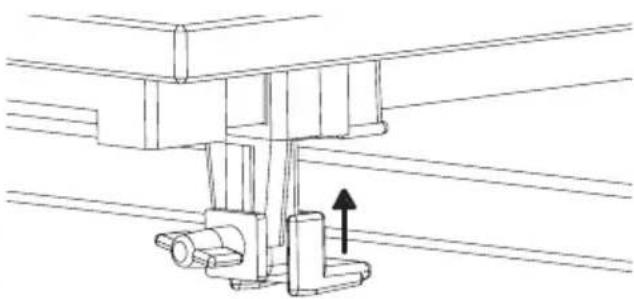

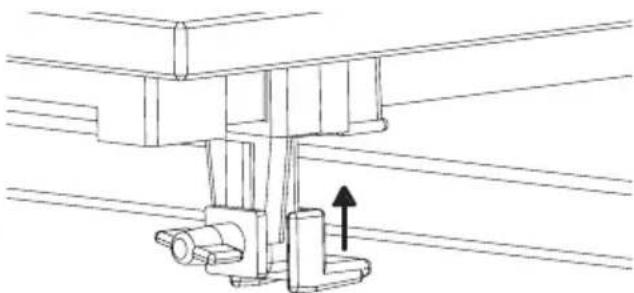

Slide the clamp up, until it reaches the bottom of the counter. Then rotate the knob until fastened.

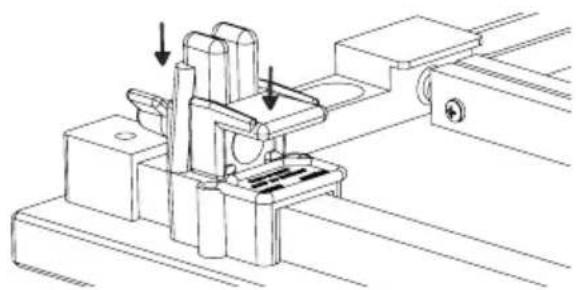

4. Place the clamp in the clamp guide. Leave the

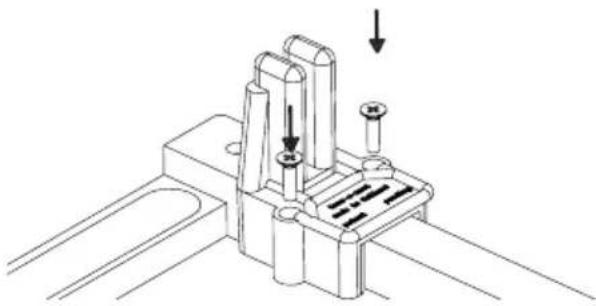

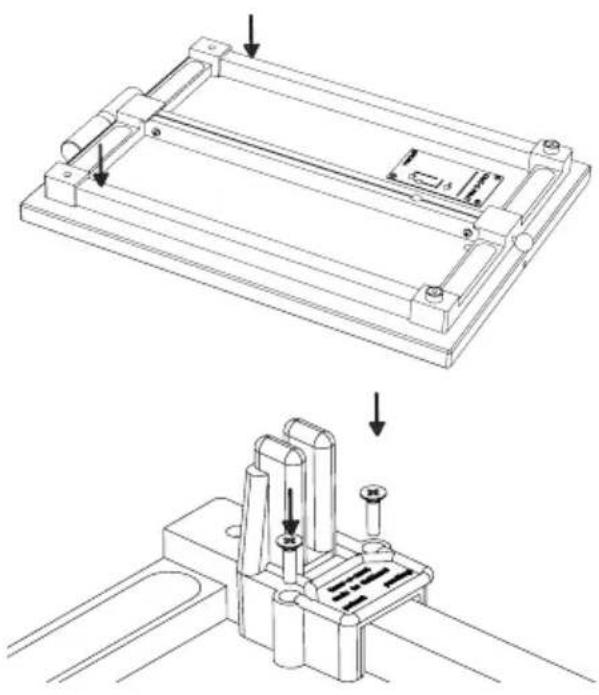

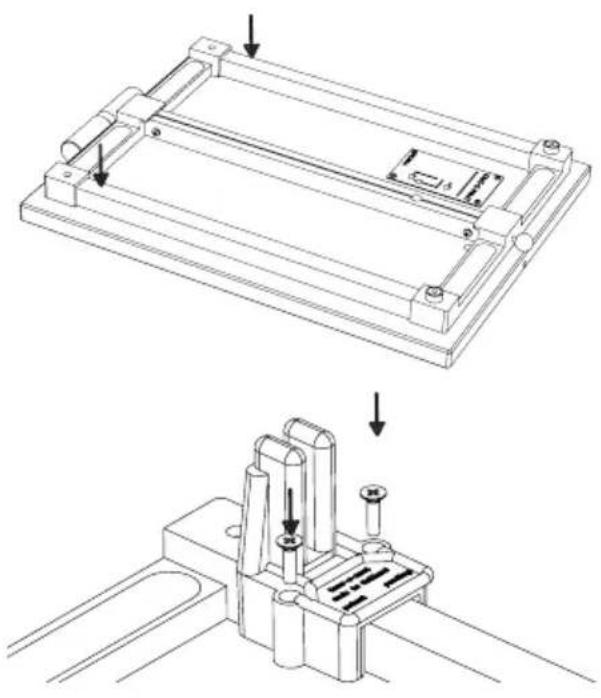

turning knob somewhat loose. Use the counter hooks to fixate the Cheese-O-Matic® to your countertop. Follow these steps to install the mounting hooks: Attention! Place the counter hooks on the side the handle is on.

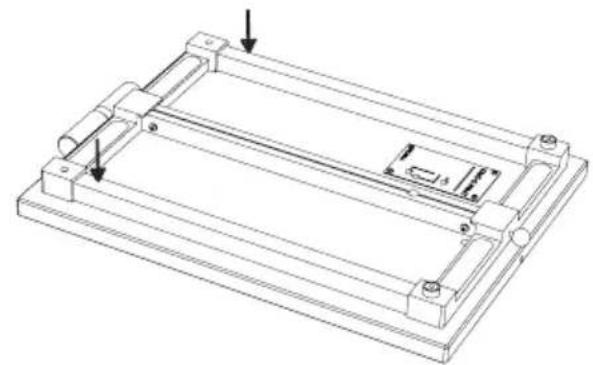

1. Place the Cheese-O-Matic® upside down.

The device is suitable for dividing all young, semi-hard or crumbly cheeses into wedges. For an extended instruction, please visit www.boska.com or our YouTube channel.

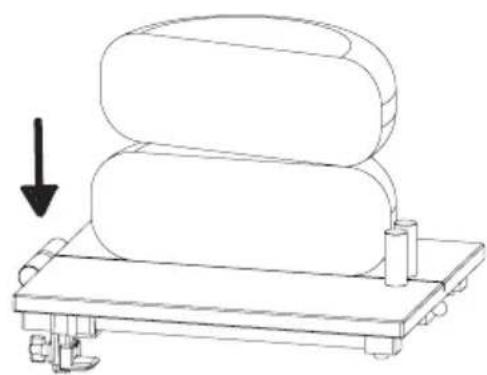

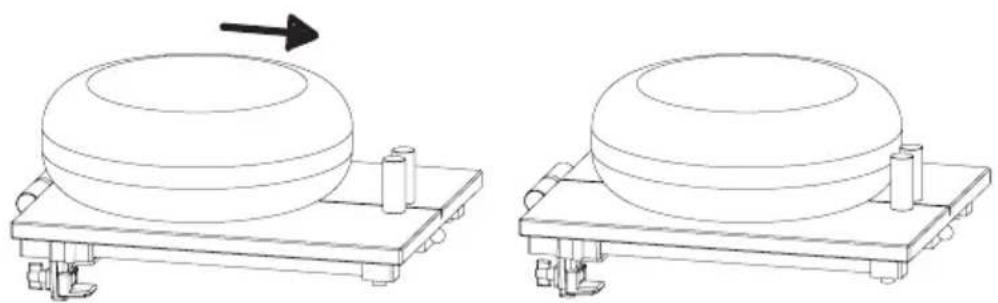

1. Position the cheese on the cutting board, against the positioning pins.

2. Always create an incision in the cheese rind using the scoring knife (available seperately). This

extends the lifespan of the wire significantly.

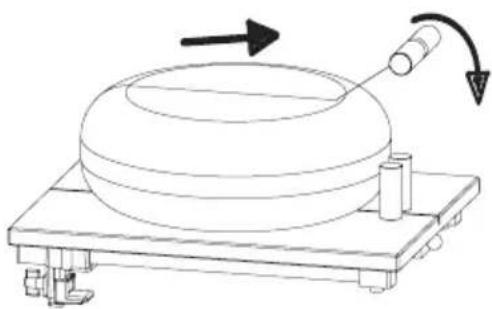

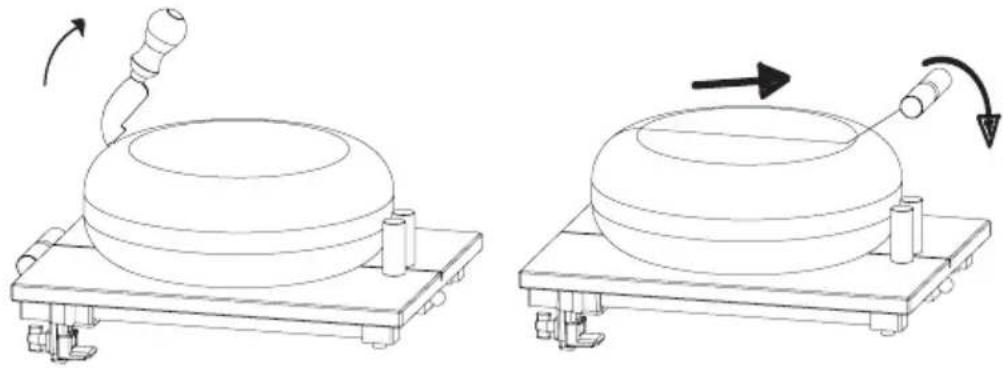

3. Take the handle and pull the wire against the cheese, in the incision. Keep the other hand on the

cheese, out of reach of the wire. Pull the wire through the cheese.

4. After cutting, place the handle back in the recess on the far end of the Cheese-O-Matic®.CLEANING

• Clean the Cheese-O-Matic® daily after final use.

• The Cheese-O-Matic® needs to be cleaned between switching to a different type of cheese to prevent cross-contamination.

• Use hot water, a soft brush and a neutral cleaning detergent, such as green soap or dish soap, to clean the Cheese-O-Matic®. The Cheese-O-Matic® can also be cleaned in the dishwasher (exclusively the white plastic edition, article 550500). For optimal lifespan, do not wash the cutting wire in the dishwasher.

• Do not use water hotter than 70°C (160°F) to prevent damage to the plastic parts.

• Never use hard brushes, scratching materials, soda- chlorine- disinfectant or aggresive cleaning detergents for cleaning.

• Flush the Cheese-O-Matic® with water after cleaning. Dry the machine thouroughly to prevent deterioration of parts due to dust and moisture. WARNINGS

• At all times create an incision in the cheese rind at the wire entry point. This greatly extends the lifespan of the wire.

EDITIONS The Cheese-O-Matic® is available with a white plastic (550500) or oiled beech (550000) cutting board.EN

REPLACING THE CUTTING WIRE

DIMENSIONS ARE IN INCHES

REPRODUCTION IN PART OR AS A WHOLE

PROHIBITED. SOLIDWORKS Educational Product. For Instructional Use Only. SOLIDWORKS Educational Product. For Instructional Use Only.

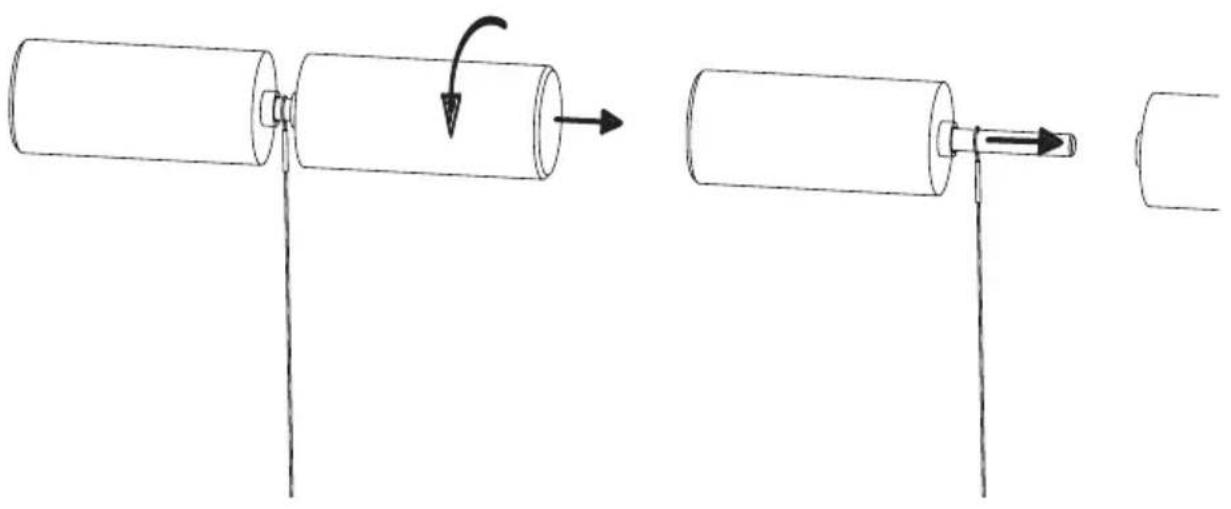

• Twist half the handle, so it comes loose from the thread.

• Slide the loop off the thread.

• Place the machine upside down.

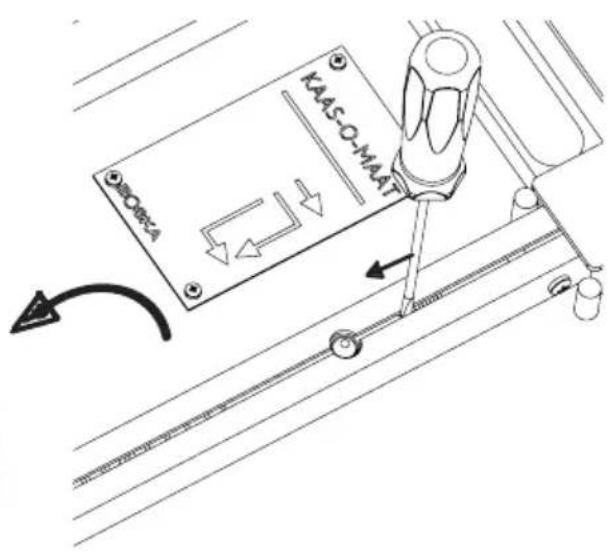

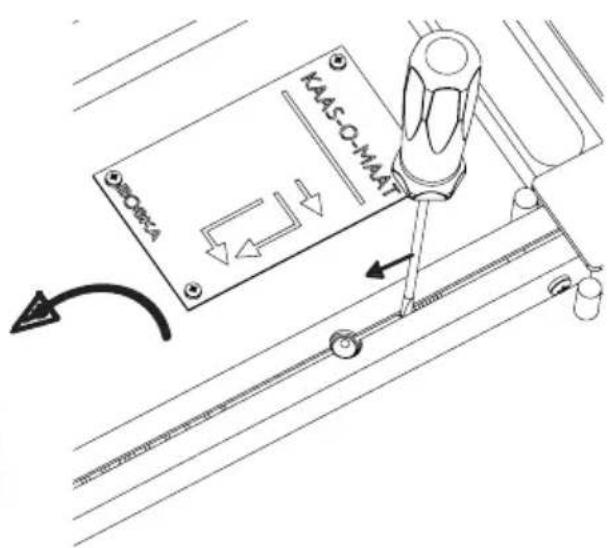

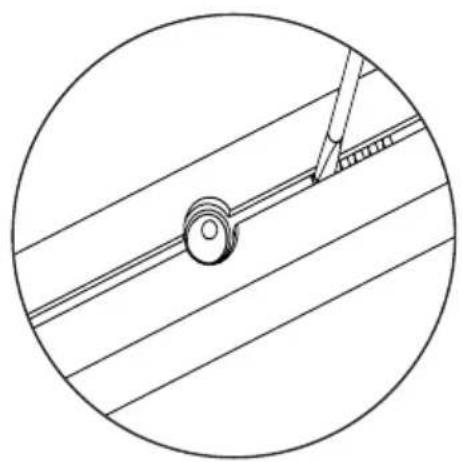

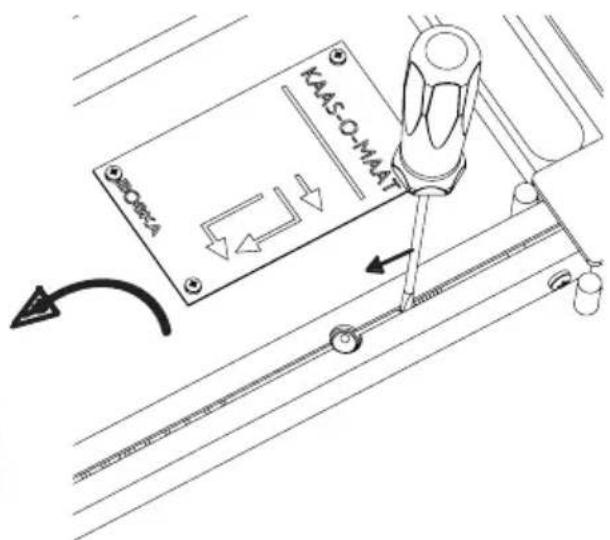

• Place a small flat-head screwdriver behind the block in the rail, like shown in the illus- tration on the right. Then push the block towards you, so the ball of the wire lines up with the round opening in the rail. A A B B

DIMENSIONS ARE IN INCHES

REPRODUCTION IN PART OR AS A WHOLE

PROHIBITED. SOLIDWORKS Educational Product. For Instructional Use Only. SOLIDWORKS Educational Product. For Instructional Use Only. Cutting wires are available for re-order on www.boska.com, article no. 552010.Warranty The conditions for warranty on professional cheese tools can be found on www.en.boska.com/garantee SOLIDWORKS Educational Product. For Instructional Use Only.

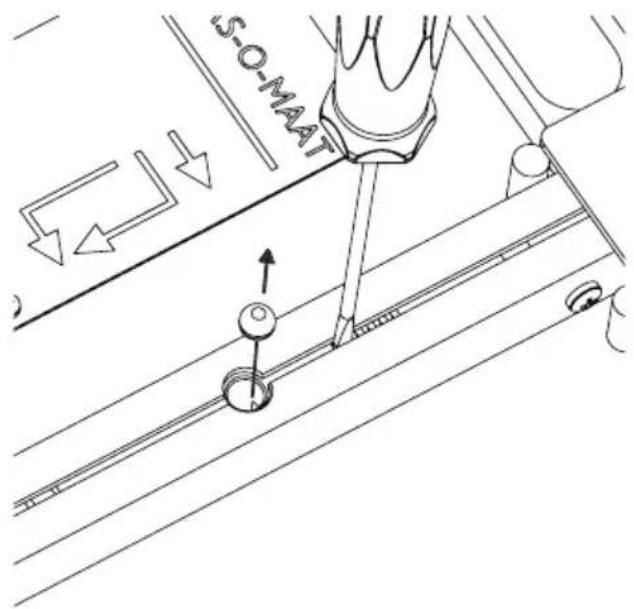

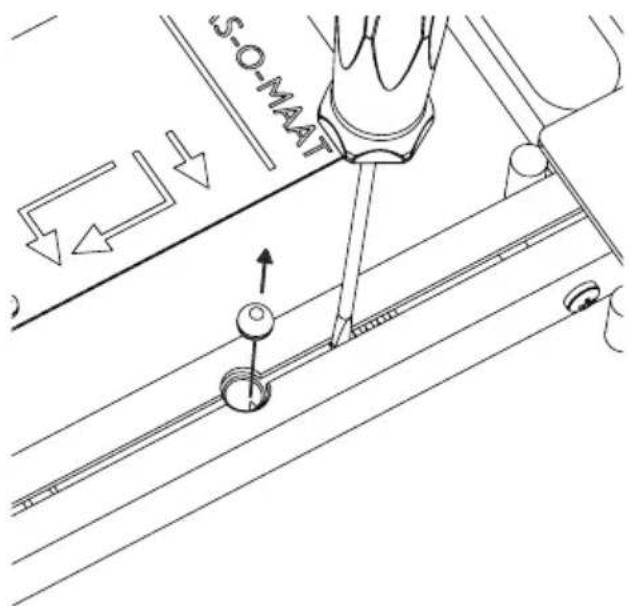

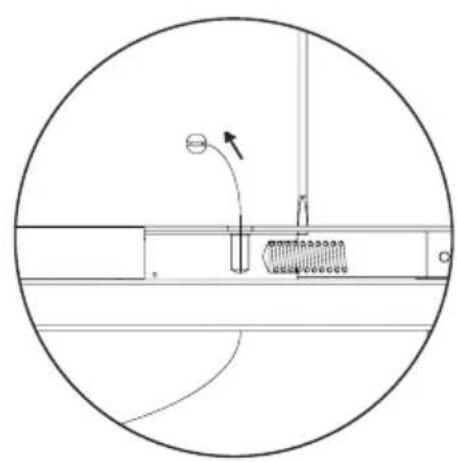

• Now that the ball is lined up with the opening, the ball can be pushed out by pushing the wire up from below. Then pull the whole wire through the rails.

• The new wire can be placed by pulling the wire through the round opening. One the ball is in position, the screwdriver can be released.

DIMENSIONS ARE IN INCHES

REPRODUCTION IN PART OR AS A WHOLE

PROHIBITED. SOLIDWORKS Educational Product. For Instructional Use Only. SOLIDWORKS Educational Product. For Instructional Use Only.

DIMENSIONS ARE IN INCHES

REPRODUCTION IN PART OR AS A WHOLE

DIMENSIONS ARE IN INCHES

REPRODUCTION IN PART OR AS A WHOLE

PROHIBITED. SOLIDWORKS Educational Product. For Instructional Use Only. SOLIDWORKS Educational Product. For Instructional Use Only.

DIMENSIONS ARE IN INCHES

REPRODUCTION IN PART OR AS A WHOLE

DIMENSIONS ARE IN INCHES

REPRODUCTION IN PART OR AS A WHOLE

PROHIBITED. SOLIDWORKS Educational Product. For Instructional Use Only. SOLIDWORKS Educational Product. For Instructional Use Only.

DIMENSIONS ARE IN INCHES

REPRODUCTION IN PART OR AS A WHOLE

DIMENSIONS ARE IN INCHES

REPRODUCTION IN PART OR AS A WHOLE

PROHIBITED. SOLIDWORKS Educational Product. For Instructional Use Only. SOLIDWORKS Educational Product. For Instructional Use Only.

DIMENSIONS ARE IN INCHES

REPRODUCTION IN PART OR AS A WHOLE

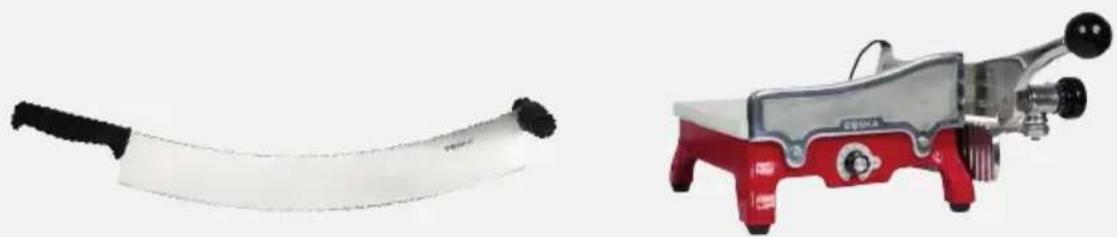

Use the Cheese-O-Matic with the following accessories; 552104 counter attachment With the flat counter attachment it is easy to attach your Cheese-O-Matic to your counter. Visit www.boska.com for more cheese cutting solutions. 552010 cutting wires for the Cheese-O-Matic®, set of 10 Manufactured from hardened, foodsafe spring steel of the highest quality. 550510 Anti-skid attachment No screws in your working surface, and still keeping the Cheese-O-Matic in place? The anti-skid feet for the Chee- se-O-Matic are easy to attach. 554709 Scoring knife Before cutting with the Cheese-O-Matic it is important to score the cheese rind. Cut the rind effortless with the BOSKA scoring knife. Dutch Cheese knife XL, 430mm Cheese slicing machine Unika+Notes:Notes:At BOSKA we make Food Tools for Life and we believe quality is sustainability. Our goal is to design products that last a lifetime. It all began in Holland, where blacksmith Willem Bos made his first professional cheese tools. From that day on it’s been our family's tradition to create smart tools so you can enjoy food to the fullest. We love it! So whether you’re cutting, slicing, grating, grilling or melting, we'll help you create mouthwatering food and a party on your table. Enjoy! Fourth generation owner of Boska, Food Tools for Life! Since 1896 1896 Blacksmith Willem Bos. Picture by Willem Bos. 1983 - Joop Bos, Wim Bos & Martijn Bos
