Product type	High pressure inflator
Brand	RYOBI
Model	RI4
Maximum pressure	10 bars (100 PSI)
Power supply	Lithium-ion battery (Li-Ion)
Battery voltage	18 V (estimated)
Operating temperature range	0 °C to 40 °C
Storage temperature range (tool)	0 °C to 40 °C
Storage temperature range (battery)	0 °C to 20 °C
Lighting	Integrated LED
Pressure gauge	Integrated (reference indication)
Included accessories	Balloon needle, Presta adapter, storage bag, USB cable, USB adapter, battery pack
Intended use	Inflating tires, balloons, and high pressure components
Safety	Do not immerse, do not expose to rain, do not spray chemicals, do not exceed max pressure
Maintenance	Clean with a clean cloth, avoid solvents, check for cracks annually
Warranty	24 months (extension possible via online registration)

Frequently Asked Questions - RI4 RYOBI

What is the maximum pressure of the RYOBI RI4 inflator?

The maximum pressure is 10 bars (100 PSI). Never preset a pressure higher than indicated on the item to be inflated.

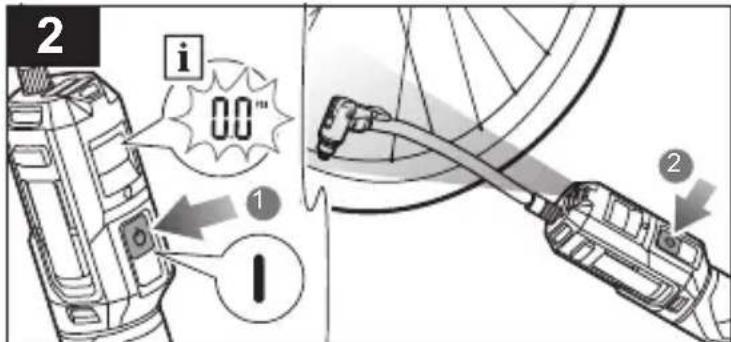

How to use the RYOBI RI4 inflator?

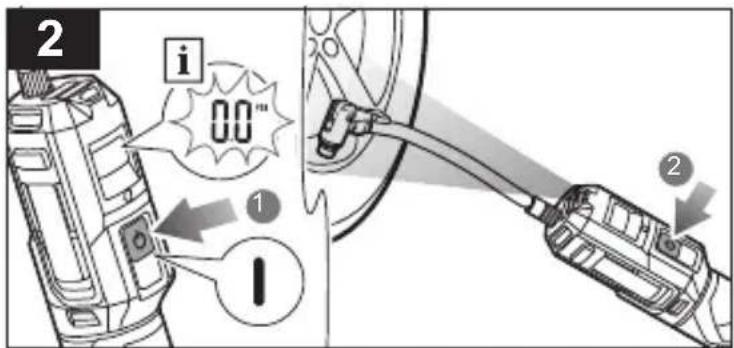

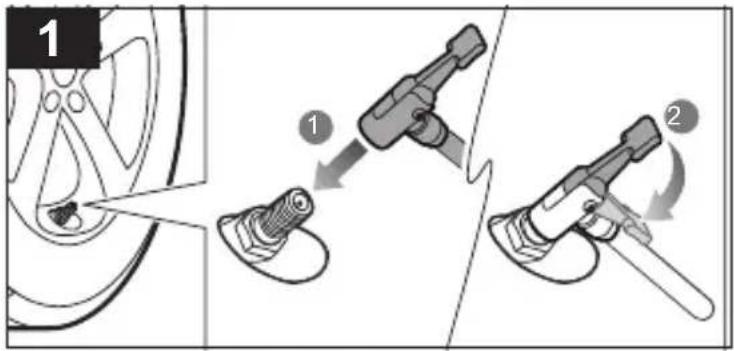

Make sure the hose is not obstructed, connect the chuck to the valve, turn on the switch, and set the desired pressure. Never leave the device unattended during inflation.

What safety precautions should I take?

Do not immerse the device, do not expose it to rain, do not direct the air stream at people or animals, and do not use to spray chemicals. Wear a dust mask if necessary.

What type of battery does the RI4 use?

It uses a lithium-ion (Li-Ion) rechargeable battery. The recommended ambient temperature for use is 0°C to 40°C, and for storage 0°C to 20°C.

How to maintain the RYOBI RI4 inflator?

Always disconnect the power before maintenance. Clean with a clean cloth, without solvents. Check the hose annually for cracks or leaks. Have repairs done by an authorized service center.

What accessories are included with the RI4?

Accessories include a sports ball needle, Presta valve adapter, storage bag, USB cable and adapter, and battery pack.

Should I let the device cool down after use?

Yes, after 5 minutes of continuous use, let the product cool down for 5 minutes. Never block the inflation or deflation openings.

Is the pressure gauge accurate?

The integrated gauge is provided for reference. For an accurate measurement, use a reliable external pressure gauge to avoid overinflation.

How to store the inflator?

Store the device indoors, in a dry place, at a temperature between 0°C and 40°C. For the battery, the recommended storage range is 0°C to 20°C.

What is the warranty period for the RYOBI RI4?

The warranty is 24 months from the date of purchase (private use). An extension is possible by registering the product at www.ryobitools.eu within 30 days.

USER MANUAL RI4 RYOBI

Safety, performance, and dependability have been given top priority in the design of your high pressure inflator.

INTENDED USE

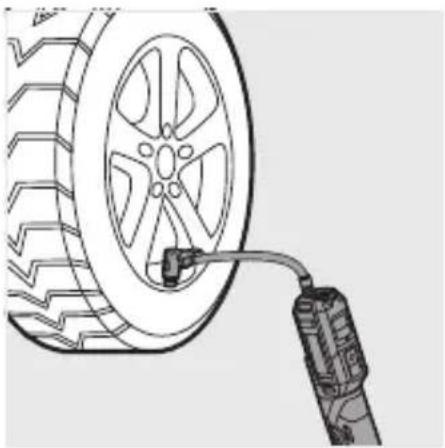

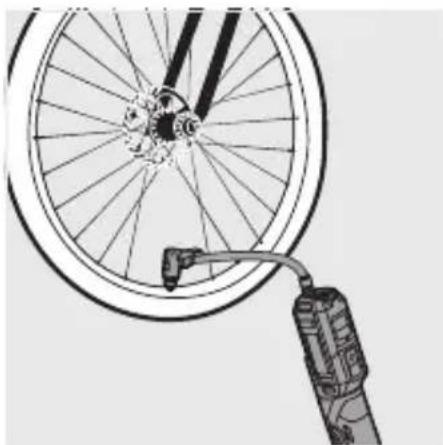

The high pressure inflator is intended for inflating high pressure items such as car tyres, bicycle tyres and sports balls.

NOTE: Refer to the product documentation or the labels of the item to be inflated for correct pressure.

Do not use the product for any other purpose.

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

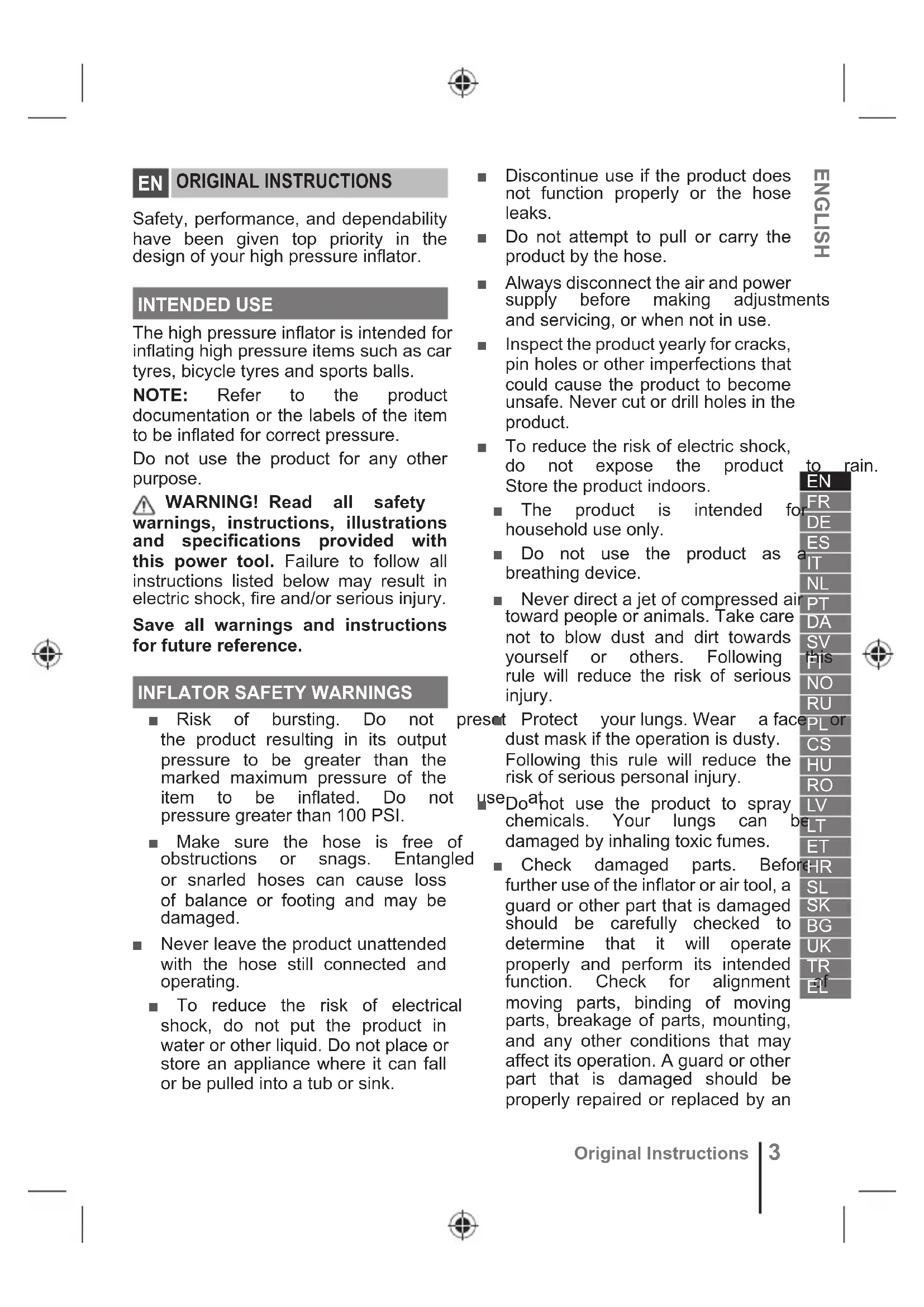

INFLATOR SAFETY WARNINGS

■ Risk of bursting. Do not the product resulting in its output pressure to be greater than the marked maximum pressure of the item to be inflated. Do not pressure greater than 100 PSI.
■ Make sure the hose is free of obstructions or snags. Entangled or snarled hoses can cause loss of balance or footing and may be damaged.
■ Never leave the product unattended with the hose still connected and operating.
■ To reduce the risk of electrical shock, do not put the product in water or other liquid. Do not place or store an appliance where it can fall or be pulled into a tub or sink.

■ Discontinue use if the product does not function properly or the hose leaks.
■ Do not attempt to pull or carry the product by the hose.
■ Always disconnect the air and power supply before making adjustments and servicing, or when not in use.
- Inspect the product yearly for cracks, pin holes or other imperfections that could cause the product to become unsafe. Never cut or drill holes in the product.
■ To reduce the risk of electric shock, do not expose the product Store the product indoors.

■ The product is intended for household use only.
■ Do not use the product as breathing device.
■ Never direct a jet of compressed air toward people or animals. Take care not to blow dust and dirt towards yourself or others. Following rule will reduce the risk of serious injury.

preset Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce the risk of serious personal injury.

use Do at not use the product to spray chemicals. Your lungs can be damaged by inhaling toxic fumes.
- Check damaged parts. Before further use of the inflator or air tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an

authorised service centre. Following this rule will reduce the risk of shock, fire, or serious injury.

■ Risk of bursting. Carefully objects during inflation.
■ To reduce the risk of over inflation, use a reliable pressure gauge periodically during inflation. The pressure gauge on the inflator is for reference only and is therefore not binding for exact values.
- Allow the product to cool for five (5) minutes after each five (5) minutes of continuous use. Never block the inflating or deflating outlets while operating.
■ Save these instructions. Refer them frequently and use them to instruct others who may use this inflator. If you loan someone inflator, loan them these instructions also.
■ Ambient temperature range for tool during operation is between 0°C and 40°C.
■ Ambient temperature range for tool storage is between 0°C and 40°C.
■ The recommended ambient temperature range for the charging system during charging is between 10^ C and 38^ C.

ADDITIONAL BATTERY SAFETY WARNINGS

■ To reduce the risk of fire, personal injury, and product damage a short circuit, never immerse your tool, battery pack or charger in fluid or allow a fluid to flow inside them.

Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

■ Ambient temperature range for battery during use is between 0°C and 40°C.

monitor Ambient temperature range for battery storage is between 0°C and 20°C.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that this are cracked or leaking. Check with the forwarding company for further advice.

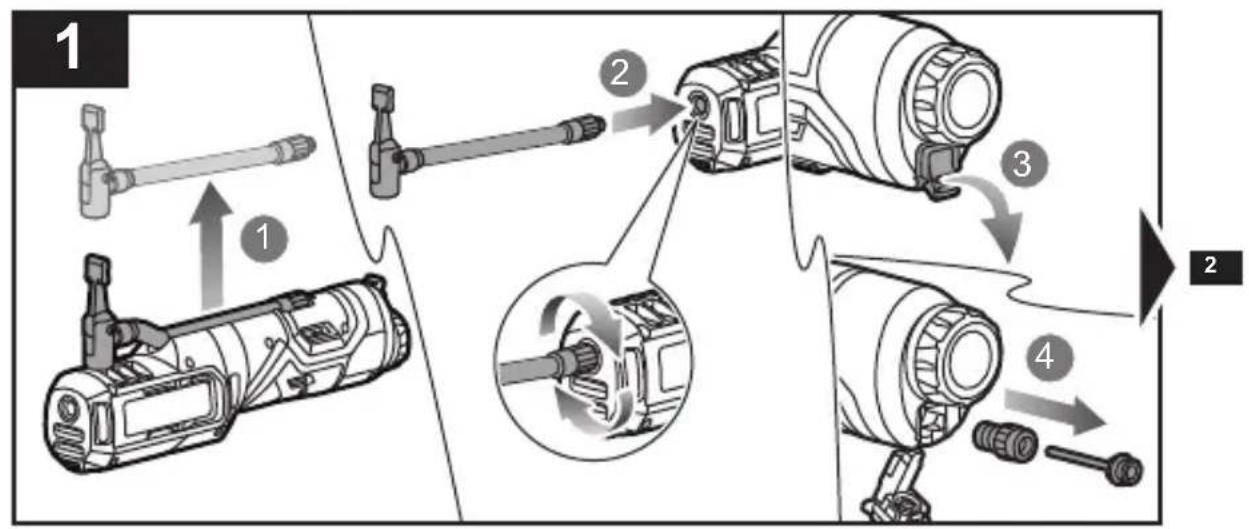

KNOW YOUR PRODUCT

See page 89.

1. Pump outlet

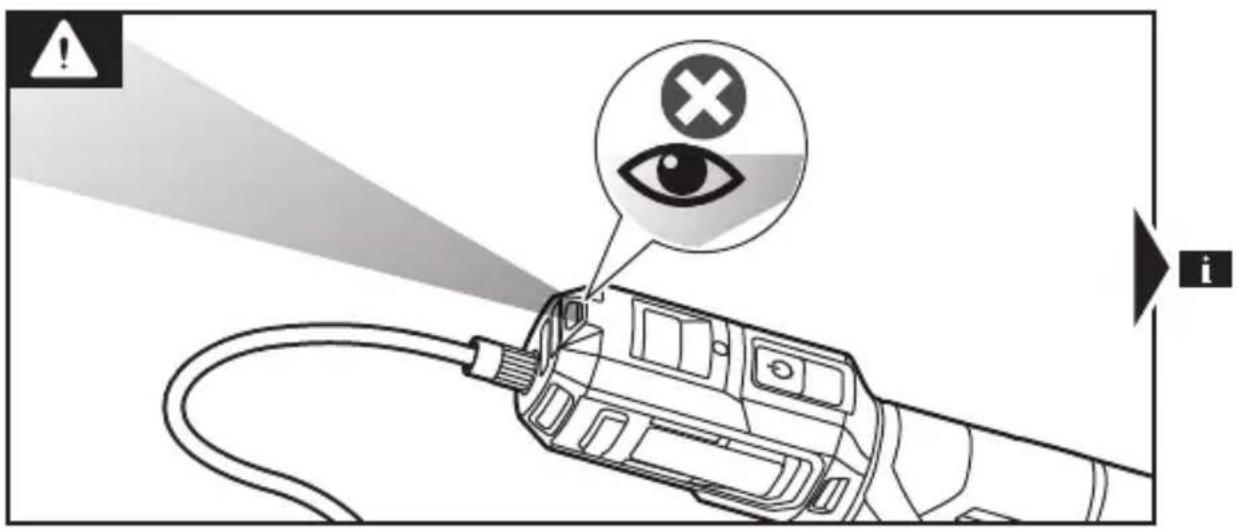

2. LED light
3. Pressure gauge
4. Power button
5. Battery cap
6. Air hose
7. Air chuck clamp
8. Air chuck

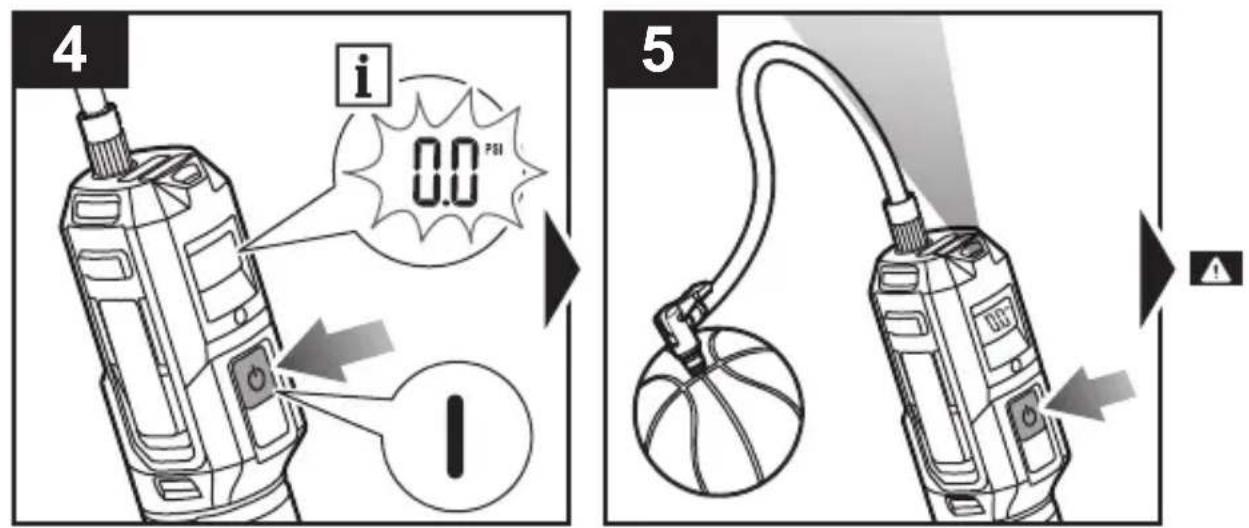

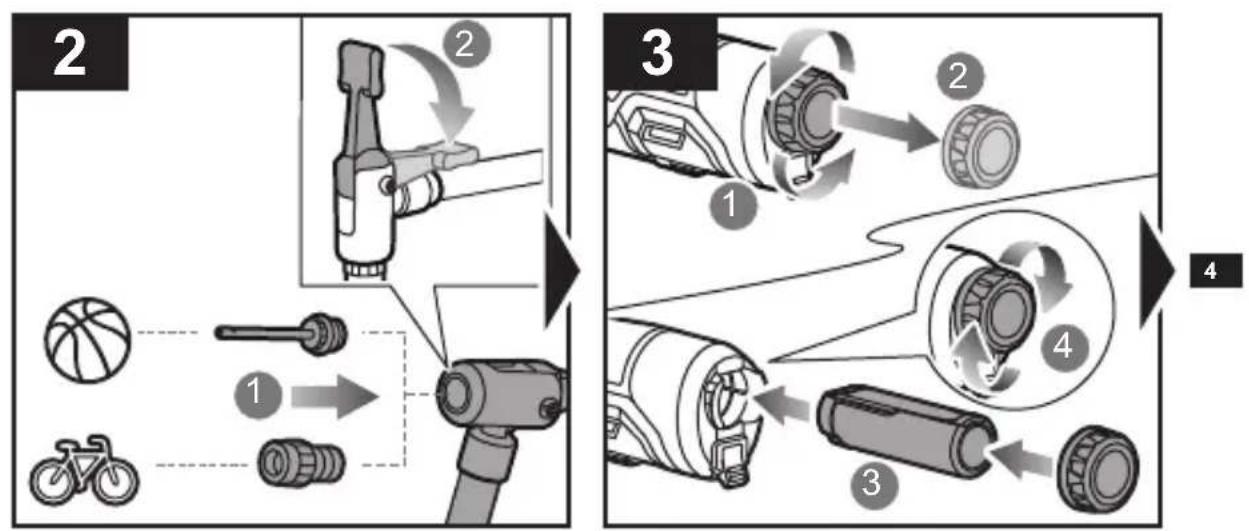

9. Sports ball needle

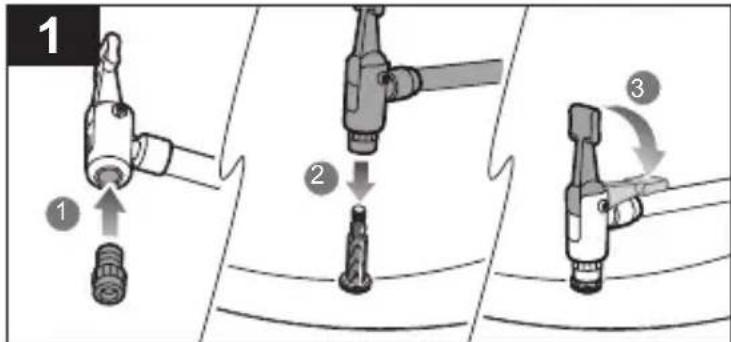

10. Presta valve adaptor
11. Storage bag
12. Operator's manual

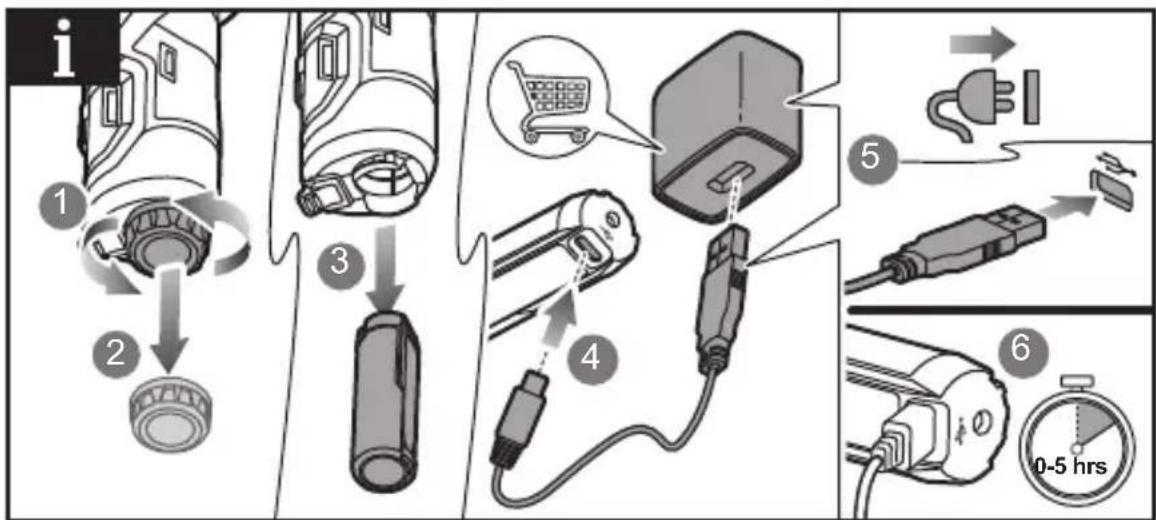

    93.USB charging cable
13. Battery pack
14. USB power adaptor

MAINTENANCE

■ The product should never be connected to a power source when assembling parts, making adjustments, cleaning, performing

maintenance, or when the product is not in use. Disconnecting product from the power supply will prevent accidental starting that could cause serious injury.

• When servicing, use only original manufacturer's replacement parts, accessories and attachments. Use of any other parts may create a hazard or cause product damage.
  ■ Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc.
  ■ Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.
  ■ For greater safety and reliability, all repairs should be performed by an authorised service centre.

SYMBOLS

Safety alert

Direct current

Li-Ion

Lithium-Ion battery

Please read the instructions carefully before starting the product.

Risk of injury. Explosive material.

Do not dispose of waste batteries, waste electrical and electronic equipment as unsorted municipal waste. Waste batteries and waste electrical and electronic equipment must be collected separately. Waste batteries, waste accumulators, and light sources have to be removed from the equipment. Check with your local authority or retailer for recycling advice and collection point. According to local regulations, retailers may have an obligation to take back waste batteries and waste electrical and electronic equipment free of charge. Your contribution to the reuse and recycling of waste batteries and waste electrical and electronic equipment helps to reduce the demand of raw materials. Waste batteries, in particular containing lithium, and waste electrical and electronic equipment contain valuable and recyclable materials, which can adversely impact the environment and the human health if not disposed of in an environmentally compatible manner. Delete personal data from waste equipment, if any.
