USER MANUAL P738 RYOBI

Line drawing of a discharging spray gun (no text or symbols on the device body)

TABLE OF CONTENTS

**********************************************************************

■ General Safety Rules......2-3
■ Specific Safety Rules ....3
Symbols......
■ Features....5
■ Assembly....5
■ Operation.... 5-6
■ Maintenance....6
■ Illustrations ....7
■ Parts Ordering and Service Back page

WARNING: To reduce the

risk of injury, the user must read and understand the operator's manual before using this product.

SAVE THIS MANUAL FOR

FUTURE REFERENCE

TABLE DES MATIÈRES

**********************************************************************

READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

WARNING!

When using electric appliances, basic precautions should always be followed, including the following:

SAVE THESE INSTRUCTIONS

WORK AREA

• Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
• Keep bystanders, children, and visitors away while operating an inflator. Distractions can cause you to lose control.
  ■ Operate inflator in an open area at least 18 in. away from any wall or object that could restrict the flow of fresh air to ventilation openings.

ELECTRICAL SAFETY

■ To reduce the risk of electrical shock, do not put inflator in water or other liquid. Do not place or store appliance where it can fall or be pulled into a tub or sink.
■ Use this product only with batteries and chargers listed in tool/appliance/battery pack/charger correlation supplement 987000-432.

PERSONAL SAFETY

■ Stay alert, watch what you are doing and use common sense when operating an inflator. Do not use inflator while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating inflator may result in serious personal injury.
■ Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair and clothing away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
■ Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the inflator in unexpected situations.
■ Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.
■ Eye protection is required to guard against flying fasteners and debris which could cause severe eye injury.
■ Do not wear loose clothing or jewelry. Contain long

hair. Loose clothes, jewelry, or long hair can be drawn into air vents.

■ Do not use on a ladder or unstable support. Stable footing on a solid surface enables better control of the inflator in unexpected situations.
■ Do not disassemble the inflator.
■ Do not operate inflator near flammable liquids or in gaseous or explosive atmospheres. Internal sparks may ignite fumes.
- Do not store in a damp or wet location. Do not use, store, or charge battery packs or products in locations where the temperature is less than 50^ F or more than 100^ F. Do not store in outside sheds or in vehicles.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
■ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

INFLATOR USE AND CARE

• Do not use inflator if switch does not turn it on or off. An inflator that cannot be controlled with the switch is dangerous and must be repaired.
  ■ Switch the tool off before making any adjustments, changing accessories, or storing the inflator. Such preventive safety measures reduce the risk of starting the inflator accidentally.
  ■ Store idle inflators out of reach of children and other untrained persons. Inflators are dangerous in the hands of untrained users.
• Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the inflator's operation. If damaged, have the inflator serviced before using. Many accidents are caused by poorly maintained tools.
  ■ Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one inflator may create a risk of injury when used on another inflator.
• Keep the inflator and its handle dry, clean and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any strong solvents to clean your inflator. Following this rule will reduce the risk of loss of control and deterioration of the enclosure plastic.
  ■ Never point any inflator toward yourself or others.
  ■ Do not exceed the pressure rating of any component in the system.

GENERAL SAFETY RULES

SERVICE

■ Inflator service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury.

■ When servicing an inflator, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of shock or injury.

SPECIFIC SAFETY RULES

• Know your inflator. Read operator's manual carefully. Learn its applications and limitations, as well as the specific potential hazards related to this tool. Following this rule will reduce the risk of electric shock, fire, or serious injury.
  ■ Risk of bursting. Do not operate inflator to result in output pressure greater than marked maximum pressure of item to be inflated. Do not use at pressure greater than 0.5 PSI.
  ■ To reduce the risk of electric shock, do not expose to rain. Store indoors.
• Inspect unit for cracks, pin holes, or other imperfections that could cause inflator to become unsafe. Never cut or drill holes in the inflator.
  ■ Use the inflator only for its intended use. Do not alter or modify the unit from the original design or function.
  ■ Always be aware that misuse and improper handling of this inflator can cause injury to yourself and others.
  ■ Never leave an inflator unattended with the nozzle attached to the item being inflated.
  ■ Do not continue to use a inflator or nozzle that leaks air or does not function properly.
  ■ Always disconnect the battery pack before making adjustments, servicing an inflator, or when an inflator is not in use.
  ■ Do not carry the inflator by the nozzle.
  ■ Always follow all safety rules recommended by the manufacturer of your inflator, in addition to all safety rules for the inflator. Following this rule will reduce the risk of serious personal injury.
  ■ Household use only.
  ■ Do not use inflator as a breathing device.
  ■ Never direct a jet of compressed air toward people or animals. Take care not to blow dust and dirt towards yourself or others. Following this rule will reduce the risk of serious injury.
  ■ Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce the risk of serious personal injury.

■ Do not use this inflator to spray chemicals. Your lungs can be damaged by inhaling toxic fumes.
- Check damaged parts. Before further use of the inflator or air tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function.
- Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center. Following this rule will reduce the risk of shock, fire, or serious injury.
■ Risk of bursting. Carefully monitor objects during inflation.
■ To reduce the risk of over inflation, use a reliable pressure gauge periodically during inflation.
■ Never leave the inflator unattended during inflation.
■ Never block the inflating or deflating outlets while operating.
■ Do not use a battery pack that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
■ Do not modify or attempt to repair a battery pack that has been damaged.
- Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265° F may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
■ Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
■ Save these instructions. Refer to them frequently and use them to instruct others who may use this inflator. If you loan someone this inflator, loan them these instructions also.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING
	DANGER:	Indicates a hazardous situation, which, if not avoided, will result in death or serious injury.
	WARNING:	Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION:	Indicates a hazardous situation, that, if not avoided, may result in minor or moderate injury.
	NOTICE:	(Without Safety Alert Symbol) Indicates information considered important, but not related to a potential injury (e.g. messages relating to property damage).

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
	Safety Alert Indicates a potential personal injury hazard.
	Read Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Eye Protection	Always wear eye protection with side shields marked to comply with ANSI Z87.1.
	Wet Conditions Alert Do not expose to rain or use in damp locations.
	Hot Surface	To reduce the risk of injury or damage, avoid contact with any hot surface.
	Recycle Symbol	This product uses lithium-ion (Li-ion) batteries. Local, state or federal laws may prohibit disposal of batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.
V Volts Voltage
min Minutes Time
==	Direct Current Type or a characteristic of current
no	No Load Speed Rotational speed, at no load
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute

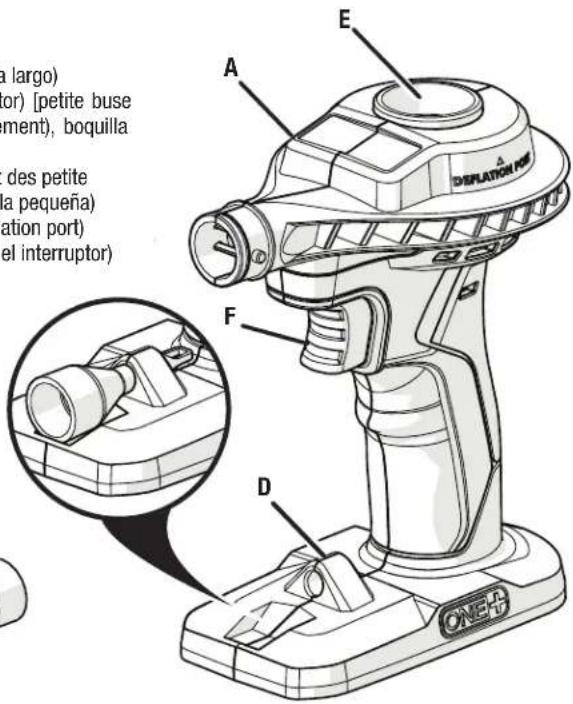

FEATURES

PRODUCT SPECIFICATIONS

Maximum Pressure 0.5 PSI

Duty Cycle....Continuous

ASSEMBLY

WARNING:

Do not use this product if it is not completely assembled or if any parts appear to be missing or damaged. Use of a product that is not properly and completely assembled or with damaged or missing parts could result in serious personal injury.

WARNING:

Do not attempt to modify this product or create accessories or attachments not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

If any parts are damaged or missing, please call 1-800-525-2579 for assistance.

OPERATION

WARNING:

Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING:

Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this tool. The use of attachments or accessories not recommended can result in serious personal injury.

WARNING:

Do not leave items to be inflated unattended while inflator is in use. These items can burst and could cause serious injury.

NOTICE:

The inflator is capable of inflating to 0.5 PSI. To avoid over inflation, carefully follow instructions on items to be inflated. To avoid product damage, never exceed recommended pressures.

APPLICATIONS

You may use this inflator for the purpose listed below:

■ Large (high volume) nozzle: Cleaning work surfaces, inflating air mattresses and other large inflatables
■ Small nozzle: Inflating beach balls and similar inflatables
■ Deflation port: Quickly deflating items

NOTE: The inflator is not designed for commercial applications.

TO INSTALL/REMOVE BATTERY PACK

See Figure 1, page 7.

To install:

■ Place the battery pack in the product. Align the raised rib on the battery pack with groove in the battery port.
■ Make sure the latches on each side of the battery pack snap in place and that the battery pack is secured in the tool before beginning operation.

To remove:

■ Depress the latches on both sides of the battery pack to release the battery pack and remove it from the tool.

For complete charging instructions, see the operator's manuals for your battery pack and charger.

WARNING:

Battery tools are always in operating condition. Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.

OPERATION

TURNING THE INFLATOR ON/OFF

See Figure 2, page 7.

■ To turn the inflator on and begin the flow of air, pull the switch trigger all the way and release it.
■ Repeat the above step to turn the inflator off.

INFLATOR NOZZLES

See Figure 3, page 7.

■ To install the large nozzle: Slide the wide end of the nozzle onto the tool. The tab on the tool should slide into the slot on the nozzle. Turn the nozzle counterclockwise until the nozzle is secure.

■ To install the small nozzle (pinch valve adaptor): Slide the wide end of the nozzle onto the end of the large nozzle until it is securely attached.

NOTE: When not in use, the small nozzle can be stored on the base of the tool.

The inflator can be hung on a pegboard by the hole on the back of the tool housing.

NOTICE:

Do not block the deflation port on top of the inflator. This can cause overheating and damage the unit.

NOTICE:

Always leave the nozzle free of obstructions when the tool is not in use. Overheating could occur if the nozzle is blocked.

INFLATING

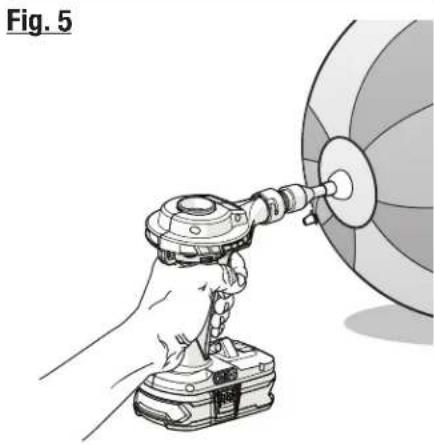

See Figures 4 - 5, page 7.

■ Select and install the nozzle that fits your application.
■ Insert the nozzle into the air port on the inflatable item.
■ Pull and release the switch trigger to start the inflator. The inflator will continue to run until it is turned off.
■ When the item is fully inflated, pull and release the switch trigger to stop the flow of air.
- Remove the nozzle from the inflated item and close the item's air port.

NOTE: Maximum PSI for this unit is 0.5 PSI.

DEFLATING

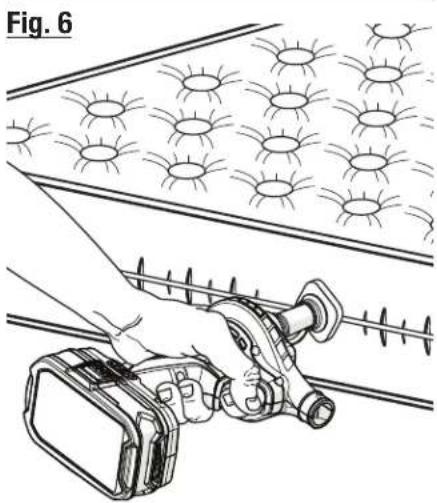

See Figure 6, page 7.

• Insert the large nozzle into the deflation port on top of the tool.
  ■ Insert the nozzle into the air port on the inflatable item.
  ■ Pull and release the switch trigger to start the inflator. The inflator will continue to run until it is turned off.
  ■ When the item is fully deflated, pull and release the switch trigger to stop the tool.
• Remove the nozzle from the deflated item and close the item's air port.

MAINTENANCE

WARNING:

When servicing, use only identical replacement parts. Use of any other parts can create a hazard or cause product damage.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING:

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which can result in serious personal injury.

NOTE: ILLUSTRATIONS START ON PAGE 7 AFTER FRENCH AND SPANISH LANGUAGE SECTIONS.

RÈGLES DE SÉCURITÉ GÉNÉRALES

AVERTISSEMENT !

LIRE ET VEILLER À BIEN COMPRENDRE TOUTES LES

Technical illustration of two mechanical components labeled B and C, showing different tip configurations (no text or symbols beyond labels)

Illustration of a robotic arm operating a cylindrical device with circular patterns inside, labeled 'Fig. 4' (no text or symbols on the diagram itself)

Illustration of a hand using a power tool to lift a large cylindrical component (no text or symbols)

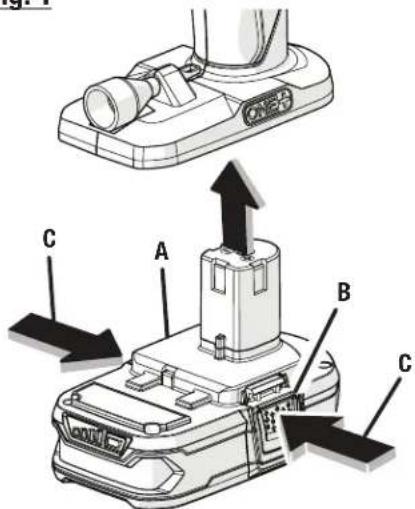

Fig. 1

Technical diagram of a vacuum cleaner with labeled parts A, B, and C, showing mechanical components and directional arrows.

A - Battery pack (bloc-piles, paquete de baterías)

B - Latches (loquets, pestillos)

C - Depress latches to release battery pack (appuyer sur les loquets pour libérer le bloc-piles, para soltar el paquete de baterías, oprima los pestillos)

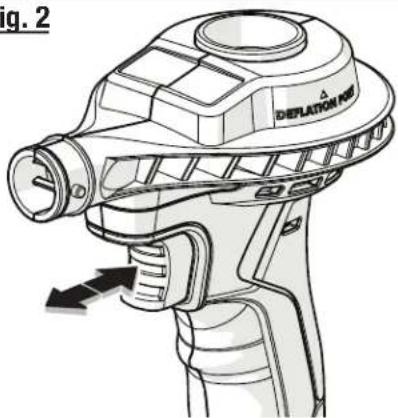

Fig. 2

fig. 2 DIP LATION NO

A - Switch trigger (gâchette, gatillo del interruptor)

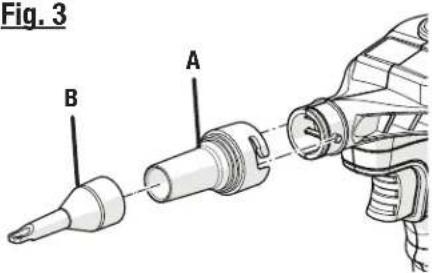

Fig. 3

Fig. 3 A B

A - Large nozzle (buse large, boquilla largo)

B - Small nozzle (pinch valve adaptor) [petite buse (adaptateur de vanne d'étranglement), boquilla pequeña (adaptador de válvula)]

Illustration of a hand using a tool to install a mechanical component, with no visible text or symbols.

Illustration of a hand using a tool to install a component, with no visible text or symbols.

NOTES / NOTAS

NOTES / NOTAS

To request service, purchase replacement parts,

locate an Authorized Service Center or obtain Customer or Technical Support:

Visit www.ryobitools.com or call 1-800-525-2579

If any parts or accessories are damaged or missing, do not return this product to the store.

Call 1-800-525-2579 for immediate service.

Please obtain your model and serial number from the product data plate.

This product is covered under a 3-year limited Warranty. Proof of purchase is required.

MODEL NUMBER* ____ SERIAL NUMBER ____

*Model number on product may have additional letters at the end. These letters designate

manufacturing information and should be provided when calling for service.
