USER MANUAL KAC875E KRESS

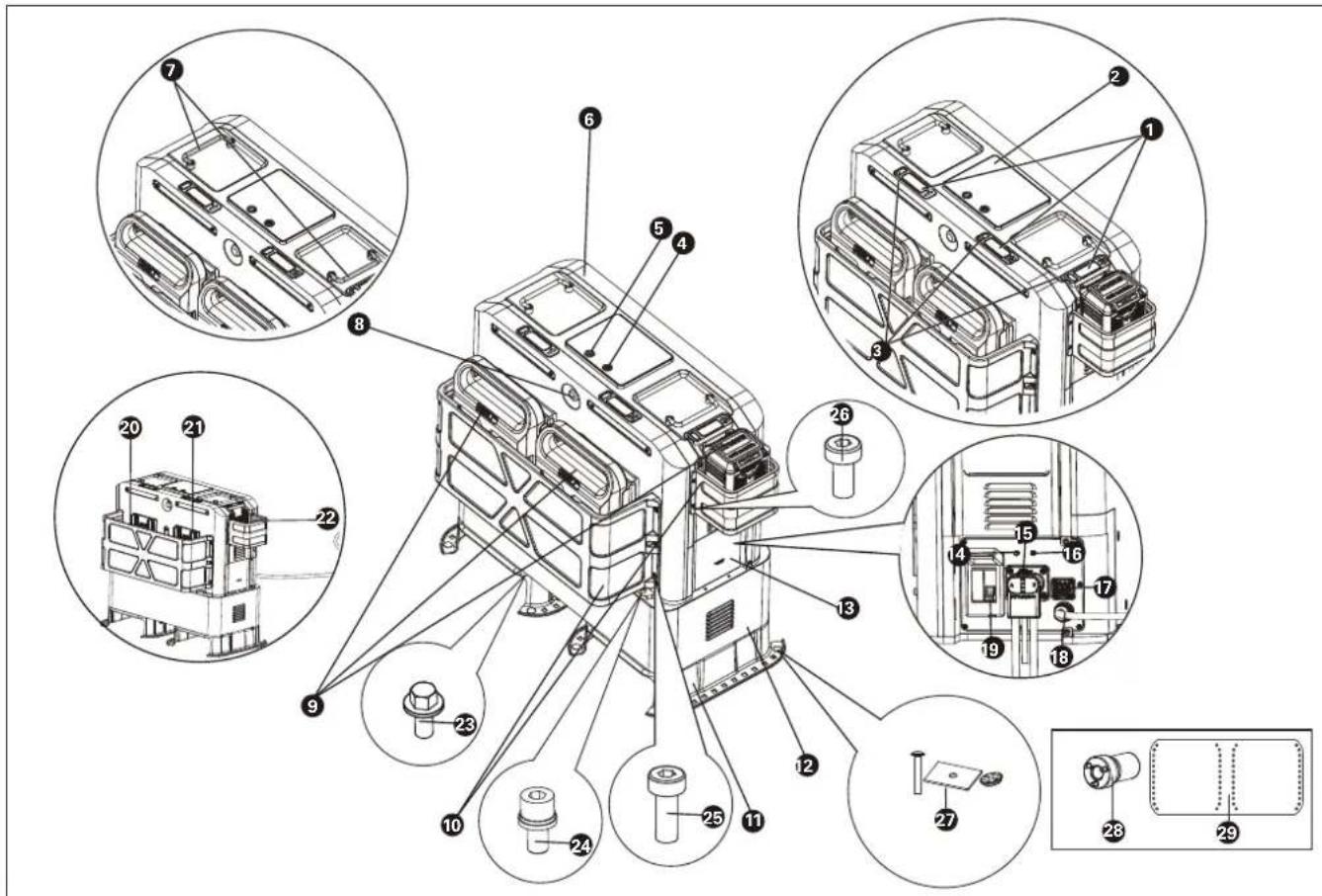

Flange bolts (For assembling the mounting brackets with the battery cabinet) M8*14 4

Socket head bolts (For assembling the battery cabinet with the charging cabinet) M8*25 4

Torx bolts (For assembling the large guard- with the charging cabinet) M6*16 6EN

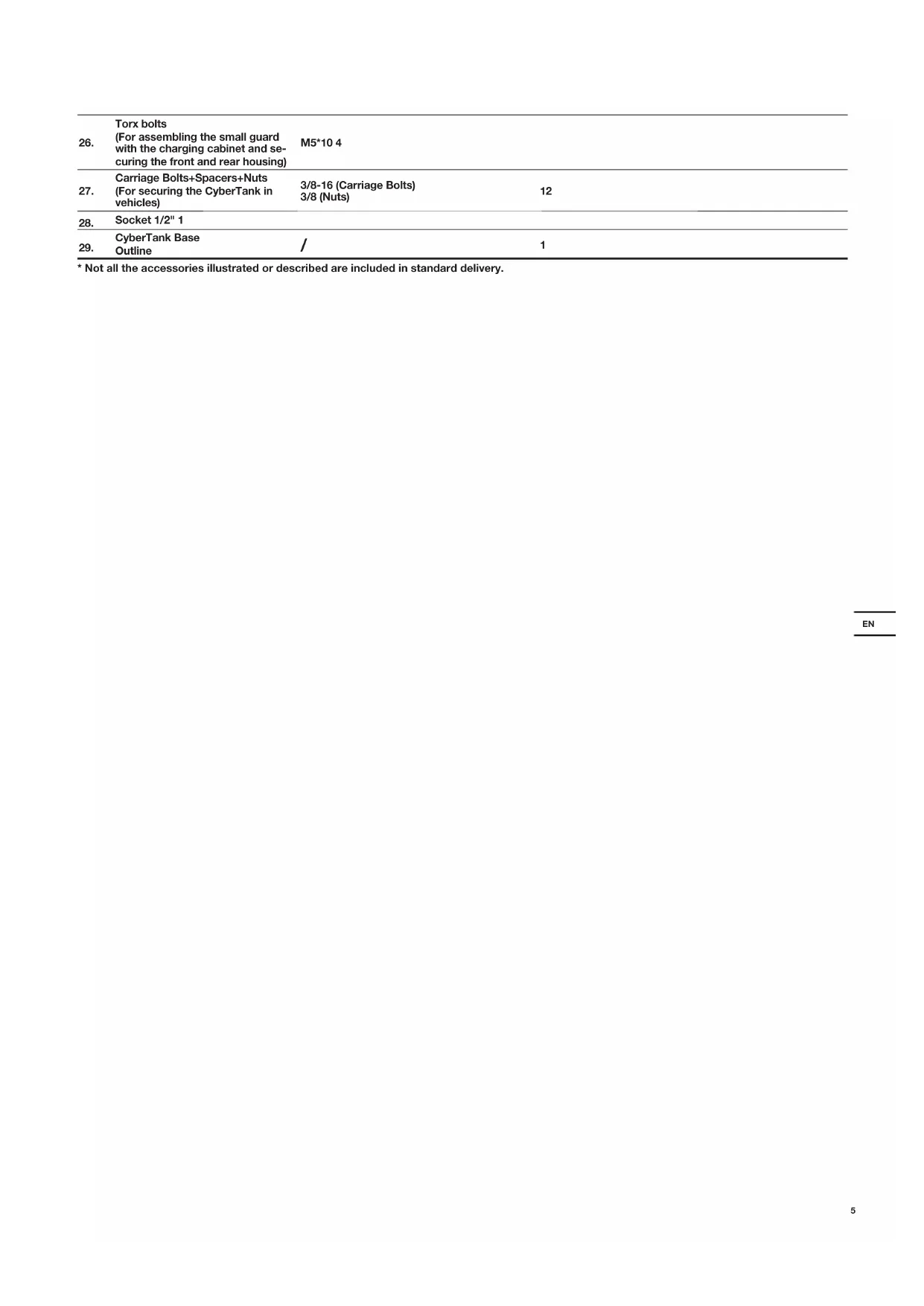

Torx bolts (For assembling the small guard with the charging cabinet and se- curing the front and rear housing) M5*10 4

Carriage Bolts+Spacers+Nuts (For securing the CyberTank in vehicles) 3/8-16 (Carriage Bolts) 3/8 (Nuts)

• Not all the accessories illustrated or described are included in standard delivery.6

ORIGINAL INSTRUCTIONS PRODUCT SAFETY WARNING Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING – When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children. c) Do not put ngers or hands into the product. d) Use of an attachment not recommended or sold by CyberTank manufacturer may result in a risk of re, electric shock, or injury to persons. e) Do not use a battery pack or CyberTank that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury. f) Do not operate the battery cabinet with a damaged cord or connector, or a damaged output cable. g) Do not disassemble the battery cabinet, take it to a qualied service person when service or repair is required. Incorrect reassembly may result in a risk of re or electric shock. h) WARNING – RISK OF EXPLOSIVE GASES. To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer and manufacturer of any equipment you intend to use in vicinity of the battery. Review cautionary marking on these products;

i) Using insulated tools, insulated gloves,

personal protective equipment, and clothing and other measures for safe installation of the battery system; j) Housing is required for protection against ingress of moisture and debris; k) Maintain good ventilation to prevent excessive accumulation of hydrogen; l) Protective components and devices required in the end use installation such as fuses, circuit breakers, wiring, and other devices such as disconnect devices in accordance with European standards; m)Correctly connect the system and any auxiliary equipment (such as independent controllers, monitoring equipment, etc.) according to the circuit diagrams and instructions provided by the manufacturer; n) Do not touch battery electrolyte, which is corrosive and harmful to eyes and skin. In case of contact with electrolyte, seek medical attention immediately o) Carry out necessary commissioning tests and inspections before putting the system into service; p) NEVER smoke or allow a spark or ame in vicinity of CyberTank; q) Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short-circuit battery or other electrical part that may cause an explosion. r) When charging the CyberTank, work in a well ventilated area and do not restrict ventilation in any way. s) Do not crush, disassemble the battery packs. Do not expose the CyberTank to re or excessive temperature. Exposure to re or temperature above 100 °C (212 °F) may cause an explosion. t) Have servicing performed by a qualied repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

CABINET WARNING – When using this product, basic precautions should always be followed, including the following: a) To reduce the risk of injury, close supervision is necessary when the product is used near children. b) Use of an attachment not recommended or sold by Battery cabinet manufacturerEN

may result in a risk of re, electric shock, or injury to persons. c) Do not use a battery pack or CyberTank that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury. d) Do not disassemble the battery cabinet, take it to a qualied service person when service or repair is required. Incorrect reassembly may result in a risk of re or electric shock. e) WARNING – RISK OF EXPLOSIVE GASES. To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer and manufacturer of any equipment you intend to use in vicinity of the battery. Review cautionary marking on these products; f) Maintain good ventilation to prevent excessive accumulation of hydrogen; g) Do not touch battery electrolyte, which is corrosive and harmful to eyes and skin. In case of contact with electrolyte, seek medical attention immediately h) NEVER smoke or allow a spark or ame in vicinity of energy storage battery;

i) Be extra cautious to reduce risk of

dropping a metal tool onto battery. It might spark or short-circuit battery or other electrical part that may cause an explosion. j) When charging the energy storage battery, work in a well ventilated area and do not restrict ventilation in any way. k) Do not crush, disassemble the battery packs. Do not expose the CyberTank to re or excessive temperature. Exposure to re or temperature above 100 °C (212 °F) may cause an explosion. l) Have servicing performed by a qualied repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. m)Warning: Risk of re, explosion, or burns. Do not disassemble, heat above 100 °C (212 °F), or incinerate.

ADDITIONAL SAFETY WARNING FOR

BATTERY PACK a) Do not dismantle, open or shred battery pack. b) Do not expose battery pack to heat or re. Avoid storage in direct sunlight. c) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short- circuit each other or be short-circuited by other metal objects. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or re. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Do not use any battery pack which is not designed for use with the equipment. g) Keep battery pack out of the reach of children. h) Always purchase the battery pack recommended by the device manufacturer for the equipment.

i) Keep battery pack clean and dry.

j) Wipe the battery pack terminals with a clean dry cloth if they become dirty. k) Battery pack needs to be charged before use. Always use the correct charger and refer to the manufacturer’s instructions or equipment manual for proper charging instructions. l) Do not leave battery pack on prolonged charge when not in use. m)After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. n) Recharge only with the charger specied by Kress . Do not use any charger other than that specically provided for use with the equipment. o) Retain the original product literature for future reference. p) Use only the battery pack in the application for which it was intended. q) Remove the battery pack from the8

equipment when not in use. r) Dispose of properly. s) Do not mix cells of different manufacture, capacity, size or type within a device. t) Keep the battery away from microwaves and high pressure.

WIRELESS PRODUCT a) Operation of this device is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. b) Caution: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. c) NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help.

1) To satisfy EMC & RF exposure requirements,

a separation distance of 20 cm (7.9") or more should be maintained between the antenna of this device and persons during device operation

2) To ensure compliance, operations at closer

than this distance is not recommended

SAVE THESE INSTRUCTIONS

SYMBOLS To reduce the risk of injury, user must read instruction manual Read the operator’s manual. Warning

WARNING: Hazardous Voltage Circuits

Warning! Risk of electric shock near the battery terminals because of dangerous voltages. Fuse must be replaced with rating specied in the manual Environmentally friendly disposal Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to these collecting points or to similar collection points. With this little personal effort, you contribute to recycle valuable raw materials and the treatment of toxic substances. Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances. Protective earth (Ground) Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.EN

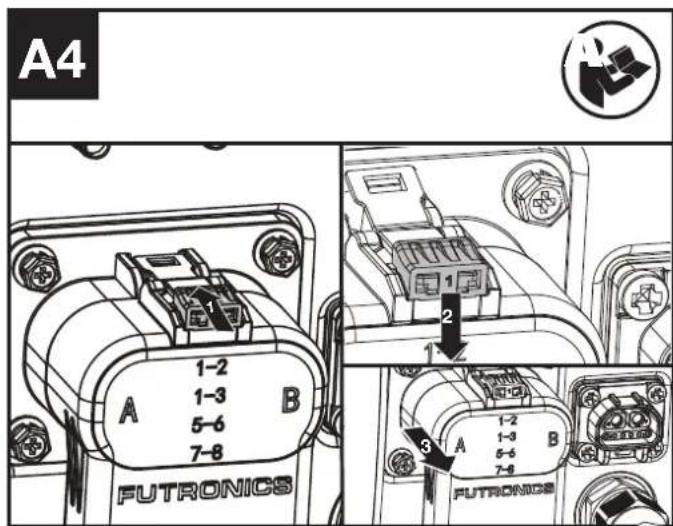

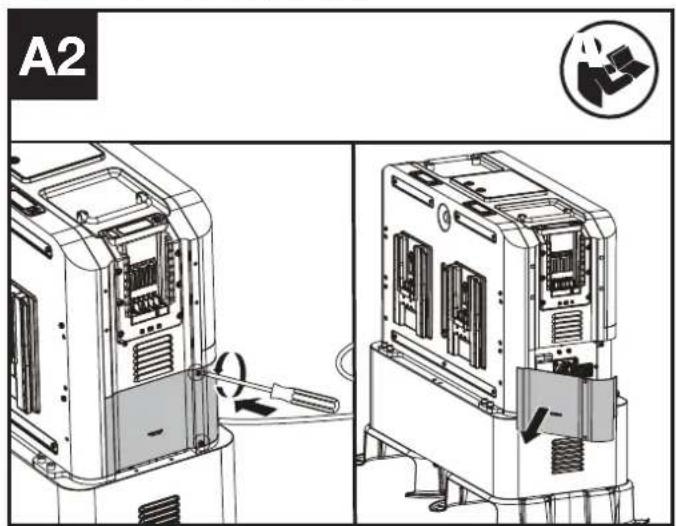

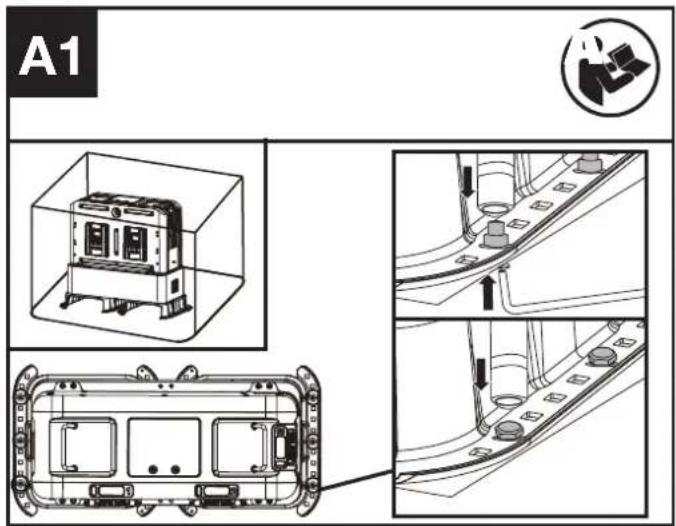

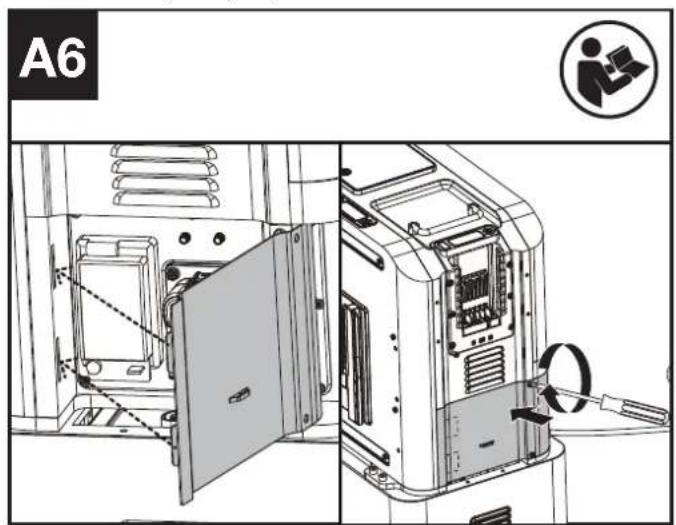

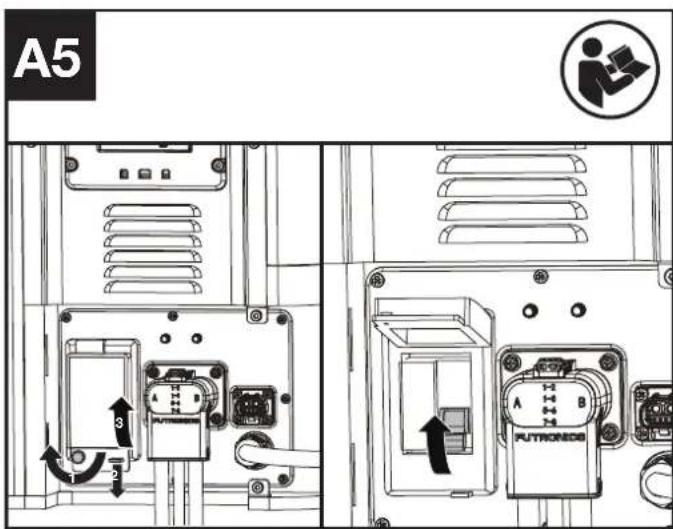

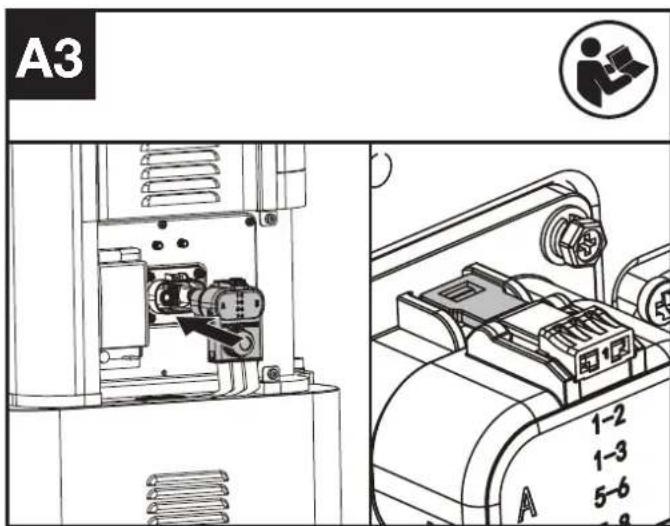

ASSEMBLY & OPERATIONNOTE: Before using the tool, read the instruction book carefully.BEFORE ASSEMBLYThe product is secured in the box. Take out the product before assembly.(See Fig. A1)A2 A ASSEMBLY1. Remove the cover.(See Fig. A2)2. Take out the connection plug and plug it to the charging cabinet until you hear a sound of “click”. (See Fig. A3) NOTE: The connection plug is stable. It is necessary to unlock the connection plug before unplugging it.(See Fig. A4)3. Assemble the antenna. NOTE: Assemble the antenna when the 4G signal is weak through 4G port and GPS port. Please seek help and guidance from the dealer.4. Turn on the circuit breaker (See Fig. A5)A2 A

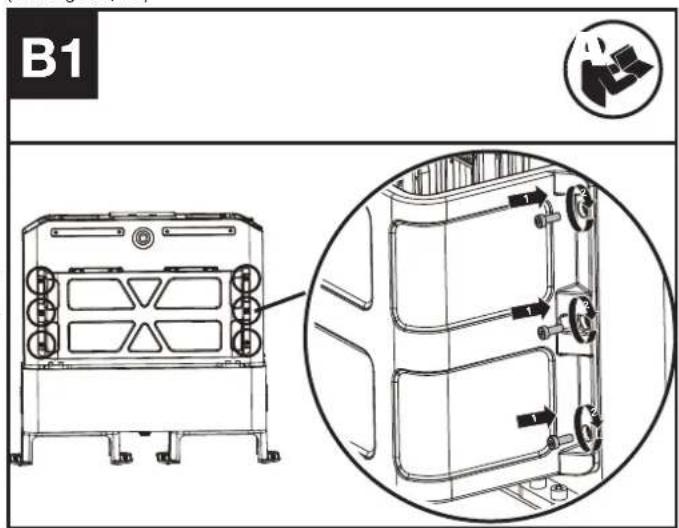

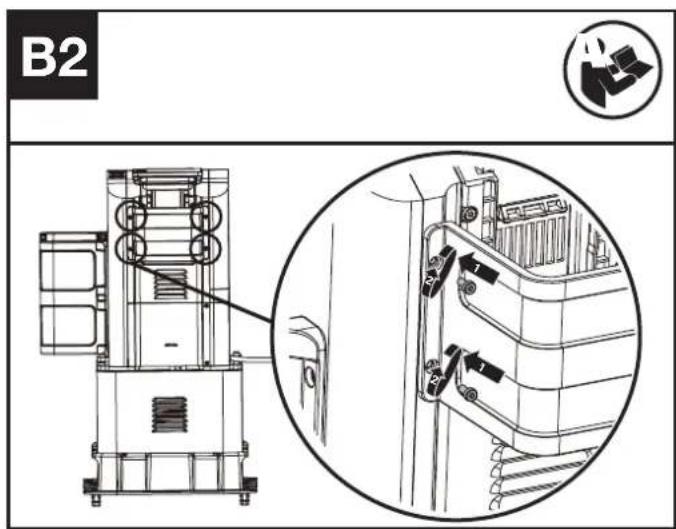

6. Assembling the large guard and the small guard to the charging cabinet (See Fig. B1, B2)A2 A

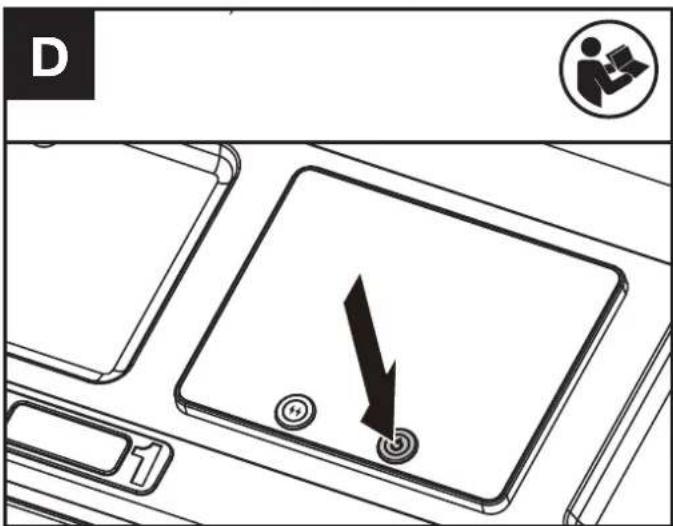

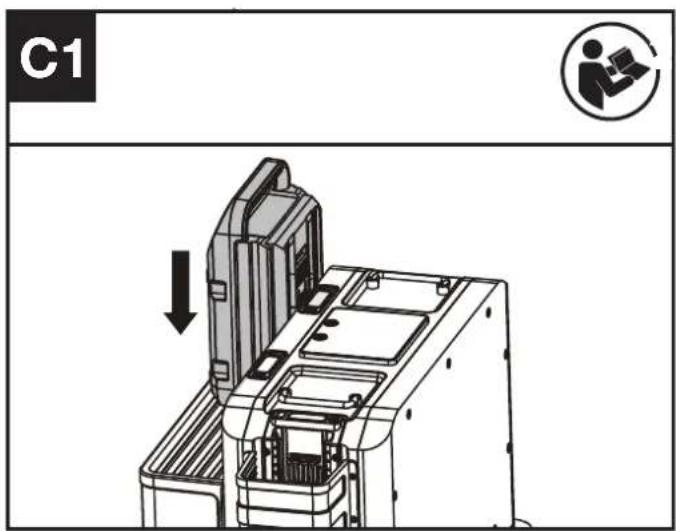

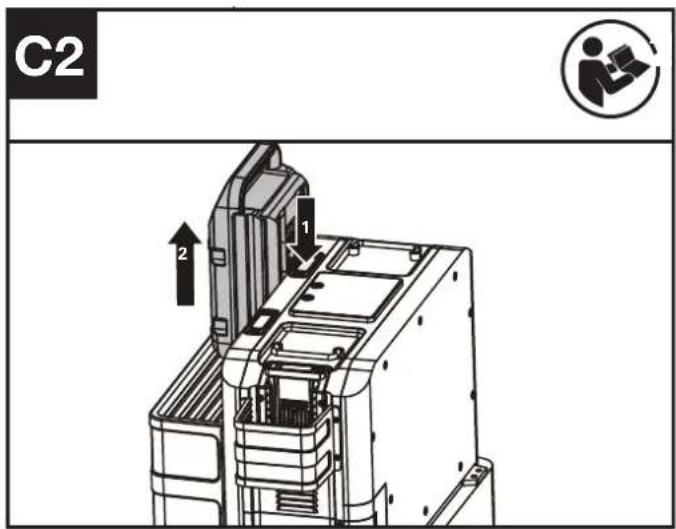

OPERATION: CHARGING THE BATTERY PACKS. 1. Press the on/off button to turn on the CyberTank. (See Fig. D)2. Install the battery packs (See Fig. C1)NOTE: For turning off the CyberTank, press and hold down the on/off Button for 3 seconds. NOTE: The display will turn off after 3 minutes. Press the on/off button or the ash charging button to turn on the display again. DEN

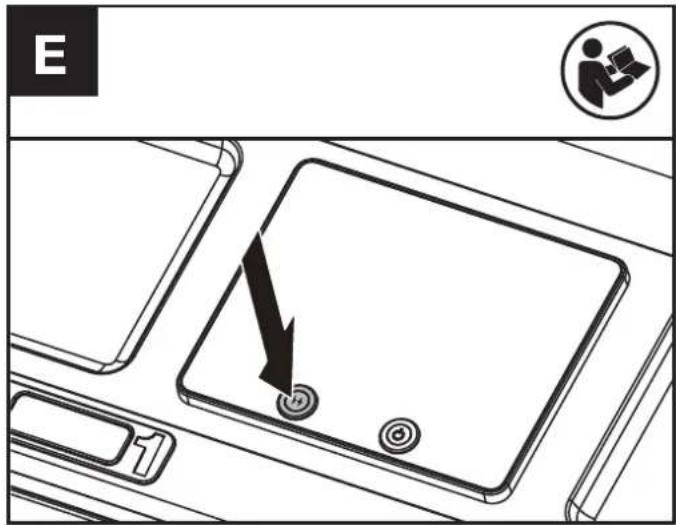

CHARGING PORTS AND CONNECTABLE DEVICESCharging Port 1 Charging Port 2 Charging Port 3Battery pack Cyber- Pack (KAC804 KAC810) (KAC804 KAC810) (KAC804)Kress 60V bat- tery Robotic mower(KR800)Inverter(use only invert-ers specied by Kress)NOTE: For charging port 2 and charging port 3, when battery packs are installed on both charging port 2 and charging port 3, the battery pack installed rst will get charged rst. And when a robotic mower is connected to charging port 3, the robotic mower will be charged rst. NOTE: It is also feasible to install battery packs rst before turning on the CyberTank. In this mode, The battery pack with more power level will bet charged rst.FLASH CHARGING(See Fig. E)When charging a battery pack in charging port 1; Press the ash charging button for 3 seconds, the ash charging mode will start. NOTE: Pressing the ash charging button again, for 3 seconds, will cancel the ash charging mode.In ash charging mode it will take 8 minutes to fully charge a CyberPack battery. CHARGING AND BOOSTER CHARGINGCharging Port 1 Charging Port 2 Charging Port 3ChargingFlash chargingNOTE: Flash charging mode is only available on charging port 1.NOTE: When the power level of the battery cabinet is less than 20 %, the ash charging mode is unavailable.NOTE: Only one charging port can be used for charging when the power level of battery cabinet is less than 20 %.The battery pack installed rst will be charged rst. When a robotic mower is connected to charging port 3, the robotic mower will be charged rst.CHARGING THE BATTERY CABINETMode 1: AC cable charging Ensure the circuit breaker is turned on, and emergency stop is off. 2. Connect the CyberTank to the outlet with the AC cable.3. Press the on/off button to turn on the CyberTank. (See Fig. D)NOTE: When CyberTank is already turned on, connect it to the mains directly.NOTE: When charging the battery cabinet and the battery packs at the same time, battery packs will charge rst and then the battery cabinet will charge after the batteries have nished charging. NOTE: Use grounded sockets.Warning! Considering the current capacity, please use the dedicated line to avoid overload of power supply.NOTE: An extension cord can be connected between the CyberTank and the AC cable to extend the connection distance.EXTENSION CORD (VDE 2.5 mm²)Voltage300 VTemperature

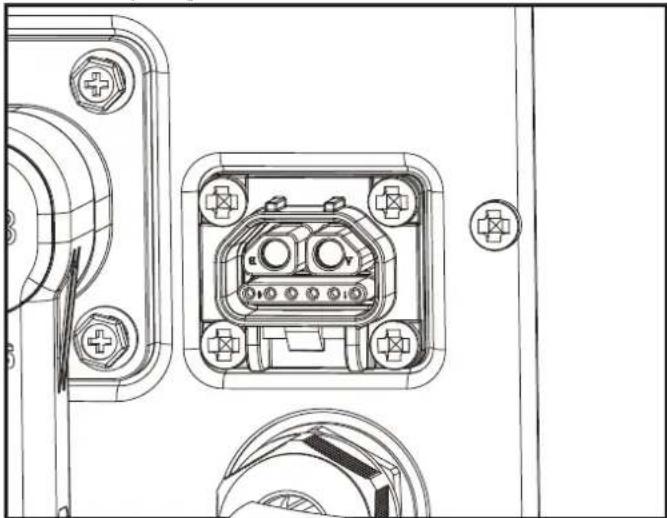

Length 15 m Mode 2: Solar power chargingPlease seek help and guidance from the dealer.NOTE: Connect the CyberTank with the Kress solar power inverter. The input voltage is 48 V.Mode 3: Power generator chargingChoose the generator that meets the technical data.Read the power generator manual carefully before operating.Please seek help and guidance from the dealer.LED DISPLAYThe display shows the charging status and the power level of battery packs and battery cabinet.

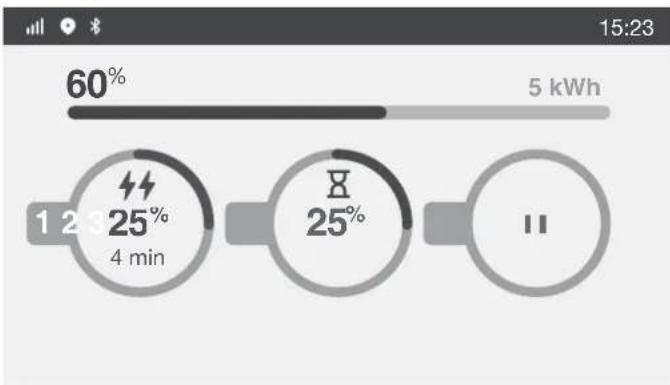

Different symbols on the display represent different operating status. Symbol Status Fast Charging Booster Charging Ready For Charging Empty charging port Bluetooth 4G Signal GPS Warning Solar Power Charging Over temperature warning

POWER INDICATOR LIGHTS

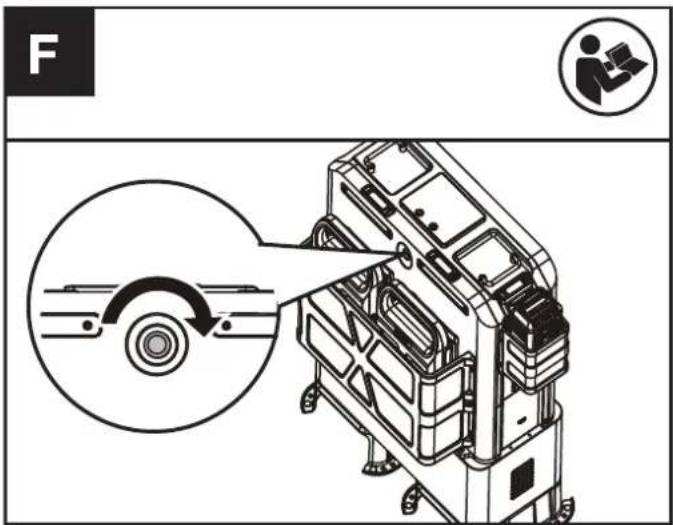

Different conditions of power indicator lights represent different charging status and battery conditions. Light ON/ flash Status Yellow on Ready for charging Green ash - - - - - - Charging Green on Fully charged Red on Defective battery EMERGENCY STOP BUTTON (See Fig. F) In case of emergency, push the emergency stop button to shut down the CyberTank. NOTE: Once the emergency stop button is pushed, the CyberTank cannot be immediately turned on again, please reset the emergency stop button before turning the CyberTank on. Rotate the emergency stop button to reset it.

APP - 4G With the 4G function, your CyberTank can be connected to the APP. For connection, please refer to the APP Download and Connection Guide. -Anti-theft This product has a anti-theft function. You can locate the product and lock it remotely through the APP. For more information about the anti-theft function, please refer to the APP. -Over-the Air (OTA) updates If your CyberTank is connected to the APP, you may be notied that new software is available via the APP. Once you conrm, the update will happen automatically Over-the Air. You can also set up automatic updates via the APP. TRANSPORTATION

1. When transporting your CyberTank, keep it upright and secured to prevent

movement or damage. For transporting your CyberTank in the vehicle, use suitable loading tools to lift up or put down the CyberTank and keep it secured in the vehicle. For securing the product in a vehicle,please refer to the CyberTank Installation Guide.

2. To lift the CyberTank with a crane or similar lifting devise, use the handles

and a suitable lifting strap. Guide the CyberTank to prevent it from swinging.

3. The brackets, provided with the CyberTank are designed so that the

CyberTank can be lifted and moved with a fork lift or hand pallet truck.

4. The CyberTank is heavy, if lifting by hand, two people should lift together. It

is not suggested to lift the CyberTank by hand.

5. The contained Li-Ion batteries are subject to the dangerous goods

legislation requirements. Transport the CyberTank only when the housing is undamaged. MAINTENANCE Remove the plug from the AC Outlet, turn CyberTank off, and pace circuit breaker in the off position before carrying out any adjustments, servicing, or maintenance -If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. Never try to open the housing cover of the CyberTank without the guidance of the dealer. - Use a protection cover to cover the CyberTank in rainy days. - Have your CyberTank serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the CyberTank is maintained. - Recommend purchasing the Protective Cabinet for use in all weather conditions. CAUTION: Do not operate or store the CyberTank in rain or wet condition to avoid electrodes corrosion and shortening the life. Charge the CyberTank, CyberPack and Kress 60 V battery packs after the electrodes are completely dry in case they are wet. Replace the electrodes if obvious verdigris appears.EN

2. Keep the socket free of foreign matters, and clean with a soft brush or

3. Never use chemical cleaners to clean it.

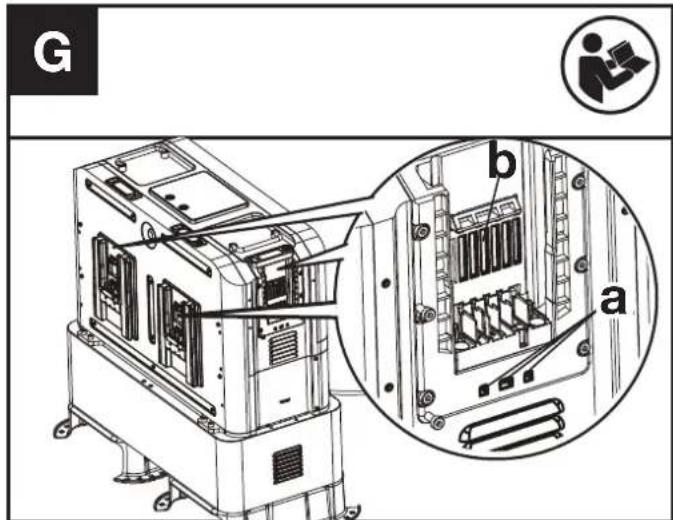

4. If there is dust in the drain (a), use compressed air or a soft bristle brush to

remove the dust in the drain (See Fig. G). If there is dust in the cooling duct (b), use compressed air or a soft bristle brush to remove the dust in the cooling duct (See Fig. G).

5. Do not spray water onto electrical components.

6. Do not use pressure washer to clean your CyberTank.

1. Remove the CyberPacks or the Kress 60V batteries from the CyberTank

2. Store the CyberTank in a dry and secure place that is inaccessible to

children and other unauthorized people. Do not place objects on top of your CyberTank.

3. It is suggested to store the CyberTank within a temperature range between

0 °C and 35 °C (32 °F - 95 °F). Keep the storage environment dry and ventilated.

4. The CyberTank is intended for commercial use and it should be stored

in buildings not designated as habitable spaces -e.g. Workshops, warehouses, stores, detached garages, sheds. Where the CyberTank is stored in a building that is adjacent to a residential dwelling, that location should be more than 152.4 cm (5 ft) away from the dwelling. Under no circumstances should the CyberTank be stored within a residential dwelling. This includes areas such as bathrooms, toilet rooms, closets, halls and storage spaces.14

TROUBLESHOOTING PROBLEM SOLUTION Battery Packs will not charge. A. Check to make sure battery packs have been correctly installed. B. The battery overheats after continuous use or the temperature is too low.

• Overheating-Allow battery pack to cool down.

• The temperature is too low-Place battery in a warm environment, once battery is warm place back on CyberTank for Charging. C. Check whether the circuit breaker is turned on. D. The emergency stop button has not been reset-Reset the emergency stop button and press the on/off button to turn on the CyberTank again. E. CyberTank overheats or the temperature is too low-Cooling or warming up the CyberTank to the appropriate temperature. F. CyberTank was not properly charged-Make sure the CyberTank is properly charged. G. Return to Authorized Service Location-may need new battery. CyberTank is not charging. A. The emergency stop button has not been reset-Reset the emergency stop button and press the on/off button to turn on the CyberTank again. B. Check whether the circuit breaker is turned on. C. CyberTank overheats or the temperature is too low-Cooling or warming up the CyberTank to the appropriate temperature. D. The battery cabinet and the battery packs are getting charged at the same time-Battery packs will charge prior to the charging of the battery cabinet. E. Contact the dealer for detailed information. CyberTank suddenly shuts down. A. The emergency stop button is accidentally pushed-Rotate the emergency stop button to reset it and turn on the Cyber- Tank again. B. Circuit breaker has been tripped-Please turn circuit breaker back on. C. Contact the dealer for detailed information. CyberTank will not turn on. A. CyberTank overheats or the temperature is too low-Cooling or warming up the CyberTank to the appropriate tempera- ture. B. The battery cabinet is out of power-Connect the CyberTank to the mains through AC cable and ensure the connection is stable. C. Ensure the connection between the charging cabinet and battery cabinet is stable. D. The emergency stop button has not been reset-Reset the emergency stop button and press the on/off button to turn on the CyberTank again. E. Contact the dealer for detailed information. The CyberTank lost connection with the APP. A. 4G signal is weak-Changing the working site to where signal is strong. B. Contact the dealer for detailed information. Flash charging doesn’t work. A. CyberTank overheats or the temperature is too low-Cooling or warming up the CyberTank to the appropriate tempera- ture. B. The battery overheats after continuous use or the temperature is too low.

• Overheating-Allow battery pack to cool down.

• The temperature is too low-Place battery in a warm environment, once battery is warm place back on CyberTank for Charging. C. The battery cabinet is out of power-Connect the CyberTank to the mains through AC cable and ensure the connection is stable. D. Ensure the booster charging button has get pressed. Warnings on the display A. Refer to the App. B. Contact the dealer for detailed information TECHNICAL DATA KAC875E KAC875E.X** KAC877E KAC877E.X** Rated voltage 48 V Battery capacity 105 Ah 150 Ah Battery energy 5040 Wh 7200 Wh Battery chemistry LiFePO4 Lithium Iron Phosphate Battery pack type CyberPack Kress 60 V battery Battery pack charging time*** (CyberPack) 100% 80% 1 x 4.0 Ah 14 min 10 min 2 x 4.0 Ah 14 min 10 min 1 x 11 Ah 14 min 10 min 2 x 11 Ah 14 min 10 min 1 x 4.0 Ah @ Flash mode 8 min 5 min 1 x 11 Ah @ Flash mode 8 min 5 minEN

C (32 °F - 113 °F) Recommended ambient temperature for operating

C (32 °F - 95 °F) Weight 140 kg (309 lbs) 187 kg (412 lbs) ** X=1-999,A-Z,M1-M9 they are only used for different customers, there are no safe relevant changes between these models. *** Charging time varies with different temperature. We recommend that you purchase your accessories from the same Dealer that sold you the tool. Refer to the accessory packaging for further details. Your Dealer can assist you and offer advice. Technical data for Bluetooth Frequency bands for Bluetooth, MHz 2400-2483.5 Maximum Transmitted Power for Bluetooth, dBm 8 dBm Technical data for 4G Band TX RX RF Output Power(Max) GSM900(B8) 880-915 925-960 33dBm DCS1800(B3) 1710-1785 1805-1880 30dBm WCDMA B1 1920-1980 2110-2170 24dBm WCDMA B8 880-915 925-960 24dBm LTE-FDD B1 1920-1980 2110-2170 23dBm LTE-FDD B3 1710-1785 1805-1880 23dBm LTE-FDD B7 2500-2570 2620-2690 23dBm LTE-FDD B8 880-915 925-960 23dBm16

LTE-FDD B20 832-862 791-821 23dBm LTE-FDD B28 703-748 758-803 23dBm LTE-TDD B38 2570-2620 2570-2620 23dBm LTE-TDD B40 2300-2400 2300-2400 23dBm Technical data for 4G-GPS 4G module -GNSS GNSS GPS Band L1 1575.42+/-1.023 Calileo Band E1 1575.42+/-1.023 BDS Band E11 1561.098+/-2.046 GLONASS Band G1 1579.5~1605.8 ENVIRONMENTAL PROTECTION Environmentally friendly disposal Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to these collecting points or to similar collection points. With this little personal effort, you contribute to recycle valuable raw materials and the treatment of toxic substances.

PLUG REPLACEMENT(ONLY FOR

REWIRABLE PLUG OF UK & IRELAND) If you need to replace the tted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is marked with L. Warning! Never connect live or neutral wires to the earth terminal of the plug. Only t an approved BS1363/A plug and the correct rated current fuse which is used in the plug. Note: If a moulded plug is tted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

DECLARATION OF CONFORMITY

The person authorized to compile the technical file, Name Marcel Filz Address Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany 2022/12/23 Allen Ding Deputy Chief Engineer, Testing & Certification Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. ChinaEN

DECLARATION OF CONFORMITY

We, Positec (UK & Ireland) Ltd PO Box 6242, Newbury, RG14 9LT, UK Declare that the product Description Power station Type KAC875E KAC875E.X KAC877E KAC877E.X Function Conveniently charge tools and garden tools and similar products. Complies with the following regulations, Electrical Equipment (Safety) Regulations 2016 Electromagnetic Compatibility Regulations 2016 Radio Equipment Regulations 2017 Ecodesign for Energy-Related Products and Energy Information Regulations 2021 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 GDPR (EU)2016/679 Standards conform to BS EN 62477-1, BS EN 61000-6-1, BS EN IEC 61000-6-3, ETSI EN 301 908- 1, ETSI EN 301 908-2, ETSI EN 301908-13, ETSI EN 301 511, ETSI EN 303 413, ETSI EN 301489-1, ETSI EN 301 489-19, ETSI EN 301 489-52, BS EN 50663, BS EN 62368-1, BS EN 303413 , BS EN 300328, BS EN 301489-1/-

17, BS EN 62619, BS EN IEC 63056

The person authorized to compile the technical file, Name Jim Kirkwood Address Positec (UK & Ireland) Ltd, PO Box 6242, Newbury, RG14 9LT, UK 2022/12/23 Allen Ding Deputy Chief Engineer, Testing & Certification Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China18
