USER MANUAL KG757E.9 KRESS

ORIGINAL INSTRUCTION PRODUCT SAFETY GENERAL SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. Carefully read the instructions for the safe operation of the machine. Save all warnings and instructions for future reference. - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Children should be supervised to ensure that they do not play with the appliance. - The appliance is only to be used with the power supply unit provided with the appliance. IMPORTANT READ CAREFULLY BEFORE USE

REFERENCE Safe operation practices Training a) read the instructions carefully. Be familiar with the controls and the proper use of the equipment; b) never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations can restrict the age of the operator; c) never mow while people, especially children, or pets are nearby; d) keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property Preparation a) While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals; b) thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown by the machine;8

c) Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. Replace damaged and unreadable labels. Operation a) mow only in daylight or in good articial light; b) avoid operating the equipment in wet grass, where feasible; c) always be sure of your footing on slopes; d) walk, never run; e) for wheeled rotary machines, mow across the face of slopes, never up and down;mow across the face of slopes, never up and down. f) exercise extreme caution when changing direction on slopes; g) do not mow excessively steep slopes; h) use extreme caution when reversing or pulling the lawnmower towards you;

i) stop the blade(s) if the

lawnmower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the lawnmower to and from the area to be mowed; j) never operate the lawnmower with defective guards , or without safety devices, for example deectors and/or grass catchers, in place; k) switch on the motor carefully according to instructions and with feet well away from the blade(s); l) do not tilt the lawnmower when switching on the motor, except if the lawnmower has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator; m)do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times; n) not to touch the blades before the disabling device has been removed and the blades have come to a complete stop; o) Do not start the lawnmower when standing in front of the discharge opening. p) Do not transport the lawnmower while the9

power source is running. q) Stop the lawnmower,and remove the disabling device. Make sure that all moving parts have come to a complete stop. – whenever leaving the machine unattended, – before clearing a blockage, – before checking, cleaning or working on the machine, – after striking a foreign object. Inspect the machine for damage and make repairs before restarting and operating the lawnmower If the lawnmower starts to vibrate abnormally (check immediately) - inspect for damage. - replace or repair any damaged parts. - check and tighten any loose parts. Maintenance and storage a) keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition; b) check the grass cacher frequently for wear or deterioration; c) replace worn or damaged parts for safety. Use only genuine replacement parts and accessories. d) Be careful during adjusting of the lawnmower to prevent entrapment of the ngers between moving blades and xed parts of the lawnmower. e) Always allow the lawwnmower to cool down before storing. f) When servicing the blades be aware that, even though the power source is switched off, the blades can still be moved.

BATTERY PACK a)Do not dismantle, open or shred cells or battery pack. b)Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short- circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.10

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Keep battery pack clean and dry. g) Wipe the battery pack terminals with a clean dry cloth if they become dirty. h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.

battery pack on charge when not in use. j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. k) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment. l) Do not use any battery pack which is not designed for use with the equipment. m)Keep battery pack out of the reach of children. n) Retain the original product literature for future reference. o) Remove the battery from the equipment when not in use. p) Dispose of properly. q) Do not mix cells of different manufacture, capacity, size or type within a device. r) Keep the battery away from microwaves and high pressure. SYMBOLS Read instruction handbook before operation this machine11

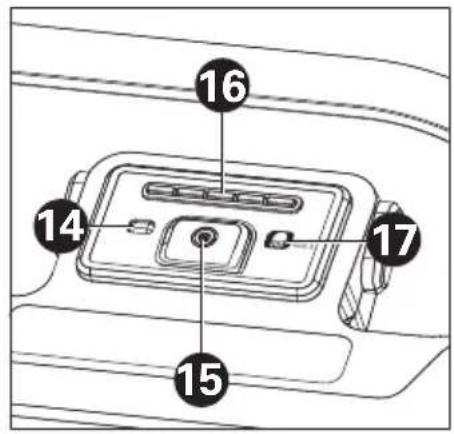

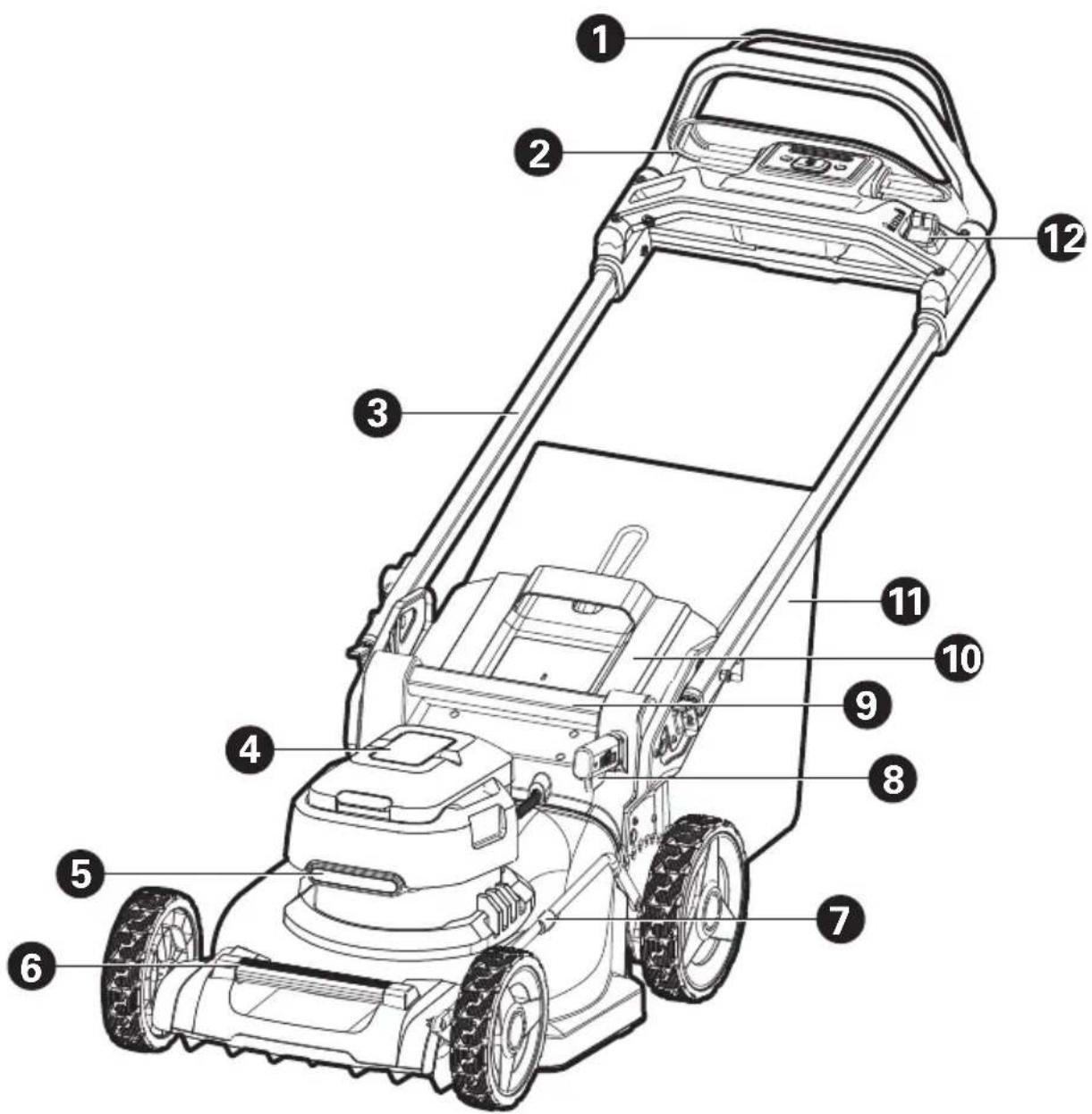

Keep bystanders away. Beware of sharp blades. Blades continue to rotate after the motor is switched off- Remove disabling device before maintenance Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Do not burn Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Wear protective gloves. Remove battery from the socket before carrying out any adjustment, servicing or maintenance. Remove the key Blade continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them COMPONENT LIST

• Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type KG757E KG757E.9(7- designation of machinery, representative of Cordless Lawn Mower) KG757E KG757E.9 Voltage 60V Max* No load speed 2800/min Deck width 48 cm Cutting width 46 cm12

Front wheel diameter 200 mm Rear wheel diameter 230 mm Cutting height 20 – 80 mm Cutting height positions

Grass collection capacity 55 L Battery type Lithium-ion

Battery Model KA3002 (4.0 Ah)

Charger Model KA3714

Charging time (approx.) Battery pack:

• Voltage measured without workload. Initial battery voltage reaches maximum of 60 volts. Nominal voltage is 54 volts. ACCESSORIES KG757E KG757E.9 Battery Pack (KA3002) 1 / Charger (KA3714) 1 / Rear side-discharge chute（KA2170）

Mulching insert 1 1 Grass collection bag 1 1 We recommend that you purchase your accessories from the same store that sold you the tool. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. NOISE DATA A weighted sound pressure L

A weighted sound power L

WARNING: The vibration emission value during

actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained. Using the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome if its use is not adequately managed

WARNING: To be accurate, an estimation of

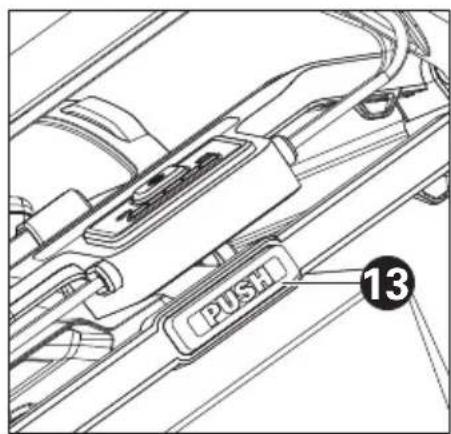

exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may signicantly reduce the exposure level over the total working period. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories. Plan your work schedule to spread any high vibration tool use across a number of days. OPERATION INSTRUCTION NOTE: Read instruction handbook before operation this machine. INTENDED USE This product is intended for domestic lawn mowing. BEFORE OPERATION: Lifting the Handle bar (See Fig. A) Press and hold quick-release button during operation.13

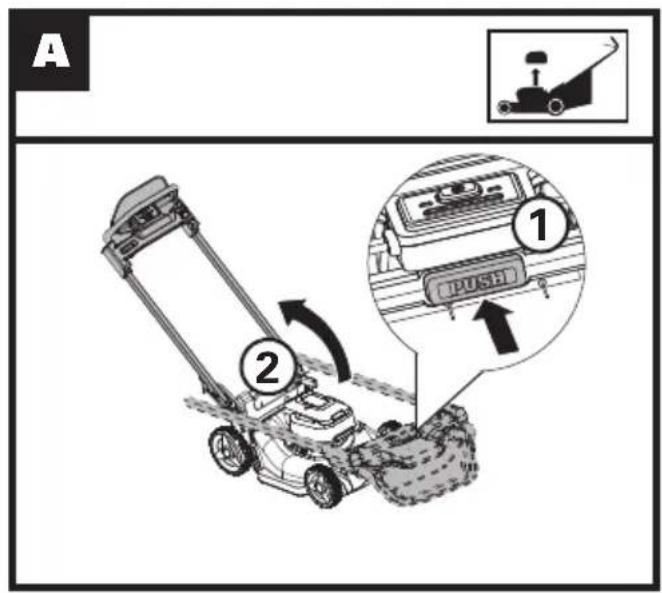

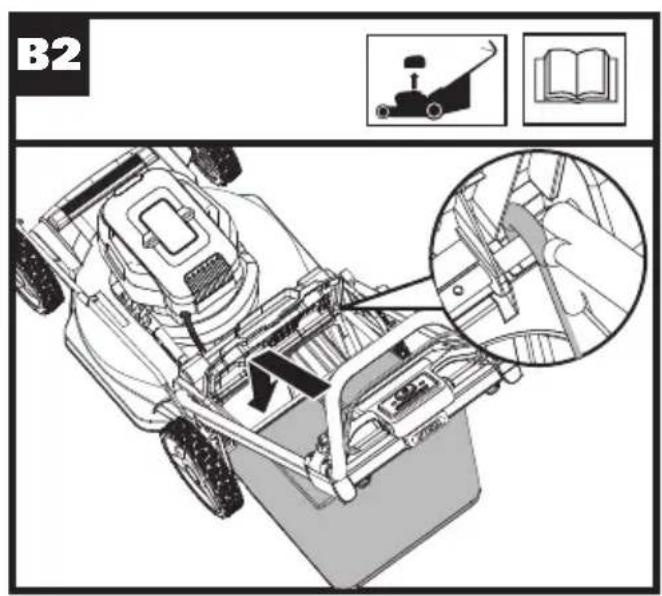

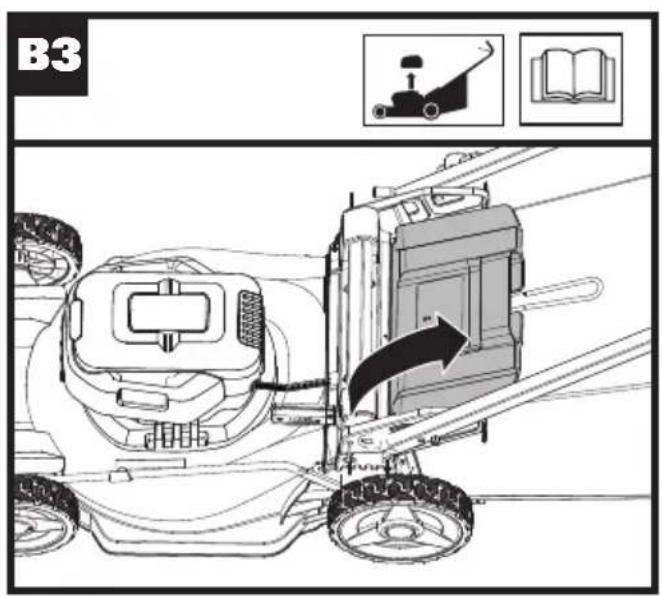

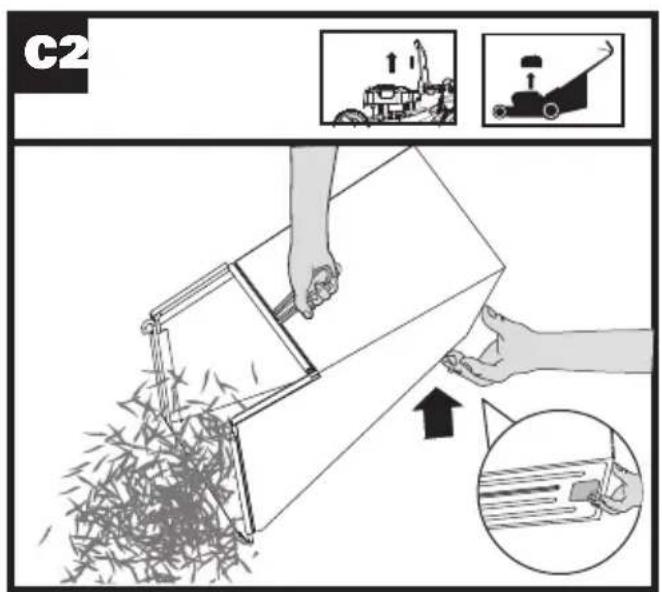

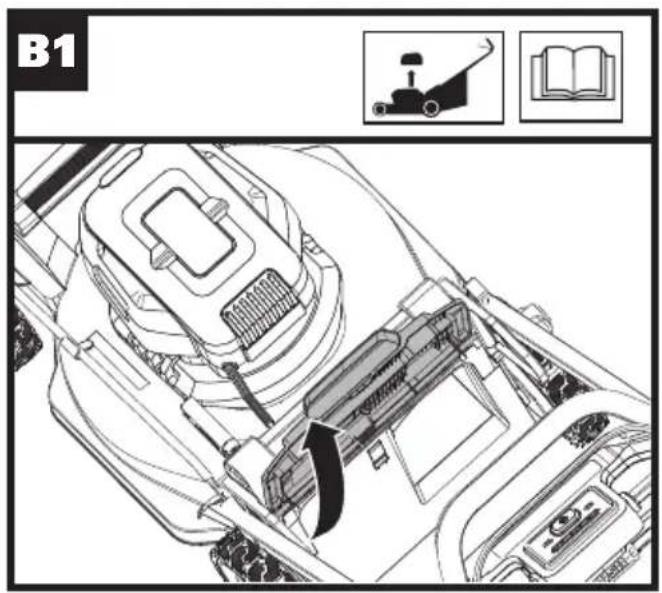

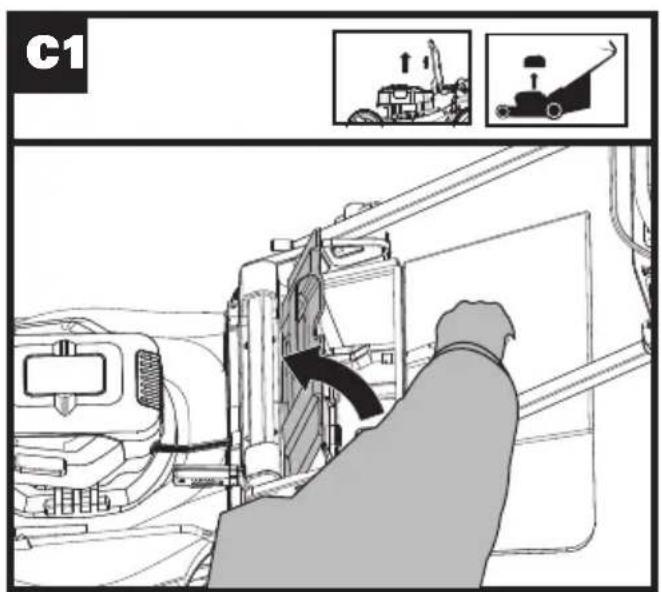

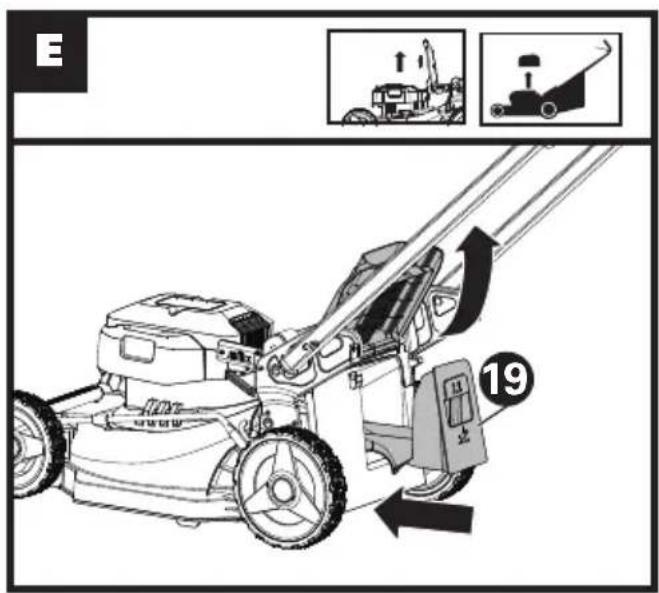

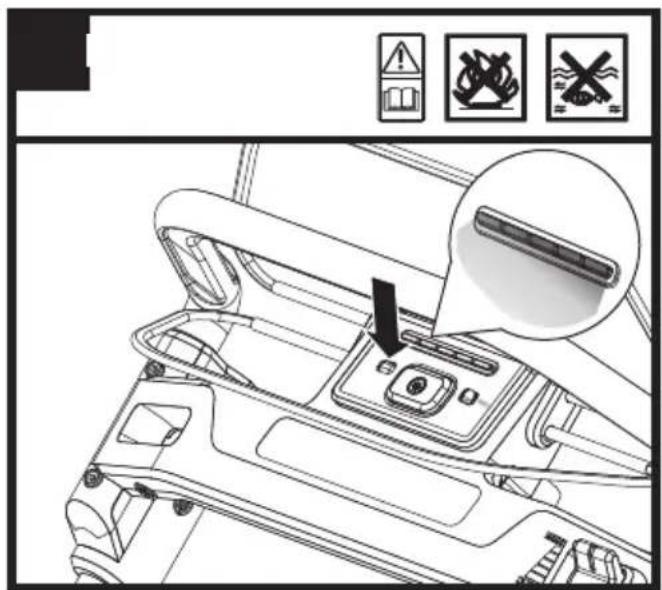

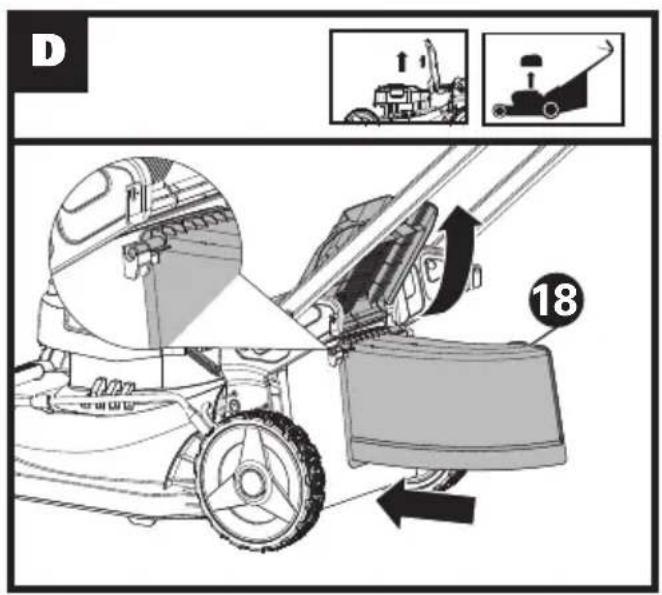

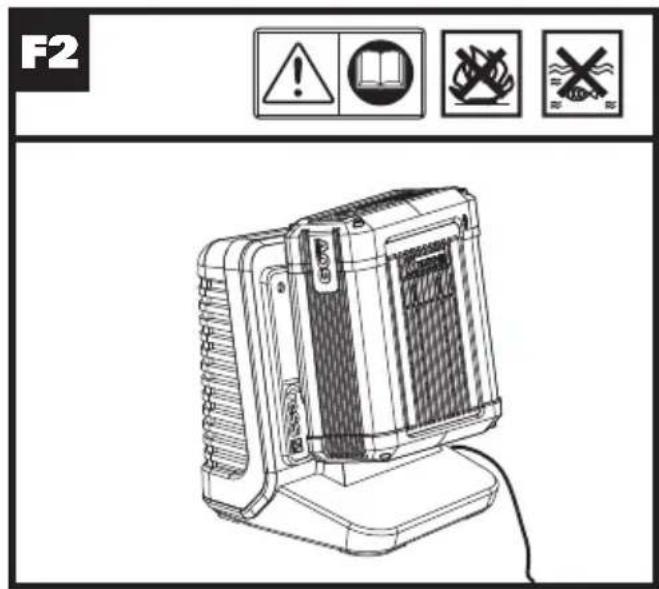

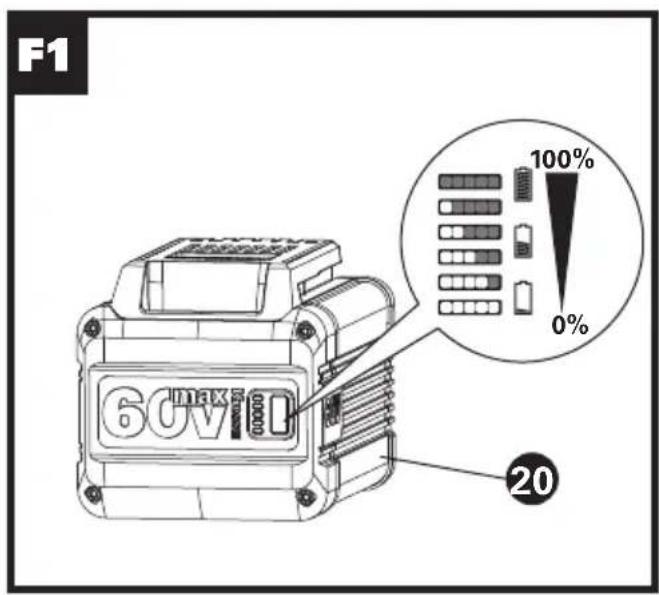

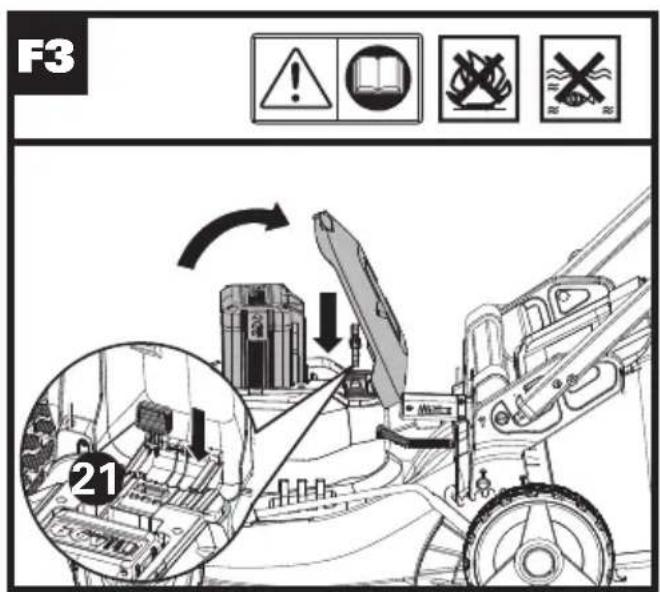

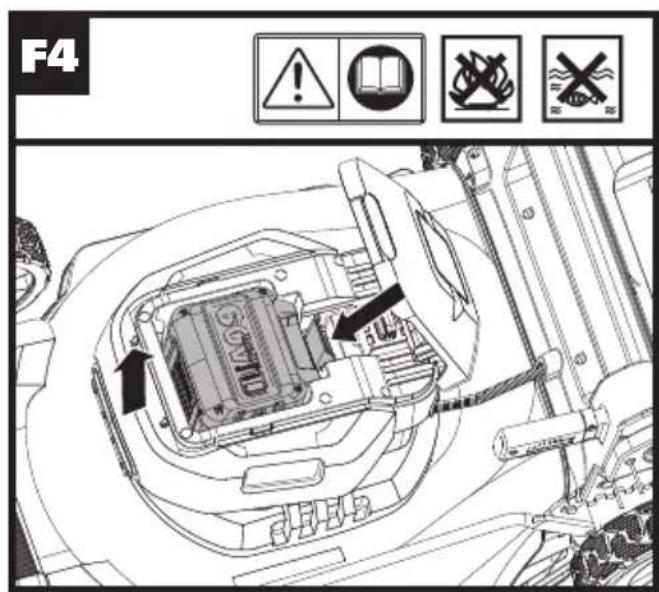

Assembling the grass collection bag to the lawn mower (See Fig. B1, B2, B3) NOTE: Depress the grass collection bag slightly to ensure that it is completely installed. Removing/emptying grass collection bag (See Fig. C1, C2) WARNING! Always check the safety ap close the discharge outlet before using. Never lift the safety ap when the lawn mower is being used without tted grass collection bag. Installing the rear side-discharge chute（Sold Separately）(See Fig. D) Removing grass collection bag, then install rear side- discharge chute in. Installing the mulching insert (See Fig. E) Removing grass collection bag or rear side-discharge chute, then install mulching insert in. Checking the battery charge condition (See Fig. F1) NOTE: Fig. F1 only applies for the battery pack with battery indicator light. The battery level can be determined by pressing the power indicator button beside the battery lights. Press the button before and after each use to check the battery Remarks LED-light Battery condition Five green lights are illuminated. 70% ≤ Power level≤100% Four green lights are illuminated. 50% ≤ Power level < 70% Three green lights are illuminated. 35% ≤ Power level < 50% Two green lights are illuminated. 20% ≤ Power level < 35% One green light are illuminated. 10% ≤ Power level < 20% No light is illuminated. Power level < 10% Charging the battery pack (See Fig. F2) - Your battery pack is partly charged and needs to be fully charged before rst use. - More details can be found in charger’s manual. Installing & removing the battery pack (See Fig. F3, F4) Insert the safety key before installing battery pack(s). NOTE: Depress the battery release button to release battery pack(s) from your tool. After recharging, insert the battery pack into tool’s battery port until you hear a “click”. A simple push and slight pressure will be sufcient. Checking the power indicator light (See Fig. F5) Press the switch button for battery indicator light and the power indicator light will be on . OPERATION Starting and Stopping (See Fig. G1, G2) Press the Safety lock-out button, then push Operating bail to start. Release the operating bail to stop. For starting, press both the Safety lock-out button and the Operating bail at the same time. Operating the self-propel system (See Fig. H) Press the Safety lock-out button, then push the Self- propel speed-control lever to operate. NOTE: To activate self-propel, press both the Safety lock-out button and the Self-propel speed-control lever at the same time.

MULCHING MOWING TIPS

While mulching, your new mower is designed to cut the grass clippings into small pieces and distribute them back into the lawn. Under normal conditions, the mulched grass will biodegrade quickly and deliver nutrients to the lawn. Please review the following recommendations for optimum mulching performance.

1) Avoid mowing when the grass is wet from rain or dew.

Wet grass may form clumps which interfere with the mulching action and reduce the runtime. The best time to mow the grass is in the late afternoon when the grass is dry and the newly cut area will not be exposed to direct sunlight.

2) For the best mulching performance, set the cutting

height to remove about one third of the grass blade length, ideally no more than 40mm at one time. If the lawn is overgrown, it may be necessary to increase the cutting height to reduce the pushing effort and prevent overloading the motor. For extremely heavy mulching, it is advisable to rst cut at a high cut height setting, and then re-cut to the nal cut height. Otherwise, make narrower cuts and mow slowly.

3) For the best performance, keep the mower housing

free of built-up grass. From time to time turn off mower and wait for the blades to come to a complete stop. Then unplug the safety key, remove the batteries and turn mower on its side. Using an object such as a stick, wipe out any accumulation of grass around the blade area. Be careful of the sharp edges of the blade. Ensure to clean the blade area often when cutting wet or new grass and every time after the machine is used.

4) Certain types of grass or grass conditions may14

require that an area be mulched a second time to fully disperse the grass throughout the lawn. If cutting a second time, it is advisable to cut perpendicular (across) the rst cut pattern. DO NOT CHANGE CUT PATTERN IN ANY WAY THAT WOULD CAUSE MOWING DOWN A HILL.

5) Change your cutting pattern from week to week. This

will help prevent matting and graining of the lawn.

6) Do not mow on a slope that has an angle of greater

CUTTING AREA The cutting area can be affected by several factors, such as cutting height, lawn humidity, grass length and density. Besides, starting and stopping the mower too many times during operation will reduce the cutting area. It is ideal for mowing up to 800m² lot sizes. TIPS:

1) It is recommended to mow your lawn more frequently,

walk at normal pace, and not to start/stop the mower too often during operation.

2) For best performance, please ensure use fully

charged battery pack(s) and always cut off 1/3 or less of the grass height.

3) Walk slowly when cutting long grass, so as to have

more effective cutting and properly discharge the clippings.

4) Avoid cutting wet grass, otherwise it will stick to the

underside of the deck and the clippings cannot be collected or discharged properly.

5) A higher cutting height shall be applied to new or

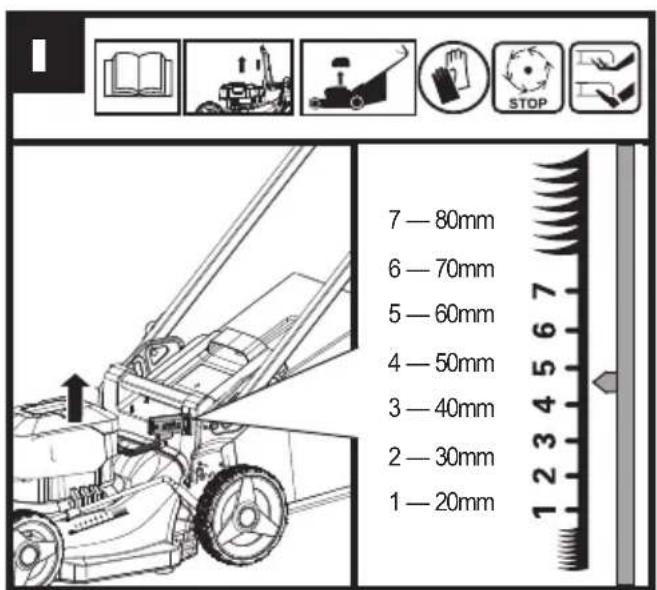

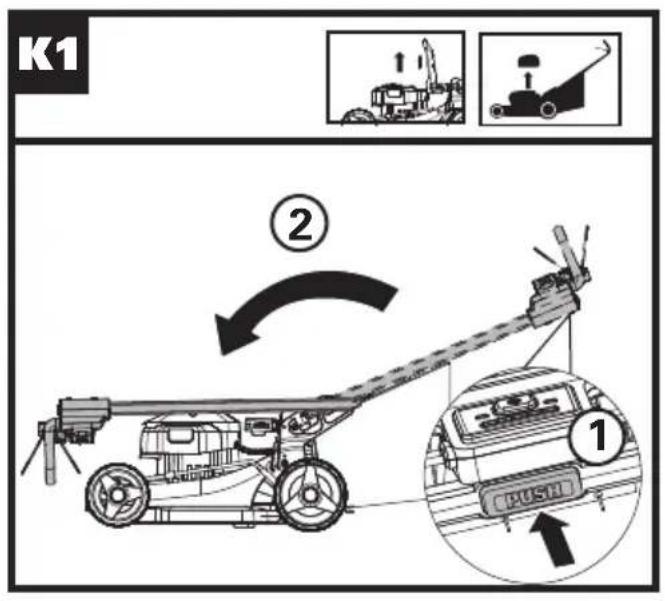

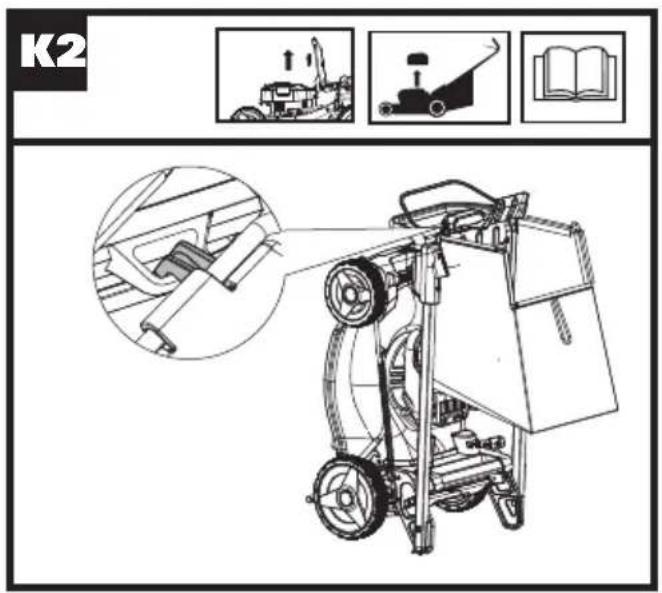

thick grass and it will extend the battery duration. Adjusting the cutting height (See Fig. I) Press and hold Cutting-height adjustment lever. Adjust the cutting height up and down. WARNING! Stop, release operating bail and wait until the motor stops before adjusting height. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury. Do not touch rotating blades. Opening the Led headlight (See Fig. J) Press the switch button for Led headlight. AFTER OPERATION: STORAGE (See Fig. K1, K2) Stop the mower and always unplug the safety key and remove the batteries. Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots. Turn the machine on its side and clean the blade area. If grass cuttings are compacted in the blade area, remove with a wooden or plastic implement. Store the machine in a dry place. Do not place other objects on top of the machine. To aid storage, Press and hold quick-release button and fold the handle bar. MAINTENANCE

WARNING: Stop the mower and unplug the safety

key and remove the batteries before removing the grass collection bag. NOTE: To ensure long and reliable service, perform the following maintenance procedures regularly. Check for obvious defects such as a loose, dislodged or a damaged blade, loose ttings, and worn or damaged components. Check that the covers and guards are all undamaged and are correctly attached to mower. Carry out any necessary maintenance or repairs before operating mower. If the mower should happen to fail despite regular maintenance, please call our customer helpline for advice. BLADE SHARPENING

REMOVING, SHARPENING, AND INSTALLING

BLADE. ENSURE THAT SAFETY KEY IS

REMOVED. Sharpening the blade twice during a mowing season is usually sufcient under normal circumstances. Sand causes the blade to dull quickly. If your lawn has sandy soil, more frequent sharpening may be required.

REPLACE BENT OR DAMAGED BLADE

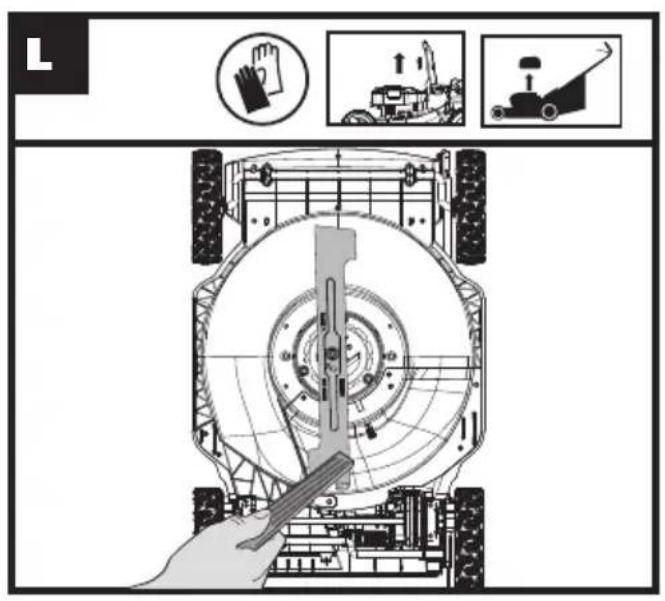

IMMEDIATELY. WHEN SHARPENING THE BLADE (See Fig. L)

1. Make sure blade remains balanced.

2. Sharpen blade at the original cutting angle.

3. Sharpen cutting edges on both ends of blade to keep

it balanced, removing equal amounts of material from both ends. NOTE:

1. Be sure the mower is turned off and unplug the safety

key, remove the batteries.

2. Place the mower in stand up storage mode.

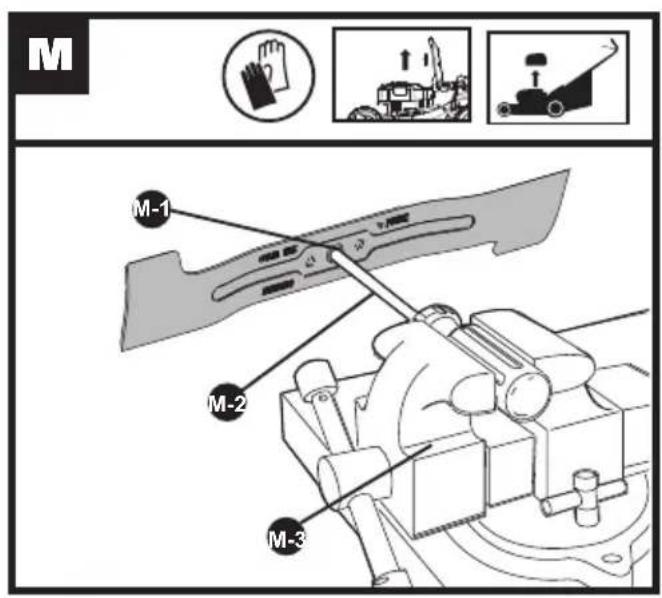

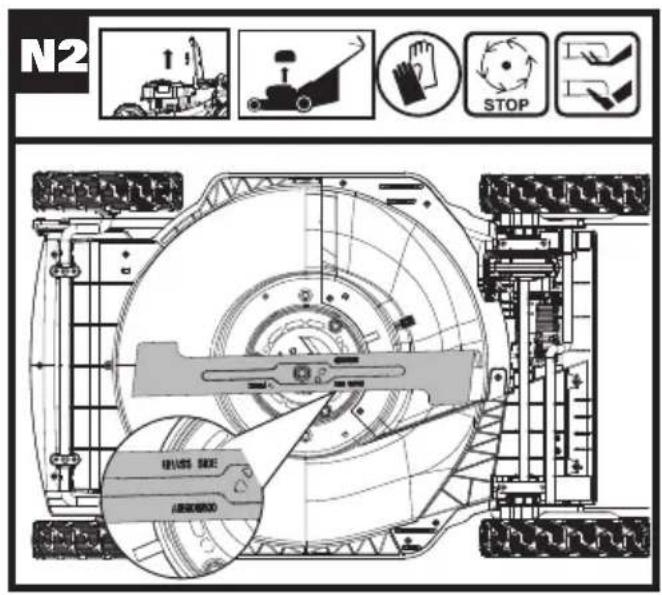

BLADE BALANCING (See Fig. M) Check balance of blade by placing center hole in blade M-1 over a screwdriver shank M-2, clamped horizontally in a vise M-3. If either end of the blade rotates downward, le that end. Blade is properly balanced when neither end drops. BLADE MAINTENANCE (See Fig. N1, N2) Replace your Mower Blade after 50 hours mowing or 2 years, which ever is the sooner-regardless of condition. Follow these procedures to remove and replace the Blade. You will need garden gloves (not provided) and a spanner wrench (not provided) to remove the Blade. Make sure safety key and batteries are not installed. Wedge a block of wood between the blade and the mower deck to prevent the blade from turning and unscrew the Blade Bolt counter-clockwise using a spanner wrench, and then remove the Blade. To re-assemble, position the Blade with the cutting edges towards the ground. Then securely tighten the Blade Bolt.15

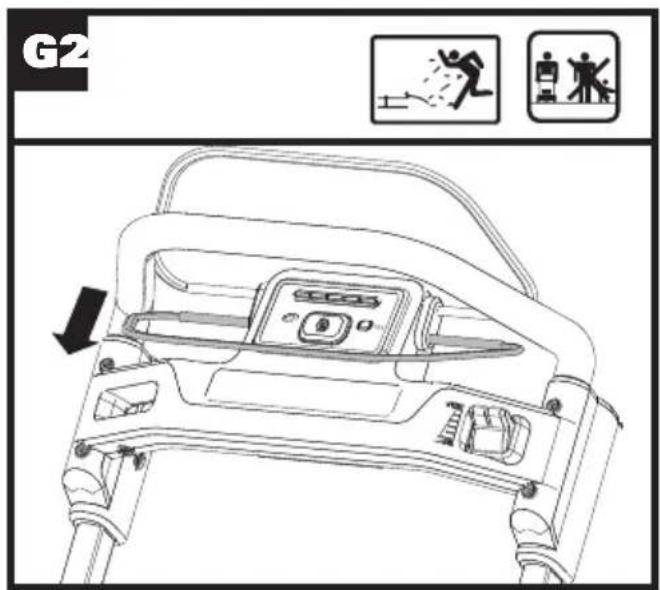

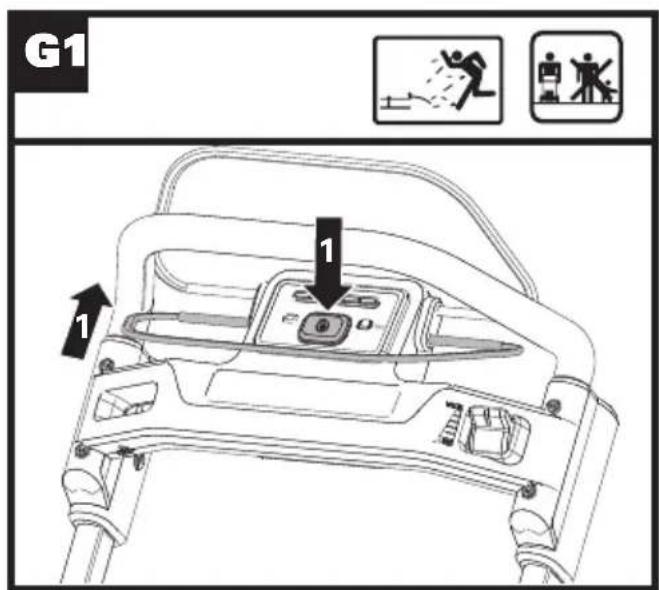

run when Operating Bail is activated. A. Check to make sure safety key has been installed and is fully seated and that Safety lock-out button is being completely pushed. B. Release Operating Bail to turn mower off. Unplug the safety key and remove the batteries, turn mower over and check that blade is free to turn. If not free, return to an authorized servicer. Blade should turn freely. C. Has battery been fully charged? Plug in charger and wait for green light to come on. For starting, press both the Safety lock-out button and the Operating bail at the same time. (See Fig. G1)

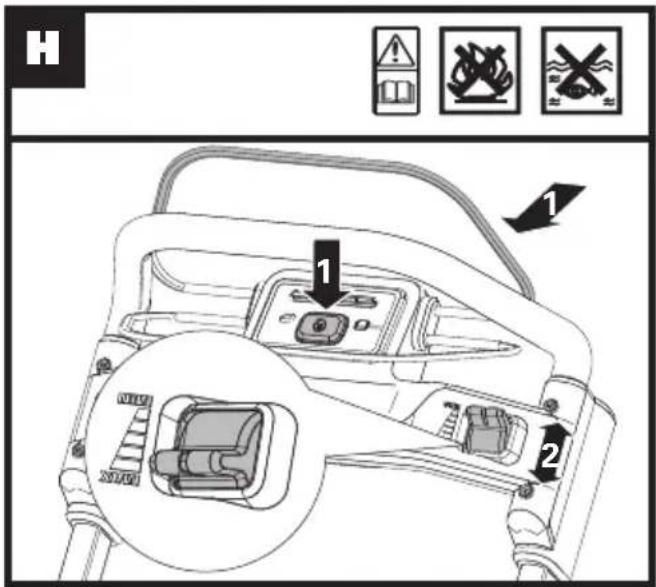

run when Self- propel Speed- Control Lever is activated. A. To activate self-propel, press both the Safety lock-out button and the Self-propel speed-control lever at the same time. (See Fig. H

3. Motor stops while

mowing. A. Release Operating Bail to turn mower off. Unplug the safety key and remove the batteries,turn mower over and check that blade is free to turn. If not free, return to an authorized servicer. Blade should turn freely. B. Raise cutting height of wheels to highest position and start mower. C. Has battery been fully charged? Plug in charger and wait for green light to come on. D. Avoid overloading the mower. Slow down the cutting pace by pushing mower slower or raise the cut height. Or both.

cutting performance is unsatisfactory, or does not cut entire lawn. A. Has battery been fully charged? Plug in charger and wait for green light to come on.” B. Release Operating Bail to turn mower off. Unplug the safety key and remove the batteries. Turn mower over and check: Blade for sharpness - Keep blade sharp. Deck and discharge chute for clogging. C. Wheel height adjustment may be set too low for grass condition. Raise cutting height.

5. Mower is too hard

to push. A. Raise cutting height to reduce deck drag on grass. Check each wheel for free rotation.

abnormally noisy and vibrates. A. Release Operating Bail to turn mower off. Unplug the safety key and remove the batteries. Turn mower on side and check blade to ensure it has not been bent or damaged. If blade is damaged, replace with a replacement blade. If the underside of the deck is damaged return mower to an Authorized service center. B. If there is no visible damage to the blade and the mower still vibrates: Release Operating Bail to turn mower off, Unplug the safety key and remove the batteries, and remove blade. Rotate blade 180 degrees and retighten. If mower still vibrates, return the mower to an authorized service center.

LED’s not on. A. Check plug connection. B. Replace charger.

LED does not ip to green. A. Battery needs to be diagnosed. Take to authorized service center.

picking up clippings with the Grass Collection Bag. A. Remove mulch plate when bagging. B. Chute clogged. Release Operating Bail to turn mower off. Unplug the safety key and remove the batteries. Clear chute of grass clippings. C. Too much cut grass. Raise cutting height of wheels to shorten length of the cut. D. Bag full. Empty bag more often.

there are clippings visible. A. Too much cut grass. Raise cutting height of wheels to shorten length of the cut. Do not cut off more than 1/3 of total length. B. Check blade for sharpness. Always keep blade sharp.

diminished run-time after many uses A. Return to Authorized Service location - may need new battery.

charger LED ashes red and the battery can’t be charged. A. The battery overheats after continuous use. Remove battery from the charger and allow it to cool to 42°C or less.16

TIPS VOOR MAAIEN MET GRASBEMESTING

AFVEJNING AF KNIVEN (

OPPRETTHOLD KNIVEN SKARP FOR BEST MULIG

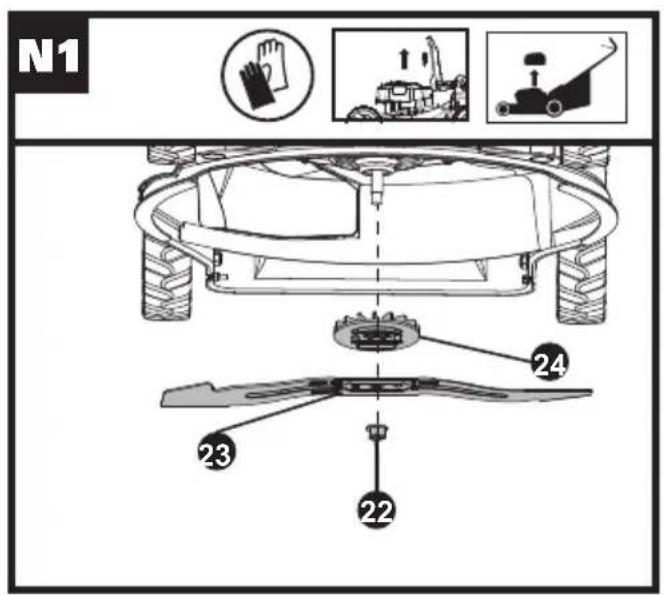

22. KNIVBULT (SE FIG. N1)
