USER MANUAL Mission KR172E.A KRESS

Red and black robotic lawn mower with visible branding and control panel (no readable text or symbols)

En Original instructions

Users can view the electronic instructions at https://www.kress.com/en/.

Product safety

General safety warnings

WARNING: Read all safety warnings and all instructions. Failure to follow th

warnings and instructions may result in electric shock, fire and/or serious injury.

Carefully read the instructions for the safe operation of the machine.

Save all warnings and instructions for future reference.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance contains batteries that are only replaceable by skilled persons.
  WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

IMPORTANT

READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE

Safe operation practices Training

a) Read the instructions carefully. Make sure you understand the instructions and be familiar with the controls and the proper use of the appliance.
b) Never allow people unfamiliar with these instructions or children to use the appliance. Local regulations can restrict the age of the operator.
c) The operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

a) Confirm that the virtual boundary is established as instructed and the virtual boundary is regularly maintained. Before each working cycle, the machine goes around the working area to check whether the virtual

boundary exists, if it does not exist, the machine will shut down. The virtual boundary specifies the work area where the machine is allowed to operate. The RTK antenna in the machine senses when it is approaching the virtual boundary. When the machine hits an obstacle or approaches the virtual boundary the product selects a new direction.

b) Periodically inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other foreign objects.
c) Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
d) On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate.
e) WARNING! The lawnmower shall not be operated without the guard in place.

Operation

1. General

a) Never operate the appliance with defective guards, or without safety devices, for example deflectors, in place.
b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
c) Never pick up or carry an appliance while the motor is running.
d) Operate the disabling device from the appliance
- Before clearing a blockage;
- Before checking, cleaning or working on the appliance;
- After striking a foreign object to inspect the machine for damage;
- If the machine starts to vibrate abnormally, and to check for damage before restarting.
e) It is not permitted to modify the original design of robotic lawnmower. All modifications are made at your own risk.
f) Start robotic lawnmower according to the instructions. When the power is on, make sure you keep your hands and feet away from the rotating blades. Never put your hands and feet under the mower.
g) Never lift up robotic lawnmower or carry it when the power is on.
h) Do not let persons who do not know how robotic lawnmower works and behaves use the mower.
i) Do not put anything on top of robotic

lawnmower or its charging base.

j) Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it be used with defective blades, screws, nuts or cables.

k) Always switch off robotic lawnmower when you do not intend to use the mower. Robotic lawnmower can only start when the power is on and the correct PIN code has been entered.

I) Keep your hands and feet away from the rotating blades. Never place your hands or feet close to or under the body when robotic lawnmower is in operation.

m) To avoid using the machine and its peripherals in bad weather conditions especially when there is a risk of lightning.

n) Not to touch moving hazardous parts before these have come to a complete stop.

o) For machines used in public areas, that warning signs shall be placed around the working area of the machine. They shall show the substance of the following text:

Warning! Automatic lawnmower! Keep away from the machine! Supervise children!

p) To avoid the risk of injury, please stop the mower and carry out the mower to another lawn to be mowed. Never drag or pull the mower on operation when you change the lawn to be mowed.

2. Additionally when the appliance is operating automatically

a) Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.

b) Please set the smart phone to automatically lock the screen after 30 s to prevent the APP from being misused by others.

Maintenance and storage

WARNING! When the mower is turned upside down the power must always

be off.

The power should be off during all work on the mower's underframe, such as cleaning or replacing the blades.

a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.

b) Inspect the robotic lawnmower each week and replace worn or damaged parts for safety.

c) Check especially that the blades and blade disc are not damaged. Replace all blades and screws at the same time if necessary so that

the rotating parts are balanced.

d) Ensure that only replacement cutting means of the right type are used.
e) Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
f) In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with the eyes etc.
g) Servicing of the appliance should be according to manufacturers' instructions.

Recommendation

To connect the machine and/or its peripherals only to a supply circuit protected by a residual current device (RCD) with a tripping current of not more than 30 mA.

Residual risks

To avoid injuries, wear protective gloves when replacing the blades.

Transport

The original packaging should be used when transporting robotic lawnmower over long distances.

To safely move form or within the working area:

a) Press the STOP button to stop the mower. You select the four digit PIN code when you start the mower for the first time.
b) Always switch off robotic lawnmower if you intend to carry the mower.
c) Carry the mower by the handle at the rear under the mower. Carry the mower with the blade disc away from the body.

RF exposure requirements

To satisfy RF exposure requirements, a separation distance of 200mm or more should be maintained between this device and persons during device operation.

To ensure compliance, operators at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

This is a class III appliances and it must only be supplied at safety extra low voltage corresponding to the marking on the appliance.

Safety Warnings for battery pack inside the tool

a) Do not dismantle, open or shred battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.

d) Do not subject battery pack to mechanical shock.

e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Keep battery pack clean and dry.

g) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.

h) Do not use any battery pack which is not designed for use with the equipment.

i) Keep battery pack out of the reach of children.

j) Retain the original product literature for future reference.

k) Dispose of properly.

I) Do not mix cells of different manufacture, capacity, size or type within a device.

m) Keep the battery away from microwaves and high pressure.

n) Warning! Do not use non-rechargeable batteries.

User manual requirements for wireless product

a) Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
b) Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

c) NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Symbols

WARNING – robotic lawnmower can be dangerous if incorrectly used. Read through the Operator's manual carefully and understand the content before using your robotic lawnmower.

Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

WARNING - Keep a safe distance from the machine when operating.

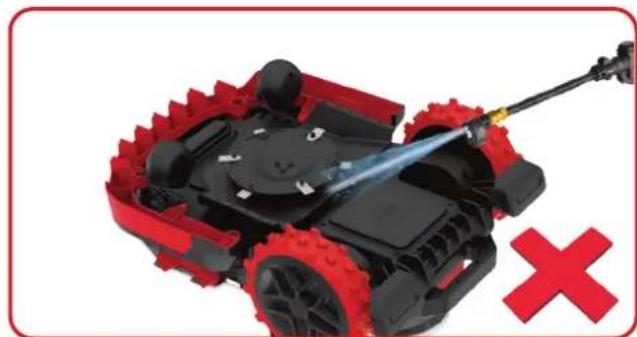

Do not wash the machine with a high pressure washer

WARNING – Operate the disabling device before working on or lifting the machine.

Read operator's manual

WARNING – Do not ride on the machine.

Detachable supply unit

Class III appliance

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

Li-Ion battery. This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.

Do not burn.

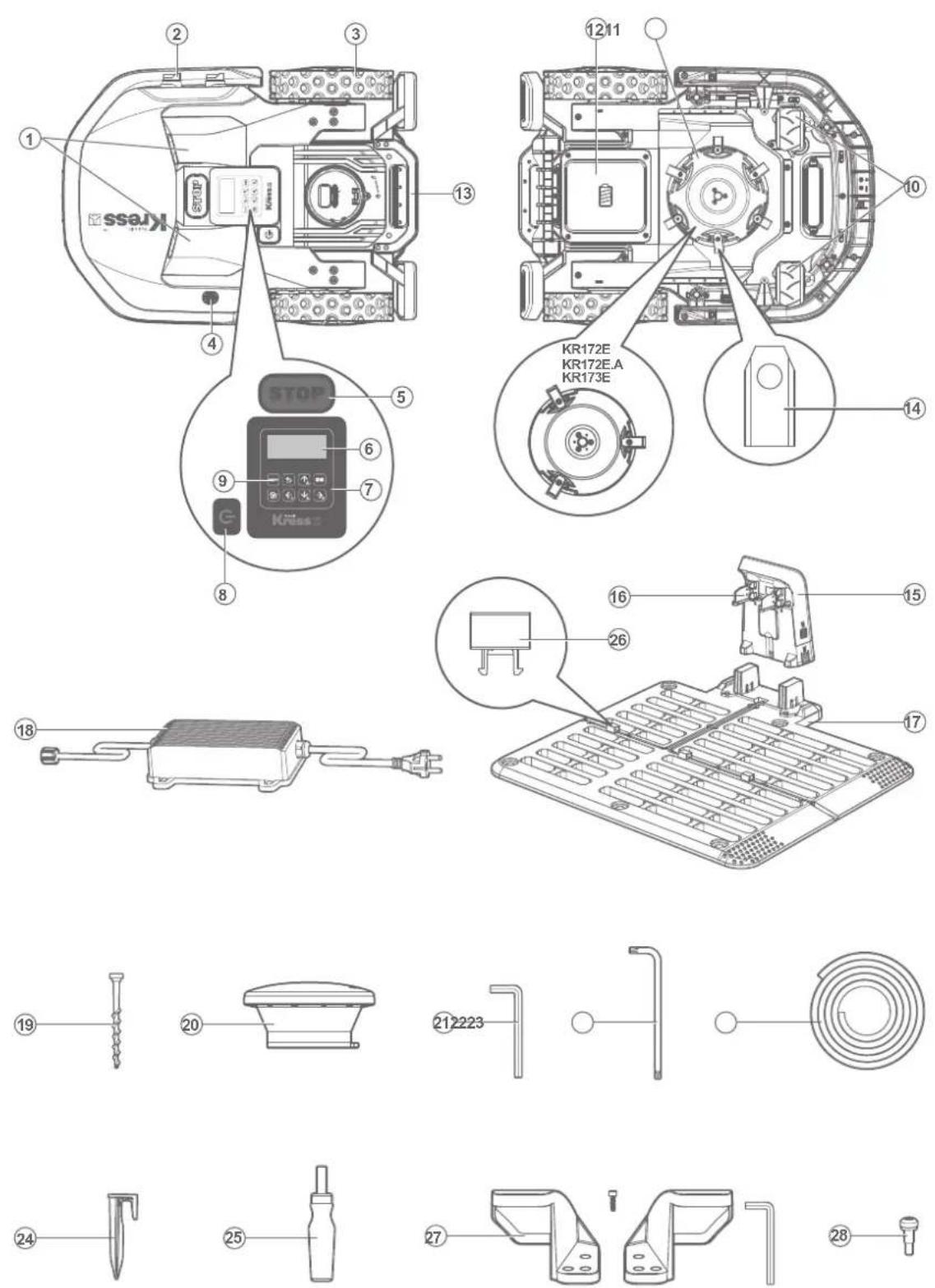

Component list

1. Ultrasonic sensor ^* (Only for KR172E.A, KR173E, KR174E)

2. Charging Pile

3. Charging Strips 16. Contact Pins

4. Rear Driving Wheel 17. Charging Base

5. Rain Sensor 18. Power Adapter

6. STOP Button 19. Charging Base Fixing Nails

7. Display 20. RTK Antenna

8. Keypad 21. Hex Key

9. ON/OFF Key 22. Wrench for RTK antenna

10. START Key 23. Magnetic Strip

11. Front Wheel 24. Staples

12. Blade Turning Disc

13. Hexagon Screwdriver * (Only for KR174E)

14. Battery Pack *

15. Buckle

16. Handle

17. Fender and wrench

18. Cutting Blade

19. Anti-theft screw for RTK antenna

*Not all the accessories illustrated or described are included in standard delivery.

Technical data

Type KR172E KR172E.A KR173E KR174E (100-199 - designation of machinery, representative of Robotic Lawnmower)

	KR172E	KR172E.A	KR173E	KR174E
Rated voltage	20V --- Max.*
No load speed	2700/min			2600/min
Cutting area	2000m^2		3000m^2	5000m^2
Cutting diameter	20cm 22cm
Cutting height	30-60mm
Cutting height positions	7
Battery type	Lithium-ion
Battery model	KA3024			KA3006
Charging time approx.	180 min		90 min	72 min
Charger model	KA0200 / KA0201		KA3710 / KA3711	KA3719 / KA3819
Charger rating	Input: 100-240V~50/60Hz, 38W, Output: 20V, 1.5A		Input: 100-240V~50/60Hz, 90W, Output: 20V, 3.0A	Input: 100-240V~50/60Hz, 190W, Output: 28V, 5.0A
Machinery weight	12kg	12.2kg		12.6kg
Protection degree	III
APP	Y
Maximum slope within the work surface	40%

Technical Data For Antenna

Rated voltage 5V±2%
operating temperature -40°C~85°C
Storage temperature -40°C~85°C
Band Tx(Mhz) Rx(Mhz) RF Output Power (Max)
GSM900(B8) 880-915	925-960 33dBm
DCS1800(B3) 1710-1785	1805-1880 30dBm
WCDMA B1 1920-1980	2110-2170 24dBm
WCDMA B8	880-915 925-960	24dBm
LTE-FDD B1	1920-1980 2110	2170 23dBm
LTE-FDD B3	1710-1785 1805	1880 23dBm
LTE-FDD B7	2500-2570 2620	2690 23dBm
LTE-FDD B8	880-915 925-960	23dBm
LTE-FDD B20 832-862	791-821 23dBm
LTE-FDD B28 703-748	758-803 23dBm
LTE-TDD B38 2570-2620	2570-2620 23dBm
LTE-TDD B40 2300-2400	2300-2400 23dBm

Technical data for 4G-GPS

4G module -GNSS	GNSS GPS Band L1	1575.42+/-1.023
	Galileo Band E1	1575.42+/-1.023
	BDS Band E11	1561.098+/-2.046
	GLONASS Band G1	1579.5~1605.8

Noise data

	KR172E KR172E.A KR173E	KR174E
A weighted sound pressure	L_pA = 47.5 dB (A), K_pA = 3.0 dB(A)	L_pA = 50.3 dB (A), K_pA = 3.0 dB(A)
A weighted sound power	L_wA = 55.5 dB (A), K_wA = 3.0 dB(A)	L_wA = 58.3 dB (A), K_wA = 3.0 dB(A)

Wear ear protection when sound pressure is over

80dB(A)

A degree of noise from the machine is not avoidable. Route noisy work is to be licensed and limits for certain periods. Keep rest periods and they may need to restrict the working hours to a minimum. For their personal protection and protection of people working nearby, an appropriate hearing protection shall be worn.

Accessories

	KR172E KR172E.A KR173E KR174E
Screw for fixing disk // / 3
Screw for fixing blades 9 9 9 18
Charging base 1 1 1 1
Charging base fixing nails 6 6 6 6
Hex key 1 1 1 1
Wrench for RTK antenna 1 1 1 1
Magnetic strip	1 1 1 1
Measurement gauge	2 2 2 2
Blade	9 9 9 18
RTK antenna	1 1 1 1
Staples	16	16	16	16
Hexagon screwdriver	/// 1
Fender and wrench	1 1 1 1
Anti-theft screw for RTK antenna	1 1 1 1
Battery pack (KA3024 / KA3006)	1 1 1 1
Charger (KA0200/KA0201)	1 1 //
Charger (KA3710/KA3711)	/// 1 /
Charger (KA3719/KA3819)	/// 1

We recommend that you purchase genuine accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

Intended Use

The garden product is intended for domestic lawn mowing. It is designed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the size of your lawn, Mission ^™ RTK ^® may be programmed to operate at any time or frequency. It is not intended for digging, sweeping or snow cleaning.

Maintenance

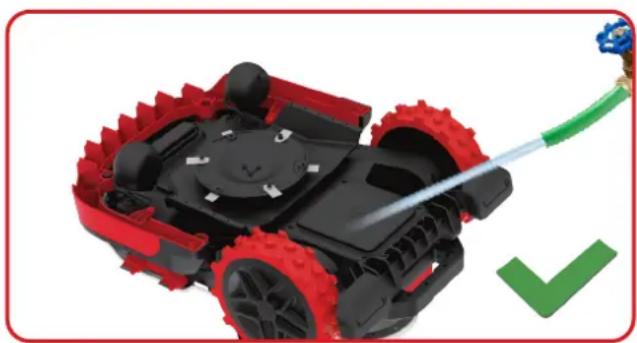

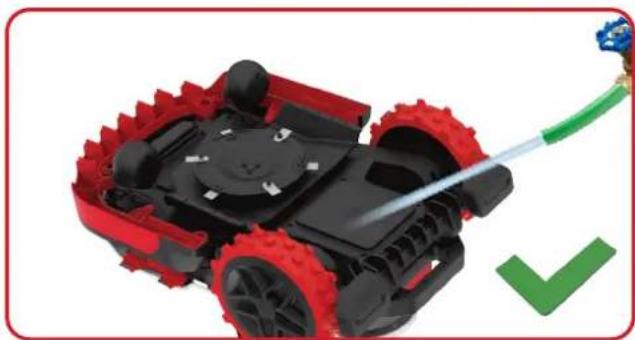

Your Mission™ RTK ^n works hard and needs to be cleaned and checked from time to time. Some parts will require replacement as they become worn. Never use your Mission™ RTK ^n with defective on/off switch. Switch off the machine before carrying out any service or maintenance. Here's how to take care of your Mission™ RTK ^n .

1

Keep it Sharp

WARNING: Before cleaning, adjusting, or replacing the blades, turn your Mission™ RTK ^n OFF and put on protective gloves.

WARNING: When fitting new blades, make sure you replace ALL the blades. Always use new screws when fitting blades. This is important to ensure blade retention and balance the blade ring disc. Failure to use new screws could cause serious injury.

The Mission™ RTK ^n does not cut grass like other mowers. Its cutting blades are razor sharp on 2 edges and rotate in both directions for maximum cutting capacity. Redesigned blade profile better prevents grass clippings from getting caught in the gap between the disc and the blade. And with new material, the service life of each cutting blade will be longer than that of other brands' when it is programmed to mow every day. Always check to see if the blades are chipped or damaged and replace them if they are. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Mission™ RTK ^n . Spare blades are also available at your nearest Kress retailer.

Simple gray tag-shaped object with a circular hole, labeled with numbers 1 and 2 (no text or symbols on the object itself)

A. Replace the blades

Usually your Mission ^™ RTK ^n 's blades need to be reversed each month and replaced every week, you can adjust the frequency of replacing the blade according to the cutting quality of the lawn. When replacing the blades, make sure to replace all of them at the same time. You can replace them with one of the spare blade kits and extra blade screws supplied with your Mission ^™ RTK ^n .

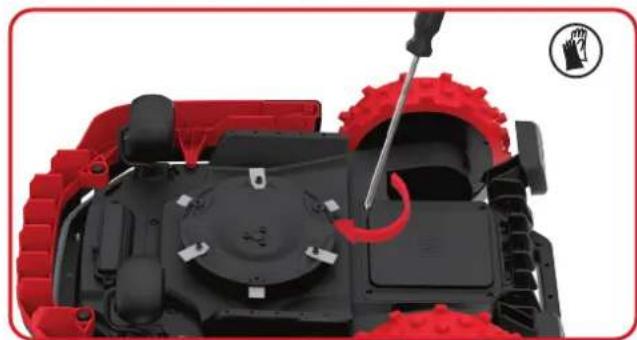

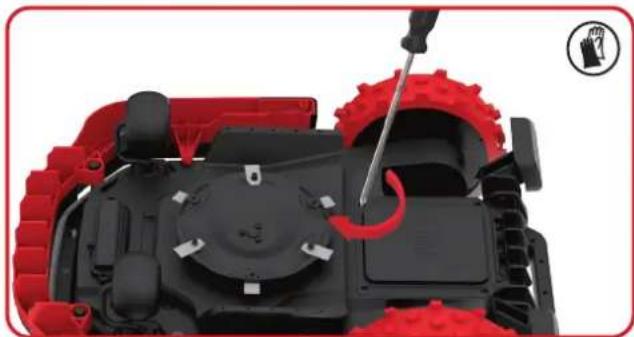

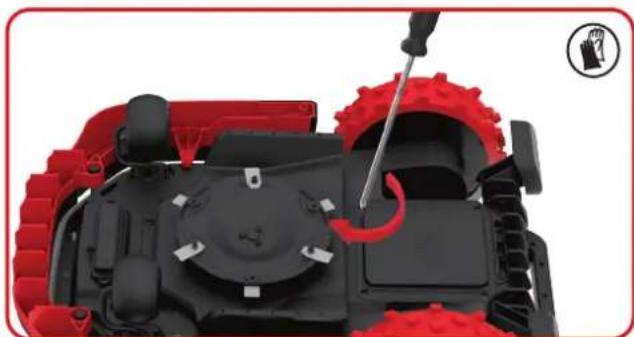

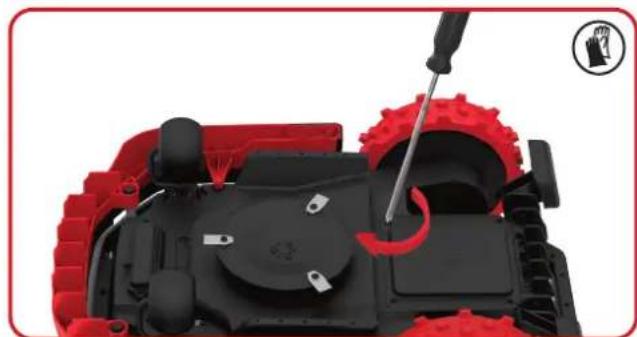

Before attempting to replace your Mission™ RTK ^n 's blades, turn the power off and put on protective gloves and follow these steps:

1. Gently flip the Mission ^TM RTK ^n over.

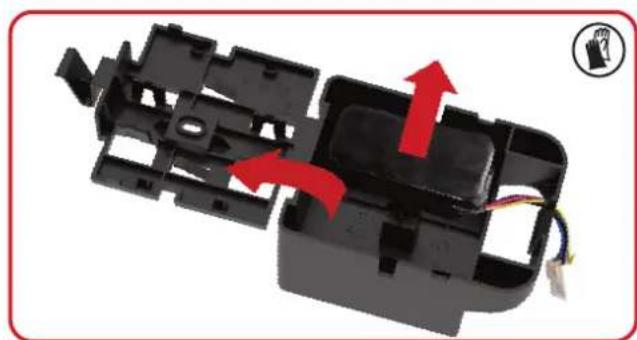

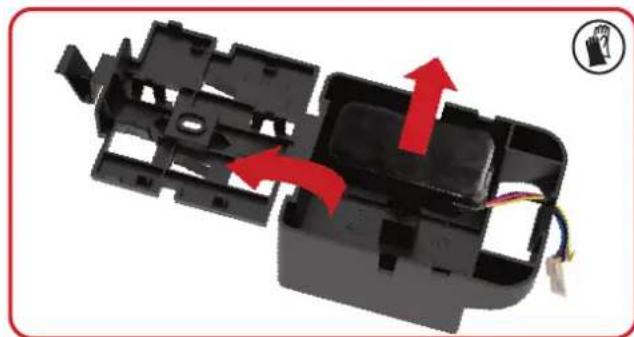

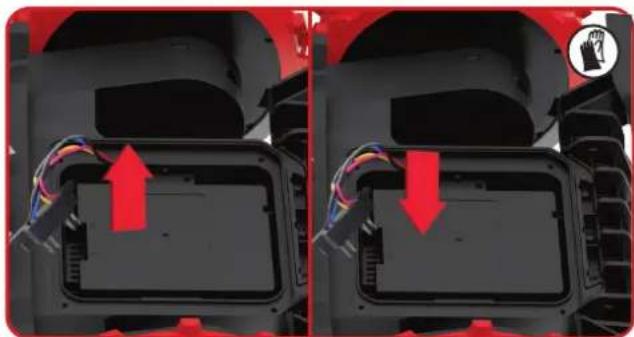

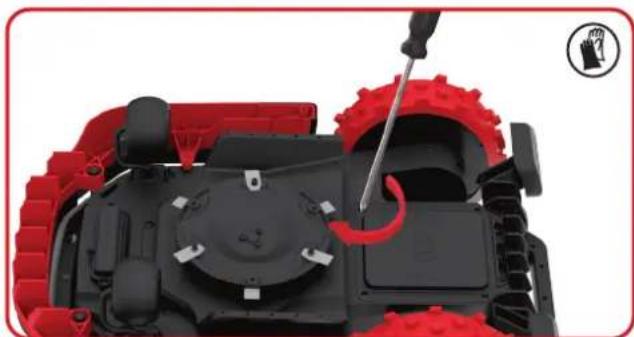

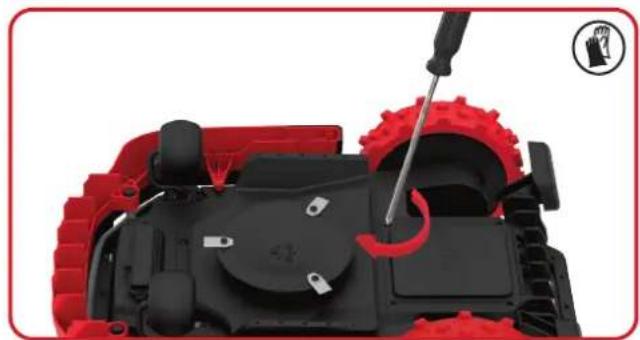

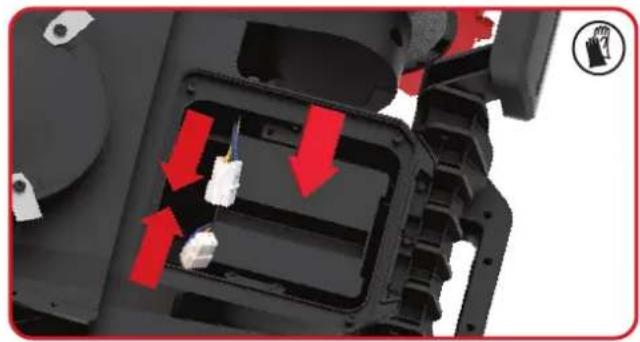

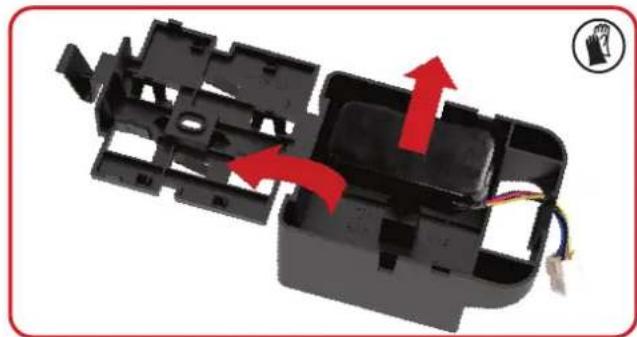

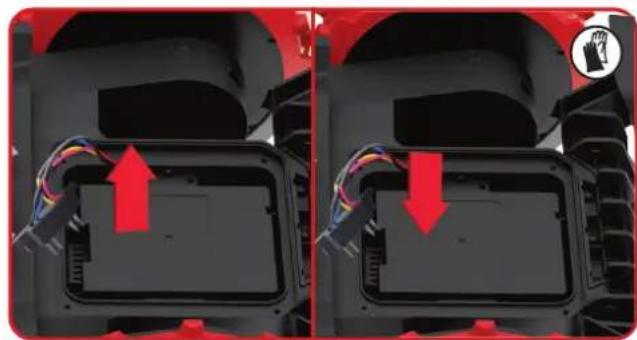

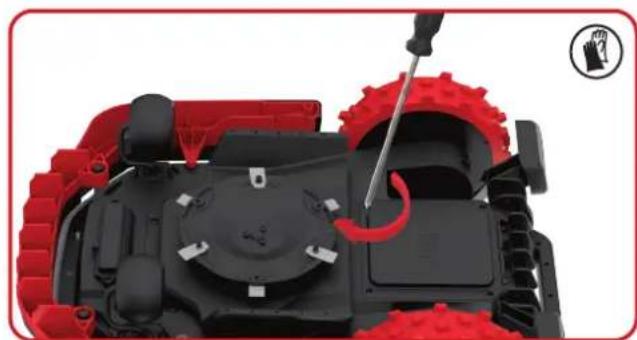

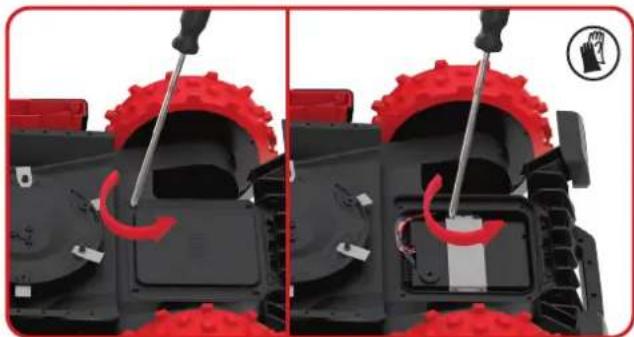

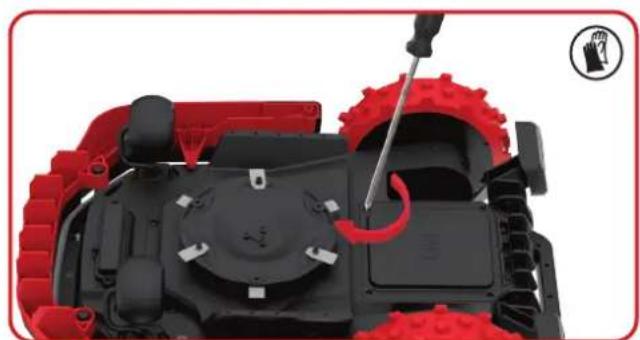

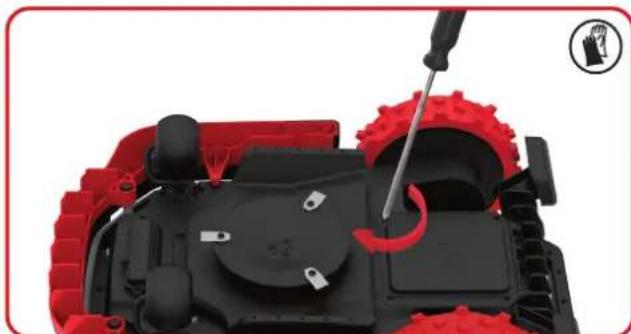

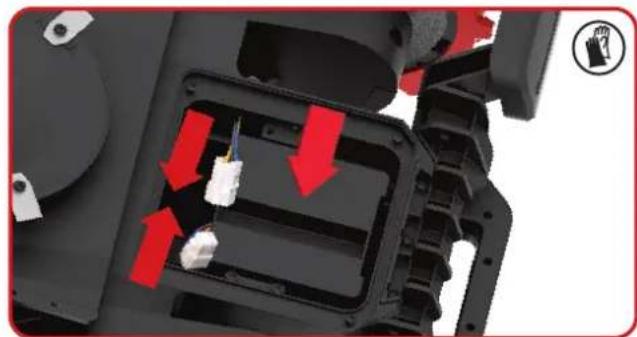

2. Remove the battery cover and remove the battery.

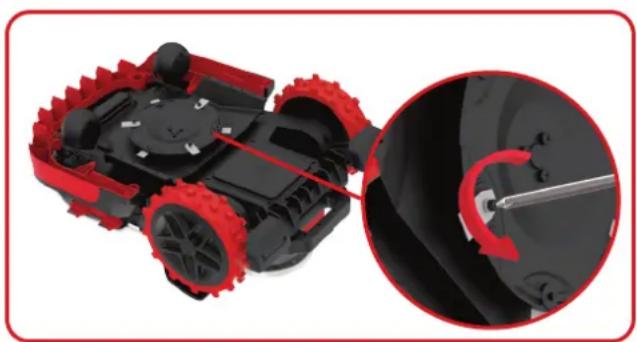

3. Take the screws off the blades with a screwdriver.
4. Firmly screw on the new blades.

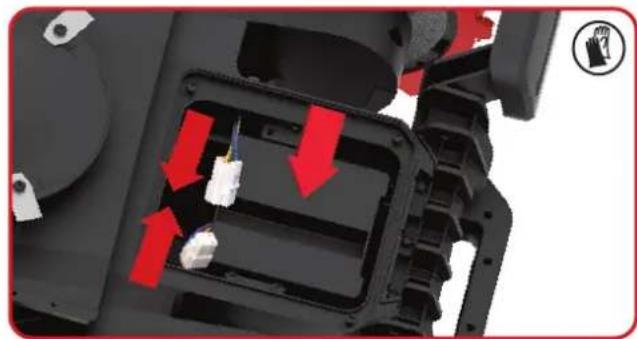

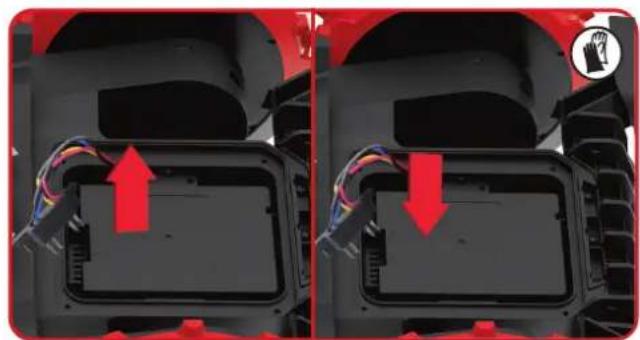

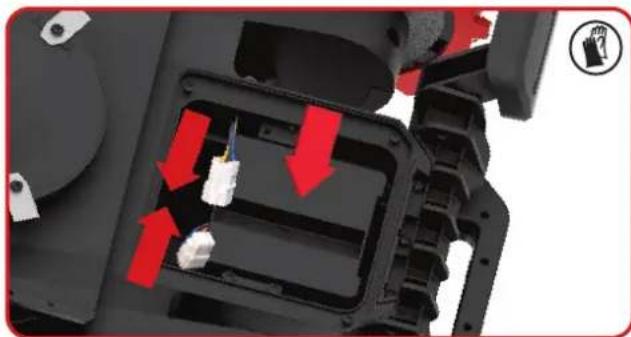

5. Refit the battery and the battery cover.

If your Mission ^TM RTK ^n has dual-layer blades, follow these steps to replace:

1. Turn off and gently flip the Mission ^TM RTK ^n over.
2. Remove the battery cover and remove the battery.
3. Take the 3 screws for fixing disk off with a hexagon screwdriver.
4. Remove the disk.
5. Take the 6 screws for fixing blades off with a screwdriver and remove the blades.
6. Firmly screw on the new blades and new screws for fixing blades.
7. Refit and firmly screw on the disk on the underside of Mission ^TM RTK ^n .
8. Refit the battery and the battery cover.

3D rendering of a robotic lawn mower with red and black wheels, showing mechanical components and a close-up inset (no text or symbols)

Close-up of a red and black robotic vehicle with visible wheels and a close-up inset showing a tool interacting with the wheel (no text or symbols)

Important: After screwing the blade to the blade disc, make sure the blade is able to spin freely.

2

Keep it Clean

WARNING: Before cleaning, turn your Mission™ RTK ^n OFF. Put on protective gloves before cleaning the blade turning disc and do not rinse or flush with water.

WARNING! YOUR Mission™ RTK ^n can only be washed by using a hose! DO NOT use high pressure washer on your Mission™ RTK ^n . High pressure water can go inside the sealings and damage electronic and mechanical parts.

A. Cleaning the Body

Your Mission™ RTK ^n will live a much happier and longer life if it is cleaned regularly. Since your Mission™ RTK ^n is an electric machine, you will need to take care when cleaning. Hose water clean is supported. It is best to use a spray bottle filled with water. When cleaning the machine body, use a soft brush or clean cloth and avoid using solvents or polishes. Lastly, remove all build up of grass clippings and debris.

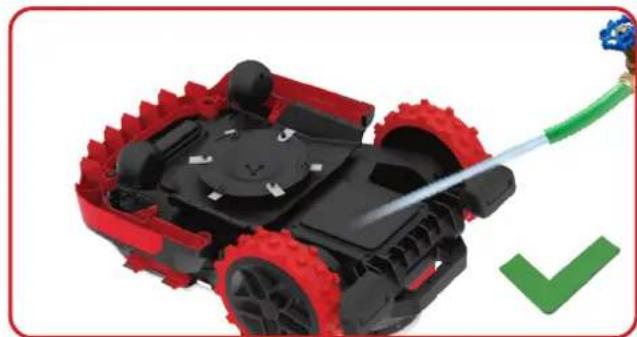

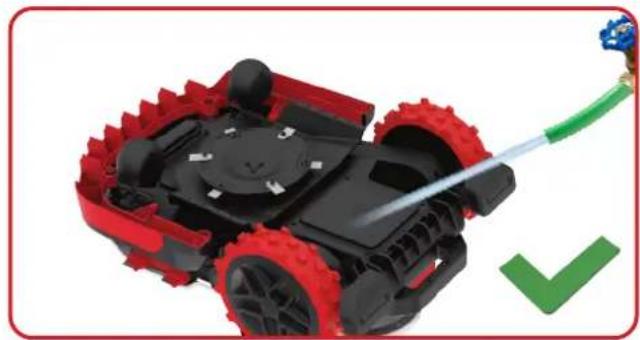

B. Cleaning the underside

Again, it is important that you power the Mission™ RTK® OFF and wear protective gloves before touching the blade turning disc. First, flip your Mission™ RTK® upside down to expose its underside. Here you will see the blade disc, the chassis, and the front wheel and driving wheels. Clean everything thoroughly with a soft brush or moist rag. Hose water clean is supported.

Rotate the blade disc to ensure it rotates freely. Check the blades spin freely around the fixing screws. Remove any obstructions.

IMPORTANT: Remove any stuck debris so that it does not cause a crack in the blade disc. Even the tiniest crack can decrease your Mission™ RTK ^n 's mowing output.

Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main image)

Red and black robotic rover with green handle and checkmark (no text or symbols)

C. Clean the contact pins and the charging strips

Clean the contact pins located on the charging base and the charging strips located on the Mission™ RTK ^n using a cloth. Remove any built up grass clippings or debris around the contact pins and charge strips periodically to ensure the Mission™ RTK ^n successfully charges each time.

3

Battery Life

The heart of the Mission™ RTK ^® is its 20V Li-Ion Battery. For proper storage of the battery, make sure it is fully charged and kept in a cool dry place between (-20°C\~+60°C).

NOTE: The recommend Mission™ RTK ^n operation temperature is between 0-55°C.

The life-span of the MissionTM RTKn's battery depends on various factors, such as:

• The length of the mowing season in your region
- Amount of hours the Mission ^TM RTK ^n mows per day
- Battery maintenance during storage

Mission ^TM RTK ^n can be charged manually.

1. Connect the charging base to a suitable power supply. The green light on the charging base will turn on.
2. Manually dock the Mission ^TM RTK ^n into the charging base while the Mission ^TM RTK ^n is powered off.
3. The green light on the charging base will be flashing and Mission™ RTK ^n will begin to charge.

Close-up of a red and black RTK® robotic device with a magnified inset showing internal components (no text or symbols visible)

4

Winter Hibernation

Your Mission ^TM RTK ^n will live longer and healthier if it is allowed to hibernate. So even though it is tough, we recommend storing your Mission ^TM RTK ^n in your shed or garage during the winter.

Before you prepare your Mission™RTK ^n for winter hibernation, we recommend you:

• Thoroughly clean your Mission™ RTK®
• Fully charge the battery
- Turn the power off

To maximize the battery life, fully charge the battery before storage during winter.

WARNING: Protect the underside of Mission™ RTK ^n from water. NEVER store Mission™ RTK ^n upside down outdoors.

NOTE: When bringing the Mission™ RTK ^n back to work after winter hibernation, make sure the charging strips and contact pins are clean. We recommend using a fine grade emery cloth to clean the contacts. Using the app, make sure the date and time are correct and send Mission™ RTK ^n back to what it loves doing: mowing.

5

Replacing the battery

WARNING: Power off before attempting any adjustment, replacement or repair.

Before replacing the blades, turn your Mission™ RTK ^n OFF and put on protective gloves.

If you need to replace the battery, follow these steps: (Only for KR172E & KR172E.A & KR173E)

1. Gently turn your Mission™ RTK ^n upside down.
2. Remove the screws on the battery cover. Remove the battery cover.

Close-up of a red and black mechanical device with a screwdriver inserted, showing a red circular motion indicator (no text or symbols)

1. Remove the screws on the sheet metal. Remove the sheet metal.
2. Press the latch and release the connectors as the picture shown. Lift out the battery box carefully.

NOTE: Do not pull by the cables. Hold the connectors and release the latch.

1. Open the battery box then lift out the battery carefully. Replace the old battery with the new one.
2. Put the battery box back in its position and plug the connectors. Refit the sheet metal.
3. Place the cover back in its position and tighten the screws.

Close-up of a mechanical assembly with red arrows indicating motion or force, no visible text or symbols

3D rendering of a black plastic enclosure with red arrows indicating internal components and a hand icon (no text or symbols)

Close-up of a mechanical component with red arrows indicating motion or movement, no visible text or symbols

Close-up of a red and black robotic vehicle with a screwdriver inserted, showing mechanical components and a hand gesture (no text or symbols visible)

If you need to replace the battery, follow these steps: (Only for KR174E)

1. Gently turn your Mission™ RTK ^n upside down.
2. Remove the screws on the battery cover. Remove the battery cover.

3. Remove the screws on the sheet metal. Remove the sheet metal.

4. Unplug the connector. Replace the old battery with the new one. Then plug the connector.

5. Refit the sheet metal. Place the cover back in its position and tighten the screws.

Close-up of a red and black toy vehicle showing tire assembly with tool tips (no text or symbols visible)

Two-panel image showing a device interior with red arrows indicating cable or wiring changes, no visible text or symbols.

Top-down view of a red and black tracked vehicle with visible mechanical components and a wrench (no text or symbols)

Environmental protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

For battery tools:

Details regarding safe disposal of used batteries

At the end of the life of the appliance, remove the battery pack safely before disposing of the appliance. Do not throw batteries away or throw them in the normal trash can. Also do not dispose of the battery with the machine. Remove the used battery pack from the appliance and dispose of it at the nearest or convenient dedicated recycling facility. If in doubt, consult your local environmental protection department. Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

We, Positec Technology (China) Co., Ltd, hereby declare, that the below product(s) covered in this document are in conformance with the applicable security requirements in Schedule 1 of The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 ("Security Requirements")

Please note that this statement of compliance, including the Defined Support Period stated herein, is only applicable to products sold in the UK.

Positec Technology (China) Co., Ltd welcomes input on potential software vulnerabilities so that we can take appropriate steps to maintain the security of our products and systems. Information on how to report security questions, issues or possible incidents to the Product Security Team can be found here:

Link: https://security.positecgroup.com

Troubleshooting

If your Mission ^™ RTK ^® does not work correctly, follow the trouble shooting guide below. If the fault persists, contact your dealer.

Symptom Cause Solution
The LED light on the charging base does not turn on.	There is no power.	Check the charging base is connected properly to the charger and the charger is connected to a suitable power supply.
MissionTM RTKn cannot correctly dock with the charging base.	The magnetic strip is placed in the wrong direction.	Check if the magnetic strip is placed in the wrong direction. When correctly placed, the green stripe of the magnetic strip is facing away from the charging base.
Machine runs out of power but does not return to charging base.	No virtual charging base is mapped.	Rebuild the map and add the virtual charging base.
	The length of the magnetic strip is less than 2.5 m.	The length of the magnetic strip should be guaranteed to be greater than 2.5 m.
When MissionTM RTKn is going downhill, it overruns the boundary line.	The angle of the border line is very sharp.	Try to avoid layout scenarios with sharp angles.
After MissionTM RTKn is turned on, the start button is pressed, but MissionTM RTKn does not work.	MissionTM RTKn is outside the working area.	Move MissionTM RTKn inside the working area.
	Poor positioning signal	Find an open place, wait for the positioning signal light to turn green, and then press start button.
MissionTM RTKn does not give an alarm when it is outside the Geo fence.	The software of MissionTM RTKn itself is not the latest.	Update the software of the MissionTM RTKn.
	MissionTM RTKn is powered off. Turn Mission TM RTKn on.
MissionTM RTKn is parked in the middle of the obstacle.	The obstacles around MissionTM RTKn are relatively small, and MissionTM RTKn fails to get out of trouble.	Set the area where MissionTM RTKn is easily trapped as No-Go.
	The sensor of MissionTM RTKn is abnormal	Detect MissionTM RTKn's diagnostic page on the APP and check the sensor status.
Unable to read log	The format of U-disk is not FAT32.	Convert the format of U-disk to FAT32.
MissionTM RTKn is parked around the wall and cannot be started, and the positioning light is always on red.	MissionTM RTKn works in the shaded area for too long, triggering the safety protection.	Try to avoid letting MissionTM RTKn mow in areas with too much shade.
	There are too many walls or trees in the area, blocking the positioning signal.

Declaration of conformity

We,

Positec Germany GmbH

Postfach 680194, 50704 Cologne, Germany

On behalf of Positec declare that the product

Description Robotic Lawnmower

Type KR172E; KR172E.A; KR173E; KR174E (100-199- designation of machinery, representative of Robotic Lawnmower) (Year, article number and month of serial number are placed on the back page. The complete serial number is clearly stated on the enclosure of lawnmower) with battery charger KA0200 / KA0201/ KA3710 / KA3711 /KA3719 / KA3819 and charging base KA0074

Function Cutting grass

Serial number It can be found on marking label

Complies with the following Directives,

2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU&(EU)2015/863, 2000/14/EC amended by 2005/88/EC, 2014/53/EU

2000/14/EC amended by 2005/88/EC

• Conformity Assessment Procedure as per
• Measured Sound Power Level
• Declared Guaranteed Sound Power Level

KR172E KR172E.A KR173E

Annex V

55.5 dB (A)

59 dB (A)

KR174E

Annex V

58.3 dB (A)

61 dB (A)

Standards conform to,

For Lawn mower: EN 50636-2-107:2015+A1:2018+A2:2020+A3:2021, EN 60335-1:2012+A11:2014

+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021+A16:2023, EN IEC 62311:2020, EN IEC 55014-

1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013+A1:2019+A2:2021+AC:2022

For Ultrasonic module: EN 55011: 2016+A11:2020

For 4G+GPS module: EN 301 489-1 V2.2.3, EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1, EN 301 511

V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-13 V13.2.1, EN 303 413 V1.2.1, EN 301 908-2 V13.1.1

For charger: EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 61000-3-2:2019+A1:2021, EN

61000-3-3:2013+A1:2019+A2:2021, EN IEC 60335-2-29:2021+A1:2021, EN 60335-1:2012+A11:2014+A

13:2017+A1:2019+A2:2019+A14:2019+A15:2021, EN 62233:2008

For Noise: EN ISO 3744:1995

For RoHS: EN IEC 63000:2018

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH Postfach 680194, 50704 Cologne, Germany

H A

2025/03/28

Allen Ding

Deputy Chief Engineer, Testing & Certification

authorized to issue the declaration of conformity

on behalf of the manufacturer

Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Declaration of conformity

We,

Positec Germany GmbH

Postfach 680194, 50704 Cologne, Germany

On behalf of Positec declare that the product

Description Battery pack

Type KA3024; KA3006

Function Provide energy for power tools, garden tools and similar products

Serial number It can be found on marking label

Complies with the following Directives:

(EU) 2023/1542, 2011/65/EU & (EU) 2015/863

Standards conform to,

EN 62133-2:2017, EN 62133-2:2017/A1:2021

EN IEC 63000:2018

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH

Postfach 680194, 50704 Cologne, Germany

Hao

2025/03/28

Allen Ding

Deputy Chief Engineer, Testing & Certification

authorized to issue the declaration of conformity

on behalf of the manufacturer

Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple 3D-rendered gray shape with a circular hole, labeled '1' and '2' on a white background (no text or symbols beyond labels)

Close-up of a red and black robotic lawn mower with a close-up inset showing the blade being inserted (no text or symbols visible)

Close-up of a red and black robotic vehicle with gear and wheels, showing a close-up of the wheel assembly (no text or symbols visible)

Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main image)

29 De

Red and black robotic lawn mower with a green checkmark indicating inspection (no text or symbols on the main body)

3

Close-up of a red and black RTK® robotic device with a magnified inset showing the internal structure (no text or symbols visible)

4

Überwintern

Close-up of a red and black robotic vehicle with a screwdriver inserted, showing mechanical components and a red circular motion indicator (no text or symbols)

Close-up of a mechanical assembly with red and white components, no visible text or symbols

Exploded view of a black plastic electronic device showing internal components and red directional arrows indicating motion (no text or symbols)

Close-up of a mechanical assembly with red arrows indicating directional movement or force, no visible text or symbols

Close-up of a red and black robotic vehicle with a screwdriver inserted, showing mechanical components and a hand icon (no text or symbols)

Close-up of a red and black toy vehicle showing a hand tool interacting with the wheel rim (no text or symbols visible)

Two-panel image showing a device interior with red arrows indicating movement or change, no visible text or symbols.

Close-up of a red and black robotic lawn tool with a screwdriver inserted, no visible text or symbols

Fehlerbehebung

Link: https://security.positecgroup.com

21+A16:2023, EN IEC 62311:2020, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC

61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013+A1:2019+A2:2021+AC:2022

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple gray tag-shaped object with a circular hole, labeled 1 and 2 (no text or symbols on the object itself)

Close-up of a robotic lawn mower with red and black wheels, showing mechanical components and a close-up inset (no text or symbols visible)

Close-up of a red and black robotic vehicle with gear and mounting base, showing mechanical assembly and close-up of the component (no text or symbols visible)

2

Nettoyage

Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main image)

Red and black robotic vehicle with green handle and checkmark (no text or symbols)

3

Close-up of a red and black RTK® water heater device with a magnified inset showing internal components (no text or symbols visible)

4

Hibernation

Close-up of a red and black robotic vehicle with a screwdriver inserted, showing mechanical components and a red circular motion indicator (no text or symbols)

Close-up of a mechanical assembly with red and white components, no visible text or symbols

Mechanical component with red arrows indicating motion or movement, no visible text or symbols

Close-up of a mechanical assembly with red arrows indicating motion or force, no visible text or symbols

Close-up of a red and black robotic lawn tool with a screwdriver inserted, showing mechanical components (no text or symbols visible)

Close-up of a red and black toy vehicle showing tire assembly and tool path (no text or symbols visible)

Two-panel image showing a device interior with exposed wiring and red arrows indicating direction of movement (no text or symbols)

Close-up of a red and black off-road vehicle with a screwdriver inserted, showing mechanical components and no visible text or symbols.

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple gray tag-shaped object with a circular hole, labeled with numbers 1 and 2 (no text or symbols on the object itself)

3D rendering of a red and black lawn mower with a close-up inset showing the blade being cut (no text or symbols visible)

Close-up of a red and black robotic vehicle with visible wheels and a close-up inset showing a tool interacting with the wheel (no text or symbols)

Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main image)

Red and black robotic lawn mower with a green checkmark indicating inspection (no text or symbols on the main body)

Close-up of a red and black RTK® robotic device with a magnified inset showing the internal components (no text or symbols visible)

4

Close-up of a red and black mechanical device with a screwdriver inserted, showing a red gear and mechanical components (no text or symbols visible)

Close-up of a mechanical device with red arrows indicating motion or force, showing internal components and a hand gesture (no text or symbols)

Exploded view of a black plastic electronic device showing internal components and red directional arrows indicating motion (no text or symbols)

Close-up of a mechanical assembly with red arrows indicating internal components (no text or symbols visible)

Close-up of a red and black tracked vehicle with a screwdriver inserted, showing mechanical components (no text or symbols visible)

Close-up of a red and black toy vehicle showing tire assembly with tool tips, no visible text or symbols

Two-panel image showing a device interior with red arrows indicating cable or wiring changes, no visible text or symbols.

Close-up of a red and black toy vehicle with visible mechanical components and a wrench, no text or symbols present.

Tutela ambientale

Link: https://security.positecgroup.com

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple 3D-rendered gray shape with a circular hole, labeled '1' and '2' on a white background (no text or symbols beyond labels)

Close-up of a red and black robotic lawn mower with a close-up inset showing the blade and base components (no text or symbols visible)

3D rendering of a red and black robotic vehicle with gear and mounting brackets, showing a close-up of the component (no text or symbols visible)

Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main image)

Red and black robotic lawn mower with a green tool, no visible text or symbols

Close-up of a red and black RTK® robotic device with a magnified inset showing internal components (no text or symbols visible)

4

Hibernación

Close-up of a red and black robotic vehicle with a screwdriver inserted, showing mechanical components and a red-handled wrench (no text or symbols visible)

Close-up of a mechanical assembly with red arrows indicating components, no visible text or symbols

Exploded view of a black plastic electronic device showing internal components and red directional arrows indicating motion (no text or symbols)

Close-up of a mechanical device interior with red arrows indicating movement or force, no visible text or symbols

Close-up of a red and black robotic vehicle with a screwdriver inserted, showing mechanical components and a hand icon (no text or symbols)

Close-up of a red and black toy vehicle showing tire tread assembly with tool tips (no text or symbols visible)

Two-panel image showing a device interior with red arrows indicating cable or wiring changes, no visible text or symbols.

Top-down view of a red and black off-road vehicle with visible tracks and a screwdriver (no text or symbols)

Para RoHS: EN IEC 63000:2018

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple 3D-rendered gray shape with a circular hole, labeled with numbers 1 and 2 (no text or symbols on the shape itself)

Close-up of a red and black robotic lawn mower with a close-up inset showing the blade and handle (no text or symbols visible)

Close-up of a red and black robotic vehicle with gear and mounting brackets, showing a close-up inset of the wheel assembly (no text or symbols visible)

Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main subject)

Red and black robotic lawn mower with a green checkmark indicating inspection (no text or symbols on the main body)

95 NL

3

Close-up of a red and black RTK® robotic device with a magnified inset showing the internal structure (no text or symbols visible)

4

Winteropslag

Close-up of a red and black robotic vehicle with a screwdriver inserted, showing mechanical components and a red circular motion indicator (no text or symbols)

Close-up of a mechanical assembly with red and black components, no visible text or symbols

3D rendering of a black plastic enclosure with red arrows indicating internal components and a circular icon showing a hand gesture (no text or symbols)

Close-up of a mechanical component with red arrows indicating motion or force, no visible text or symbols

Close-up of a red and black robotic vehicle with a screwdriver inserted, showing mechanical components and a hand gesture (no text or symbols visible)

Close-up of a red and black toy vehicle showing a hand turning tool, with no visible text or symbols.

Two-panel image showing a device interior with red arrows indicating movement or force, no visible text or symbols.

Top-down view of a red and black toy vehicle with visible mechanical components and a wrench, no text or symbols present.

Link: https://security.positecgroup.com

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple 3D-rendered gray shape with a circular hole, labeled '1' and '2' on a white background (no text or symbols on the shape itself)

A. Wymiana ostrzy

Close-up of a red and black robotic lawn mower with a close-up inset showing the blade being cut (no text or symbols visible)

Close-up of a red and black robotic vehicle with gear and wheels, showing a close-up of the wheel assembly (no text or symbols visible)

2

Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main image)

Red and black robotic lawn mower with a green checkmark indicating inspection (no text or symbols on the main body)

111 PL

Close-up of a red and black RTK® water purifier device with a magnified inset showing internal components (no text or symbols visible)

4

Close-up of a red and black robotic vehicle with a screwdriver inserted, showing mechanical components and a red-handled tool (no text or symbols visible)

Close-up of a mechanical assembly with red and white components, no visible text or symbols

Mechanical component with red arrows indicating motion or movement, no visible text or symbols

Close-up of a mechanical assembly with red arrows indicating directional movement or force, no visible text or symbols

Close-up of a red and black robotic lawn tool with a screwdriver inserted, no visible text or symbols

Close-up of a red and black toy vehicle showing tire movement and tool path (no text or symbols visible)

Two-panel image showing a device interior with red arrows indicating movement or force, no visible text or symbols.

114

PL

Close-up of a red and black toy vehicle with a wrench inserted, showing mechanical components and no visible text or symbols.

Link: https://security.positecgroup.com

Dla RoHS: EN IEC 63000:2018

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEHOLD TIL SENERE BRUG

To safely move form or within the working area:

Simple 3D-rendered gray tag-like shape with a circular hole, labeled with numbers 1 and 2 (no text or symbols on the shape itself)

3D rendering of a robotic lawn mower with red and black wheels, showing mechanical components and a close-up inset (no text or symbols)

Close-up of a red and black robotic vehicle with gear and mounting base, showing mechanical components and a close-up inset of the wheel assembly (no text or symbols visible)

2

Hold den ren

Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main image)

Red and black robotic lawn mower with a green checkmark indicating inspection (no text or symbols on the main body)

Close-up of a red and black RTK® robotic device with a close-up inset showing the mechanical component detail (no text or symbols visible)

4

Opbevarelse om vinteren

Close-up of a red and black mechanical device with a screwdriver inserted, showing a red-handled tool interacting with the component (no text or symbols visible)

Close-up of a mechanical assembly with red arrows indicating components, no visible text or symbols

Exploded view of a black plastic electronic device showing internal components and red directional arrows indicating motion (no text or symbols)

Close-up of a mechanical assembly with red arrows indicating motion or force directions, no visible text or symbols

Close-up of a red and black robotic vehicle with a screwdriver inserted, showing mechanical components and a hand gesture (no text or symbols visible)

Close-up of a red and black toy vehicle showing tire assembly with screwdriver (no text or symbols visible)

Two-panel photo showing a device interior with red arrows indicating movement or force, no visible text or symbols.

Close-up of a red and black toy vehicle with visible mechanical components and a screwdriver (no text or symbols)

131 DK

Link: https://security.positecgroup.com

Fejlfinding

Til RoHS: EN IEC 63000:2018

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple gray tag-shaped object with a circular hole, labeled 1 and 2 (no text or symbols on the object itself)

A. Erstatt bladene

Close-up of a robotic lawn mower with red and black wheels, showing mechanical components and a close-up inset (no text or symbols visible)

3D rendering of a red and black tracked robot with gear and mounting brackets, showing mechanical assembly and tool insertion (no text or symbols)

Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main image)

Red and black robotic rover with green tool, no visible text or symbols

Close-up of a red and black RTK® water heater device with a magnified inset showing its internal components (no text or symbols visible)

4

Vinterdvale

Mission™ RTK ^n får lengre levetid og fungerer bedre hvis den får gå i dvale om vinteren. Så selv om det er tøft, anbefaler vi at du lagrer Mission™ RTK ^n i uteboden eller garasjen om vinteren.

Close-up of a red and black robotic vehicle with a screwdriver inserted, showing mechanical components and a red circular motion indicator (no text or symbols)

Close-up of a mechanical assembly with red and black components, no visible text or symbols

Exploded view of a black plastic electronic device showing internal components and red directional arrows indicating motion (no text or symbols)

Close-up of a mechanical component with red arrows indicating internal components and a white connector (no text or symbols visible)

Close-up of a red and black robotic vehicle with a screwdriver inserted, showing mechanical components and no visible text or symbols.

Link: https://security.positecgroup.com

Feilsøking

For RoHS: EN IEC 63000:2018

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Samsvarserklæring

Vi,

Positec Germany GmbH

Postfach 680194, 50704 Cologne, Germany

På vegne av Positec erklær at produktet,

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Simple gray tag-shaped object with a circular hole, labeled with numbers 1 and 2 (no text or symbols on the object itself)

A. Byta ut bladen

Close-up of a red and black robotic lawn mower with a magnified inset showing the tool interacting with the wheel (no text or symbols visible)

Close-up of a red and black robotic vehicle with gear and mounting brackets, showing mechanical components and a close-up inset of the assembly (no text or symbols visible)

2

Rengöring

Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main image)

Red and black robotic lawn mower with a green checkmark indicating inspection (no text or symbols on the main body)

The life-span of the Mission™ RTK ^n 's battery depends on various factors, such as:

Close-up of a RTK® water purifier device with red and black casing, showing internal components and a close-up inset (no text or symbols visible)

4

Vinterförvaring

Close-up of a red and black robotic lawn saw with a screwdriver, showing mechanical components and a red-handled tool (no text or symbols visible)

Mechanical assembly diagram showing a motor or generator with red components and a tool, no visible text or symbols

3D rendering of a black plastic enclosure with red directional arrows indicating internal components (no text or symbols)

Close-up of a mechanical component with red arrows indicating internal flow or movement, no visible text or symbols

Close-up of a red and black robotic lawn mower with a screwdriver inserted, no visible text or symbols

Close-up of a red and black toy vehicle showing tire positioning and tool application (no text or symbols visible)

Two-panel diagram showing a device interior with red arrows indicating movement or force, no text or symbols present.

Close-up of a red and black robotic vehicle with visible mechanical components and a wrench, no text or symbols present.

Miljöhänsyn

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Front view of a white and red Kress robotic device with control panel and sensor (no visible text or symbols)

MIS2ION™

www.kress-robotik.com
