MKK-300 - Pan Mestic - Free user manual and instructions

Product type	Electric space heater
Brand	Mestic
Model	MKK-300
Rated power	2000 W (1800-2000 W)
Minimum power	1000 W
Power supply	220-240 V ~ 50 Hz
Heat setting	Two positions (1000 W / 2000 W)
Thermostat	Mechanical, continuously adjustable
Ambient lighting	Variable flame effect
Overheat protection	Yes (automatic shut-off)
Tilt protection	Yes
Touch protection	Yes (guarded surfaces)
Safety distance	1 meter minimum from flammable materials
Use	Indoors only, well-insulated rooms
Cleaning	Damp or dry cloth, do not use solvents
Repairability	Contact the manufacturer or an authorized service center
Disposal	Do not dispose of with household waste, take to a recycling center

Frequently Asked Questions - MKK-300 Mestic

How to turn on the Mestic MKK-300 heater?

Press the Flame button to activate the flame effect and power on the appliance. Then, adjust the heating power by pressing the corresponding button: one press for 1000 W, two simultaneous presses for 2000 W.

How to adjust the ambient temperature?

Use the mechanical thermostat control (button 4). Turn it slowly until you hear a click to activate heating. Turn it fully for continuous operation. The thermostat stops heating when the desired temperature is reached.

What to do if the heater stops heating?

First check that the air inlet and outlet are not blocked. Unplug the appliance and wait at least 10 minutes to reset the safety system. If the problem persists, contact an authorized repair service.

Can I use an extension cord with this heater?

No, using an extension cord is not recommended. Plug the appliance directly into a properly grounded wall outlet.

Can the heater be used in a bathroom?

No, do not use near a bathtub, shower, or pool. Indoor use only in well-insulated rooms.

How to clean the appliance?

Unplug and let it cool completely. Clean the exterior with a damp or dry cloth. Do not use petroleum, detergent, or chemical solvent.

What is the maximum power of the MKK-300?

The maximum power is 2000 W (1800-2000 W depending on voltage). You can choose between 1000 W (position 1) and 2000 W (position 2).

Is the appliance safe around children?

Yes, it has overheat, tilt, and touch protection. However, children under 3 years must be kept away without supervision. Children aged 3 to 8 can only turn it on/off under supervision.

Where can I find spare parts?

Contact the manufacturer Gimeg Nederland B.V. or an authorized service center. Contact details are on the back of the manual.

How to dispose of the appliance at end of life?

Do not dispose of it with household waste. Take it to a recycling center in accordance with Directive 2012/19/EU to protect the environment.

USER MANUAL MKK-300 Mestic

1000W 2000W Protection 220-240 V KG 4 kg mestic Relax... it's mestic® —

Gebruiksaanwijzing NL User instructions EN Bedienungsanleitung DE Mode d'emploi FR

Instrucciones de uso ES Istruzioni per l'uso IT Betjeningsvejledning DK

Bruksanvisning SE Bruksanvisning NO Kayttoohjeet FI

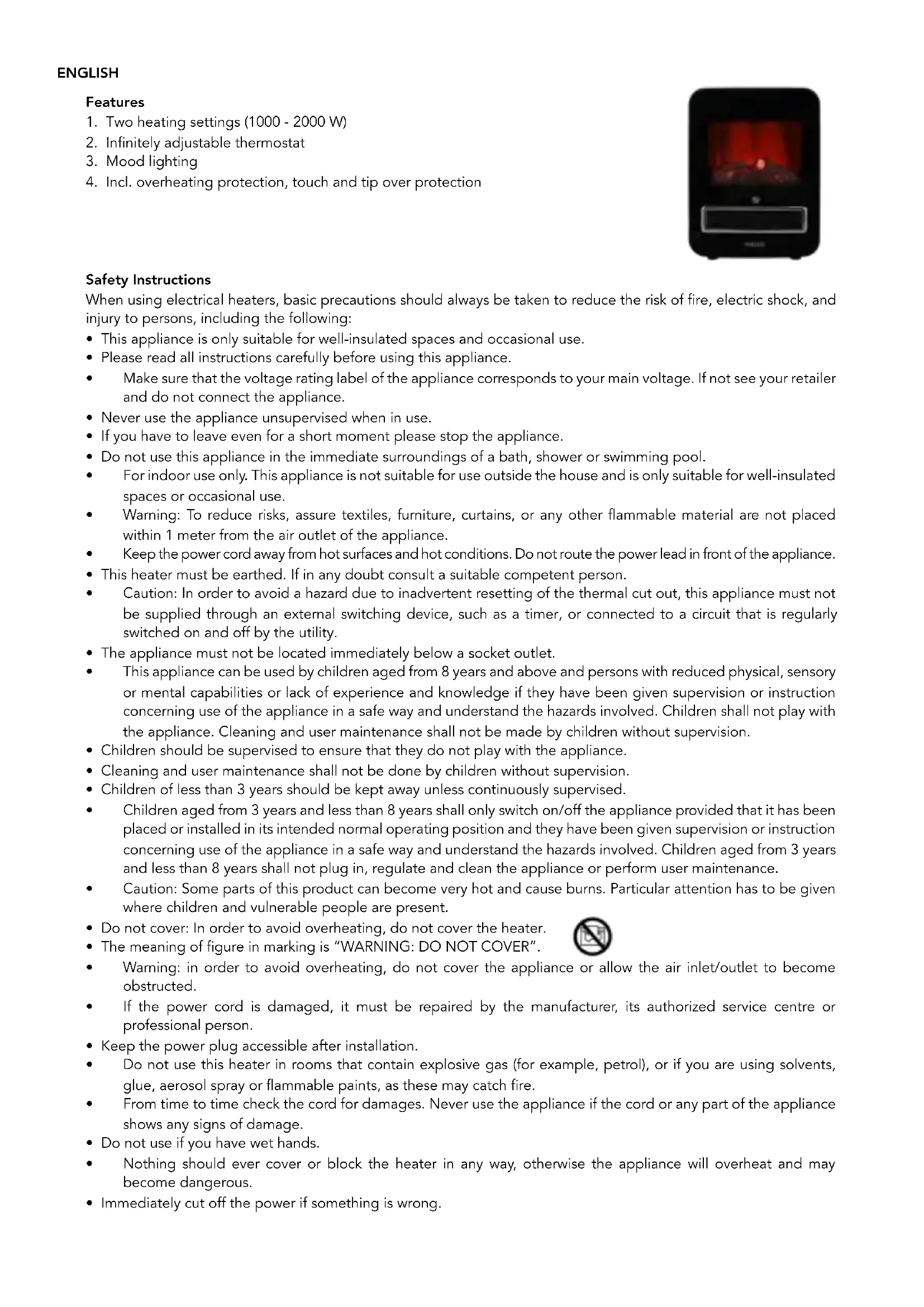

CERAMIC HEATER MKK-300

Kenmerken

Black electronic device with red ambient lighting and a small display screen (no visible text or symbols)

1. Two heating settings (1000 - 2000 W)
2. Infinitely adjustable thermostat
3. Mood lighting
4. Incl. overheating protection, touch and tip over protection

Black electronic device with red ambient lighting and a small display screen (no visible text or symbols)

Safety Instructions

When using electrical heaters, basic precautions should always be taken to reduce the risk of fire, electric shock, and injury to persons, including the following:

• This appliance is only suitable for well-insulated spaces and occasional use.
• Please read all instructions carefully before using this appliance.
• Make sure that the voltage rating label of the appliance corresponds to your main voltage. If not see your retailer and do not connect the appliance.
• Never use the appliance unsupervised when in use.
• If you have to leave even for a short moment please stop the appliance.
• Do not use this appliance in the immediate surroundings of a bath, shower or swimming pool.
• For indoor use only. This appliance is not suitable for use outside the house and is only suitable for well-insulated spaces or occasional use.
• Warning: To reduce risks, assure textiles, furniture, curtains, or any other flammable material are not placed within 1 meter from the air outlet of the appliance.
• Keep the power cord away from hot surfaces and hot conditions. Do not route the power lead in front of the appliance.
• This heater must be earthed. If in any doubt consult a suitable competent person.
• Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cut out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance must not be located immediately below a socket outlet.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be done by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• Caution: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• Do not cover: In order to avoid overheating, do not cover the heater.
• The meaning of figure in marking is "WARNING: DO NOT COVER".
• Warning: in order to avoid overheating, do not cover the appliance or allow the air inlet/outlet to become obstructed.
• If the power cord is damaged, it must be repaired by the manufacturer, its authorized service centre or professional person.
• Keep the power plug accessible after installation.
• Do not use this heater in rooms that contain explosive gas (for example, petrol), or if you are using solvents, glue, aerosol spray or flammable paints, as these may catch fire.
• From time to time check the cord for damages. Never use the appliance if the cord or any part of the appliance shows any signs of damage.
• Do not use if you have wet hands.
• Nothing should ever cover or block the heater in any way, otherwise the appliance will overheat and may become dangerous.

• Immediately cut off the power if something is wrong.

• Please turn off the power if the appliance will not be used for an extended period of time.

• Although the appliance complies with all safety standards, we do not recommend using it on multi-use carpet or long-pile carpet.
• Dispose of the packaging carefully. Plastic packaging material can cause environmental pollution.
  • The appliance must be placed on the ground.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or have been instructed to use the appliance by a person responsible for their safety.
  • This appliance must not be used with an extension lead.
• Do not use the appliance if there are visible signs of damage to the appliance, after a malfunction or after it has been dropped.
• Use this appliance on a horizontal and stable surface.
• Never move the appliance when it is operating; please turn it off if you want to move it.

Instructions for use

1. Flame switch -

Switches flame effect and the power on/off.

1. Heating setting: please press '

' for 1000W.

1. Heating setting: please press

'and'

at the same time for

2000W (it cannot operate without first pressing)

1. Thermostat control dial – adjusts the heating function.

This product features mechanical thermostatic room temperature control. When switches 1, 2 and 3 are turned on and the thermostat control dial (4) is turned to the minimum setting, the heating function can be turned on by slowly opening the thermostat control dial (4) until you hear a click. The heating function will be switched on and will continue to operate until the room temperature has reached a specific temperature. When this room temperature has been reached, the heating function will switch off automatically and will only switch on again when the room temperature drops.

Would you like to leave the heating function on continuously, without it switching off automatically? Then turn the thermostat control dial (4) fully open.

ENGLISH

Overheating safe device

Your appliance is fitted with a safety device that switches off the heater in the event of overheating.

If the heater stops working, turn the heater off and check if the inlet or outlet is blocked. Disconnect the plug and wait at least 10 minutes for the protection system to reset before attempting to restart the heater. If the security switch still switches the heater off and prevents the heater from operating, take the heater to your nearest service centre for examination or repair.

Attention: before restarting the heater, the plug must be disconnected for at least 10 minutes.

re in the marking means: "WARNING: DO NOT COVER."

Warning: This heater is not equipped with a device for checking room temperature. Do not use this heater in small rooms if they are occupied by people who cannot leave the room on their own, unless constant supervision is provided.

Cleaning

1. Always disconnect the appliance from the main power supply and make sure the appliance has completely cooled down before cleaning.
2. Clean the outside of the heater by wiping with a damp or dry cloth.
3. Do not use petroleum, another detergent or chemical solvents to clean the heater.
4. If the heater is not used for a long time, it should be protected from dust and stored in a clean, dry place.

Disposal

Environmental Protection

Meaning of crossed -out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal (household) waste; use separate collection facilities (2012/19/EU). Contact your local government for information regarding the available collection systems. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into

the groundwater and enter the food chain, thus damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal free of charge.

Declaration of conformity

Hereby Gimeg Nederland B.V. declares that the device MKK-300 (YH-08), applies all basic requirements and other relevant regulations listed in the European directive for electromagnetic compatibility (2014/30/EU) and low voltage directive (2014/35/EU). If you require a full declaration of conformity, you can contact the address listed on the backside of this manual.

Technical information

This appliance is equipped with mechanical thermostatic room temperature control.

Model	Voltage	Frequency	Power
MKK-300 (YH-08)	220-240 V	50 Hz	1800-2000 W

Table for information requirements for electric local space heaters

Model identifier(s): MKK-300 (YH-08)
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space heaters only(select one)
Nominal heat output Pnom 2,0	kW Manual	heat charge control with integrated thermostat			[no]
Minimum heat output(indicative)	Pmin 1,0 kW	W Manual	heat charge control with room and/or outdoor temperature feedback		[no]
Maximum continuous heat output	Pmax 2,0 kW	Electronic heat charge control with room and/or outdoor temperature feedback			[no]
Auxiliary electricity consumption Fan assisted heat output [no]
At nominal heat output	elmax	1,834	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0,953	kW	Single stage heat output and no room temperature control	[no]
In standby mode	eISB	N/A	W	Two or more manual settings, no room temperature control	[no]
				With mechanic thermostat room temperature control	[yes]
				With electronic room temperature control	[no]
				Electronic room temperature control plus day timer [no]
				Electronic room temperature control plus week timer	[no]
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	[no]
				Room temperature control, with open window detection	[no]
				With distance control option	[no]
				With adaptive start control	[no]
				With working time limitation	[no]
				With black bulb sensor	[no]
Contact details:	Gimeg Nederland B.V.Strijkviertel 27, 3454PH De Meern, Netherlands
Remark:For electric local space heaters, the measured seasonal space heating energy efficiency cannot be worse than the declared value for the unit's nominal heat output.

Bestandteile

Black electronic device with red ambient lighting and a small display screen (no visible text or symbols)

Sicherheitsangaben

Black electronic device with red ambient lighting and a small display screen (no visible text or symbols)

Black electronic device with red ambient lighting and a small illuminated display (no visible text or symbols)

Black electronic device with red ambient lighting and a small illuminated display (no visible text or symbols)

Black electronic device with red ambient lighting and a small display screen (no visible text or symbols)

Black electronic device with red ambient lighting and a small display screen (no visible text or symbols)

Säkerhetsinstruktioner

Black electronic device with red ambient lighting and a small display screen (no visible text or symbols)

Black electronic device with red ambient lighting and a small display screen (no visible text or symbols)

Turvallisuusohjeet
