Product type	Active outdoor DVB-T/T2 TV antenna
Brand	Mestic
Model	MTVA-30
Frequency ranges	VHF 174-230 MHz (channels 5-12), UHF 470-698 MHz (channels 21-49)
Polarization	Horizontal
Impedance	75 Ω
Coaxial cable	5 m with waterproof cap
Power supply	Mains adapter 230 V AC / 12 V DC 0.2 A or 12 V DC cigarette lighter socket
Protection rating	IPX3
Operating temperature	-20 °C to +40 °C
Dimensions (H × W × D)	40 × 30 × 4.5 cm
Weight	1.3 kg
Package contents	Active antenna, mounting hardware (12 pieces), 5 m coaxial cable, mains adapter, power inserter, car power adapter, user manual
Main functions	DVB-T/T2 reception, built-in amplifier, outdoor mounting on mast or wall mount
Maintenance and cleaning	Clean with a slightly damp cloth, do not use harsh or abrasive products
Safety	Proper mounting mandatory, indoor use for power supply, repairs by a specialist only, disconnect before cleaning
Spare parts and repairability	Repairs reserved for specialists, contact the dealer for parts
General information	Warranty upon proof of purchase, CE declaration of conformity available at www.mestic.de

Frequently Asked Questions - MTVA-30 Mestic

How to connect the Mestic MTVA-30 antenna to a TV with built-in DTT receiver?

Turn off the TV. Connect the coaxial cable from the antenna to the antenna input of the power inserter. Plug the power supply into the power inserter and into a 230 V socket. Connect the cable from the power inserter to the TV's antenna input. Turn on the TV and start a channel search.

Can I use the antenna with a cigarette lighter adapter in a car?

Yes. Use the supplied car power adapter. Plug it into a 12 V socket in the car, connect it to the power inserter, then connect the antenna and TV as described in the manual.

Does the antenna work with a DVB-T2 receiver?

Yes, the antenna is designed for DVB-T/T2 reception. Follow the appropriate connection diagram (example 3 or 4) to power the receiver via the power inserter.

How to mount the antenna outdoors?

Attach the L-bracket to the back of the antenna with four screws. Mount the bracket on the clamp with two screws. Loosen the wing nuts, place the bracket between them, and tighten. The antenna can be mounted on a mast or vertical surface.

What to do if the antenna does not pick up all channels?

Check that the antenna is correctly oriented and that the power supply is connected. Ensure the coaxial cable is properly connected. Perform a new channel search on the TV or receiver.

Is the antenna waterproof?

Yes, the protection rating is IPX3, which protects against water splashes. However, the power inserter and power supply must be used indoors.

Can I use a coaxial cable longer than the supplied 5 m?

It is possible to extend the cable, but this may reduce signal quality. Use a quality 75 Ω cable and limit the additional length to a few meters.

How to clean the antenna?

Disconnect the power supply. Clean the antenna with a slightly damp cloth. Do not use harsh or abrasive cleaning products. Avoid letting moisture enter the housing.

What should I do in case of a malfunction?

First check the connections and power supply. If the problem persists, contact your dealer. Repairs must be carried out by a specialist.

Where to find the declaration of conformity?

The EU declaration of conformity is available on the websites www.camping-profi.de and www.mestic.de.

USER MANUAL MTVA-30 Mestic

DVB-T antenna MTVA-30 vision

PACKAGE CONTENT

P1(1)

BASE ASSEMBLY

P2(1)

P2(2)

P2(3)

CONNECTION EXAMPLES

Connection Example 1

Connection Example 2

Connection Example 3
Connection Example 4

Beoogd gebruik

The outdoor antenna DVB-T antenna MTVA-30 vision is an active antenna for the reception of digital terrestrial television and radio signals in the VHF and UHF range. The manufacturer accepts no liability for damage caused by improper use!

Safety instructions

• Before using the antenna, please read the operating instructions and safety instructions carefully. This is the only way to use all functions safely and reliably. Keep the instructions for use for the entire service life of the product.
• Also observe the safety instructions and operating instructions for the other devices that are connected to the product.
• Ensure that the antenna is properly secured.
• Position the antenna so that children cannot reach it.
• The infeed switch (voltage feeder), plug-in power supply unit and vehicle plug are only intended for indoor use.
• The mains socket must easily accessible at all times.
• Only use the appropriate plug-in power supply unit (see technical data). Pay attention to the polarity!
• Repairs may only be carried out by specialists.
• Remove the plug-in power supply unit from the socket before cleaning.
• Only clean the antenna with a slightly damp cloth and do not use any aggressive or abrasive cleaning agents, as these can damage the surface of the housing.
• Liquid/ moisture must not get into the product.

Technical Data

Frequency / reception range VHF 174-230 MHz; UHF 470-698 MHz
Channels 5-12, 21-49
Polarisation horizontal
Impedance 75 Ω
Coaxial cable 5 m
Power supply Plug-in power supply 230 V or car plug ("Car Power Adapter"), 12 V DC / 0.2 A
Protection class IPX3
Ambient temperature -20 to +40°C
Dimensions Height x width x depth: 40 x 30 x 4.5 cm
Weight	1.3 kg

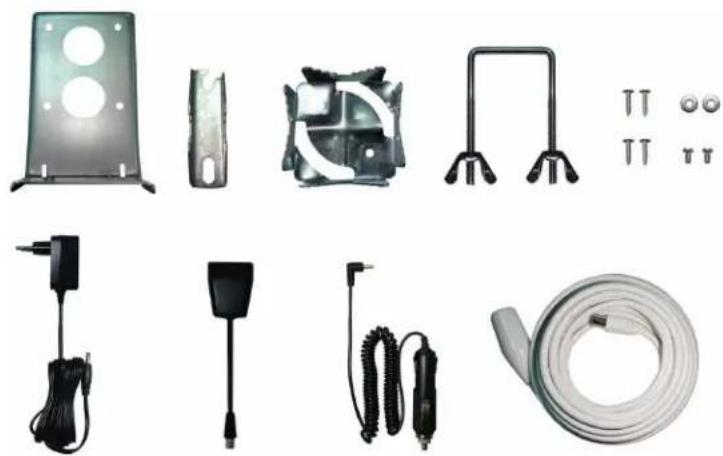

Package contents

Active outdoor antenna (VHF and UHF) with integrated amplifier
- Fastening material (12 pcs)
- Antenna cable with waterproof cover cap (5 m)
- Plug-in power supply 12V / 0.2A
Power inserter
- Car plug ("Car Power Adapter")
- Operating instructions and safety instructions

EN ENGLISH

Installation instructions

P2(1)

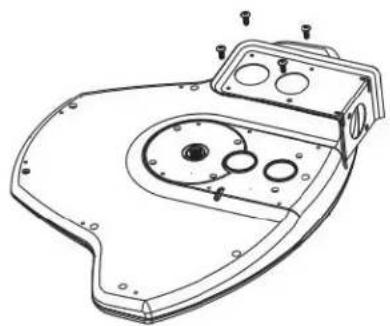

Attach the L-shaped clamp to the back of the antenna with four screws.

P2(2)

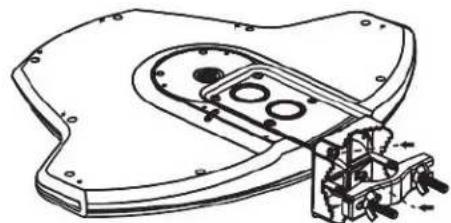

Attach the bracket to the L-shaped clamp with two screws and tighten them firmly.

P2(3)

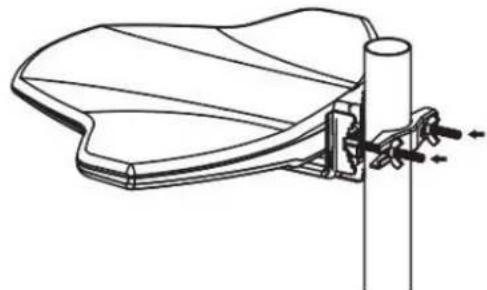

Loosen the wing nuts, place the bracket between them and tighten the wing nuts.

External aerial for TV sets with integrated DVB-T(2) receiver

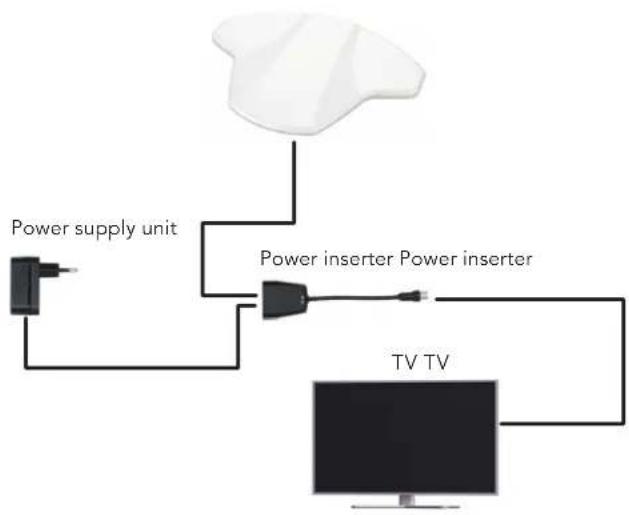

Connection example 1

Power supply via the external mains plug supplied

• Switch off the TV set.
• Connect the coaxial cable of the external aerial to the aerial connection of the power inserter.
• Plug the cable of the plug-in power supply unit into the socket of the feed-in switch and the plug-in power supply unit into a 230 V AC socket.
• Connect the coaxial cable of the feed-in diverter to the aerial input of your TV set.
• With this connection variant, it does not matter if the 5V power supply of the TV set is activated.
• Switch on the TV set and search for receivable programmes. If necessary, please refer to the operating instructions for the TV set.

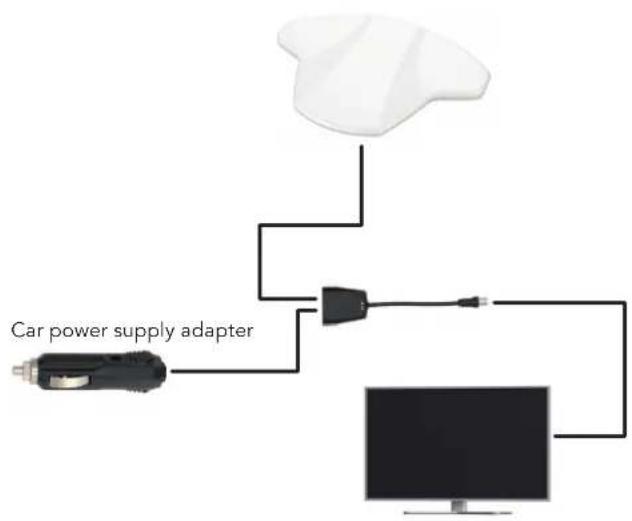

Connection example 2

Power supply via the supplied external car plug ("Car Power Adapter")

• Switch off the TV set.
• Connect the coaxial cable of the external aerial to the aerial connection of the power inserter.
• Plug the cable of the car plug ("Car Power Adapter") into the 12 V socket of the feed-in switch and the car plug into a 12 V car socket.
• Connect the short coaxial cable of the feed-in switch to the aerial input of your TV set.
• With this connection variant, it does not matter if the 5V power supply of the TV set is activated.
• Switch on the TV set and search for receivable programmes. If necessary, please refer to the operating instructions for the TV set.

External aerial for TV sets without integrated DVB-T(2) receiver

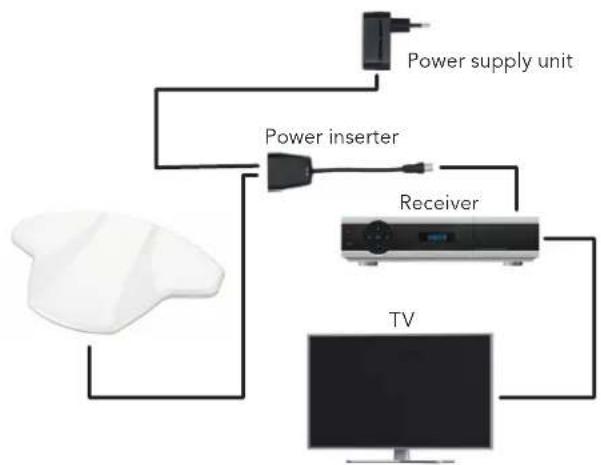

Connection example 3

Power supply via the supplied external plug-in power supply unit

• Switch off the TV set and the DVB-T(2) receiver.
• Connect the coaxial cable of the external aerial to the aerial connection of the power inserter.
• Plug the cable of the plug-in power supply unit into the socket of the feed-in switch and the plug-in power supply unit into a 230 V AC socket.
• Connect the coaxial cable of the feed-in switch to the antenna input of your DVB-T(2) receiver.
• With this connection variant, it does not matter if the 5V power supply of the TV set is activated.
• Switch on the TV set and the DVB-T(2) receiver.
• You can now search for receivable channels.

If necessary, please refer to the operating instructions of the DVB-T(2) receiver.

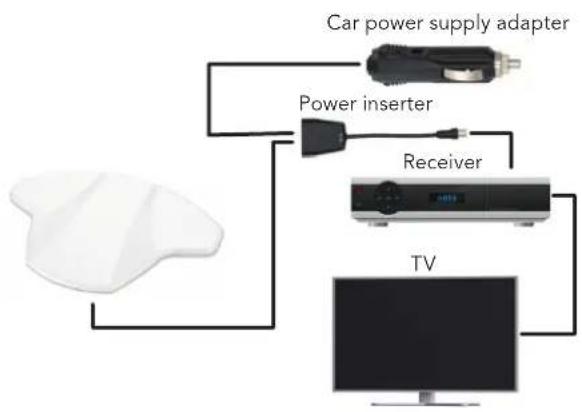

Connection example 4

Power supply via the supplied external car plug

• Switch off the TV set and the DVB-T(2) receiver.
• Connect the coaxial cable of the external aerial to the aerial connection of the power inserter.
• Plug the cable of the car plug ("Car Power Adapter") into the 12 V socket of the transfer switch and the car charger into a 12 V car socket.
• Connect the coaxial cable of the feed-in switch to the antenna input of your DVB-T(2) receiver.
• With this connection variant, it does not matter if the 5V power supply of the tv set is activated.
• Switch on the TV set and the DVB-T(2) receiver
• You can now search for receivable channels.

If necessary, please refer to the operating instructions of the DVB-T(2) receiver.

Disposal instructions - Note on environmental protection:

From the date of transposition of European Directives 2012/19/EU and 2008/98/EU into national law, the following applies: Electrical and electronic equipment and batteries may not be disposed of with household waste. The consumer is legally obliged to return electrical and electronic devices and batteries at the end of their service life to the public collection points set up for this purpose or to the point of sale. Details on this are regulated by the respective state law. The symbol on the product, the instructions for use or the packaging these regulations. By recycling, material recovery or other forms of utilisation of old appliances/batteries, you are making an important contribution to protecting our environment.

Disclaimer

CAMPING-PROFI GmbH accepts no liability or warranty for damage resulting from improper installation, assembly and improper use of the product or failure to observe the operating instructions and/or safety instructions

Guarantee

Every CAMPING-PROFI GmbH product is thoroughly checked and tested before it leaves the factory. The warranty begins with the purchase of the device. Please provide proof of purchase (receipt, invoice, delivery note, etc.). Please keep these documents in a safe place. In the event of repair, take the appliance to your specialist dealer or send it to them.

EU Declaration of Conformity

This product labelled in accordance with the applicable directives. With the CE mark, CAMPING-PROFI GmbH declares that the product fulfils the basic requirements and directives of the European regulations. The declaration of conformity can be found at the following addresses: www.camping-profi.de or www.mestic.de.
