Product type	Cordless stick vacuum
Brand	Beko
Model	VRT 61818 VG
Input voltage	100-240 V ~ 50/60 Hz
Nominal power	100 W
Battery type	Lithium-ion
Battery voltage	18 V DC
Battery capacity	2200 mAh
Charger output	22 V, 500 mA
Charging time	4 to 6 hours
Brush power	5 W
Brush voltage	14.4 V DC
Filter type	Washable HEPA
Floor types	Hard floors, carpets, furniture
Main functions	Stick mode, handheld mode, variable speed, battery charge and remaining time LED indicator
Included accessories	Furniture brush, floor nozzle
Maintenance and cleaning	Dustbin and filter washable with water, removable brush for cleaning
Safety	Protection against electric shock (class II), automatic stop on charger
Use	Household use only
Recycling	Do not dispose of with household waste, take to a WEEE collection point

Frequently Asked Questions - VRT 61818 VG BEKO

How long does it take to fully charge the battery?

Full charge takes about 4 to 6 hours. The LED indicator shows progress: on during charging, all levels on when charging is complete.

Can I use the vacuum while it is charging?

No, the appliance cannot operate while charging. Unplug it before use.

How to clean the dustbin and filter?

Remove the dustbin by pressing the release button. Take out the HEPA filter by turning counterclockwise. Wash the dustbin, filter holder, and filter with running water. Dry all parts before reassembling.

How to convert the stick vacuum into a handheld vacuum?

Press the release button (5) to detach the upper part. Then use the On/Off button (7) on the handheld vacuum to turn it on.

What to do if suction power decreases?

Check if the dustbin is full or the filter is clogged. Clean the dustbin and filter. You can also check the brush, which might be obstructed by hair or fibers.

How to adjust the suction speed?

Press the variable speed control (3) to reduce speed. Press again to return to maximum speed. The appliance always starts at maximum speed.

Can I vacuum liquids with this vacuum?

No, never vacuum liquids or wet materials. This would damage the motor and filters.

How to fold the handle for storage?

Turn the foldable button (4) clockwise, then fold down the handle (1). This allows more compact storage of the appliance.

What types of floors can this vacuum clean?

It is suitable for hard floors (wood, tile) and carpets. Use the furniture brush for delicate surfaces and furniture.

Where to dispose of the vacuum at end of life?

Do not throw it away with household waste. Take it to a recycling center or return it to the store where you bought it for recycling (in accordance with the WEEE directive).

USER MANUAL VRT 61818 VG BEKO

Cordless Stick Vacuum Cleaner

User Manual

Simple line drawing of a decorative border with circular motifs (no text or symbols)

VRT 61814 VR

VRT 61818 VW

VRT 61821 VD

VRT 61814 VB

VRT 61818 VG

EN - DE - FR - IT - RO - ES - SL - CS - PL - BG - HU - NL - RU

CONTENT

ENGLISH	4-13
DEUTSCH	14-26
FRANÇAIS	27-37
ITALIANO	38-49
ROMANIAN	50-63
ESPAÑOL	64-76
SLOVENŠČINA	77-86
ESKY	87-96
POLSKI	97-109
BULGARIAN	110-120
MAGYAR	121-131
NEDERLANDS	132-142
RUSSIAN	143-156

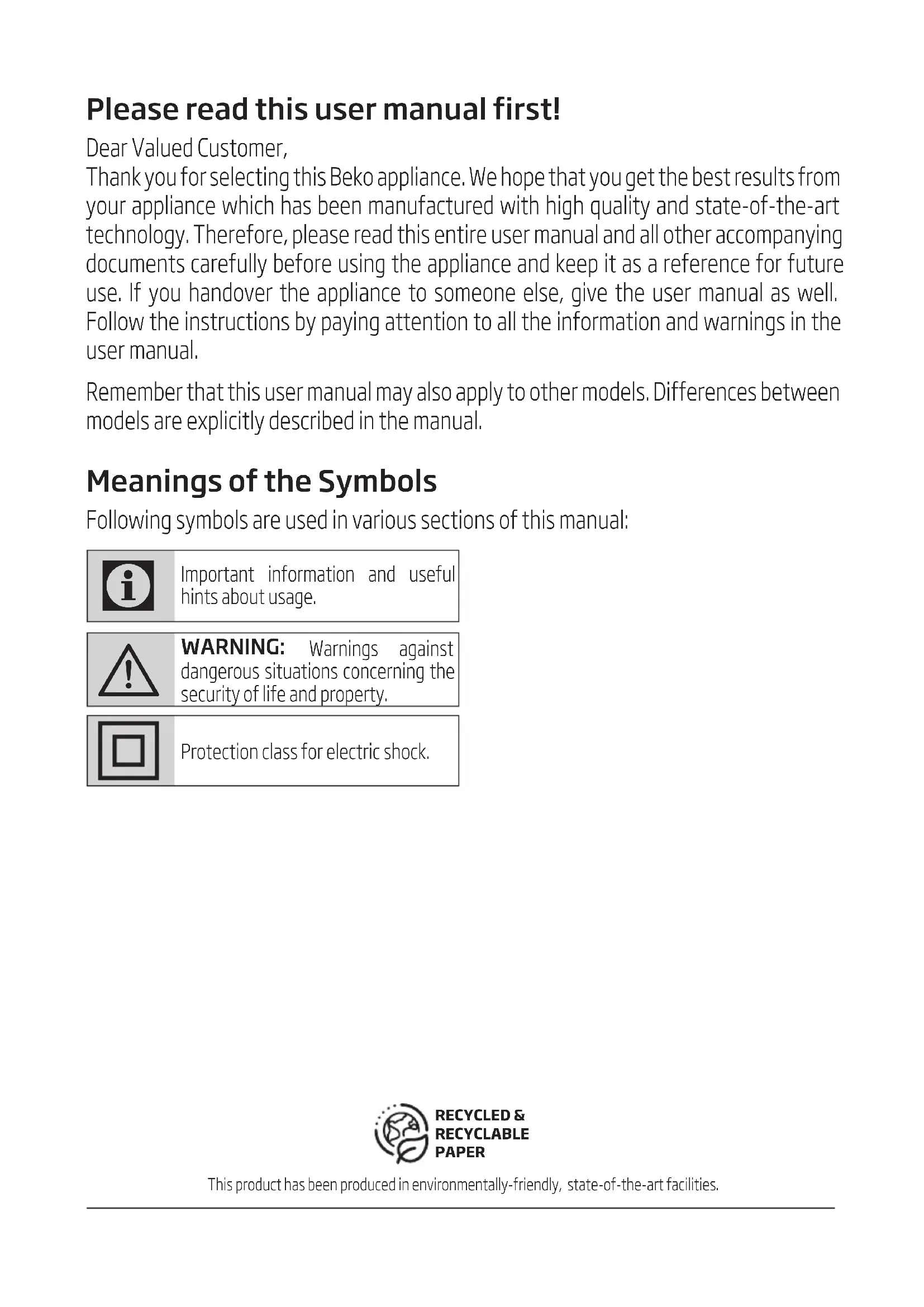

Please read this user manual first!

Dear Valued Customer,

Thank you for selecting this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

1 important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or material damage.

Failure to follow these instructions voids any granted warranty.

1.1 General safety

• This appliance complies with international safety standards.
• This appliance contains batteries that are only replaceable by skilled persons.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• If the power cable or the appliance itself is damaged, do not use it. Contact an authorised service.

• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• The mains supply on which you will use the appliance must be secured with a 16 A fuse minimum.
• Do not use the appliance with an extension cable.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges.
• Do not touch the appliance or its plug when it is plugged in if your hands are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ash, make sure that it has cooled down.
• Do not vacuum water or other liquids.
• Protect the appliance from rain, humidity and heat sources.

1 important safety and environmental instructions

- Never use the appliance in or near places where combustible or inflammable ambience or places are present.

- The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

- Do not immerse the appliance or its power cable in water for cleaning.

- Only use attempt to dismantle the appliance.

- Use the original parts or parts recommended by the manufacturer.

- Do not clean particles such as cement, plaster and compressed paper in order to prevent the filter from being clogged and the motor being damaged.

- WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

- Do not use the appliance without filters; otherwise it can be damaged.

- If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive(2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1 important safety and environmental instructions

1.4 Information on Waste Batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

1.5 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National

Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your cordless stick vacuum cleaner

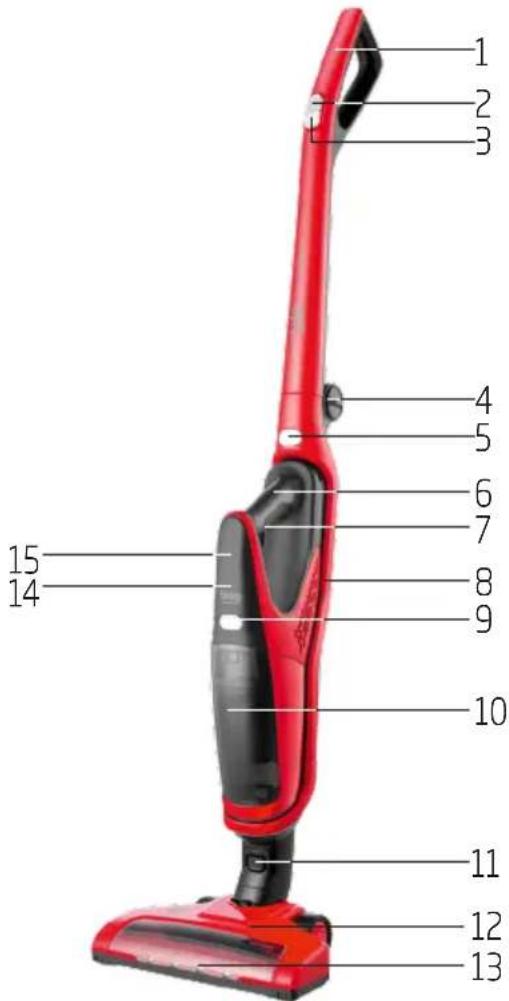

2.1 Overview

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

1. Stick vacuum cleaner handle
2. Stick vacuum cleaner on/off button
3. Speed adjustment button
4. Handle collapsing button
5. Cordless vacuum cleaner removal button
6. Cordless vacuum cleaner handle
7. Cordless vacuum cleaner on/off button
8. Body
9. Dust container removal button
10. Dust container
11. Brush removal button
12. Brush
13. LED light
14. Handheld vacuum cleaner
15. Charging and power indicator

The values which are declared on the markings affixed to your product or in other printed documents supplied with it represent the values which have been obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

2 Your cordless stick vacuum cleaner

2.2 Technical data

Model VRT 6181	4 VR -VRT 61814 VB	VRT 61818 VW -VRT 61818 VG	VRT 61821 VD
Supply voltage	100-240V~50-60Hz
Power	14.4V 90W 18V 100W 21.6V 120W
Product spec	DC 14.4V 2200mAhLi-on	DC 18V 2200mAh Li-on	DC 21.6V 2200mAh Li-on
Apaptor Input	100-240V~50-60Hz0.3A	100-240V~50-60Hz0.3A	100-240V~50-60Hz0.5A
Apaptor Output	18V 500mA 22V 500mA 27V 500mA
Brush spec	14.4V 5W 14.4V 5W 21.6V 8W
Charging time	4~6H

Technical and design modification rights are reserved.

3 Operation

3.1 Intended use

The appliance has been designed for household use and is not suitable for industrial use.

3.2 Installing the body and brush

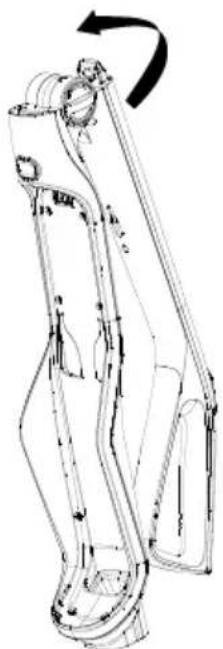

1. Lift the handle (1) in the arrow direction.

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

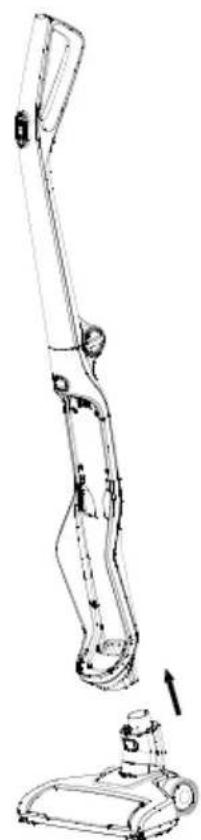

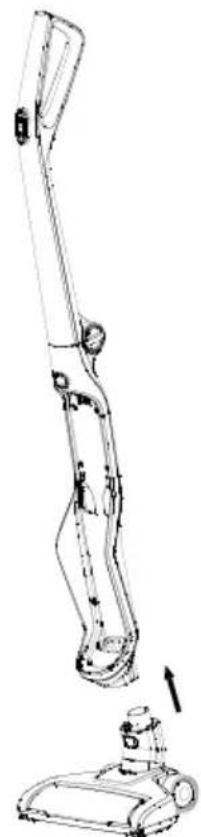

1. Attach the brush (12) to the body (8).

Technical line drawing of a vacuum cleaner with attached housing and mounting bracket (no text or symbols)

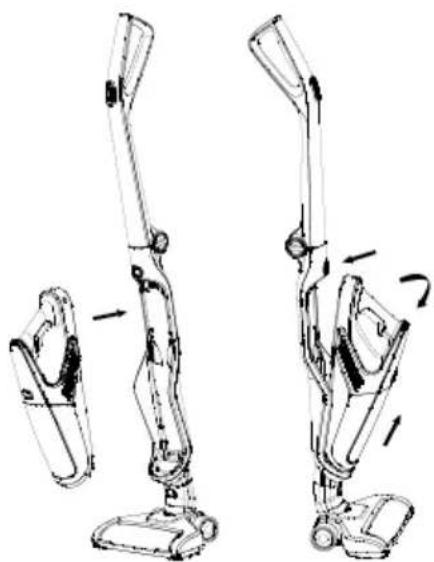

1. Attach the handheld cleaner to the body (8).

Line drawing of a two-step robotic vacuum cleaner with motion arrows indicating movement (no text or symbols)

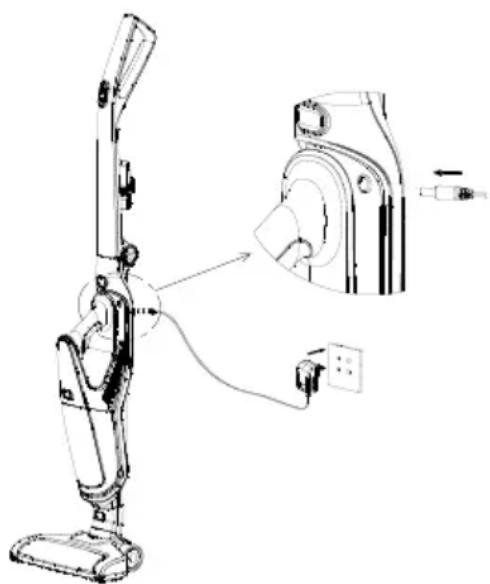

3.3 Charging the appliance

1. Insert the thin end of the adapter to the charger and plug the adapter in.

3 Operation

Technical line drawing of a vacuum cleaner with attached device and wiring (no text or symbols)

1. The charging indicator LED (15) will come on and the product will start to be charged; when charging is done, all charging indicators will be on.
2. If the charging indicator LED (15) is on, this means that the product is being charged.
3. If all levels of the charging indicator LED (15) is on, this means that the product is fully charged.

It takes up to 4-6 hours for the appliance to be fully charged.

WARNING: Appliance cannot be operated during the charging process.

3.4 Operating the appliance

1. Press the on/off button (2) to switch on the appliance.
2. When you press on/off button (2), appliance will start at maximum speed. Press speed adjustment button (3) to use in low speed. When you press speed adjustment button again, the appliance will run at maximum speed again.
3. After using the appliance, switch it off by pressing the On/off button (2).

Check the power indicator LEDs (15) during operation. As charging level decreases, these indicators will gradually go off and the appliance will stop working when all indicators are off.

Appliance will automatically stop if it is placed on charger while still in use.

3.5 Starting cordless vacuum cleaner

1. Press removal button (5) to remove the vacuum cleaner from the body (8).
2. Press on/off button (7) of the cordless vacuum cleaner to switch on your appliance.
3. After using the appliance, switch it off by pressing the On/off button (7) of the cordless vacuum cleaner.

3 Operation

3.6 Accessories

You can use your accessories by inserting them to the end of your vacuum cleaner.

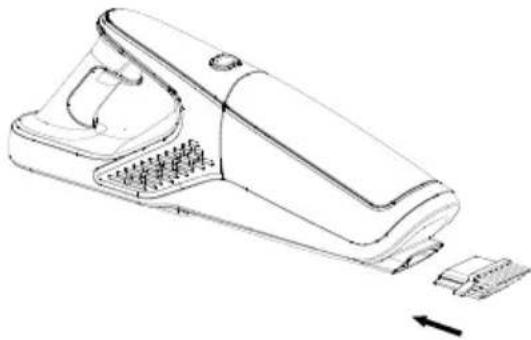

Dust brush

Suitable for cleaning the curtains, and sensitive and fragile objects.

Line drawing of a handheld cleaning device with internal components and a separate component (no text or symbols)

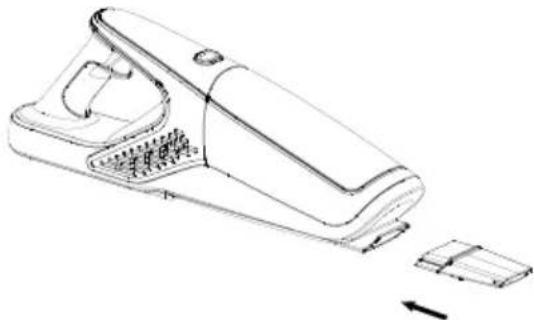

Upholstery tool

Suitable for cleaning the floorings, stair steps, inside of the cars, sofas, armchairs etc.

Line drawing of a handheld vacuum cleaner with internal components and a separate view showing part assembly (no text or symbols)

4 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

4.1 Cleaning the dust container

It is recommended to clean the dust container after every use.

1. Press the dust container removal button (9) to remove the dust container (10).
2. Pull the filter by holding the handle and remove it from dust container (10).

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

1. Remove the HEPA filter by grasping the handle of the filter holder and turning counterclockwise.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal threading and housing (no text or symbols)

1. Wash out the dust container (10), filter holder and HEPA filter under the running water.

2. Clean the body of the cordless vacuum cleaner (14) with a soft damp cloth.

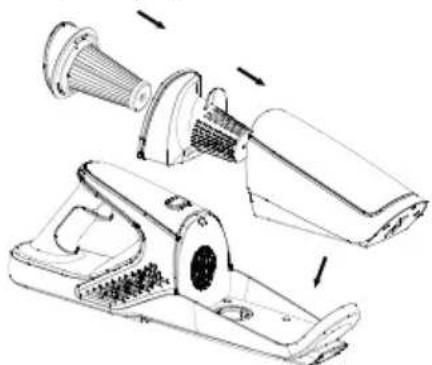

3. Replace the HEPA filter in its holder after all parts are dried and place filter holder in the dust container (10).

Technical line drawing of a mechanical device with two views (top and side), showing internal components without any text or symbols.

1. Replace the dust container (10) in the body of cordless vacuum cleaner (14).

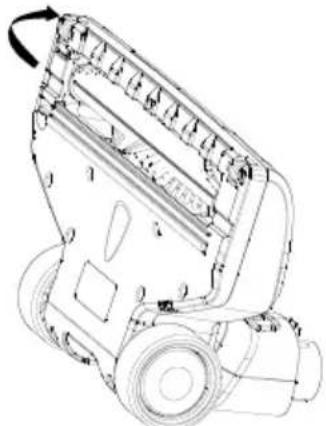

4.2 Cleaning the brush

1. Press the brush removal button (11) and remove the brush (12) from the body (8).

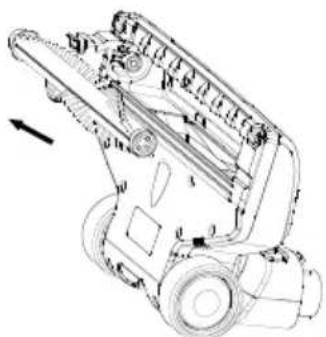

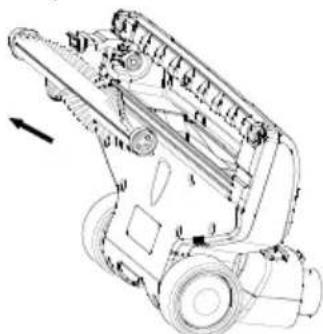

2. To clean the brush (12), release the lock using the roller brush release tab as shown below.

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

1. Remove the roller brush.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. After cleaning and drying the roller brush, reattach it and lock the tab.

4 Cleaning and care

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Store the appliance in a vertical position or with its handle folded.
• In order to fold the handle, turn the folding button (4) clockwise and fold the handle (1).
• Keep the appliance out of the reach of children.

4.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Technical line drawing of a vacuum cleaner with attached device (no text or symbols)

Line drawing of two robotic vacuum cleaner arms with motion arrows indicating movement (no text or symbols)

3.3 Gerät aufladen

Technical line drawing of a vacuum cleaner with attached device and cable (no text or symbols)

Line drawing of a handheld cleaning device with internal components and a separate component, no text or symbols present.

Polsterdüse

Line drawing of a handheld vacuum cleaner with internal components and a separate inset showing a small component (no text or symbols)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with internal components and assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled components and an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Technical line drawing of a vacuum cleaner with attached housing and mounting bracket (no text or symbols)

Line drawing of a two-step robotic vacuum cleaner with motion arrows indicating movement (no text or symbols)

Technical line drawing of a vacuum cleaner with attached device and cable (no text or symbols)

Line drawing of a handheld device with internal components and a separate component, no text or symbols present

Suceur long

Line drawing of a handheld vacuum cleaner with internal components and a separate component (no text or symbols)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal threading and housing (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), showing internal components without any text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled components (no text or symbols)

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a base and top component, showing internal components and motion indicators (no text or symbols)

Line drawing of two different vacuum cleaner designs with motion arrows indicating movement (no text or symbols)

Technical line drawing of a vacuum cleaner with attached device and wiring (no text or symbols)

Line drawing of a handheld device with internal components and a separate component, no text or symbols present

Line drawing of a handheld vacuum cleaner with internal components and a separate inset showing a small component (no text or symbols)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal parts and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), showing internal components without any text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled components (no readable text or symbols)

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Line drawing of a vacuum cleaner with attached device and mounting bracket (no text or symbols)

Line drawing of a robotic vacuum cleaner with two views showing motion (no text or symbols)

Technical line drawing of a vacuum cleaner with attached housing and power plug (no text or symbols)

Line drawing of a handheld vacuum cleaner with internal components and a separate outlet (no text or symbols)

3 Functionare

Line drawing of a handheld vacuum cleaner with internal components and a separate inset showing a small component (no text or symbols)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with exploded view and assembly (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with labeled components (no text or symbols)

□ □ Convector electric

Model / Serie:

VÂNZĂTOR

Nr. factură:......Data:......

PAPEL RECICLADO Y RECIBLABLE

Technical line drawing of a mechanical component with rotational arrow (no text or symbols)

Technical line drawing of a vacuum cleaner with attached device (no text or symbols)

Line drawing of two different vacuum cleaner designs with motion arrows indicating movement (no text or symbols)

3.3 Carga del aparato

Technical line drawing of a vacuum cleaner with attached device and wiring (no text or symbols)

Line drawing of a handheld device with internal components and a separate component, no text or symbols present

Line drawing of a handheld vacuum cleaner with internal components and a separate inset showing a small component (no text or symbols)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal threading and housing (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), showing internal components and assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled parts and an arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

1. Pritrdite krtačo (12) na trup (8).

Technical line drawing of a mechanical device with a base and top component, showing no text or symbols.

Line drawing of two different vacuum cleaner designs with motion arrows indicating movement (no text or symbols)

Technical line drawing of a vacuum cleaner with attached device and wiring (no text or symbols)

Line drawing of a handheld device with internal components and a separate component, no text or symbols present

Nastavek za oblazinjeno pohištvo

Line drawing of a handheld vacuum cleaner with internal components and a separate component, showing no text or symbols.

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

1. Odstranite filter HEPA, tako da primete za ročaj držala za filter in ga obrnete v nasprotni smeri urinega kazalca.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal threading and housing (no text or symbols)

1. Sperite posodo za prah (10), držalo za filter in filter HEPA pod tekočo vodo.

2. Trup baterijskega sesalnika (14) obrišite z mehko vlažno krpo.

3. Ko se vsi deli posušijo, ponovno namestite filter HEPA v držalo in vstavite držalo s filtrom nazaj v posodo za prah (10).

Technical line drawing of a mechanical device with two views (top and side), showing internal components without any text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

1. Odstranite valjčno krtačo.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Technical line drawing of a vacuum cleaner assembly (no text or symbols)

Technical line drawing of a vacuum cleaner with two views showing mechanical components and motion arrows (no text or symbols)

Technical line drawing of a vacuum cleaner with attached housing and power outlet (no text or symbols)

Line drawing of a cleaning or cleaning device with a handle and internal components (no text or symbols)

3 Použití

Hubice na čalounění

Line drawing of a handheld vacuum cleaner with internal components and a separate component (no text or symbols)

4 Čištění a péče

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal parts and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with exploded view and side view (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a base and top component, showing no text or symbols.

Line drawing of a two-step robotic vacuum cleaner mechanism (no text or symbols)

Technical line drawing of a vacuum cleaner with attached device and wiring (no text or symbols)

Line drawing of a handheld device with internal components and a separate component, no text or symbols present

Szczotka do tapicerki

Line drawing of a handheld device with internal components and a separate inset showing a small component (no text or symbols)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with exploded view and side view (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with labeled components (no readable text or symbols)

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a base and top component, showing internal components and motion indicators (no text or symbols)

Line drawing of two different vacuum cleaner designs with motion arrows indicating movement (no text or symbols)

Technical line drawing of a vacuum cleaner with attached device and cable (no text or symbols)

Line drawing of a cleaning brush with a handle and internal components, showing no text or symbols

Line drawing of a handheld vacuum cleaner with internal components and a separate view showing internal structure (no text or symbols)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal threading and housing (no text or symbols)

Technical line drawing of a mechanical device with exploded view and side view (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with numbered components and an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a base and top component, showing internal components and motion indicators (no text or symbols)

Line drawing of two different vacuum cleaner designs with motion arrows indicating movement (no text or symbols)

Line drawing of a handheld cleaning device with internal components and a separate component, no text or symbols present.

Kárpittisztító

Line drawing of a handheld vacuum cleaner with internal components and a separate view showing a small component (no text or symbols)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal threading and housing (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), showing internal components and assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with rotational arrow (no text or symbols)

Technical line drawing of a vacuum cleaner assembly (no text or symbols)

Line drawing of two robotic vacuum cleaner arms with motion arrows indicating movement (no text or symbols)

Technical line drawing of a vacuum cleaner with attached device and wiring (no text or symbols)

Line drawing of a handheld cleaning device with internal components and a separate component, no text or symbols present.

Bekledingsborstel

Line drawing of a handheld vacuum cleaner with internal components and a separate inset showing a small component (no text or symbols)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with two views (top and side), showing internal components and assembly (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with labeled components (no readable text or symbols)

Simple line drawing of a decorative border with circular motifs (no text or symbols)

VRT 61814 VR

VRT 61818 VW

VRT 61821 VD

VRT 61814 VB

RU

CE EAC

01M-8811553200-1122-11

01M-8811563200-1122-11

01M-8811543200-1122-11

01M-8816823200-1122-11

01M-8912753200-1122-03

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a base and top component, showing no text or symbols.

Line drawing of a two-step robotic vacuum cleaner with motion arrows indicating movement (no text or symbols)

3 Эксплуатация

Technical line drawing of a vacuum cleaner with attached device and cable (no text or symbols)

Line drawing of a cleaning or cleaning device with a handle and internal components, showing no text or symbols.

Line drawing of a handheld vacuum cleaner with internal components and a separate close-up view (no text or symbols)

4 Чистка и уход

Technical line drawing of a mechanical component with internal structure and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal threading and housing (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), showing internal components without any text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with numbered components and an arrow indicating motion (no text or symbols present)
