USER MANUAL SWKP 3100 A1 SILVERCREST

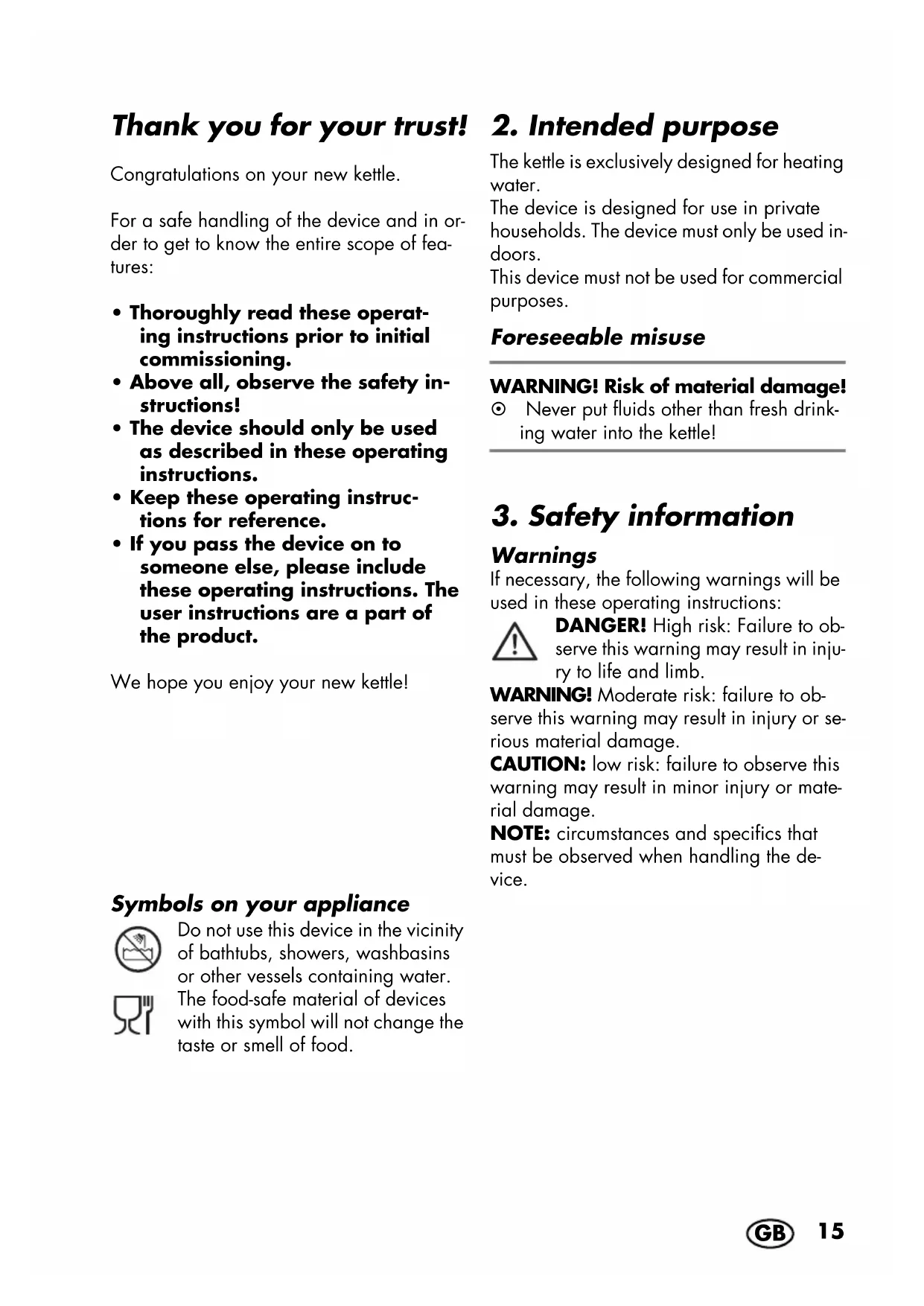

Thank you for your trust! Congratulations on your new kettle. For a safe handling of the device and in or- der to get to know the entire scope of fea- tures:

• Thoroughly read these operat- ing instructions prior to initial commissioning.

• Above all, observe the safety in- structions!

• The device should only be used as described in these operating instructions.

• Keep these operating instruc- tions for reference.

• If you pass the device on to someone else, please include these operating instructions. The user instructions are a part of the product. We hope you enjoy your new kettle! Symbols on your appliance Do not use this device in the vicinity of bathtubs, showers, washbasins or other vessels containing water. The food-safe material of devices with this symbol will not change the taste or smell of food.

The kettle is exclusively designed for heating water. The device is designed for use in private households. The device must only be used in- doors. This device must not be used for commercial purposes. Foreseeable misuse WARNING! Risk of material damage! ~ Never put fluids other than fresh drink- ing water into the kettle!

3. Safety information

Warnings If necessary, the following warnings will be used in these operating instructions: DANGER! High risk: Failure to ob- serve this warning may result in inju- ry to life and limb. WARNING! Moderate risk: failure to ob- serve this warning may result in injury or se- rious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or mate- rial damage. NOTE: circumstances and specifics that must be observed when handling the de- vice. __400389_2107_B8.book Seite 15 Dienstag, 7. Dezember 2021 2:11 1416

Instructions for safe operation

This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are su- pervised or instructed on how to use this device safely and if they are aware of the resulting danger.

Children must not play with the device.

Cleaning and user maintenance must not be performed by children unless they are older than 8 years and supervised.

Children under the age of 8 must be kept away from the device and the power cable.

Do not use this device in the vicinity of bathtubs, showers, washbasins or other vessels containing water.

This device is equally intended for use in the home and in applica- tions similar to the home, such as for example... … in kitchens for employees in shops, offices and other commer- cial areas; … on agricultural estates; … by customers in hotels, motels and other residential facilities; … in bed-and-breakfast establishments.

This device is not intended to be operated using an external timer clock or a separate remote control system.

Do not open the lid while the water is boiling.

Fill the device only to the maximum filling level, as boiling water may otherwise spray out.

It is always necessary to close the lid when heating water, as boil- ing water may otherwise spray out!

Use the kettle only with the supplied device base.

The kettle, the device base, the power cable and the mains plug must not be immersed in water or other liquids.

Liquid must never overflow onto the plug connections of the device.

Remember that the surface of the heating element remains hot after use.

If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer ser- vice department or a similarly qualified specialist, in order to avoid any hazards. __400389_2107_B8.book Seite 16 Dienstag, 7. Dezember 2021 2:11 1417

Please take note of the chapter on cleaning (see “Cleaning” on page 19). DANGER for children! ~ Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation. DANGER to and from pets and livestock! ~ Electrical devices can represent a haz- ard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times. DANGER! Risk of electric shock due to moisture! ~ Protect the device from moisture, water drops and water spray. Failure to ob- serve this instruction may result in an electrical shock hazard. ~ If liquid gets into the device base, imme- diately pull out the mains plug. Have the device checked before reusing. DANGER! Risk of electric shock! ~ Do not use the device if the device or the power cable has any visible dam- age, or if the device base has previous- ly been dropped. ~ Connect the mains plug only to a cor- rectly installed, easily accessible earthed wall socket with voltage corre- sponding to the rating plate. The wall socket must continue to be easily acces- sible after the device is plugged in. ~ Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device. ~ The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug. ~ When using the device, ensure that the power cable cannot be trapped or crushed. ~ When removing the mains plug from the wall socket, always pull the plug and never the cable. ~ Disconnect the mains plug from the wall socket,… … if there is a fault, … when you are not using the kettle, … before you clean the kettle, and … during thunderstorms. ~ To avoid any risk, do not make modifi- cations to the device. DANGER! Risk of injury through scalding! ~ Do not bend over the kettle when you open the lid and the contents are still hot. There is a danger of being scalded by escaping steam. ~ The kettle becomes very hot during op- eration. Only touch it at its handle and only use the release button and the on/ off switch. WARNING! Risk of material damage! ~ The device is fitted with non-slip silicon feet. Because furniture can be coated with a wide variety of varnishes and plastics, and treated with various care products, the possibility cannot be ex- cluded that some of these substances have ingredients that may attack and soften the silicon feet. If necessary, place a non-slip mat under the device. ~ Fill the device with a minimum of 0.5 li- tres of water, as otherwise the device may overheat. __400389_2107_B8.book Seite 17 Dienstag, 7. Dezember 2021 2:11 1418

~ Never put alcohol, sugar or milk into the kettle! ~ Place the device on a stable, flat sur- face. ~ Do not use any astringent or abrasive cleaning agents.

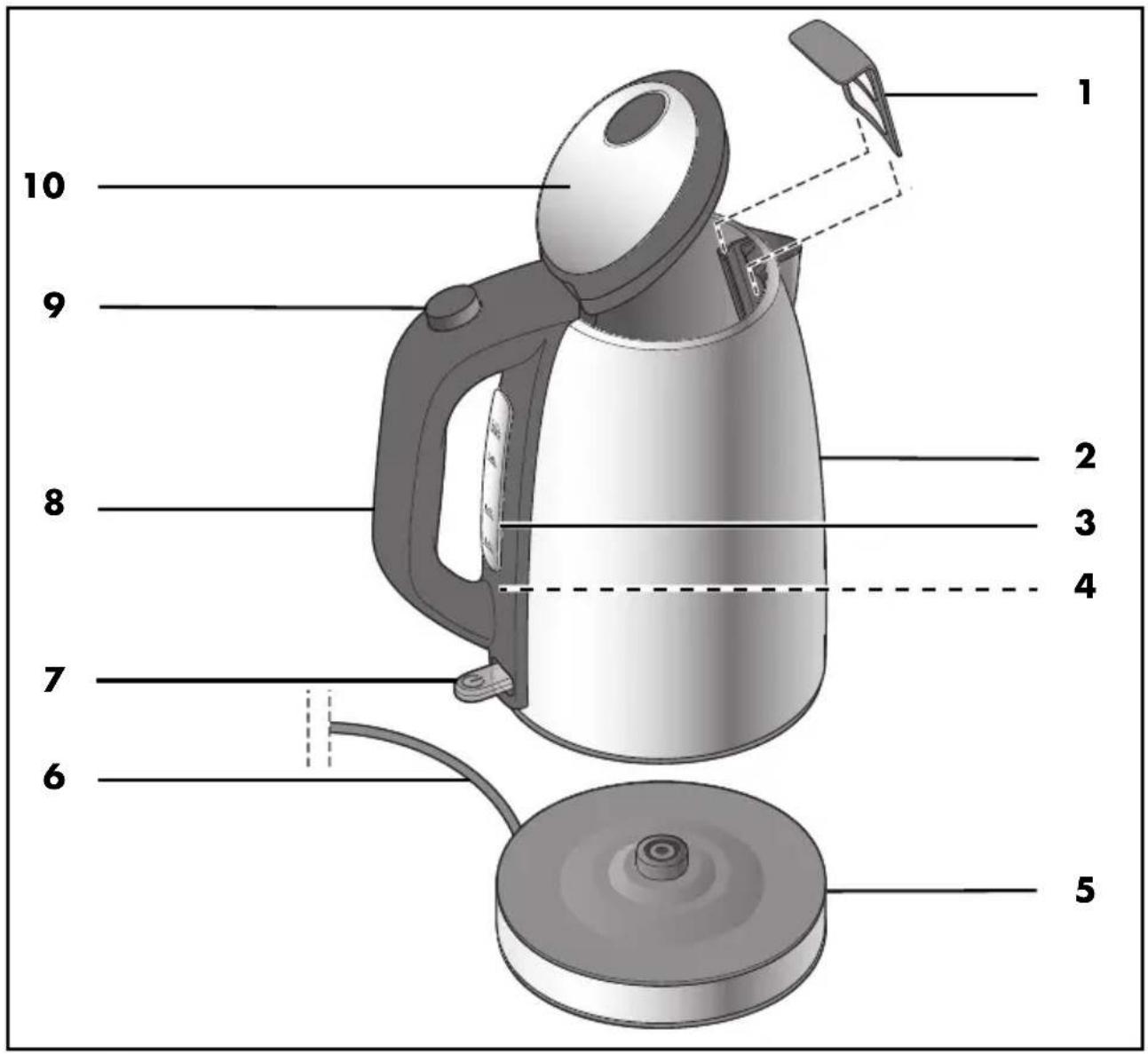

1 Kettle2 1 Device base5 1 Set of operating instructions

DANGER! Risk of electric shock! ~ Connect the mains plug6 only to a cor- rectly installed, easily accessible earthed wall socket with voltage corre- sponding to the rating plate. The wall socket must continue to be easily acces- sible after the device is plugged in. ~ Pull the mains plug6 out from the wall socket after every use.

• Remove all packing material.

• Check to ensure that all parts are pres- ent and undamaged.

• Place the device on a dry, level, non-slip surface.

6. Before using for the

up to the marking MAX 1.7L on the water level display

and heat the water (see “Using the kettle” on page 18).

2. Pour the water out and rinse out the ket-

tle2 with fresh water.

3. Repeat this process. Then it is safe to

DANGER! Risk of injury through scalding! ~ It is always necessary to close the lid10 when heating water, as boiling water may otherwise spray out! ~ Do not open the lid10 while the water is boiling. ~ Fill the kettle2 only to the maximum fill- ing level (MAX 1.7L), as boiling water may otherwise spray out. ~ Do not bend over the kettle2 when you open the lid10 and the contents are still hot. There is a danger of being scalded by escaping steam. ~ The kettle2 becomes very hot during operation. Only touch it at its handle8 and only use the release button9 and the on/off switch 7. WARNING! Risk of material damage! ~ Fill the device with a minimum of 0.5 li- tres of water, as otherwise the device may overheat. Please note the mark- ing

~ Never put alcohol, sugar or milk into the kettle2! Water as foodstuff Water is a very sensitive foodstuff and can go bad due to germs forming. Please take note:

• Always use fresh drinking water in the kettle2.

• Pour water away, which has been standing in the kettle2 for longer than approx. 1 hour.

• Do not reboil cooled down water. Boiling water

1. Remove the kettle2 from the device

2. Press the release button9 to open the

with fresh drinking water - minimum 0.5 litres, maximum 1.7 litres. Keep it upright or place it on an even sur- face to be able to read the water level display

4. Close the lid10, by pressing it down-

5. Place the kettle on the device base5.

6. Insert the mains plug6 into a readily

accessible earthed wall socket whose voltage matches the voltage stated on the rating plate.

7. Press the on/off switch 7 down, until

it lights up and locks into place.

8. The device automatically switches off as

soon as the water starts to boil, or when you remove the kettle2 from the device base5.

9. Disconnect the mains plug6 from the

wall socket. 10.Remove the kettle2 from the device base5 and pour the water out. NOTE: to interrupt the cooking process, press the on/off switch 7 up.

DANGER! Risk of electric shock! ~ Pull the mains plug6 out of the wall socket before you clean the kettle2.

must not be immersed in water or other liquids. DANGER! Risk of injury through scalding!

becomes very hot during op- eration. Allow it to cool down before cleaning. WARNING! Risk of material damage! ~ Do not use any astringent or abrasive cleaning agents. Cleaning the kettle

1. Disconnect the mains plug6 from the

2. Wipe the kettle2, the device base5

and the power cable6 with a damp cloth if necessary. Dry with a dry cloth.

3. Allow all parts to dry completely before

you put them away or use the device again. Cleaning the limescale filter

2. Pull the limescale filter1 off upwards

3. Clean the limescale filter1 with a moist

dishcloth under running water.

4. Slot the limescale filter1 into the intend-

Descaling After some time, the boiling process will re- sult in limescale being deposited in parts of the kettle (depending on the hardness of the water used). You should remove this at regu- lar intervals, because otherwise the power consumption of the device will increase.

1. Pull the limescale filter1 off upwards

from the kettle2. If there is limescale residue in the limescale filter1, place it in the kettle when descaling.

2. Fill the limescale remover into the ket-

tle2. Use a commercially available li- mescale remover, e.g. limescale remover for coffee machines. Comply with the instructions on the packaging of the limescale remover. You can find the next steps in the instructions of the li- mescale remover. Rinse the kettle multi- ple times after descaling, if necessary.

3. After descaling, rinse the limescale fil-

ter1 well. Slot it into the intended fitting in the kettle2 and press it downwards. Time intervals for descaling The intervals for descaling are dependent on the hardness of the water, and how often you use the device. Where the hardness of the water is medium or high, we recommend descaling monthly. If using tap water, you can find out the hard- ness of the water in the area where you live by inquiring at your local waterworks.

DANGER for children! ~ Keep the device out of the reach of chil- dren.

• Allow the device to cool down before you put it away.

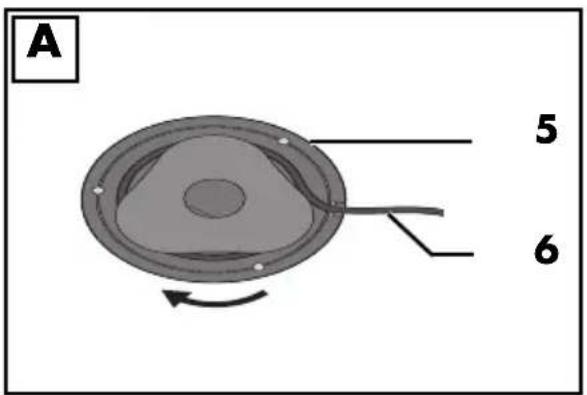

• Figure A: coil up the power cable6 clockwise in the bottom of the device base5.

his product is subject to the provisions of European Di- rective 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires sep- arate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. This recycling symbol marks e.g. an object or parts of the material as valuable for recy- cling. Recycling helps to reduce the consumption of raw materi- als and protect the environment. Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country. __400389_2107_B8.book Seite 20 Dienstag, 7. Dezember 2021 2:11 1421

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! ~ Do not attempt to repair the device your- self under any circumstances.

• Has the device been connected to the pow- er supply?

• Check the connection. Device does not switch off the boiling pro- cess

• Is the lid10 of the ket- tle2 closed? Model: SWKP 3100 A1 Mains voltage: 230 – 240 V ~ 50 - 60 Hz Protection class: I Power rating: 2,850 – 3,100 W Filling volume: 500 – 1,700 ml Geprüfte Sicherheit (certified safety): devices must comply with the generally acknowledged rules of technology and the Ger- man Product Safety Act (Produkt- sicherheitsgesetz - ProdSG). (Not for UK) With the CE marking, HOYERHandel GmbH declares the conformity with EU guide- lines. This symbol reminds you to dis- pose of the packaging in an envi- ronmentally friendly manner. Recyclable materials are marked with the recycling symbol (3ar- rows). The material can be speci- fied by the recycling number in the centre (here:21) and/or an abbreviation (here: PAP). AC voltage It is a recyclable product which is subject to an extended producer responsibility and for which the rules of waste separation apply. With the UKCA marking, HOYERHandel GmbH declares that the product is in conformity with the UKCA requirements. The symbol identifies the product manufacturer. __400389_2107_8.boo Seite 21 Dienstag, 7. Dezember 2021 2:11 1422

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you, or the purchase price will be refunded. This warranty implies that within the period of three years the defective de- vice and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. The warranty applies to material or factory defects. Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, lamps or other parts man- ufactured from glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 400389_2107 and the purchase receipt as a purchase verification for all in- quiries.

• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or under- side of the device.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred. __400389_2107_B8.book Seite 22 Dienstag, 7. Dezember 2021 2:11 1423
