VESTO - Stroller Kindercraft - Free user manual and instructions

Brand	Kindercraft
Model	VESTO
Product type	Stroller
Maximum child weight	15 kg
Recommended age	From 0 months to approximately 3 years
Basket load	5 kg max
Cup holder load	1 kg max
Handle load	3 kg max (hanging bag)
Backrest positions	3 recline positions
Footrest adjustment	4 positions
Canopy	Removable, adjustable in multiple positions
Brake	Foot brake on rear axle
Front wheels	Swivel with straight line locking
Safety harness	Adjustable 5-point system
Number of children	1
Folded dimensions	Not specified (compact thanks to folding)
Care	Wash at 30°C max, gentle cycle, no tumble dryer
Warranty	24 months standard, possible extension up to 120 months upon registration
Included accessories	Cup holder, canopy

Frequently Asked Questions - VESTO Kindercraft

How to unfold the VESTO stroller?

Place the frame on a flat surface. Press the parent handle against the frame, then press the handle button (I) and the large button (II) simultaneously. Pull the frame upward until it locks.

How to fold the stroller?

Depending on the seat orientation: if the seat faces the parent, set the backrest to the upright position. Press the handle button (I) and the folding button (II), then push the handle down. If the seat faces away, first lift the backrest to position I, then perform the same operation.

What is the maximum weight capacity?

The child must not exceed 15 kg. The basket can hold up to 5 kg, and the cup holder 1 kg.

How to attach the wheels?

For the rear wheels, slide them into the support holes until they click. For the front wheels, insert them into the front holes until they lock. To remove them, pull the metal loop (rear) or press the button (front).

How to use the brake?

Press the pedal on the rear axle to engage the brake. Lift the pedal upward to release it. Always engage the brake before placing or removing the child.

How to adjust the backrest and footrest?

The backrest can be adjusted to 3 positions by pulling the lever at the top of the backrest. The footrest offers 4 positions: press the buttons on both sides and adjust to the desired position.

How to install the seat?

Make sure the gray straps on the sides of the seat are aligned with the backrest. Then slide the seat onto the stroller frame until it locks. It can be mounted facing the road or facing the parent.

How to clean the stroller?

Wash the textile parts at a maximum of 30°C on a gentle cycle. Do not use bleach, tumble dry, or dry clean. For the frame, use a damp cloth with mild detergent. Do not store the stroller wet.

How to fasten the safety harness?

Connect the shoulder strap hooks to the waist straps, then insert the assembly into the center buckle until it clicks. Adjust the strap length. To release, press the center buckle.

What to do in case of a problem?

If you have any doubts about use or if damage occurs, stop using the stroller. For claims, fill out the form at www.rma.kindercraft.com. The standard warranty is 24 months.

USER MANUAL VESTO Kindercraft

Available only in selected countries Details on kinderkraft.com

WATCH MANUAL VIDEO

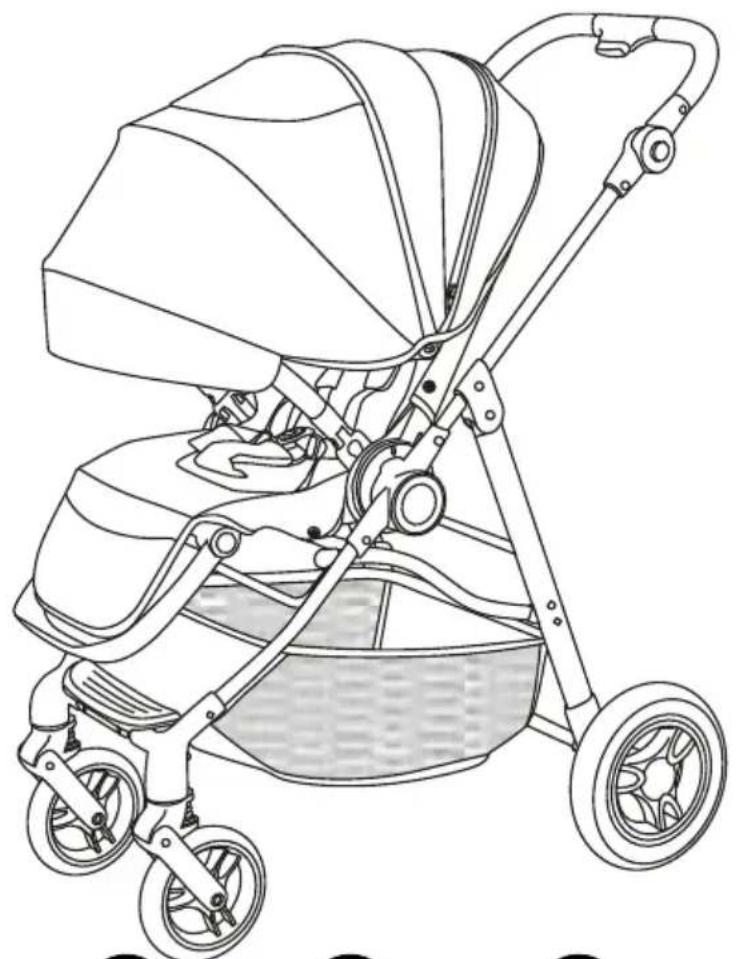

Line drawing of a baby stroller with twin arms and a basket (no text or symbols)

kinderkraft.com

/kinderkraftofficial

kinderkraft

@kinderkraftofficial

(AR) عربة أطفال
(CS) Kočárek
(DE) Buggy
(EN) Stroller
(ES) Silla de paseo
(FR) Pousette
(HU) Babakocsi
(IT) Passeggino

دليل الاستخدام

NÁVOD K OBSLUZE

BEDIENUNGSANLEITUNG

USER MANUAL

MANUAL DE USARIO

GUIDE D'UTILISATION

HASZNÁLATI UTASÍTÁS

ISTRUZIONI PER UTENTE

(NL) Kinderwagen
(PL) Wózek
(PT) Carrinho de bebé
(RO) Cărucior
(RU) Прогулочная коляска
(SK) Kočík
(SV) Barnvagn

GEBRUIKSAANWIJZING

INSTRUKCJA OBSŁUGI

MANUAL DE INSTRUÇÕES

MANUAL DE UTILIZARE

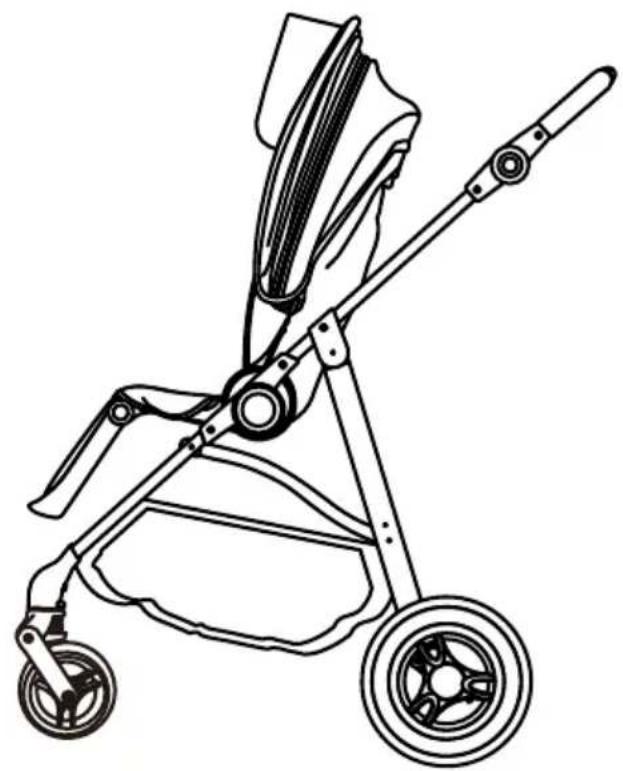

Line drawing of a baby stroller with wheels and seat (no text or symbols)

A

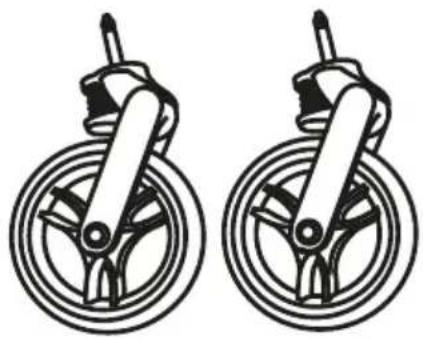

Two identical diagrams of bicycle wheels with no text or symbols

B

Two identical circular diagrams with radial segments, no text or symbols present

C

Simple line drawing of a U-shaped mechanical component with two end caps (no text or symbols)

D

Line drawing of a car seat with two seats and a belt (no text or symbols)

E

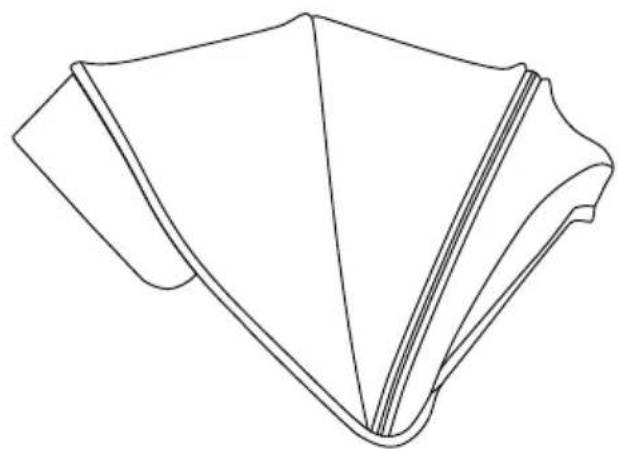

Line drawing of a folded paper or fabric structure with triangular sections (no text or symbols)

F

Simple line drawing of a symmetrical abstract shape resembling a stylized letter or symbol (no text or symbols present)

|

A B 1

Line drawing of a baby stroller with wheels and handle (no text or symbols)

A ≡ click ≡ B

2

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

6

Technical line drawing of a vehicle chassis with wheels and suspension components (no text or symbols)

7

Technical diagram of a stroller with labeled parts I, II, and III, showing structural components and motion lines.

8A

Line drawing of a children's stroller with wheels and blades, no text or symbols present

8B

Mechanical diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

9

||

|

PUSH PUSH II

13

AR

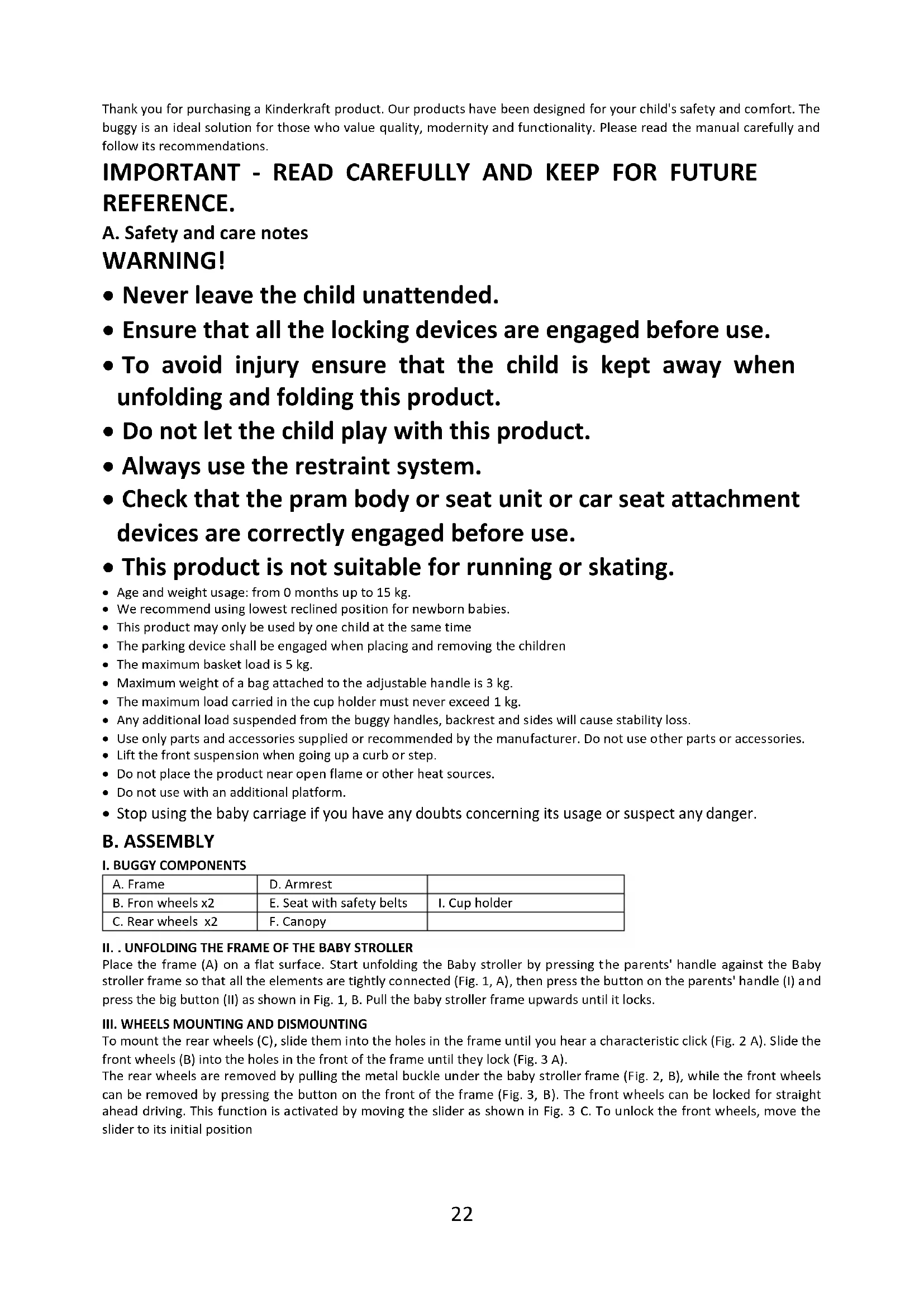

Thank you for purchasing a Kinderkraft product. Our products have been designed for your child's safety and comfort. The buggy is an ideal solution for those who value quality, modernity and functionality. Please read the manual carefully and follow its recommendations.

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

A. Safety and care notes

WARNING!

• Never leave the child unattended.
• Ensure that all the locking devices are engaged before use.
• To avoid injury ensure that the child is kept away when unfolding and folding this product.

- Do not let the child play with this product.

- Always use the restraint system.

- Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

- This product is not suitable for running or skating.

• Age and weight usage: from 0 months up to 15 kg.
- We recommend using lowest reclined position for newborn babies.
- This product may only be used by one child at the same time
- The parking device shall be engaged when placing and removing the children
• The maximum basket load is 5 kg.
• Maximum weight of a bag attached to the adjustable handle is 3 kg.
- The maximum load carried in the cup holder must never exceed 1 kg.
- Any additional load suspended from the buggy handles, backrest and sides will cause stability loss.
- Use only parts and accessories supplied or recommended by the manufacturer. Do not use other parts or accessories.
- Lift the front suspension when going up a curb or step.
- Do not place the product near open flame or other heat sources.
- Do not use with an additional platform.
- Stop using the baby carriage if you have any doubts concerning its usage or suspect any danger.

B. ASSEMBLY

I. BUGGY COMPONENTS

A. Frame	D. Armrest

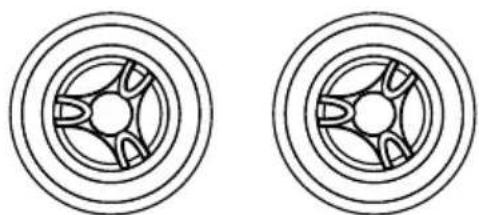

B. Fron wheels x2	E. Seat with safety belts	I. Cup holder
C. Rear wheels x2	F. Canopy

II. . UNFOLDING THE FRAME OF THE BABY STROLLER

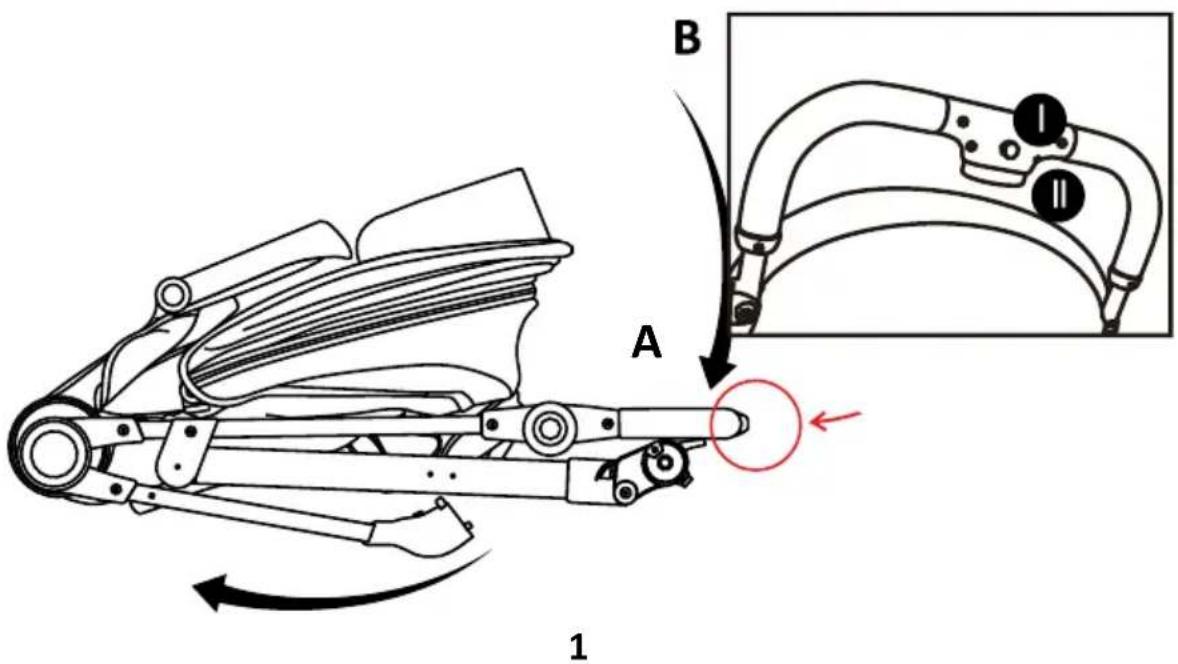

Place the frame (A) on a flat surface. Start unfolding the Baby stroller by pressing the parents' handle against the Baby stroller frame so that all the elements are tightly connected (Fig. 1, A), then press the button on the parents' handle (I) and press the big button (II) as shown in Fig. 1, B. Pull the baby stroller frame upwards until it locks.

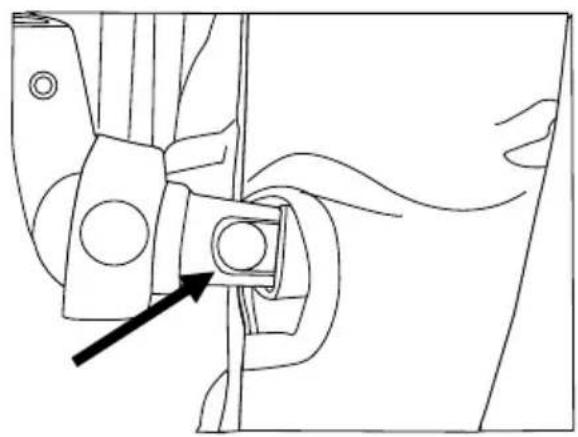

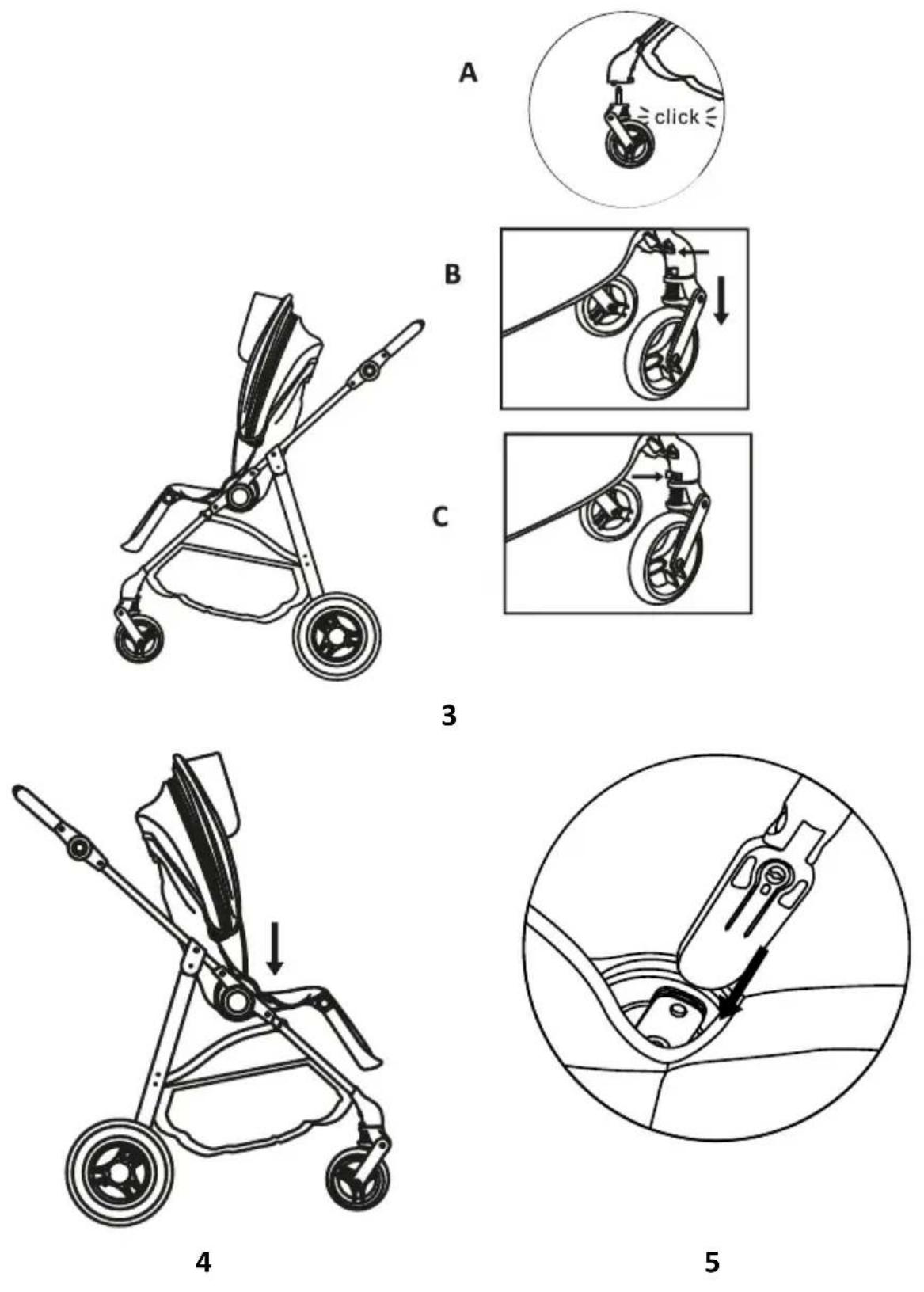

III. WHEELS MOUNTING AND DISMOUNTING

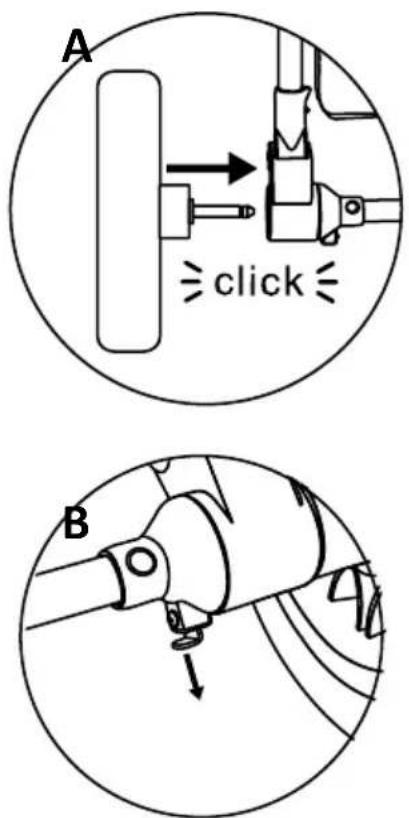

To mount the rear wheels (C), slide them into the holes in the frame until you hear a characteristic click (Fig. 2 A). Slide the front wheels (B) into the holes in the front of the frame until they lock (Fig. 3 A).

The rear wheels are removed by pulling the metal buckle under the baby stroller frame (Fig. 2, B), while the front wheels can be removed by pressing the button on the front of the frame (Fig. 3, B). The front wheels can be locked for straight ahead driving. This function is activated by moving the slider as shown in Fig. 3 C. To unlock the front wheels, move the slider to its initial position

NOTE! Before using the buggy, make sure that all the wheels are properly installed.

IV. SEAT MOUNTING AND DISMOUNTING

ATTENTION! There are gray stripes on the sides of the seat to help with the correct installation of this element.

The first step is to position the backrest properly against the seat. To do this, lift the lever on top of the backrest and adjust the backrest to the seat so that the grey stripes form a single line, then slide the seat (E) onto the Baby stroller frame (Fig. 4). The seat can be mounted both backwards and forwards to the parent.

To remove the seat, lift the backrest upright (using the mentioned lever) until the grey lines are aligned (as shown in Fig. 4) and pull the seat out.

V. ASSEMBLY/DISASSEMBLY OF THE SAFETY BAR, CANOPY ADJUSTMENT

The safety bar (D) is mounted by pushing it into the seat frame as shown in figure 5. Once it is mounted correctly, you will hear a click. To remove the safety bar, press the buttons in the bar and pull it out.

Mounting and adjusting the canopy - to mount the canopy (F), slide it into the frame as shown in figure 6 and then attach the back of the canopy to the tension and Velcro fasteners on the back of the backrest. The canopy can be adjusted in several positions. It is disassembled by pressing the buttons, sliding the canopy out and releasing the tension and Velcro on the back of the backrest (Fig. 6).

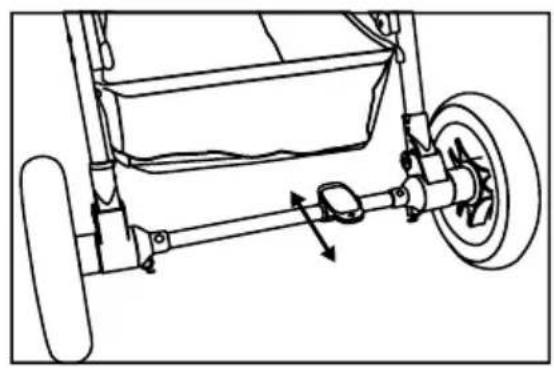

VI. USING THE BRAKE

The baby stroller is equipped with a foot brake on the rear axle (Fig. 7). Press the pedal to activate the brake. Lift the pedal upwards to unlock the brake.

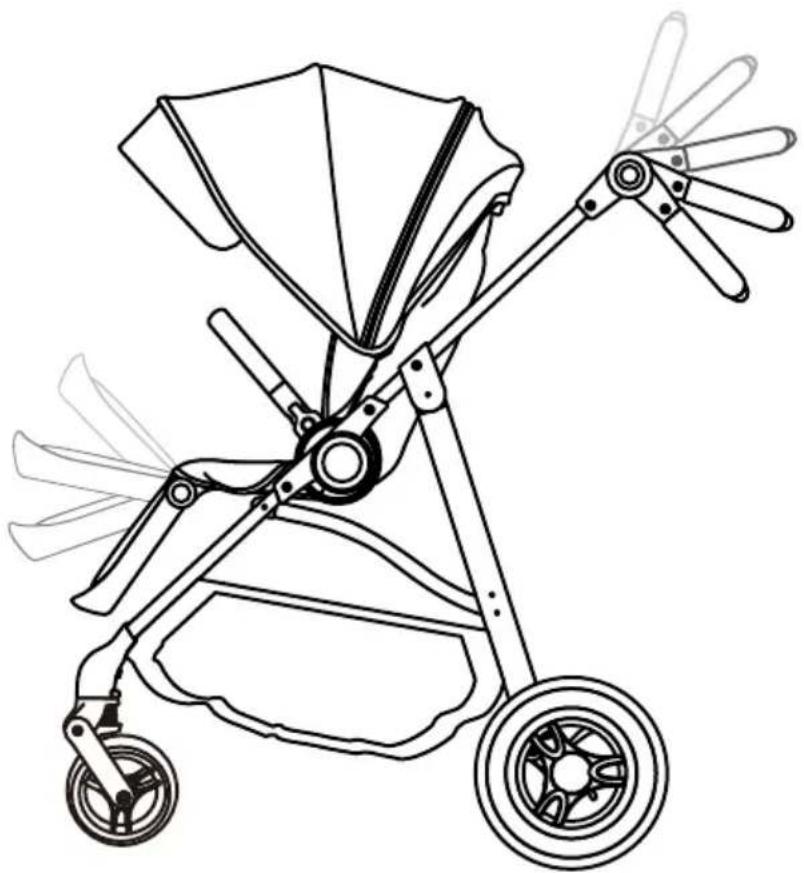

VII. ADJUSTMENT OF THE BACKREST, FOOTREST, MOUNTING OF THE CUP HOLDER.

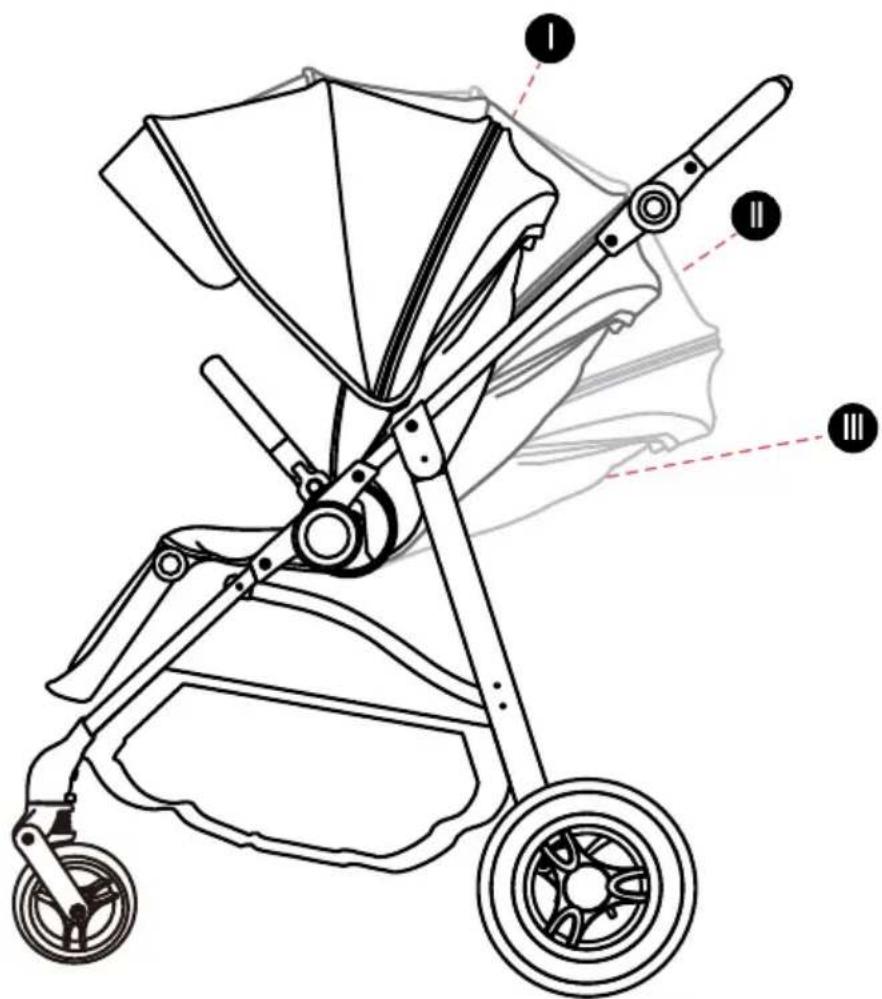

It is possible to adjust the stroller backrest in 3 positions (Fig. 8A). To do this, pull the lever on top of the backrest and place it in a comfortable position for the child. The backrest locks automatically.

The footrest can be adjusted in one of 4 positions (Fig. 8B). Press the buttons on both sides of the footrest at the same time and adjust to the desired position. To adjust the parent handle, press the lock buttons on both sides of the buggy and adjust the handle to a comfortable height (Fig. 8B)

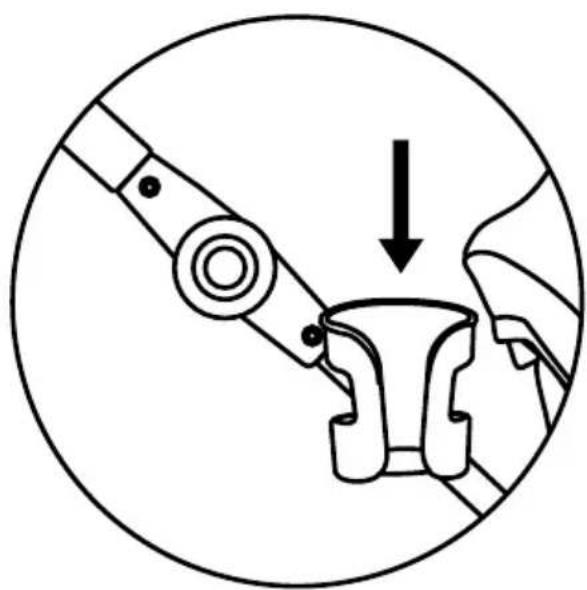

To mount the cup holder (I), slide it over the protruding pin in the frame (Fig. 9).

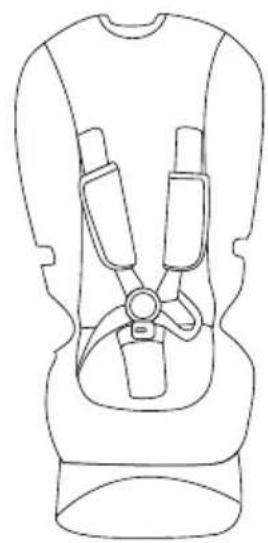

VIII. SAFETY BELTS

The belts of this baby stroller are already adapted for newborns. Always use the fastening system.

Press the buckle to unfasten the belts. To secure your baby, connect the shoulder strap hooks to the hip belts and then slide them into the middle buckle until they lock (Fig. 10). Adjust the seat belts each time.

It is possible to remove the cleaning straps. To do so, remove the shoulder, waist and crotch straps from the holes in the backrest and seat.

IX. REMOVING THE SEAT COVER

The cover should be removed only after you have taken the canopy off. First detach the canopy from the hooks on the sides of the seat and undo the Velcro straps located under the seat and the footrest. Push the crotch strap buckle in the bottom of the seat through the hole. Remove the cover by pulling it out of the backrest.

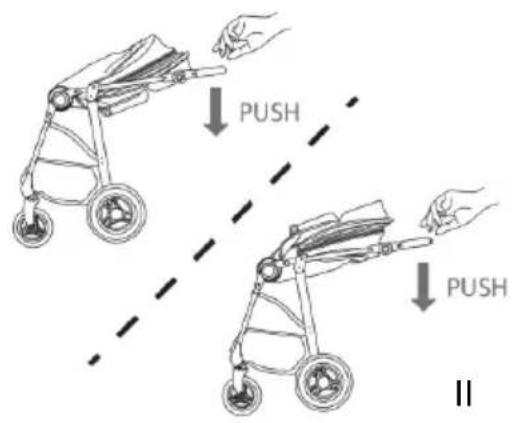

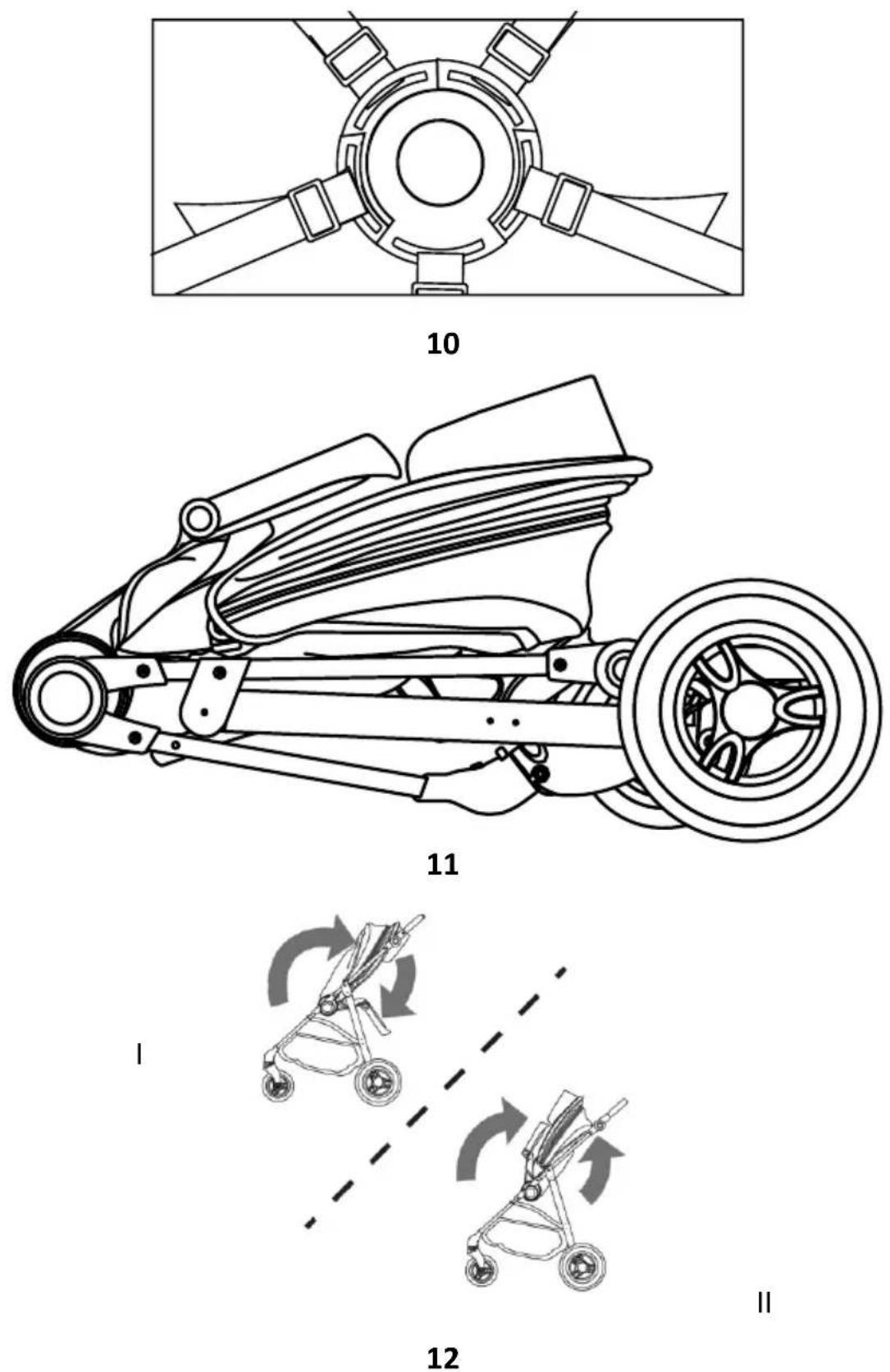

The baby stroller can be folded in two ways:

- Seat mounted forward to the parent - adjust the backrest as shown in figure 12.1. To fold the frame, press the lock button (Fig. 1.B.I) located on the handle simultaneously pressing the folding button (Fig.B.1.II) and push the handle down. Now you can fold the baby stroller(Fig. 13.l.)

- Mount the seat with the backrest to the parent and raise it to position I (Fig.12.II). To fold the frame, press the lock button (Fig. 1.B.I) located on the handle simultaneously pressing the folding button (Fig.B.1.II) and push the handle down. Now you can fold the baby stroller (Fig.13.II).

The seat together with the footrest can be raised as shown in Fig. 11, so that the baby stroller takes up less space.

XI. CARE AND MAINTENANCE The buyer is responsible for proper installation of all functional elements as well as for carrying out all required maintenance and adjustments in order to keep the buggy in good technical condition. The buggy must be periodically checked for potential problems. Significant measures to be applied to ensure the child's safety and prevent shortening of the product life have been presented below:

• Check the strength and safety of all rivets and connections.
• Check all wheel locking equipment and tyres. If necessary, replace or repair.
• Check if all safety devices work properly, particularly the main and additional fasteners that should move freely at any time.

If the wheels squeak, apply a thin layer of silicone. Do not use oil or grease based products as they attract dirt, which makes buggy movement difficult.

XII. CLEANING

Wash at max. 30°C, gentle process.

Do not bleach

Do not dry in a tumble dryer

Do not wash. Clean the product gently with a damp cloth and a mild detergent.

Do not iron

Do not dry clean

If the elements of the buggy chassis have been exposed to saltwater, rinse with tap water as soon as possible. Do not fold or store the product when it is wet and never store it in wet conditions, as it can lead to mould growth.

C. Warranty

1. All Kinderkraft products are covered by a 24-month warranty. The warranty period starts from the date the product is handed over to the Buyer.
2. The warranty is only valid in the member states of the European Union, excluding overseas territories and the territory of the United Kingdom of Great Britain and Northern Ireland excluding the British Overseas Territories.
3. The manufacturer's warranty does not apply to countries not listed above. The conditions of the additional warranty may be determined by the Seller.
4. In some countries, it is possible to extend the warranty to a limited period of 120 months (10 years). The complete terms and conditions and the warranty extension registration form are available at WWW.KINDERKRAFT.COM
5. Claims must be made by completing the form available at WWW.RMA.KINDERKRAFT.COM
6. The warranty does not cover:
   A. Cosmetic damage, including but not limited to: scratches, dents and cracks in plastic, unless the failure is due to a material or manufacturing defect;
   B. Damage resulting from misuse or poor maintenance - including but not limited to: mechanical damage to products caused by misuse or poor maintenance. Refer to the instructions for use and installation of the product contained in the user manual;
   C. Damage caused by improper assembly, installation or disassembly of products and/or accessories. Refer to the instructions for use and installation of the product contained in the user manual;
   D. Damage caused by corrosion, mould or rust, resulting from improper maintenance, care and storage;
   E. Damage caused by normal wear and tear or otherwise resulting from the normal passage of time. This includes: tears or punctures in inner tubes; tyre damage; tyre tread damage; fading of fabrics resulting from mechanical use (e.g. on joints and covering of moving parts);
   F. Damage or erosion caused by sun, perspiration, detergents, storage conditions or frequent washing, etc;
   G. Damage caused by accident, abuse, misuse, fire, contact with liquid, earthquake or other external causes;
   H. Products that have been modified to change functionality without 4Kraft's written consent;
7. Products from which the serial number or lot number has been removed or tampered with in any way;
   J. Damage caused by the use of third party components or products - including but not limited to: cup holders, umbrellas, reflectors, bells;
   K. Damage caused by transport or by ground handling service providers.
8. The warranty period for accessories included with the product is 6 months from the date of sale, excluding the faults described above.
9. These warranty conditions are complementary to the Customer's statutory rights with respect to 4KRAFT sp. z o.o. The warranty does not exclude, limit or suspend the Customer's rights under warranty for defects in goods sold.
10. The full text of the Terms and Conditions of the Warranty is available on the website WWW.KINDERKRAFT.COM
