USER MANUAL TAURUS STYLIES

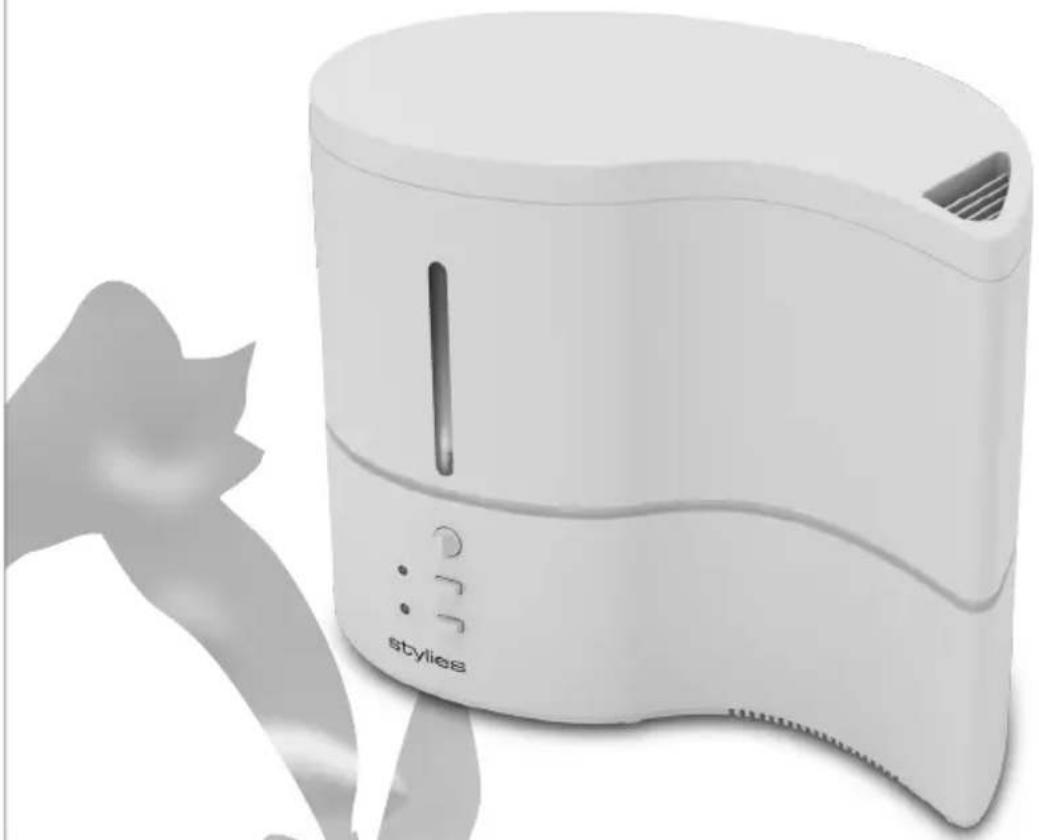

Downloaded from www.vandenborre.beCongratulations! You have just become the proud owner of the extraordinary Stylies Taurus humidifier. You are sure to get a lot of pleasure from this device and it will improve the air qual- ity of your rooms. As is the case for all electrical household devices, special caution is required when using this humidifier in order for injuries, fire damage and damage to the device to be avoided. Please read through this instruction manual carefully before you use it for the first time, and adhere to the safety guidelines on the device itself.

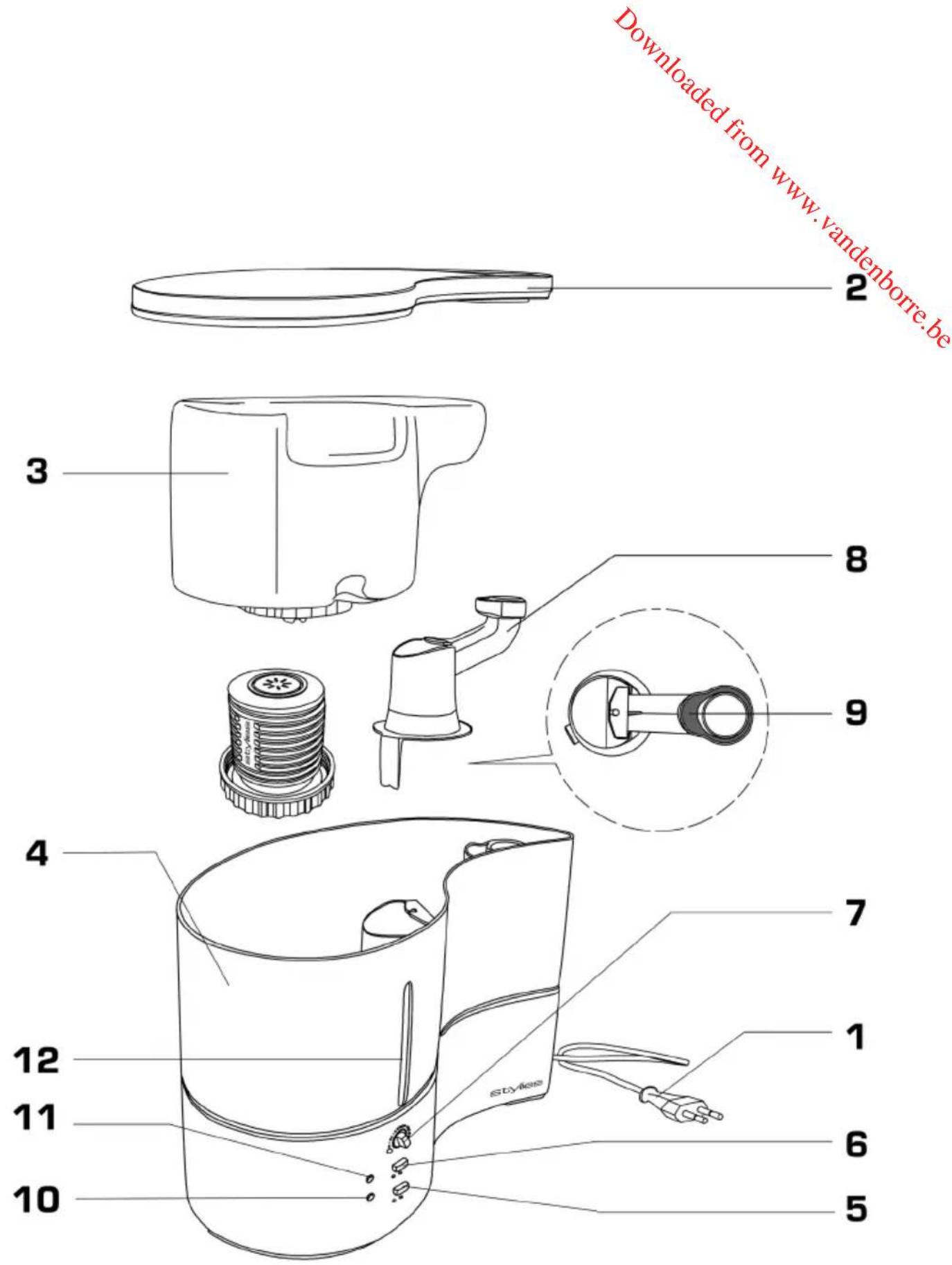

DESCRIPTION OF THE DEVICE

The device consists of the following main components:

1. Power cable for power supply

3. Water tank with lid and handle

6. Button for selecting the power setting

7. Hygrostat regulator

8. Cover for the heating plate

10. LED for operation (power on)

11. LED for power setting (blue=high, green=economy)

• Please read through the instruction manual carefully before using the Stylies Taurus humidifier for the first time, and store it in a safe place for future reference. If you ever give the humidifier to a new owner, ensure that you also pass on this instruction manual.

• Coplax AG accepts no liability for any damage that is caused by non-compliance with this instruc

• The device is only to be used in the household for the intended purpose described in this in

struction manual. Using the device for purposes other than the intended purpose or performing alterations to the device can be hazardous to health or fatal.

• This appliance can be used by children aged from 8 years and above andpersons with reduced physical, sensory or mental capabilities or lack ofexperience and knowledge if they have been given supervision or instructionconcerning use of the appliance in a safe way and understand thehazards involved. Children shall not play with the appliance. Cleaning anduser maintenance shall not be made by children without supervision.

• Only connect the cable to alternating current. Pay attention to the voltage information on the device.

• The device must always be unplugged: - before the device is moved to another place - before the device is opened or when it is refilled with water

English Downloaded from www.vandenborre.be- in the case of malfunction - before any cleaning - after each use.

• Never use an extension cable that has been damaged.

• Never carry or pull the device by the power cable.

• Penetrating the housing with any kind of object is strictly prohibited.

• If the power cable becomes damaged, it must be replaced by a qualified person.

• Do not pull the power cable over sharp edges or allow it to become jammed.

• Never remove the plug from the socket by pulling at the power cable and never remove it with wet hands.

• Do not use this humidifier in close proximity to a bath tub, shower or swimming pool (always ensure a minimum distance of 3m). Always place the device in a position where it cannot be reached by anyone in the bath tub.

• Do not set up the device near a source of heat. Do not subject the power cable to direct heat (such as heat from hot oven hobs, naked flames, hot irons or heating furnaces). Keep the power cable away from oil.

• Do not position the device directly next to walls, curtains or furniture.

• Do not place the device directly on the floor. Use a water-proof underlay.

• Ensure that the device is stable during operation and that no-one can trip over the power cable.

• The device is not splash-proof.

• Do not store or use the device outdoors.

• Store the device in a dry place, out of the reach of children (in its box).

• Always unplug the device when it is to be refilled with water or cleaned.

• Do not add anything to the water (fragrances, essential oils or water fresheners).

• Care should be taken when using the appliance due to the emission of hot water vapour.

• Unplug the appliance during filling and cleaning. CAUTION: The steam that the steam pipe releases is very hot! Risk of burns! Keep out of the reach of children!

FIRST USE / OPERATION

1. Once the Stylies Taurus humidifier has been placed in the desired location: Plug power cable (1)

into the household power socket. Remove lid (2). Fill water tank (3) with water (hold the filling opening slightly upright) – screw the lid back on firmly and check that the lid is water-tight. Place water tank back in the humidifier, screw on the lid and insert the steam pipe.

2. Switch on the Stylies Taurus using on/off switch (5) and select desired power setting (6)

(blue=high, green=economy). When the device stops producing steam, ‘tank empty’ display (12) lights up. The water must then be refilled as described in point 1.

3. The desired air humidity can be selected using hygrostat regulator (7), from left (low humidity)

to right (high humidity). For example, if the regulator is turned completely to the left, the device switches itself off at a relative humidity of approx. 30%, and only starts operating again when the humidity falls below the 30% mark. We recommend a medium setting (in the comfort zone) for an optimal air humidity of around 40-60%. Caution: the device will not switch on if the hygrostat has been set too low. CLEANING PROCEDURE

• Switch off the device and unplug the power cable from the socket before all maintenance work and after each use.

Downloaded from www.vandenborre.be• Never submerge the device in water (this can result in short-circuiting). To clean the device, simply wipe it with a damp cloth and then dry it thoroughly. Always ensure the power cable has been unplugged beforehand.

• Descale the humidifier as appropriate for the hardness of the water, but at least once a week: open and lift off lid (2) and remove water tank (3). Then remove cover for heating plate (8). Clean both parts with a brush. Descale the heating plate with non-stick coating with a standard descaler and then rinse it thoroughly. Reassemble the device completely with parts (2-4, 8) before use.

• Thoroughly rinse out the water tank on a regular basis. USEFUL INFORMATION: Information how a vaporiser works: Vaporiser systems heat water to nearly 100°C. This water is free from germs, bacteria and miner- als. Any residue remains in the water tank in solid form. These devices have a very high humidifying capacity. They are ideal for humidifying large spaces. Vaporisers are ideal for dispersing essential oils and fragrances: The hot steam allows fragrances to be distributed around the room in an optimal way. However, the drops must never be added to the water directly. Lift off the lid and only add around 1-2 drops to the steam pipe’s tray (not to the steam pipe itself). TROUBLE-SHOOTING Device does not switch on although the water reservoir has been inserted, the lid has been closed and the on-button has been pressed: This is not a malfunction. It can take several minutes before sufficient water for operation has run from the water tank to the base. Wait and then press the on-button again. Low performance: Perform maintenance as described in the chapter on “Cleaning Procedure”. REPAIRS / DISPOSAL

• Repairs to all electric devices (including replacement of the power cable) may only be per- formed by instructed experts. Carrying out inappropriate repairs voids the warranty and no liability shall be accepted.

• If the power cable has become damaged, it must be replaced by the manufacturer, his official service partner or a qualified person, in order for further damage to be avoided.

• Never operate the device if the cable or the plug is damaged, after the device has malfunc- tioned, if it has been dropped or if it has been damaged in any other way (i.e. with cracks or breakages to the housing).

• Do not use any sharp, abrasive objects or corrosive chemicals.

• Disable devices that are to be discarded immediately (by cutting off the power cable) and dis- pose of them at an appropriate waste collection centre.

• Do not dispose of electrical devices in the household refuse. Use the official recycling collection centres, where available.

• If electrical devices are disposed off in an unregulated way, the effects of weathering can cause hazardous substances to contaminate the groundwater and the food-chain or this can result in a burden on flora and fauna for years to come. This device must not be disposed of with household refuse. Please dispose of this device at the appropriate waste collection centre. Collecting and recycling electrical and elec- tronic waste saves valuable resources. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly way and ensure that it reaches the recyclable material collection centre.

Downloaded from www.vandenborre.beTECHNICAL DATA Dimensions (Length x Width x Height) 397 x 235 x 293 mm Net Weight ca. 2.30 kg Power consumption Maximum 480 W Humidifying capacity 500 g/h Water tank capacity 7.0 Litre Noise level very quiet Fulfils EU regulations TÜV GS/CE/WEEE/RoHS Subject to technical changes without notice TWO-YEAR WARRANTY For the warranty period of 2 years after the purchase of the appliance, we will repair or replace with a refurbished product (at our option), without any cost to you for either the parts or labor, any machine or part that proves to be defective in materials or workmanship. EXCEPT FOR THE WARRANTY PROVIDED ABOVE, Coplax DISCLAIMS ANY AND ALL OTHER IM- PLIED WARRANTIES AND ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICU- LAR PURPOSE WITH RESPECT TO THE PRODUCT FOR ANY PERIOD AFTER THE EXPIRATION. Coplax will, at its sole discretion, repair or exchange a product under warranty. NO credit will be issued. The remedies described above are your sole remedies in the event of any breach of the war- ranty provided above WHO IS COVERED: The original owner of a privately-owned Coplax appliance who can provide a dated proof of purchase in the form of an invoice or receipt is covered. The warranty is not transferable. The original dated proof of purchase (a copy needs to be faxed, e-mailed, mailed) prior to returning the unit. Provide the model number of your appliance and a detailed description (preferably typed) of the problem with the item. Enclose your description in an envelope and tape it directly to the appliance before the box is sealed. Do not write anything on or alter in any way the original box. WHAT THIS WARRANTY DOES NOT COVER:

• Parts that normally require replacement, such as demineralization cartridges, Silver Cube, active carbon filters, water wick filters and any other consumable item that needs regular replacement except for material or workmanship defects.

• Damage, failure, loss or deterioration due to ordinary wear and tear from abuse, misuse, neg- ligence, accident, faulty installation, placement and operation, improper maintenance, unau- thorized repair, exposure to unreasonable temperatures or conditions. This includes damages caused by misusing essential oils or water treatment and cleaning solutions.

• Damage resulting from inadequate packaging or carrier mishandling of returned products.

• Misplacement or loss of accessories such as nozzle, fragrance capsule, water tank cap etc.

• Shipping and transportation costs to and from any place of repair.

• Direct, indirect special or consequential damages of any type, including loss of profits or other economic loss.

• Transportation damage of a unit shipped from one of our retailers. Please contact them directly. This Warranty does not cover damages or defects caused by or resulting from failure to con- form strictly to Coplax’s specifications in connection with the installation, operation, use, main- tenance, or repair of the Coplax appliance.
