USER MANUAL UniversalSander 18V-10 BOSCH

(21) Schleifzunge, oval

äußeren Abmessung größer als 25cm sind, im Einzel- handelsgeschäft oder in unmittelbarer Nähe hierzu un- entgeltlich zurückzunehmen; die Rücknahme darf nicht an den Kauf eines Elektro- oder Elektronikgerätes ge- knüpft werden und ist auf drei Altgeräte pro Geräteart beschränkt. Der Vertreiber hat beim Abschluss des Kaufvertrags für das neue Elektro- oder Elektronikgerät den Endnutzer über die Möglichkeit zur unentgeltlichen Rückgabe bzw. Abholung des Altgeräts zu informieren und den Endnutzer nach seiner Absicht zu befragen, ob bei der Auslieferung des neuen Ge- räts ein Altgerät zurückgegeben wird. 1 609 92A 88F | (06.09.2022) Bosch Power ToolsEnglish | 13 Dies gilt auch bei Vertrieb unter Verwendung von Fernkom- munikationsmitteln, wenn die Lager- und Versandflächen für Elektro- und Elektronikgeräte mindestens 400m² betragen oder die gesamten Lager- und Versandflächen mindestens 800m² betragen, wobei die unentgeltliche Abholung auf Elektro- und Elektronikgeräte der Kategorien 1 (Wärmeüber- träger), 2 (Bildschirmgeräte) und 4 (Großgeräte mit mindes- tens einer äußeren Abmessung über 50cm) beschränkt ist. Für alle übrigen Elektro- und Elektronikgeräte muss der Ver- treiber geeignete Rückgabemöglichkeiten in zumutbarer Ent- fernung zum jeweiligen Endnutzer gewährleisten; das gilt auch für Altgeräte, die in keiner äußeren Abmessung größer als 25cm sind, die der Endnutzer zurückgeben will, ohne ein neues Gerät zu kaufen. Akkus/Batterien: Li-Ion: Bitte beachten Sie die Hinweise im Abschnitt Transport (sie- he „Transport“, Seite12). English Safety Instructions General Power Tool Safety Warnings WARNING Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this power tool. Failure to follow all in- structions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cord- less) power tool. Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite accidents. u Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety u Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. u Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- ors. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock. u Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. u When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit- able for outdoor use reduces the risk of electric shock. u If operating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec- ted supply. Use of an RCD reduces the risk of electric shock. Personal safety u Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten- tion while operating power tools may result in serious per- sonal injury. u Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in- juries. u Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. u Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal in- jury. u Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. u Dress properly. Do not wear loose clothing or jew- ellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. u If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. u Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe in- jury within a fraction of a second. Power tool use and care u Do not force the power tool. Use the correct power tool for your application. The correct power tool will do Bosch Power Tools 1 609 92A 88F | (06.09.2022)14 | English the job better and safer at the rate for which it was de- signed. u Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. u Disconnect the plug from the power source and/or re- move the battery pack, if detachable, from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. u Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. u Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. u Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. u Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac- count the working conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation. u Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care u Recharge only with the charger specified by the manu- facturer. A charger that is suitable for one type of bat- tery pack may create a risk of fire when used with another battery pack. u Use power tools only with specifically designated bat- tery packs. Use of any other battery packs may create a risk of injury and fire. u When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. u Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addi- tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. u Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. u Do not expose a battery pack or tool to fire or excess- ive temperature. Exposure to fire or temperature above 130°C may cause explosion. u Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service u Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. u Never service damaged battery packs. Service of bat- tery packs should only be performed by the manufacturer or authorized service providers. Safety Warnings for Sander u Only use the power tool for dry sanding. Water entering a power tool will increase the risk of electric shock. u Warning: Danger of fire! Avoid overheating the work- piece and the sander. Always empty the dust collector before taking a break from work. Sanding dust in the dust bag, microfilter, paper bag (or in the filter bag or va- cuum cleaner filter) can spontaneously combust under certain conditions, for example if flying sparks are cre- ated when sanding metals. This risk is increased if the sanding dust is mixed with paint or polyurethane residue or with other chemical substances and if the workpiece is hot as a result of prolonged work. u Clean the air vents on your power tool regularly. The motor’s fan will draw the dust inside the housing and ex- cessive accumulation of powdered metal may cause elec- trical hazards. u Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. u Always wait until the power tool has come to a com- plete stop before placing it down. u In case of damage and improper use of the battery, va- pours may be emitted. The battery can set alight or ex- plode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system. u Do not open the battery. There is a risk of short-circuit- ing. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. u Only use the battery with products from the manufac- turer. This is the only way in which you can protect the battery against dangerous overload. 1 609 92A 88F | (06.09.2022) Bosch Power ToolsEnglish | 15 Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting. Product Description and Specifications Read all the safety and general instructions. Failure to observe the safety and general in- structions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the beginning of this oper- ating manual. Intended Use The power tool is intended for dry sanding and polishing of wood, plastic, metal, filler and varnished surfaces. It is par- ticularly well-suited for profiles, corners and hard-to-reach areas. Product Features The numbering of the product features refers to the diagram of the power tool on the graphics page. (1) Orbital stroke rate preselection thumbwheel (2) On/off switch (3) Battery release button

(4) Rechargeable battery

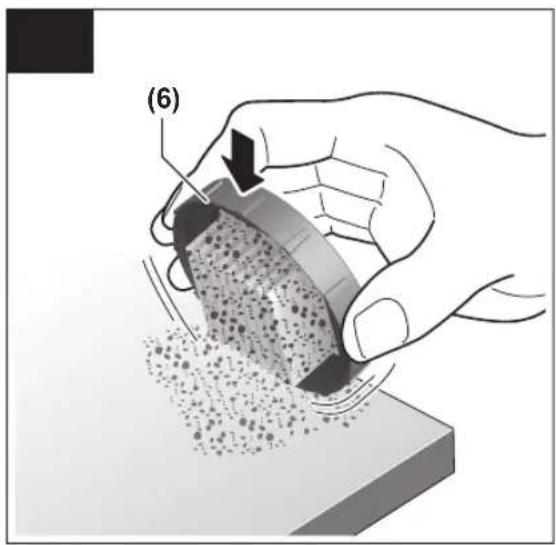

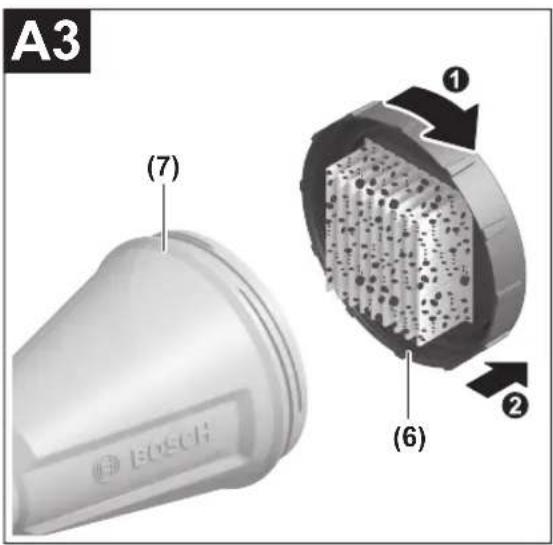

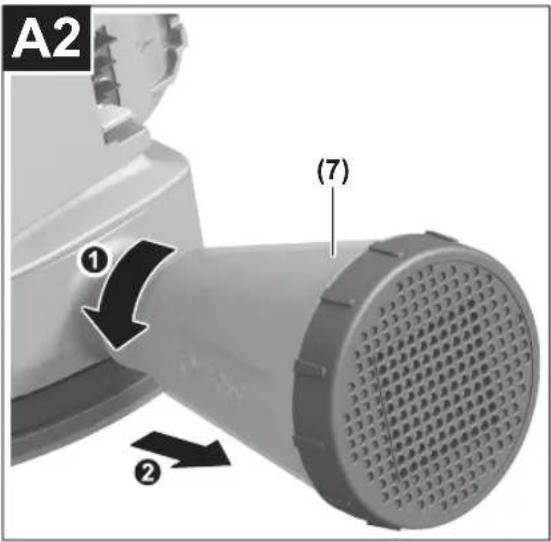

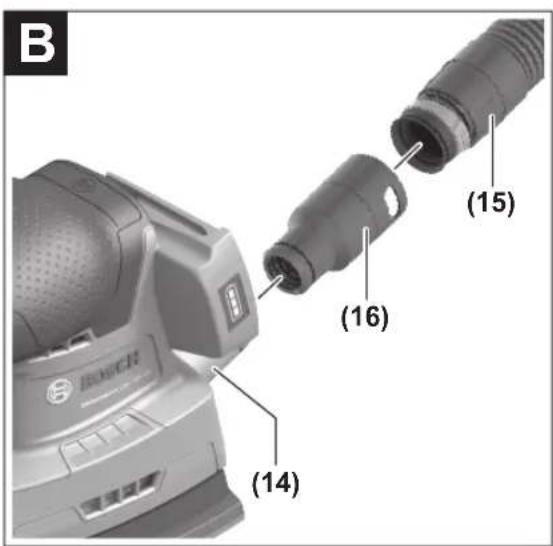

(5) Battery charge indicator (6) Filter element (microfilter system) (7) Dust box, complete (microfilter system) (8) Ventilation openings (9) SDS slider for sanding plate release (10) Front sanding plate (11) Rear sanding plate (12) Rectangular sanding plate (13) Handle (insulated gripping surface) (14) Extraction outlet (15) Extraction hose

(16) Dust extraction adapter

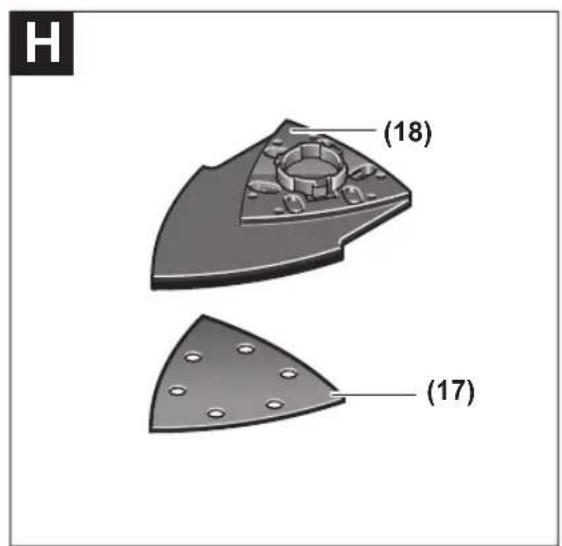

(18) Louvre sanding attachment

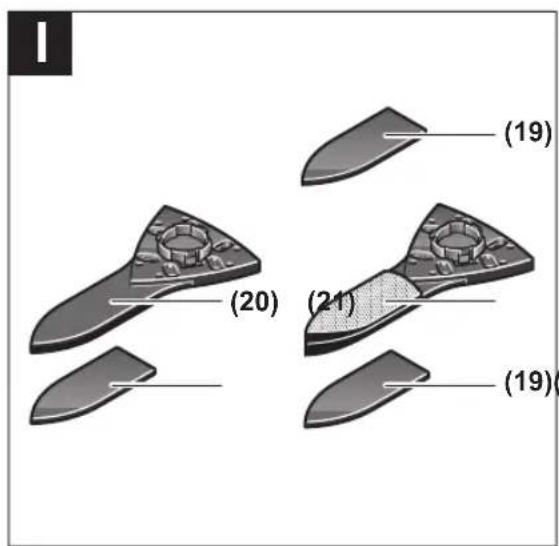

(19) Sanding sheet for sanding finger

(20) Sanding finger, flat

(21) Sanding finger, oval

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Cordless multi-sander UniversalSander 18V-10 Article number 3603CE31.. Rated voltage V= 18 Orbital stroke rate preselection

5,500–11,000 No-load orbital stroke rate

Orbit diameter mm 1.6 Weight according to EPTA-Proced- ure01:2014

Recommended ambient temperature during char- ging °C 0to+35 Permitted ambient tem- perature during opera- tion

and during storage °C –5to+50 Recommended re- chargeable batteries PBA 18V...W-. Recommended battery chargers

measured at 20–25°C with rechargeable batteryPBA 18V 6.0Ah. B) Depends on battery in use C) Limited performance at temperatures <0°C D) The following chargers are not compatible with the PBA re- chargeable battery: AL 1814 CV, AL 1820 CV, AL 1860 CV Noise/Vibration Information Noise emission values determined ac- cording toEN62841-2-4. Typically, the A-weighted noise level of the power tool is: Sound pressure level dB(A)

(triax vector sum) and uncertainty K determined according toEN62841-2-4:

Bosch Power Tools 1 609 92A 88F | (06.09.2022)16 | English The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- ent the main applications of the power tool. However, if the power tool is used for other applications, with different ap- plication tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly. Rechargeable battery Bosch sells some cordless power tools without a re- chargeable battery. You can tell whether a rechargeable bat- tery is included with the power tool by looking at the pack- aging. Charging the battery u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: Lithium-ion rechargeable batteries are supplied par- tially charged according to international transport regula- tions. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time. Inserting the Battery Push the charged battery into the battery holder until it clicks into place. Removing the Battery To remove the rechargeable battery, press the battery re- lease button and pull the battery out. Do not use force to do this. Battery charge indicator The battery charge indicator indicates the remaining battery capacity or an overload for a few seconds when the power tool is switched on. The battery charge indicator indicates the remaining battery capacity or an overload when the power tool is switched on. LED Capacity 3×continuous green light 75–100% LED Capacity 2×continuous green light 40–75% 1×continuous green light 15–40% 1×slowly flashing green light 0–15% The three LEDs in the battery charge indicator flash quickly when the temperature of the rechargeable battery is outside the operating temperature range and/or the overload protec- tion has been triggered. Recommendations for Optimal Handling of the Battery Protect the battery against moisture and water. Only store the battery within a temperature range of −20 to 50°C. Do not leave the battery in your car in the summer, for example. A significantly reduced operating time after charging indic- ates that the battery has deteriorated and must be replaced. Follow the instructions on correct disposal. Assembly u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. Dust/chip extraction The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reac- tions and/or cause respiratory illnesses in the user or in people in the near vicinity. Certain dusts, such as oak or beech dust, are classified as carcinogenic, especially in conjunction with wood treatment additives (chromate, wood preservative). Materials contain- ing asbestos may only be machined by specialists. – Use a dust extraction system that is suitable for the ma- terial wherever possible. – Provide good ventilation at the workplace. – It is advisable to wear a P2 filter class breathing mask. The regulations on the material being machined that apply in the country of use must be observed. u Avoid dust accumulation at the workplace. Dust can easily ignite. Self-generated dust extraction with dust box (see figures A1–A4) Slide the dust box (7) onto the extraction outlet (14). You can easily check the filling level of the dust box (7) through the transparent container. To empty the dust box (7), rotate slightly and pull it back. Unscrew the filter element (6) from the dust box (7). Empty the dust box. 1 609 92A 88F | (06.09.2022) Bosch Power ToolsEnglish | 17 Gently tap the filter element (6) against a solid surface to loosen the dust. Use a soft brush to clean the flaps of the fil- ter element (6). Note: In order to ensure optimum dust extraction, empty the dust box (7) in good time and clean the filter element (6) regularly. When working on vertical surfaces, hold the power tool with the dust box (7) facing downwards. External dust extraction (see figure B) Insert the dust extraction adapter(16) (accessory) into an extraction hose(15) (accessory) until you hear it click into place. Connect the dust extraction adapter(16) to the ex- traction outlet(14) on the power tool and the extraction hose(15) to a vacuum cleaner (accessory). You will find an overview of connecting to various dust ex- tractors at the end of these operating instructions. The dust extractor must be suitable for the material being worked. When extracting dry dust that is especially detrimental to health or carcinogenic, use a special dust extractor. Changing the sanding sheet (see figure C) Remove dirt and dust from the sanding plate , e.g. with a brush, before attaching a new sanding sheet. To ensure optimum dust extraction, make sure that the punched holes in the sanding sheet are aligned with the drilled holes in the sanding plate. The sanding plate is fitted with a hook-and-loop fastening, al- lowing sanding sheets with a similar backing to be secured quickly and easily. Tap the hook-and-loop fastening of the sanding plate before fitting the sanding sheet to facilitate maximum adhesion. Position the sanding sheet (17) so that it is flush with one side of the sanding plate, then place the sanding sheet on the sanding plate and press it firmly down. To remove the sanding sheet (17), take hold of it by an edge and pull it away from the sanding plate . Sanding accessories such as fleece/polishing felt are at- tached to the sanding plate in the same way. Two-piece sanding plate The power tool is equipped with 2 sanding sheets. Depend- ing on their state of wear, these can also be changed indi- vidually. u Only use the power tool when both sanding sheets are fitted. u Only use sanding sheets with the same grit. Rectangular sanding plate u Only use the power tool when the sanding sheet is fit- ted. Choosing the sanding sheet Different sanding sheets are available, depending on the ma- terial you are working with and the required surface removal rate: Application Grit Can be used to work on all materials including wood, paint, filler, varnish, hard and softwood as well as chipboard and metal 40–180 For pre-sanding, e.g. of rough and un- even beams and boards Coarse 40 For surface sanding and levelling of slight irregularities Medium 80, 120 For finishing and fine sanding of hard woods Fine 180 For any finishing work, such as polishing (metal and stone in particular), use fleece/polishing felt. Different types of fleece and polishing felts should be used depending on the surface finish required on the workpiece. Removing the two-piece sanding plate (seefigureD)

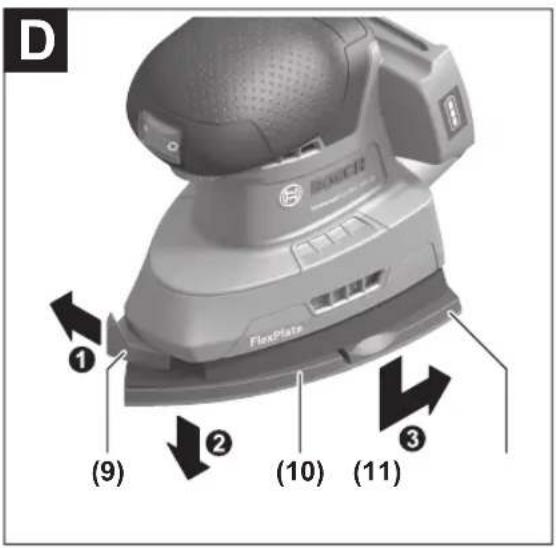

Push the SDS slider for sanding plate release(9) all the way to the right.

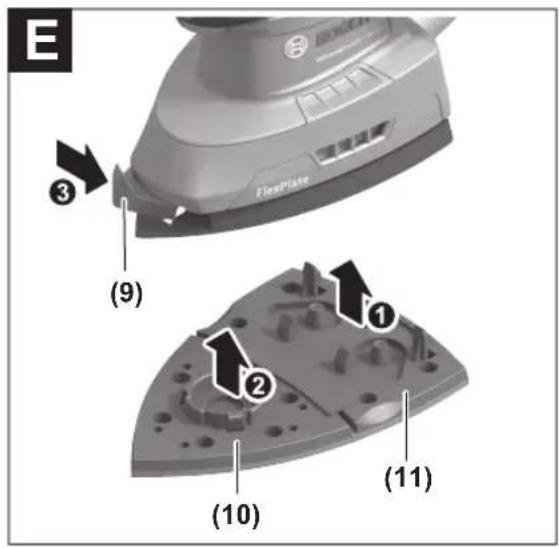

Pull the rear sanding plate(11) downwards by the re- cessed handles and then pull it off backwards. If the front tip of the sanding sheet has worn down, the en- tire sanding plate can be removed, rotated 120° and put back on again for reuse. Fitting the two-piece sanding plate (see figure E)

First, place the rear sanding plate(11) onto the sanding plate holder so that the catches fit into the recesses. Press the sanding plate(11) onto the holder until you here it click into place.

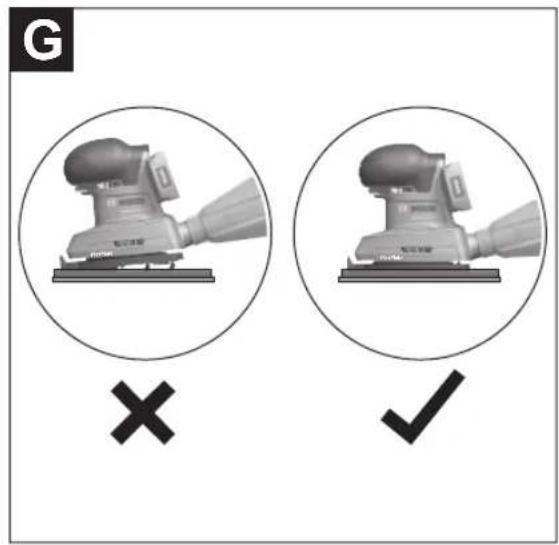

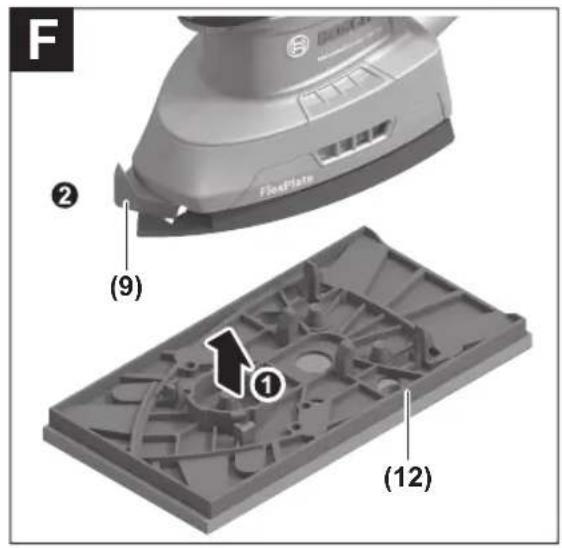

Attach the front sanding plate(10). ❸ To fix the sanding plate in place, push the SDS slider for sanding plate release(9) all the way to the left. Fitting the rectangular sanding plate (seefiguresF–G)

First, place the rear sanding plate(12) onto the sanding plate holder so that the catches fit into the recesses. Press the sanding plate(12) onto the sanding plate holder until you hear it click into place. ❷ To fix the sanding plate in place, push the SDS slider for sanding plate release(9) all the way to the left. ❸ Now check whether the rear part of the sanding plate is properly engaged by pressing on the rear right and left part of the rectangular sanding plate. Removing the rectangular sanding plate

Push the SDS slider for sanding plate release(9) all the way to the right.

(21) Slibetunge, oval

(21) Sliptunga, oval

www.bosch-pt.com/serviceaddresses

2 609 256 D20 2 609 256 D19 P 40 P 60 P 80 P 120 P 180 P 240 2 609 256 A61 2 609 256 A62 2 609 256 A63 2 609 256 A64 2 609 256 A65 2 609 256 A66 2 609 256 A67 4x40, 4x120, 2x180 P 40 P 60 P 80 P 120 P 180 P 240 2 609 256 A80 2 609 256 A81 2 609 256 A82 2 609 256 A83 2 609 256 A84 2 609 256 A85 1 609 92A 88F | (06.09.2022) Bosch Power Tools| 213 Licenses Copyright © 2012–2020 STMicroelectronics All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following con- ditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclai- mer in the documentation and/or other materials provided with the distribution. – Neither the name of STMicroelectronics nor the names of its contributors may be used to endorse or promote products de- rived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMI- TED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER- RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (IN- CLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Apache 2.0 License Copyright © 2009-2019 Arm Limited. All rights reserved. Copyright © 2018-2019 STMicroelectronics. All rights reserved. Version 2.0, January 2004 http://www.apache.org/licenses/ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. "Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License. "Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under com- mon control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity. "You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License. "Source" form shall mean the preferred form for making modifications, including but not limited to software source code, do- cumentation source, and configuration files. "Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types. "Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below). "Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof. "Contribution" shall mean any work of authorship, including the original version of the Work and any modifications or additi- ons to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copy- right owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representa- tives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but exclu- ding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as "Not a Contri- bution." Bosch Power Tools 1 609 92A 88F | (06.09.2022)214 | "Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work. 2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Ob- ject form. 3. Grant of Patent License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a per- petual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to ma- ke, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed.

4. Redistribution.You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or

without modifications, and in Source or Object form, provided that You meet the following conditions: – You must give any other recipients of the Work or Derivative Works a copy of this License; and – You must cause any modified files to carry prominent notices stating that You changed the files; and – You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attri- bution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and – If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must inclu- de a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a dis- play generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NO- TICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the Licen- se. You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this Licen- se. 5. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or con- ditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions. 6. Trademarks. This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file. 7. Disclaimer of Warranty. Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABI- LITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License. 8. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or otherwi- se, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contribu- tor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages. 9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibili- ty, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additio- nal liability. 1 609 92A 88F | (06.09.2022) Bosch Power Tools| 215

END OF TERMS AND CONDITIONS

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Cordless multi-sander Article number

• Robert Bosch Power Tools GmbH (PT/ECS) 70538 Stuttgart GERMANY Henk Becker Chairman of Executive Management Helmut Heinzelmann Head of Product Certification Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY Stuttgart, 31.03.2022 Bosch Power Tools 1 609 92A 88F | (06.09.2022)IV 1 609 92A 88F | (06.09.2022) Bosch Power Toolsi Declaration of Conformity Cordless multi-sander Article number UniversalSander 18V-10 3 603 CE3 100 We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations lis- ted below and are in conformity with the following standards. Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom The Supply of Machinery (Safety) Regulations 2008 The Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 EN 62841-1:2015 EN 62841-2-4:2014 EN 55014-1:2017+A11:2020 EN 55014-2:2015 EN IEC 63000:2018 Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom Vonjy Rajakoba Managing Director - Bosch UK Martin Sibley Head of Sales Operations and Aftersales Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany Place of issue: Uxbridge Date of issue: 08/04/2022 Bosch Power Tools 1 609 92A 88F | (06.09.2022)
