Brand	Tefal
Model	Express CM430Y10
Product type	Drip coffee maker
Dimensions (approx)	24 x 18 x 30 cm
Weight (approx)	1.5 kg
Power supply	220-240 V, 50-60 Hz, 900 W
Water tank capacity	1.25 L
Number of cups	Up to 10 cups
Filter type	Paper filter size 2 or 4, or permanent filter (optional)
Main functions	Stop-drip, aroma selector (strong/mild)
Carafe	Glass carafe (dishwasher and microwave safe if without metal rim)
Thermal carafe (optional)	Keeps coffee hot for up to 4 hours; not dishwasher or microwave safe
Removable filter holder	Dishwasher safe
Descaling	Every 40 cycles with descaler or white vinegar
Safety	Automatic shut-off (not specified, but compliant with standards); do not immerse; do not use without water
Spare parts available	Glass carafe, thermal carafe, permanent filter, filter holder
Usage	Household use only, indoors

Frequently Asked Questions - Express CM430Y10 TEFAL

How to prepare my first coffee with the Tefal Express CM430Y10?

Before first use, run the coffee maker without coffee with a carafe of water to rinse it. Then fill the tank with cold water, place a paper or permanent filter, add ground coffee (one level scoop per large cup), and start the cycle.

What is the maximum water capacity of the tank?

The tank can hold up to 1.25 L of water, allowing you to prepare about 10 cups of coffee. Do not exceed the indicated maximum level.

How to use the stop-drip function?

The stop-drip function allows you to remove the carafe during brewing to serve a cup before the cycle ends. Replace the carafe quickly to avoid spills.

How to adjust coffee strength with the aroma selector?

Turn the aroma selector towards the dark cup for a stronger coffee, or towards the light cup for a milder coffee. This function adjusts the brewing time.

Can I use the thermal carafe in the dishwasher or microwave?

No, the thermal carafe should not be placed in the dishwasher or microwave. To clean it, use warm water with a little dish soap and rinse thoroughly.

How often should I descale the coffee maker?

Descale approximately every 40 cycles. Use a descaler packet diluted in two large cups of water, or two large cups of white vinegar. Follow the procedure: let one cup run, stop for 1 hour, then finish the cycle and rinse with 2-3 cycles of clean water.

What types of filters can I use?

You can use paper filters size 2 or 4, or a permanent filter (optional) included with some models. The removable filter holder is dishwasher safe.

How to clean the glass carafe?

The glass carafe without metal rim is dishwasher safe (without the lid). Otherwise, wash it with a sponge and soapy water. Do not microwave if it has any metal parts.

What to do if the coffee is too weak or too strong?

Adjust the aroma selector according to your taste. You can also change the amount of ground coffee: one level scoop per cup is recommended. Use a grind suitable for filters (medium grind).

Is it safe to leave the coffee maker on unattended?

The coffee maker is designed for household use and meets safety standards. However, it is not recommended to leave it unattended during operation. Unplug it after use.

USER MANUAL Express CM430Y10 TEFAL

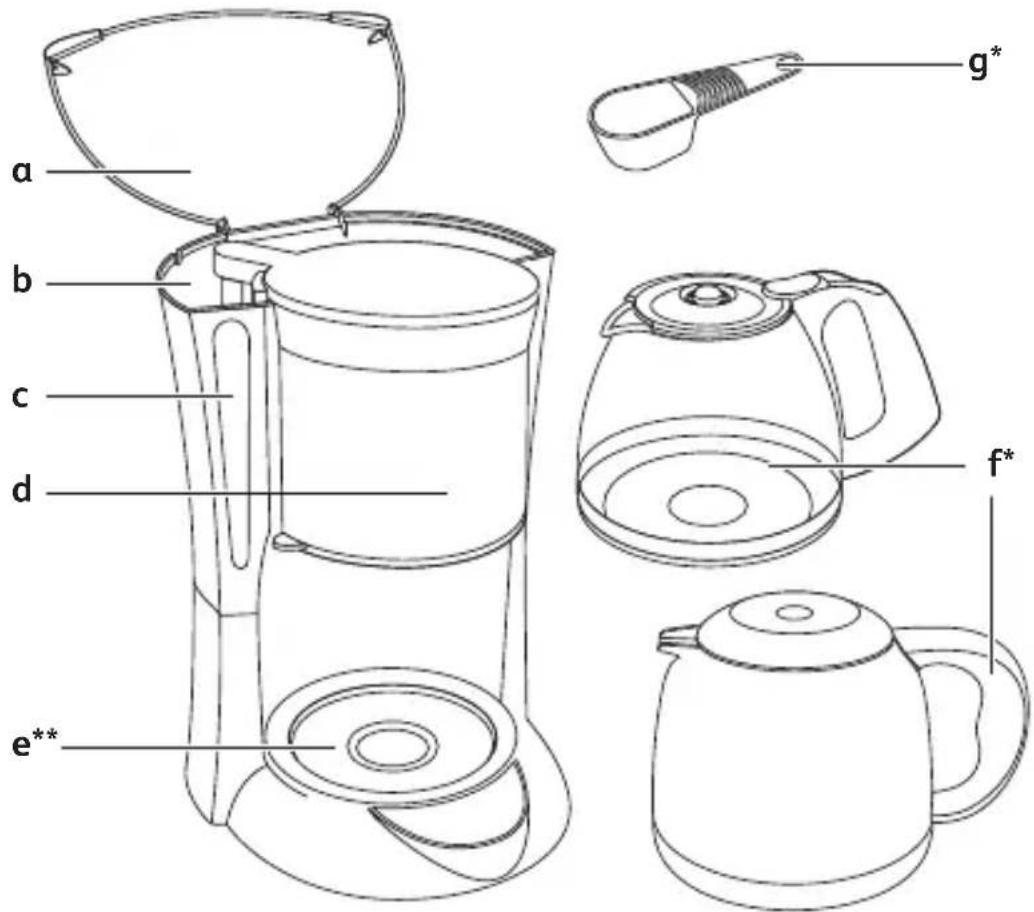

Line drawing of a coffee maker with handle and spout (no text or symbols)

a b c d e** g* f*

a Couvercle - Lid - Deksel - Deckel - Coperchio - Tapa - Tampa - Kapáki - Kapak - Låg - Lokk - Lock - Kansi - Granj
b Réservoir - Tank - Reservoir - Wassertank - Serbatoio dell'acqua - Depósito - Depósito - Δοχείο - Hazne - Beholder - Tank - Behållare - Vesisäiliö - مخزن - 물 탱크
c Niveau d'eau - Water level - Waterpeil - Wasserstandanzeige - Livello dell'acqua - Nivel de agua - Nivel de água - Στάθμη νερού - Su seviyesi - Vandniveau - Vannivå - Vattennivå - Vedentason näyttö - سطح آب - مستوى الماء - 물수위창
d Porte-filtre - Filter holder - Filterhouder - Filterträger - Alloggio del filtro - Portafiltros - Portafiltro - Θήκη φίλτρου - Filtre desteği - Filterholder - Filterholder - Filterhållare - Suodatinkotelo - نگهدار فيتر - حاملة الفلتر - 필터 - 홀더
e Plaque-chauffante** - Warming plate** - Opwarmplaat** - Heizplatte** - Piastra riscaldante** - Placa calefactora** - Placa de aquecimento** - Θερμαινόμενη πλάκα** - Isinan levha** - Varmeplade** - Varmeplate** - Värmeplatta** - Lämpölevy** - ** لوحة التسخين ظرف كرم كردن ** لوحة ** ^1 ** ^2 ** ^3 ** ^4 ** ^5 ** ^6 ** ^7 ** ^8 ** ^9 ** ^10 ** ^11 ** ^12 ** ^13 ** ^14 ** ^15 ** ^16 ** ^17 ** ^18 ** ^19 ** ^20 ** ^21 ** ^22 ** ^23 ** ^24 ** ^25 ** ^26 ** ^27 ** ^28 ** ^29 ** ^30 ** ^31 ** ^32 ** ^33 ** ^34 ** ^35 ** ^36 ** ^37 ** ^38 ** ^39 ** ^40 ** ^41 ** ^42 ** ^43 ** ^44 ** ^45 ** ^46 ** ^47 ** ^48 ** ^49 ** ^50 ** ^51 ** ^52 ** ^53 ** ^54 ** ^55 ** ^56 ** ^57 ** ^58 ** ^59 ** ^60 ** ^61 ** ^62 ** ^63 ** ^64 ** ^65 ** ^66 ** ^67 ** ^68 ** ^69 ** ^70 ** ^71 ** ^72 ** ^73 ** ^74 ** ^75 ** ^76 ** ^77 ** ^78 ** ^79 ** ^80 ** ^81 ** ^82 ** ^83 ** ^84 ** ^85 ** ^86 ** ^87 ** ^88 ** ^89 ** ^90 ** ^91 ** ^92 ** ^93 ** ^94 ** ^95 ** ^96 ** ^97 ** ^98 ** ^99 ** ^100 **
f Verseuse* - Jug* - Koffiekan* - Kanne* - Caraffa* - Jarra* - Jarra* - Kaváta* - Sürahi* - Kande* - Kanne* - Kanna* - Kannu* - *ابريق - *عربية | 용기 *
g Cuillère doseuse - Dosing spoon - Maatlepel - Dosierlöffel - Cucchiaio dosatore - Cuchara dosificadora - Colher doseadora - Meζούρα - Ölçme kaşığı - Måleske - Doseringsskje - Kaffemätt - Mittalusikka - قاشق به ميزان دور - ملعقة قياس - 계량 ス폰

1

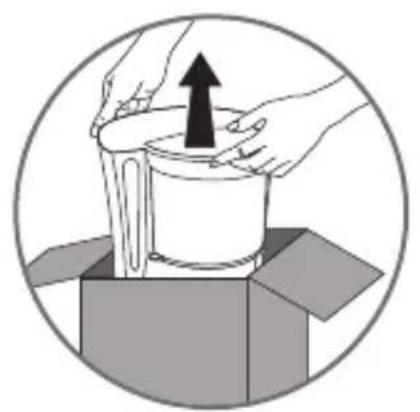

Illustration of hands holding a cup and an open box, with an upward arrow indicating motion (no text or symbols)

Illustration of a hand cleaning a cylindrical container with a cloth (no text or symbols)

OK

fig.1
2

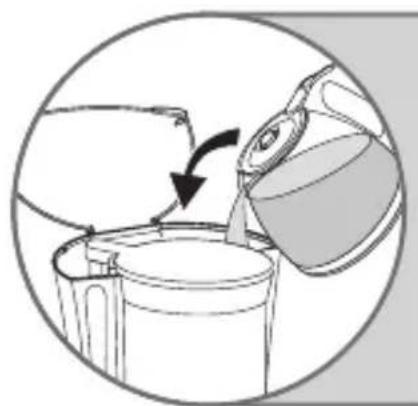

Illustration of a hand pouring liquid from a container into a bottle, enclosed in a circular frame (no text or symbols)

Diagram of a toilet and water dispenser with an upward arrow indicating flow or movement (no text or symbols)

Illustration of a hand pouring liquid into a container with a curved arrow indicating flow direction (no text or symbols)

fig.2
3

Diagram of a mechanical device with two cylindrical components and an arrow indicating rotation (no text or symbols)

Diagram of a kitchen pot with an arrow indicating a process or operation (no text or symbols present)

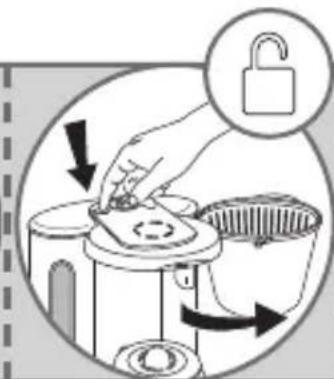

Diagram illustrating a lock mechanism with labeled components and directional arrows indicating process flow

Diagram of a kitchen appliance with a circular arrow indicating rotation (no text or symbols)

fig.3
* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhaengigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallista - حسب الالعربية، مبند 에 따라다릅니다

4

fig.4

5

N°4N°2

fig.5
6

Illustration of a hand pouring dark liquid into a bucket with a downward arrow indicating flow (no text or symbols)

fig.6

* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhaengigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallista - حسب المليدّه - 따라다릅니다

7

Circular diagram with a central circular element and curved arrows, flanked by two icons below (no text or symbols)

fig.7
8

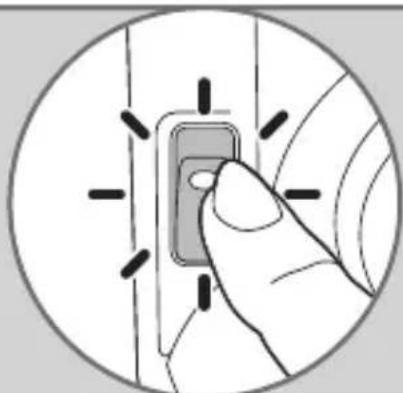

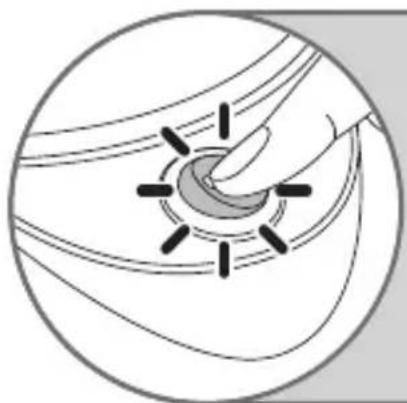

Diagram of a hand pressing a circular button on a curved surface, with no text or symbols present.

Hand inserting a small rectangular component into a circular frame, no text or symbols visible

Hand pressing a button on a circular interface (no text or symbols visible)

fig.8
9

Illustration of a hand pouring liquid into a container with a cup nearby (no text or symbols)

Illustration of a person using a mug to lift a cup, showing two different states of lifting (no text or symbols present)

fig.9
* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modelo - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhaengigt af modellen - Ahengig av modell - Beroende på modell - Riippuu mallista - حسب مويّد- م vessels 에 따라 다릅니다

10

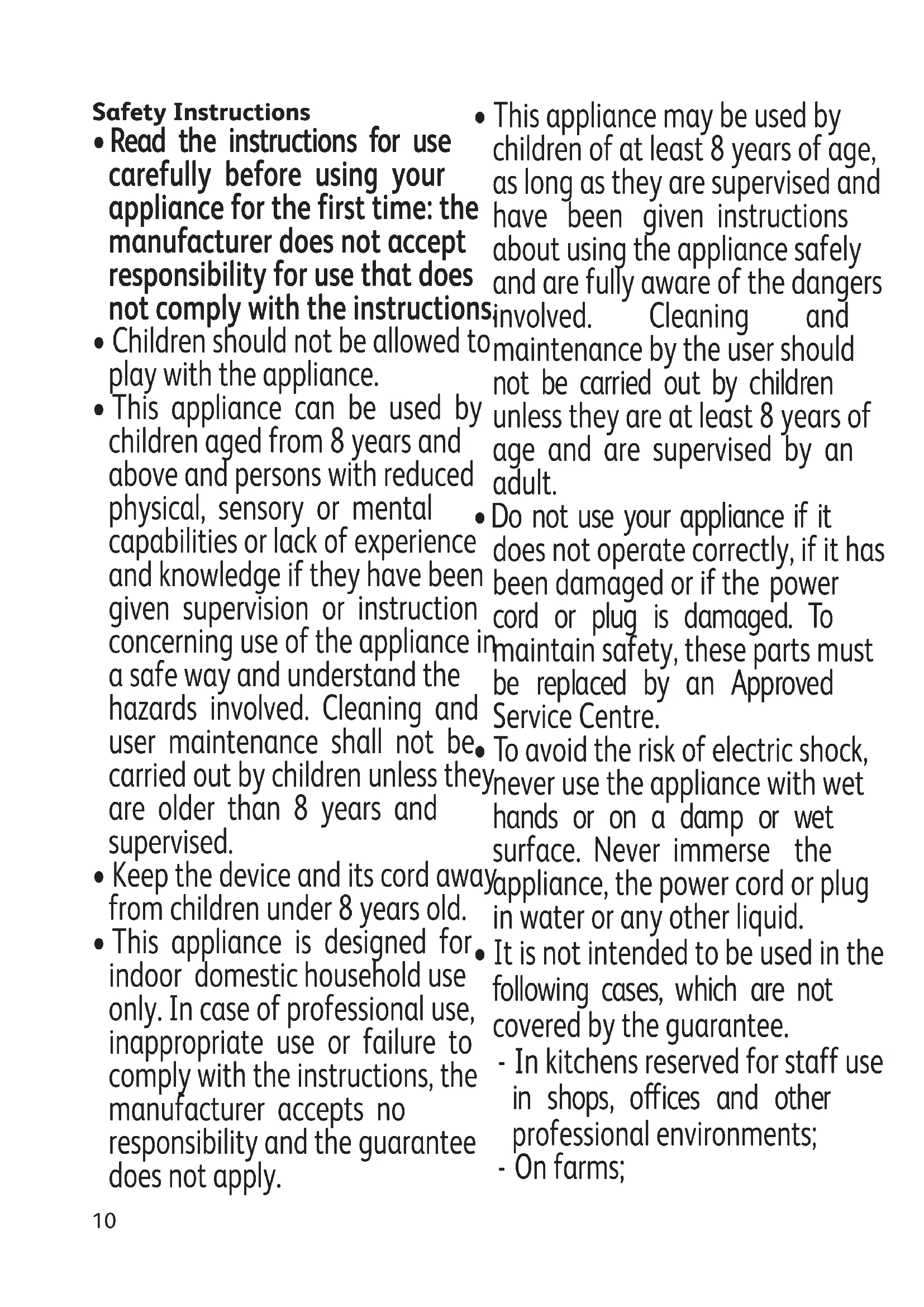

- Read the instructions for use carefully before using your appliance for the first time: the manufacturer does not accept responsibility for use that does not comply with the instructions;

- Children should not be allowed to play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be carried out by children unless they are older than 8 years and supervised.

- Keep the device and its cord away from children under 8 years old.

- This appliance is designed for indoor domestic household use only. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee does not apply.

- This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and to maintenance by the user should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.

- Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged. To maintain safety, these parts must be replaced by an Approved Service Centre.

• To avoid the risk of electric shock, eYnever use the appliance with wet hands or on a damp or wet surface. Never immerse the ayappliance, the power cord or plug in water or any other liquid.

- It is not intended to be used in the following cases, which are not covered by the guarantee.

• In kitchens reserved for staff use in shops, offices and other professional environments;
• On farms;

- By hotel or motel clients, or on other residential premises; • - In bed and breakfast accommodation and other similar environments.

- For your safety, this appliance meets applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food articles, Environment, etc.).

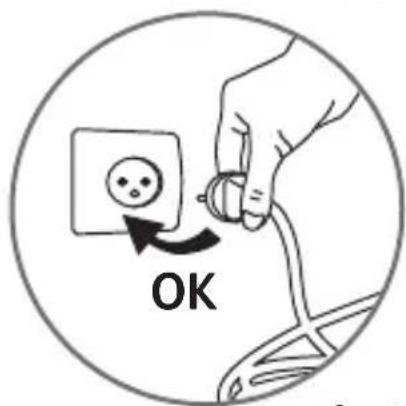

- This appliance is designed to function on AC current only. Before using it for the first time, check that your mains supply voltage matches that indicated on the appliance data plate.

- Any connection error will invalidate your guarantee.

- Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.

- Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance.

- This appliance is not intended to function using an external time-switch or a separate remote control system.

- Never leave the appliance unattended whilst connected to the power supply, even if for a few moments, especially where children are present.

- Do not let the power cord hang where children may reach it.

- Switch off and disconnect the appliance from the power supply before carrying out cleaning & maintenance or when not in use.

- Never disconnect the plug by pulling on the power cord.

- Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre.

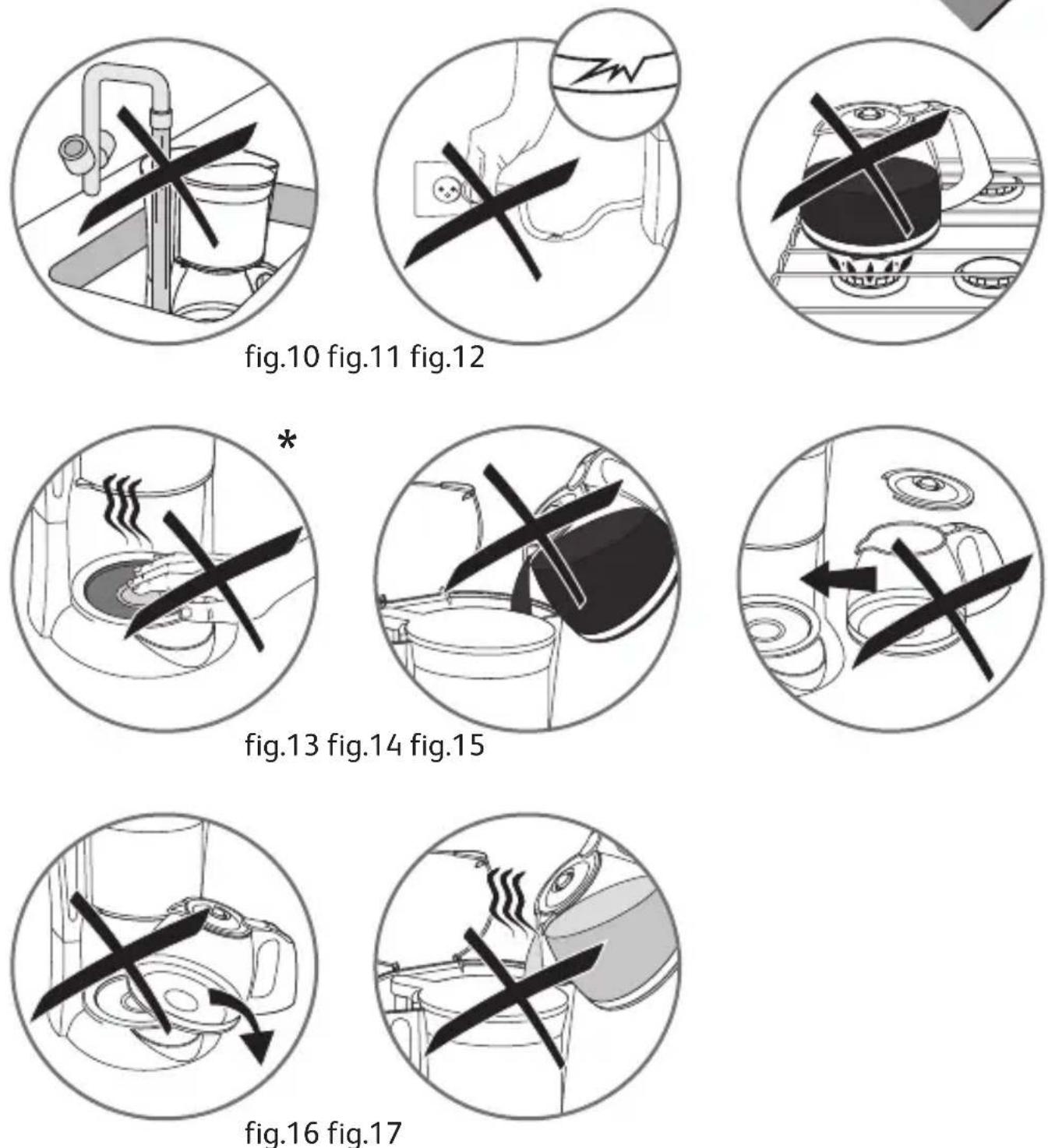

• The warming plate is very hot when the appliance is in use.

- Never place your hand on the warming plate while the coffee maker is in operation.

Allow the appliance to cool down completely before you clean and store it.

• Never insert your hand inside the thermal pot.
• Do not use the jug or thermal pot without their lids.
• Do not use the the jug or thermal pot on a flame or electric hob.
• Do not put water into the appliance when it is still warm.
• Always close the lid (a) when the coffee maker is in operation.
• All appliances are subject to rigorous quality inspection. Practical tests using appliances taken at random are conducted and this may explain any possible traces of use.
• The glass jug without a metal part is microwave and dishwasher safe (ATTENTION: the thermal pot must not be placed in the microwave or dishwasher).
• The power cord must never be close to or in contact with hot parts of the appliance, close to a source of heat or resting on sharp edges.
• Never place the appliance close to a wall or below a wall cupboard. The steam could cause damage.
• Never place the appliance below or close to easily inflammable objects (e.g. curtains, etc.).
• After switching on your coffee maker, never put your hand on the warming plate when you are removing the jug from the coffee maker. While in operation, this plate has a very high temperature, which could cause burns.

Before using for the first time

- Use your filter coffee maker without coffee the first time using the equivalent of a jug of water to rinse your coffee maker.

Preparing the coffee

(Follow figures 1 to 9)

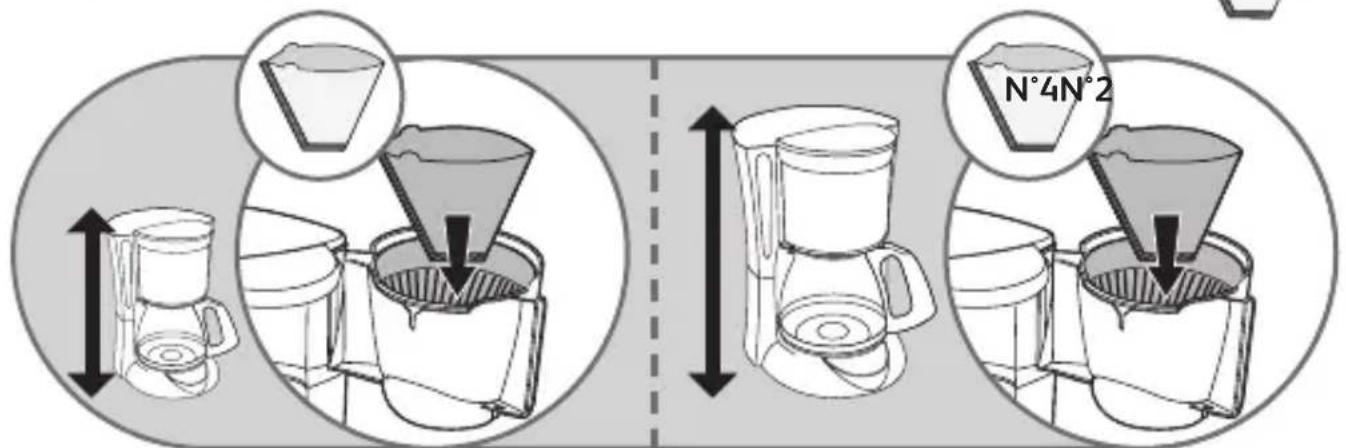

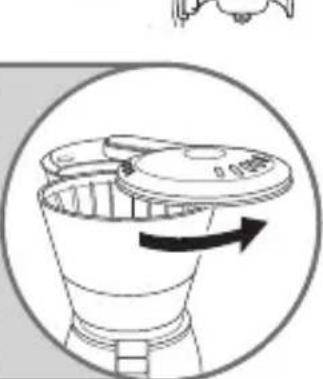

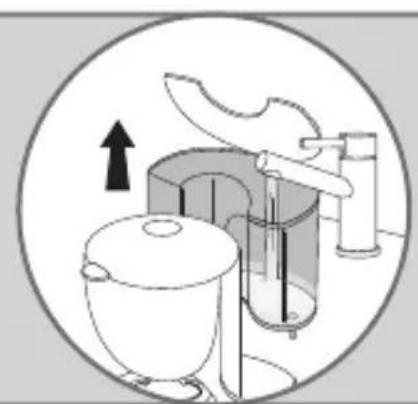

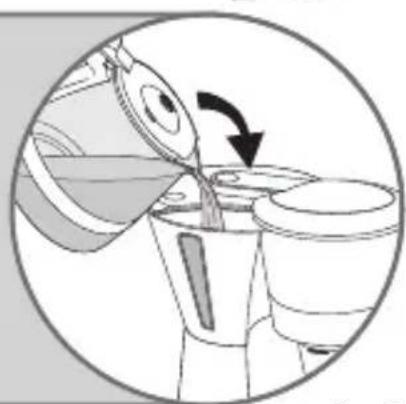

• Use only cold water and filter paper n°2 or 4 (fig.5) or the permanent filter* (fig.4).
• Do not exceed the maximum quantity of water indicated by the water level on the tank.

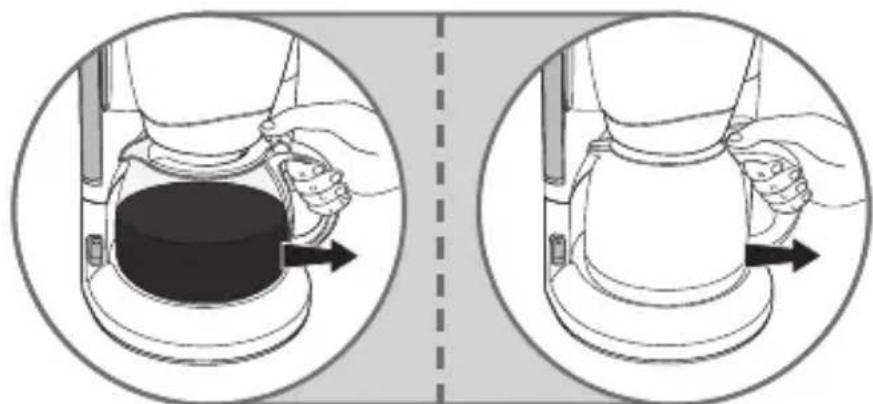

• This coffee maker has a drip stop so that you can serve coffee before the end of the cycle. Once your coffee is served, replace the jug or thermal pot* to prevent overflowing.

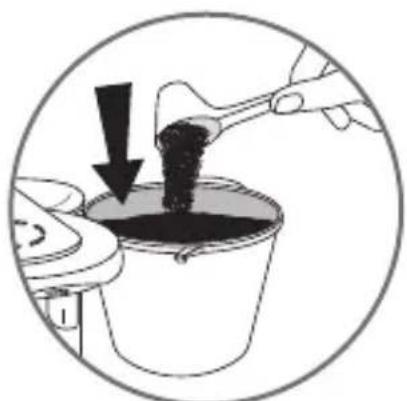

• Ground Coffee: Use one measuring spoon of ground coffee per large cup.

• Wait a few minutes before making a second pot of coffee.
• Do not make another pot of coffee if the jug already contains coffee.

Thermal pot\*

• Do not use the thermal pot without its lid.
• The thermal pot lid must be closed tightly all the way to the right to prepare the coffee and keep it warm.
• To serve the coffee, press the lever on the lid of the thermal pot downwards or unscrew the lid half a turn to the left*.
• Do not put your thermal pot in the microwave or dishwasher.
• Rinse the thermal pot in hot water before using so that it retains heat better.
• The thermal pot keeps your coffee warm for four hours maximum.

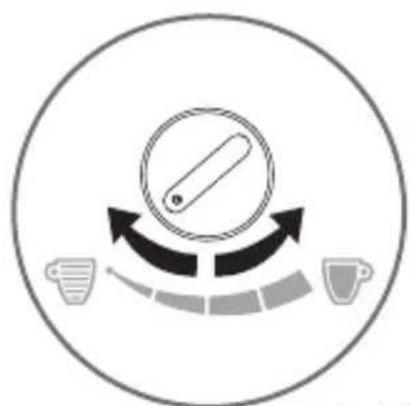

Aroma selector\* (see figure n°7)

• The aroma selector (fig.7) allows you to adjust the intensity of the coffee.
• For a stronger coffee, turn the aroma selector to the black cup.

Reheating the coffee

- Do not put the glass jug into the microwave if it has a metallic part (e.g.: metal band).

Cleaning

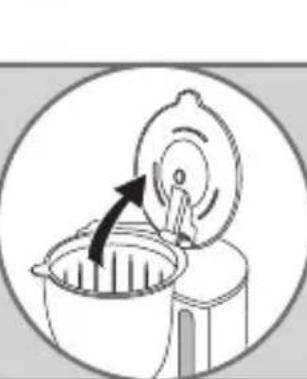

• To dispose of the used coffee grounds, remove the filter paper (fig.5) or permanent filter* (fig.4).
• Unplug and let the coffee maker cool down.

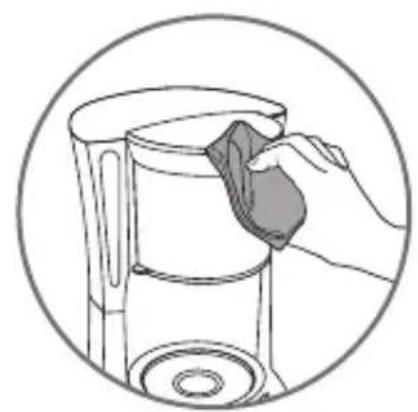

• Clean with a cloth or wet sponge.
• Do not clean the appliance when it is still hot.
• Never immerse the appliance, the power cord or plug in water or any other liquid.

Dishwasher:

• The removable filter holder is dishwasher safe.
• Only glass jugs without a metal band can be placed in the dishwasher (without lid).

Thermal jug\*

• Do not clean with abrasive cleaning products.
• Do not put your hand inside to clean (risk of breaks).
• To clean your Thermal jug, fill it with soapy water and then rinse out thoroughly.

- In cases where the jug becomes very stained by the coffee, fill it with lukewarm water, add a dishwasher detergent tablet and let it soak. Afterwards, rinse out thoroughly.

Descaling

- Descale your coffee maker every 40 uses. You can use:

• a sachet of descaling agent diluted in two large cups of water;
• or two large cups of commercially available white vinegar.

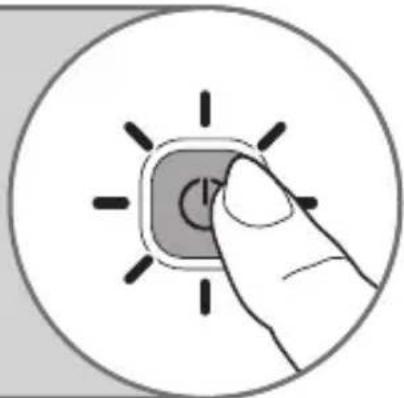

- Pour into the tank (b) and turn on the coffee maker (without coffee).

- Allow the equivalent of one cup flow into the jug or thermal pot (f) then stop.

- Allow to act for one hour.

- Restart the coffee maker to stop the flow.

- Run the coffee maker two or three times with the equivalent of one jug of water to rinse.

The guarantee excludes coffee makers that are not working or are not working properly due to lack of descaling.

Accessories\*

• Glass jug
• Thermal pot
• Permanent filter

Think of the environment!

①Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point or at an approved service centre, where it will be disposed of properly.
